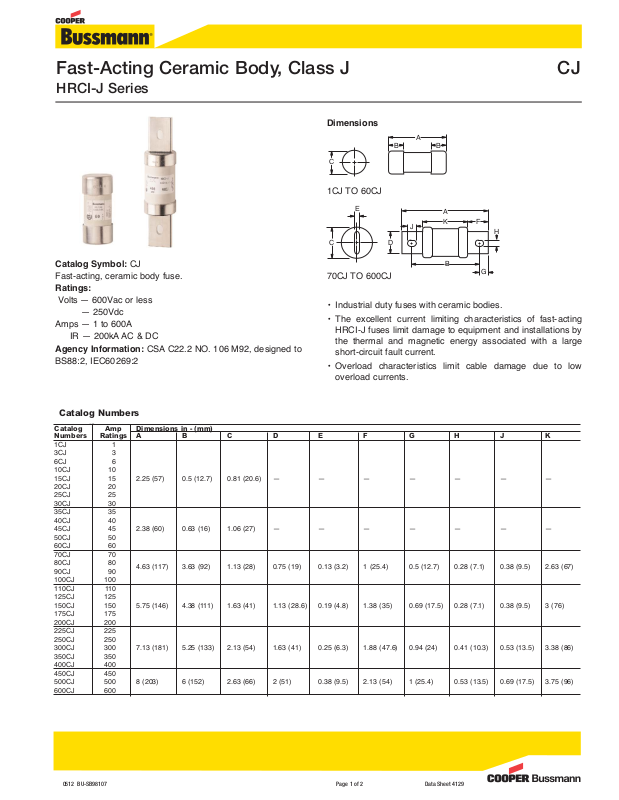

Bussmann HRCI-J Series Data Sheet

Fast-Acting Ceramic Body, Class J CJ
HRCI-J Series
Catalog Symbol: CJ Fast-acting, ceramic body fuse.
Ratings:
Volts — 600Vac or less
— 250Vdc
Amps — 1 to 600A
Agency Information: CSA C22.2 NO. 106 M92, designed to BS88:2, IEC60269:2
• Industrial duty fuses with ceramic bodies.
• The excellent current limiting characteristics of fast-acting HRCI-J fuses limit damage to equipment and installations by the thermal and magnetic energy associated with a large short-circuit fault current.
• Overload characteristics limit cable damage due to low overload currents.
1CJ TO 60CJ
70CJ TO 600CJ
0512 BU-SB98107 Page 1 of 2 Data Sheet 4129
Dimensions
Catalog Numbers
Catalog Amp Dimensions in - (mm) Numbers Ratings ABCDEF GHJK
1CJ 1 3CJ 3 6CJ 6 10CJ 10 15CJ 15 2.25 (57) 0.5 (12.7) 0.81 (20.6) ——————— 20CJ 20 25CJ 25 30CJ 30 35CJ 35 40CJ 40 45CJ 45 2.38 (60) 0.63 (16) 1.06 (27) ——————— 50CJ 50 60CJ 60 70CJ 70 80CJ 80
4.63 (117) 3.63 (92) 1.13 (28) 0.75 (19) 0.13 (3.2) 1 (25.4) 0.5 (12.7) 0.28 (7.1) 0.38 (9.5) 2.63 (67)
90CJ 90 100CJ 100 110CJ 110 125CJ 125 150CJ 150 5.75 (146) 4.38 (111) 1.63 (41) 1.13 (28.6) 0.19 (4.8) 1.38 (35) 0.69 (17.5) 0.28 (7.1) 0.38 (9.5) 3 (76) 175CJ 175 200CJ 200 225CJ 225 250CJ 250 300CJ 300 7.13 (181) 5.25 (133) 2.13 (54) 1.63 (41) 0.25 (6.3) 1.88 (47.6) 0.94 (24) 0.41 (10.3) 0.53 (13.5) 3.38 (86) 350CJ 350 400CJ 400 450CJ 450 500CJ 500 8 (203) 6 (152) 2.63 (66) 2 (51) 0.38 (9.5) 2.13 (54) 1 (25.4) 0.53 (13.5) 0.69 (17.5) 3.75 (96) 600CJ 600
Catalog Numbers
A
B
C
B
E
J
DC
A K
B
F
H
G
Peak Let-Through Curves
Time-Current Curves
Energy Let-Through Curves
100
10
1
.1
100
10
1
.1
PROSPECTIVE CURRENT (SYM. RMS kA)
PEAK CURRENT kA)
.01
30
60
100
200
400
600
AMP
RATING
