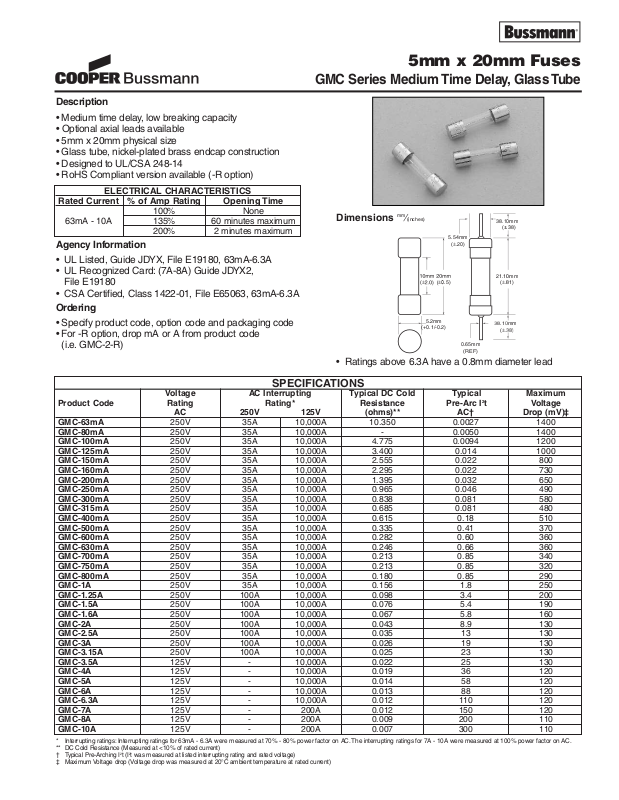

Bussmann GMC Series Data Sheet
escription
5)
0mm
(
38)
21.10mm
0mm
81)
(
38)
D
Medium time delay, low breaking capacity
•
• Optional axial leads available
• 5mm x 20mm physical size
• Glass tube, nickel-plated brass endcap construction
• Designed to UL/CSA 248-14
• RoHS Compliant version available (-R option)
ELECTRICAL CHARACTERISTICS
ated Current % of Amp Rating Opening Time
R
00% None
1
63mA - 10A 135% 60 minutes maximum
200% 2 minutes maximum
Agency Information
• UL Listed, Guide JDYX, File E19180, 63mA-6.3A
• UL Recognized Card: (7A-8A) Guide JDYX2,
File E19180
• CSA Certified, Class 1422-01, File E65063, 63mA-6.3A
Ordering
• Specify product code, option code and packaging code
• For -R option, drop mA or A from product code
(i.e. GMC-2-R)
5mm x 20mm Fuses
GMC Series Medium Time Delay, Glass Tube
Dimensions mm⁄(inches)
• Ratings above 6.3A have a 0.8mm diameter lead
Product Code Rating Rating* Resistance Pre-Arc I
Voltage AC Interrupting Typical DC Cold Typical Maximum
AC 250V 125V (ohms)** AC† Drop (mV)‡
GMC-63mA 250V 35A 10,000A 10.350 0.0027 1400
GMC-80mA 250V
GMC-100mA 250V 35A
35A 10,000A - 0.0050 1400
10,000A
4.775 0.0094 1200
GMC-125mA 250V 35A 10,000A 3.400 0.014 1000
GMC-150mA 250V 35A 10,000A 2.555 0.022 800
GMC-160mA 250V 35A 10,000A 2.295 0.022 730
GMC-200mA 250V 35A 10,000A 1.395 0.032 650
GMC-250mA 250V
35A
10,000A 0.965 0.046 490
GMC-300mA 250V 35A 10,000A 0.838 0.081 580
GMC-315mA 250V 35A 10,000A 0.685 0.081 480
GMC-400mA 250V 35A 10,000A 0.615 0.18 510
GMC-500mA 250V 35A 10,000A 0.335 0.41 370
GMC-600mA 250V 35A 10,000A 0.282 0.60 360
GMC-630mA 250V 35A 10,000A 0.246 0.66 360
GMC-700mA 250V 35A 10,000A 0.213 0.85 340
GMC-750mA 250V
35A
10,000A
0.213
GMC-800mA 250V 35A 10,000A 0.180 0.85 290
GMC-1A 250V
GMC-1.25A 250V
35A
10,000A
100A 10,000A 0.098 3.4 200
0.156 1.8 250
GMC-1.5A 250V 100A 10,000A 0.076 5.4 190
GMC-1.6A 250V 100A 10,000A 0.067 5.8 160
GMC-2A 250V 100A 10,000A 0.043 8.9 130
GMC-2.5A 250V 100A 10,000A 0.035 13 130
GMC-3A 250V 100A 10,000A 0.026 19 130
GMC-3.15A 250V
100A
10,000A
0.025
GMC-3.5A 125V - 10,000A 0.022 25 130
GMC-4A 125V
-
10,000A 0.019 36 120
GMC-5A 125V - 10,000A 0.014 58 120
GMC-6A 125V - 10,000A 0.013 88 120
GMC-6.3A 125V - 10,000A 0.012 110 120
GMC-7A 125V - 200A 0.012 150 120
GMC-8A 125V - 200A 0.009 200 110
GMC-10A 125V - 200A 0.007 300 110
* Interrupting ratings: Interrupting ratings for 63mA - 6.3A were measured at 70% - 80% power factor on AC. The interrupting ratings for 7A - 10A were measured at 100% power factor on AC.
** DC Cold Resistance (Measured at <10% of rated current)
ypical Pre-Arching I
T
†
Maximum Voltage drop (Voltage drop was measured at 20°C ambient temperature at rated current)
‡
2
as measured at listed interr
t (I2t w
upting r
ating and r
ated v
oltage)
2
t Voltage
0.85
23
320
130
SPECIFICATIONS
.1
1
10
100
CURRENT IN AMPERES
100
10
1
.1
.01
TIME IN SECONDS
62mA
AMPERE
RA
TING
80mA
100mA
125mA
150mA
200mA
250mA
300mA
315mA
400mA
500mA
750mA
800mA1A1.5A
1.6A
2A
2.5A
3A
3.5A
4A
5A
6A
6.3A7A8A
10A
GMC Series Medium Time Delay, Glass Tube
TIME CURRENT CURVE
5mm x 20mm Fuses
V
www
OC-2596 10/05
© Cooper Electronic
Option Code Description
V Axial leads - copper tinned wire with nic
-R RoHS compliant version
Packaging Code Description
BK 100 pieces of fuses packed into a cardboard carton
BK1 1,000 pieces of fuses packed into a poly bag
TR2 1,500 pieces of fuses packed into tape on a reel
isit us on the web at:
.CooperET
echnologies 2005
T
.com
Cooper Electronic
3601 Quantum Boule
Boynton Beach, FL 33426-8638
1-561-752-5000
el:
T
1-561-742-0134
ax:
F
Toll Free: 1-888-414-2645
North America
echnologies
T
ard
v
OPTION CODE
CKA
A
P
Cooper Bussmann
Bo
.
.O
P
St. Louis, MO 63178-4460
1-636-394-2877
el:
T
1-800-544-2570
ax:
F
el plated brass overcaps
k
GING CODE
x 14460
Europe
Cooper Electronic
Cooper (UK) Limited
Burton-on-the-Wolds
Leicestershire • LE12 5TH UK
+44 (0) 1509 882 737
el:
T
Fax: +44 (0) 1509 882 786
echnologies
T
Asia Pacific
Cooper Electronic
alan Kilang
1 J
#06-01 Pacific Tech Centre
Singapore 159303
+65 278 6151
el:
T
Fax: +65 270 4160
Timor
T
echnologies
