Bussmann Circuit Protection Catalog

Volume 4B: Circuit Protection
Bussmann series solutions

Don't miss a sale or an opportunity to upgrade your fuse protection

Three tiers offer distinct levels of circuit protection

1. Ultimate - Unique element designs deliver a powerful

combination of operating characteristics in one fuse — fast short­circuit protection, current limitation, and time-delay with up to 300
kA interrupting ratings.

2. Advanced - Choose between fast-acting, short-circuit, current

limiting protection or time-delay energy efficient, current limiting
protection based on the application with 200 kA interrupting
ratings.

Ultimate

LPN-RK-(amp)SP

Class RK1 - 250 V

See page 1-18

Advanced Advanced

FRN-R-(amp)

Class RK5 - 250 V

See page 1-23

3. Basic - Basic single-element protection for service, feeder and

branch circuit applications with up to 100 kA interrupting ratings.

The arrows below show you the way

CUBEFuse™ protection

For finger-safe protection in a small footprint up to 600 V and 100
A, upgrade to the time-delay or fast-acting CUBEFuse. Amp rating
rejection feature helps prevent overfusing in the CUBEFuse holder
(page 1-11) or CCP-CF UL 98 disconnect switch (page 11-4).

Basic

NON-(amp)

Class H(K) - 250 V

See page 1-15

KTN-R-(amp)

Class RK1 - 250 V

See page 1-21

FCF(amp)

Class CF fast-acting

Finger-safe CUBEFuse up

to 100 A with amp rating
rejecting holders to help

prevent overfusing

See page 1-9

TCF(amp)

Class CF time-delay

Finger-safe CUBEFuse up

to 100 A with amp rating
rejecting holders to help

prevent overfusing

See page 1-8

LPS-RK-(amp)SP

Class RK1 - 600 V

See page 1-18

LPJ-(amp)SP

Class J time-delay

See page 1-13

LP-CC-(amp)

Class CC time-delay

See page 1-5

FRS-R-(amp)

Class RK5 - 600 V

See page 1-23

KTS-R-(amp)

Class RK1 - 600 V

See page 1-21

JKS-(amp)

Class J fast-acting

See page 1-14

FNQ-R-(amp)*

Class CC time-delay

See page 1-6

NOS-(amp)

Class H(K) - 600 V

See page 1-15

KTK-R-(amp)

Class CC fast-acting

See page 1-7

KRP-C-(amp)SP

Class L time-delay

See page 1-16

* FNQ-R fuses are suggested on primary of control transformers - do NOT upgrade to LP-CC.

KTU-(amp)

Class L fast-acting

See page 1-17

Class L time-delay

KLU-(amp)

See page 1-18

Innovative overcurrent and

overvoltage solutions

Fuses

Fusible accessories
and gear

Introduction

Contents

Description Catalog section

Selecting fused circuit protection Introduction

Low voltage branch circuit fuses 1

Low voltage supplemental fuses 2

Electronic, PCB and small dimension fuses 3

High speed fuses 4

IEC and British Standard fuses 5

Photovoltaic fuses, holders, blocks and SPDs 6

Medium voltage fuses 7

Fuse blocks and holders 8

Power distribution and terminal blocks 9

Connector products 10

Disconnect switches 11

Quik-Spec™ electrical gear 12

Surge protective devices 13

Telecom protection products 14

Accessories 15

Fuse and fuse block cross reference

Catalog number index

Low-Peak™ Upgrade program and fuse inventory
consolidation

16

Inside back cover

Surge
protective
devices

Front cover depicts Eaton Bussmann series end state branding, coming soon.

Bussmann series circuit protection solutions comply with major industrial standards and agency requirements such as: BS, IEC, DIN, UL, NEMA, CSA, CE, C-UL, etc. and are manufactured at facilities
that are ISO 9000 certified.

This catalog is intended to present product data and provide technical information that will help the end user with design application. Eaton reserves the right, without notice, to change design or
construction or any products and to discontinue or limit distribution of any products. Eaton also reserves the right to change or update, without notice, any technical information contained in this catalog.
Once a product has been selected, it should be tested by the user in all possible applications. Further, Eaton t akes no responsibility for errors or omissions contained in this catalog, or for misapplication
of any Eaton product. Extensive product information is available in the Eaton product data sheets available on line at Eaton.com/bussmannseries.

©2017 Eaton

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

i

Introduction

Selecting fused circuit protection

The following fuse selection tables are based on the 2017 NEC and
provide fuse recommendations for the listed applications.

These are only suggestions. Final fuse selection should be
performed by qualified personnel able to fully assess an application's

Application Engineering can be reached via phone (toll-free 855-287­7626 ) and email ([e-mail]).

To locate the fuse recommendation product pages, use the index
starting on page 16-4.

circuit protection requirements.

If you need assistance in selecting a fuse, contact the Eaton
Application Engineering team Monday - Friday, 7:00 a.m. - 5:00 p.m.
Central time.

Ballasts

Location Type Notes Fuse recommendation Fuse holder recommendation

GLR, GMF, GRF HLR

GLQ, GMQ HLQ

BAF, KTK, FNM, FNQ HPF, HPS

KTK-R, FNQ-R, LP-CC HPS-RR, HPF-RR

BBS HPS-L, HPF-L

SC up to 15 amps HPF-EE, HPS-EE

SC 20 amp HPF-JJ, HPS-JJ

SC 25-30 amps HPF-FF, HPS-FF

BAF, KTK, FNM, FNQ HEB, HEX, HPC-D

KTK-R, FNQ-R, LP-CC HEY, HEZ

Indoor

Outdoor

Fluorescent

All other (mercury,
sodium, etc.)

Mercury, sodium, etc.

Consult fixture manufacturer for size
and type

Consult fixture manufacturer for size
and type

Consult fixture manufacturer for size
and type.

Capacitors (NEC 460)

Protected by Sizing Fuse/volt recommendation

Time-delay fuses

Non time-delay fuses

On loadside of motor
running overcurrent
device

150% to 175% of Full Load Current (FLC)

250% to 300% of Full Load Current (FLC)

Protection recommended as shown, but not required —

Up to 250 V: LPN-RK_SP, FRN-R

Up to 600 V: LPS-RK_SP, FRS-R, LPJ_SP, LP-CC, FNQ-R, TCF

Up to 250 V: KTN-R

Up to 300 V: JJN

Up to 600 V: KTS-R, JKS, KTK-R, JJS, FCF_RN

Electric heat (NEC 424)

Heating type Sizing Fuse/volt recommendation

Space heating

Boilers (ASME
rated and stamped
vessel)

125% or next size larger but in no case larger than 60
amps for each subdivided load

125% or next size larger but in no case larger than 150
amps for each subdivided load

Up to 250 V: LPN-RK_SP, FRN-R, NON

Up to 300 V: JJN

Up to 480 V; SC 25 to SC 60

Up to 600 V: LPS-RK_SP, FRS-R, NOS, JJS, LPJ_SP, LP-CC,
FNQ-R, JKS, KTK-R, TCF, SC 1/2 to SC 20, FCF_RN

ii

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

Introduction

Mains, feeders, branches (NEC 430)

Circuit type Circuit loads Sizing Fuse/volt recommendation

Up to 250 V: LPN-RK_SP, FRN-R

No motor load 100% of non-continuous load plus 125% of continuous load

Feeder circuits
≤ 600 A

Main, branch
and feeder
circuits (601­6000 A)

Combination motor
and other loads

Motor loads

—

Motor loads (NEC 430)

150% of the FLA of largest motor (if there are two or more
motors of same size, one is considered to be the largest)
plus the sum of all the FLA for all other motors plus 100% of
non-continuous, non-motor load plus 125% of continuous, non­motor load. A maximum of 175% (or the next standard size if
175% does not correspond to a standard size) is allowed for all
but wound rotor and all DC motors.

150% of the FLA of largest motor (if there are two or more
motors of same size, one is considered to be the largest) plus
the sum of all the FLA for all other motors. A maximum of
175% (or the next standard size if 175% does not correspond
to a standard size) is allowed for all but wound rotor and all DC
motors.

150% to 225% of full load current of largest motor plus 100%
of full load current of all other motors plus 125% of continuous
non-motor load plus 100% of non-continuous non-motor load

Up to 300V: JJN

Up to 600 V: LPS-RK_SP, FRS-R, JJS,
LPJ_SP, LP-CC, JKS, KTK-R

Up to 250 V: LPN-RK_SP, FRN-R

Up to 600 V: LPS-RK_SP, FRS-R,
LPJ- SP, LP-CC

Up to 600 V: KRP-C_SP

Circuit voltage Fuse type Fuse sized for Sizing Fuse/volt recommendation

Up to 250 V: FRN-R

Up to 600 V: FRS-R

Up to 250 V: LPN-RK_SP

Up to 600 V: LPS-RK_SP

Up to 250 V: LPN-RK_SP,
FRN-R

Up to 600 V: LPS-RK_SP,
FRS-R, LPJ_SP, TCF

Up to 250 V: KTN-R

Up to 300 V: JJN

Up to 600 V: KTS-R, JJS,
LP-CC, JKS, KTK-R, FCF_RN

Up to 2400 V: JCK, JCK-A

Up to 4800 V: JCL, JCL-A

Up to 7200 V: 7.2 WKMSJ

600 V and less

Above 600 V

Backup overload with
motor starter and short­circuit protection

Time-delay fuses

Short-circuit only

Non-time delay and
all Class CC fuses

— —

Short-circuit only

125% of motor FLA or next size larger

130% of motor FLA or next size larger

175% of motor FLA or next size larger. (If
175% does not correspond to a standard
size). If this will not allow motor to start,
due to higher than normal inrush currents
or longer than normal acceleration times (5
seconds or greater), fuse may be sized up to
225% or next size smaller. NOTE: 150% for
wound rotor and all DC motors.

Maximum of 300% of motor FLA or next
size larger (if 300% does not correspond to
a standard size). If this will not allow motor
to start due to higher than normal inrush
currents or longer than normal acceleration
times (5 seconds or greater), fuses through
600 amps may be sized up to 400% or next
size smaller. Note: 150% for wound rotor
and all DC motors.

Compare the minimum melting time-current
characteristics of the fuses with the time­current characteristics of the overload relay
curve. The size fuse which is selected
should be such that short-circuit protection
is provided by the fuse and overload
protection is provided by the controller
overload relays.

Solenoids (coils)

Fuse type Sizing Fuse/volt recommendation

Branch circuit

Supplemental

Size at 125% or next size smaller

Size at 125% or next size larger

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Up to 250 V: LPN-RK_SP, FRN-R (best)

Up to 600 V: LPS-RK_SP, FRS-R, LPJ_SP, LP-CC, FNQ-R, TCF

Up to 32 V: MDL 9-30 A, FNM 20-30 A

Up to 125 V: MDA 25-30 A, FNM 12-15 A

Up to 250 V: MDL 1/16-8 A, MDA 2/10-20 A, FNM 1/10-10 A, MDQ 1/100-7 A

Up to 500 V: FNQ 1/10-30 A

Eaton.com/bussmannseries

iii

Introduction

Transformers 600 V nominal or less (NEC 450.3)

Thermal

Protection type

Primary
only (Note:
components on
the secondary
still need
overcurrent
protection)

Primary and
secondary

overload
protection

— —

Without —

With

Transformer
impedance

≤ 6%

> 6% but
< 10%

Rated
current

Primary
< 2 amps

Primary
≥ 2 amps
but < 9
amps

Primary ≥
9 amps

Secondary
< 9 amps
(see A)

Secondary
≥ 9 amps
(see B)

Secondary
< 9 amps
(see C)

Secondary
≥ 9 amps
(see D)

Secondary
< 9 amps
(see E)

Secondary
≥ 9 amps
(see F)

Optimum
protection* NEC maximums Fuse/volt recommendation

125% or next
size larger

125% or next
size larger

125% or next
size larger

Primary and
secondary
fuses at 125%
of primary and
secondary FLA
or next size
larger

300% or next size smaller (see
NEC 430.72(C) for control circuit
transformer maximum of 500%)

167% or next size smaller

125% or next size larger**

% of primary FLA (or next FLA
size smaller)

A = 250%

B = 250%

C = 600%

D = 600%

E = 400%

F = 400%

% of secondary FLA

A = 167% or next size smaller

B = 125% or next size larger**

C = 167% or next size smaller

D = 125% or next size larger**

E = 167% or next size smaller

F = 125% or next size larger**

Up to 250 V: LPN-RK_SP,
FRN-R

Up to 600 V: KRP-C_SP,
LPJ_SP, LPS-RK_SP, FNQ-R,
FRS-R, TCF

* When sizing the primary fuse for optimum protection, verify the inrush current with the transformer manufacturer and review fuse time-current characteristics.
** When 125% of FLA corresponds to a standard rating, the next larger size is not permitted.

iv

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

Transformers over 600 V nominal (NEC 450.3)

Supervised installations

Introduction

Protection for

Primary only

Primary and
secondary

Transformer
impedance Primary Sizing

N/A

≤ 6% At code maximum of 300%

> 6% but
< 10%

Unsupervised installations

Transformer
impedance Primary Sizing

At code
maximum of
300% or next

≤ 6%

> 6% but < 10%

standard size if
300% does not
correspond to a
standard rating

At code
maximum of
300% or next
standard size if
300% does not
correspond to a
standard rating

Secondary
volts Secondary sizing Fuse/volt recommendation

Code maximum of 250%
or next standard size if
250% does not correspond
to a standard rating
Note: Components on
the secondary still need
overcurrent protection

At code maximum of 300%

Secondary
volts Secondary sizing Fuse/volts recommendation

At code maximum of 250% or

> 600 V

≤ 600 V

> 600 V

≤ 600 V

next standard size if 250% does
not correspond to a standard
rating

At code maximum of 125% or
next standard size if 125% does
not correspond to a standard
rating

At code maximum of 225% or
next standard size if 225% does
not correspond to a standard
rating

At code maximum of 125% or
next standard size if 125% does
not correspond to a standard
rating

N/A N/A

> 600 V

≤ 600 V

> 600 V

≤ 600 V

At code maximum
of 250%

At code maximum
of 250%

At code maximum
of 225%

At code maximum
of 250%

Up to 250 V: LPN-RK_SP, FRN-R

Up to 600 V: LPS-RK_SP, LPJ-_SP, KRP-C_SP, FRS-R,
FNQ-R, TCF

Up to 2475 V: 2NCLPT, 2CLPT

Up to 2.75 kV: 2CLE, 2HLE

Up to 2750/5500 V: JCW

Up to 5.5 kV: 5HLE, 5CLE, 5HCL, 5BHCL, 5BHLE,
5AHLE, JCY, MV05, 5.5 ABWNA, 5.5 AMWNA, 5.5 FFN

Up to 7.2 kV: 7.2 AMWNA, 7.2 TDLSJ, 7.2 TFLSJ

Up to 8.3 kV: 8HLE, 8CLE, 8BHLE, 8AHLE, 8CLPT,
8NCLPT, 8HCL, 8.25 FFN

Up to 15.5 kV: 15CLPT, 15NCLPT, 15CLE, 15HLE,
15BHLE, 15LHLE, 15HCL, 15BHCL, MV155, 15.5 CAVH

Up to 17.5 kV: 17.5 CAV, 17.5 TDM

Up to 24 kV: 24 TDM, 24 TFM, 24 FFM

Up to 36 kV: 36 CAV, 36 TDQ, 36 TFQ

Up to 38 kV: 38CLPT, 38 CAV

Up to 250 V: LPN-RK_SP, FRN-R

Up to 600 V: LPS-RK_SP, LPJ-_SP, KRP-C_SP,
FRS-R, FNQ-R, TCF

Up to 2.475 kV: 2NCLPT, 2CLPT

Up to 2.75 kV: 2CLE, 2HLE

Up to 2750/5500 V: JCW

Up to 5.5 kV: 5HLE, 5CLE, 5HCL, 5BHCL,
5BHLE, 5AHLE, JCY, MV05, 5.5 ABWNA, 5.5
AMWNA, 5.5 FFN

7 Up to 7.2 kV:.2 AMWNA, 7.2 TDLSJ, 7.2
TFLSJ

Up to 8.3 kV: 8HLE, 8CLE, 8BHLE, 8AHLE,
8CLPT, 8NCLPT, 8HCL, 8.25 FFN

Up to 15.5 kV: 15CLPT, 15NCLPT, 15CLE,
15HLE, 15BHLE, 15LHLE, 15HCL, 15BHCL,
MV155, 15.5 CAVH

Up to 17.5 kV: 17.5 CAV, 17.5 TDM

Up to 24 kV: 24 TDM, 24 TFM, 24 FFM

Up to 36 kV: 36 CAV, 36 TDQ, 36 TFQ

Up to 38 kV: 38CLPT, 38 CAV

Solid state devices (diodes, SCRs, triacs, transistors)

Protection type Sizing Fuse/volts recommendation

Up to 130 V: FWA

Up to 250 V: FWX

Short-circuit only

F, S, K, and 170M fuse families sized up to several sizes
larger than full load RMS or DC rating of device

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Up to 500 V: FWH

Up to 600 V: FWC, KAC, KBC

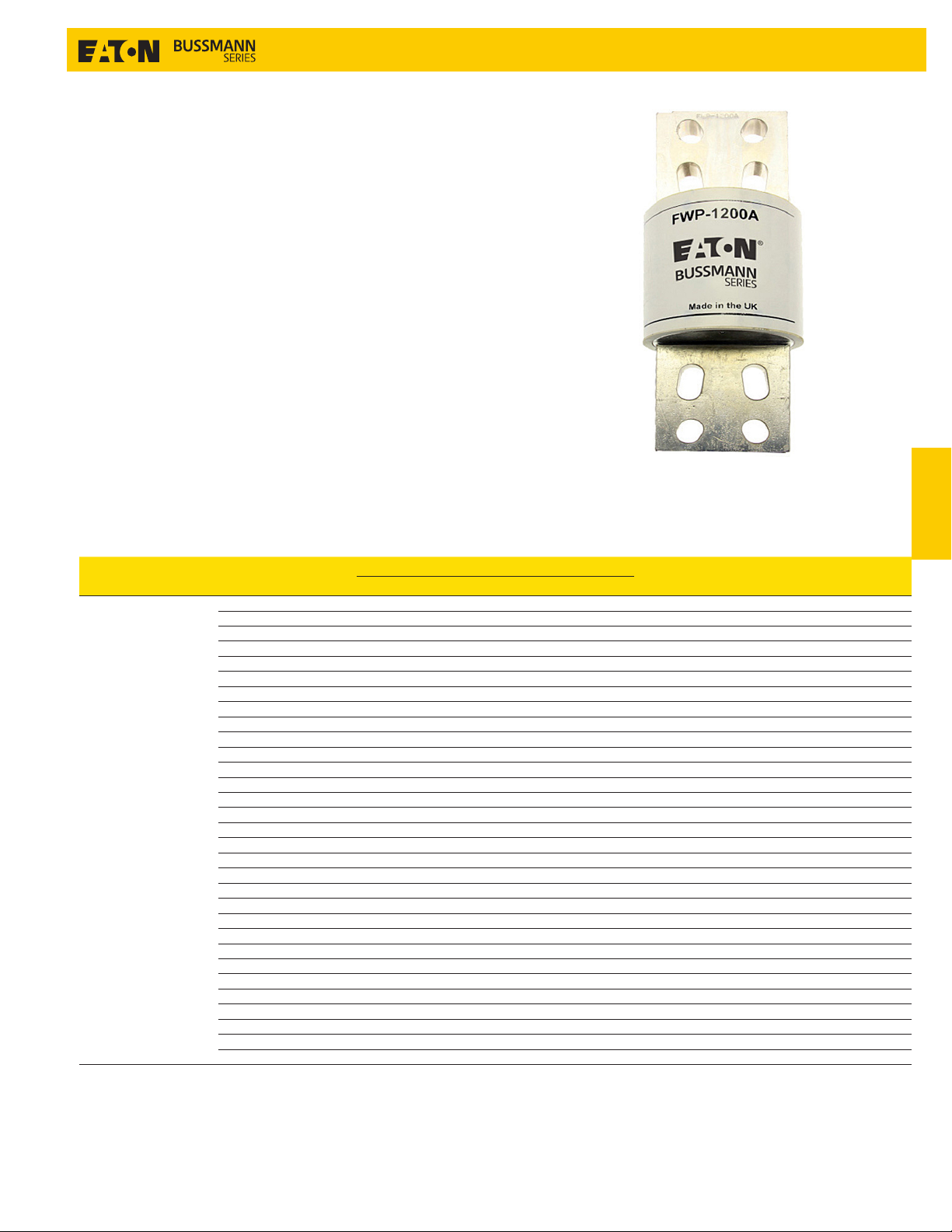

Up to 700 V: FWP, 170M_, SPP

Up to 1000 V: FWJ, 170M_, SPJ

Eaton.com/bussmannseries

v

BUSSMANN

SERIES

Do you know about
the new 2017 NEC®

SCCR requirements?

Finding out is easy.

Eaton’s Bussmann™ series handbook

Current Ratings based on the 2017 NEC

Know why SCCR is important.
Understand hazards associated with insufcient SCCR.
Know what specic NEC chapters, articles, parts and sections are involved.
Comply with Code requirements for marking and documenting SCCR.

Code changes affecting Short-Circuit

will help you:

If you’re designing, installing or inspecting equipment, download your copy at

Eaton.com/nec2017sccr.

Or, check out our comprehensive SCCR resources at

Eaton.com/bussmannseries/SCCR.

Follow us on social media to get the
latest product and support information.

Contents

Low voltage, branch circuit fuses — 1

Bussmann series

Low-Peak™ fuses offer

the industry’s most advanced
circuit protection

Description

Fuse holder and block selection guide

Fuse reducers

Branch circuit fuse dimensions 3-4

Fuse class Fuse catalog symbol Volts

LP-CC

CC

CF

G SC 600/480 V 12

J

H(K)

L

RK1

RK5

T

Plug fuses

FNQ-R 6

KTK-R 7

TCF

FCF 9

WCF 690 V 10

TCFH_ Class CF holders 600 V 11

LPJ-_SP

LPJ-_SPI indicator

JKS 14

NON 250 V

NOS 600 V

KRP-C_SP

KRP-CL (225 to 600 A)

KTU

KLU 18

LPN-RK_SP

LPN-RK_SPI indicator

LPS-RK_SP

LPS-RK_SPI indicator

KTN-R 250 V 21-22

FRN-R

FRN-R_ID indicator

FRS-R

FRS-R_ID indicator

JJN 300 V

JJS 600 V

SL, TL and W

P, S, T and TC 28

MB Edison base circuit breakers

SA fuse adapters

Box cover units 30

600 V

600 V

600 V

600 V

250 V

600 V

250 V

600 V

125 V

Section
page

2

5

8

13

15

16

17

18-20

23-24

25-26

27

29

Low voltage,

branch circuit fuses

BUSSMANN SERIES FULL LINE CATALOG 1007 — June 2017

Eaton.com/bussmannseries

1-1

1 — Low voltage, branch circuit fuses

Fuse holder and block selection guide

Catalog pages for the blocks and holders are denoted parenthetically "()" next to their catalog symbol.

Fuse class Catalog symbol Blocks DIN-Rail holders Panel mount holders In-line holders

CC

KTK-R
LP-CC

FCF

FNQ-R

CF

TCF
WCF††

G SC

H(K) 250 V NON (250 V)

H(K) 600 V NOS (600 V)

J

LPJ
JKS

BCM (8-6)
3743 (8-14)
4421 (8-14)
4515 (8-14)

TCFH (1-11)
TCFHNW (1-11)

BG (8-15)
G (8-15)

HM25_ (8-19)
HM25060_MW* (8-24)

HM60_ (8-19)
HM60030_MW* (8-24)

JM60_ (8-31)
JM60_MW* (8-33)
JP60030 (8-30)

KRP-C

L

KRP-CL
KLU

51215**
51235**

KTU

RK1 250 V

RK1 600 V

LPN-RK
KTN-R

LPS-RK
KTS-R

RK5 250 V FRN-R

RK5 600 V FRS-R

RM25_ (8-21)
RM25_MW* (8-26)

RM60_ (8-21)
RM60_MW* (8-26)

RM25_ (8-21)
RM25_MW* (8-26)

RM60_ (8-21)
RM60_MW* (8-26)

T 300 V JJN T300 (8-35)

T up to 600 V JJN/JJS BH-0_, BH-1_, BH-3_† (8-39)

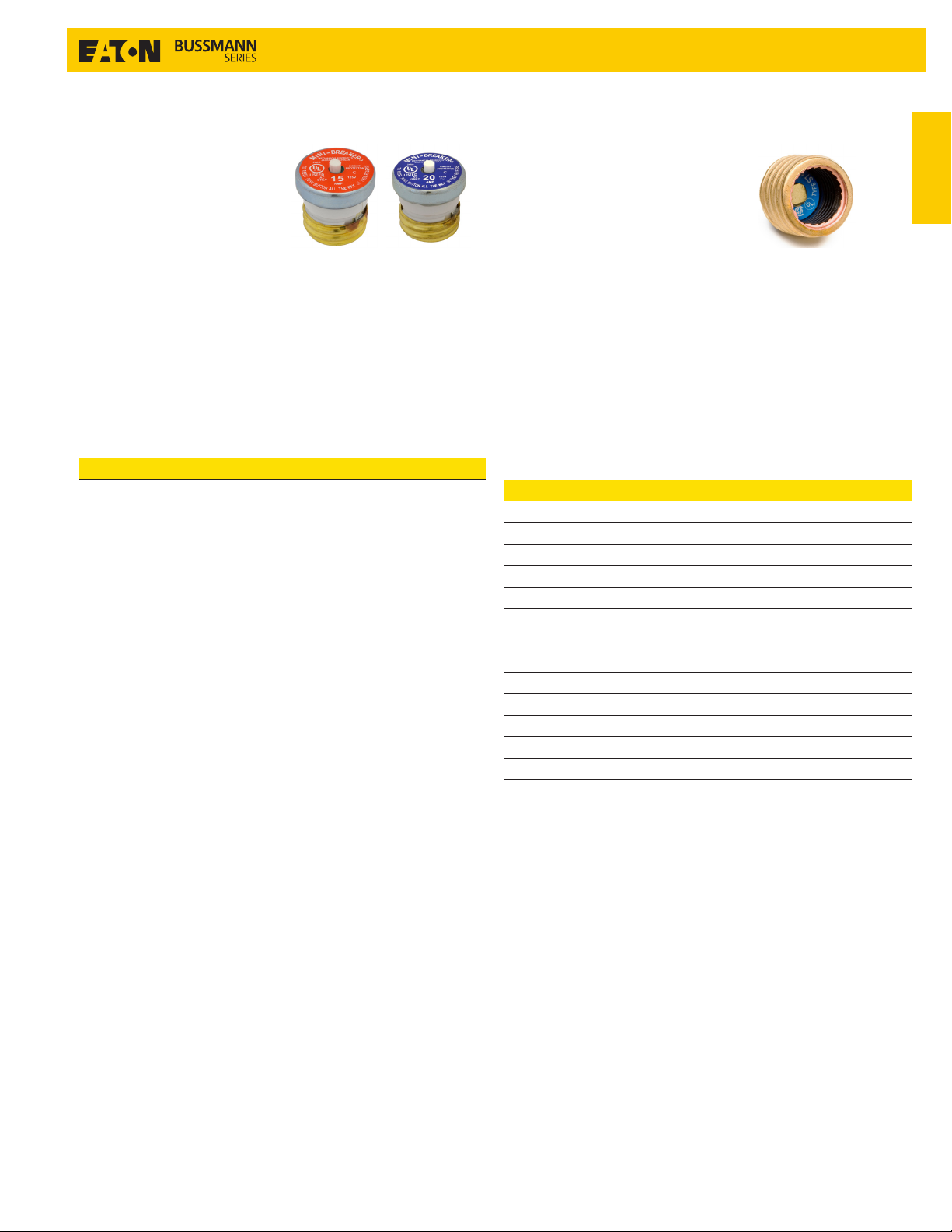

Plug fuses

* Power distribution fuse blocks.
** Up to 800 A, contact customer satisfaction at 855-287-7626 for more information.
† Various blade bolt-on up to 700 A, see data sheets for limitations.
†† WCF (wind CUBEFuse) is rated to 690 V and is not a UL Listed Class CF fuse and can only be applied in the TCFHNW holder.
††† UL 98 Listed disconnect switch, available in 1-, 2- and 3-pole versions.

P, T, TC, TL, W Edison base Box cover units (1-30) — — —

S, SL rejection base SA adapters (1-29) — — —

OPM-1038 (8-12)
OPM-NG (8-13)
CHCC (8-8)

†††

CCP-CC

CCP-CF
CCPB

†††

(11-2)

†††

(11-4)

(11-6)

—

HPF-RR (8-45)
HPS-RR (8-47)

— —

HPG-EE (15 A) (8-46)
HPS-EE (15 A) (8-47)
HPS-FF (30 A) (8-47)
HPS-JJ (20 A) (8-47)

HEY (8-55)
HEZ (8-54)

HEC (30 A) (8-51)
HEG (15 A) (8-51)
HEH (20 A) (8-51)
HEJ (60 A) (8-51)

— — —

— — —

CH_J (8-28)
JT(N) (8-29)

— —

— — —

— — —

— — —

— — —

— — —

— — —T 600 V JJS T600 (8-37)

250 V fuse reducers

Equipment fuse clip
amps

60 30 NO.263-R

100

200

400

600

* Single reducer only (pair not required).

1-2

Desired fuse (case)

amp size Catalog no. (pairs)

30 NO.213-R

60 NO.216-R

60 NO.226-R

100 NO.2621-R

100 NO.2641-R

200 NO.242-R

100 NO.2661-R

200 NO.2662-R

400 NO.2664-R*

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

600 V fuse reducers

Equipment fuse clip
amps

60 30 NO.663-R

100

200

400

600

* Single reducer only (pair not required).

Desired fuse (case)

amp size Catalog no. (pairs)

30 NO.216-R

60 NO.616-R

60 NO.626-R

100 NO.2621-R

100 NO.2641-R

200 NO.642-R

100 NO.2661-R

200 NO.2662-R

400 NO.2664-R*

Eaton.com/bussmannseries

Low voltage, branch circuit fuses — 1

A

A

A

Branch circuit fuse dimensions

Class CC — in (mm)

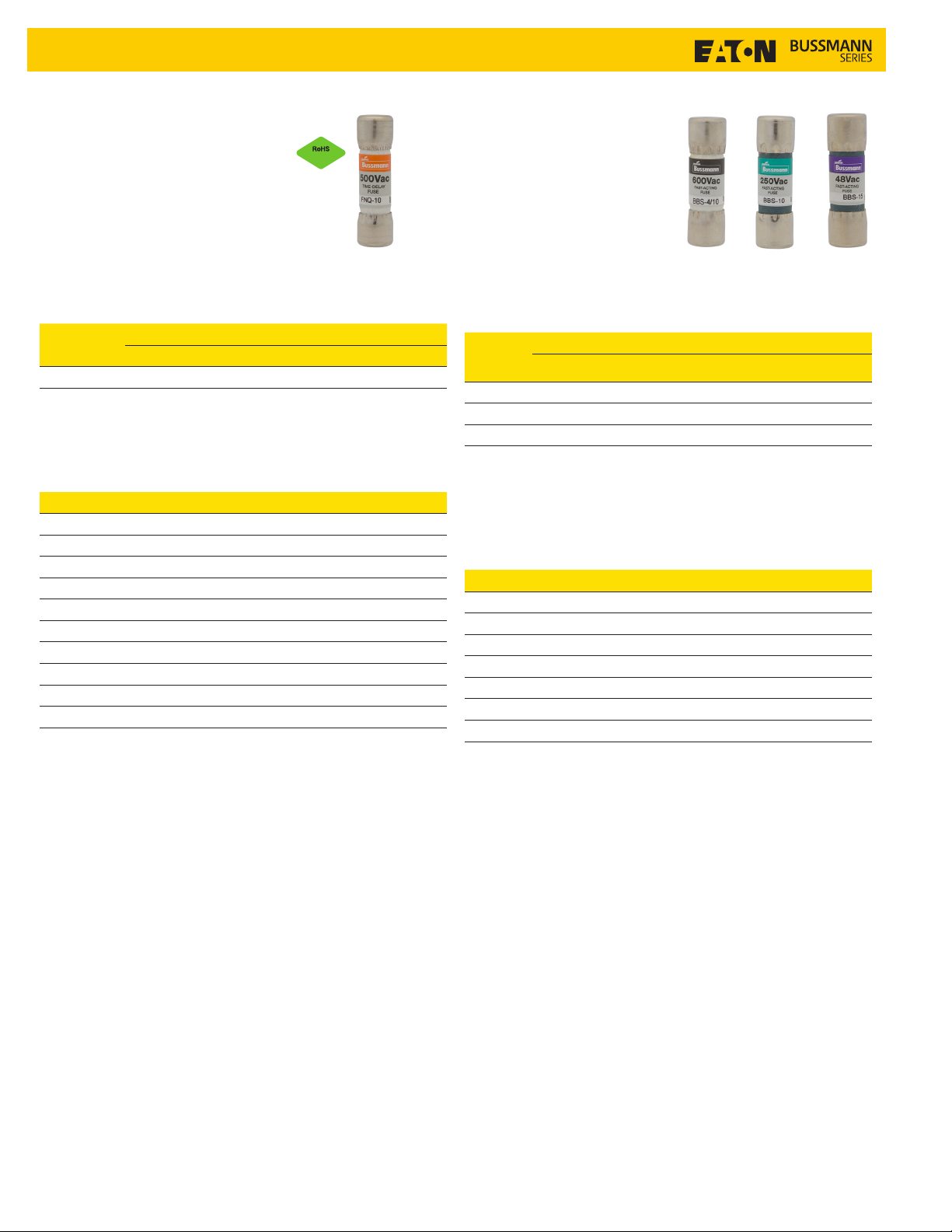

LP-CC, FNQ-R, KTK-R and LP-CC

A

B

Amp range A B

Up to 30 1.5 (38) 0.41 (10)

Class CF — in (mm)

TCF, FCF and WCF

Amp
range A B C D E F

1-15 1.88 (48) 0.75 (19) 1.0 (25) 0.23 (6) 0.63 (16) 0.28 (7)

17-1/2 1.88 (48) 0.75) (19) 1.0 (25) 0.31 (8) 0.63 (16) 0.28 (7)

20 1.88 (48) 0.75) (19) 1.0 (25) 0.31 (8) 0.63 (16) 0.28 (7)

25-30 1.88 (48) 0.75 (19) 1.0 (25) 0.31 (8) 0.63 (16) 0.28 (7)

35-40 2.13 (54) 1.0 (25) 1.13 (29) 0.36 (9) 0.63 (16) 0.38 (10)

45-50 2.13 (54) 1.0 (25) 1.13 (29) 0.44 (11) 0.63 (16) 0.38 (10)

60 2.13 (54) 1.0 (25) 1.13 (29) 0.44 (11) 0.63 (16) 0.38 (10)

70 3.01 (76) 1.0 (25) 1.26 (32) 0.49 (12) 0.58 (15) 0.38 (10)

80-90 3.01 (76) 1.0 (25) 1.26 (32) 0.49 (12) 0.58 (15) 0.38 (10)

100 3.01 (76) 1.0 (25) 1.26 (32) 0.57 (14) 0.58 (15) 0.38 (10)

Class J — in (mm)

LPJ and JKS

A

B

E

1 to 60A

Amp
range A B C D E F G H I

2.25

1-30

35-60

70-100

110 ­200

225­400

450­600

(57)

2.38
(60)

4.63
(118)

5.75
(146)

7.12
(181)

8.0
(203)

0.81
(21)

1.06
(27)

1.13
(29)

1.63
(41)

2.11
(54)

2.6
(66)

— —

— —

3.63
(92)

4.38
(111 )

5.25
(133)

6.0
(152)

2.63
(67)

3.0
(76)

3.26
(83)

3.31
(84)

C
D

H

70 to 600A

0.5
(13)

0.63
(16)

1.0
(25)

1.38
(35)

1.87
(48)

2.12
(54)

F

I

E

— — — —

— — — —

0.75

0.13

(29)

(3)

1.13

0.19

(29)

(5)

1.62

0.25

(41)

(6)

2.0

0.53

(51)

(14)

0.41
(10)

0.38
(10)

0.56
(14)

0.72
(18)

B

G

0.28
(7)

0.28
(7)

0.4
(10)

0.53
(14)

Class RK1 and RK5 — in (mm)

FRN-R, KTN-R LPN-RK (250 V) and FRS-R, KTS-R LPS-RK (600 V)

A

B

Up to 60 A

Basic dimensions are same as Class H, one-time (NON and NOS)
fuses. Note: relating to dimensional compatibility these fuses can
replace existing Class H, RK1 and RK5 fuses.

250 V fuses 600 V fuses

Amp range

Up to 30 2 (51) 0.56 (14) 5.0 (127) 0.81 (21)

35-60 3 (76) 0.81 (21) 5.5 (140) 1.06 (27)

RK5 FRN-R, FRS-R, — RK1 KTN-R, KTS-R

70-100 5.88 (149) 1.06 (27) 7.88 (200) 1.34 (34)

110-200 7.13 (181) 1.56 (40) 9.63 (245) 1.84 (47)

225-400 8.63 (219) 2.38 (61) 11.63 (295) 2.59 (66)

450-600 10.38 (264) 2.88 (73) 13.38 (340) 3.13 (80)

RK1 LPN-RK, LPS-RK

70-100 5.88 (149) 1.16 (30) 7.88 (200) 1.16 (30)

110-200 7.13 (181) 1.66 (42) 9.63 (245) 1.66 (42)

225-400 8.63 (219) 2.38 (61) 11.63 (295) 2.38 (61)

450-600 10.38 (264) 2.88 (73) 13.38 (340) 2.88 (73)

A B A B

70 to 600 A

Class T — in (mm)

JJN (300 V) and JJS (600 V)

A

B B

JJN up to 60 A
JJS up to 30 A

Amp range A B C D

300 V JJN

Up to 30 0.88 (22) 0.41 (10) — —

35-60 0.88 (22) 0.56 (14) — —

70-100 2.16 (55) 0.75 (19) 1.56 (40) 0.84 (21)

110-200 2.44 (62) 0.88 (22) 1.69 (43) 0.84 (21)

225-400 2.75 (70) 1.00 (25) 1.84 (47) 0.86 (22)

450-600 3.06 (78) 1.25 (32) 2.03 (52) 0.88 (22)

601-800 3.38 (86) 1.75 (45) 2.22 (56) 0.89 (23)

801-1200 4.00 (102) 2.00 (51) 2.53 (64) 1.08 (27)

600 V JJS

Up to 30 1.50 (38) 0.56 (14) — —

35-60 1.56 (40) 0.81 (21) — —

70-100 2.95 (75) 0.75 (19) 2.36 (60) 1.64 (42)

110-200 3.25 (83) 0.88 (22) 2.50 (64) 1.66 (42)

225-400 3.63 (92) 1.00 (25) 2.72 (69) 1.73 (44)

450-600 3.98 (101) 1.25 (32) 2.96 (75) 1.78 (45)

601-800 4.33 (110) 1.75 (45) 3.17 (81) 1.88 (48)

A

JJS 35 to 60 A

1.0 (25)

JJN 70 to 1200 A
JJS 70 to 800 A

C
D

B

B

Low voltage,

branch circuit fuses

BUSSMANN SERIES FULL LINE CATALOG 1007 — June 2017

Eaton.com/bussmannseries

1-3

1 — Low voltage, branch circuit fuses

J3 J3

Branch circuit fuse dimensions

Class L — in (mm)

KLU, KRP-C_SP, KRP-CL, KTU

J1

J2

J1

J2

J4 J4

All slots and holes

A

C1

A

601

to

800 A

C2

801

to

I

2001

to

3000 A

2000 A

3500

to

4000 A

4500

to

6000 A

D

G

F

B

Amp
range A B C1 C2 D F G I J1 J2 J3 J4

601-800 8.63 (219) 2.4 (61) 6.75 (172) 5.75 (146) 3.75 (95) 2.00 (51) 0.38 (10) 0.63 (16) — — — —
801-1200 10.75 (273) 2.4 (61) 6.75 (172) 5.75 (146) 3.75 (95) 2.00 (51) 0.38 (10) 0.63 (16) — —
1350-1600 10.75 (273) 3.0 (76) 6.75 (172) 5.75 (146) 3.75 (95) 2.38 (60) 0.44 (11) 0.63 (16) — — — —
1800-2000 10.75 (273) 3.5 (89) 6.75 (172) 5.75 (146) 3.75 (95) 2.75 (70) 0.5 (13) 0.63 (16) — — — —
2001-2500 10.75 (273) 4.8 (122) 6.75 (172) 5.75 (146) 3.75 (95) 3.50 (89) 0.75 (19) 0.63 (16) 1.75 (45) 1.38 (35) 0.88 (22) 0.81 (21)
3000 10.75 (273) 5.0 (127) 6.75 (172) 5.75 (146) 3.75 (95) 4.00 (102) 0.75 (19) 0.63 (16) 1.75 (45) 1.38 (35) 0.88 (22) 0.81 (21)
3500-4000 10.75 (273) 5.75 (146) 6.75 (172) 5.75 (146) 3.75 (95) 4.75 (121) 0.75 (19) 0.63 (16) 1.75 (45) 1.38 (35) 1.63 (41) 0.88 (22)
4500-5000 10.75 (273) 6.25 (159) 6.75 (172) 5.75 (146) 3.75 (95) 5.25 (133) 1.0 (25) 0.63 (16) 1.75 (45) 1.38 (35) 1.63 (41) 0.88 (22)
6000 10.75 (273) 7.13 (181) 6.75 (172) 5.75 (146) 3.75 (95) 5.75 (146) 1.0 (25) 0.63 (16) 1.75 (45) 1.38 (35) 1.63 (41) 0.88 (22)

Note: KRP-CL (225-600 A) fuses have same dimensions as 601-800 A case size KTU (200-600 A) have same dimensions, except tube 3"
length x 2" diameter (76 x 51 mm); terminal 1-5/8" width x 1-1/4" thick (41 x 32 mm).

1-4

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

Low voltage, branch circuit fuses — 1

TIME IN SECONDS

AMP

LP-CC Class CC Low-Peak™ time-delay, rejection­type fuses

Time-delay, current-limiting, rejection-type fuse — 12 seconds
(minimum) at 200% rated amps.

Dimensions 13/32" x 1-1/2" (10x38mm)

Ratings

•

Volts

• 600 Vac (or less)

• 300 Vdc (1/2-21/2 A and 20-30 A)

• 150 Vdc (2-8/10-15 A)

•

Amps 1/2-30 A

•

IR

• 200 kA RMS Sym.

• 20 kA DC

Agency information

•

UL Listed Std 248-4, Class CC, Guide JDDZ, File E4273,
CSA Certified, Class 1422-02, File 53787,
RoHS compliant (20-30 A)*, CE

* Contact factory for RoHS complaince on other ratings.

Features

2011/65/EU

Time-current characteristics — average melt

/¡º°/¡º

⁄/™

1

3

200

100

10

fl

1

.1

3⁄/™44⁄/™68101215202530

1⁄/¢

RATING

Low voltage,

branch circuit fuses

•

Class CC rejection feature, with appropriate fuse block, prevents
inserting lesser-rated supplementary fuses

•

Time-delay coupled with Class CC current-limiting response
provides close sizing on small motor and relay circuits, and
maximum component short-circuit current rating protection

•

200 kA interrupting rating provides high ratings for control circuit
locations

•

Inventory consolidation of 13/32" x 1-1/2" supplemental fuses
reduces SKU investment and minimizes potential for misapplying
fuse

•

Selective coordination ratio of 2:1 (within Low-Peak fuse family)
prevents electrical shutdowns from extending beyond the failed
circuit

Typical applications

•

Branch circuit protection

•

Specialized circuits

•

Industrial controls and panels

•

Isolated, in-line fuse holder

Catalog no. (amps)

LP-CC-1/2 LP-CC-1-8 /10 LP-CC-4-1/2 LP-CC-10

LP-CC-6/10 LP-CC-2 LP-CC-5 LP-CC-12

LP-CC-8/10 LP-CC-2-1/4 LP-CC-5-6/10 LP-CC-15

LP-CC-1 LP-CC-2-1/2 LP-CC-6 LP-CC-20

LP-CC-1-1/8 LP-CC-2-8/10 LP-CC-6-1/4 LP-CC-25

LP-CC-1-1/4 LP-CC-3 LP-CC-7 LP-CC-30

LP-CC-1-4/10 LP-CC-3-2/10 LP-CC-7-1/2

LP-CC-1-1/2 LP-CC-3-1/2 LP-CC-8

LP-CC-1-6/10 LP-CC-4 LP-CC-9

Recommended holders and blocks for Class CC fuses, see page 1-2.

.01

.4

BUSSMANN SERIES FULL LINE CATALOG 1007 — June 2017

1

10

CURRENT IN AMPS

100

1000

Data sheet no. 1023

Eaton.com/bussmannseries

1-5

1 — Low voltage, branch circuit fuses

TIME IN SECONDS

FNQ-R Class CC Limitron™ time-delay rejection­type fuse

Time-delay, branch circuit, rejection-type fuse. For superior electrical
protection, Eaton recommends upgrading FNQ-R fuse applications to
Bussmann series Low-Peak LP-CC fuses, see page 1-5.

Dimensions 13/32" x 1-1/2" (10x38mm)

Ratings

•

Volts

• 600 Vac (or less)

• 300 Vdc (15-20 A)

• 32 Vdc (self certified)

•

Amps 1/4-30 A

•

IR

• 200 kA RMS Sym.

• 20 kA DC (15 and 20 A only)

Agency information

•

UL Listed, Std 248-4, Class CC, Guide JDDZ, File E4273,
CSA Certified, Class 1422-01, File 53787, RoHS compliant, CE

Features

2011/65/EU

Time-current characteristics — average melt

3

100

10

1/2

1

1

5

7-1/2

AMP
RATING

•

Class CC rejection feature, with appropriate fuse block, prevents
inserting lesser-rated supplementary fuses

•

Time-delay compatible with inrush characteristic of small control
transformers

•

Current limitation at Class CC levels provides maximum
component short-circuit current rating protection

•

200 kA interrupting rating provides high ratings for control circuit
locations

Typical applications

•

Line protection, small control transformers

•

Industrial controls and panels

•

Isolated, in-line fuse holders

Catalog no. (amps)

FNQ-R-1/4 FNQ-R-1-3/10 FNQ-R-3-2/10 FNQ-R-8

FNQ-R-3/10 FNQ-R-1-4/10 FNQ-R-3-1/2 FNQ-R-9

FNQ-R-4/10 FNQ-R-1-1/2 FNQ-R-4 FNQ-R-10

FNQ-R-1/2 FNQ-R-1-6/10 FNQ-R-4-1/2 FNQ-R-12

FNQ-R-6/10 FNQ-R-1-8/10 FNQ-R-5 FNQ-R-15

FNQ-R-3/4 FNQ-R-2 FNQ-R-5-6/10 FNQ-R-17-1/2

FNQ-R-8/10 FNQ-R-2-1/4 FNQ-R-6 FNQ-R-20

FNQ-R-1 FNQ-R-2-1/2 FNQ-R-6-1/4 FNQ-R-25

FNQ-R-1-1/8 FNQ-R-2-8/10 FNQ-R-7 FNQ-R-30

FNQ-R-1-1/4 FQN-R-3 FNQ-R-7-1/2

Recommended holders and blocks for Class CC fuses, see page 1-2.

0.1

0.01

0.08

1

10

CURRENT IN AMPS

200

400

500

100

300

Data sheet no. 1014

1-6

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

Low voltage, branch circuit fuses — 1

KTK-R Class CC Limitron™ fast-acting rejection­type fuse

Fast-acting, branch circuit, rejection-type fuse. For superior electrical
protection, Eaton recommends upgrading KTK-R fuse applications to
Bussmann series Low-Peak LP-CC fuses, see page 1-5.

Dimensions 13/32" x 1-1/2" (10x38mm)

Ratings

•

Volts 600 Vac (or less)

•

Amps 1/10-30 A

•

IR 200 kA RMS Sym.

Agency information

•

UL Listed, Std 248-4, Class CC, Guide JDDZ, File E4273 CSA
Certified, File 53787, Class 1422-02, RoHS compliant, CE

Features

•

Class CC rejection feature, with appropriate fuse block, prevents
inserting lesser-rated supplementary fuses

•

Current limitation at Class CC levels provides maximum
component short-circuit current protection

•

200 kA interrupting rating provides high ratings for control circuit
locations

2011/65/EU

Time-current characteristics — average melt

Low voltage,

branch circuit fuses

Typical applications

•

Specialized circuits

•

Industrial controls and panels

•

Isolated, in-line fuse holders (street lighting)

Catalog no. (amps)

KTK-R-1/10 KTK-R-6/10 KTK-R-3-1/2 KTK-R-10

KTK-R-1/8 KTK-R-3/4 KTK-R-4 KTK-R-12

KTK-R-2/10 KTK-R-1 KTK-R-5 KTK-R-15

KTK-R-1/4 KTK-R-1-1/2 KTK-R-6 KTK-R-20

KTK-R-3/10 KTK-R-2 KTK-R-7 KTK-R-25

KTK-R-4/10 KTK-R-2-1/2 KTK-R-8 KTK-R-30

KTK-R-1/2 KTK-R-3 KTK-R-9

Recommended holders and blocks for Class CC fuses, see page 1-2.

BUSSMANN SERIES FULL LINE CATALOG 1007 — June 2017

Data sheet no. 1015

Eaton.com/bussmannseries

1-7

1 — Low voltage, branch circuit fuses

TCF Class CF Low-Peak time-delay CUBEFuse™

Finger-safe fuse and fuse holder system; dual-element, time-delay
fuse; 10 seconds minimum operating time at 500% rated amps.
Available in indication and non-indication versions. For dimensions,
see page 1-3.

Ratings

•

Volts

• 600 Vac (or less)

• 300 Vdc (or less)

•

Amps 1-100 A

•

IR

• 300 kA RMS Sym. (UL)

• 200 kA RMS Sym. (CSA)

• 100 kA DC

Agency information

•

UL Listed, Guide JDDZ, File E4273, CSA Certified, Class 1422- 02,
File 53787, RoHS compliant, CE

Features

•

Smallest installed footprint of any Class CC, J, T or RK fuse
provides substantial space savings and installation flexibility

•

IEC 60529 and finger-safe rating provides enhanced workplace
safety

•

Separate overload and short-circuit elements provide time-delay for
sizing of high inrush loads linked with Class J current limitation

•

Selective coordination ratio of 2:1 (within Low-Peak fuse family)
prevents electrical shutdowns from extending beyond the failed
circuit

Typical applications

2011/65/EU

Time-current characteristics — average melt

Current limitation curves

•

Electrical panelboards

•

Machinery disconnects

•

Industrial controls and panels

•

Required finger-safe systems

Catalog no. (amps)

Indicating versions

TCF6 TCF20 TCF40 TCF70

TCF10 TCF25 TCF45 TCF80

TCF15 TCF30 TCF50 TCF90

TCF17-1/2 TCF35 TCF60 TCF100

Non-indicating versions

TCF1RN TCF17-1/2RN TCF40RN TCF80RN

TCF3RN TCF20RN TCF45RN TCF90RN

TCF6RN TCF25RN TCF50RN TCF100RN

TCF10RN TCF30RN TCF60RN —

TCF15RN TCF35RN TCF70RN —

Recommended holders for Class CF fuses, see page 1-11.

Data sheet no. 9000 (fuses) and 9007 (holders)

1-8

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

Low voltage, branch circuit fuses — 1

B

TIME IN SECONDS

FCF Class CF fast-acting CUBEFuse

Finger-safe, non-indicating, fast-acting CUBEFuse for UPS and critical
applications with a 4 minute maximum clearing time at 200%, rated
current for 1 to 30 A fuse, 6 minute maximum clearing time at
200%, rated current for 35 to 60 A fuse. For dimensions, see page
1-3.

Ratings

•

Volts 600 Vac/dc (or less)

•

Amps 1-100 A

•

IR

• 300 kA RMS Sym. (UL up to 60 A)

• 200 kA RMS Sym.

(CSA all ratings and UL 70 to 100 A)

• 50 kA DC

Agency information

•

UL Listed, Guide JFHR, File E4273, CSA Certified, Class 1422- 02,
File 53787, RoHS compliant, CE

Features

•

The world's first finger-safe power fast-acting fuse system

•

Smallest installed footprint of any class fuse including Class CC, J,
T and RK

•

Class CF meets Class J fast-acting electrical performance
requirements

•

True fast-acting for faster response to damaging faults to help
reduce destructive thermal and magnetic forces.

•

High interrupting rating to safely interrupt faults up to 300 kA

•

No venting of arc or molten metal and gases during opening

•

Low let-through currents under fault conditions

2011/65/EU

Time-current characteristics — average melt

1000

100

0.1

0.01

1A

10

1

1

6A

3A

10

10A

20A

15A

CURRENT IN AMPS

30A

50A

40A

100A

60A

100

Low voltage,

branch circuit fuses

1,000

10,000

Catalog no. (amps)

FCF1RN FCF20RN FCF45RN FCF90RN

FCF3RN FCF25RN FCF50RN FCF100RN

FCF6RN FCF30RN FCF60RN —

FCF10RN FCF35RN FCF70RN —

FCF15RN FCF40RN FCF80RN —

Recommended holders for Class CF fuses, see page 1-11.

Current limitation curves

100,000

10,000

1,000

A

INSTANTANEOUS PEAK LET THRU CURRENT IN AMPERES

100

100

1,000

PROSPECTIVE SHORT CIRCUIT CURRENT (SYMMETRICAL RMS AMPS)

10,000

100A

60A

30A

15A

100,000

300,000

Data sheet no. 2147 (fuses) and 9007 (holders)

BUSSMANN SERIES FULL LINE CATALOG 1007 — June 2017

Eaton.com/bussmannseries

1-9

1 — Low voltage, branch circuit fuses

100A

60A

10A

15A

20A

30A

40A

50A

1A

3A

6A

0.01

0.1

1

10

100

1000

1

10

100

1,000

10,000

TIME IN SECONDS

CURRENT IN AMPS

INSTANTANEOUS PEAK LET THRU CURRENT IN AMPSPS

PROSPECTIVE SHORT-CIRCUIT CURRENT

SYMMETRICAL RMS AMPS

B

WCF fast-acting 690 V wind power CUBEFuse

Finger-safe, non-indicating, fast-acting CUBEFuse for wind power
generation systems with a maximum clearing time at 200% rated
current: 4 minutes for 1 to 30 amp fuses, 6 minutes for 35 to 60
amp fuses, 8 minutes for 70 to 100 amp fuses. For dimensions, see
page 1-3.

Ratings

•

Volts 690 Vac

•

Amps 1-100 A

•

IR

• 50 kA AC (1-60 A)

• 30 kA AC (70-100 A)

Agency information

•

UL Recognized, Guide JFHR2, File E56412, cURus Component
Certified C22.2, RoHS compliant, CE

Features

•

Maximize uptime and reliability using fuses designed and listed to
UL 248-1

•

Minimize chances of equipment failure and personnel injury when
using full range fuses having the industry's fastest response time
to low-magnitude faults

•

Maximize return on investment with fuses proven to withstand
harsh temperatures

•

Minimize design time, operating outage time and replacement
cost with fuses qualified in excessively changing environmental
conditions

•

Simplify compatibility with readily available industry standard
holders

•

Temperature derating — Designed to maximize rated capacity in
elevated environmental temperatures

•

Overload protection — Proven to clear faults faster than the UL
requirement

•

Power loss — Minimal energy consumption leading to increased
efficiency

Typical application

•

Protecting wind system transformers, pitch and speed controls,
and turbine HVAC and lighting

2011/65/EU

Operating and storage temperature range

-40°C to 90°C

Mounting

The wind CUBEFuse must be mounted in the 690 V WCF holders
that are rated for 690 volts. Not to be installed in the CCP-CF or
CCPB disconnect switches. See page 1-11.

Time-current characteristic curves — average melt

Current limitation curves

100,000

Catalog no. (amps)

WCF1RN WCF15RN WCF35RN WCF60RN WCF100RN

WCF3RN WCF20RN WCF40RN WCF70RN WCF100RN

WCF6RN WCF25RN WCF45RN WCF80RN

WCF10RN WCF30RN WCF50RN WCF90RN

Recommended holders for WCF fuses, see page 1-11.

Watts loss at rated current

Amps Fuse catalog no. Watts

15 WCF15RN 3.48

30 WCF30RN 5.45

60 WCF60RN 7.27

100 WCF100RN 11.5

Data sheet no. 9009 (fuses) and 9007 (holders)

1-10

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

100A

60A

10,000

1,000

A

100

1,000

10,000

100,000

50A

40A

30A

15A

300,000

Eaton.com/bussmannseries

Low voltage, branch circuit fuses — 1

CUBEFuse™ finger-safe fuse holders

Gangable, finger-safe one-pole holders available in ratings of 30, 60
and 100 amps. All holders, regardless of amp rating, can be ganged
together using an interlocking dovetail to create the desired number
of poles. Each holder can accept a CUBEFuse of equal or less amps.
Wind CUBEFuse (WCF) must be mounted in 690 V rated versions.
See catalog number table.

Ratings

•

Volts

• 600 V (UL, CSA TCFH)

• 690 V (cURus TCFHNW)

•

Amps 30, 60, 100 A

•

Withstand rating

• 300 kA RMS Sym. (UL)

• 200 kA RMS Sym. (CSA)

• 100 kA DC (UL and CSA)

• 50 kA AC (cURus, 1-60 A TCFHNW)

Agency information

•

UL Listed fuse holder, Guide IZLT2, File E14853, CSA Certified
fuse holder, Class 6225-01, File 47235, cURus component
Certified, RoHS compliant, CE

2011/65/EU

Terminal torque and conductor ratings

Ratings are for 75°C Cu AWG conductors. Torque is in N•m (lb-in).

Terminal
wire
rating

Single

Dual 18-10; 2.8 (25)*

* 18-10 AWG stranded, 14-18 AWG solid
** Solid and stranded
† Stranded

Holder catalog no.

TCFH30N /
TCFH30NW

10-8 2;.8 (25),
18-12; 2.6 (20)

TCFH60N /
TCFH60NW

14-10 2.6 (20),
8-4; 3.;9 (35)

18-10; 2.6 (20),
8-6; 3.9 (35)

TCFH100N /
TCFH100NW

18-10; 2.6 (20)**,
8-1; 4.5 (40)†

6 5;.1 (45)

†

Low voltage,

branch circuit fuses

Mounting

•

35 mm DIN-Rail

•

Panel mount

Operating and storage temperature range

•

-40°C to 80°C

Catalog no. Volts Amps Accepts fuse amp range

TCFH30N

TCFH60N 60 1-60

600

30 1-30

TCFH100N 10 0 1-100

TCFH30NW

TCFH60NW 60 1-60

690

30 1-30

TCFH100NW 10 0 1-100

CUBEFuse™ holder fuse applications

Holder
catalog no. Volts

TCFH30N

TCFH100N 1-100 1-100

TCFH30NW

TCFH60NW 1-60

TCFH100NW 1-100

CUBEFuse type and amp range

TCF and TCF_RN FCF_RN WCF_RN

1-30 1-30

600

690 — —

—TCFH60N 1-60 1-60

1-30

Dimensions — in (mm)

Wire*
range -

Amp

Amps

30 1-30

60 1-60

100 1-100

* 75°C Cu AWG.

single

range

(dual) H I J K L M

14-8
(14-10)

14-4
(10-6)

10-1
(6)

2.3
(58)

2.6
(66)

2.91
(74)

0.76
(19)

1.03
(26)

1.05
(27)

1.36
(34)

1.60
(41)

2.01
(51)

0.15
— — 2.36 (60)

(4)

0.17
— — 2.73 (69)

(4)

0.15

0.80
(20)

2.51
(64)

(4)

Max
height
with
fuse

3.27 (83)

BUSSMANN SERIES FULL LINE CATALOG 1007 — June 2017

Data sheet no. 9007

Eaton.com/bussmannseries

1-11

1 — Low voltage, branch circuit fuses

B

RATING

INSTANTANEOUS PEAK LET-THROUGH

A–B=ASYMMETRICAL AVAILABLE PEAK (2.3 X SYMM RMS AMPS)

SC Class G general purpose fuses

Fast-acting (1/2-6 A) and time-delay (7-60 A) Class G fuses. SC fuses
are size rejecting measuring 13/32" in diameter by various lengths
associated with their amp rating ranging from 1-5/16" to 2-1/4". This
feature helps prevent overfusing. See the catalog numbers table for
length by amp rating.

Ratings

•

Volts

• 600 Vac (1/2-20 A)

• 480 Vac (25-60 A)

• 170 Vdc (1/2-20 A)

• 300 Vdc (25-60 A)

•

Amps 1/2-60 A

•

IR

• 100 kA RMS Sym.

• 10 kA DC

Agency information

•

UL Listed Std 248-5, Class G, Guide JDDZ, File E4273,
CSA Certified, Class 1422-01, File 53787, RoHS compliant, CE

Features

2011/65/EU

Time-current characteristics — average melt

•

Class G current limiting for component and branch circuit
protection

•

100 kA interrupting rating provides cost-effective branch circuit
fusing for systems with high short-circuit current levels

•

Rejection feature with variations in length helps prevent overfusing

Typical applications

•

Fusible branch circuit panelboards

•

HVAC branch circuit protection

Catalog no. (amps) and length

SC-1/2
SC-1 SC-5 SC-15 SC-45
SC-1-1/2 SC-6 SC-20 1-13/32" SC-50
SC-2 SC-7 SC-25

1-5/16"

SC-2-1/2 SC-8 SC-30

SC-4

1-5/16"

SC-12

1-5/16"

1-5/8"

SC-40

2-1/4"

SC-60

SC-3 SC-10 SC-35 2-1/4"

Recommended holders and blocks for Class G fuses, see page 1-2.

Current limitation curves

10,000

1,000

CURRENT IN AMPS

A

100

100

RMS SYMMETRICAL CURRENTS IN AMPS

1,000

10,000

60

30
20
15

AMP

100,000

Data sheet no. 1024

1-12

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

Low voltage, branch circuit fuses — 1

INSTANTANEOUS PEAK LET-THRU CURRENT IN AMPS

B

TIME IN SECONDS

LPJ_SP Class J Low-Peak dual-element, time­delay fuses

Dual-element, time-delay Class J fuse; 10 seconds (minimum) at
500% rated amps, available with optional indication on select ratings
(see catalog numbers table). For dimensions, see page 1-3.

Ratings

•

•

•

Agency information

•

Features

•

•

•

Typical applications

•

•

•

•

Catalog no. (amps)

LPJ-1SP LPJ-4-1/2SP LPJ-25SP* LPJ-125SP*

LPJ-1-1/4SP LPJ-5SP LPJ-30SP* LPJ-150SP*

LPJ-1-6/10SP LPJ-5-6/10SP LPJ-35SP* LPJ-175SP*

LPJ-1-8/10SP LPJ-6SP* LPJ-40SP* LPJ-200SP*

LPJ-2SP LPJ-7SP* LPJ-45SP* LPJ-225SP*

LPJ-2-1/4SP LPJ-8SP* LPJ-50SP* LPJ-250SP*

LPJ-2-1/2SP LPJ-9SP* LPJ-60SP* LPJ-300SP*

LPJ-2-8/10SP LPJ-10SP* LPJ-70SP* LPJ-350SP*

LPJ-3SP LPJ-12SP* LPJ-80SP* LPJ-400SP*

LPJ-3-2/10SP LPJ-15SP* LPJ-90SP* LPJ-450SP*

LPJ-3-1/2SP LPJ-17-1/2SP* LPJ-100SP* LPJ-500SP*

LPJ-4SP LPJ-20SP* LPJ-110SP* LPJ-600SP*

*Available with optional permanent replace fuse indication To order, place "I" at end
of catalog number Example: LPJ-6SPI.
Available with silver plated terminals Add SP/ in front of catalog number.

Recommended holders and blocks for Class J fuses, see page 1-2.

Volts

• 600 Vac (or less)

• 300 Vdc (or less)

Amps 1-600 A

2011/65/EU

IR

• 300 kA RMS Sym.

• 100 kA DC

UL Listed, Guide JFHR, File E4273, CSA Certified Class J per
CSA 22.2 No 248.8, Class 1422-02, File 53787, RoHS compliant,
CE

Separate overload and short-circuit elements provide time delay for
sizing of high inrush loads linked with Class J current limitation

Selective coordination ratio of 2:1 (within Low-Peak fuse family)
prevents electrical shutdowns from extending beyond the failed
circuit

Series combination ratings with branch circuit breakers allows
broad range of coverage, independent of breaker manufacturer

Power panelboards

Branch circuit breaker panelboard mains

Machinery disconnects

Industrial control

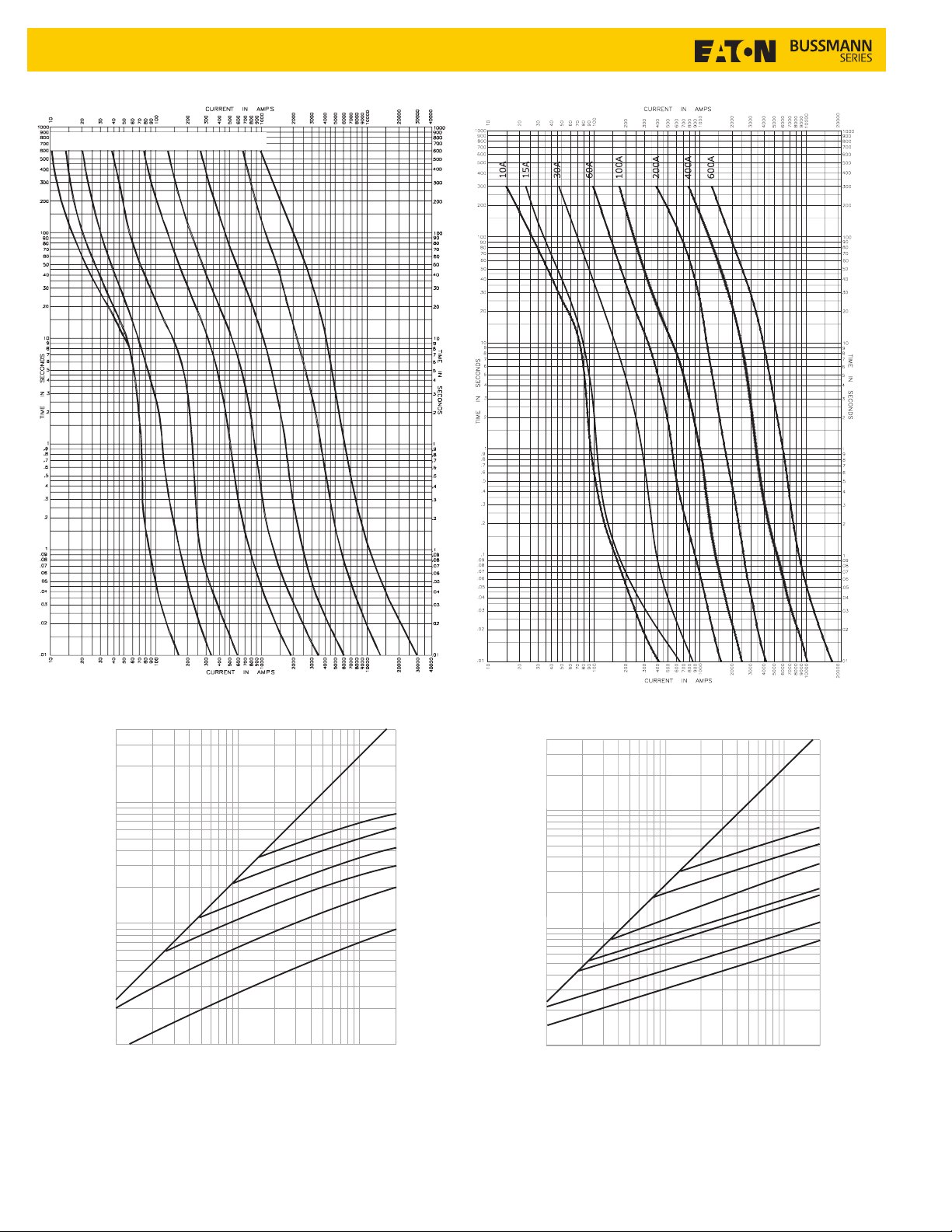

Time-current characteristics — average melt

300

200

100

10

.01

1A

1

.1

1

10A

10

6A

3A

30A

80A

15A

CURRENT IN AMPS

60A

100

100A

125A

200A

Current limitation curves

100,000

10,000

1,000

A

100

100

PROSPECTIVE SHORT-CIRCUIT CURRENT

1,000

SYMMETRICAL RMS AMPS

10,000

250A

400A

1,000

600A

100,000

AMP
RATING

200,000

10,000

600A
400A

200A
100A
60A

30A

15A

TING

AMP

RA

300,000

Low voltage,

branch circuit fuses

Data sheet no. 1006 (0-60 A) and 1007 (70-600 A)

BUSSMANN SERIES FULL LINE CATALOG 1007 — June 2017

Eaton.com/bussmannseries

1-13

1 — Low voltage, branch circuit fuses

INSTANTANEOUS PEAK LET-THRU CURRENT IN AMPS

B

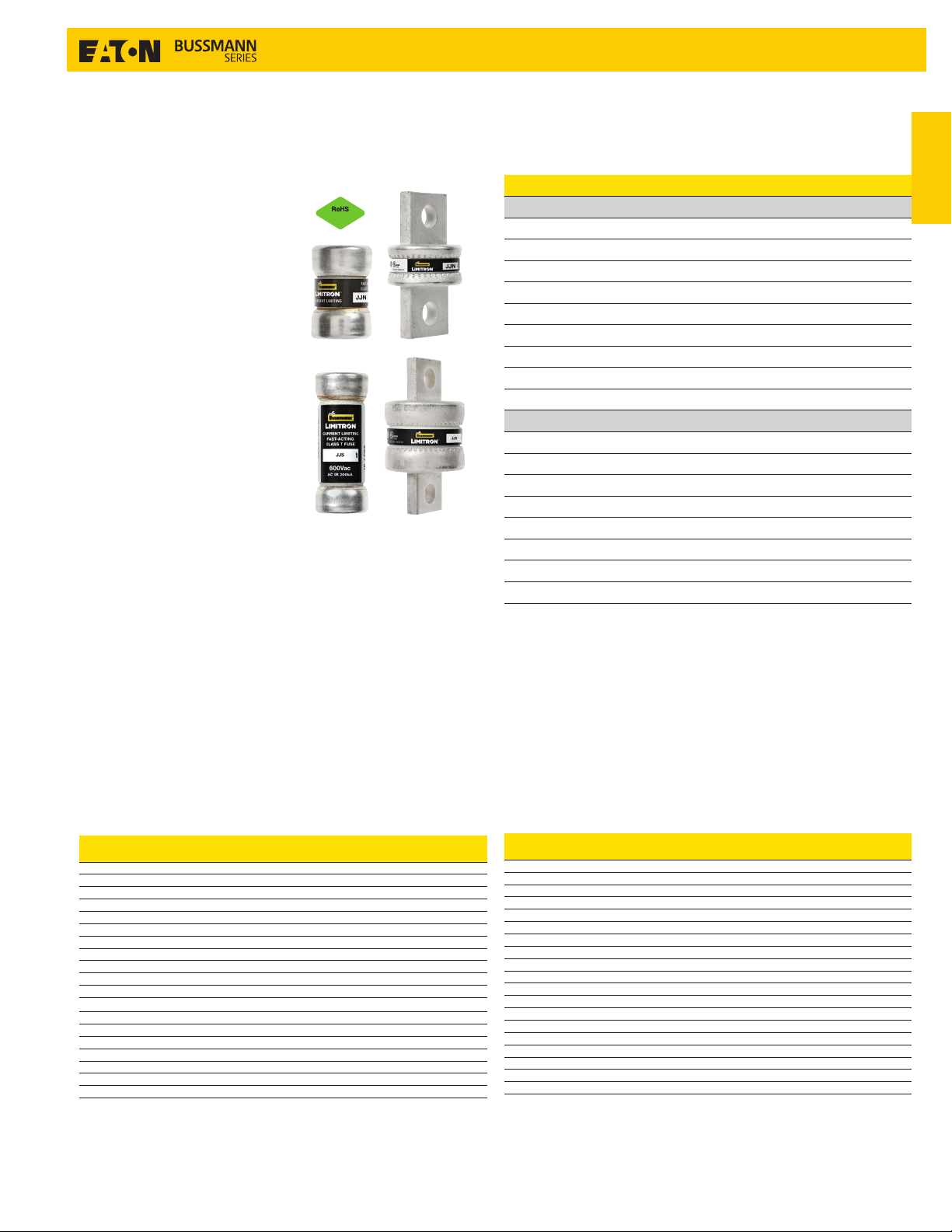

JKS Class J Limitron™ fast-acting fuses

Fast-acting, Class J current-limiting fuse. For superior electrical
protection, Eaton recommends upgrading JKS fuse applications
to Bussmann series Low-Peak LPJ fuses See page 1-13. For
dimensions, see page 1-3.

Ratings

•

Volts

• 600 Vac (or less)

•

1-600 A

Amps

•

IR 200 kA RMS Sym.

Agency information

•

600 Vac, UL Listed, Std. 248-8, Class J,
Guide JDDZ, File E4273, CSA Certified,
Class 1422-02, File 53787, CE

Features

•

Current limitation for non-inductive circuits provides Class J
current-limiting response to maximum ground fault and short­circuit conditions

•

200 kA interrupting rating provides protection at all circuit locations

•

Economical circuit protection for high-fault current circuits

Time-current characteristics — average melt

60A

100A

30A

300

100

10

1

TIME IN SECONDS

.1

200A

400A

600A

JKS

AMP
RATING

Typical applications

•

Power panelboards

•

Machinery disconnects

Catalog no. (amps)

JKS-1 JKS-15 JKS-70 JKS-225

JKS-2 JKS-20 JKS-80 JKS-250

JKS-3 JKS-25 JKS-90 JKS-300

JKS-4 JKS-30 JKS-100 JKS-350

JKS-5 JKS-35 JKS-110 JKS-400

JKS-6 JKS-40 JKS-125 JKS-450

JKS-8 JKS-45 JKS-150 JKS-500

JKS-10 JKS-50 JKS-175 JKS-600

JKS-12 JKS-60 JKS-200

Recommended holders and blocks for 600 V JKS Class J fuses, see
page 1-2.

.01

40

100

CURRENT IN AMPS

Current limitation curves

400,000

100,000

10,000

1,000

10,000

AMP

600

400

200

100
60

30

RATING

Data sheet no. 1026 (1-60 A) and 1027 (70-600 A)

1-14

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

A

1,000

1,000

10,000

100,000

200,000

RMS SYMMETRICAL CURRENTS IN AMPS

A–B=ASYMMETRICAL AVAILABLE PEAK (2.3 X SYMM RMS AMPS)

Eaton.com/bussmannseries

Low voltage, branch circuit fuses — 1

NON and NOS Class K5/H general purpose one­time fuses

General purpose, Class K5 and H non-current-limiting fuse 250 V
NON and 600 V NOS fuses. For superior electrical protection, Eaton
recommends upgrading NON (250 Vac) and NOS (600 Vac) fuse
applications to Bussmann series Low-Peak LPN-RK (250 Vac) and
LPS-RK (600 Vac) fuses, see page 1-18. For dimensions, see page
1-3.

Ratings

•

Volts

• NON

− 250 Vac

− 125 Vdc (0-100 A)

• NOS

− 600 Vac

•

Amps 1/8-600 A

•

IR

• 50 kA RMS Sym. (NON and NOS 0-60 A)

• 10 kA RMS Sym. (NON and NOS 65-600 A)

• 50 kA @ 125 Vdc (NON 0-60 A)

• 10 kA @ 125 Vdc (NON 65-100 A)

Agency information

•

UL Listed

• 250 V Class K5 (0-60 A), Std 248-9, Class H (65-600 A), Std

248-6, (125 Vac, NON 0-100 A)

• 600 V Class K5 (0-60 A), Std 248-9, Class H (70-600 A), Std

248-6, Guide JDDZ, File E4273

•

CSA Certified

• 250 V (0-12, 65-600 A)†

• 600 V (0-600 A), Class 1421-01, File 53787, CE

† For CSA Certified 15-60 A ratings, see PON on page 5-2.

Features

•

Basic overcurrent protection.

Typical applications

•

Light duty circuit locations

Catalog no. (amps)

250 V NON

NON-1/8 NON-5 NON-40 NON-175

NON-1/2 NON-6 NON-45 NON-200

NON-3/4 NON-6-1/4 NON-50 NON-225

NON-8/10 NON-7 NON-60 NON-250

NON-1 NON-8 NON-65 NON-300

NON-1-1/4 NON-9 NON-70 NON-350

NON-1-1/2 NON-10 NON-75 NON-400

NON-1-6/10 NON-12 NON-80 NON-450

NON-2 NON-15 NON-90 NON-500

NON-2-1/2 NON-20 NON-100 NON-600

NON-3 NON-25 NON-110

NON-3-2/10 NON-30 NON-125

NON-4 NON-35 NON-150

600 V NOS

NOS-1 NOS-12 NOS-70 NOS-200

NOS-2 NOS-15 NOS-75 NOS-225

NOS-3 NOS-20 NOS-80 NOS-250

NOS-4 NOS-25 NOS-90 NOS-300

NOS-5 NOS-30 NOS-100 NOS-350

NOS-6 NOS-35 NOS-110 NOS-400

NOS-7 NOS-40 NOS-125 NOS-450

NOS-8 NOS-45 NOS-150 NOS-500

NOS-9 NOS-50 NOS-175 NOS-600

NOS-10 NOS-60

Recommended fuse reducers

250 V 600 V

Fuse
amps

Clip amp
size

Catalog
no. (pair)

Fuse
amps

Clip amp
size

Catalog
no. (pair)

30 60 NO.263 30 60 NO.663

30 100 NO.213 30 100 NO.216

60 100 NO.216 60 100 NO.616

60 200 NO.226 60 200 NO.626

100 200 NO.2621 10 0 200 NO.2621

100 400 NO.2641 10 0 400 NO.2641

200 400 NO.2642 200 400 NO.2642

100 600 NO.2661 10 0 600 NO.2661

200 600 NO.2662 200 600 NO.2662

400 600 NO.2664 400 600 NO.2664

Recommended blocks for Class K5 and H 250 V and 600 V fuses,
see page 1-2.

Low voltage,

branch circuit fuses

BUSSMANN SERIES FULL LINE CATALOG 1007 — June 2017

Data sheet no. 1030

Eaton.com/bussmannseries

1-15

1 — Low voltage, branch circuit fuses

1000,000

10,000

1,000

10,000

300,000

INSTANTANEOUS PEAK LET-THRU CURRENT IN AMPS

PROSPECITVE SHORT-CIRCUIT CURRENT

SYMMETRICAL RMS AMPS

100,000

100,000

6,000A
5,000A
4,000A
3,000A
2,500A
2,000A
1,600A
1,200A

800A
601A

A

AMP

RATING

B

1,000

,

KRP-C_SP Class L Low-Peak time-delay fuses

Time-delay Class L fuses — 4 seconds (minimum) at 500% rated
amps. Use KRP-CL for current ratings under 601 A. For dimensions,
see page 1-4.

Ratings

•

Volts

• 600 Vac (or less)

• 300 Vdc (601-2000 A, 3000 A)

•

Amps 601-6000 A

•

IR

• 300 kA RMS Sym.

• 100 kA DC

Agency information

•

UL Listed 248-10, Guide JFHR,
File E56412, CSA Certified, Class
1422-02, File 53787, Class L per
CSA C22.2, No 248.10, RoHS
compliant, CE

Features

•

Time-delay of 4 seconds at 5 times rating allows closer sizing on
large motor loads combined with Class L current limitation

•

Selective coordination ratio of 2:1 (within Low-Peak fuse family)
prevents electrical shutdowns from extending beyond the failed
circuit

•

Interrupting rating of 300 kA RMS symmetrical provides adequate
ratings without obsolescence for all electrical systems, big or
small

•

Quality construction, using high-grade materials, provides lower
watts loss and operating temperatures with superior arc quenching
during current-limiting action

Typical applications

2011/65/EU

Time-current characteristics — average melt

800A

1200A

1600A

2000A

2500A

3000A

4000A

5000A

300

100

10

1

TIME IN SECONDS

.1

.01

1,000

CURRENT IN AMPS

6000A

10,000

Current limitation curves

AMP
RA TING

100,000

000

200

•

Large distribution switchboards

•

Power panelboards

•

Large machinery disconnects

Catalog no. (amps)

KRP-C-601SP KRP-C-1000SP KRP-C-1800SP KRP-C-3500SP

KRP-C-650SP KRP-C-1100SP KRP-C-1900SP KRP-C-4000SP

KRP-C-700SP KRP-C-1200SP KRP-C-2000SP KRP-C-4500SP

KRP-C-750SP KRP-C-1350SP KRP-C-2001SP KRP-C-5000SP

KRP-C-800SP KRP-C-1400SP KRP-C-2400SP KRP-C-6000SP

KRP-C-801SP KRP-C-1500SP KRP-C-2500SP

KRP-C-900SP KRP-C-1600SP KRP-C-3000SP

Recommended blocks for Class L fuses, see page 1-2.

Data sheet no. 1008(601-2000 A) and 1009 (2001-6000 A)

1-16

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

Low voltage, branch circuit fuses — 1

KRP-CL current-limiting, time-delay fuses

Current-limiting, time-delay fuse with Class L dimensions for the
601-800 A case size. For dimensions, see page 1-4.

Ratings

•

Volts 600 Vac (or less)

•

Amps 225-600 A

•

IR 200 kA RMS Sym.

Agency information

•

RoHS compliant

Features

•

Time-delay of 4 seconds at 5
times rating allows closer sizing
inductive loads coupled with
an equivalent Class L current
limitation

•

601 to 800 A Class L case size permits applying circuit protection
from 225 to 600 A for downsize fusing of 800 amp Class L fused
switches

Typical applications

•

Large distribution switchboards

•

Power panelboards

•

Machinery disconnects

2011/65/EU 2011/65/EU

KTU Class L Limitron fast-acting fuses

Fast-acting, Class L fuses. For superior electrical protection, Eaton
recommends upgrading KTU fuse applications to Bussmann series
Low-Peak KRP-C fuses, see page 1-16. For dimensions, see page
1-4.

Ratings

•

Volts 600 Vac (or less)

•

Amps 601-6000 A

•

IR 200 kA RMS Sym.

Agency information

•

UL Listed, Std 248-10, Class L, Guide JDDZ,
File E4273, CSA Certified, Class 1422-02,
File 53787, RoHS compliant, CE

Features

•

200 kA interrupting rating provides protection at all circuit locations

•

Economical protection for high-fault current circuits

•

Quality construction using high-grade materials provides lower
watts loss and operating temperatures with superior arc quenching
during current-limiting action

Typical applications

•

Large distribution switchboards

•

Power panelboards

Low voltage,

branch circuit fuses

Catalog no. (amps)

KRP-CL-225 KRP-CL-300 KRP-CL-400 KRP-CL-500

KRP-CL-250 KRP-CL-350 KRP-CL-450 KRP-CL-600

Recommended blocks for Class L fuses, see page 1-2.

Catalog no. (amps)

KTU-601 KTU-850 KTU-1500 KTU-2500

KTU-650 KTU-900 KTU-1600 KTU-3000

KTU-700 KTU-1000 KTU-1800 KTU-3500

KTU-750 KTU-1100 KTU-2000 KTU-4000

KTU-800 KTU-1200 KTU-2001 KTU-5000

KTU-801 KTU-1400 KTU-2400 KTU-6000

Recommended blocks for Class L fuses, see page 1-2.

Data sheet no. 1016 Data sheet no. 1010

BUSSMANN SERIES FULL LINE CATALOG 1007 — June 2017

Eaton.com/bussmannseries

1-17

1 — Low voltage, branch circuit fuses

KLU Class Limitron time-delay fuses

Time-delay, Class L fuses - 5 seconds (minimum) at 500% rated
amps. For superior electrical protection, Eaton recommends
upgrading KLU fuse applications to Bussmann series Low-Peak
KRP-C fuses, see page 1-16. Use KRP-CL for current ratings under 601

A. For dimensions, see page 1-4.

Ratings

•

Volts 600 Vac (or less)

•

Amps 601-4000 A

•

IR 200 kA RMS Sym.

Agency information

•

UL Listed, Std 248-10, Class L, Guide JDDZ,
File E4273, CSA Certified, CSA Class 1422-02,
File 53787, RoHS compliant, CE

Features

•

200 kA interrupting rating provides protection at all circuit locations

•

Economical protection for high-fault current circuits

Typical applications

•

Large distribution switchboards

•

Power panelboards

•

Large machinery disconnects

2011/65/EU

LPN-RK_SP (250 V) and LPS-RK_SP (600 V) Class
RK1 Low-Peak dual-element, time-delay fuses

Current-limiting, dual-element, time-delay Class RK1 fuses; 10
seconds (minimum) at 500% rated amps (8 seconds for 0-30 A
sizes). Available with optional indication on select ratings (see
catalog numbers table). For dimensions, see page 1-3.

Ratings

•

Volts

• LPN-RK

− 250 Vac (or less)

− 125 Vdc (0-60 A)

− 250 Vdc (70-600 A)

• LPS-RK

− 600 Vac (or less)

− 300 Vdc

•

Amps 1/10-600 A

•

IR

•

300 kA RMS Sym.

•

100 kA DC

Agency information

•

UL Listed, Guide JDDZ, File E4273, CSA Certified, Class RK1 per
CSA C22.2, No 248.12, Class 1422-02, File 53787, CE

Catalog no. (amps)

KLU-601 KLU-1000 KLU-1800 KLU-4000

KLU-650 KLU-1200 KLU-2000

KLU-700 KLU-1500 KLU-2500

KLU-800 KLU-1600 KLU-3000

Recommended blocks for Class L fuses, see page 1-2.

Features

•

Separate overload and short-circuit elements provide time delay
for close sizing of high inrush loads linked with RK1 current-limita­tion and selective coordination ratio of 2:1 (within Low-Peak fuse
family) helps prevent widespread blackouts

•

Inventory consolidation of Class RK1, RK5 and H fuses for reduced
SKU investment and minimizing potential for misapplying fuse

•

300 kA RMS symmetrical interrupting rating provides adequate
ratings without obsolescence for all electrical systems, big or
small

•

Insulated end caps reduces exposure to live parts and extends air
gap to distance between blades of adjacent mounted fuses or to
housing

Typical applications

•

Large distribution switchboards

•

Power panelboards

•

Motor control centers

•

Machinery disconnect switches

Data sheet no. 1013

1-18

Data sheet no. LPN; 1003 (up to 60 A), 1007 (70-600 A)
LPS 1001 (up to 60 A), 1002 (70-600 A)

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

Low voltage, branch circuit fuses — 1

CO

Catalog no. (amps)
250 V LPN-RK*

LPN-RK-1/10SP LPN-RK-2-1/4SP LPN-RK-12SP LPN-RK-110SP**

LPN-RK-15/100SP LPN-RK-2-1/2SP LPN-RK-15SP LPN-RK-125SP**

LPN-RK-2/10SP LPN-RK-2-8/10SP LPN-RK-17-1/2SP LPN-RK-150SP**

LPN-RK-3/10SP LPN-RK-3SP LPN-RK-20SP LPN-RK-175SP**

LPN-RK-4/10SP LPN-RK-3-2/10SP LPN-RK-25SP LPN-RK-200SP**

LPN-RK-1/2SP LPN-RK-3-1/2SP LPN-RK-30SP LPN-RK-225SP**

LPN-RK-6/10SP LPN-RK-4SP LPN-RK-35SP** LPN-RK-250SP**

LPN-RK-8/10SP LPN-RK-4-1/2SP LPN-RK-40SP** LPN-RK-300SP**

LPN-RK-1SP LPN-RK-5SP LPN-RK-45SP** LPN-RK-350SP**

LPN-RK-1-1/8SP LPN-RK-5-6/10SP LPN-RK-50SP** LPN-RK-400SP**

LPN-RK-1-1/4SP LPN-RK-6SP LPN-RK-60SP** LPN-RK-450SP**

LPN-RK-1-4/10SP LPN-RK-6-1/4SP LPN-RK-70SP** LPN-RK-500SP**

LPN-RK-1-6/10SP LPN-RK-8SP LPN-RK-80SP** LPN-RK-600SP**

LPN-RK-1-8/10SP LPN-RK-9SP LPN-RK-90SP**

LPN-RK-2SP LPN-RK-10SP LPN-RK-100SP**

600 V LPS-RK

LPS-RK-1/10SP LPS-RK-2-1/4SP LPS-RK-10SP** LPS-RK-100SP**

LPS-RK-2/10SP LPS-RK-2-1/2SP LPS-RK-12SP** LPS-RK-110SP**

LPS-RK-3/10SP LPS-RK-2-8/10SP LPS-RK-15SP** LPS-RK-125SP**

LPS-RK-4/10SP LPS-RK-3SP LPS-RK-17-1/2SP** LPS-RK-150SP**

LPS-RK-1/2SP LPS-RK-3-2/10SP LPS-RK-20SP** LPS-RK-175SP**

LPS-RK-6/10SP LPS-RK-3-1/2SP LPS-RK-25SP** LPS-RK-200SP**

LPS-RK-8/10SP LPS-RK-4SP LPS-RK-30SP** LPS-RK-225SP**

LPS-RK-1SP LPS-RK-4-1/2SP LPS-RK-35SP** LPS-RK-250SP**

LPS-RK-1-1/8SP LPS-RK-5SP LPS-RK-40SP** LPS-RK-300SP**

LPS-RK-1-1/4SP LPS-RK-5-6/10SP LPS-RK-45SP** LPS-RK-350SP**

LPS-RK-1-4/10SP LPS-RK-6SP** LPS-RK-50SP** LPS-RK-400SP**

LPS-RK-1-1/2SP LPS-RK-6-1/4SP** LPS-RK-60SP** LPS-RK-450SP**

LPS-RK-1-6/10SP LPS-RK-7SP** LPS-RK-70SP** LPS-RK-500SP**

LPS-RK-1-8/10SP LPS-RK-8SP** LPS-RK-80SP** LPS-RK-600SP**

LPS-RK-2SP LPS-RK-9SP** LPS-RK-90SP**

* 0-60 A fuses available with Nickel plate option. Example: LPS-RK30SPNP).

70-600 A fuses available with tin-plate option. Example: LPS-RK-100SP-TP.

** Available with optional indication; to order, place "I" at end of catalog number

Example: LPN-RK-35SPI or LPS-RK-15SPI.

Recommended blocks for Class RK1 fuses, see page 1-2.

LPN Time-current characteristics — average melt

/4

/2

/100

15

/10

1

300

100

10

NDS

1

TIME IN SE

.1

.01

.1

/10

2

RMS SYMMETRICAL CURRENT IN AMPS

/4

1

/2

/10

1

1

8

/10

/10

/10

1

3

4

6

1

1

2

/10

/10

2

6

2 4 5 8 10

3

1

1

6

12

10

LPN-RK

AMP RATING

100

Low voltage,

branch circuit fuses

1,000

Data sheet no. LPN-RK 1003 (up to 60 A), 1007 (70-600 A)
LPS-RK 1001 (up to 60 A), 1002 (70-600 A)

BUSSMANN SERIES FULL LINE CATALOG 1007 — June 2017

Eaton.com/bussmannseries

1-19

1 — Low voltage, branch circuit fuses

B

INSTANTANEOUS PEAK LET-THRU CURRENT IN AMPS

B

RATING

INSTANTANEOUS PEAK LET-THRU CURRENT IN AMPS

LPS-RK

/10

2

/100

/10

1

15

/4

1

/10

/2

1

6

1

6

/10

/10

/10

4

3

8

1

/4

/10

1

2

2

6

10

3

/10

/2

1

1

2

458

12

LPN Current limitation curvesLPS Time-current characteristics — average melt

400,000

AMP RATING

TIME IN SECONDS

CURRENT IN AMPS

100,000

10,000

A

1,000

1,000

10,000

100,000

RMS SYMMETRICAL CURRENTS IN AMPS

A–B=ASYMMETRICAL AVAILABLE PEAK (2.3 X SYMM RMS AMPS)

LPS Current limitation curves

AMP

600
400

200

100
60

30

200,000

Data sheet no. LPN-RK 1003 (up to 60 A), 1007 (70-600 A)
LPS-RK 1001 (up to 60 A), 1002 (70-600 A)

1-20

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

Low voltage, branch circuit fuses — 1

KTN-R (250 V) and KTS-R (600 V) Class RK1
Limitron fast-acting fuses

Fast-acting, current-limiting Class RK1 fuses. For superior electrical
protection, Eaton recommends upgrading KTN-R fuse applications to
Bussmann series Low-Peak LPN-RK 250 V or LPS-RK 600 V fuses,
see page 1-18. For dimensions, see page 1-3.

Ratings

•

Volts

• KTN-R

− 250 Vac (or less)

− 250 Vdc (70-350 A)

• KTS-R 600 Vac (or less)

•

Amps 1-600 A

•

IR

• 200 kA RMS Sym.

• 100 kA Vdc (KTN-R)

Agency information

•

KTN-R

• UL Listed, Std 248-12, Class RK1, Guide JDDZ, File E4273

• CSA Certified, Class 1422-02, File 53787

•

KTS-R

• UL Listed, Std 248-12, Class RK1, Guide JDDZ, File E54273

• CSA Certified, C22.2 No 248.12, Class 1422-02, File 53787

•

CE

Catalog no. (amps)

250 V KTN-R

KTN-R-1 KTN-R-15 KTN-R-70 KTN-R-200

KTN-R-2 KTN-R-20 KTN-R-75 KTN-R-225

KTN-R-3 KTN-R-25 KTN-R-80 KTN-R-250

KTN-R-4 KTN-R-30 KTN-R-90 KTN-R-300

KTN-R-5 KTN-R-35 KTN-R-100 KTN-R-350

KTN-R-6 KTN-R-40 KTN-R-110 KTN-R-400

KTN-R-8 KTN-R-45 KTN-R-125 KTN-R-450

KTN-R-10 KTN-R-50 KTN-R-150 KTN-R-500

KTN-R-12 KTN-R-60 KTN-R-175 KTN-R-600

600 V KTS-R

KTS-R-1 KTS-R-12 KTS-R-70 KTS-R-225

KTS-R-2 KTS-R-15 KTS-R-75 KTS-R-250

KTS-R-3 KTS-R-30 KTS-R-80 KTS-R-300

KTS-R-4 KTS-R-35 KTS-R-90 KTS-R-350

KTS-R-5 KTS-R-40 KTS-R-125 KTS-R-400

KTS-R-6 KTS-R-45 KTS-R-150 KTS-R-450

KTS-R-8 KTS-R-50 KTS-R-175

KTS-R-10 KTS-R-60 KTS-R-200

KTS-R-20 KTS-R-100 KTS-R-500

KTS-R-25 KTS-R-110 KTS-R-600

Recommended blocks for Class RK1 fuses, see page 1-2.

Low voltage,

branch circuit fuses

Features

•

Current limitation for non-inductive circuits provides Class RK1
current-limiting response to maximum ground fault and short­circuit conditions

•

200 kA interrupting rating provides high ratings at all circuit
locations

•

Economical protection for high-fault current circuits

Typical applications

•

Panelboards

Data sheet no. 1043 (KTN-R), 1044 (KTS-R)

BUSSMANN SERIES FULL LINE CATALOG 1007 — June 2017

Eaton.com/bussmannseries

1-21

1 — Low voltage, branch circuit fuses

B

KTN-R Time-current characteristics — average melt

KTS-R Time-current characteristics — average melt

AMPERE

30A

60A

300

100

10

1

TIME IN SECONDS

.1

100A

200A

400A

600A

RATING

KTN-R Current limitation curves

.01

40

100

RMS SYMMETRICAL CURRENT IN AMPERES

1,000

10,000

KTS-R Current limitation curves

400,000

100,000

10,000

A

1,000

INSTANTANEOUS PEAK LET-THROUGH CURRENT IN AMPS

1,000

A–B=ASYMMETRICAL AVAILABLE PEAK (2.3 x SYMM RMS AMPS)

RMS SYMMETRICAL CURRENTS IN AMPERES

10,000

100,000

AMPERE

RATING

600

400

200

100

60

30

200,000

Data sheet no. 1043 (KTN-R), 1044 (KTS-R)

1-22

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

Low voltage, branch circuit fuses — 1

FRN-R (250 V) and FRS-R (600 V) Class RK5
Fusetron™ energy efficient, dual-element, time­delay fuses

Dual-element, time-delay Class RK5 fuses. FRN-R — 10 seconds
(minimum) at 500% rated amps (8 seconds for 0-30 A sizes).
FRS-R — 10 seconds (minimum) at 500% rated amps. FRN-R
and FRS-R available with optional indication on select ratings (see
catalog numbers table). For superior electrical protection, Eaton
recommends upgrading to Bussmann series Low-Peak LPN-RK (250
V) or LPS-RK (600 V) fuses, see page 1-18. For dimensions, see page
1-3.

Ratings

•

Volts

• FRN-R

− 250 Vac (or less)

− 125 Vdc (1/10-60 A, 110-200 A)

− 250 Vdc (225-600 A)

• FRS-R

− 600 Vac (or less)

− 300 Vdc 1/10-30 A, 65-600 A

− 250 Vdc 35-60 A

•

Amps 1/10-600 A

•

IR

• 200 kA RMS Sym.

• 20 kA DC

Agency information

•

FRN-R

• UL Listed, Std 248-12, Class RK5, Guide JDDZ, File E4273

• CSA Certified, Class 1422-01, File 53787

•

FRS-R

• UL Listed, Std 248-12, Class RK5, Guide JDDZ, File E4273

• CSA Certified, Class 1422-02, File 53787

•

CE

Features

•

Separate overload and short-circuit elements provide time-delay for
sizing as close as 125% of motor FLA (FRN-R)

•

2:1 selective coordination amp ratio (within the Fusetron RK5 fuse
family) helps prevent overcurrent events from opening upstream
Fusetron fuses

•

Insulated end caps for 225-600 A (FRN-R) and 65-600 A (FRS-R)
fuses reduces exposure to live parts and extends air gap to
distance between blades of adjacent mounted fuses or to housing

Catalog no. (amps)

250 V FRN-R

FRN-R-1/10 FRN-R-2 FRN-R-10* FRN-R-100

FRN-R-1/8 FRN-R-2-1/4 FRN-R-12* FRN-R-110

FRN-R-15/100 FRN-R-2-1/2 FRN-R-15* FRN-R-125

FRN-R-2/10 FRN-R-2-8/10 FRN-R-17-1/2* FRN-R-150

FRN-R-1/4 FRN-R-3 FRN-R-20* FRN-R-175

FRN-R-3/10 FRN-R-3-2/10 FRN-R-25* FRN-R-200

FRN-R-4/10 FRN-R-3-1/2 FRN-R-30* FRN-R-225

FRN-R-1/2 FRN-R-4 FRN-R-35* FRN-R-250

FRN-R-6/10 FRN-R-4-1/2 FRN-R-40* FRN-R-300

FRN-R-8/10 FRN-R-5 FRN-R-45* FRN-R-350

FRN-R-1 FRN-R-5-6/10 FRN-R-50* FRN-R-400

FRN-R-1-1/8 FRN-R-6 FRN-R-60* FRN-R-450

FRN-R-1-1/4 FRN-R-6-1/4 FRN-R-70 FRN-R-500

FRN-R-1-4/10 FRN-R-7 FRN-R-75 FRN-R-600

FRN-R-1-1/2 FRN-R-7-1/2 FRN-R-80

FRN-R-1-6/10 FRN-R-8* FRN-R-85

FRN-R-1-8/10 FRN-R-9* FRN-R-90

600 V FRS-R

FRS-R-1/10 FRS-R-2 FRS-R-10* FRS-R-100

FRS-R-1/8 FRS-R-2-1/4 FRS-R-12* FRS-R-110

FRS-R-15/100 FRS-R-2-1/2 FRS-R-15* FRS-R-125

FRS-R-2/10 FRS-R-2-8/10 FRS-R-17-1/2* FRS-R-150

FRS-R-1/4 FRS-R-3 FRS-R-20* FRS-R-175

FRS-R-3/10 FRS-R-3-2/10 FRS-R-25* FRS-R-200

FRS-R-4/10 FRS-R-3-1/2 FRS-R-30* FRS-R-225

FRS-R-1/2 FRS-R-4 FRS-R-35* FRS-R-250

FRS-R-6/10 FRS-R-4-1/2 FRS-R-40* FRS-R-300

FRS-R-8/10 FRS-R-5 FRS-R-45* FRS-R-350

FRS-R-1 FRS-R-5-6/10 FRS-R-50* FRS-R-400

FRS-R-1-1/8 FRS-R-6* FRS-R-60* FRS-R-450

FRS-R-1-1/4 FRS-R-6-1/4* FRS-R-65 FRS-R-500

FRS-R-1-4/10 FRS-R-7* FRS-R-70 FRS-R-600

FRS-R-1-1/2 FRS-R-7-1/2* FRS-R-75

FRS-R-1-6/10 FRS-R-8* FRS-R-80

FRS-R-1-8/10 FRS-R-9* FRS-R-90

* Available with indication To order, place "ID" at the end of the catalog number.

Example: FRN-R-30ID or FRS-R-7ID.

Recommended blocks for Class RK5 fuses, see page 1-2.

Recommended fuse reducers for Class R fuses, see page 1-2.

Low voltage,

branch circuit fuses

Typical applications

•

Power panelboards

•

Motor control centers

•

Combination starters

•

Machinery disconnects

Data sheet no. FRN-R; 1019 (up to 60 A), 1020 (70-600 A)
FRS-R 1017 (up to 60 A), 1018 (70-600 A)

BUSSMANN SERIES FULL LINE CATALOG 1007 — June 2017

Eaton.com/bussmannseries

1-23

1 — Low voltage, branch circuit fuses

B

B

FRN-R Time-current characteristics — average melt

400

8

10

15

60

30

100

200

600

FRS-R Time-current characteristics — average melt

FRN-R Current limitation curves

400,000

100,000

10,000

A

Instantaneous Peak Let-Through Current Amps

1,000

1,000

RMS Symmetrical Currents In Amps

A–B = Asymmetrical Available Peak (2.3 x Sym RMS Amps)

10,000

100,000

200,000

Data sheet no. FRN-R; 1019 (up to 60 A), 1020 (70-600 A)
FRS-R 1017 (up to 60 A), 1018 (70-600 A)

1-24

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

600
400

200

100

60

30

Amp

FRS-R Current limitation curves

400,000

Rating

100,000

10,000

A

Instantaneous Peak Let-Through Current Amps

1,000

1,000

A–B = Asymmetrical Available Peak (2.3 x Sym RMS Amps)

RMS Symmetrical Currents In Amps

10,000

Eaton.com/bussmannseries

100,000

Amp

Rating

600A

400A

200A

100A
60A

30A

15A

200,000

Low voltage, branch circuit fuses — 1

JJN (300 V) and JJS (600 V) Class T Limitron fast­acting fuses

Very fast-acting, current-limiting 300 V (JJN) and 600 V (JJS) Class T
fuse. For dimensions, see page 1-3.

Ratings

•

Volts

• JJN

− 300 Vac (or less)

− 160 Vdc (15-600 A)

− 170 Vdc (601-1200 A)

• JJS

600 Vac (or less)

•

Amps

• JJN 1-1200 A

• JJS 1-800 A

•

IR

• 200 kA RMS Sym.

• 20 kA DC @ 160 Vac (JJN)

• 100 kA DC @ 170 Vac (JJN)

Agency information

•

UL Listed, Std 248-15, Class T, Guide JDDZ, File E4273, CSA
Certified, Class 1422-02, File 53787, RoHS compliant, CE

Features

•

Series combination ratings with branch circuit breakers allows
broad range of coverage, independent of breaker manufacturer

•

Current limitation for non-inductive circuits provides Class T
current-limiting response to maximum ground fault and short­circuit conditions

•

200 kA interrupting rating provides protection for virtually all circuit
locations

•

Small footprint allows more efficient use of panel space

2011/65/EU

Typical applications

•

Large apartment complexes

•

Multi-family meter stacks

•

VFD line protection

Catalog no. (amps)

300 V JJN

JJN-1 JJN-35 JJN-110 JJN-400

JJN-2 JJN-40 JJN-125 JJN-450

JJN-3 JJN-45 JJN-150 JJN-500

JJN-6 JJN-50 JJN-175 JJN-600

JJN-10 JJN-60 JJN-200 JJN-700

JJN-15 JJN-70 JJN-225 JJN-800

JJN-20 JJN-80 JJN-250 JJN-1000

JJN-25 JJN-90 JJN-300 JJN-1200

JJN-30 JJN-100 JJN-350

600 V JJS

JJS-1 JJS-30 JJS-90 JJS-250

JJS-2 JJS-35 JJS-100 JJS-300

JJS-3 JJS-40 JJS-110 JJS-350

JJS-6 JJS-45 JJS-125 JJS-400

JJS-10 JJS-50 JJS-150 JJS-450

JJS-15 JJS-60 JJS-175 JJS-500

JJS-20 JJS-70 JJS-200 JJS-600

JJS-25 JJS-80 JJS-225 JJS-800

Recommended blocks for Class T fuses, see page 1-2.

Low voltage,

branch circuit fuses

Current-limiting effects

300 V JJN

Prosp.
S.C.C. Let-through current (apparent RMS Sym. vs. fuse rating)

— 15 A 30 A 60 A 10 0 A 200 A 400 A 600 A 800 A 1200 A

500 1000 1000 1000 1000 1000 1000 1000 1000 1000

1000 1000 1000 1000 1000 1000 1000 1000 1000 1000

5000 1000 1000 1000 1000 2000 3000 5000 5000 5000

10,000 1000 1000 1000 2000 2000 4000 6000 7000 9000
15,000 1000 1000 1000 2000 3000 4000 6000 9000 10,000
20,000 1000 1000 1000 2000 3000 5000 7000 10,000 11,000
25,000 1000 1000 2000 2000 3000 5000 7000 10,000 12,000
30,000 1000 1000 2000 2000 3000 5000 8000 11,000 13,000
35,000 1000 1000 2000 3000 4000 6000 8000 11,000 13,000
40,000 1000 1000 2000 3000 4000 6000 9000 11,000 13,000
50,000 1000 1000 2000 3000 4000 7000 9000 12,000 15,000

60,000 1000 1000 2000 3000 4000 7000 10,000 13,000 16,000
70,000 1000 1000 2000 3000 5000 7000 10,000 14,000 17,000
80,000 1000 2000 2000 3000 5000 8000 11,000 15,000 17,000
90,000 1000 2000 2000 3000 6000 8000 11,000 15,000 18,000

100,000 1000 2000 2000 4000 6000 8000 12,000 16,000 19,000
150,000 1000 2000 3000 4000 6000 9000 13,000 17,000 22,000

200,000 2000 2000 3000 4000 7000 9000 15,000 19,000 23,000

BUSSMANN SERIES FULL LINE CATALOG 1007 — June 2017

600 V JJS

Prosp.
S.C.C. Let-through current (apparent RMS Sym. vs. fuse rating)

— 15A 30A 60A 10 0 A 200A 400A 600A 800A

500 1000 1000 1000 1000 1000 1000 1000 1000
1000 1000 1000 1000 1000 1000 1000 1000 1000
5000 1000 1000 1000 2000 3000 4000 5000 5000

10,000 1000 1000 1000 2000 3000 6000 8000 9000
15,000 1000 1000 2000 3000 4000 7000 10,000 11,000
20,000 1000 1000 2000 3000 4000 7000 10,000 12,000
25,000 1000 1000 2000 3000 5000 7000 11,000 13,000
30,000 1000 1000 2000 3000 5000 8000 12,000 14,000
35,000 1000 1000 2000 3000 5000 9000 13,000 15,000
40,000 1000 2000 2000 4000 5000 9000 13,000 15,000
50,000 1000 2000 2000 4000 6000 10000 14,000 17,000
60,000 1000 2000 3000 4000 6000 10000 16,000 18,000
70,000 1000 2000 3000 4000 7000 11000 17,000 19,000
80,000 1000 2000 3000 4000 7000 11000 17,000 20,000

90,000 1000 2000 3000 4000 7000 12000 18,000 21,000
100,000 2000 2000 3000 5000 7000 12,000 19,000 22,000
150,000 2000 3000 4000 6000 8000 14,000 22,000 25,000
200,000 2000 3000 4000 6000 9000 16,000 24,000 28,000

Data sheet no. 1025 (JJN) and 1029 (JJS)

Eaton.com/bussmannseries

1-25

1 — Low voltage, branch circuit fuses

B

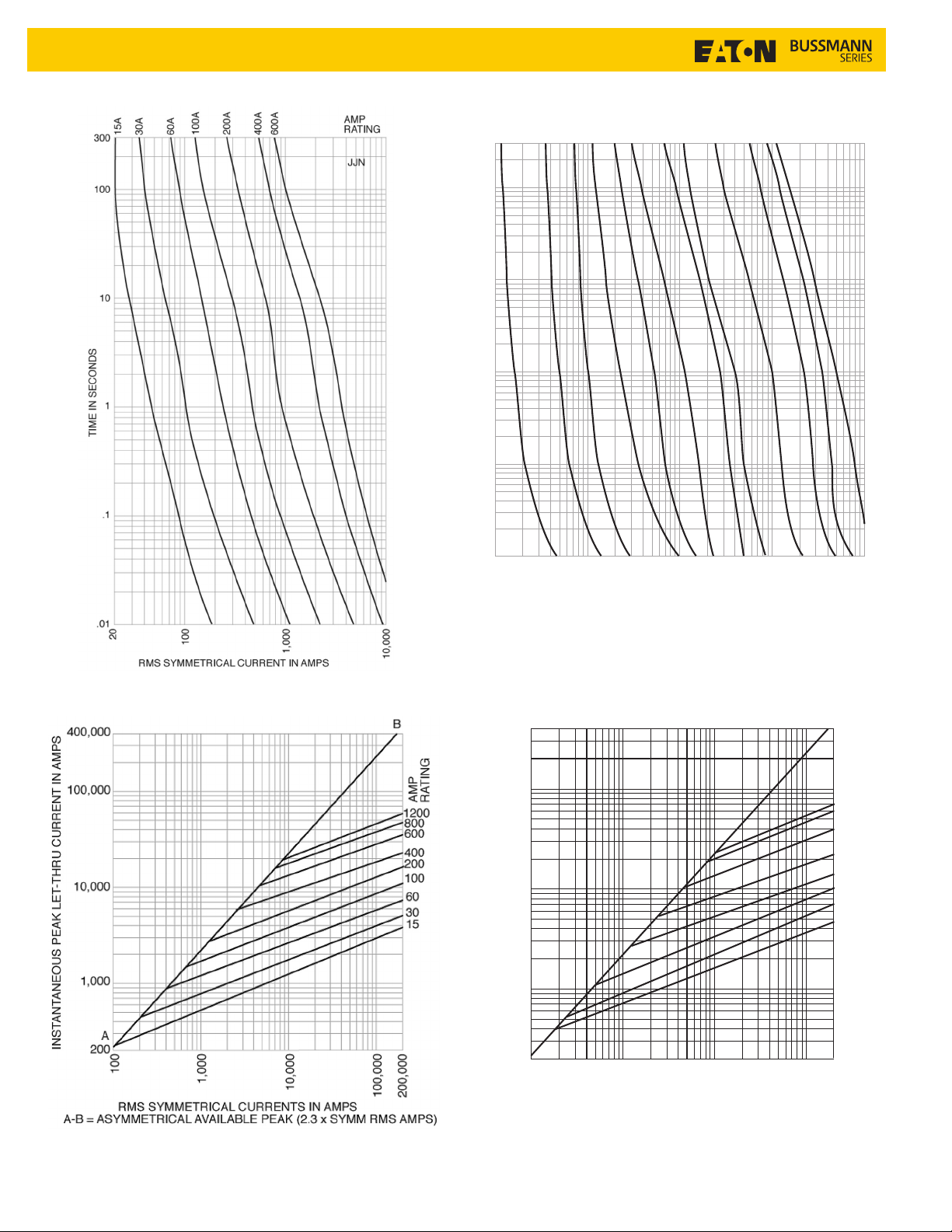

JJN Time-current characteristics — average melt

JJS Time-current characteristics — average melt

1A

3A

6A

10A

30A

300

15A

60A

200A

400A

100A

500A

100

10

1

TIME IN SECONDS

0.1

AMP RATING

600A

JJN Current limitation curves

0.01

1

10

CURRENT IN AMPS

100

1000

10,000

JJS Current limitation curves

400,000
300,000

200,000

100,000

AMP RATING

800
600

400

200

100
60

30

15

200,000

100,000

80,000
60,000

40,000
30,000

20,000

10,000

8000
6000

4000
3000

2000

1000

800
600

400

300

INSTANTANEOUS PEAK-LET-THROUGH CURRENT IN AMPS

A

200

100

200

300

400

600

800

1000

2000

3000

4000

6000

8000

10,000

20,000

30,000

40,000

A-B = ASYMMETRICAL AVAILABLE PEAK (2.3 X SYM RMS AMPS)

RMS SYMMETRICAL CURRENT IN AMPS

60,000

80,000

Data sheet no. 1025 (JJN) and 1029 (JJS)

1-26

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

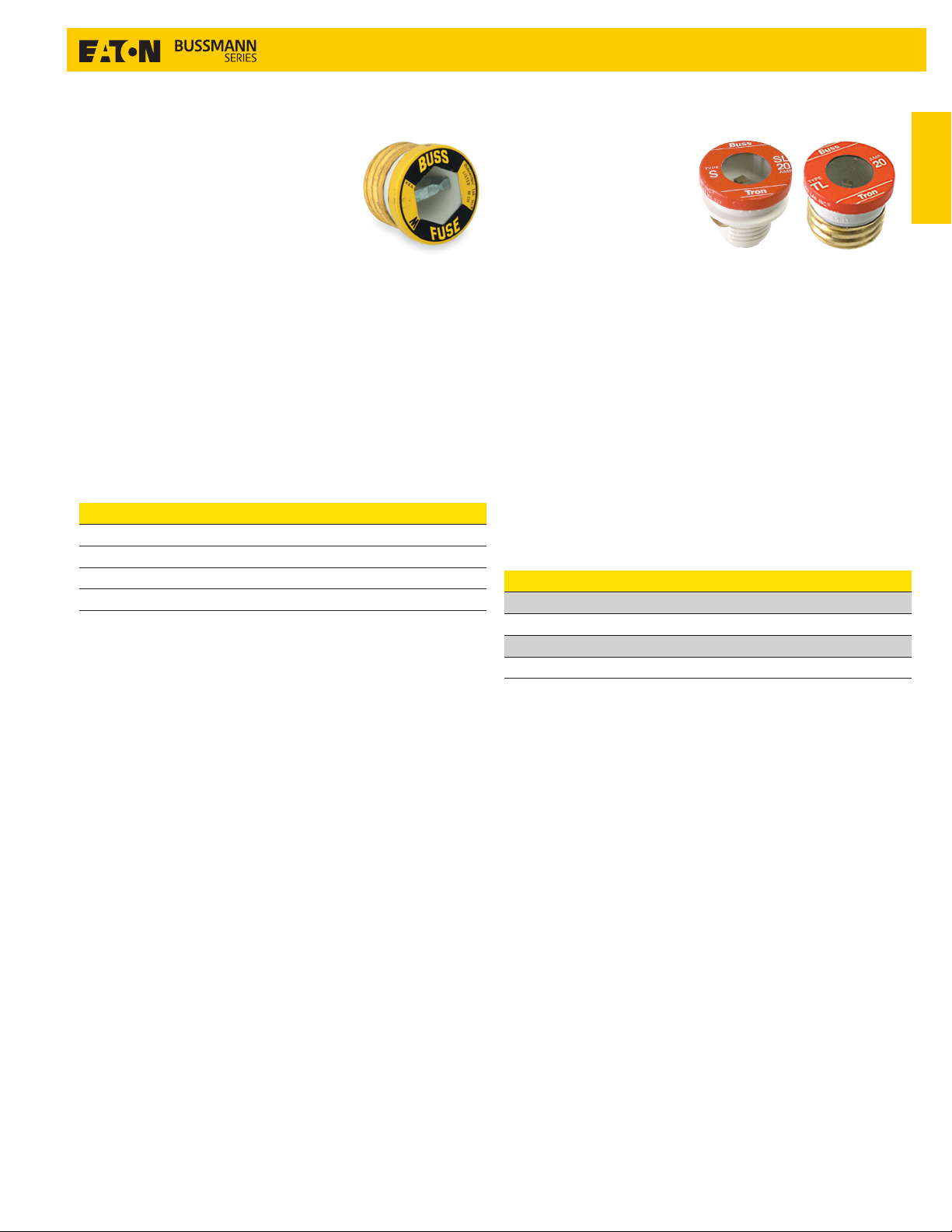

Low voltage, branch circuit fuses — 1

W plug fuses

Fast-acting Edison base plug fuse.

Ratings

•

Volts 125 Vac

•

Amps 1/2-12 A

•

IR 10 kA RMS Sym.

Agency information

•

UL Listed, Std 248-11, Guide JEFV, File E12112, CE

Features

•

Dependable, fast-acting circuit protection with 10 kA interrupting
rating for added safety when applied to existing plug fuse systems
and 125 volt single-phase control circuits

Typical applications

•

Replacement fuses for existing systems

•

For general purpose circuit protection

•

Lighting and other non-motor circuits

Catalog no.* (amps)

W-1/2 W-2 1/2 W-6 W-10

W-1 W-3 W-6 1/2 W-12

W-1 8/10 W-4 W-7 W-DUMMY**

W-2 W-5 W-8

* W-15 to W-30 plug fuses obsolete. Replace with either T-(amp) or TL-(amp)

Edison base plug fuses.

** Non-conductive dummy base NOT a fuse.

Recommended box cover units for W plug fuses, see page 1-30.

SL rejection base and TL Edison base plug fuses

Time-delay, loaded link Edison (TL) and rejection base (SL) plug
fuses.

Rating

•

Volts 125 Vac

•

Amps 15-30 A

•

IR 10 kA RMS Sym.

Agency information

•

UL Listed, Std 248-11, Guide JEFV, File E12112, CE

Features

•

Time-delay loaded link TL Edison base plug fuses pass motor

overload starting currents without opening and allow closer sizing

to motor load for added protection

•

Time-delay loaded link SL fuses provide a rejection feature (when

used alone or with Fustat adapters to retrofit Edison base holders)

to help prevent overfusing

Typical applications

•

Small motor and inductive load circuits with high in-rush current

levels

•

TL for box cover units to provide small motor overload protection

•

SL for applications benefiting from fuse rejection

Catalog no. (amps)

Rejection base SL

SL-15 SL-20 SL-25 SL-30

Edison base TL

TL-15 TL-20 TL-25 TL-30

Recommended box cover units for SL and TL plug fuses, see page
1-30. For Fustat adapters for use with SL fuses see page 1-29.

Low voltage,

branch circuit fuses

Data sheet no. 1036 Data sheet no. 1033 (SL) and 1035 (TL)

BUSSMANN SERIES FULL LINE CATALOG 1007 — June 2017

Eaton.com/bussmannseries

1-27

1 — Low voltage, branch circuit fuses

S rejection base and T Edison base plug fuses

Dual-element, time-delay Edison (T) and rejection base (S) plug
fuses.

Rating

•

Volts 125 Vac

•

Amps

• S 1/4-30 A

• T 3/10-30 A

•

IR 10 kA RMS Sym.

Agency information

•

UL Listed, Std 248-11, Type S and T (0 to 6-1/4) Guide JFHR,
File E56412 (7 to 30 A) Guide JEFV, File E12112; CSA Certified,
Class 1423-01, File 53787, CE

Features

•

T Edison base fuses provide small motor overload protection when
used with box cover units

•

S rejection base fuses provide a rejection feature (when used
alone or with Fustat adapters to retrofit Edison base holders) to
prevent overfusing of branch circuits

Typical applications

•

S for residential load centers

•

T for box cover units to provide small motor overload protection

•

Applications benefiting from fuse rejection to help prevent
overfusing (S only)

P and TC CSA plug fuses

CSA Edison base Type P (P) dual-element fuses and Type D (TC) dual­element, time-delay fuses

Ratings

•

Volts 125 Vac or less

•

Amps 15-30 A

•

IR 10 kA

Agency information

•

P - CSA Certified

•

TC - CSA Certified, Class 1423-01, File 53787

Features

•

P

• "P" rating addresses the need of Canadian applications

• Non-time delay protects non-inductive loads

•

TC

• "D" rating addresses the need of Canadian applications

• Heavy duty TC fuses are industrial strength products, featuring

dual-element construction

• This spring loaded design provides superior short-circuit and

overload protection

• The TC fuses have more time-delay than the medium duty

fuses in order to better protect industrial motors and residential
circuits

Typical applications

Catalog no. (amps)

Rejection base S

S-1/4 S-1-4/10 S-3-1/2 S-20

S-3/10 S-1-6/10 S-4 S-25

S-4/10 S-1-8/10 S-7 S-30

S-1/2 S-2 S-8

S-6/10 S-2-1/4 S-9

S-8/10 S-2-1/2 S-10

S-1 S-2-8/10 S-12

S-1-1/8 S-3 S-14

S-1-1/4 S-3-2/10 S-15

Edison base T

T-3/10 T-1-6/10 T-4 T-10

T-4/10 T-1-8/10 T-4-1/2 T-12

T-1/2 T-2 T-5 T-14

T-6/10 T-2-1/4 T-5-6/10 T-15

T-8/10 T-2-1/2 T-6 T-20

T-1 T-2-8/10 T-6-1/4 T-25

T-1-1/8 T-3 T-7 T-30

T-1-1/4 T-3-2/10 T-8

T-1-4/10 T-3-1/2 T-9

Recommended box cover units for S and T plug fuses, see page
1-30. For Fustat adapters for use with SL fuses see page 1-29.

•

P for non-inductive loads, residential load centers

•

TC for box cover units to provide small motor overload protection

Catalog no. (amps)

Type P

P-15 P-20 P-25 P-30

Type D

TC-15 TC-20 TC-25 TC-30

Recommended box cover units for P and TC plug fuses, see page
1-30.

Data sheet no. 1032 (S) and 1034 (T) Data sheet no. 1039 (TC)

1-28

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

Low voltage, branch circuit fuses — 1

MB Edison base circuit breakers

Edison base manual reset circuit breakers.

Ratings

•

Volts 125 Vac only

•

Amps 15 and 20 A

•

IR 10 kA RMS Sym.

Agency information

•

UL Listed, File E14942

Features

•

Edison base circuit breakers fit standard Edison base fuse
receptacles to provide resettable overcurrent protection (correct
cause of overcurrent event before resetting)

Typical applications*

•

Replacing Edison base plug fuses in residential fuse panels

Catalog no.* (amps)

MB-15 MB-20

* Not for use in box cover units or for inductive loads.

SA Fustat fuse adapters

Adapters for using Type S and SL rejection base fuses in Edison base
fuse sockets. Amp rating rejection feature helps prevent overfusing.

Ratings

•

Volts 125 Vac

•

Amps 1-30 A

Agency information

•

UL Listed, File E12853, CSA Certified, Class 6225-01, File 47235

Features

•

Fustat adapters screw into the "Edison" thread fuse sockets to

easy retrofit existing fuse installations to rejection base fuses

•

Available in various amp ratings to cover a wide range of rating

requirements to help prevent overfusing

Typical applications

•

Plug fuse installations where it is desirable to restrict fuse amp

ratings and help prevent overfusing

Catalog no. Accepts S fuses Accepts SL fuses

SA-1* S-1 or smaller —

SA-1-1/4* S-1-1/4 or smaller —

SA-1-6/10* S-1-6/10 or smaller —

SA-2* S-2 or S-1-8/10 —

SA-2-1/2* S-2-1/2 to S-1-8/10 —

SA-3-2/10* S-3-2/10 to S-1-8/10 —

SA-4* S-4 to S-3-1/2 —

SA-5* S-5 to S-3-1/2 —

SA-6-1/4* S-6-1/4 to S-3-1/2 —

SA-8* S-8 to S-7 —

SA-10* S-10 to S-7 —

SA-15** S-15 to S-7 SL-15

SA-20** S-20 SL-20

SA-30** S-30 to S-25 SL-52, SL-30

* Single motor circuits - both running and short-circuit protection.
** Branch circuits.

Low voltage,

branch circuit fuses

BUSSMANN SERIES FULL LINE CATALOG 1007 — June 2017

Eaton.com/bussmannseries

1-29

1 — Low voltage, branch circuit fuses

2-1/4” handy box units

4” square box units

Box cover units for Edison base plug fuses

SOU, SRU, SSU, SOW, SRW, SSW, SOX, SRX, SOY, SRY, SSY,
SSY-RL, STY, SCY, SOY-B and SSN

Box cover units for standard electrical boxes provide supplemental
fuse protection for small motor circuits and other loads requiring
overcurrent protection below that of the branch circuit overcurrent
protective device. Versions are available for a fused outlet, switch
or plain circuit that fit standard sized electrical boxes. See catalog
numbers for available configurations by box type.

Use with SA adaptors and S or SL Type fuses may prevent fuse
cover from closing. Not recommended for use with MB-15 Edison
base circuit breaker.

Ratings

•

Volts 125 V

•

Amps 15 A

Agency information

•

UL Listed, Guide JAMZ, File IE6491

•

CSA Class 6225-01, File 47235

Features

SOU SRU SSU SSN

SOU

SRU

SSU

SOY

2-3/4” switch box units

SRY

SSY

•

A low-cost method of controlling and protecting small motors
when used with Bussmann series Type T dual-element fuses

•

Low-cost supplemental protection and disconnection of 125 V or

SOW

SRW

4” octagon box units

SSW

SSY-RL

less, single-phase circuits

Typical applications

•

Fractional horsepower, 125 volt single-phase motor circuits

•

General 125 volt supplemental circuits

Catalog no. Box type

SOU

SRU 1 1/2 Fused outlet UL

2-1/4" Handy

sockets

1 3/4 Fuse receptacle only (no switch or outlet) UL, CSA

Fuse

Switch
control

1

Pilot
light

Max motor

2

size (Hp) Description

SOX

SSU 1 X 1/2 Fused switch UL, CSA

SOW

SRW 1 1/2 Fused outlet UL

2-3/4" Switch

1 3/4 Fuse receptacle only (no switch or outlet) UL, CSA

SSW 1 X 1/2 Fused switch UL, CSA

SOX

SRX 1 1/2 Fused outlet UL

4" Octagon

SOY

1 3/4 Fuse receptacle only (no switch or outlet) UL, CSA

1 3/4 Fuse receptacle only (no switch or outlet) UL, CSA

SRY 1 1/2 Fused outlet UL

SSY 1 X 1/2 Fused switch UL, CSA

SSY-RL 1 X X 1/2 Fused switch/outlet with pilot light —

3

STY

4

SCY

4" Square

2 X 1/2 Fused double pole switch, dual fuse receptacles UL

2 1/2 Dual fused switches UL

SOY-B 2 3/4 Dual fuse receptacles only (no switch or outlet) UL

SSN Single gang 1 X 1/2 Weatherproof fused switch UL

1 Switch turns power to fused load OFF or ON.
2 Pilot light indicates power to load (dark when switch OFF or fuse open).
3 Double pole switch opens both sides of circuit.
4 Can be used for two separate motors with common switch or a single motor

(3/4 Hp, 250 Vac max).

SRX

SOY-B

SCY

STY

Agency
information

Data sheet no. 1129

1-30

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

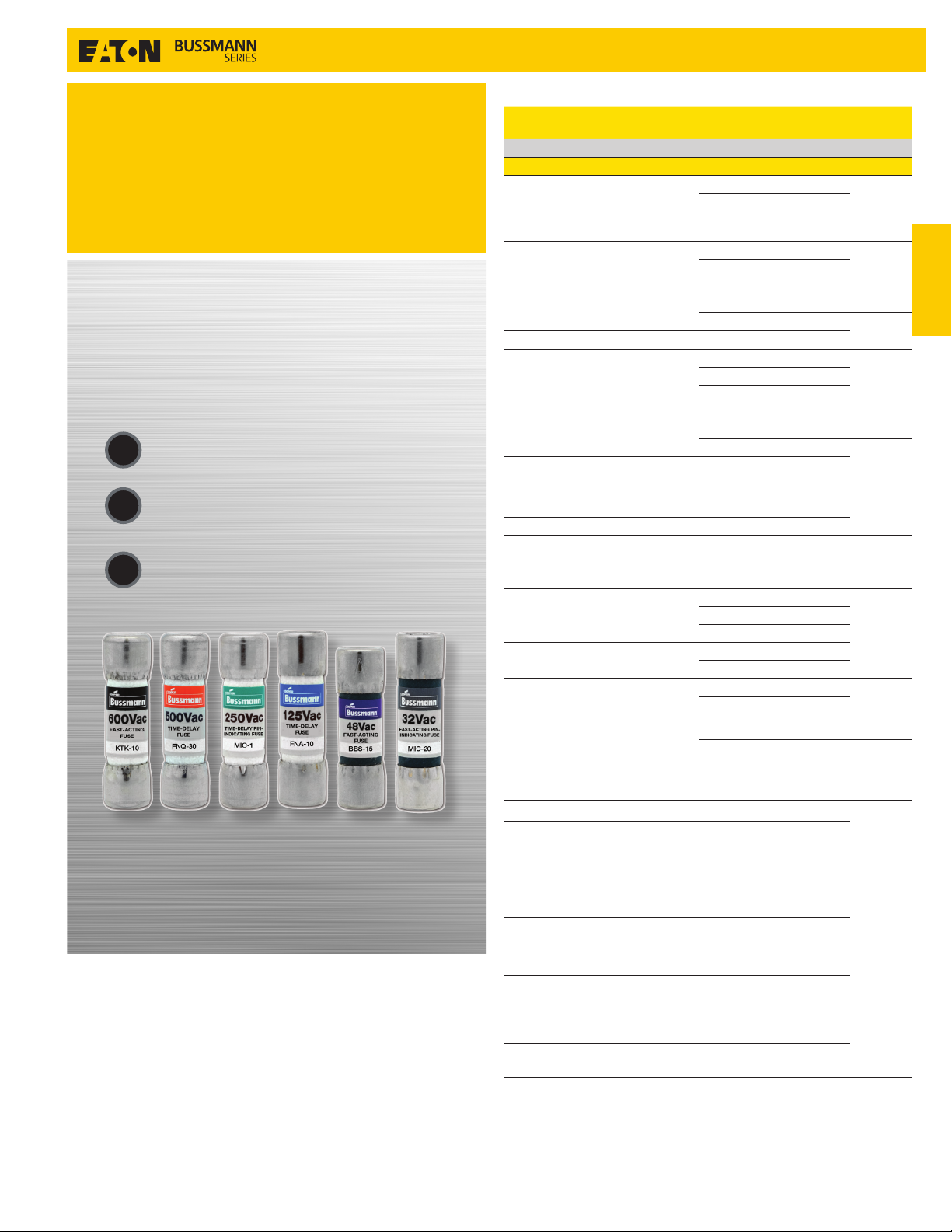

Contents

Low voltage supplemental fuses — 2

Bussmann series

Fuses Made Simple™ -
Control Circuits

The easiest and fastest way
to select and specify the right
control circuit fuse in just
three simple steps:

1

TYPE

2

VOLTAGE

3

INTERRUPTING RATING

Description
Fuse holder and block selection guide 2
Product Catalog symbol

Cable limiters

Welder limiters

13/32" x 1-1/2" fast-acting fuses

13/32" x 1-1/2" time-delay fuses

13/32" x 1-3/8" fast-acting fuse BBS (600 V)

Pin indication fuses and actuator

Limiter blocks 4164 and 4164-FR

In-line size rejecting fuses

In-line size rejecting fuse holder HLQ

In-line non size-rejecting fuses
and holders

In-line non size-rejecting fuse
holders

Automotive blade-type fuses

ATR in-line fuse holder HH2

ATC in-line fuse holders

ATM in-line fuse holders

MAX in-line fuse holders

ATC PCB fuseclips

ATM PCB fuseclips

K (600 V)
UH (250 V)
64000 (600 V)

68000 (600 V)
BAF (250 V)
KTK (600 V)
KLM (600 V)
FNM (250 V)
FNQ (500 V)

GBA (125 V)

MIC (250 V fast-acting)
FNA 250 V time-delay)
MIS (600 V)
KAZ (600 V)
ANN (125 V very fast-

acting)
ANL (80 V non time-

delay)

GLQ

GLR
GMF
GRF
HLR
HLR-2A
ATR micro
ATM

ATM-_ID
ATM-LP

ATC
ATC-_ID

MAX
MAX-_ID

ATC-FHID
HHC
HHD
HHF
HHG
HHR
HHS

ATM-FHID
HHL
HHM
HHU

HHX
MAX-FHID

1A5600
1A5780

1A5778
1A5779

Section
page

3

4

5

6

7GLD (125 V)

8

9Limiters

10GMQ

11

12

13

14

Low voltage,

supplemental fuses

BUSSMANN SERIES FULL LINDE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

2-1

2 — Low voltage supplemental fuses

Fuse holder and block selection guide

Catalog pages for the blocks and holders are denoted parenthetically "()" next to their catalog symbol.

Fuse Catalog symbol Blocks DIN-Rail holders

Cable limiters

Welder limiters

13/32" x 1-1/2"
supplemental
fuses

K_ — — — — —

UH_ — — — — —

64000
68000

BAF
FNM
FNQ
KLM
KTK

RM60_ (8-21) — — — —

CCP-_ (11-2)
BMM603_ (8-6)
3743 (8-14)
4421 (8-14)
4515 (8-14)

CCPLP-_ (11-7)

OPM-1038_ (8-12)

OPM-NG_ (8-13)

CHM (8-8)

NDNF1-WH (8-11)

13/32" x 1-3/8"
supplemental

BBS BMM603_ (8-6) — HPS-L (8-47) HEH (8-51)

fuses

GBA
GLD

— — HLD (8-44) —

Pin indication
fuses and actuator

MIC
FNA

MIS
KAZ

BMM603_ (8-6)
3839

†

2778

†

2837

†

2838

— HPF-C (8-45) —

— — —

Panel mount
holders In-line holders PCB fuseclips

HPC-D (8-45)
HPD (8-46)
HPF (8-45)
HPG (8-46)
HPM (8-46)
HPM-D (8-46)

HEB (8-53)
HEX (8-55)

1A3400_ (3-16)
5956 (3-16)
5960 (3-16)

HPS2 (8-47)
HPS (8-47)

1A3400_ (3-16)
5956 (3-16)
5960 (3-16)

1A1119 (3-15)
1A1120 (3-15)
1A1907 (3-15)
1A3398 (3-15)
1A4533 (3-15)
1A4534 (3-15)
5681 (3-16)
5682 (3-16)

1A3400_ (3-16)
5956 (3-16)
5960 (3-16)

1A3400_ (3-16)
5956 (3-16)
5960 (3-16)

Limiters

In-line size
rejecting fuses

In-line non­rejecting fuses

Automotive blade­type fuses

ANN
ANL

GLQ
GMQ

GLR
GMF
GRF

ATC
ATC-_ID

ATM
ATM-_ID

ATM-LP

4164 (2-9)
4164-FR (2-9)

— — — —

— — — HLQ (2-10) —

— — —

FB_-ATC*
15600*

FB_-ATM*
RTMF-_*

FB_-ATM*
RTMF-_*

— —

— —

— — — —

ATR micro FB_-ATR* — — HH2 (2-14) —

MAX
MAX-_ID

* Not shown in this catalog, for details and available configurations, see Automotive and Home center catalog no. 5084.
† Not shown in this catalog, see data sheet for details.

HLR (2-11)
HLR-2A (2-11)

ATC-FHID (2-14)
HHC (2-14)
HHD (2-14)
HHF (2-14)
HHG (2-14)
HHR (2-14)
HHS (2-14)

ATM-FHID (2-14)
HHL (2-14)
HHM (2-14)
HHU (2-14)

HHX (2-14)
MAX-FHID (2-14)

—

1A5600 (2-14)
1A5780 (2-14)

1A5778 (2-14)
1A5779 (2-14)

2-2

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

Low voltage supplemental fuses — 2

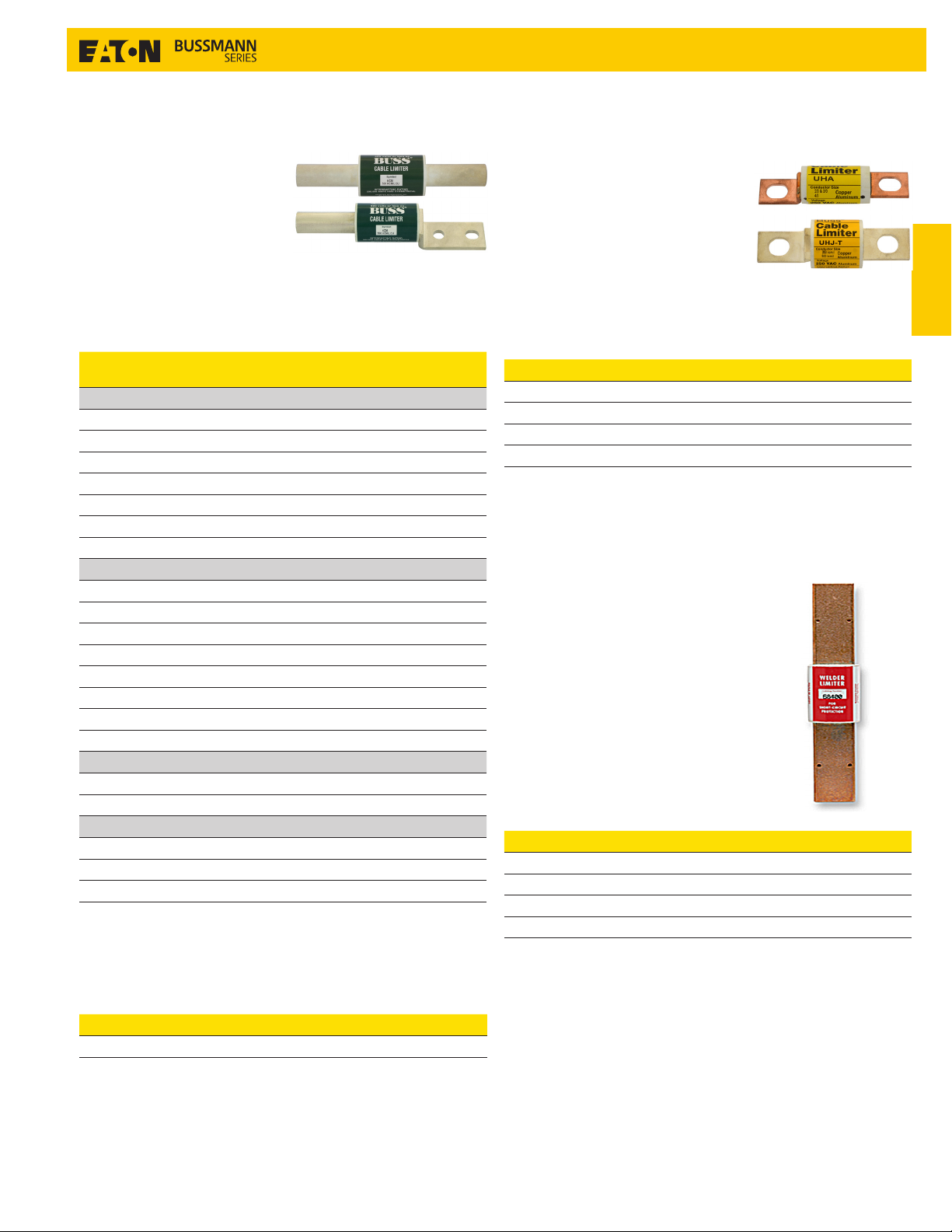

K 600 V cable limiters

Cable limiters for protecting 600 V low voltage distribution and
service entrance cables against short-circuit currents.

Ratings

•

Volts 600 Vac

•

IR 200 kA RMS Sym. @ 600 Vac

Agency information

•

UL Listing KDM, KDR, KDP and KFM, KCM, KCM-B and KCR

Features

•

Sizes and ratings available to meet many applications

Catalog no.

(AWG) Catalog no.

*Tubular terminals

KCY 4 KCF 4/0

KCZ 3 KCH 250kcmil

Cable size

KCA 2 KCJ

KCB 1 KCM

1, 2

1, 2, 3

KCC 1/0 KCV 600kcmil

KCD

1, 2

2/0 KCR

1, 2

KCE 3/0 KCS 1000kcmil

*Tubular terminal and offset bolt-type terminal

KQV 12 KDD 2/0

KQT 10 KDE 3/0

KFZ 8 KDF 4/0

KIG 6 KDH 250kcmil

KDY 4 KDJ3 350kcmil

KDA 2 KDM

1, 3

KDB 1 KDU 600kcmil

KDC 1/0 KDR

1, 2

*Compression connector rod and tubular terminals

KEX 4/0 KQO 350kcmil

KFH-A 250kcmil KDT 500kcmil

**Center bolt-type terminal and off-set bolt-type terminal

KPF 4/0 KDP1 500kcmil

KFT 250kcmil KFM1 750kcmil

KEW 350kcmil

* Copper conductors only.
** Copper or aluminum conductors.

1 UL Listed (File E90818), 600 Vac, 200 kA I.R.
2 Available with shrink tube "_V" suffix.
3 Available with molded rubber boots.

Cable size
(AWG)

350kcmil

500kcmil

750kcmil

500kcmil

750kcmil

UH 250 V cable limiters

Cable limiters for protecting 250 V low voltage distribution and
service entrance cables used in residential applications against short­circuit currents.

Ratings

•

Volts Up to 250 Vac

•

IR 100 kA RMS Sym.

Terminals and conductors

•

Center bolt-to-offset bolt terminals, Cu or Al conductors

•

Cu or Al conductors are permitted per the listed cable size. Select
the catalog number for the conductor size. See data sheet 1042
for dimensions.

Catalog no. Cu cable size (AWG) Al cable size (AWG)

UHA 3/0 4/0

UHJ-M 3/0 250kcmil

UHJ-T 350kcmil 500kcmil

UHJ-W 600kcmil 800kcmil

Data sheet no. 1042

64000 and 68000 welder limiters

Limiters for use on welder circuits. Note: welder limiters have
special characteristics and are not suitable for use on other circuit
types.

Ratings

•

Volts 600 Vac (or less)

•

IR 200 kA RMS Sym.

Features

•

Current-limiting devices designed specially
for use on welder circuits only

•

Time-current characteristics are designed
to hold on the intermittent overloading
encountered in welder operation, while
providing short-circuit protection to the
circuit and equipment

Catalog no. Fuse holder type Nominal amp rating

68300 Class H 300

68600 Class H 600

64200 Class J 200

64300 Class J 300

Recommended fuse blocks, see page 2-2.

Low voltage,

supplemental fuses

Accessory boots (order separately)

Limiter Boot catalog no. Limiter Boot catalog no.

KCM BOOT-KCM KDM BOOT-KDM

Recommended Thomas and Betts crimp tool TBM-14M with die
15506 KDM/15515 KDR. for installation

Data sheet no. 1042

BUSSMANN SERIES FULL LINDE CATALOG 1007 — JUNE 2017

Data sheet no. 1045

Eaton.com/bussmannseries

2-3

2 — Low voltage supplemental fuses

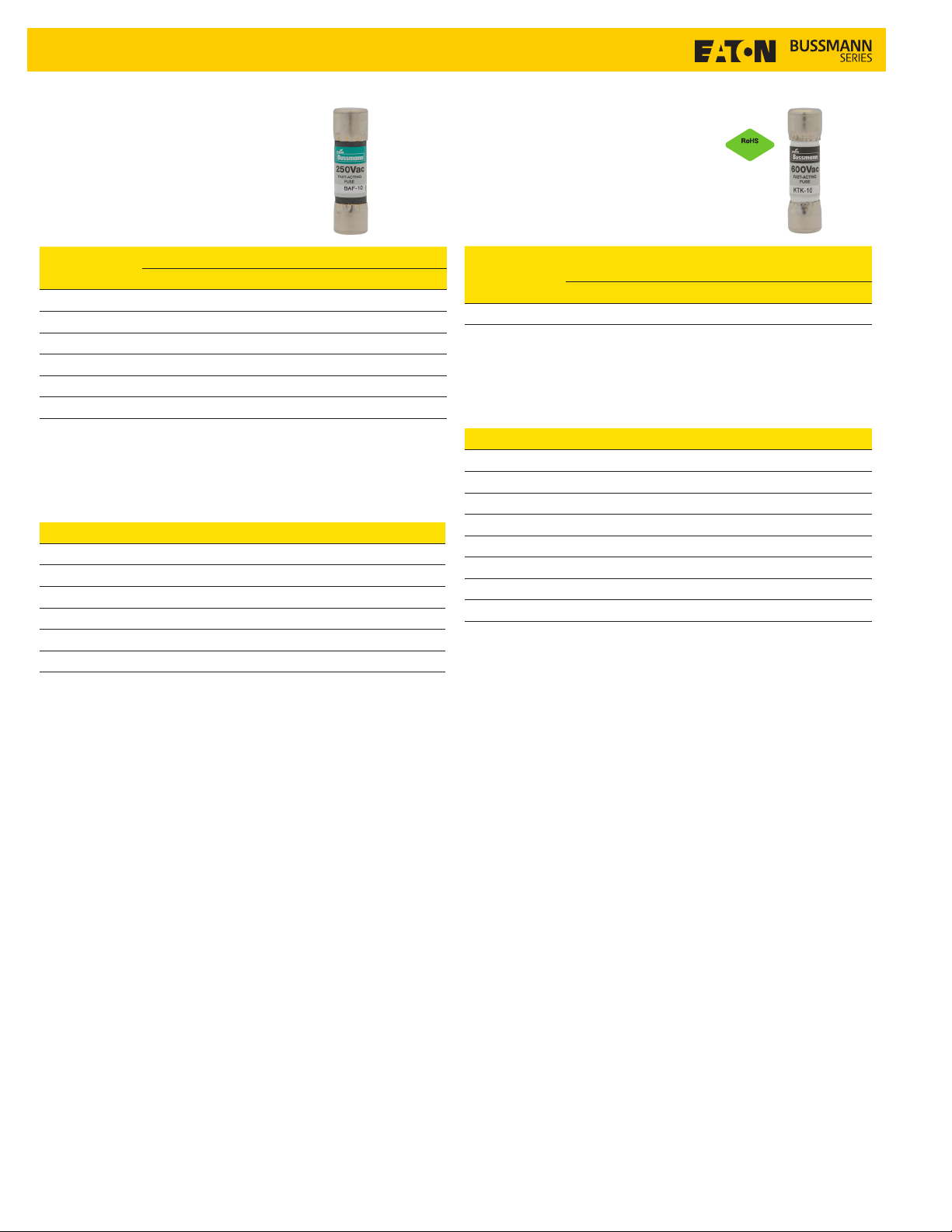

BAF fast-acting 13/32" x 1-1/2" supplemental fuse

Fast-acting, supplemental fuse.
Green color code (250 Vac max).
For superior protection, Eaton
recommends upgrading to
Bussmann series Low-Peak Class
CC fuses. See data sheet no. 1023.

Ratings

Fuse amp
range

1/4 to 1 35 A 10 kA - X

1-1/2 to 2-1/2 100 A 10 kA - X

3 10 0 A 10 kA X X

4 to 10 200 A 10 kA X X

12 to 15 750 A 10 kA X X

20 to 30 200 A 10 kA - -

Agency information

•

UL Listed, Std. 248-14, 250 Vac (3 to 15 A) Guide JDYX,
File E19180, CSA Certified, 250 Vac (1/4 to 15 A) Class 1422-01,
File 53787

Catalog no. (amps)

BAF-1/4 BAF-1-8/10 BAF-6 BAF-12

BAF-1/2 BAF-2 BAF-6-1/4 BAF-15

BAF-6/10 BAF-2-1/2 BAF-7 BAF-20

BAF-8/10 BAF-3 BAF-8 BAF-25

BAF-1 BAF-4 BAF-9 BAF-30

BAF-1-1/2 BAF-5 BAF-10

Features

•

Green color code for maximum 250 Vac rating

•

Fiber tube construction with nickel-plated brass endcaps

Typical applications

•

General purpose circuits

•

Lighting circuit protection

•

Meter circuits

Recommended blocks and holders for 13/32" x 1-1/2" fuses, see
page 2-2.

IR at system voltage Agency information

250 Vac 125 Vac UL CSA

KTK fast-acting 13/32" x 1-1/2"supplemental fuse

Fast-acting supplemental fuse.
Black color code (600 Vac max). For
superior protection, Eaton recom­mends upgrading to Bussmann
series Low-Peak Class CC fuses.
See data sheet no. 1023.

Ratings

IR at rated

Fuse amp
range

1/10 to 30 100 kA X X

voltage Agency information

600 Vac UL CSA

Agency information

•

UL Listed, Std. 248-14, Guide JDYX, File E19180, CSA Certified,
C22.2 No. 248.14, Class 1422-01, File 53787, HRC-MISC, RoHS
compliant, CE

Catalog no. (amps)

KTK-1/10 KTK-3/4 KTK-4 KTK-12

KTK-1/8 KTK-1 KTK-5 KTK-15

KTK-2/10 KTK-1-1/4 KTK-6 KTK-20

KTK-1/4 KTK-1-1/2 KTK-7 KTK-25

KTK-3/10 KTK-2 KTK-7-1/2 KTK-30

KTK-4/10 KTK-2-1/2 KTK-8

KTK-1/2 KTK-3 KTK-9

KTK-6/10 KTK-3-1/2 KTK-10

Features

•

Black color code for 600 Vac rating

•

Fast-acting for resistive loads

•

Melamine tube construction with nickel-plated bronze endcaps

Typical applications

•

Control circuits

•

Lighting circuit protection

•

Meter circuits

Recommended blocks and holders for 13/32" x 1-1/2" fuses, see
page 2-2.

2011/65/EU

Data sheet no. 2011 (0-30) Data sheet no. 1011

2-4

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

Low voltage supplemental fuses — 2

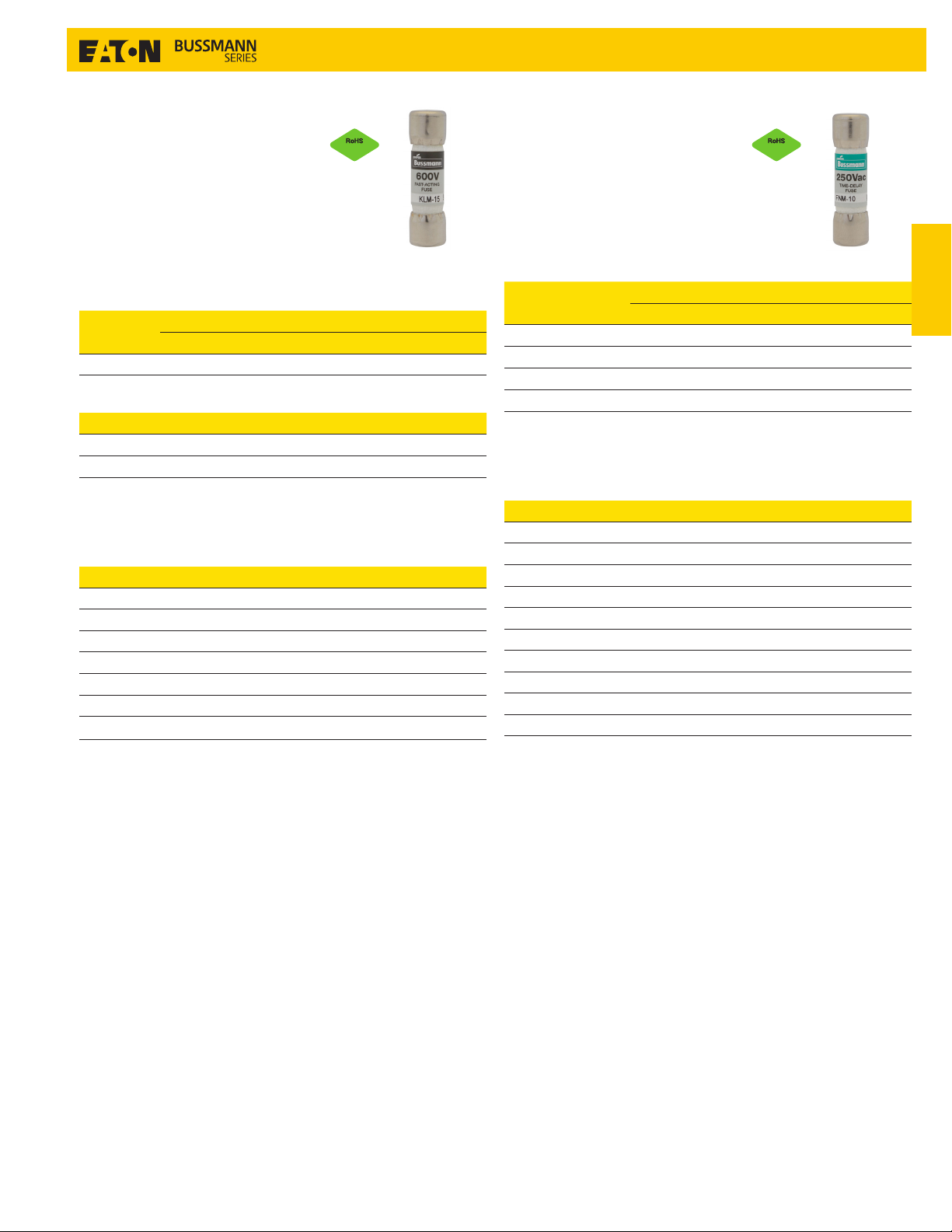

KLM fast-acting 13/32" x 1-1/2" supplemental
fuse

Fast-acting supplemental fuse.
Color code black (600 Vac/dc
max). For superior protection,
Eaton recommends upgrading to
Bussmann series Low-Peak Class
CC fuses. See data sheet no. 1023.
For protecting PV systems, use
PVM 10x30mm PV fuses. See data
sheet no. 10121.

Ratings

Fuse amp
range

1/10 to 30 100 kA 50 kA X X

IR at rated voltage Agency information

600 Vac 600 Vdc UL CSA

Electrical characteristics

% of amp rating Opening time

110 % 4 hours minimum

135% AC opens within 1 hour

Agency information

•

UL Listed, Std. 248-14, Guide JDYX, File E19180, CSA Certified,
C22.2 No. 248. 14, Class 1422-01, File 53787, RoHS compliant, CE

Catalog no. (amps)

KLM-1/10 KLM-1 KLM-5 KLM-15

KLM-1/8 KLM-1-1/4 KLM-6 KLM-20

KLM-2/10 KLM-1-1/2 KLM-7 KLM-25

KLM-1/4 KLM-2 KLM-8 KLM-30

KLM-3/10 KLM-2-1/2 KLM-9

KLM-1/2 KLM-3 KLM-10

KLM-3/4 KLM-4 KLM-12

2011/65/EU 2011/65/EU

FNM time-delay 13/32" x 1-1/2" supplemental
fuse

Time-delay supplemental fuse.
Color code green (250 Vac max).
For superior protection, Eaton
recommends upgrading to
Bussmann series Low-Peak Class
CC fuses. See data sheet no.

1023.

Ratings

IR at system voltage Agency information

Fuse amp range

1/10 to 1 35 A 10 kA X X

1-1/8 to 3-1/2 10 0 A 10 kA X X

4 to 10 200 A 10 kA X X

12 to 30 10 kA - X X

Agency information

•

UL Listed, Std. 248-14, Guide JDYX; File E19180, CSA Certified,
Class 1422-01, File 53787, RoHS compliant, CE

Catalog no. (amps)

FNM-1/10 FNM-8/10 FNM-2-1/2 FNM-6-1/4

FNM-1/8 FNM-1 FNM-2-8/10 FNM-7

FNM-15/100 FNM-1-1/8 FNM-3 FNM-8

FNM-2/10 FNM-1-1/4 FNM-3-2/10 FNM-9

FNM-1/4 FNM-1-4/10 FNM-3-1/2 FNM-10

FNM-3/10 FNM-1-1/2 FNM-4 FNM-12

FNM-4/10 FNM-1-6/10 FNM-4-1/2 FNM-15

FNM-1/2 FNM-1-8/10 FNM-5 FNM-20

FNM-6/10 FNM-2 FNM-5-6/10 FNM-25

FNM-3/4 FNM-2-1/4 FNM-6 FNM-30

250 Vac 125 Vac UL CSA

Low voltage,

supplemental fuses

Features

•

Color coded for 600 Vac/dc maximum

•

A full range DC performance fuse

•

Melamine tube construction with nickel-plated brass endcaps

Features

•

Color coded for 250 Vac maximum

•

Melamine tube construction with nickel-plated brass endcaps

Typical applications

Recommended fuse blocks and holders for 13/32" x 1-1/2" fuses, see
page 2-2.

•

Circuits with high inrush currents (motor/transformer loads)

•

Supplemental protection for 125 Vac and 250 Vac inductive circuits

Recommended fuse blocks and holders for 13/32" x 1-1/2" fuses, see
page 2-2.

Data sheet no. 2020 Data sheet no. 2028

BUSSMANN SERIES FULL LINDE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

2-5

2 — Low voltage supplemental fuses

FNQ time-delay 13/32" x 1-1/2" supplemental
fuse

Time-delay supplemental fuse.
Color code orange (500 Vac
max). For superior protection,
Eaton recommends upgrading to
Bussmann series Limitron FNQ-R
Class CC fuses. See data sheet no.

1014.

Ratings

Fuse amp
range

1/10 to 30 10 kA X X

IR at rated voltage Agency information

500 Vac UL CSA

Agency information

•

UL Listed, Std. 248-14, Guide JDYX, File E19180, CSA Certified,
C22.2 No. 248.14, Class 1422-01, File 53787, HRC-MISC, RoHS
compliant, CE

Catalog no. (amps)

FNQ-1/10 FNQ-8/10 FNQ-3-2/10 FNQ-9

FNQ-1/8* FNQ-1 FNQ-3-1/2 FNQ-10

FNQ-15/100* FNQ-1-1/8 FNQ-4 FNQ-12

FNQ-3/16 FNQ-1-1/4 FNQ-4-1/2 FNQ-14

FNQ-2/10 FNQ-1-1/2 FNQ-5 FNQ-15

FNQ-1/4 FNQ-1-6/10 FNQ-5-6/10 FNQ-20

FNQ-3/10 FNQ-2 FNQ-6 FNQ-25

FNQ-4/10 FNQ-2-1/4 FNQ-6-1/4 FNQ-30

FNQ-1/2 FNQ-2-1/2 FNQ-7

FNQ-6/10 FNQ-3 FNQ-8

* Not RoHS compliant.

Features

•

Color coded for 500 Vac maximum

•

Fiber tube construction with nickel-plated brass endcaps

Typical applications

•

Motor control transformers

•

Circuits with in-rush currents

Recommended blocks and holders for 13/32" x 1-1/2" fuses, see
page 2-2.

2011/65/EU

BBS fast-acting 13/32" x 1-3/8" supplemental fuse

Fast-acting supplemental fuse.
Color codes black (600 Vac max
1/10 to 6 A), green (250 Vac max
7 to 10 A), purple (48 Vac max 12
to 30 A). (For superior protection,
Eaton recommends upgrading to
Bussmann series Low-Peak Class
CC fuses. See data sheet no.

1023.

Ratings

Fuse
amp
range

1/10 to 6 10 kA — — X X

7 to 10 — 10 kA — X X

12 to 30* — — — — —

* For interrupting rating, contact factory.

Agency information

•

UL Listed, Std. 248-14 (1/10-6 A@600 Vac, 7-10 A@250 Vac), Guide
JDYX, File E19180, CSA Certified, C22.2 No. 248.14 (1/10-6 A@600
Vac, 7-10 A@250 Vac), Class 1422-01, File 53787, CE

Catalog no. (amps)

BBS-1/10 BBS-8/10 BBS-4 BBS-15

BBS-2/10 BBS-1 BBS-5 BBS-20

BBS-1/4 BBS-1-1/2 BBS-6 BBS-25

BBS-4/10 BBS-1-6/10 BBS-7 BBS-30

BBS-1/2 BBS-1-8/10 BBS-8

BBS-6/10 BBS-2 BBS-10

BBS-3/4 BBS-3 BBS-12

Features

•

Color coded for 600 Vac (black) 250 Vac (green) and 48 Vac (purple)
for maximum

•

Fiber tube construction with nickel-plated brass endcaps

Typical applications

•

Control circuits

•

Gaseous vapor fixtures

•

HID ballasts

•

Electronic circuits

•

Hand-held meters

IR at system voltage Agency information

600 Vac 250 Vac 48 Vac UL CSA

Recommended blocks and holders for BBS fuses, see page 2-2.

Data sheet no. 1012 Data sheet no. 2010

2-6

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

Low voltage supplemental fuses — 2

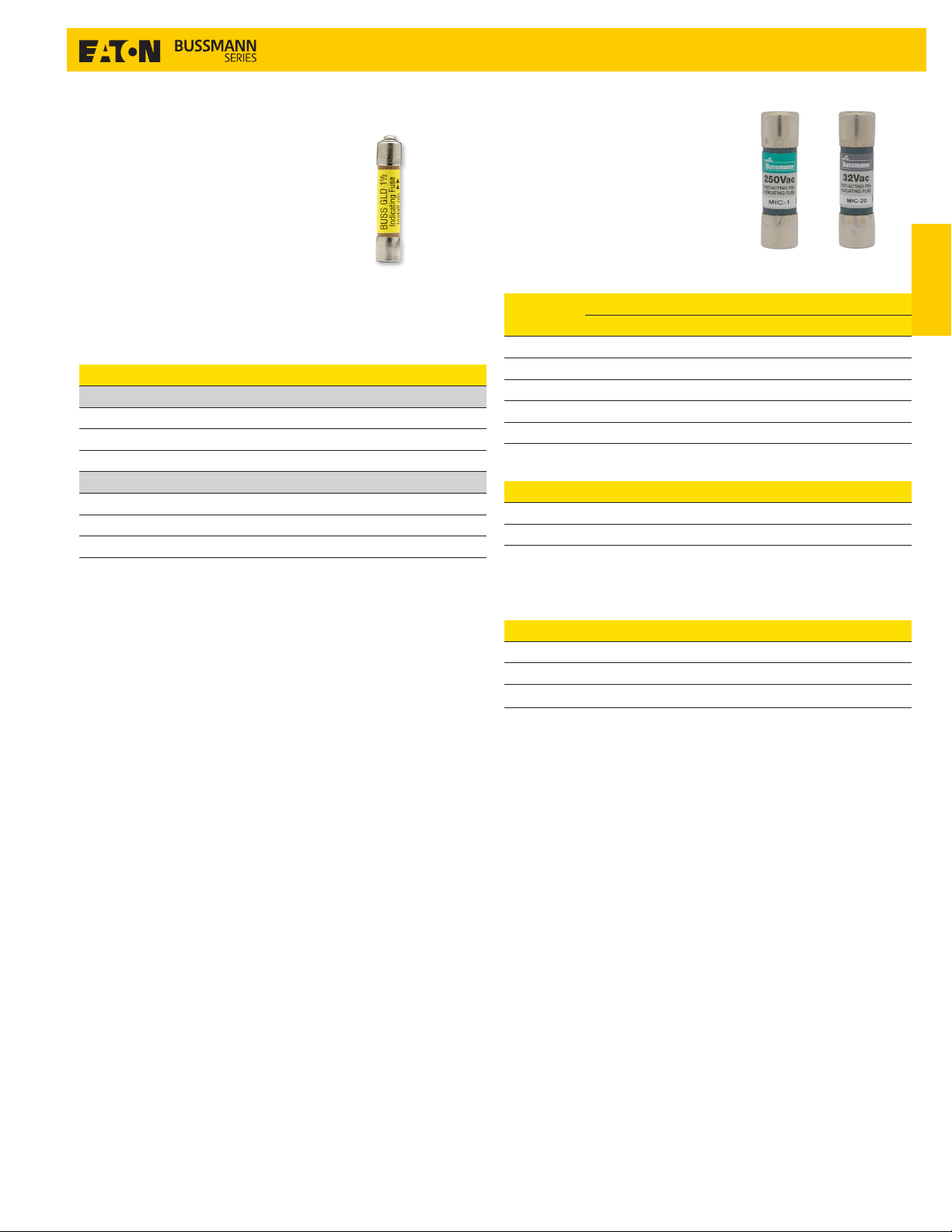

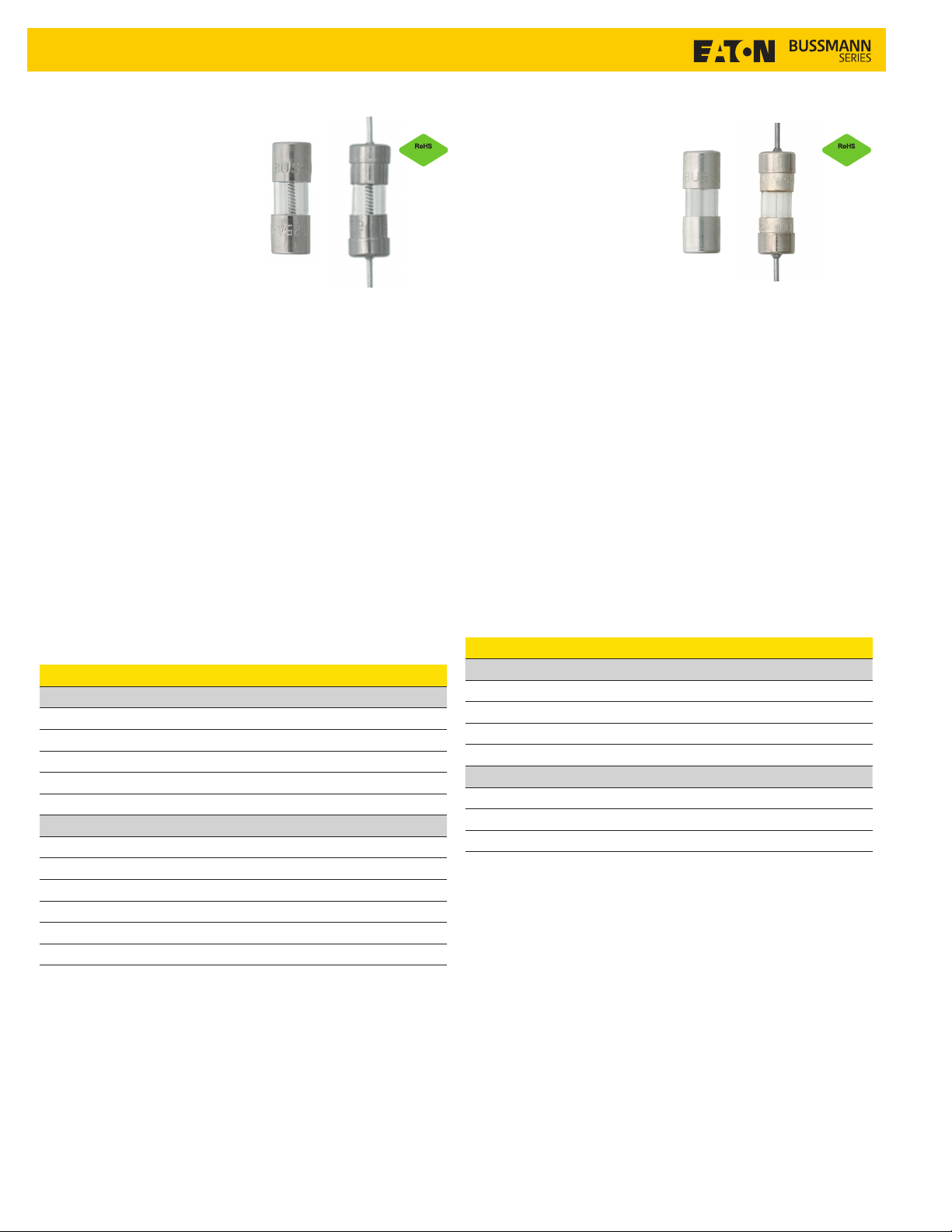

GBA/GLD fast-acting 1/4" x 1-1/4" pin-indicating
supplemental fuse

Fast-acting, pin-indicating fuse.

Ratings

•

Volts See Agency Information

•

Amps 1/2-15 A

•

IR See Agency Information

Agency information

•

UL Listed, Std. 248-14, 0-5 A/125 Vac, 10,000 AIC, Guide JDYX,
File E19180, UL Recognized, 6 A/125 Vac, 1000 AIC 8-15 A/50 Vac/
dc, 300 AIC Guide JDYX2, File E19180, CSA Certified, 0-5 A/125
Vac, 10,000 AIC Class 1422-01, File 53787, CE

Catalog no. (amps)

GBA

GBA-1/2 GBA-1-1/2 GBA-4 GBA-10

GBA-3/4 GBA-2 GBA-5 GBA-15

GBA-1 GBA-3 GBA-8

GLD

GLD-1/2 GLD-1-1/2 GLD-4 GLD-10

GLD-3/4 GLD-2 GLD-5 GLD-12

GLD-1 GLD-3 GLD-6 GLD-15

Features

•

Type GBA has a "red" pin indicator providing visual identification of
failed circuits, resulting in faster troubleshooting (reduced circuit
downtime)

•

Type GLD has a plated pin to activate transmitting a electrical
signal to indicate the location of opened circuits, resulting in
reduced downtime

Typical applications

•

Control circuits

•

Electronic circuits

Recommended fuse blocks/fuse holders for 1/4" x 1-1/4" indicating
fuses, see page 2.2.

MIC fast-acting 13/32" x 1-1/2" pin-indicating
supplemental fuse

Fast-acting, pin-indicating
supplemental fuse. Green color
code (250 Vac max 1 to 15 A), grey
(32 Vac max 20 to 30 A).

Ratings

Fuse amp
range

1 35 A — X —

2 to 3 10 0 A — X —

5 to 10 200 A — X —

15 750 A — X —

20 to 30 — 10 kA — —

Electrical characteristics

% of fuse rating Opening time

110 % Indefinitely

135% 1 hour max.

Agency information

•

UL Listed, Std. 248-14, 1-15 A, Guide JDYX, File E19180, CE

Catalog no. (amps)

MIC-1 MIC-5 MIC-15 MIC-30

MIC-2 MIC-8 MIC-20

MIC-3 MIC-10 MIC-25

Features

•

Color coded by maximum voltage rating

•

Pin indication for visual indication of open fuse condition

•

Silver-plated pin for positive, electrical signal activation

•

Fiber tube construction with nickel-plated bronze endcaps

IR at voltage rating Agency information

250 Vac 32 Vac UL CSA

Low voltage,

supplemental fuses

Typical applications

•

Power electronic circuits in which fuse opening must be quickly
apparent

•

Control circuits

•

PLC Circuits

Recommended signal block for, 13/32" x 1-1/2" indicating fuses, see
page 2.2.

Data sheet no. 10246Data sheet no. 2012

BUSSMANN SERIES FULL LINDE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

2-7

2 — Low voltage supplemental fuses

FNA time-delay 13/32" x 1-1/2" pin-indicating
supplemental fuse

Pin-indicating time-delay
supplemental fuse. Color
coded green (250 Vac
max 1/10 to 6 A), blue
(125 Vac max 6-1/4 to 15
A) and grey (32 Vac max
20 to 30 A).

Dual-tube construction 12A and up

Ratings

Fuse amp
range

1/10 to 8/10 35 A 10 kA - X X

1 to 6 200 A 10 kA - X X

6-1/4 to 15 - 10 kA - X X

20 to 30 - - 1 kA - -

Agency information

•

UL Listed, 1/10 to 8/10 A @ 125/250 Vac, 1-15 A @ 125 Vac, Guide
JDYX, File E19180, CSA Certified, 1/10 to 10 A @ 125 Vac, Class
1422-01, File 53787, CE

Catalog no. (amps)

FNA-1/10 FNA-1 FNA-3 FNA-9

FNA-1/8 FNA-1-1/8 FNA-3-2/10 FNA-10

FNA-15/100 FNA-1-1/4 FNA-3-1/2 FNA-12

FNA-2/10 FNA-1-4/10 FNA-4 FNA-15

FNA-1/4 FNA-1-1/2 FNA-4-1/2 FNA-20

FNA-3/10 FNA-1-6/10 FNA-5 FNA-25

FNA-4/10 FNA-1-8/10 FNA-5-6/10 FNA-30

FNA-1/2 FNA-2 FNA-6

FNA-6/10 FNA-2-1/4 FNA-6-1/4

FNA-3/4 FNA-2-1/2 FNA-7

FNA-8/10 FNA-2-8/10 FNA-8

IR at system voltage Agency information

250 Vac 125 Vac 32 Vac UL CSA

MIS non time-delay 13/32" x 2" pin-indicating
supplemental fuse

Non time-delay pin-indicating fuse.

Ratings

•

Volts 600 Vac

•

Amps 1-12 A

•

IR 200 kA

Electrical characteristics

Fuse Load Opening time

All 110 % 4 hrs. (min.)

1-5 A 150% 6 min. (max.)

6-12 A 150% 12 min. (max.)

Catalog no. (amps)

MIS-1 MIS-3 MIS-5 MIS-10

MIS-2 MIS-4 MIS-8 MIS-12

Features

•

Pin indicator provides visual identification of failed circuits,
resulting in faster troubleshooting (reduced circuit downtime)

•

Fuse can be used in circuits rated 600 V or less

•

High 200 kA interrupting rating for high fault current circuits

Typical applications

•

480 V control circuits

•

PLC circuits

Recommended signal blocks for MIS, see page 2-2.

Features

•

Color coded by maximum voltage rating

•

Pin-indication for visual indication of open fuse condition

•

Dual-element, time-delay performance permits close sizing on
control transformers and relays

•

Silver-plated pin for positive, electrical signal activation

•

12 amp and more versions are dual-tube construction

Recommended signal block for 13/32" x 1-1/2" indicating fuses, see
page 2.2.

Data sheet no. 2029

2-8

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Data sheet no. 2021

Eaton.com/bussmannseries

Low voltage supplemental fuses — 2

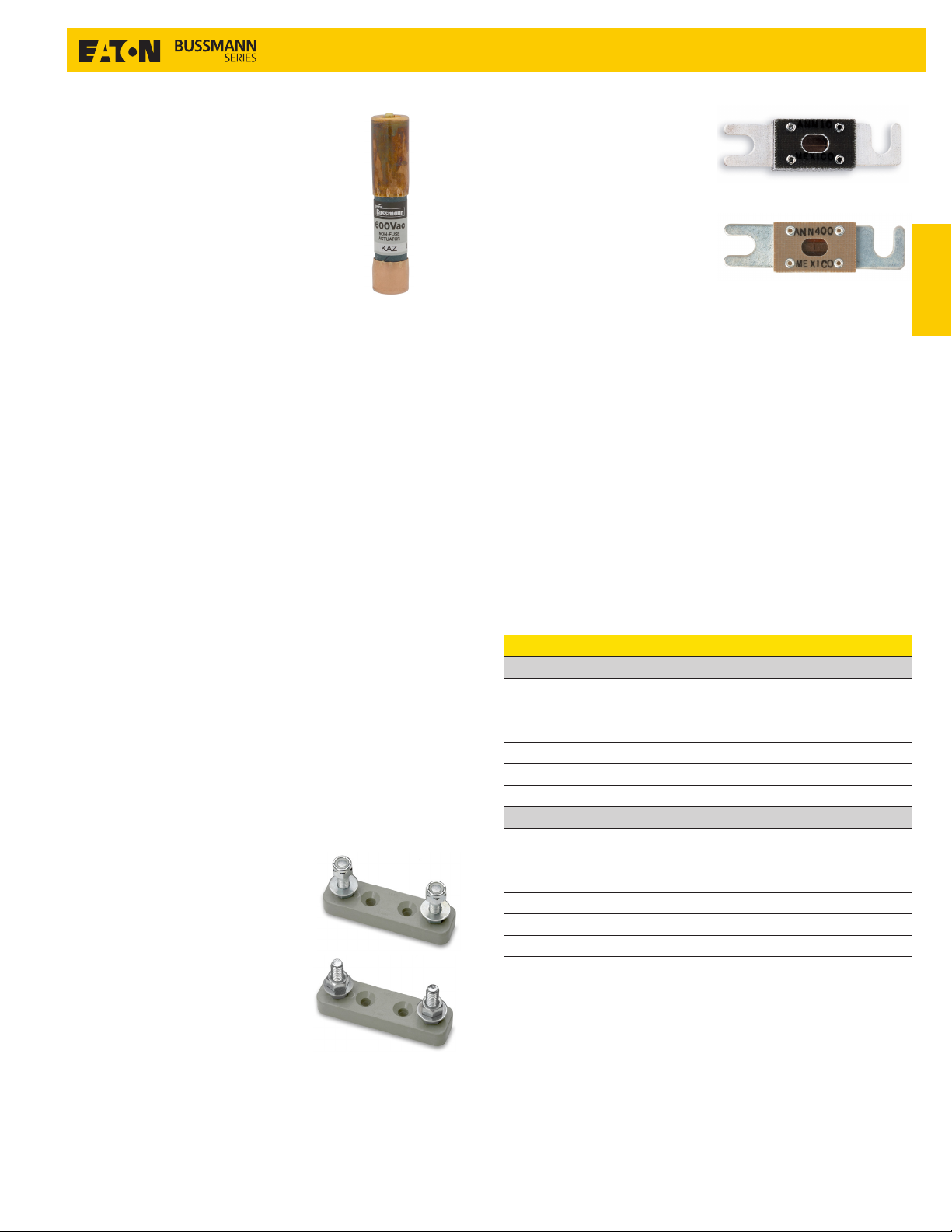

KAZ non-fuse 13/32" x 2" pin-indicating actuator

Non-fuse actuator mounted in
parallel with fuses having a rating
of 50 A or larger to provide blown
fuse dropout of shunt-trip fused
switches.

Ratings

•

Volts 600 Vac

•

Amps N/A

•

IR 200 kA

Agency information

•

UL Listed, Guide JDVS, File E58836, CE

Catalog number KAZ

Features

•

Convenient means to add open fuse signaling

•

Actuator can be used in circuits rated 600 V or less

•

High 200 kA interrupting rating for high fault current circuits

Typical applications

•

Large, shunt-trip fused switches

•

Fuse protected circuits rated 50 A or larger with shunt-trip devices

Recommended signal blocks for KAZ, see page 2-2.

Data sheet no. 2021

4164 and 4164-FR limiter blocks

Limiter fuse blocks for ANL and
ANN. 4164 is furnished with nylon
inserted locknuts and 4164-FR is
furnished with standard hex nuts.

4164

Dimensions

•

L 3.38" x W 0.95" x H 1.62"

•

Studs center-to-center 2.43"

Ratings

•

125 Vac, 80 Vdc,

Volts

•

Amps 10-800 A

•

Poles single, stud terminal

32 Vdc (self certified)

4164-FR

ANL/ANN limiters

Circuit limiters typically used in
fork lifts, marine, aviation and
battery charging systems. ANL
limiters are non-time-delay and
ANN limiters are very fast-acting.
Both ANL and ANN limiters
measure 7/8" x 3-3/16" (22x81mm)
with a depth that varies by amp
rating.

Ratings

•

Volts

• ANL 80 Vdc

• ANN 125 Vac, 80 Vdc

•

Amps

• ANL 35-750 A

• ANN 10-800 A

•

IR

• ANL 2700 A @ 80 Vdc

• ANN 2500 A @ 125 Vac, 2700 A @ 80 Vdc

Agency information

•

ANL: UL Recognized, CSA Certified, 35-750 A @ 80 Vdc,
IR 2700 A, Guide JFHR2, File E56412, Class 1422-30, File 53787,
SAE J1171

•

ANN: UL Recognized, CSA Certified 35-400 A @ 125 Vac, IR 2500
A and 500 A @ 80 Vdc, IR 2700 A, Guide JFHR2, File E56412,
Class 1422-30, File 53787, CE for 35-400 A

Catalog no. (amps)

Time-delay ANL

ANL-35 ANL-125 ANL-250 ANL-500

ANL-40 ANL-130 ANL-275 ANL-600

ANL-50 ANL-150 ANL-300 ANL-675

ANL-60 ANL-175 ANL-325 ANL-750

ANL-80 ANL-200 ANL-350

ANL-100 ANL-225 ANL-400

Fast-acting ANN

ANN-10 ANN-90 ANN-225 ANN-400

ANN-35 ANN-100 ANN-250 ANN-500

ANN-40 ANN-125 ANN-275 ANN-600

ANN-50 ANN-150 ANN-300 ANN-700

ANN-60 ANN-175 ANN-325 ANN-800

ANN-80 ANN-200 ANN-350

Features

•

Time-delay sizing for inductive circuits (ANL)

•

Fast-acting circuit protection (ANN)

•

Element viewing window shows limiter status at a glance

Non-time-delay ANL

Very fast-acting ANN

Low voltage,

supplemental fuses

Data sheet no. 2133 Data sheet no. 2023 (ANN), 2024 (ANL)

BUSSMANN SERIES FULL LINDE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

2-9

2 — Low voltage supplemental fuses

GLQ fast-acting, size-rejecting supplemental fuse

Fast-acting, size-rejecting in-line
fuse. Match fuse and holder amp
rating per catalog number table
below.

Ratings

•

Volts 300 Vac (or less)

•

Amps 1-10 A

•

IR 10 kA

Agency information

•

UL Listed, Std. 248-14, (Guide JDYX, File E19180), CSA Certified
C22.2 No. 248.14, (Class 1422-01,File 53787), CE

Catalog no. (amps) and holders

Fuse Holder

1, 2

Fuse Holder

GLQ-1 HLQ-1-6/10 GLQ-3 HLQ-3-2/10

GLQ-1-1/2 HLQ-1-6/10 GLQ-4 HLQ-5

GLQ-1-6/10 HLQ-1-6/10 GLQ-5 HLQ-5

GLQ-2 HLQ-3-2/10 GLQ-9 HLQ-10

GLQ-2-1/2 HLQ-3-2/10 GLQ-10 HLQ-10

1 Carrier is UL Recognized, Guide IZLT2, File E14853 and CSA Certified, Class

6225-01, File 47235 10 A, 300 Vac.

2 Units can be panel-mounted either in a knockout hole with a separate steel

clip (BK/A-104) or in a keyhole punch using separate mounting clip NO.6374 for
panels of thickness 0.043"to 0.062" or NO.4909 for thickness 0.030" to 0.042".

Note: Do not put tension on line (rear) terminal of fuse holder.

Features

•

In-line, fast-acting circuit protection

•

Rejection feature prevents overfusing

Typical applications

•

In-line lighting ballast protection

1, 2

GMQ time-delay, size-rejecting supplemental fuse

Time-delay, size-rejecting in-line
fuse. Match fuse and holder amp
rating per catalog number table
below.

Ratings

•

Volts 300 Vac (or less)

•

Amps 1/2 to 6-1/4 A

•

IR 10 kA

Agency information

•

UL Listed, Std. 248-14, (Guide JDYX, File E19180), CSA Certified,
(Class 1422-01, File 53787)CE

Catalog no. (amps) and holders

Fuse Holders

1, 2

Fuse Holders

GMQ-1/2 HLQ-1/2 GMQ-2-1/2 HLQ-3-2/10

GMQ-6/10 HLQ-1-6/10 GMQ-3 HLQ-3-2/10

GMQ-8/10 HLQ-1-6/10 GMQ-3-2/10 HLQ-3-2/10

GMQ-1 HLQ-1-6/10 GMQ-4 HLQ-5

GMQ-1-1/4 HLQ-1-6/10 GMQ-5 HLQ-5

GMQ-1-6/10 HLQ-1-6/10 GMQ-6-1/4 HLQ-8

GMQ-2 HLQ-3-2/10

1 Carrier is UL Recognized, Guide IZLT2, File E14853 and CSA Certified, Class

6225-01, File 47235 10 A, 300 Vac.

2 Units can be panel-mounted either in a knockout hole with a separate steel

clip (BK/A-104) or in a keyhole punch using separate mounting clip NO.6374 for
panels of thickness 0.043"to 0.062" or NO.4909 for thickness 0.030" to 0.042"

Note: Do not put tension on line (rear) terminal of fuse holder.

Features

•

In-line, fast-acting circuit protection

•

Rejection feature prevents overfusing

Typical applications

1, 2

•

In-line lighting ballast protection

HLQ fuse holders for both GLQ and GMQ fuses

Data sheet no. 2033 Data sheet no. 2030

2-10

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

Low voltage supplemental fuses — 2

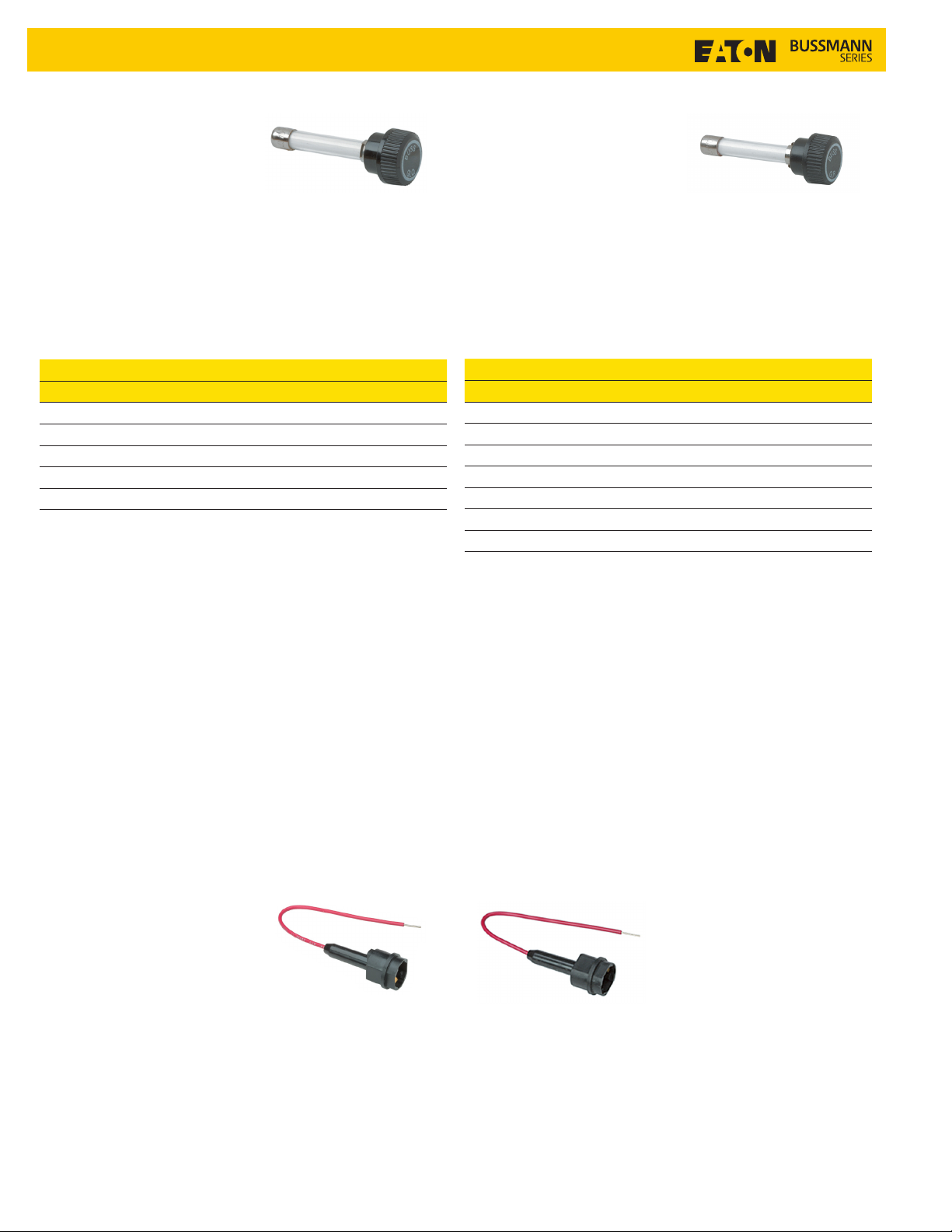

GLR fast-acting, non size-rejecting supplemental
fuse

Fast-acting, non-rejection, in-line
fuse. All fuses use the same HLR
or HLR-2A holders.

Ratings

•

Volts 300 Vac (or less)

•

Amps 3/16-15 A

•

IR 10 kA

Agency information

•

UL Listed, Std. 248-14, 0-15 A/300 Vac Guide JDYX, File E19180,
CSA Certified C22.2, No. 248-14, 0-10 A/300 V Class 1422-01, File
53787, CE

Catalog no. (amps) and holders

Fuse Holder

1, 2

* Fuse Holder

GLR-1/2 HLR GLR-6 HLR

GLR-1 HLR GLR-7 HLR

GLR-1-1/2 HLR GLR-8 HLR

GLR-1-6/10 HLR GLR-9 HLR

GLR-2 HLR GLR-10 HLR

GLR-3 HLR GLR-12 HLR

GLR-4 HLR GLR-15 HLR-2A

GLR-5 HLR

1 Carrier is UL Recognized, Guide IZLT2, File E14853 and CSA Certified, Class

6225-01, File 47235 12 A, 300 Vac.

2 Units can be panel-mounted either in a knockout hole with a separate steel

clip (BK/A-104) or in a keyhole punch using separate mounting clip NO.6374 for
panels of thickness 0.043"to 0.062" or NO.4909 for thickness 0.030" to 0.042".

* For two leads (one each for line and loadside) order HLR-2A, 15 A, 300 V

Note: Do not put tension on line (rear) terminal of fuse holder.

"A" in-line holder

1, 2

*

GMF/GRF time-delay, non size-rejecting
supplemental fuses

Time-delay, non-rejection, in-line
fuse. All fuses use the same HLR
or HLR-2A holders.

Ratings

•

Volts 300 Vac (or less)

•

Amps 3/10-10 A

•

IR 10 kA

Agency information

•

UL Listed, Std. 248-14 0-10 A, Guide JDYX, File E19180, CSA
Certified, Class 1422-01, File 53787, CE

Catalog no. (amps) and holders

Fuse Holder

1, 2

* Fuse Holder

GMF-3/10 HLR GMF-3 HLR

GMF-1/2 HLR GMF-3-2/10 HLR

GMF-6/10 HLR GMF-4 HLR

GMF-8/10 HLR GMF-5 HLR

GMF-1 HLR GMF-6-1/4 HLR

GMF-1-1/4 HLR GMF-7 HLR

GMF-1-6/10 HLR GRF-8 HLR

GMF-2 HLR GMF-10 HLR

GMF-2-1/2 HLR GRF-10 HLR

GMF-2-8/10 HLR

1 Carrier is UL Recognized, Guide IZLT2, File E14853 and CSA Certified, Class

6225-01, File 47235 12 A, 300 Vac.

2 Units can be panel-mounted either in a knockout hole with a separate steel

clip (BK/A-104) or in a keyhole punch using separate mounting clip NO.6374 for
panels of thickness 0.043"to 0.062" or NO.4909 for thickness 0.030" to 0.042".

* For two leads order HLR-2A, 15 A, 300 V

Note: Do not put tension on line (rear) terminal of fuse holder.

1, 2

*

Low voltage,

supplemental fuses

An alternative to the HLR fuse holder is the "A" fuse holder. The A
fuse holder comes WITHOUT leads. The customer inserts NO.18
insulated solid copper wire into the lineside receptacle as well as
into the load side receptacle. It has the same body dimensions,
utilizes the same mounting hole, and takes the same mounting clips
as the HLR. The A fuse holder is UL Recognized, 10 A, 300 Vac,
Guide IZLT2, File E14853 and CSA Certified, 10 A, 300 Vac, Class
6225-01, File 47235. Order catalog number A.

Features

•

In-line, fast-acting circuit protection.

Typical applications

•

In-line lighting ballast protection

HLR-2A
fuse holder

Data sheet no. 2032

BUSSMANN SERIES FULL LINDE CATALOG 1007 — JUNE 2017

"A" in-line holder

An alternative to the HLR fuse holder is the A fuse holder. The A
fuse holder comes WITHOUT leads. The customer inserts NO.18
insulated solid copper wire into the line side receptacle as well as
into the load side receptacle. It has the same body dimensions,
utilizes the same mounting hole, and takes the same mounting clips
as the HLR. The A fuse holder is UL Recognized, 10 A, 300 Vac,
Guide IZLT2, File E14853 and CSA Certified, 10 A, 300 Vac, Class
6225-01, File 47235. Order catalog number A.

Features

•

In-line, time-delay circuits protection

Typical applications

•

In-line lighting ballast protection

HLR
fuse holder

Data sheet no. 2031

Eaton.com/bussmannseries

2-11

2 — Low voltage supplemental fuses

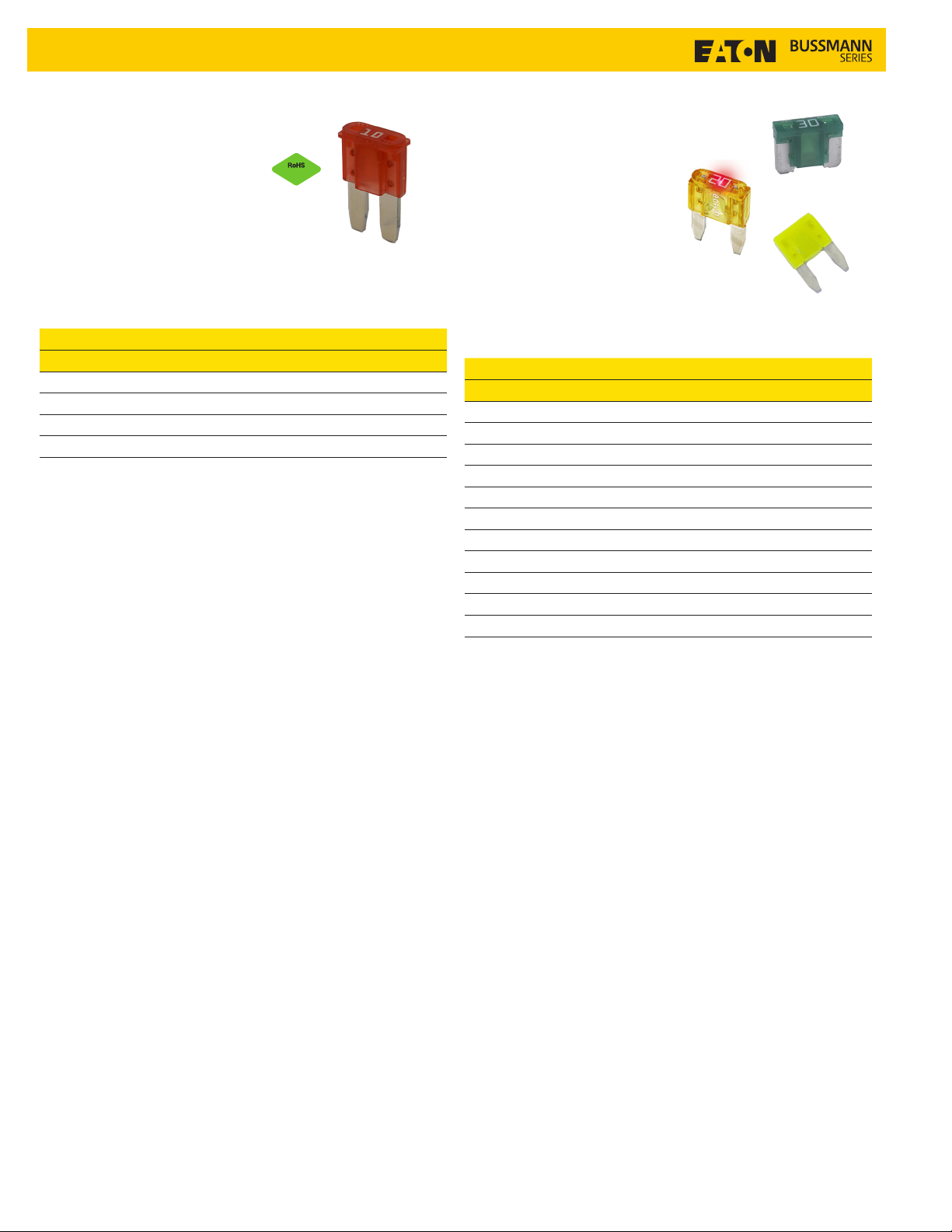

ATR fast-acting micro blade fuse

Fast-acting, color-coded 2-leg micro
blade fuse.

Ratings

•

Volts 32 Vdc

•

Amps 5-30 A

•

IR 1000 A

Agency information

•

RoHS compliant

Catalog no. (amps)

Fuse Color Fuse Color

ATR-5 Ta n ATR-20 Yellow

ATR-7-1/2 Brown ATR-25 Clear

ATR-10 Red ATR-30 Green

ATR-15 Blue

Features

•

Space-savings size

•

Industry standard color coding for easy identification of fuse rating

Typical applications

•

Automotive

Recommended holder for ATR fuses, see page 2-2.

2011/65/EU

ATM and ATM-LP fast-acting blade fuses

Fast-acting, color-coded blade fuse
available in standard and low-profile
versions. Standard version available
with indication.

Ratings

•

Volts 32 Vdc

•

Amps 1-30 A

•

IR 1000 A

Indicating

Agency information

•

UL Listed, Guide FHXT, File AU 169 (2-30 A non-indicating ATM)

Catalog no. (amps)

Non-indicating *Indicating Low-profile Color

ATM-1 — — Black

ATM-2 — — Gray

ATM-3 ATM-3ID — Violet

ATM-4 — — Pink

ATM-5 ATM-5ID ATM-5LP Tan

ATM-7-1/2 ATM-7-1/2ID ATM-7-1/2LP Brown

ATM-10 ATM-10ID ATM-10LP Red

ATM-15 ATM-15ID ATM-15LP Blue

ATM-20 ATM-20ID ATM-20LP Yellow

ATM-25 ATM-25ID ATM-25LP Clear

ATM-30 ATM-30ID ATM-30LP Green

* Call customer satisfaction for ordering information.

Low-profile

Standard

Features

•

Industry standard color coding for easy identification of fuse rating

•

Indicating versions show blown fuse at a glance, speeds
troubleshooting

Typical applications

•

Automotive

Recommended blocks and holders for ATM fuses, see page 2-2.

2-12

Data sheet no. 2048 (ATM), 2050 (ATM-LP)

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

Low voltage supplemental fuses — 2

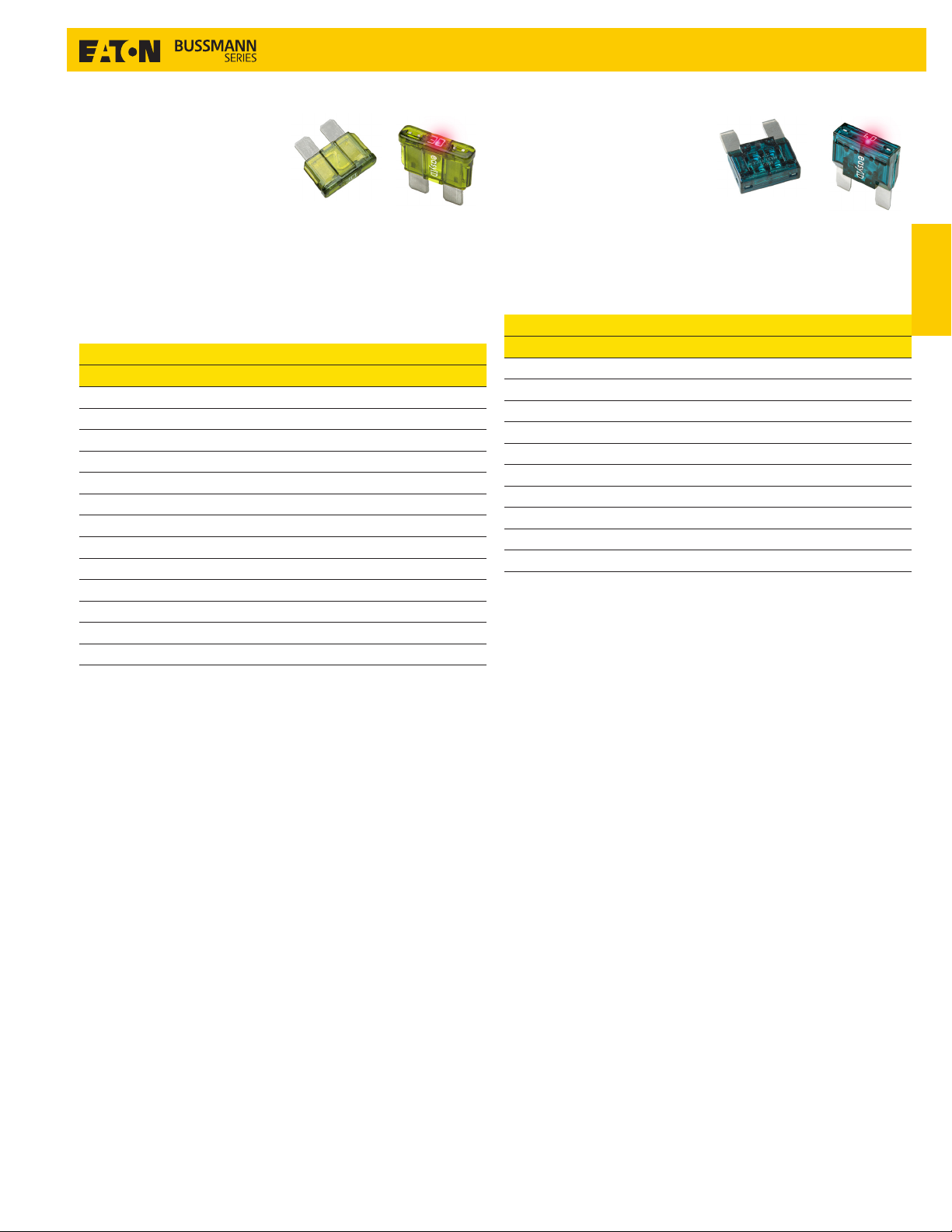

ATC fast-acting blade fuse

Fast-acting, color-coded blade fuse
for automotive and control circuit
applications.

Ratings

•

Volts 32 Vdc

•

Amps 1-40 A

•

IR 1000 A

Standard

Agency information

•

UL Recognized, (1-40 A) (Guide JFHR2, File E56412), SAE
Standard J1284

Catalog no. (amps)

Non-indicating *Indicating Color

ATC-1 — Black

ATC-2 — Gray

ATC-3 ATC-3ID Violet

ATC-4 — Pink

ATC-5 ATC-5ID Tan

ATC-7-1/2 ATC-7-1/2ID Brown

ATC-10 ATC-10ID Red

ATC-15 ATC-15ID Blue

ATC-20 ATC-20ID Yellow

ATC-25 ATC-25ID Clear

ATC-30 ATC-30ID Green

ATC-35 ATC-35ID Blue-green

ATC-40 ATC-40ID Orange

* Call customer satisfaction for ordering information.

Features

•

Industry standard color coding for easy identification of fuse rating

•

Indicating versions show blown fuse at a glance, speeds
troubleshooting

Indicating Standard

MAX (MAXI) fast-acting blade fuse

Fast-acting, color-coded, high amp
blade fuse. Available with and
without indication.

Ratings

•

Volts 32 Vdc

•

Amps

• 20-80 A (non-indicating)

• 20-100 A (indicating)

•

IR 1000 A

Catalog no. (amps)

Non-indicating *Indicating Color

MAX-20 MAX-20ID Yellow

MAX-25 — Gray

MAX-30 MAX-30ID Green

MAX-35 — Brown

MAX-40 MAX-40ID Orange

MAX-50 MAX-50ID Red

MAX-60 MAX-60ID Blue

MAX-70 MAX-70ID Ta n

MAX-80 MAX-80ID Clear

— MAX-100ID Purple

* Call customer satisfaction for ordering information.

Features

•

Color coded housing for easy identification of fuse rating

•

Indicating versions show blown fuse at a glance, speeds
troubleshooting

Typical applications

•

Automotive

Recommended holders for MAX fuses, see page 2-2.

Indicating

Low voltage,

supplemental fuses

Typical applications

•

Automotive

•

Low voltage control circuits

Recommended blocks and holders for ATC fuses, see page 2-2.

Data sheet no. 2009

BUSSMANN SERIES FULL LINDE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

2-13

2 — Low voltage supplemental fuses

0.15

(3.81)

0.33

(8.38)

0.295
(7.49)

0.2

(5.08)

0.053
(1.35)

0.08

(2.03)

0.09

(2.29)

(0.05)

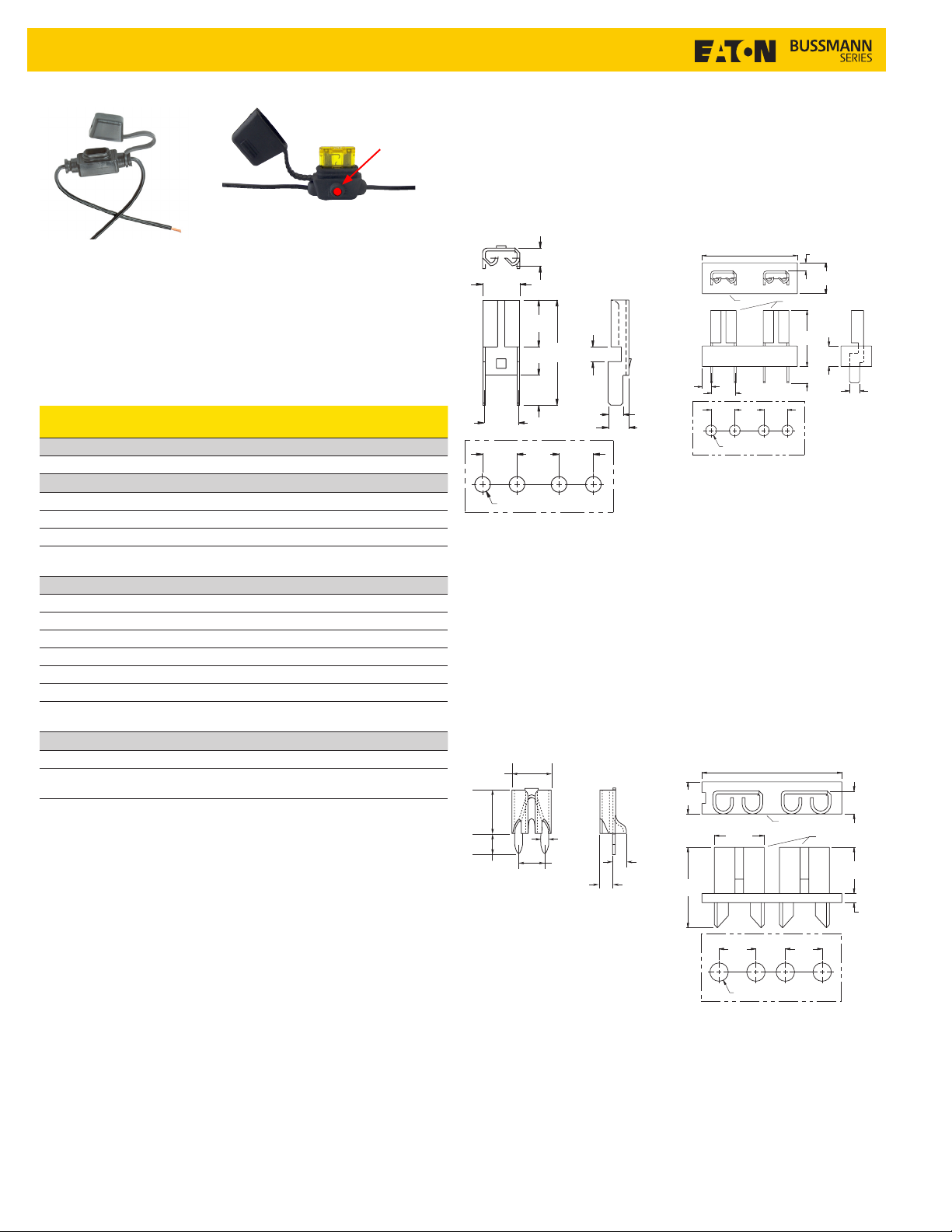

In-line fuse holders for ATM, ATC and MAX fuses

LED open
fuse indicator

easyID LED indicating holders available

for ATM, ATC and MAX fuses

Typical in-line blade fuse holders with leadwires

In-line fuse holders for ATM, ATC and MAX blade fuses. Versions
available with and without covers and with open fuse indication.

Ratings

•

Volts 32 Vdc

•

Amps 80% continuous of fuse rating. See catalog numbers table
for individual holder fuses amp ranges.

Catalog
no. Description

ATR holder

HH2 Black w/ cover 15 2x4" #16 red leadwire

ATM holders - not for low-profile ATM fuses

HHL Black w/ cover 20 2x4" #16 black leadwire
HHM Black w/ cover 30 2x4" #12 red leadwire
HHU Black w/ cover 30 2x4" #16 red leadwire

ATM-FHID

Indicating holder,
black w/ cover

ATC holders

HHC Yellow 20 2x4" #16 black leadwire
HHD Black 30 2x4" #12 yellow leadwire
HHF Black w/ cover 20 2x4" #16 yellow leadwire
HHG Black w/ cover 30 2x4" #12 yellow leadwire
HHR Black w/ cover 30 2x5" #12 red leadwire
HHS Blue, self-stripping 20 Accepts #18 to #14 leadwire

ATC-FHID

Indicating holder,
black w/ cover

MAX holders

HHX Black w/ cover 60 2x5" #6 red leadwire

MAX-FHID

Indicator, black w/
cover

Fuses must be fully inserted into the holder to provide a solid
connection. Poor or improper fuse insertion can result in fuse and
holder failure and loss of power and/or circuit protection.

Max
amps Electrical connection

20 2x4" #16 black leadwire

20 2x6" #16 black leadwire

60 2x5" #6 red leadwire

PCB fuseclips for ATM and ATC fuses

ATM fuseclips

Catalog no. 1A5778

•

15 A

•

Nickel-plated brass

Dimensions — mm (in)

1.9

(0.075)

3.96

(0.156)

4.98

(0.196)

11.18
(0.44)

3.66

(0.144)

3.66

(0.144)

Land pattern

3.18

(0.125)

4.47 3.66

(0.176)

Ø1.65 (0.065) TYP-4

2.18

(0.086)

(0.144)

1.57

(0.062)

ATC fuseclips

Catalog no. 1A5600

•

20 A

•

Tin-plated cartridge brass

Dimensions — in (mm)

Catalog no. 1A5779

•

15 A

•

Nickel-plated brass/glass-filled
nylon

Dimensions — mm (in)

1.45

(0.057)

3.66

1.57

(0.062)

(0.144)

Land pattern

Catalog no. 1A5780

•

15 A

•

Nickel-plated brass/glass-filled
nylon

Dimensions — mm (in)

4.45

(0.175)

11.1

(0.437)

14.68 (0.578)

Base

3.66 (0.144)

4.47

(0.176)

Ø1.65 (0.065) TYP-4

6.88

(0.271)

3.66

(0.144)

19.30 (0.76)

Base

Fuseclips

(0.34)

(0.1)

8.64

2.54

1.24 (0.049)

4.75

(0.187)

3.18

(0.125)

(0.062)

Fuseclips

1.57

3.18

(0.125)

6.35

(0.25)

1.27

Data sheet no. ATM fuses. 2128 (HHM, HHL)
ATC fuses 2107 (HHC, HHD, HHF, HHG)
Max fuses 2129 (HHX)

2-14

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Data sheet no. 2131

5.08
(0.16)

(0.2)

Ø2.54 (0.1) TYP-4 ± 0.05

Land pattern

Eaton.com/bussmannseries

5.08

4.06
(0.2)

Full range of small dimension
fast-acting and time-delay
fuses

• 5x15mm

• 5x20mm IEC

• 5x20mm UL

• 1/4” x 5/8”

• 1/4” x 7/8”

• 1/4” x 1”

• 1/4” x 1-1/4”

PLUS

PCB fuse holders
and clips

Electronic, PCB and small dimension fuses — 3

Contents

Description

Product Catalog symbol/type

Fuses

C515, C519 time-delay

5x15mm fuses

IEC 5x20mm fuses

UL 5x20mm fuses

1/4" x 5/8" fuse AGA fast-acting

1/4" x 7/8" fuse AGW fast-acting

1/4" x 1" fuse AGX fast acting

1/4" x 1-1/4" fuses

PCB holders and fuseclips

5x20mm holders H15-V, H15-H, HTC-60M 12

1/4" x 1-1/4" holders

5mm fuseclips

1/4" fuseclips

9/32" fuseclips 5672, 5674

13/32" fuseclips 5956 5960 1A3400

9/16" fuseclips 5591 5592

C518, C520 fast-acting

C517 fast acting

GDB, S500, S500-V fast-acting

GDA, S501, S501-V fast-acting

S505, S506SC time-delay

GDC, S505H, S505H-V, S505SCH,
S506 S506-V time-delay

GMA, GMA-V fast-acting

GMC, GMC-V time-delay

GMD GMD-V time-delay

ACG, AGC-V, ABC, ABC-V fast-acting 9

GBB, GBB-V fast-acting

MDL, MDL-V time-delay

MDQ, MDQ-V, MDA, MDA-V time­delay

HBH-I, HBH-M, HBV-I, HBV-M,
HBW-I, HBW-M

HTC-15M, HTC-140M, HTC-200M,
HTC-210M, 1A3399, 1A5018,
1A5601, 1A5602

1A1119, 1A1120, 1A1907, 1A3398,
1A4533, 1A4534

5681, 5682

Section
page

2

3

4

5

6

7

8

10

11

13

14

15

16

dimension fuses

Electronic, PCB, small

For blocks and holders, see the following pages in Section 8

Fuse diameter Pages

Panel mount blocks

1/4" fuses 4-5

Through panel holders

5mm fuses 41-42

1/4" fuses 43-45

In-line holders

5mm fuses 48

1/4" fuses 48-50

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

3-1

3 — Electronic, PCB and small dimension fuses

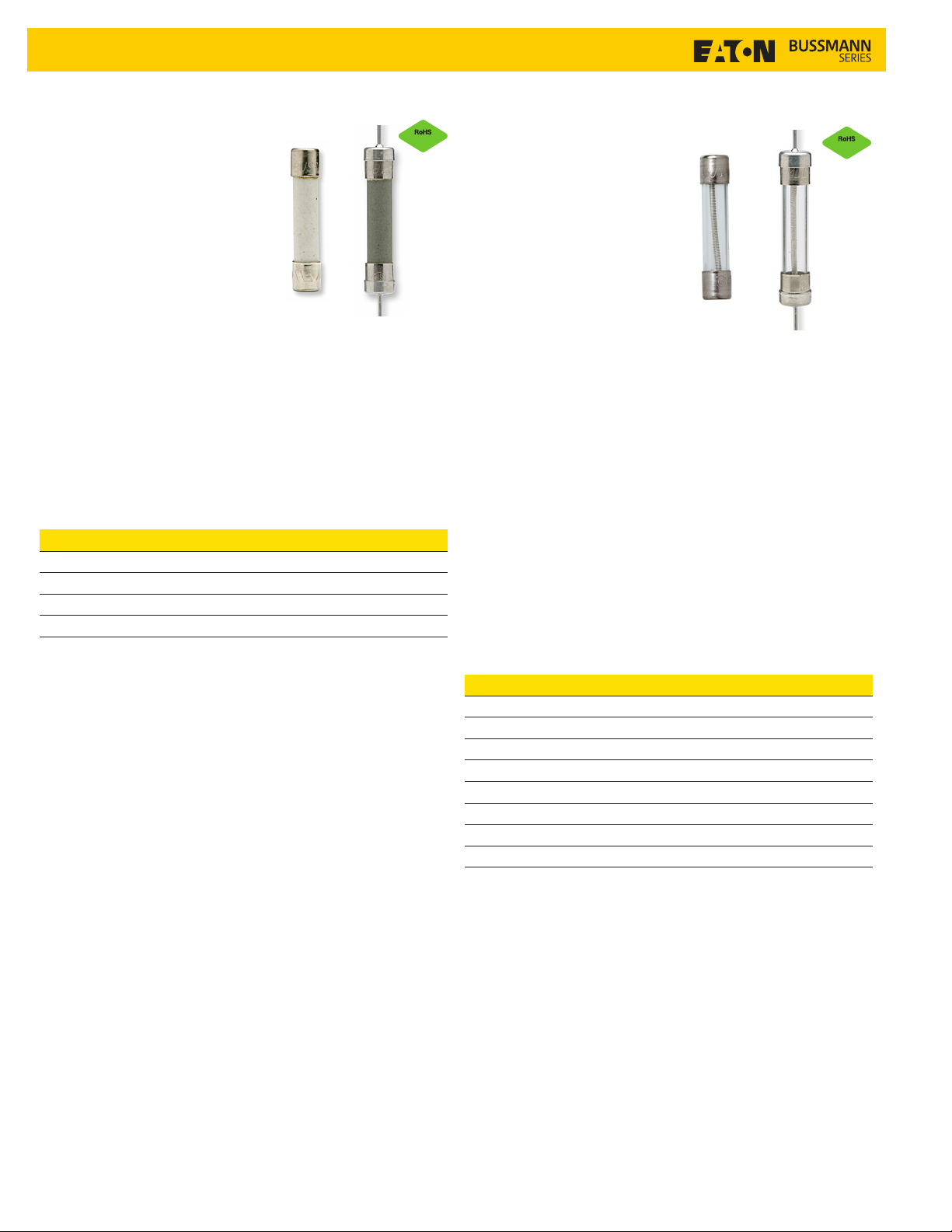

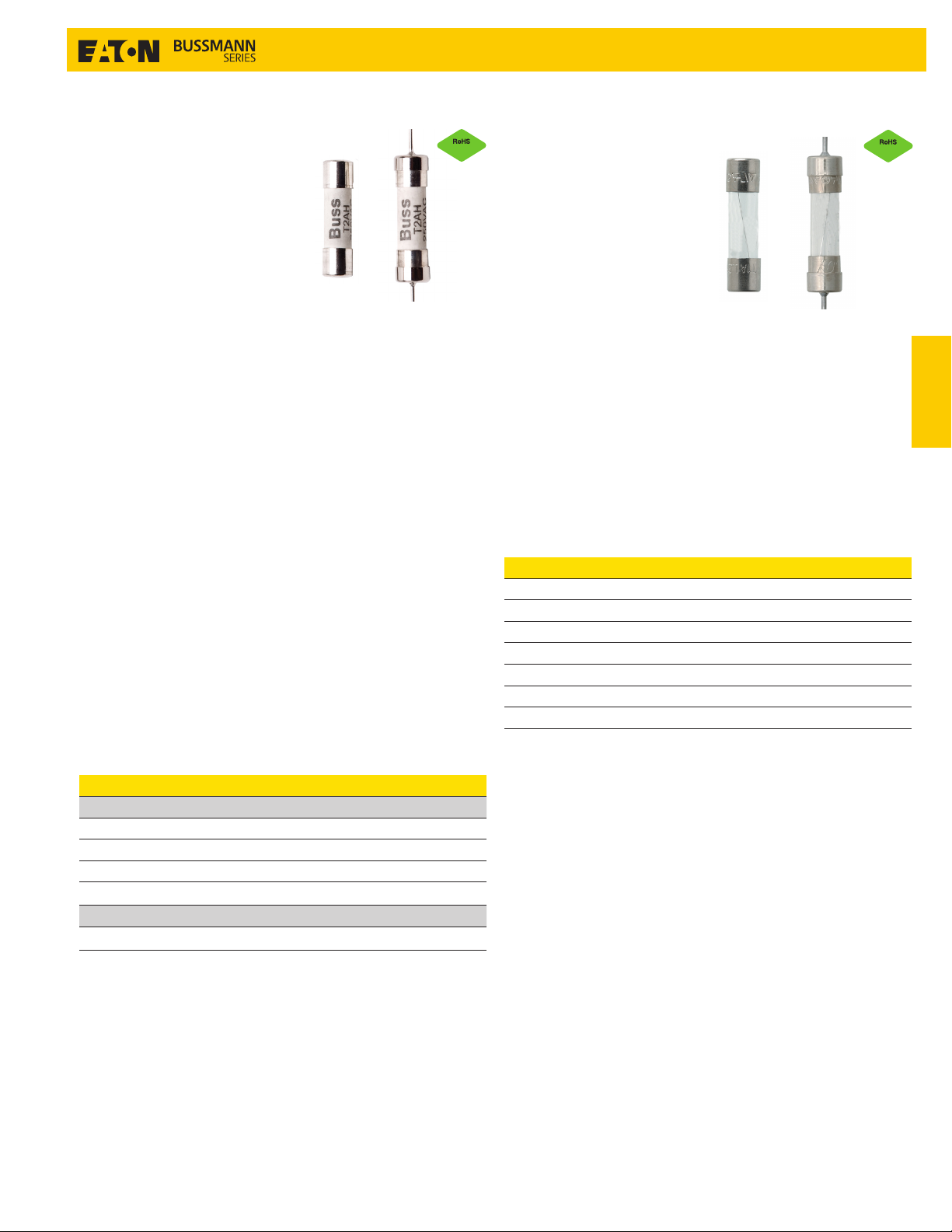

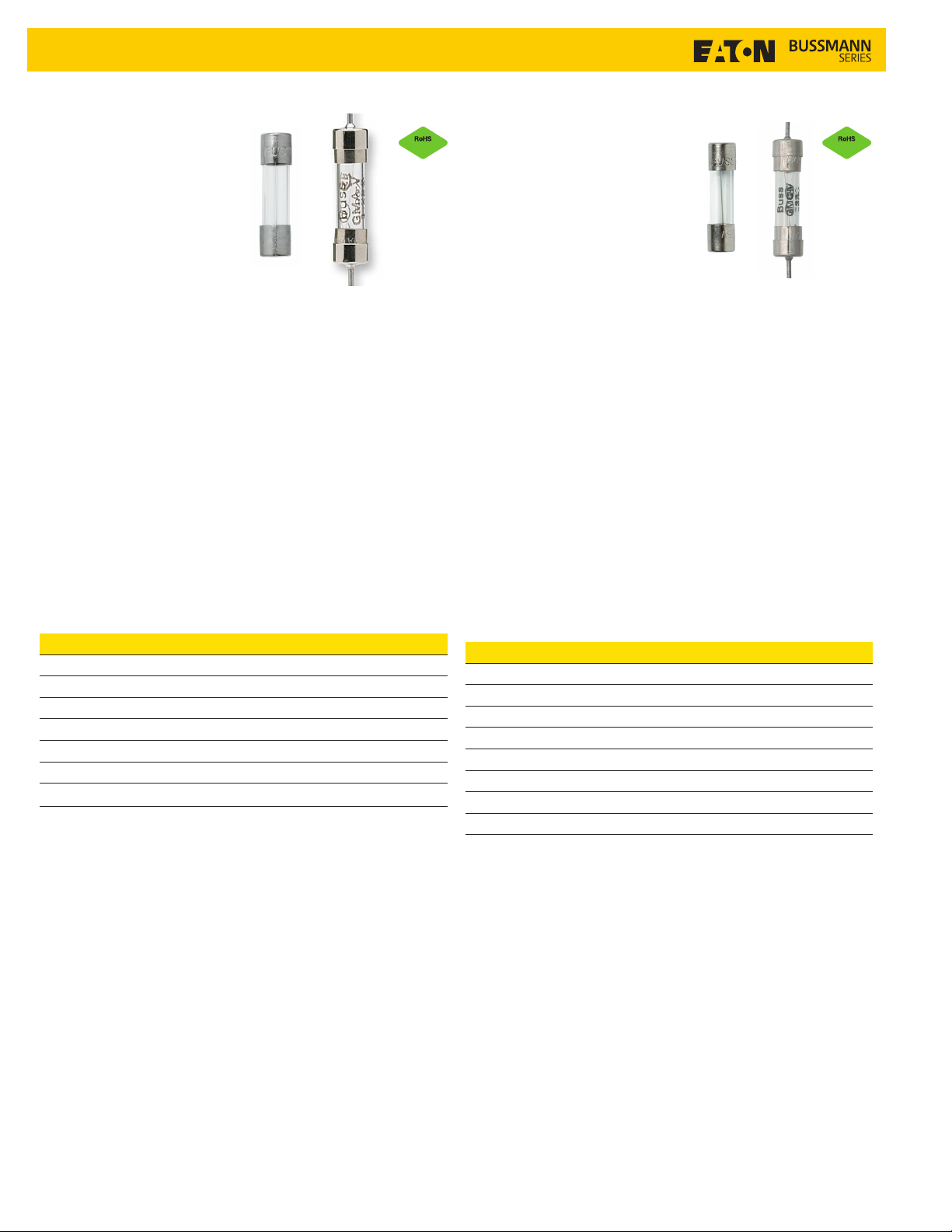

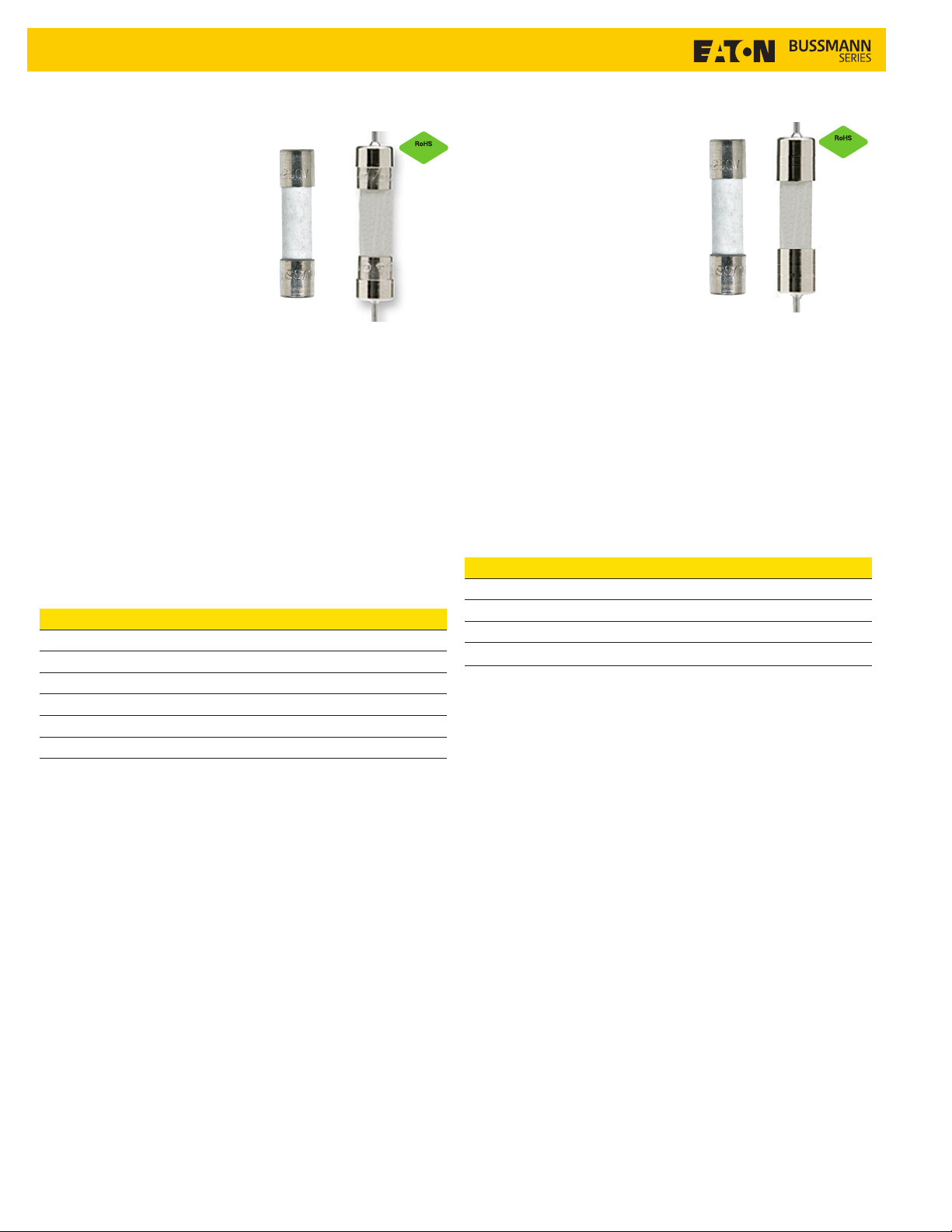

C519 ferrule and C515 axial lead time-delay
5x15mm glass tube fuses

Ratings

•

Volts

• 125 Vac (3.5-7 A)

• 250 Vac (125mA-3 A)

• 32 Vdc (self certified)

•

Amps 125mA-7 A

•

IR

• 25 A (350mA @ 600 Vac)

• 35 A (125mA-1A @ 250 Vac)

• 100 A (1.25-3 A @ 250 Vac)

• 400 A (3.5-7 A @ 125 Vac)

• 10 kA (125mA-3 A @ 125 Vac)

Agency information

•

UL Listed, Guide JDYX, File E19180 125mA-250mA and 375mA-3
A, UL Recognized, Guide JDYX2, File E19180, 350mA and 3.5-7
A, CSA Certified, Class 1422-01, File 53787 125mA-250mA and
375mA-3 A, RoHS compliant, CE

Features

2011/65/EU

C520 ferrule and C518 axial lead fast-acting
5x15mm glass tube fuses

Ratings

•

Volts

• 250 Vac

• 32 Vdc (self certified)

•

Amps 100mA-5 A

•

IR

• 35 A (100mA-750mA @ 250 Vac)

• 10 kA (100mA-5 A @ 125 Vac)

• 100 A (1.5-3.5 A @ 250 Vac)

• 200 A (4-5 A @ 250 Vac)

Agency information

•

UL Recognized, Guide JDYX2, File E19180, CSA Certified, Class
1422-01, File 53787, RoHS compliant, CE

Features

•

Small footprint saves space in equipment

•

Fast-acting for maximum component protection

•

Available in ferrule and axial leaded configurations

2011/65/EU

•

Time-delay for closer sizing on inductive circuits

Typical application

•

Electronic circuits

•

Printed circuit boards

Catalog no. (amps)

Ferrule

C519-125-R C519-600-R C519-1.6-R C519-3.5-R

C519-250-R C519-750-R C519-2-R C519-4-R

C519-350-R C519-1-R C519-2.25-R C519-5-R

C519-375-R C519-1.25-R C519-2.5-R

C519-500-R C519-1.5-R C519-3-R

Axial lead

C515-125-R C515-750-R C515-2-R C515-5-R

C515-250-R C515-800-R C515-2.25-R C515-6-R

C515-350-R C515-1-R C515-2.5-R C515-7-R

C515-375-R C515-1.25-R C515-3-R

C515-500-R C515-1.5-R C515-3.5-R

C515-600-R C515-1.6-R C515-4-R

Typical applications

•

Electronic circuits

•

Printed circuit boards

Catalog no. (amps)

Ferrule

C520-100-R C520-500-R C520-2.5-R C520-5-R

C520-125-R C520-750-R C520-3-R

C520-250-R C520-1.5-R C520-3.5-R

C520-375-R C520-2-R C520-4-R

Axial lead

C518-100-R C518-375-R C518-2-R C518-3.5-R

C518-125-R C518-500-R C518-2.5-R C518-4-R

C518-250-R C518-750-R C518-3-R C518-5-R

Data sheet no. 2006 (C515) and 2007 (C519)

3-2

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Data sheet no. 2026 (C518) and 2027 (C520)

Eaton.com/bussmannseries

Electronic, PCB and small dimension fuses — 3

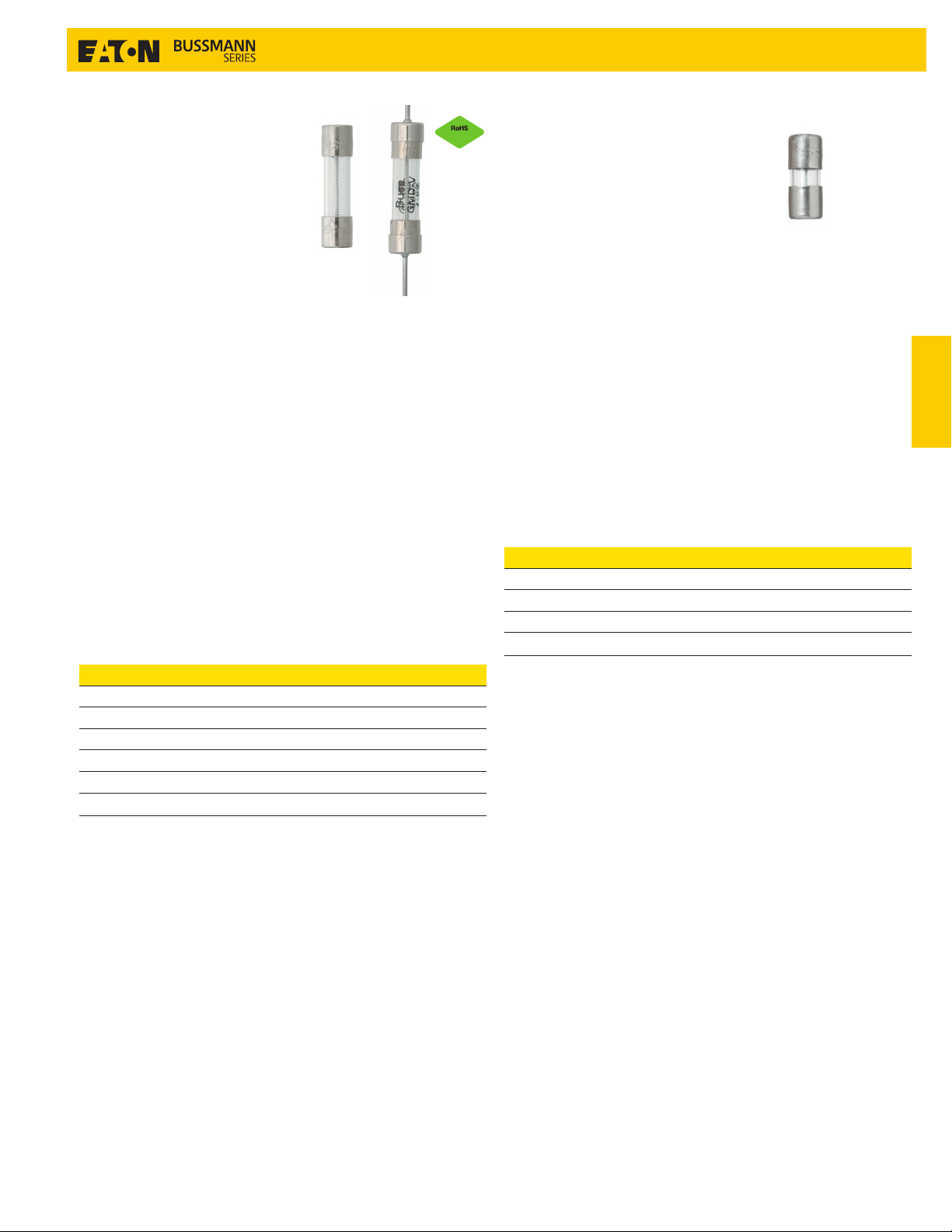

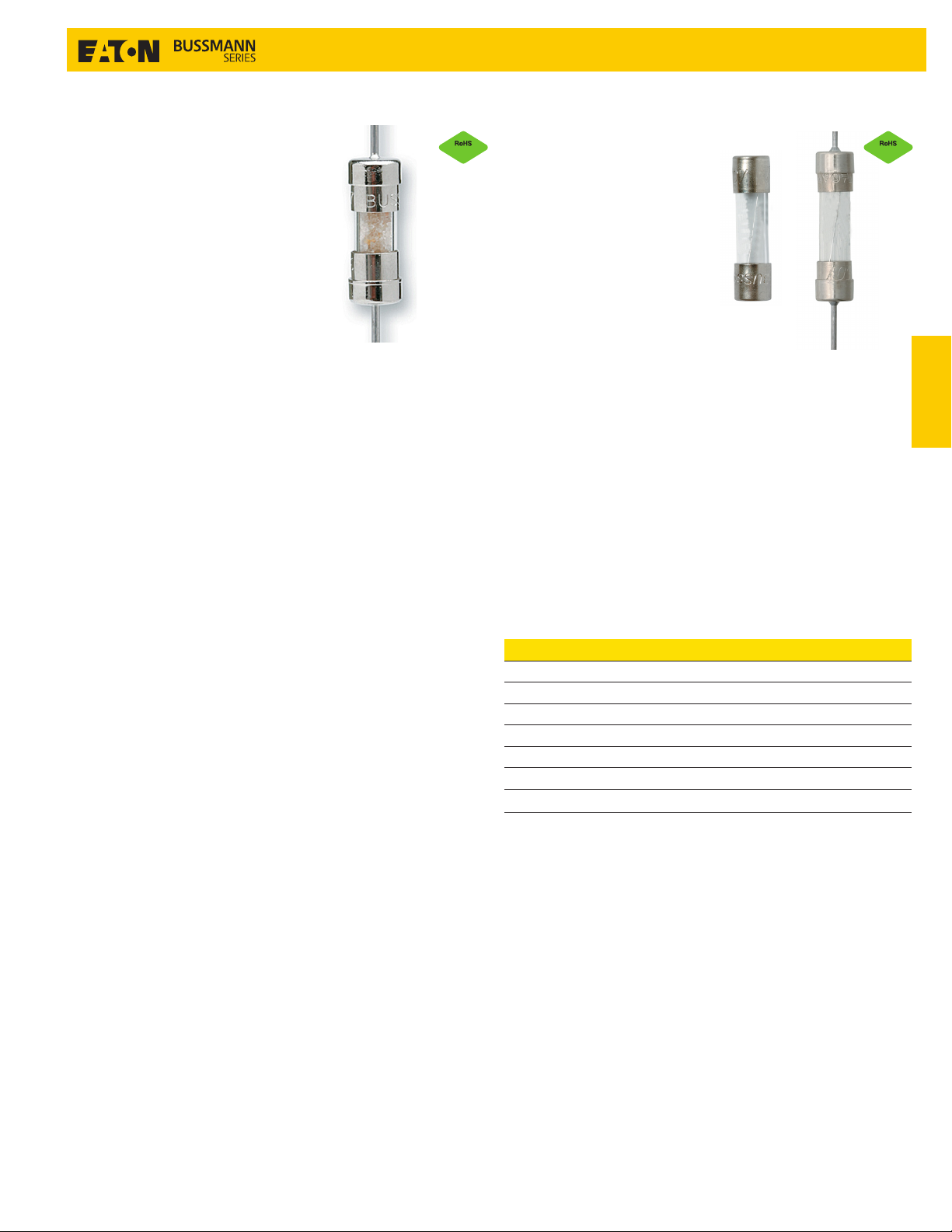

C517 axial lead fast-acting 5x15mm glass tube
fuse

Ratings

•

Volts

• 350 Vac

• 32 Vdc (self certified)

•

Amps 3 A

•

IR

• 100 A @ 350 Vac*

• 100 A @ 250 Vac

• 10 kA @ 125 Vac

* 350 Vac/100 A IR is UL Recognized.

Agency information

•

UL Listed, Guide JDYX, File E19180, CSA Certified, Class 1422­01, File 53787, UL Recognized, Guide JDYX2, File E19180, RoHS
compliant, CE

Features

•

Small footprint saves space in equipment

•

Fast-acting for maximum component protection

•

350 Vac rating for 277 V ballast circuit protection

2011/65/EU

S500 ferrule (GDB†) and S500-V axial lead fast­acting, low breaking capacity 5x20mm glass tube
fuses

Ratings

•

Volts

• 250 Vac (or less)

• 32 Vdc (self certified)

•

Amps 32mA-10 A

•

IR

• 35 A (32mA-3.15 A)

• 40 A (4 A)

• 63 A (6.3 A)

• 80 A (8 A)

• 100 A (10 A)

Agency information

•

cURus, SEMKO, VDE, BSI, IMQ, CCC, RoHS compliant, CE

•

Agency information not applicable to all ratings; see data sheet for
details.

Features

•

Fast-acting for maximum protection, conforms to IEC 60127-2
(160mA-10 A)

2011/65/EU

dimension fuses

Electronic, PCB, small

Typical applications

•

Electronic circuits

•

Printed circuit boards

•

Electronic ballast protection

To order, use catalog number C517-3-R

Typical applications

•

Electronic circuits

Catalog no. (amps)*

S500-32-R S500-160-R S500-800-R S500-4-R

S500-40-R S500-200-R S500-1-R S500-5-R

S500-50-R S500-250-R S500-1.25-R S500-6.3-R

S500-63-R S500-315-R S500-1.6-R S500-8-R

S500-80-R S500-400-R S500-2-R S500-10-R

S500-100-R S500-500-R S500-2.5-R

S500-125-R S500-630-R S500-3.15-R

* GDB is not available with axial leads. To order axial leads, place “V” in the S500

catalog number. E.g., S500-V-32-R.

† When ordering GDB versions, do not add “-R” suffix to catalog number.

Data sheet no. 2025

Data sheet no. 2052 (S500), 2015 (GDB)

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

3-3

3 — Electronic, PCB and small dimension fuses

S501 ferrule (GDA†) and S501-V Axial lead fast­acting high breaking capacity 5x20mm ceramic
tube fuses

Ratings

•

Volts

• 250 Vac (or less)

• 32 Vdc (self certified)

•

Amps 50mA-10 A**

•

IR 1500 A @ 250 Vac

Agency information

•

cURus, SEMKO, VDE, IMQ, CCC, CSA, BSI, MITI/JET,
RoHS compliant, CE

•

Agency information not applicable to all ratings, see data sheet for
details.

Features

•

Fast-acting for maximum protection

•

High break capacity for use in higher fault energy electronic
circuitry

•

Conforms to IEC standards

Typical applications

•

Electronic circuits

Catalog no. (amps)*

S501-50-R S501-200-R S501-800-R S501-3.15-R

S501-63-R S501-250-R S501-1-R S501-4-R

S501-80-R S501-315-R S501-1.25-R S501-5-R

S501-100-R S501-400-R S501-1.6-R S501-6.3-R

S501-125-R S501-500-R S501-2-R S501-8-R

S501-160-R S501-630-R S501-2.5-R S501-10-R

* GDA is not available with axial leads. To order axial leads, place “V” in the S501

catalog number. E.g., S501-V-125-R.

† When ordering GDA version, do not add “-R” suffix to catalog number, GDA is

not available above 6.3 A.

2011/65/EU

S505 ferrule, and S505SC axial lead time-delay,
high-breaking capacity 5x20mm ceramic tube
fuses

Ratings

•

Volts

• 250 Vac (or less)

• 32 Vdc (self certified)

•

Amps 500mA-12 A

•

IR 1500 A @ 250 Vac

Agency information

•

cURus, CSA, IMQ, VDE, SEMKO, CCC/CQC, PSE/JET, KC, BS,
RoHS compliant

•

Agency information not applicable to all ratings, see data sheet for
details.

Features

•

Time-delay performance ideal for inductive circuits.

•

Conforms to IEC standards.

Typical applications

•

Electronic circuits

Catalog no. (amps)*

S505-500-R** S505-1.6-R S505-4-R S505-10-R

S505-800-R** S505-2-R S505-5-R S505-12-R**

S505-1-R S505-2.5-R S505-6.3-R

S505-1.25-R S505-3.15-R S505-8-R

* To order axial leads, place “SC” in catalog number. E.g., S505SC-2-R.
** Axial leads not available.

2011/65/EU

Data sheet no. 2051 (S501), 2014 (GDA)

3-4

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Data sheet no. 2037

Eaton.com/bussmannseries

Electronic, PCB and small dimension fuses — 3

S505H ferrule, and S505H-V and S505SCH axial
time-delay high breaking capacity 5x20mm
ceramic tube fuses

Ratings

•

Volts

• 600 Vac/400 Vdc (S505H

500mA-5 A

• 500 Vac/400 Vdc (S505H

6.3-10 A)

• 250 Vac

•

Amps

• 500mA-10 A (S505H)

• 3.15-6.3 A (S505SCH)

•

IR @ 250 Vac

• 35 A (S505H)

• 1.5 kA (S505SCH / 50 Hz / 250 Vac / 400 Vdc)

• 100 A max AC

(S505SCH)

Agency information

•

cURus, CCC, CQC, TUV, PSE/JET (S505H)

•

cURus, KC, CQC, TUV (S505SCH)

•

RoHS compliant

•

Agency information not applicable to all ratings; see data sheets
for details.

Features

•

Time-delay, high breaking capacity

•

Conforms to IEC standards

Typical applications

•

Power supplies/adapters

•

Desktops/notebooks

Catalog no. (amps)

S505H*

S505H-500-R S505H-1.6-R S505H-4-R S505H-10-R

S505H-800-R S505H-2-R S505H-5-R

S505H-1-R S505H-2.5-R S505H-6.3-R

S505H-1.25-R S505H-3.15-R S505H-8-R

S505SCH (axial lead only

S505SCH-3.15-R S505SCH-5-R S505SCH-6.3-R

* To order an axial lead S505H fuse, place “V” in catalog number.

E.g., S505H-V-5-R.

2011/65/EU

S506 ferrule (GDC†) and S506-V axial lead time­delay low breaking capacity 5x20mm glass tube
fuses

Ratings

•

Volts

• 250 Vac (or less)

• 32 Vdc (self certified)

•

Amps 32mA-15 A**

•

IR 35 A @ 250 Vac

Agency information

•

UR, CSA, cURus, SEMKO, VDE, BSI, IMQ, VDE, PSE/JET, CCC,
RoHS compliant

•

Agency information not applicable to all ratings; see data sheet for
details.

Features

•

Time-delay for inductive circuits

•

Conforms to IEC standards

Typical applications

•

Electronic circuits

Catalog no. (amps)*

S506-32-R S506-160-R S506-800-R S506-4-R

S506-40-R S506-200-R S506-1-R S506-5-R

S506-50-R S506-250-R S506-1.25-R S506-6.3-R

S506-63-R S506-315-R S506-1.6-R S506-8-R

S506-80-R S506-400-R S506-2-R S506-10-R

S506-100-R S506-500-R S506-2.5-R S506-12.5-R

S506-125-R S506-630-R S506-3.15-R S506-15-R

* GDC is not available with axial leads. To order axial leads, place “V” in the S506

catalog number. E.g., S506-V-15-R.

† When ordering GDC version, do not add “-R” suffix to catalog number., GDC

fuses are not available above 6.3 A.

2011/65/EU

dimension fuses

Electronic, PCB, small

Data sheet no. 4406 (S505H), 10401 (S505SCH)

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Data sheet no. 4332 (S506), 2016 (GDC)

Eaton.com/bussmannseries

3-5

3 — Electronic, PCB and small dimension fuses

GMA ferrule and GMA-V axial leads fast-acting
5x20mm glass tube fuses

Ratings

•

Volts

• 250 Vac (63mA-2.5 A)

• 125 Vac (3.15-15 A)

• 32 Vdc (self certified)

•

Amps 63mA-15 A

•

IR

• 35 A (63mA-1 A @ 250 Vac, p.f. = 0.7-0.8)

• 10 kA (63mA-6 A @ 125 Vac, p.f. = 0.7-0.8)

• 100 A (1.25-2.5 A @ 250 Vac, p.f. = 0.7-0.8)

• 200 A (7-8 A @ 125 Vac, p.f. = 1.0)

• 150 A (10-15 A @ 125 Vac, p.f. = 1.0)

Agency information

•

UL Listed, Std. 248-14 Guide JDYX, File E19180 up to 6 A, UL
Recognized, Guide JDYX2, File E19180, 7-15 A, CSA Certified,
Class 1422-01,File 53787 up to 6 A, PSE Approval 1-15 A, RoHS
compliant, CE

Features

•

Fast-acting for maximum protection

Typical applications

•

Electronic circuits

2011/65/EU

GMC ferrule and GMC-V axial lead medium time­delay 5x20mm glass tube fuses

Ratings

•

Volts

• 250 Vac (63mA-3.15 A)

• 125 Vac (3.5-10 A)

• 32 Vdc (self certified)

•

Amps 63mA-10 A

•

IR

• 35 A (63mA-1 A @ 250 Vac, p.f. = 0.7-0.8)

• 10 kA (63mA-6 A @ 125 Vac, p.f. = 0.7-0.8)

• 100 A (1.25-3.15 A @ 250 Vac, p.f. = 0.7-0.8)

• 200 A (6.3-10 A @ 125 Vac, p.f. = 1.0)

Agency information

•

UL Listed, Std. 248-14, Guide JDYX, File E19180 up to 6.3 A, UL
Recognized, Guide JDYX2, File E19180 7-10 A, CSA Certified,
Class 1422-01, File 53787 up to 6.3 A, MITI Approval, 1-10 A, KC,
RoHS compliant, CE

•

KC not applicable to all ratings; see data sheet for details

Features

•

Conforms to UL standards

Typical applications

•

Electronic circuits

2011/65/EU

Catalog no. (amps)*

GMA-63-R GMA-600-R GMA-2-R GMA-7-R

GMA-100-R GMA-750-R GMA-2.5-R GMA-8-R

GMA-125-R GMA-800-R GMA-3.15-R GMA-10-R

GMA-200-R GMA-1-R GMA-3.5-R GMA-15-R

GMA-250-R GMA-1.25-R GMA-4-R

GMA-300-R GMA-1.5-R GMA-5-R

GMA-500-R GMA-1.6-R GMA-6-R

* To order axial leads, place “V” in catalog number. E.g., GMA-V-8-R.

Catalog no. (amps)*

GMC-63-R GMC-315-R GMC-1.25-R GMC-5-R

GMC-80-R GMC-400-R GMC-1.5-R GMC-6-R

GMC-100-R GMC-500-R GMC-1.6-R GMC-6.3-R

GMC-125-R GMC-600-R GMC-2-R GMC-7-R

GMC-150-R GMC-630-R GMC-2.5-R GMC-8-R

GMC-200-R GMC-750-R GMC-3.15-R GMC-10-R

GMC-250-R GMC-800-R GMC-3.5-R

GMC-300-R GMC-1-R GMC-4-R

* To order axial leads, place “V” in catalog number. E.g., GMC-V-5-R.

Data sheet no. 2017

3-6

Data sheet no. 4395

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

Electronic, PCB and small dimension fuses — 3

GMD ferrule and GMD-V axial leads time-delay
5x20mm glass tube fuses

Ratings

•

Volts

• 250 Vac

• 32 Vdc (self certified)

•

Amps 125mA-4 A

•

IR

• 10 kA (125mA-3 A @ 125 Vac, p.f. = 0.7-0.8)

• 10 kA (4 A @ 125 Vac, p.f. = 1.0)

• 35 A (125mA-1 A @ 250 Vac, p.f. = 0.7-0.8)

• 100 A (1.2-3. A @ 250 Vac, p.f. = 0.7-0.8)

• 200 A (4 A @ 250 Vac, p.f. = 1.0)

Agency information

•

UL Listed Guide JDYX, File E19180, UL Recognized Card (4 A),
Guide JDYX2, File E19180, 4 A, CSA Certified, Class 1422-01, File
53787, PSE/JET, File 1641-31003-1001, RoHS complaint, CE

•

Agency information not applicable to all ratings; see data sheet for
details

Features

2011/65/EU

AGA fast-acting 1/4˝ x 5/8˝ glass tube fuse

Ratings

•

Volts

• 125 Vac (or less)

• 32 Vdc (self certified)

•

Amps 1-30 A

•

IR

• 10 kA (1 to 1-1/2 A @ 125 Vac)

• 200 A (2-5 A @ 125 Vac)

• 1000 A (6-30 A @ 32 Vac)

Agency information

•

UL Listed, Std. 248-14, Guide JDYX, File E19180 up to 3-1/2 A UL
Recognized, Guide JDYX2 12-30 A, CE

Features

•

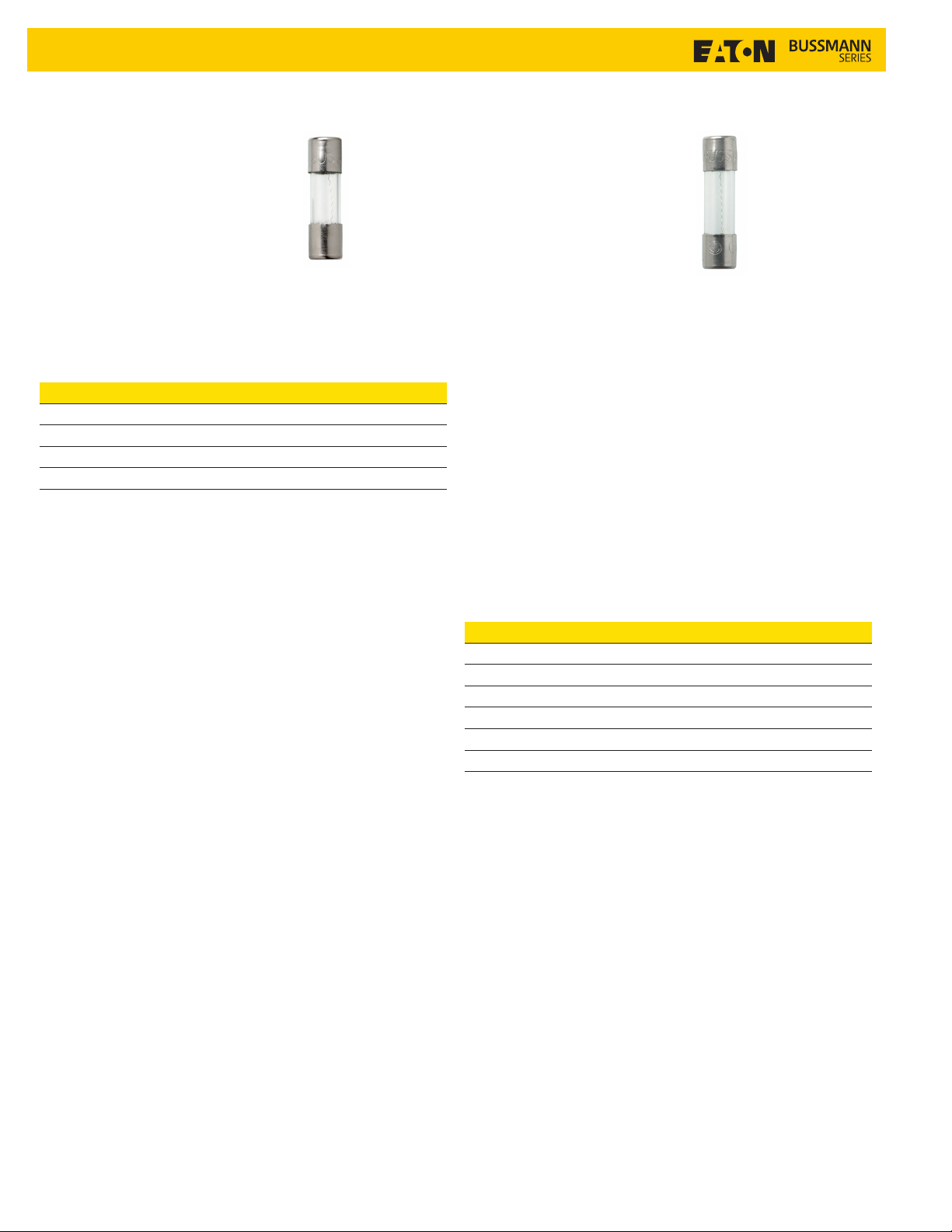

Fast-acting for maximum protection

•

Size rejects insertion of other fuse types

Typical applications

•

Electronic circuits

dimension fuses

Electronic, PCB, small

•

Time-delay for inductive circuits

•

Conforms to UL standards

Typical applications

•

Electronic circuits

Catalog no. (amps)*

GMD-125-R GMD-375-R GMD-800-R GMD-2-R

GMD-150-R GMD-400-R GMD-1-R GMD-2.5-R

GMD-200-R GMD-500-R GMD-1.2-R GMD-3-R

GMD-250-R GMD-600-R GMD-1.25-R GMD-4-R

GMD-300-R GMD-630-R GMD-1.5-R

GMD-315-R GMD-750-R GMD-1.6-R

* To order axial leads, place “V” in catalog number. E.g., GMD-V-2.5-R.

Catalog no. (amps)

AGA-1 AGA-3 AGA-7-1/2 AGA-25

AGA-1-1/2 AGA-5 AGA-10 AGA-30

AGA-2 AGA-6 AGA-15

AGA-2-1/2 AGA-7 AGA-20

Data sheet no. 2019

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Data sheet no. 2039

Eaton.com/bussmannseries

3-7

3 — Electronic, PCB and small dimension fuses

AGW fast-acting 1/4˝ x 7/8˝ glass tube fuse

Ratings

•

Volts

• 32 Vac

• 32 Vdc (self certified)

•

Amps 1-30 A

•

IR 1 kA AC

Features

•

Fast-acting for maximum protection

Typical applications

•

Electronic circuits

Catalog no. (amps)

AGW-1 AGW-3 AGW-7-1/2 AGW-25

AGW-1-1/2 AGW-4 AGW-10 AGW-30

AGW-2 AGW-5 AGW-15

AGW-2-1/2 AGW-6 AGW-20

AGX fast-acting 1/4˝ x 1˝ glass tube fuse

Ratings

•

Volts

• 250 Vac (1//4-20 A)

• 125 Vac (25-30 A)

• 32 Vdc (1/4-30 A)

•

Amps 1/4-30 A

•

IR

• 35 A (1/4-1 A @ 250 Vac)

• 10 kA (1/4-10 A @ 125 Vac)

• 200 A (15-20 A @ 125 Vac)

• 100 A (25-30 A @ 125 Vac)

• 1000 A (8-30 A @ 32 Vac)

Agency information

•

cULus up to 10 A, Guide JDYX, File E 19180 and Guide JDYX7, File
E19180, UL Recognized Card 15-30 A Guide JDYX2, File E19180,
CSA Component Acceptance Card 15-30 A Class No. 1422-01,
File 53787

Features

•

Size rejects insertion of other fuse types

Typical applications

•

Electronic circuits

Catalog no. (amps)

AGX-1/4 AGX-1 AGX-4 AGX-15

AGX-3/10 AGX-1-1/4 AGX-5 AGX-20

AGX-3/8 AGX-1-1/2 AGX-6 AGX-25

AGX-4/10 AGX-2 AGX-7 AGX-30

AGX-1/2 AGX-2-1/2 AGX-8

AGX-3/4 AGX-3 AGX-10

Data sheet no. 2040

3-8

Data sheet no. 2041

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

Electronic, PCB and small dimension fuses — 3

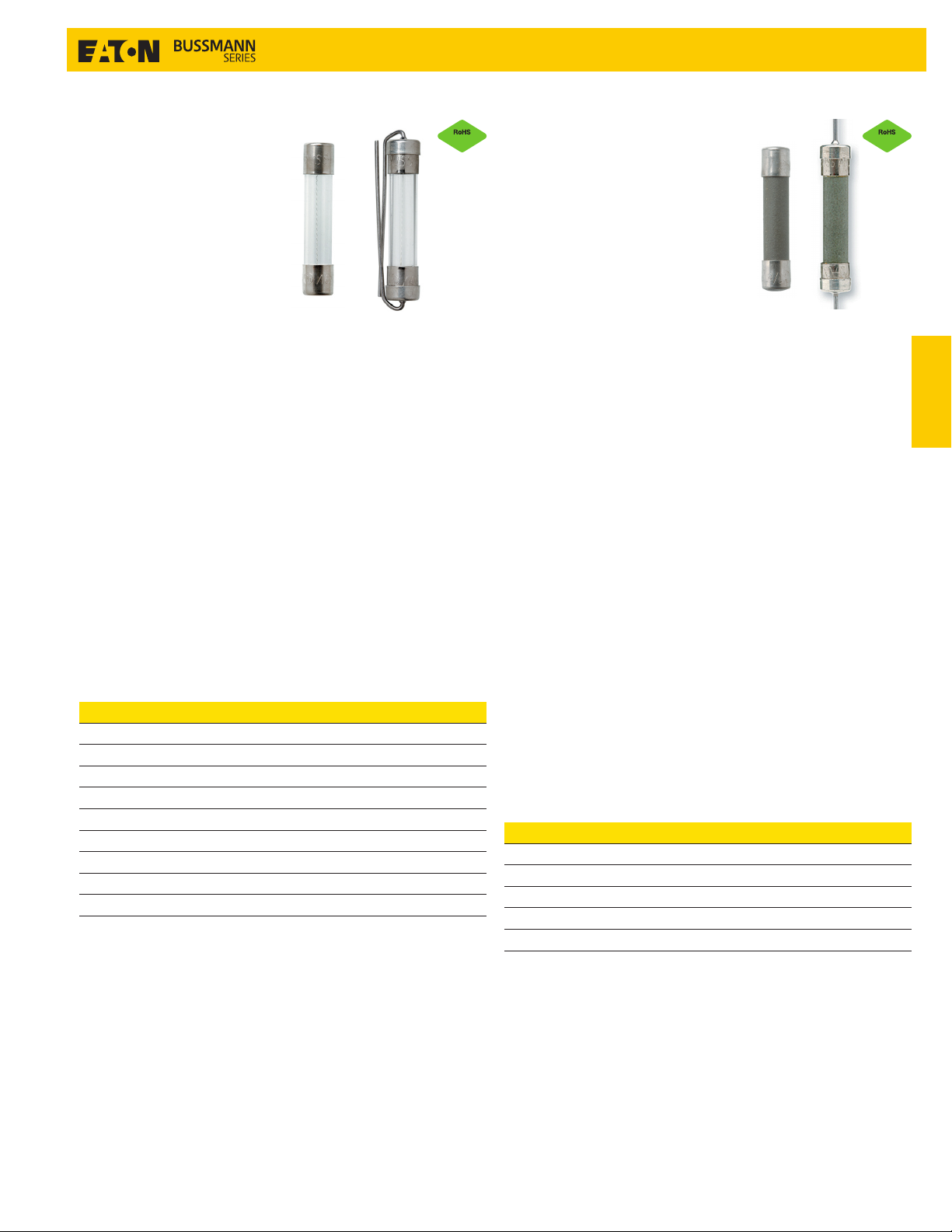

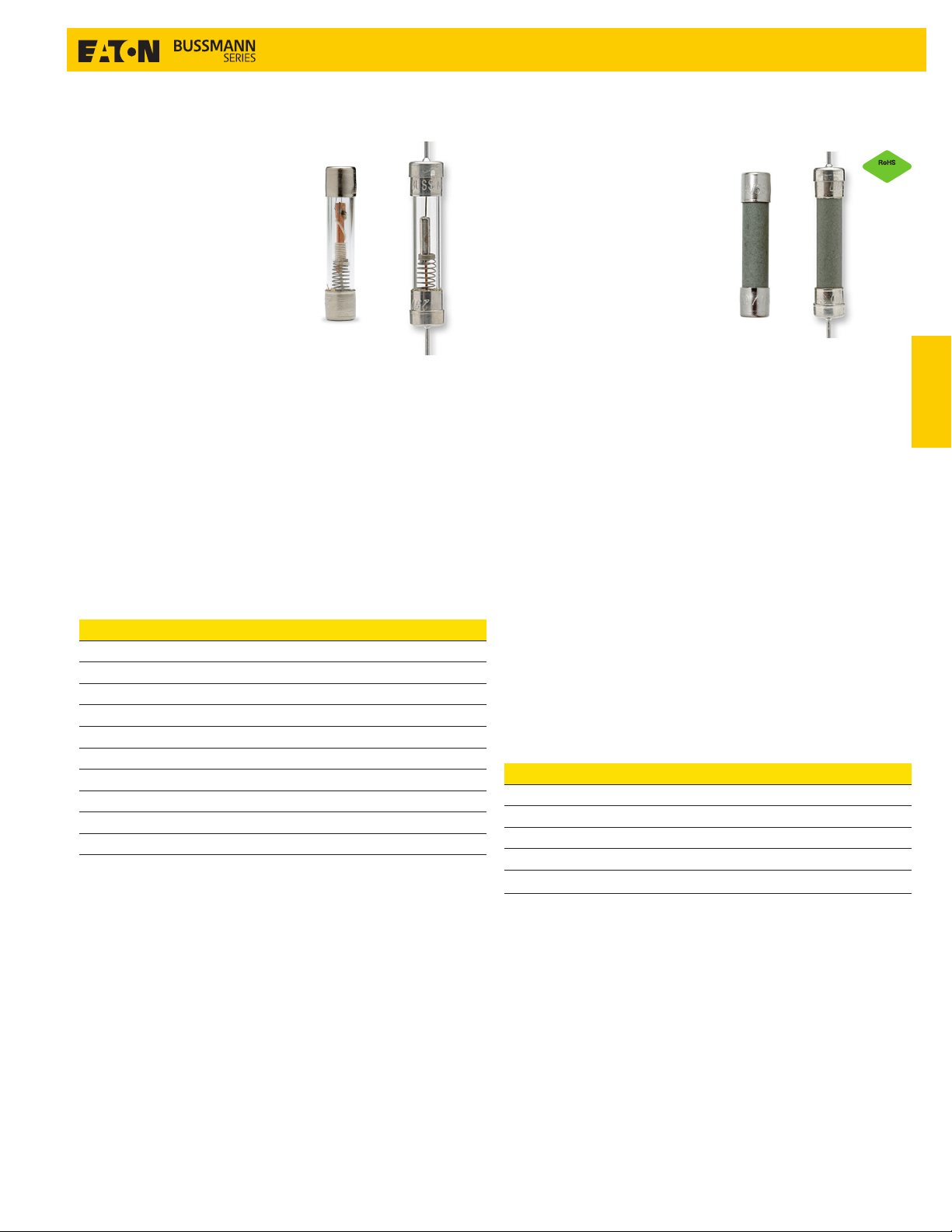

AGC ferrule and AGC-V axial lead fast-acing 1/4"
x 1-1/4˝ glass tube fuses

Ratings

•

Volts

• 250 Vac (1/20-10 A)

• 32 Vac (12-40 A)

• 32 Vdc (self certified)

•

Amps 1/20-40 A

•

IR

• 35 A (1/20-1 A @ 250 Vac)

• 100 A (11/4-3 A @ 250 Vac)

• 200 A (4-10 A @ 250 Vac)

• 10 kA (1/20-10 A @ 125 Vac)

• 1000 A (12-40 A @ 32 Vac)

Agency information

•

UL Listed, Guide JDYX, File E19180, up to 10 A, UL Recognized,
Guide JDYX2, File E19180, 12-30 A, CSA Certified, Class 1422­01, CSA Component Acceptance Card, Class No. 1422-30, RoHS
compliant, CE

Features

•

Original electronic glass tube fuse

•

Fast-acting for maximum protection

•

Wide amp/volt ratings allow versatility of protecting electronic
circuits

2011/65/EU

ABC ferrule and ABC-V axial leads fast-acting 1/4"
x 1-1/4˝ ceramic tube fuse

Ratings

•

Volts

• 250 Vac/125 Vdc (1/4-15 A, 20-30 A)*

• 250 Vac (18 A)

• 32 Vdc (self certified)

•

Amps 1/4-30 A

•

IR**

• 35 A (1/4-1 A @ 250 Vac)

• 100 A (11/2-3 A @ 250 Vac)

• 200 A (4-10 A @ 250 Vac)

• 750 A (12-15 A @ 250 Vac)

• 400 A (18-20 A @ 250 Vac)

• 10 kA (1/4-15 A @ 125 Vac)

• 1 kA (18-30 A @ 125 Vac)

• 10 kA (1/4-15, 20 A @ 125 Vdc)

• 400 A (25-30 A @ 125 Vdc)

• 200 A (25-30 A @ 250 Vac)

* CSA approvals for 25 A and 30 A are at 125 Vac – IR 1000 A and Vdc – IR 400 A

(IR 1000 A at 75 Vdc)

** Interrupting ratings measured at 70% – 80% power factor on AC. The

interrupting ratings for 18 A and 20 A were measured at 85%-95% power factor
on AC. The interrupting ratings for 25 A and 30 A were measured at 89% power
factor on AC.

Agency information

2011/65/EU

dimension fuses

Electronic, PCB, small

Typical applications

•

Electronic circuits

Catalog no. (amps)*

AGC-1/20-R AGC-3/4-R AGC-5-R AGC-15-R

AGC-1/10-R AGC-1-R AGC-6-R AGC-20-R

AGC-1/8-R AGC-1-1/4-R AGC-7-R AGC-25-R

AGC-3/16-R AGC-1-1/2-R AGC-7-1/2-R AGC-30-R

AGC-2/10-R AGC-2-R AGC-8-R AGC-35-R

AGC-1/4-R AGC-2-1/4-R AGC-9-R AGC-40-R

AGC-3/10-R AGC-2-1/2-R AGC-10-R

AGC-3/8-R AGC-3-R AGC-12-R

AGC-1/2-R AGC-4-R AGC-14-R

* To order axial leads, place “V” in catalog number. E.g., AGC-V-1/10-R.

•

UL Listed, Std. 248-14, Guide JDYX File E19180 up to 15 A; UL
Recognized, Guide JDYX2, File E19180, 18-30 A; CSA Certified,
Class 1422-01 and 1422-30, File 53787, RoHS compliant, CE

Features

•

Ceramic body allows for higher amp/volt rating combinations

Typical applications

•

Electronic circuits

Catalog no. (amps)

ABC-1/4-R ABC-2-R ABC-6-R ABC-15-R

ABC-1/2-R ABC-2-1/2-R ABC-7-R ABC-18-R

ABC-3/4-R ABC-3-R ABC-8-R ABC-20-R

ABC-1-R ABC-4-R ABC-10-R ABC-25-R

ABC-1-1/2-R ABC-5-R ABC-12-R ABC-30-R

* To order axial leads, place “V” in catalog number. E.g., ABC-V-7-R.

Data sheet no. 2543

Data sheet no. 2000

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

3-9

3 — Electronic, PCB and small dimension fuses

GBB ferrule and GBB-V axial lead very-fast-acting
1/4" x 1-1/4˝ ceramic tube fuses

Ratings

•

Volts 250 Vac/125 Vdc

•

Amps 1-30 A

•

IR

• 200 A @ 250 Vac

• 200 A (20-30 A @ 125 Vac/dc)

• 10 kA (1-15 A @ 125 Vac/dc)

Agency information

•

UL Recognized, Std. 248-14, Guide JFHR2, File E56412,
CSA Component Acceptance Class 1422-30, File 53787,
RoHS complaint, CE

Features

•

Very fast-acting performance allows protection of highly sensitive
electronic circuitry

Typical applications

•

Electronic circuits

Catalog no. (amps)*

GBB-1-R GBB-4-R GBB-8-R GBB-15-R

GBB-1-1/4-R GBB-5-R GBB-9-R GBB-20-R

GBB-2-R GBB-6-R GBB-10-R GBB-25-R

GBB-3-R GBB-7-R GBB-12-R GBB-30-R

* To order axial leads, place “V” in catalog number. E.g., GBB-V-10-R.

2011/65/EU

MDL ferrule and MDL-V axial lead time-delay
1/4" x 1-1/4˝ glass tube fuses

Ratings

•

Volts

• 250 Vac (1/16-8 A)

• 32 Vac (9-30 A)

• 32 Vdc (self certified)

•

Amps 1/16-30 A

•

IR*

• 35 A (1/16-1 A @ 250 Vac)

• 100 A (11/4-3 A @ 250 Vac)

• 200 A (4-8 A @ 250 Vac)

• 10000 A (1/16-8 A @ 125 Vac)

• 1000 A (9-30 A @ 32 Vac)

* Interrupting ratings were measured at 70% – 80% power factor on AC, and at a

time constant described in UL 198L.

Agency information

•

UL Listed, Guide JDYX, File E19180 up to 8 A; CSA Certified Class
1422-01 up to 8 A; UL Recognized, Guide JDYX2, File E19180,
9-30 A; CSA Component Acceptance, Class 1422-30, 9-30 A, RoHS
compliant, CE

Features

•

Time-delay allows close sizing on inductive circuits

Typical applications

•

Electronic circuits

2011/65/EU

Catalog no. (amps)*

MDL-1/16-R MDL-1/2-R MDL-3-R MDL-10-R

MDL-1/10-R MDL-3/4-R MDL-3-2/10-R MDL-12-R

MDL-1/8-R MDL-1-R MDL-4-R MDL-15-R

MDL-2/10-R MDL-1-1/4-R MDL-5-R MDL-20-R

MDL-3/16-R MDL-1-1/2-R MDL-6-R MDL-25**

MDL-1/4-R MDL-2-R MDL-7-R MDL-30**

MDL-3/10-R MDL-2-1/4-R MDL-8-R

MDL-3/8-R MDL-2-1/2-R MDL-9-R

* To order axial leads, place “V” in catalog number. E.g., MDL-V-3-R.
** RoHS compliant construction not available.

Data sheet no. 2013

3-10

Data sheet no. 2004

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

Electronic, PCB and small dimension fuses — 3

MDQ ferrule and MDQ-V axial lead dual-element,
time-delay 1/4" x 1-1/4˝ glass tube fuses

Ratings

•

Volts

• 250 Vac (1/100-7 A)

• 32 Vac (7-1/2 to 15 A)

• 32 Vdc (self certified)

•

Amps 1/100-15 A

•

IR

• 35 A (1/100-1 A @ 250 Vac)

• 100 A (1-1/4 to 3 A @ 250 Vac)

• 200 A (4-7 A @ 250 Vac)

• 1000 A (7-1/2 to 12 A @ 32 Vac)

Agency information

•

UL Listed, Std. 248-14, Guide JDYX, File E19180 1/16-7 A, CSA
Component Acceptance, Class 1422-01, File 47233 1/16 -15 A, UL
Recognized, Guide JDYX2, File E19180, 7-1/2-15 A.

Features

•

Dual-element design allows closer sizing to inductive circuits than
any other fuses

Typical applications

•

Electronic relay and control circuits

Catalog no. (amps)*

MDQ-1/100 MDQ-3/10 MDQ-1-1/2 MDQ-5

MDQ-1/32 MDQ-3/8 MDQ-1-6/10 MDQ-6

MDQ-1/16 MDQ-4/10 MDQ-1-8/10 MDQ-6-1/4

MDQ-1/10 MDQ-1/2 MDQ-2 MDQ-7

MDQ-1/8 MDQ-6/10 MDQ-2-1/4 MDQ-7-1/2

MDQ-15/100 MDQ-3/4 MDQ-2-1/2 MDQ-8

MDQ-175/1000 MDQ-8/10 MDQ-2-8/10 MDQ-9

MDQ-3/16 MDQ-1 MDQ-3 MDQ-10

MDQ-2/10 MDQ-1-2/10 MDQ-3-2/10 MDQ-12

MDQ-1/4 MDQ-1-1/4 MDQ-4 MDQ-15

* To order axial leads, place “V” in catalog number. E.g., MDQ-V-1-1/4.

MDA ferrule and MDA-V axial lead time-delay
1/4" x 1-1/4˝ ceramic tube fuses

Ratings

•

Volts

• 250 Vac (or less)

• 125 Vdc (20-30 A)

• 32 Vdc (self certified)

•

Amps 1/4-30 A

•

IR**

• 35 A (1/4 to 1 A @ 250 Vac)

• 100 A (1-1/2 to 2 A @ 250 Vac)

• 200 A (2-1/2 to 10 A @ 250 Vac)

• 750 A (12-15 A @ 250 Vac)

• 1500 A (20-30 A @ 250 Vac)

• 10 kA (1/4-30 A @ 125 Vac)

• 10 kA (20-30 A @ 125 Vdc)

** Interrupting ratings were measured at 70% – 80% power factor on AC, and at a

time constant described in UL 248.

Agency information

•

UL Listed, Std. 248-14, Guide JDYX, File E19180 up to 20 A,
CSA Certified, Class 1422-01, File 53787 up to 20 A.
UL Recognized, Guide JDYX2, File E19180, 25-30 A, CSA
Component Acceptance, Class 1422-30, 25-30 A, RoHS compliant,
CE

Features

•

Ceramic body for higher amp/volt ratings

•

Inventory consolidation by replacing MDL fuses allows for reduced
SKU investment and minimizing potential for misapplying fuse

Typical applications

•

Electronic circuits

Catalog no. (amps)*

MDA-1/4-R MDA-2-R MDA-6-R MDA-15-R

MDA-1/2-R MDA-2-1/2-R MDA-7-R MDA-20-R

MDA-3/4-R MDA-3-R MDA-8-R MDA-25 A-R

MDA-1-R MDA-4-R MDA-10-R MDA-30 A-R

MDA-1-1 /2-R MDA-5-R MDA-12-R

* To order axial leads, place “V” in catalog number. E.g., MDA-V-1-1/2-R.

2011/65/EU

dimension fuses

Electronic, PCB, small

Data sheet no. 2044

Data sheet no. 2002

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

3-11

3 — Electronic, PCB and small dimension fuses

0.512

0.512

Mounting
holes

Ø 0.102

(2.6)

Ø 0.051

(1.3)

0.886

(22.5)

0.138
(3.5)

0.551
(14)

0.354
(9)

0.591
(15)

H15-V vertical mount holder
with threaded cap

2011/65/EU

Ratings

•

Volts 250 Vac

•

Amps 10 A (cURus and VDE)

•

Temperature rise 41°C

Agency information

•

cURus Recognized, Guide IZLT2/IZLT8,
File E14853

•

VDE File 40039714

Materials

•

Tin-plated clip

•

Tin-plated copper terminals

•

Thermoplastic body (UL 94V0, glow wire
test: 960°C per IEC 695-2-1)

Catalog no. Carton qty.

BK-H15-V-1 200

BK1-H15-V-1 1000

BK-H15-V-1-B 100 holder body only

BK-H15-V-1-K 100 holder cap only

H15-H horizontal mount holder
with threaded cap

2011/65/EU

Ratings

•

Volts 250 Vac

•

Amps 10 A (cURus) 6.3 A (VDE)

•

Temperature rise 41°C

Agency information

•

cURus Recognized, Guide IZLT2/IZLT8,
File E14853

•

VDE File 40039714

Materials

•

Tin-plated clip

•

Tin-plated copper terminals

•

Thermoplastic body (UL 94V0, glow wire
test: 960°C per IEC 695-2-1)

Catalog no. Carton qty.

BK-H15-H-1 200

BK1-H15-H-1 1000

BK-H15-H-1-B 100 holder body only

BK-H15-H-1-K 100 holder cap only

HTC-60M four-leg stand-off
mount fuse holder

Ratings

•

Volts 250 Vac

•

Amps 6.3 (cURus and VDE)

Agency information

•

cURus Recognized, Guide IZLT2/IZLT8,
|File E14853

•

VDE File 4004459

Materials

•

Tin-plated brass terminals

Catalog no. Qty.

HTC-60M 10

BK-HTC-60M 100 (bulk)

Dimensions - in (mm)

2011/65/EU

Dimensions - in (mm)

1.303

(33.1)

Printed circuit
board

Mounting holes

Ø 0.051 ± 0.002 (Typ.)

(1.03 ± 0.05)

Data sheet no. 4426

3-12

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

S

E

U

F

0.461

(11.7)

0.394 (10.0)

(13)

Dimensions - in (mm)

1.303

(33.1)

Printed circuit board

Mounting holes

Ø 0.051 ± 0.002 (Typ.)

(1.03 ± 0.05)

0.394 (10.0)

Data sheet no. 4426

(13)

S

E

U

F

0.461
(11.7)

Data sheet no. 2110

Eaton.com/bussmannseries

Electronic, PCB and small dimension fuses — 3

HBV

0.51

(13.0)

1.855

(47.0)

0.04

(1.05)

0.580

(14.9

0.2

(5.0)

0.2

(5.0)

0.1 (2.54) Ø, 4

0.531

(13.5)

0.4

(10.0)

0.05 (1.3) Ø, 2

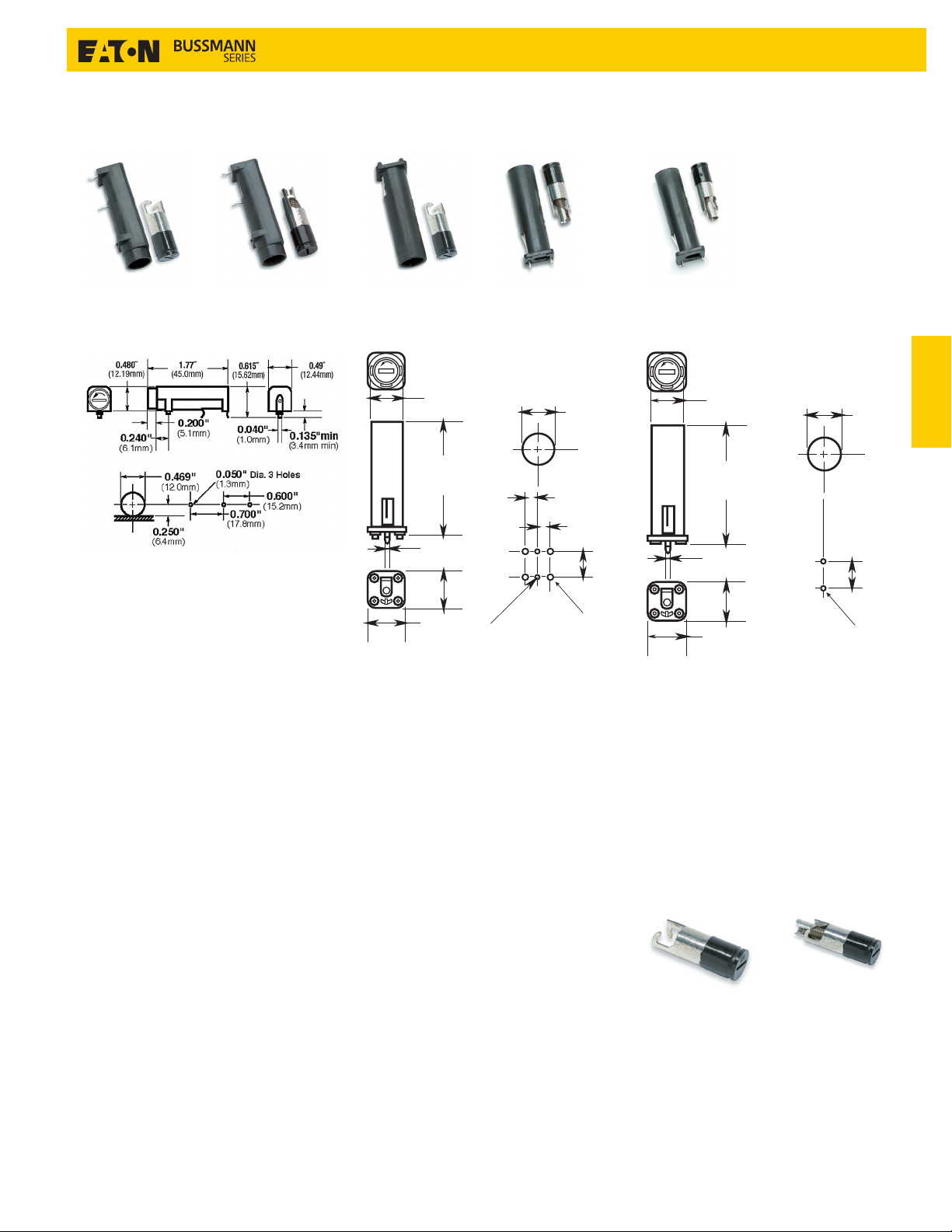

HBH-I (1/4" x 1-1/4˝) and HBH­M (5x20mm) horizontal mount
fuse holders

Dimensions - in (mm)

HBV-I (1/4" x 1-1/4˝) and HBV-M
(5x20mm) vertical mount fuse
holders with stability pins

Dimensions - in (mm)

HBW-I (1/4" x 1-1/4˝) and HBW­M (5x20mm) vertical mount fuse
holder without stability pins

Dimensions - in (mm)

0.51

HBW

(13.0)

1.855

(47.0)

0.531

(13.5)

dimension fuses

Electronic, PCB, small

Ratings

• UL 16 A/250 V

• CSA 12 A/250 V

• VDE 6.3 A/250 V

• SEMKO 10 A/250 V

Agency information

•

UL Recognized, Guide IZLT2, File EI4853,
CSA Certified, Class 6225-01, File 47235,
VDE 4009241 (HBV, HBW), SEMKO
800444, CE

Electrical

•

Insulation resistance 10 MΩ 500 Vdc

•

Contact resistance less than 0.005 Ω @
200mV

•

Dielectric strength over 200 V/mil

Material

•

High dielectric molded phenolic with a UL
94V0 flammability rating

•

Fuse carrier and knob: spring-loaded,
bayonet-type, tin-plated brass with
screwdriver slot

Mounting

•

“Kicked” terminals (all) and stability pins
on HBV and HBW

•

Temperature rating (RTI): body 150ºC,
knob 130ºC

0.04

(1.05)

0.580

(14.9

0.4

(10.0)

0.05 (1.3) Ø, 2

Replacement fuse caps

FBI and FBM fuse caps fit PCB fuse holders
HBH-_, HBV-_ and HBW-_.

To order, specify Catalog numbers:

•

FBI for 1/4" diameter fuses

•

FBM for 5mm diameter fuses

FBI FBM

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Data sheet no. 2118

Eaton.com/bussmannseries

3-13

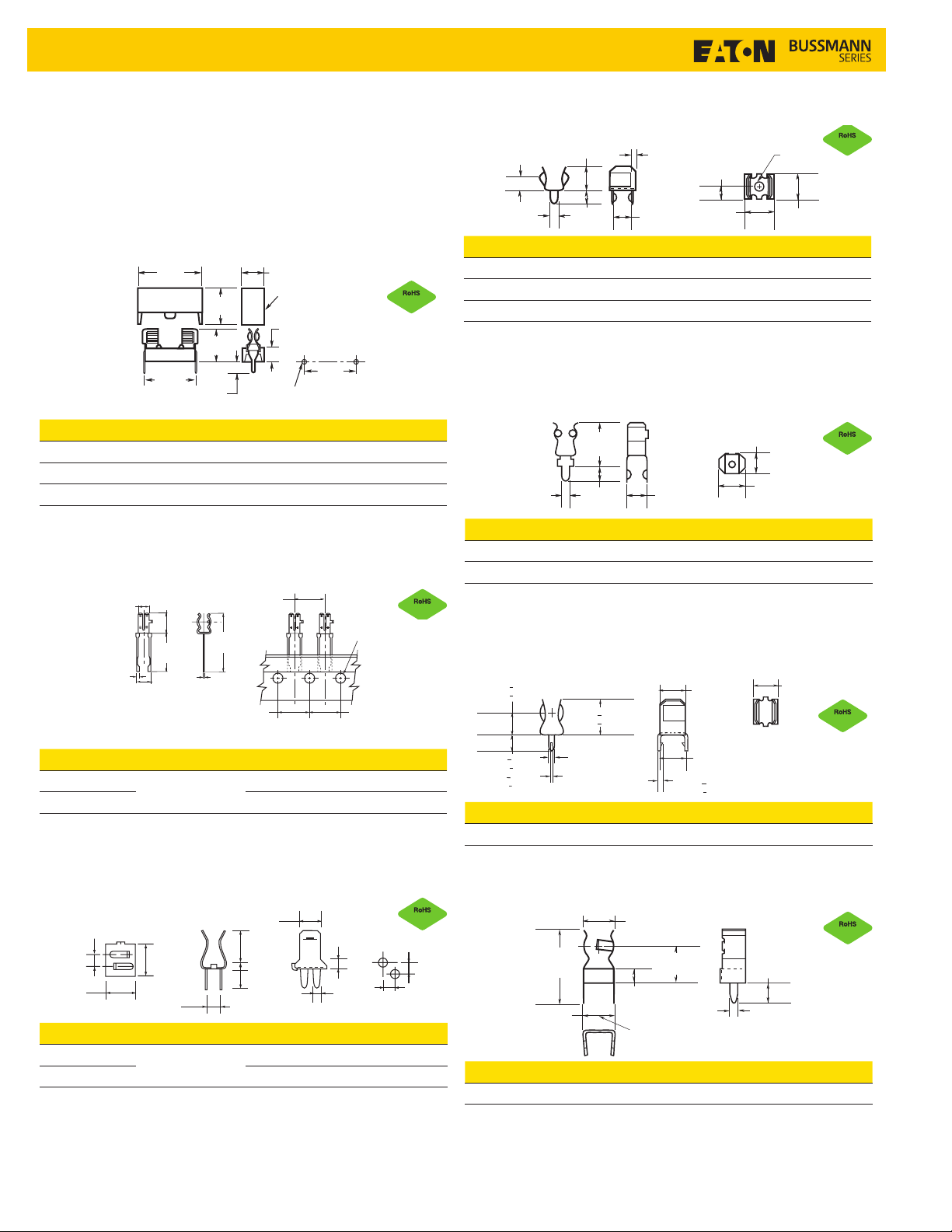

3 — Electronic, PCB and small dimension fuses

0.180"

0.250"

(6.35mm)

0.060"

(1.5mm)

0.246"

(6.3mm)

0.344" + 0.015"

(8.73mm + 0.38mm)

0.266"

(6.75mm)

0.344" + 0.015"

(8.73mm + 0.38mm)

0.141" + 0.015"

(3.58mm + 0.38mm)

0.022" + 0.002"

(0.56mm + 0.05mm)

0.032" 0.002"

(0.81mm 0.05mm)

+

+

0.216"

(5.48mm)

LEGS TO FIT
IN 0.052" (1.3mm) DIA.
HOLES ON CENTER

0.219"

(5.57mm)

0.047"

(1.19mm)

0.093"

(2.36mm)

0.500"

(12.70mm)

0.250"

(6.35mm)

0.140"

(3.56mm)

HTC-140M
Cover

0.866"

(22.0mm)

1.047"

(26.6mm)

0.217"

(5.5mm)

0.177"

(4.5mm)

0.345"

(9.0mm)

0.890"

(22.60mm)

Mounting Holes

0.059" + 0.002" Dia. (Typ.)
_

(1.50 + .05mm)

_

0.531"

(13.5mm)

0.571"

(14.5mm)

HTC-15M, HTC-140M holder and snap-on cover

Ratings

•

250 V / 6.3 A / 1.6 W

Agency information

•

cURus, Guide 1ZLT2 and IZLT8, File E14853

•

VDE 40004458

•

RoHS compliant

2011/65/EU

Catalog no. Description

HTC-15M Holder only

HTC-140M Holder with natural color cover

HTC-150M* Holder with transparent cover

* Available in bulk only, order BK/HTC-150M.

HTC-200M fuseclip

0.177"

(4.5mm)

0.031"

(0.79mm)

BUSS

0.319"

(8.1mm)

0.61"

(15.5mm)

0.217"

(5.5mm)

0.929"

(23.6mm)

0.012"

(0.3mm)

0.50"

(12.7mm)

0.50"

(12.7mm)

BUSS

BUSS

0.157"

(3.99mm)

0.50"

(12.7mm)

2011/65/EU

1A3399 low profile fuseclips with end stops and
straight leads

0.125"

(3.2mm)

0.060"

(1.5mm)

0.225"

(5.7mm)

0.125"

(3.2mm)

0.030"

(1.6mm)

0.188"

(4.8mm)

0.115"

(2.9mm)

0.254"

(6.5mm)

Catalog no. Material* Finish

1A3399-01 BeCu Silver

1A3399-04-R BeCu Bright tin

1A3399-10-R Spring bronze Bright tin

* BeCu recommended for more than 15 A.

0.062"

(1.6mm)

(6.0mm)

2011/65/EU

0.237"

1A5018 high profile fuseclips with end stops and
straight leads

(4.57mm)

0.230"

(5.84mm)

0.047"

(1.2mm)

0.440"

(11.2mm)

0.140"

(3.7mm)

0.180"

(4.6mm)

Catalog no. Material* Finish

1A5018-07 Spring bronze Silver

1A5018-10-R Spring bronze Bright tin

* BeCu 1A3399 fuseclips recommended for more than 15 A.

2011/65/EU

1A5601 fuseclip (≤ 7 A)

2011/65/EU

Catalog no. Material Description

HTC-200M

AP/HTC-200M Ammo pack 1000 pieces per box

Tin-plated bronze

Tape and fan fold pack

HTC-210M fuseclip with end stops

4.32mm

2.29mm

1.46mm

2.54mm

6.22mm

6.26mm

2.85mm

8.73mm

3.91mm

Catalog no. Material Description

HTC-210M

AP/HTC-210M Ammo pack 1000 pieces per box

Data sheet no. 2110

3-14

Tin-plated bronze

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Tape and fan fold pack

Catalog no. Material Finish

1A5601 Cartridge brass Bright tin

1A5602 fuseclip with end stops (≤ 7 A)

2011/65/EU

2011/65/EU

2.54mm

2.54mm

Catalog no. Material Finish

1A5602 Cartridge brass Bright tin

Data sheet no. 2131

Eaton.com/bussmannseries

Electronic, PCB and small dimension fuses — 3

1A1119 fuseclips with end stops and angled-in
leads

0.285" (7.24mm)

0.420" (10.67mm)

0.250" (6.5mm)

0.080" (2.03mm)

0.155" (3.9mm)

0.290" (7.4mm)

0.360" (9.14mm)

Catalog no. Material* Finish

1A1119-04-R High performance copper Bright tin

1A1119-05 High performance copper Silver

1A1119-10-R Cartridge brass Bright tin

* High performance copper recommended for more than 15 A.

2011/65/EU

1A1120 fuseclips without end stops or angled-in
leads

0.272”
[6.91]

0.400”±.010

C

[10.16±0.25]

L

0.250”
[6.35]

0.080”
[2.03]

0.320”
[8.13]

0.155”±.010
[3.94±0.25]

0.363”±.003
[9.22±0.08]

Ø 0.130”±.003
[3.3mm±0.08]

0.290”±.010
[7.37±0.25]

Catalog no. Material* Finish

1A1120-02 Cartridge brass None/bright dipped

1A1120-05 High performance copper Silver

1A1120-06-R High performance copper Bright tin

1A1120-09-R Cartridge brass Bright tin

* High performance copper recommended for more than 15 A.

0.187”
[4.75]

0.312”
[7.92]

2011/65/EU

1A3398 PCB fuseclips without end stops with
straight leads

0.41"

(10.4mm)

0.14"

(3.6mm)

0.245"

(6.2mm)

0.280"

(7.1mm)

0.155"

(3.94mm)

0.102" Dia.

(2.6mm)

0.255"

(6.5mm)

0.06"

(1.5mm)

0.32"

(8.13mm)

Catalog no. Material Finish

1A3398-07-R Cartridge brass Bright tin

0.28"

(7.1mm)

2011/65/EU

1A4533 fuseclips without end stops or angled out
leads

0.245"

0.255"

(6.5mm)

0.060"

(1.5mm)

0.410"

(10.4mm)

0.150"

(3.81mm)

(6.2mm)

0.228"

(5.79mm)

0.323"

(8.20mm)

0.155"

(3.94mm)

0.320"

(8.13mm)

Catalog no. Material* Finish

1A4533-01-R High performance copper Bright tin

1A4533-06-R Cartridge brass Bright tin

* High performance copper recommended for more than 15 A.

0.102"

(2.6mm)

0.280"

(7.11mm)

2011/65/EU

dimension fuses

Electronic, PCB, small

1A1907 fuseclips with end stops and straight leads

0.255"

(6.5mm)

0.060"

(1.5mm)

0.320"

(8.13mm)

Catalog no. Material* Finish

1A1907-02 Cartridge brass None/bright dipped

1A1907-03-R High performance copper Bright tin

1A1907-05 High performance copper Silver

1A1907-06-R Cartridge brass Bright tin

* High performance copper recommended for more than 15 A.

0.245"

0.410"

(10.4mm)

0.140"

(3.6mm)

(6.2mm)

0.280"

(7.1mm)

0.155"

(3.94mm)

0.102" Dia.

(2.6mm)

0.280"

(7.1mm)

2011/65/EU

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

1A4534 fuseclips with end stops and angled out
leads

0.245"

0.255"

(6.5mm)

0.06"

(1.5mm)

0.410"

(10.4mm)

0.150"

(3.81mm)

(6.2mm)

0.226"

(5.74mm)

0.321"

(8.15mm)

0.155"

(3.94mm)

0.32"

(8.13mm)

Catalog no. Material* Finish

1A4534-01-R High performance copper Bright tin

1A4534-06-R Cartridge brass Bright tin

* High performance copper recommended for more than 15 A.

Data sheet no. 2131

Eaton.com/bussmannseries

0.102"

(2.6mm)

(7.11mm)

2011/65/EU

0.28"

3-15

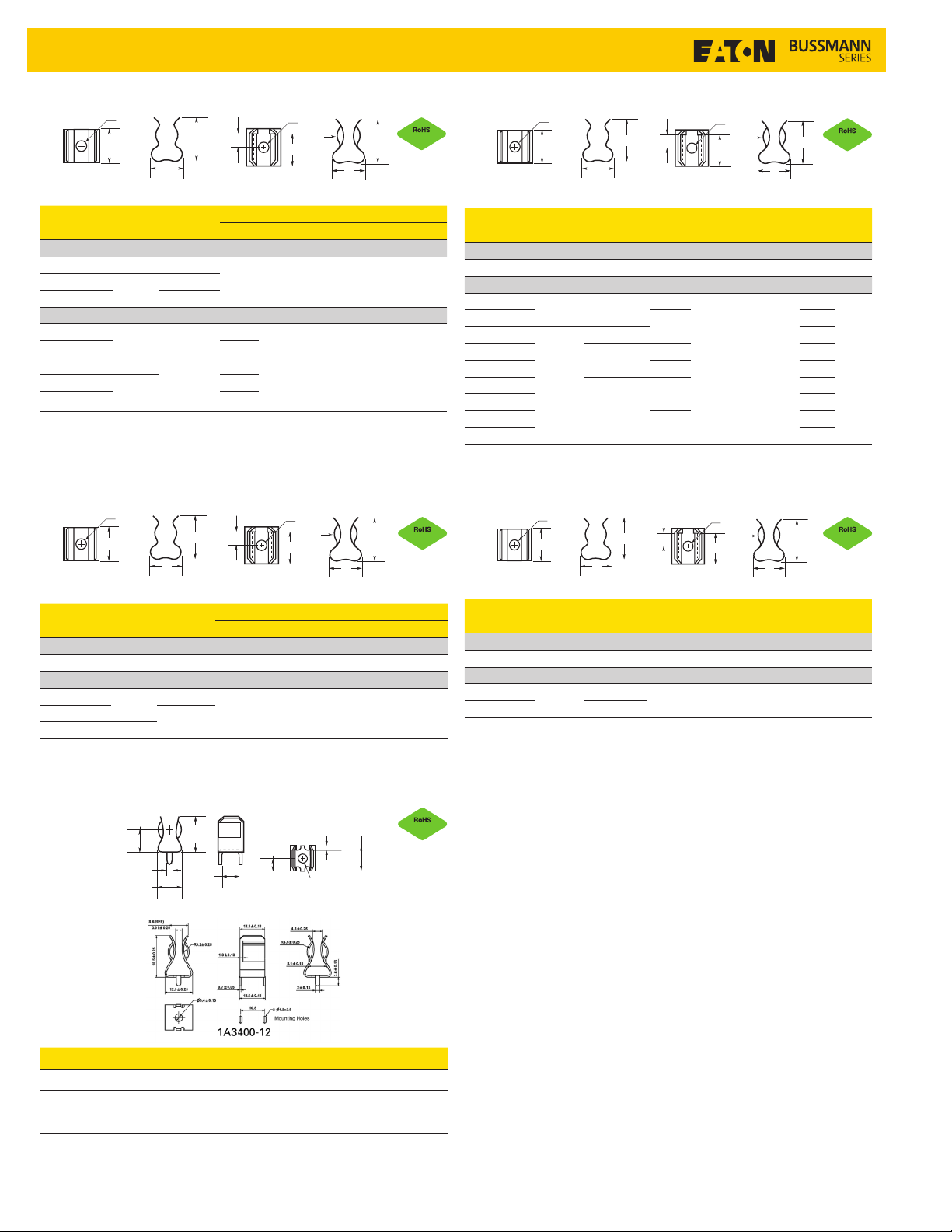

3 — Electronic, PCB and small dimension fuses

0.218"

(5.54mm)

0.710"

(18.03mm)

0.080"

(2.03mm)

0.470"

(11.94mm)

0.142" Dia.

(3.61mm)

0.050"

(1.27mm)

0.437"

(11.1mm)

0.470"

(11.94mm)

0.380"

(9.65mm)

1A3400-09 and 1A3400-10

Ø F

5681 and 5682 fuseclips with mounting holes for 1/4"
diameter fuses

Ø F

D

C

E

B

Figure 1

Dimensions - in

B C D E Ø F Ref.

Catalog no.

Clip
mat. Finish

Without end stop

5681-01 BeCu Silver

Nickel

5681-15-R Bright tin

Spr. br.

† 0.265 0.41 0.32 0.132 Fig. 15681-08

With end stop

5682-01

5682-02 0.131

BeCu Silver

5682-11-R BeCu

5682-41-R

5682-44-R 0.132

Spr. br.

Bright tin

0.108

0.106

0.106

Ø F

End
stop

C

E

2011/65/EU

D

Figure 2

0.262 0.41 0.32 0.132 Fig. 2

5672 and 5674 PCB fuseclips with mounting holes for 9/32˝
diameter fuses

Ø F

D

C

E

B

Figure 1

Dimensions - in

B C D E Ø F Ref.

Catalog no.

Clip
mat. Finish

Without end stop

5672-11 Spr. br. Bright tin † 0.362 0.52 0.38 0.172 Fig. 1

With end stop

5674-01

5674-10

5674-41 Spr. br.

BeCu

Silver

Bright tin

0.168 0.356 0.52 0.38 0.172 Fig. 2

Ø F

End
stop

C

Figure 2

2011/65/EU

D

E

5956 and 5960 PCB fuseclips with mounting holes for 13/32˝
diameter fuses

Ø F

Catalog no.

C

E

Figure 1

Clip
mat. Finish

D

B

End
stop

C

E

Figure 2

Dimensions - in

B C D E Ø F Ref.

2011/65/EU

D

Without end stop

5956-16 Spr. br. Bright tin † 0.312 0.71 0.47 0.172 Fig. 1

With end stop

5960-07

5960-09

5960-44

5960-51

5960-53 0.2 0.172

5960-61-R

5960-62-R 0.132

5960-63-R

BeCu Silver

Nickel 0.197

Bright dip*

Spr. br.

Bright tin

5960-64-R 0.128

0.168

0.2

0.196

0.172

0.168 0.196

0.387 0.71 0.47

0.168

0.2

0.196

0.172

Fig. 2

* Treated bare metal with no plating.

5591 and 5592 PCB fuseclips with mounting holes for 9/16˝
diameter fuses

Ø F

D

C

E

B

Figure 1

Dimensions - in

B C D E Ø F Ref.

Catalog no.

Clip
mat. Finish

Without end stop

5592-01 BeCu Silver 0.252 0.56 0.875 0.6 0.2 Fig. 1

With end stop

5591-42

5591-52-R Bright tin

Spr. br.

Bright dip*

0.26 0.51 0.89 0.6 0.172 Fig. 2

* Treated bare metal with no plating.

Ø F

End
stop

C

Figure 2

2011/65/EU

D

E

1A3400 fuseclips with end stops and straight leads for
13/32˝ diameter fuses

Catalog no. Clip mat. Finish Max amps

1A3400-09-R Copper-clad steel Bright tin 20

1A3400-10-R Copper-clad steel Silver 30

1A3400-12-R Spr. br. Bright tin 15

Data sheet no. 2132

3-16

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

2011/65/EU

Eaton.com/bussmannseries

High speed fuses — 4

Contents

Fuse section Volts Amp range Catalog symbol/size Section page
Compact high speed fuses
Fuses
UL Class J full range drive fuse
Fuses
North American fuses

Fuses

Accessories
British Standard BS88 fuses

Fuses

Accessories

500 Vac/dc 50 to 400 CHSF 3

600 Vac/450 Vdc 1 to 600 D FJ 4

130 Vac/dc 1000 to 4000 FWA 5

150 Vac/dc 70 to 1000 FWA 6

250 Vac/dc 35 to 2500 FWX 7

500 Vac/dc 35 to 1600 FWH 8

600 Vac 1 to 1000 KAC 9

600 Vac 35 to 800 KBC 10

700 Vac/dc 5 to 1200 FWP 11-12

1000 Vac/800 Vdc 35 to 2000 FWJ 13

Modular fuse blocks 14

240-250-280 Vac/150 Vdc 6 to 180 LCT, LET 15

240-250 Vac/150 Vdc 160 to 900 LMT, LMMT 16

690-700 Vac/500 Vdc 6 to 200 CT, ET, FE, EET and FEE 17-18

690-700 Vac/350-450-500 Vdc 160 to 710 FM, FMM, MT and MMT 19-20

Trip indicators, clips and microswitches 21

Continued next page

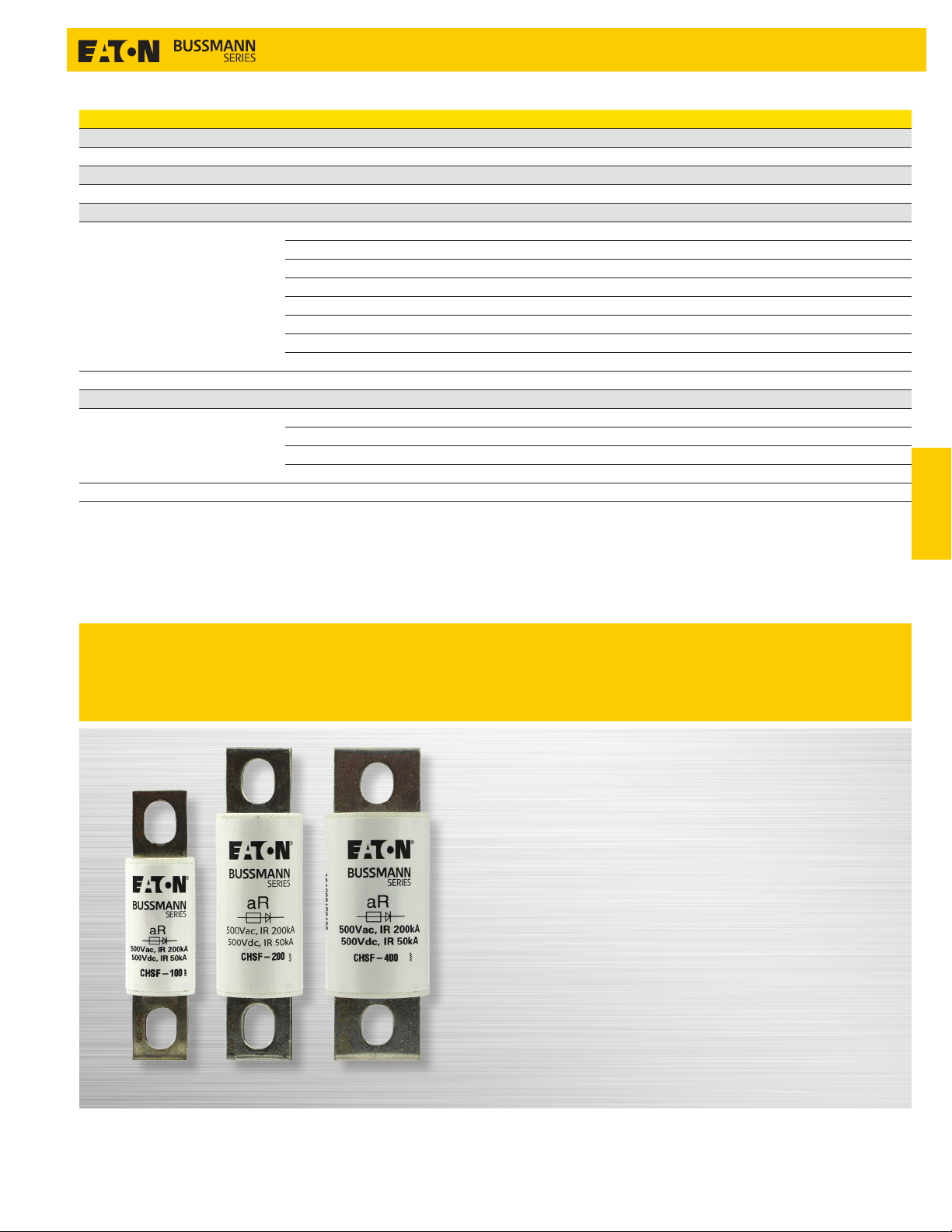

Lead the charge with compact designs

Bussmann series 50-400 amp
compact high speed fuses use

up to 48% less enclosure space

High speed fuses

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

4-1

4 — High speed fuses

Contents

Fuse section Volts Amp range Catalog symbol/size
Ferrule fuses

150 Vac/dc 5 to 30 FWA-_A10F (10x38mm)
150 Vac/dc 35 to 60 FWA-_A21F (21x51mm)
250 Vac/dc 1 to 50 FWX (14x51mm) 23
500 Vac 0.25 to 30 FWH-_A6F (6x32mm) 24
500 Vac/dc 1 to 30 FWH-_14F (14x51mm) 25
600-700 Vac/700 Vdc 1 to 32 FWC (10x38mm) 26
690 Vac 4 to 32 FWP-_G10F (10x38mm) 27

Fuses

Accessories

Square body fuses

DIN 43653

DIN 43620

French style

US style

Flush-end contact

Accessories

IGBT fuses

Fuses

690-700 Vac/600-700 Vdc 1 to 50 FWP-_A14F (14x51mm) 28
690 Vac 4 to 50 FWP-_G14F_ (14x51mm) 29
700 Vac/dc 20 to 100 FWP-_A22F (22x58mm) 30
690 Vac 20 to 100 FWP-_G22F_ (22x58mm) 31
750 Vdc 5 to 30 FWK-_A20F (20x127mm)
750 Vdc 35-60 FWK-_A25F (25x146mm)
1000 Vac/800 Vdc 20 to 30 FWJ (14x67mm) 33
1200 Vac/1000 Vdc 20 to 30 FWL (20x127mm) 34
1400-2000 Vac/1000 Vdc 2 to 15 FWS (20x127mm) 35
J70032 700 V panel mount block for FWP 14x51mm fuses

CHM modular holders for FWA and FWC 10x38mm fuses
CH14 modular holders for FWX, FWH and FWP 14x51mm fuses
CH22 modular holders for FWP 22x58mm fuses

690-700 Vac/ 700 Vdc 10 to 400 170M — size 000 and 00 38-39
690-700 Vac 40 to 2000 170M — size 1* to 3 40-41
1000 Vac 20 to 315 170M — size 00 42
1000 Vac 50 to 1400 170M — size 1* to 3 43-44
1250-1300 Vac 50 to 1400 170M — size 1* to 3 45-46
690 Vac 10 to 800 170M — size 00 to 3 47-48

690-700 Vac 10 to 1600

1000 Vac 20 to 225 170M — size 00 51
690-700 Vac 40 to 1600 170M — size 1* to 3 52-53
690-700 Vac 40 to 2000 170M — size 1* to 3 54-55
1000 Vac 50 to 1400 170M — size 1* to 3 56-57
1250-1300 Vac 50 to 1400 170M — size 1* to 3 58-59
690 Vac 25 to 400 170M — size 00 60
690-700 Vac 40 to 2000 170M — size 1* to 3 61-62
1000 Vac 50 to 1400 170M — size 1* to 3 63-64
1250-1300 Vac 50 to 1400 170M — size 1* to 3 65-66
690-700 Vac 1000 to 4000 170M — size 4 67-68
1000 Vac 1000 to 3000 170M — size 4 69
1250 Vac 800 to 2500 170M — size 4 70
660 Vac 1000 to 4000 170M — size 23 71-72
1250 Vac 630 to 2800 170M — size 23 73
690 Vac 2000 to 7500 170M — size 24 74
1000 Vac 2000 to 5000 170M — size 24 75
Fixed center blocks for DIN 43653 fuses 76-77
Indicators 78
Microswitches 78

750-800 Vdc 25 to 630 170M — size 000 and 230 79-80
1000 Vdc 25 to 500 170M — size 000 and 230 81-82

170M — size 000 to 3
dual indicator

Section
page

22

32

36JM70100 700 V DIN-Rail/panel mount modular blocks for FWP 22x58mm fuses

37

49-50

4-2

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

High speed fuses — 4

H

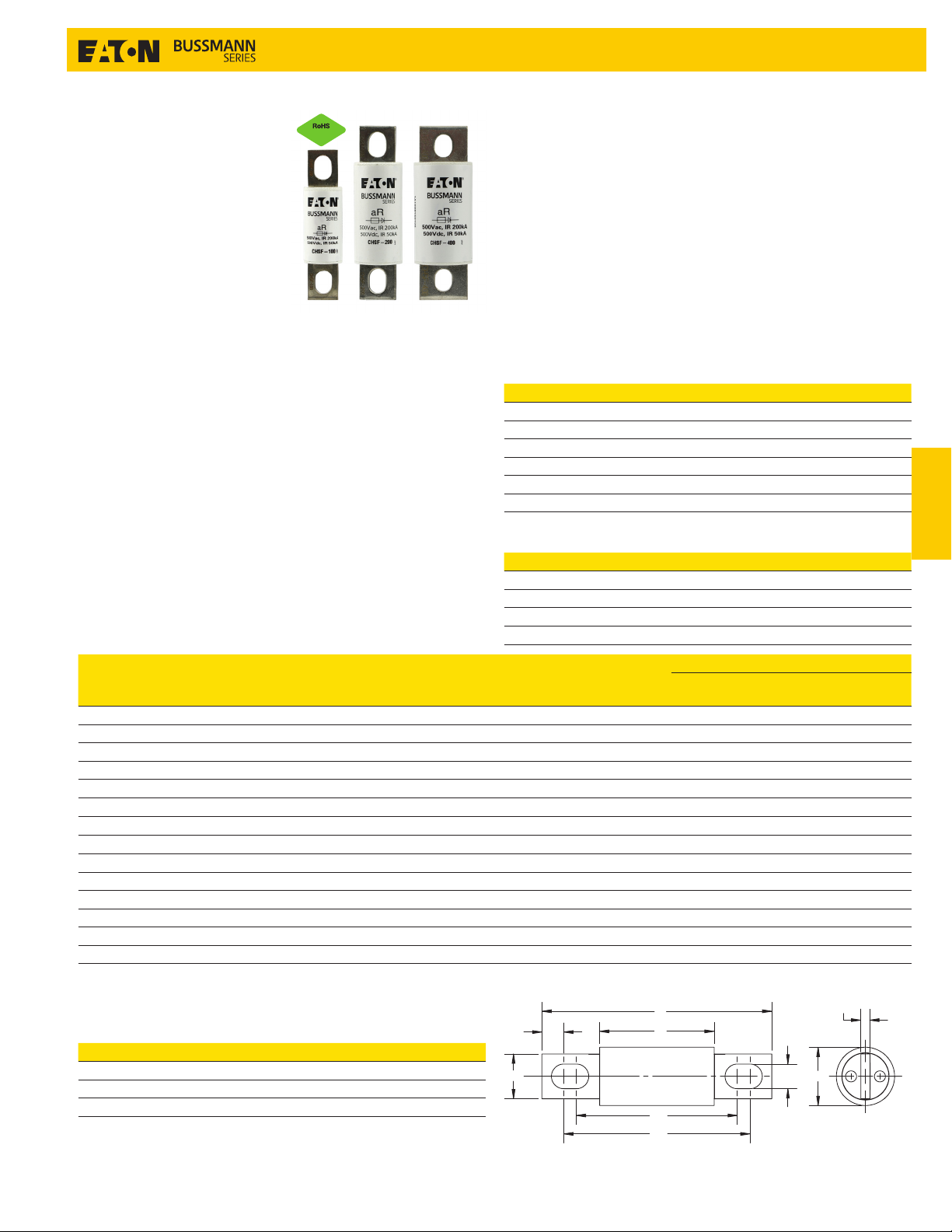

CHSF — UL compact high speed fuse

500 Vac/dc (UL), 50 to 400 A

Bussmann™ series compact
high speed fuses feature space­saving case sizes for protecting
semiconductor devices up to 500
Vac/dc in ratings from 50 to 400
amps.

Ratings

•

Volts

• 500 Vac/dc (UL)

•

Amps 50-400 A

•

Interrupting rating

• Max AC – 200 kA

• Min AC 400%

• Max DC – 50 kA

• Min DC 800%

Operating class aR

Agency information

•

UL Recognized, Guide JFHR2, File E56412

•

CSA Component Acceptance, Class 1422-30, File 53787

•

IEC aR (self certified)

•

RoHS compliant

•

CE

2011/65/EU

Features

•

Requires up to 48% less enclosure space to help reduce the
overall assembly size

•

Innovative design allows for a significantly smaller package without
compromising heat rise performance, preventing extensive
equipment redesign

•

Global acceptance with UL, CSA, IEC and RoHS for products sold
worldwide

•

Bolt-on design provides design flexibility for installation in fuse
blocks or direct mounting on busbars

•

Meets JASO D622 spec for thermal shock, humidity, and vibration

•

Superior current cycling performance helps withstand demanding
applications

Recommended fuse blocks

Up to 100 amps

Catalog no. AWG wire size Stud size

BH-0111 14-2/0 Cu 1/4-20
BH-0112 14-2/0 Cu 5/16-18
BH-0121 (2) 14-1/0 Cu 1/4-20
BH-0122 (2) 14-1/0 Cu 5/16-18
1BS101 14-2/0 Cu 1/4-20 x 1/2
See data sheet no. 1200 (BH-01_) and 1206 (1BS101) for details.

Up to 400 amps

Catalog no. AWG wire size Stud size

BH-1131 6-250kcmil Cu 1/4-20
BH-1132 6-250kcmil Cu 5/16-18
1BS102 6-250kcmil Cu 1/4-20 x 1/2
See data sheet no. 1201 (BH-11_) and 1207 (1BS102) for details.

High speed fuses

Watts loss / percent of rated current

Catalog no. Amps

AC/DC I2t (A2s)

pre-arcing

AC* I2t (A2s)

total clear

DC** I2t (A2s)

total clear

@ 80% @ 50%

CHSF-50 50 304 1875 935 3.8 1.3
CHSF-60 60 438 2700 1346 4.5 1.5
CHSF-70 70 596 3675 1833 5.3 1. 8
CHSF-80 80 778 4800 2394 6.1 2.0
CHSF-100 100 1216 7500 3740 7. 6 2.5
CHSF-125 125 2042 12,721 6465 12.0 3.6
CHSF-150 150 2941 18,318 9309 14.3 4.3

CHSF-175 175 4003 24,933 12,671 16.7 5.1
CHSF-200 200 5228 32,566 16,550 19.1 5.8
CHSF-225 225 6835 48,028 21,278 26.1 7. 0
CHSF-250 250 8438 59,293 26,270 29.0 7. 8
CHSF-300 300 12,151 85, 382 37,828 34.8 9.4
CHSF-350 350 16,539 116,215 51,488 40.6 10.9
CHSF-400 400 21,603 151,791 67,250 46.4 12.5

* @ 200 kA/500 Vac.
** @ 50 kA/500 Vdc.

Dimensions — mm

G

A

C

Amps A B C D1 D2 E F G H

50-100 81 20 40 61 57 8.7 16 7. 7 3.2
125-200 92 25 53 77 68 8.7 19 7. 8 3.2
225-400 92 30 53 74 68 8.7 25 9.0 4.8

F

D2

D1

E

B

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Data sheet no. 10414

Eaton.com/bussmannseries

4-3

4 — High speed fuses

DFJ — UL Class J full range high speed fuse

600 Vac/450 Vdc (UL), 1 to 600 A

UL Class J high speed, full range current-limiting fuses provide
maximum protection for AC and DC drives and controllers. The
UL Class J Bussmann series DFJ fuse has the lowest I2t of any
branch circuit fuse to protect power semiconductor devices that
utilize diodes, GTOs, SCRs and SSRs. The DFJ fuse combines the
performance of high speed fuses in a full range Class J branch
circuit package, allowing the use of readily available Class J fuse
blocks, holders and switches. The DFJ uses standard Class J holders
and blocks. See section 8 for available catalog numbers.

Ratings

•

Volts

• 600 Vac (UL)

• 450 Vdc (UL 15-600 A)

•

Amps 1-600 A

•

IR

• 200 kA RMS Sym.

• 100 kA DC

Operating class aR

Agency information

•

UL Listed, Std 248-8, Class J, Guide JDDZ, File E4273

•

CSA Certified, C22-2 No 248.8, Class 1422-02, File 53787

Dimensions — in

2.25

0.50

0.81

1 to 30A

4.63

3.63

2.63

0.43

70 to 100A

5.75

4.38

3.0

0.43

110 to 200A

0.58

225 to 400A

0.74

450 to 600A

7.13

5.25

3.38

8.0

6.0

3.75

0.75

1

0.28

1.13

0.28

1.38

2.13

Data sheet no. 1048

4-4

2.38

0.63

1.06

35 to 60A

1.13

.13

1.63

0.19

0.41

1.63

1.88

0.53

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

2.11

0.25

2

2.5

0.38

Catalog

I2t (A2Sec) @ 600 Vac/100 kA

no. Amps

DFJ-1 1 — — —

DFJ-2 2 — — —

DFJ-3 3 — — —

DFJ-4 4 — — —

DFJ-5 5 — — —

DFJ-6 6 — — —

DFJ-8 8 — — —

DFJ-10 10 — — —

DFJ-12 12 — — —

DFJ-15 15 4 110 4.1

DFJ-17.5 1 7. 5 — — —

DFJ-20 20 8 365 4.0

DFJ-25 25 12 6 10 4.9

DFJ-30 30 20 1000 5.5

DFJ-35 35 55 110 0 6.8

DFJ-40 40 90 190 0 8.6

DFJ-50 50 140 2800 8.7

DFJ-60 60 290 6000 8.5

DFJ-70 70 450 3100 12

DFJ-80 80 650 4600 13

DFJ-90 90 1010 7200 13

DFJ-100 10 0 1460 10,500 13

DFJ-110 110 1710 9500 17

DFJ-125 125 3580 20,000 15

DFJ-150 150 5080 28,000 19

DFJ-175 175 6310 35,000 23

DFJ-200 200 9850 54,500 24

DFJ-225 225 11,420 51,000 29

DFJ-250 250 17,000 74,500 30

DFJ-300 300 23,500 103,000 36

DFJ-350 350 38,800 170,000 39

DFJ-400 400 62,200 272,000 40

DFJ-450 450 44,600 270,000 56

DFJ-500 500 79,500 480,000 52

DFJ-600 600 138,000 830,000 57

* Watts loss at rated current.

Eaton.com/bussmannseries

Watts loss*Pre-arc Clearing

FWA — North American

130 Vac/dc (UL), 1000 to 4000 A

North American style flush-end high speed fuses for the protection
of DC common bus, DC drives, power converters/rectifiers and
reduced rated voltage starters.

Ratings

•

Volts 130 Vac/dc

•

Amps 1000-4000 A

•

IR

• 200 kA RMS Sym at 130 Vac

• 50 kA at 130 Vdc

Agency information

•

UL Recognized, JFHR2, E91958 on 1000-2000 A fuses

•

CE

High speed fuses — 4

Rated voltage Rated current (amps)

1000 170,000 460,000 60 FWA-1000AH

1200 270,000 730,000 70 FWA-1200AH

1500 520,000 1,400,000 78 FWA-1500AH

130 Vac/dc (UL)

2000 860,000 2,400,000 108 FWA-2000AH

2500 1,500,000 4,100,000 13 0 FWA-2500AH

3000 2,100,000 5,700,000 150 FWA-3000AH

4000 3,400,000 9,200,000 257 FWA-4000AH

* Watts loss at rated current.

Dimensions — in

I²t (A²s)

Watts loss (W)* Catalog no.Pre-arcing Clearing at 130 Vac

High speed fuses

1000-3000 A

4000 A

Amps B C D Thread / depth

1000 to 2000 2.0 1. 0 — 3/8-24 x 1/2” UNF

2500 to 3000 3.0 1. 5 — 1/2-20 x 1/2” UNF

4000 3.5 1. 5 1. 5 1/2-20 x 1/2” UNF

1” = 25.4mm

For details on electrical characteristics, contact Application Engineering and ask for data sheets: 720001, 5785301

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

4-5

4 — High speed fuses

11.24

8.95

65.75

49.06

28.36

19.05

3.24

24.21 Ø

6.35

11.0

25.4

65.5

48.7

19.4

88.3

31.8

38.5 Ø

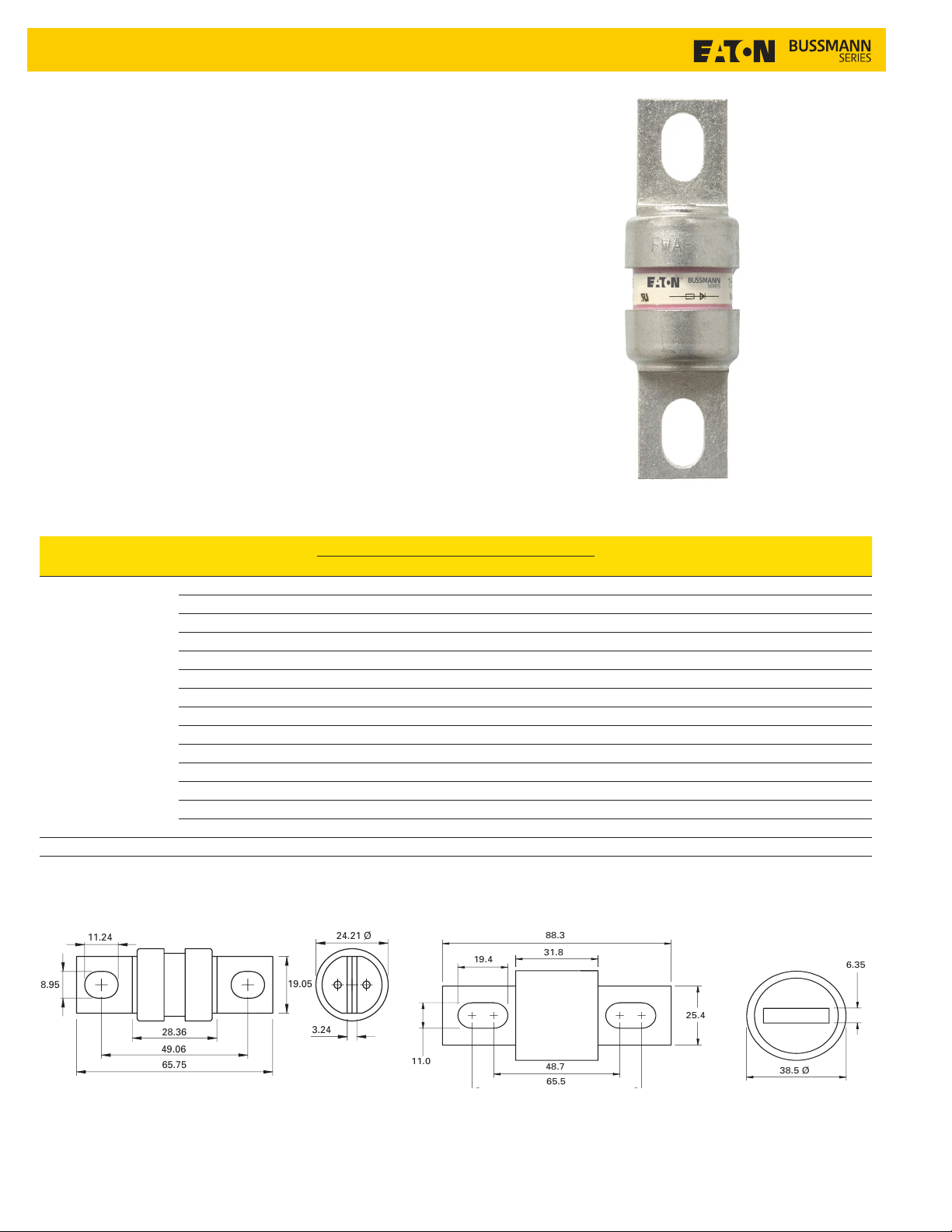

FWA — North American

150 Vac/dc (UL), 70 to 1000 A

North American style bolted tag high speed fuses used for the
protection of DC common bus, DC drives, power converters /
rectifiers and reduced rated voltage starters.

Ratings

•

Volts

• 150 Vac/dc (UL)

• 80 Vdc 1000 A only

•

Amps 70-1000 A

•

IR

• 100 kA RMS Sym. (70-400 A)

• 200 kA RMS Sym. (450-1000 A)

• 20 kA at 150 Vac/ Vdc (70-800 A)

• 100 kA at 80 Vdc (70-1000 A)

Agency information

•

UL Recognized JFHR2, E91958

•

CE

Rated voltage Rated current (amps)

150 Vac/dc (UL)

80 Vdc

* Watts loss at rated current.

1000 170,000 510,000 60.0 FWA-1000A

Dimensions — mm

I²t (A²s)

Watts loss (W)* Catalog no.Pre-arcing Clearing at 150 Vac

70 470 4000 6.9 FWA-70B

80 670 6000 7. 7 FWA-80B

100 1200 12,000 9.0 FWA-100B

125 1870 18,000 11. 2 FWA-125B

150 2700 26,000 13.5 FWA-150B

200 4780 45,000 1 7. 6 FWA-200B

250 7470 70,000 22.5 FWA-250B

300 10,760 100,000 27.0 FWA-300B

350 15,700 140,000 30.6 FWA-350B

400 20,300 180,000 35.2 FWA-400B

500 39,000 120,000 35.0 FWA-500A

600 46,000 140,000 47.0 FWA-600A

700 75,000 220,000 49.0 FWA-700A

800 92,000 280,000 58.0 FWA-800A

70-400 A

For details on electrical characteristics, contact Application Engineering and ask for data sheets: 720002, 5785310

4-6

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

500-1000 A

Eaton.com/bussmannseries

FWX — North American

B

H

G

F

C

E

D

A

J

AA

B

B

CC

D

250 Vac/dc (UL), 35 to 2500 A

North American style bolted tags and flush-end high speed fuses
for the protection of DC common bus, DC drives, power converters/
rectifiers and reduced rated voltage starters.

Ratings

•

Volts 250 Vac/dc (UL)

•

Amps 35-2500 A

•

IR

• 200 kA RMS Sym.

• 20 kA at 250 Vdc (35-800 A)

Agency information

•

UL Recognized, JFHR2, E56412

•

CSA Class 1422-30, (53787) on 35-800 A fuses (20 kA IR at 250
Vdc)

•

CE

Dimensions — in

35-800 A

1000-1200 A

Amp

range A B C D E F G H J

35-60 3.19 0.81 1.59 2.59 2.25 0.34 0.63 0.13 0.52 —

70-200 3.13 1.22 1.59 2.44 2.19 0.34 1. 0 0 0.19 0.47 —

225-600 3.84 1.50 1.59 2.94 2.25 0.41 1. 0 0 0.25 0.75 —

700-800 3.84 2.00 1.59 3.03 2.28 0.41 1.50 0.25 0.78 —

1000-1200 2.59 3.00 1.50 — — — — — — 3/8-24

1500-2500 2.59 3.50 1.50 1.50 — — — — —

1” = 25.4mm

1500-2500 A

Thread
/ depth

x 1/2”
UNF

I²t (A²s)

Rated
Rated
voltage

current

(amps)

35 50 230 4.2 FWX-35A

40 60 310 5.2 FWX-40A

45 80 390 5.7 FWX-45A

50 10 0 520 6.0 FWX-50A

60 140 74 0 8.1 FWX-60A

70 330 140 0 7. 2 FWX-70A

80 430 1850 8.1 FWX-80A

90 570 2450 9.0 FWX-90A

100 74 0 3150 10.0 FWX-100A

125 1130 4850 12.5 FWX-125A

150 1620 6950 15.7 FWX-150A

175 2170 9300 18.5 FWX-175A

200 2790 12,000 22.0 FWX-200A

225 3210 14,700 24.0 FWX-225A

250
Vac/dc
(UL)

250 3960 18,100 27.0 FWX-250A

275 4720 21,600 31.0 FWX-275A

300 6000 27,300 32.0 FWX-300A

350 10,600 48,600 39.0 FWX-350A

400 14,500 66,100 44.0 FWX-400A

450 22,100 101,000 49.0 FWX-450A

500 28,000 128,000 54.0 FWX-500A

600 41,100 188,000 62.0 FWX-600A

700 48,800 190,000 72.0 FWX-700A

800 59,000 230,000 84.0 FWX-800A

1000 44,000 360,000 100.0 FWX-1000AH

1200 92,000 750,000 103.0 FWX-1200AH

1500 120,000 880,000 140.0 FWX-1500AH

1600 160,000 1,200,000 140.0 FWX-1600AH

2000 320,000 2,300,000 151.0 FWX-2000AH

2500 670,000 4,700,000 163.0 FWX-2500AH

* Watts loss at rated current.

Pre-

arcing

High speed fuses — 4

Vac

Watts

loss

(W)* Catalog no.

Clearing

at 250

High speed fuses

For details on electrical characteristics, contact Application Engineering and ask for data sheets:720005, 359 (35-800 A), 5785299 (100-2500 A)

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

4-7

4 — High speed fuses

A

E

D

C

FJGB

H

1.625

3.5

1.75

0.625

3.22

5.22

6.22

8.71

8.97

10.22

0.75

4.25 Ø

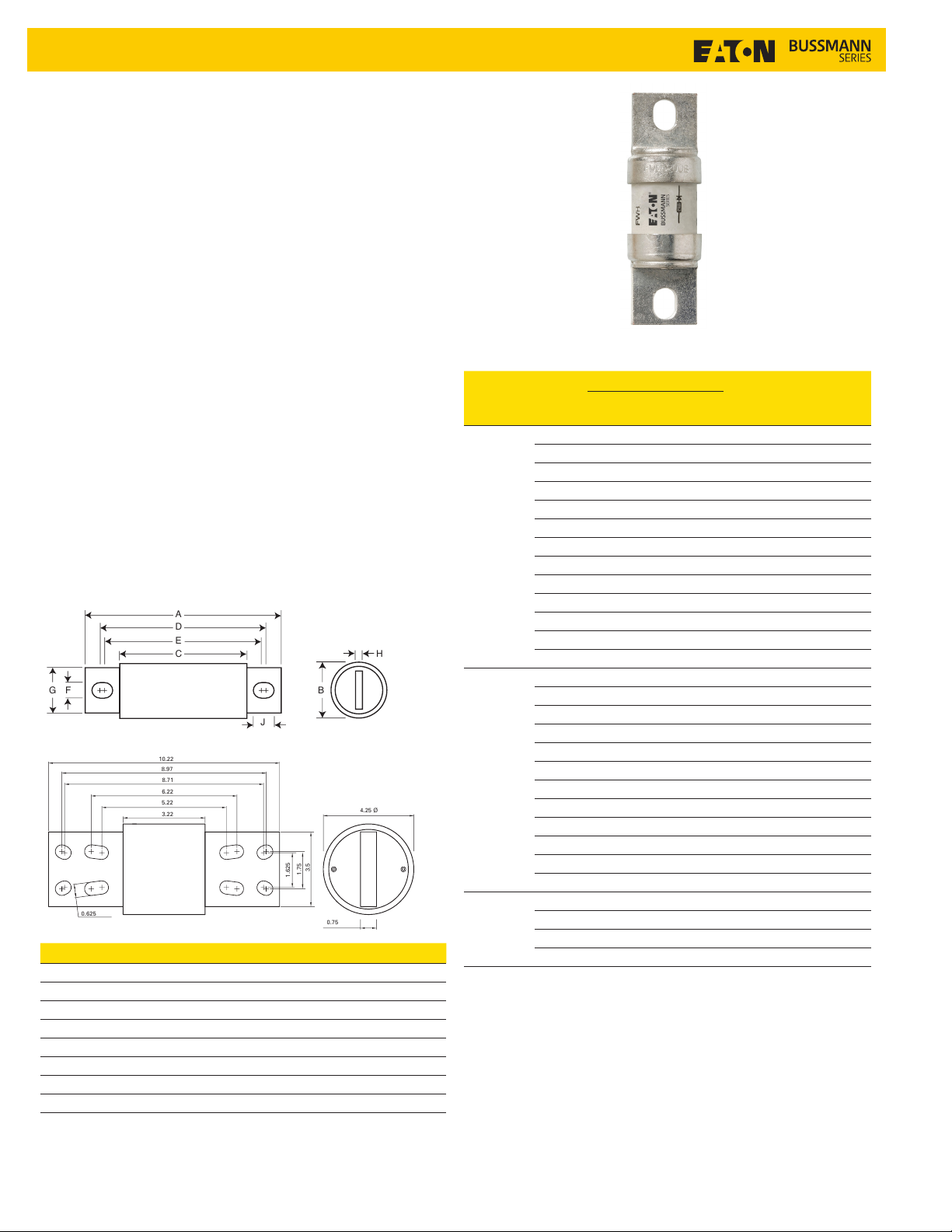

FWH — North American

500 Vac/dc (UL), 35 to 1600 A

North American style bolted tags high speed fuses, for the protection
of DC common bus, power converters/rectifiers and reduced rated
voltage starters.

Ratings

•

Volts

• 500 Vac (UL)

• 500 Vdc (35-800 A only)

•

Amps 35-1600 A

•

IR

• 200 kA RMS Sym.

• 50 kA at 500 Vdc

Agency information

•

UL Recognized, JFHR2, E91958, FWH-_B (35-200 A) and FWH-_A

Rated
voltage

Rated
current
(amps)

(1000 and 1200 A), JFHR2, E56412 FWH-_A (225-800 A)

•

CSA Class 1422-30, File 53787 (35-1600 A)

•

CE

Dimensions — in

500 Vac/dc
(UL)

35-1200 A

500 Vac/dc
(UL)

1400-1600 A

500 Vac
(UL)

Amp range A B C D E F G H J

35-60 3.19 0.81 1.59 2.54 2.19 0.34 0.72 0.13 0.52

70-100 3.62 0.95 1. 74 2.85 2.81 0.35 0.75 0.13 0.38

* Watts loss at rated current.

125-200 3.62 1. 16 1.84 2.89 2.77 0.34 1. 0 0 0.19 0.41

225-400 4.34 1.50 2.09 3.44 2.75 0.41 1. 00 0.25 0.75

450-600 4.34 2.00 2.09 3.53 2.78 0.41 1.50 0.25 0.78

700-800 6.34 2.50 2.09 4.97 3.44 0.53 2.00 0.38 1.30

1000-1200 6.97 3.00 3.22 5.47 4.48 0.62 2.38 0.44 1. 1 2

1400-1600 Refer to drawing

1” = 25.4mm

For details on electrical characteristics, contact Application Engineering and ask for data sheets: 720007, 360 (225-800 A), 5785304 (35-200 A,
1000-1600 A)

4-8

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

I²t (A²s)

Pre-

arcing

Clearing at
250 Vac

Watts

loss (W)* Catalog no.

35 34 150 8.0 FWH-35B

40 76 320 7. 5 FWH-40B

45 105 450 7. 5 FWH-45B

50 135 670 7. 5 FWH-50B

60 210 900 9.9 FWH-60B

70 210 900 10.6 FWH-70B

80 305 1400 12.7 FWH-80B

90 360 1600 15.0 FWH-90B

100 475 2000 1 7. 0 FWH-100B

125 800 3500 25.0 FWH-125B

150 1100 4600 30.0 FWH-150B

175 1450 6200 35.0 FWH-175B

200 190 0 8500 40.0 FWH-200B

225 4600 23,300 39.0 FWH-225A

250 6300 32,200 41.0 FWH-250A

275 7900 40,300 46.0 FWH-275A

300 9800 49,800 51.0 FWH-300A

325 13,700 63,800 53.0 FWH-325A

350 14,500 72,900 58.0 FWH-350A

400 19,200 96,700 65.0 FWH-400A

450 24,700 127,000 74.0 FWH-450A

500 29,200 149,000 84.0 FWH-500A

600 41,300 206,000 108.0 FWH-600A

700 55,000 298,000 120.0 FWH-700A

800 76,200 409,000 129.0 FWH-800A

1000 92,000 450,000 145.0 FWH-1000A

1200 122,000 600,000 180.0 FWH-1200A

1400 200,000 1,000,000 210.0 FWH-1400A

1600 290,000 1,400,000 230.0 FWH-1600A

Eaton.com/bussmannseries

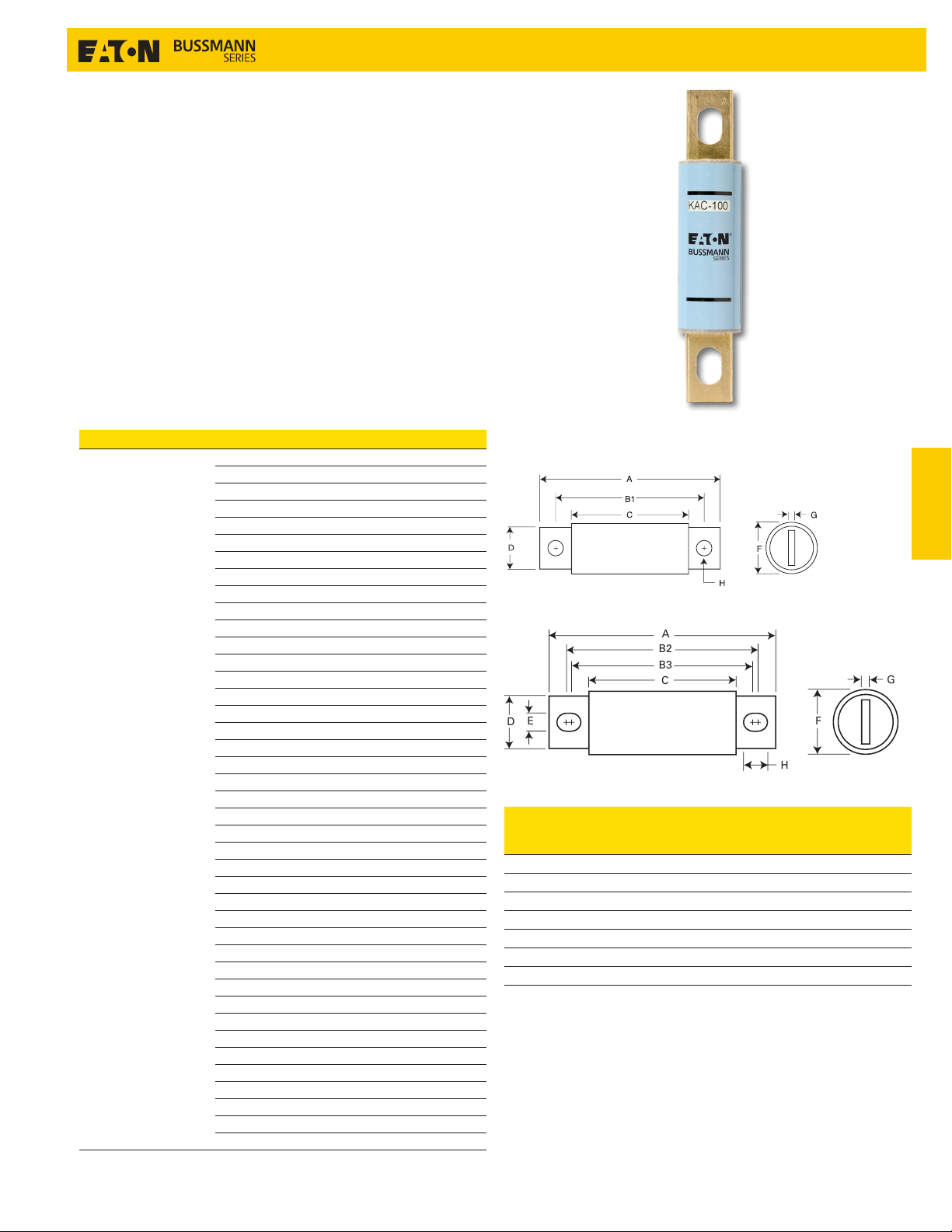

KAC — North American

A

B3

B2

C

E

D

F

H

G

600 Vac (UL), 1 to 1000 A

North American style bolted tags high speed fuses. These fuses
are supplied as replacements only. For new installations, Eaton
recommends the 700 V FWP. See page 4-11.

Ratings

•

Volts 600 Vac

•

Amps 1-1000 A

•

IR 200 kA RMS Sym.

Agency information

•

UL Recognized, JFHR2, E56413 (1-600 A only)

•

CE

High speed fuses — 4

Rated voltage Rated current (amps) Catalog no.

1 KAC-1
2 KAC-2
3 KAC-3
4 KAC-4
5 KAC-5
6 KAC-6
7 KAC-7
8 KAC-8

9 KAC-9
10 KAC-10
12 KAC-12
15 KAC-15

1 7. 5 KAC-17.5

20 KAC-20
25 KAC-25
30 KAC-30
35 KAC-35
40 KAC-40
45 KAC-45
50 KAC-50

600 Vac (UL)

60 KAC-60
70 KAC-70
80 KAC-80
90 KAC-90

100 KAC-100

110 KAC-110
125 KAC-125
150 KAC-150
175 KAC-175

200 KAC-200
225 KAC-225
250 KAC-250
300 KAC-300
350 KAC-350
400 KAC-400
450 KAC-450
500 KAC-500
600 KAC-600
700 KAC-700
800 KAC-800

1000 KAC-1000

Dimensions — in

High speed fuses

1-30 A and 450-1000 A

35-400 A

Rated
current
(amps) A B1 B2 B3 C D E F G H

1-30 2.88 2.50 — — 1.88 0.41 — 0.56 0.06 0.26

35-60 4.38 — 3.75 3.50 2.75 0.63 0.34 0.81 0.09 0.47

70-100 5.00 — 4.06 3.66 2.75 0.75 0.41 1. 0 0 0.13 0.61

110-200 5.14 — 4.39 3.77 2.91 1. 0 0 0.41 1.50 0.19 0.72

225-400 6.18 — 4.82 4.57 3.00 1.63 0.56 2.00 0.25 0.69

450-800 6.25 4.75 — 3.06 2.00 — 2.50 0.25 0.56

1000 7.25 4.75 — 3.06 2.75 — 3.50 0.38 0.56

1” = 25.4mm

Data sheet no. 720009

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

4-9

4 — High speed fuses

0.75

0.75

4

3.75

2.5

2.859

1/2-24 x 1/2”

A
B

C
D

F E

J

G

H

KBC — North American

600 Vac (UL), 35 to 800 A

North American style bolted tags and flush-end high speed fuses.
These fuses are supplied as replacements only. For new installations,
Eaton recommends the 700 V FWP fuses. See page 4-11.

Ratings

•

Volts 600 Vac (UL)

•

Amps 35-800 A

•

IR 200 kA RMS Sym.

Agency information

•

UL Recognized, JFHR2, E56412 (35-600 A only)

•

CE

Rated voltage Rated current (amps) Catalog no.

35 KBC-35
40 KBC-40
45 KBC-45
50 KBC-50
60 KBC-60
70 KBC-70
80 KBC-80
90 KBC-90

100 KBC-100

110 KBC-110

125 KBC-125

600 Vac (UL)

150 KBC-150
175 KBC-175
200 KBC-200
225 KBC-225
250 KBC-250
300 KBC-300
350 KBC-350
400 KBC-400
450 KBC-450
500 KBC-500
600 KBC-600
800 KBC-800

Dimensions — in

35-60 and 110-600 A

70-100 A

Data sheet no. 720010

4-10

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

800 A

Rated current
(amps) A B C D E F G H J

35-60 4.38 3.75 3.50 2.75 0.34 0.63 0.81 0.09 0.47

70-100 Refer to drawing

110-200 4.41 3.72 3.59 2.91 0.31 0.88 1.22 0.19 0.38

225-400 5.13 4.19 3.56 2.91 0.41 1. 0 0 1.50 0.25 0.72

450-600 5.13 4.39 3.69 2.88 0.41 1.50 2.00 0.25 0.76

800 Refer to drawing

1” = 25.4mm

Eaton.com/bussmannseries

FWP — North American

700 Vac/dc (UL), 5 to 1200 A

North American style bolted tags high speed fuses for the protection
of DC common bus, DC drives, power converters/rectifiers, reduced
rated voltage starters.

Ratings

•

Volts 700 Vac/dc (UL)

•

Amps 5-1200 A

•

IR

• 200 kA RMS Sym.

• 50 kA at 700 Vdc (Type A)

• 50 kA at 500 Vdc (Type B)

Agency information

•

UL Recognized, JFHR2, E91958 FWP-_B (5-100 A, 700-1200 A),
JFHR2, E56412 FWP-_A (125-600 A)

•

CSA Class 1422-30, (53787) on 5-800 A

•

CE

High speed fuses — 4

Rated voltage Rated current (amps)

700 Vac/dc (UL)

1000 120,000.0 600,000 170.0 FWP-1000A
1200 195,000.0 1,100,000 190.0 FWP-1200A

* Watts loss at rated current.

High speed fuses

I²t (A²s)

Watts loss (W)* Catalog no.Pre-arcing Clearing at 700 Vac

5 1. 6 11 1. 5 FWP-5B
10 3.6 22 4.0 FWP-10B
15 10.0 70 5.5 FWP-15B

20 26.0 180 6.0 FWP-20B
25 44.0 320 7. 0 FWP-25B
30 58.0 450 9.0 FWP-30B
35 34.0 160 12.0 FWP-35B
40 76.0 320 12.0 FWP-40B
50 135.0 600 12.0 FWP-50B
60 210.0 950 15.5 FWP-60B
70 305.0 2000 18.0 FWP-70B
80 360.0 2400 21.0 FWP-80B

90 415.0 2700 25.0 FWP-90B
100 540.0 3500 27.0 FWP-100B
125 1800.0 7300 28.0 FWP-125A
150 2900.0 11,700 32.0 FWP-150A
175 4200.0 16,700 35.0 FWP-175A
200 5500.0 22,000 43.0 FWP-200A
225 7700.0 31,300 45.0 FWP-225A
250 10,500.0 42,500 48.0 FWP-250A
300 17,600.0 71,200 58.0 FWP-300A
350 23,700.0 95,600 65.0 FWP-350A
400 31,000.0 125,000 78.0 FWP-400A
450 36,400.0 137,000 94.0 FWP-450A
500 45,200.0 170,000 107.0 FWP-500A
600 66,700.0 250,000 122.0 FWP-600A
700 54,000.0 300,000 125.0 FWP-700A
800 78,000.0 450,000 140.0 FWP-800A
900 91,500.0 530,000 150.0 FWP-900A

For details on electrical characteristics, contact Application Engineering and ask for data sheets: 720012, 5785316 (5-30 A), 361 (125-600 A),
5785308 (35-100 A, 700-1200 A)

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

4-11

4 — High speed fuses

0.49

3.5

1.03

3.85

5.15

5.97

7.59

0.625

1.38

2.75

1.62

3.5

1.75

0.62

3.84

5.84

6.84

9.34

9.59

10.87

0.75

4.25 Ø

A

E

D

C

FJGB

H

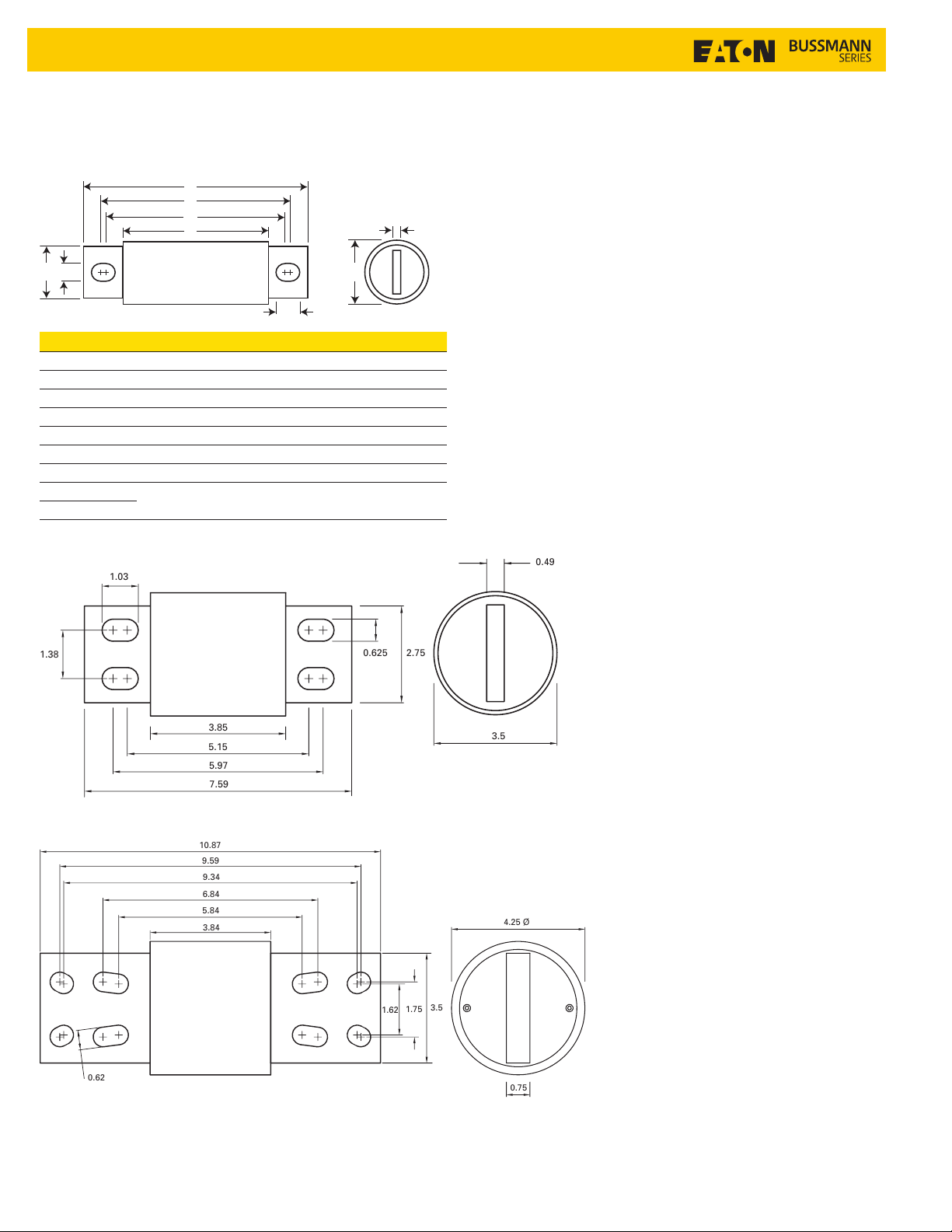

FWP — North American

700 Vac/dc (UL), 5 to 1200 A

Dimensions — in

5-800 A

Amp range A B C D E F G H J

5-30 2.87 0.56 1.86 2.48 2.48 0.25 0.41 0.06 0.25

35-60 4.38 0.81 2.75 3.71 3.31 0.34 0.73 0.13 0.54

70-100 4.41 0.95 2.59 3.63 3.56 0.34 0.75 0.13 0.38

125-200 5.09 1.50 2.84 4.19 3.5 0.41 1. 0 0 0.25 0.75

225-400 5.09 2.00 2.84 4.28 3.53 0.41 1.50 0.25 0.78

450-600 7.09 2.50 2.84 5.72 4.19 0.53 2.00 0.38 1.30

700-800 6.63 2.00 2.76 5.56 5.06 0.63 1.50 0.25 0.88

900-1000

1200

1” = 25.4mm

Refer to drawing

900-1000 A -mm

1200 A -mm

For details on electrical characteristics, contact Application Engineering and ask for data sheets: 720012, 5785316 (5-30 A), 361 (125-600 A),
5785308 (35-100 A, 700-1200 A)

4-12

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

FWJ — North American

A

E

D

C

FJGB

H

1000 Vac /800 Vdc (UL), 35 to 2000 A

North American style bolted tags high speed fuses for the protection
of DC common bus, DC drives power converters/rectifiers, reduced
rated voltage starters.

Ratings

•

Volts

• 1000 Vac

• 800 Vdc

•

Amps 35-2000 A

•

IR

• 25 kA RMS Sym. (35-200 A)

• 100 kA RMS Sym. (250-2000 A)

• 50 kA at 800 Vdc (35-200 A and 450-600 A)

Agency information

•

UL Recognized, JFHR8, E91958 on 50-600 A only

•

CE

High speed fuses — 4

Rated
voltage

Rated

current

(amps)

I²t (A²s)

Clearing at

1000 Vac

Watts

loss (W)* Catalog no.Pre-arcing

Dimensions — in

35 2 10 2000 7 FWJ-35A

40 300 2500 8 FWJ-40A

50 470 3500 10 FWJ-50A

60 670 5000 11 FWJ-60A

70 110 0 6900 12 FWJ-70A

80 1550 9700 13 FWJ-80A

Amp
range A B C D E F G H J

35-60 5.00 0.94 3.11 4.24 4.18 0.35 0.75 0.13 0.38

70-100 4.93 1. 1 3 3.09 4.27 4.16 0.35 1. 0 0 0.19 0.41

125-200 5.69 1.53 3.26 4.80 4.06 0.45 1. 0 0 0.25 0.82

250-400 5.77 2.00 3.50 4.81 4.15 0.43 1.50 0.25 0.76

500-600 7.20 2.50 3.47 5.98 4.71 0.56 2.00 0.38 1.20

800-2000 6.81 3.50 3.31 5.47 4.96 0.63 2.75 0.50 0.88

1” = 25.4mm

1000
Vac/ 800
Vdc (UL)

90 190 0 12,000 14 FWJ-90A

100 2800 17,500 15 FWJ-100A

125 4800 35,000 16 FWJ-125A

150 6300 45,000 25 FWJ-150A

175 7500 65,000 30 FWJ-175A

200 11,700 80,000 32 FWJ-200A

250 16,000 112,000 50 FWJ-250A

300 23,500 164,000 56 FWJ-300A

350 33,000 231,000 62 FWJ-350A

400 47,000 330,000 67 FWJ-400A

500 39,500 329,000 95 FWJ-500A

600 61,000 520,000 10 5 FWJ-600A

800 87,000 500,000 182 FWJ-800A

1000 190,000 1,100,000 206 FWJ-1000A

1200 370,000 2,100,000 240 FWJ-1200A

1400 470,000 2,700,000 248 FWJ-1400A

1600 700,000 4,000,000 267 FWJ-1600A

1800 925,000 5,300,000 239 FWJ-1800A

2000 1,330,000 7,600,000 244 FWJ-2000A

* Watts loss at rated current.

For details on electrical characteristics, contact Application Engineering and ask for data sheets: 720027, 5785303 (35-600 A),
5785309 (800-2000 A),

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

High speed fuses

4-13

4 — High speed fuses

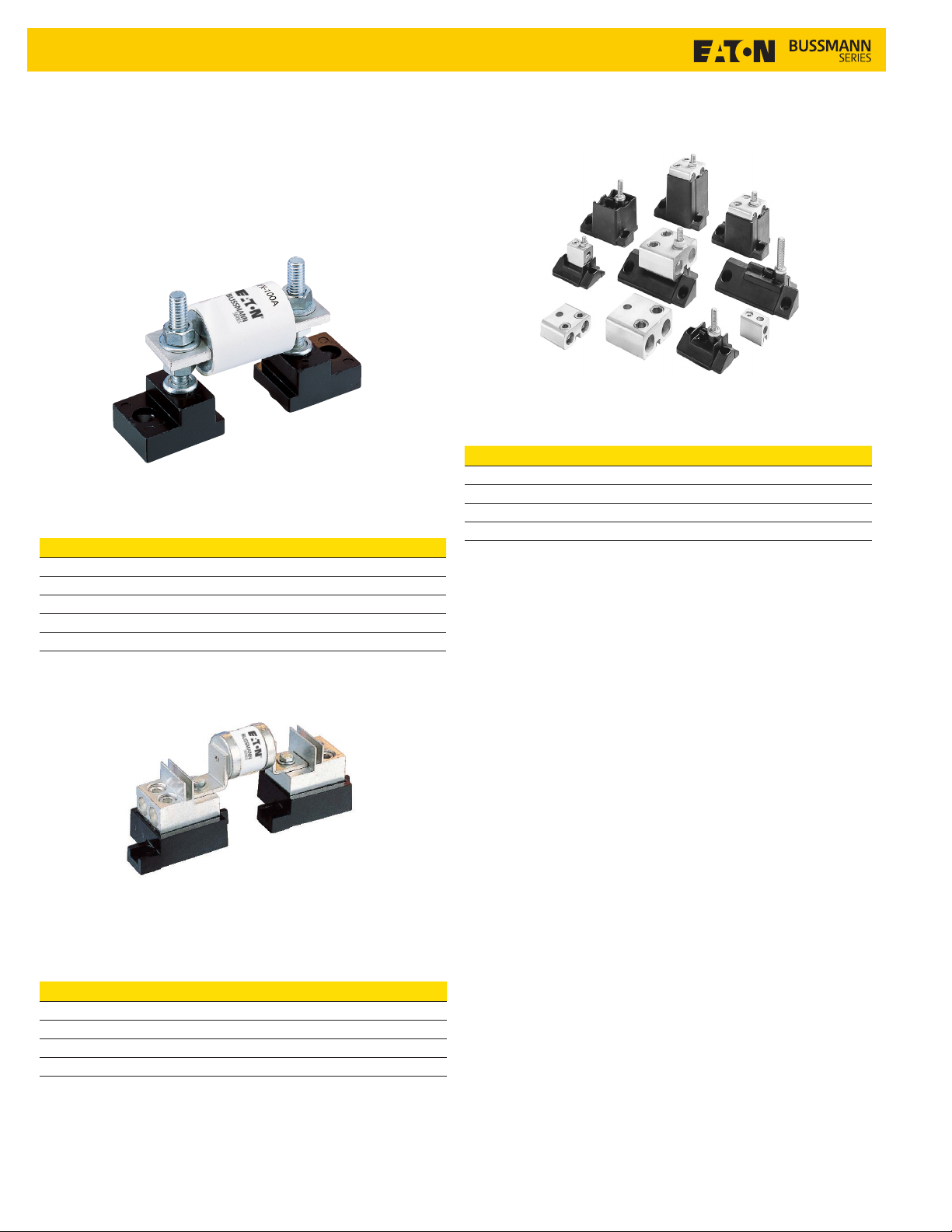

North American Accessories

Modular fuse blocks

Bussmann series line of fuse blocks provides the user with design
and manufacturing flexibility. Two identical half blocks make up a
modular assembly that can be panel mounted any distance apart to
accommodate any length fuse.

C5268 stud type

The simpler design is the C5268 modular fuse block. With this
design, the fuse terminal and cable (with termination) are mounted
on the same stud, minimizing installation labor. The stud type block
is available in the configurations shown in the table below.

Catalog no. Max fuse amp rating Stud

C5268-1 200 5/16-18 x 1"

C5268-2 200 5/16-18 x 1-3/4"

C5268-3 200 5/16-18 x 3/4"

C5268-4 10 0 1/4-20 x 1"

C5268-5 10 0 1/4-20 x 1-3/4"

BH modular type

BH modular blocks provide a wide range of mounting configurations
for Bussmann series high speed semiconductors fuses. BH fuse
blocks have a short-circuit current rating up to 200 kA RMS Sym.

Catalog no. Max rated voltage Max fuse amp rating

BH-0 700 100

BH-1 2500 400

BH-2 5000 600

BH-3 1250 700

1BS10x connector type

Bussmann series 1BS10 blocks utilize a tin-plated connector for wire
termination and heat dissipation), and a plated-steel stud for fuse
mounting. The connector type block is available in the configurations
shown below. Consult your Bussmann series product representative
for additional product details.

Catalog no. Max rated voltage Max fuse amp rating

1BS101 600 100

1BS102 600 400

1BS103 600 400

1BS104 600 600

Data sheets: 1200 (BH-0), 1201 (BH-1), 1202 (BH-2), 1203 (BH-3), 1206 (1BS101), 1207 (1BS102), 1208 (1BS103), 1209 (1BS104)

4-14

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

LCT, LET BS88

6.4

4

5.5

28

38

47

8.7

26

41

55

17.7

12.7

2.34

9.7

6.95

19.1

Indicator (optional)

240 Vac/150 Vdc (IEC), 250-280 Vac/150 Vdc (UL), 6 to 180 A

BS88 style bolted tag high speed fuses for the protection of DC
common bus, DC drives, power converters/rectifiers and reduced
rated voltage starters. Low watts loss in a compact size.

Ratings

•

Volts

• LCT 240 Vac/150 Vdc (IEC), 250 Vac/150 Vdc (UL)

• LET 280 Vac/150 Vdc (UL, 25-160 A), 250 Vac/150 Vdc (UL 180 A)

•

Amps 6-180 A

•

IR

• 200 kA RMS Sym.

• 50 kA DC at 125 Vdc

• 100 kA at 80 Vdc (70-1000 A)

Operating class aR.

Agency information

•

Designed and tested to BS88 Part 4 and IEC 60269 Part 4

•

UL Recognized*

•

CCC (LCT only)

•

CE

* All fuses have been tested at 318 Vac. Consult Bussmann series product

representative for UL Recognized status.

High speed fuses — 4

Dimensions — mm

High speed fuses

LCT

Fuse symbol Rated voltage Rated current(amps)

LCT

LET

* Watts loss at rated current.

Note: 7LET, 10LET, 12LET and 16LET are available for replacement purposes on existing equipment.

For details on electrical characteristics, contact Application Engineering and ask for data sheets: 720004, 5785296 (LCT), 5785293 (LET)

240 Vac/150 Vdc (IEC)

250 Vac/150 Vdc (UL)

280 Vac/150 Vdc (UL)

250 Vac/150 Vdc (UL)

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

LET — indicator optional

I²t (A²s)

Watts loss (W)* Catalog no.Pre-arcing Clearing at 240 Vac

6 2.0 9 1. 0 6LCT

10 3.8 22 2.5 10LCT

12 7. 0 32 2.5 12LCT

16 20.0 100 2.5 16LCT

20 25.0 160 4.0 20LCT

25 18.0 250 4.0 25LET

32 32.0 450 5.0 32LET

35 50.0 600 5.0 35LET

50 100.0 140 0 7. 0 50LET

63 180.0 2200 9.0 63LET

80 300.0 3800 10.0 80LET

100 600.0 7500 10.0 100LET

125 600.0 7500 16.0 125LET

160 1100.0 16,000 20.0 160LET

180 1600.0 29,000 21.0 180LET

Eaton.com/bussmannseries

4-15

4 — High speed fuses

83.5

25.4

83.5

13.5

30.5

58.0

41.3

3.15

38.1

25.4

13.5

10.3

38.1

6.5

30.5

58.0

83.5

82.5

LMT, LMMT BS88

240 Vac/150 Vdc (IEC), 250 Vac/150 Vdc (UL), 160 to 900 A

BS88 style bolted tags high speed fuses for the protection of DC
common bus, DC drives, power converters/rectifiers and reduced
rated voltage starters. Low watts loss in a compact size.

Ratings

•

Volts

• 240 Vac/150 Vdc (IEC)

• 250 Vac/150 Vdc (UL)

•

Amps 160-900 A

•

IR

• 200 kA RMS Sym., 40 kA at 150 Vdc (IEC)

• 200 kA RMS Sym., 50 kA at 150 Vdc (UL)

Operating class aR

Agency information

•

Designed and tested to BS88 Part 4 and IEC 60269 Part 4

•

UL Recognized*

•

CCC

•

CE

* All fuses have been tested at 318 Vac. Consult Bussmann series product

representative for UL Recognized status.

Fuse symbol Rated voltage

LMT

LMMT

* Watts loss at rated current.

240 Vac /150 Vdc (IEC)
250 Vac /150 Vdc (UL)

240 Vac /150 Vdc (IEC)
250 Vac /150 Vdc (UL)

Dimensions — mm

Rated current

(amps)

160 110 0 7000 16,000 17 160LMT

200 150 0 10,000 20,000 28 200LMT

250 3200 20,000 40,000 28 250LMT

315 6000 35,000 75,000 35 315LMT

355 8000 50,000 100,000 35 355LMT

400 14,000 70,000 160,000 40 400LMT

450 18,000 100,000 220,000 42 450LMT

400 6000 35,000 80,000 60 400LMMT

500 14,000 80,000 170,000 64 500LMMT

630 24,000 150,000 300,000 75 630LMMT

710 32,000 200,000 460,000 77 710LMMT

800 52,000 300,000 600,000 82 800LMMT

900 75,000 400,000 800,000 97 900LMMT

I²t (A²s)

Clearing at

120 Vac 240 Vac

Watts loss (W)* Catalog no.Pre-arcing

LMMT — indicator optionalLMT — indicator optional

For details on electrical characteristics, contact Application Engineering and ask for data sheets: 720004, 5785294 (LMT), 5785295 (LMMT)

4-16

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

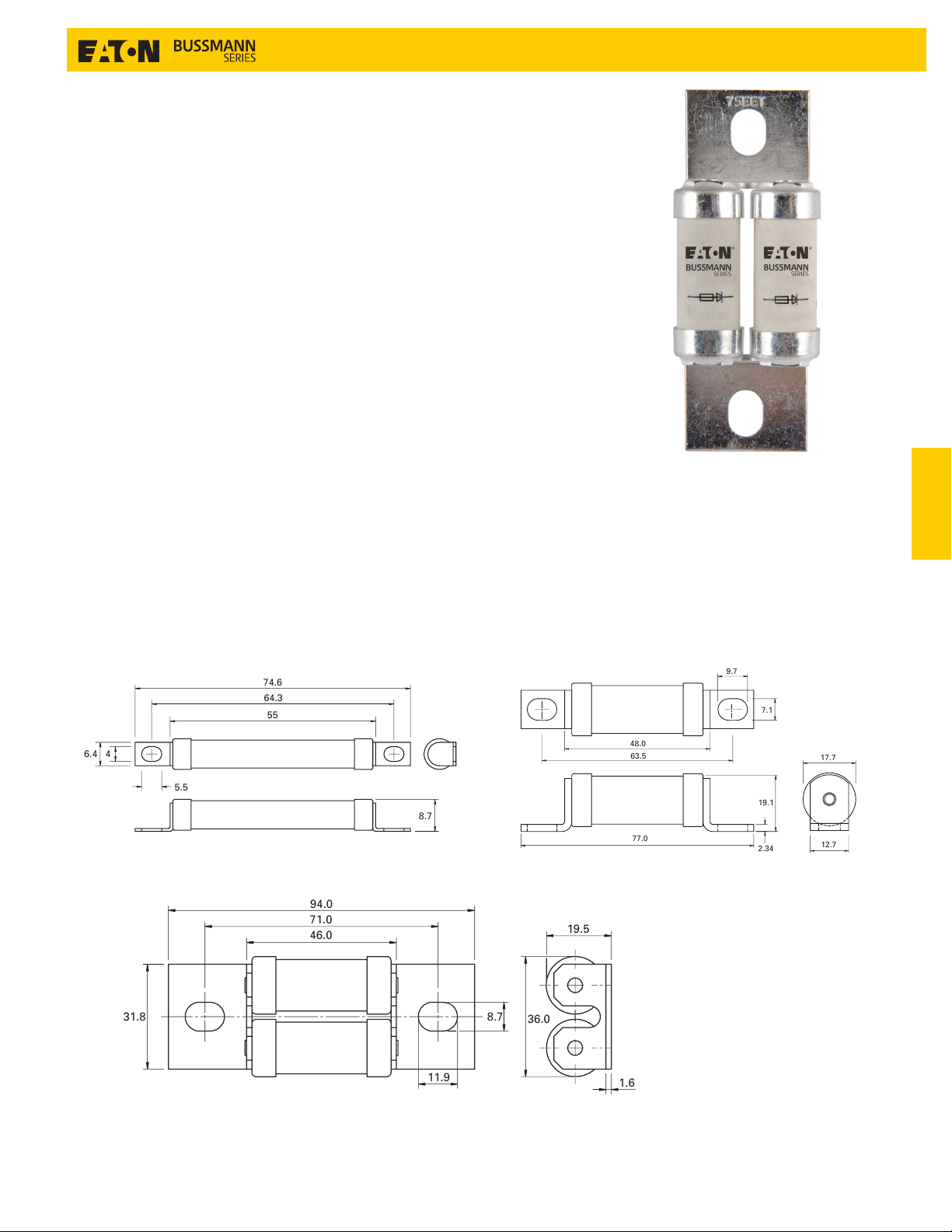

CT, ET, FE, EET, FEE BS88

74.6

64.3

55

6.4

4

5.5

8.7

12.7

17.7

19.1

2.34

77.0

63.5

48.0

7.1

9.7

94.0

36.0

71.0

46.0

31.8

11.9

8.7

1.6

19.5

690 Vac/500 Vdc (IEC), 700 Vac/500 Vdc (UL), 6 to 200 A

BS88 style bolted tags high speed fuses for the protection of DC
common bus, DC drives, power converters /rectifiers and reduced
rated voltage starters.

Ratings

•

Volts

• 690 Vac/500 Vdc (IEC)

• 700 Vac/500 Vdc (UL)

•

Amps 6-200 A

•

IR

• CT: 90 kA RMS Sym., 40 kA at 500 Vdc (IEC), 200 kA RMS

Sym., 50 kA at 500 Vdc (UL)

• ET, EET, FE and FEE: 200 kA RMS Sym.,50 kA at 500 Vdc

Operating class aR

Agency information

•

Designed and tested to BS88 part 4 and IEC 60269 Part 4

•

UL Recognized*

•

CCC for ET, FE, EET, FEE

•

CE

* Consult your Bussmann series product representative for UL Recognized status.

High speed fuses — 4

High speed fuses

Dimensions — mm

CT

ET, FE — indicator optional

EET, FEE — indicator optional

For details on electrical characteristics, contact Application Engineering and ask for data sheets: 5785312 (CT, ET), 5785314 (FE),
5785313 (EET), 5785292 (FEE)

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

4-17

4 — High speed fuses

CT, ET, FE, EET, FEE BS88

690 Vac/500 Vdc (IEC), 700 Vac/500 Vdc (UL), 6 to 200 A

I²t (A²s)

Fuse symbol Rated voltage

CT

ET

FE

EET

FEE

* Watts loss at rated current.

Note: FC, 8ET, 12ET, 15ET, 20ET, 65EET and 75EET are available for replacement purposes on existing equipment.

690 Vac/500 Vdc (IEC)
700 Vac/500 Vdc (UL)

690 Vac/500 Vdc (IEC)
700 Vac/500 Vdc (UL)

690 Vac/500 Vdc (IEC)
700 Vac/500 Vdc (UL)

690 Vac/500 Vdc (IEC)
700 Vac/500 Vdc (UL)

690 Vac/500 Vdc (IEC)
700 Vac/500 Vdc (UL)

Rated current
(amps)

6 1. 8 8.5 12 2 6CT

10 7. 0 30.0 48 3 10CT

12 10.0 40.0 65 3 12CT

16 16.0 66.0 110 7 16CT

20 32.0 150.0 220 7 20CT

25 25.0 150.0 250 7 25ET

32 32.0 190.0 350 11 32ET

35 52.0 310.0 500 11 35ET

40 103.0 600.0 900 9 40ET

45 103.0 680.0 110 0 11 45ET

56 135.0 950.0 150 0 14 56ET

63 171.0 1200.0 2000 16 63ET

80 360.0 2500.0 4000 18 80ET

35 33.0 130.0 200 9 35FE

40 52.0 180.0 300 9 40FE

45 76.0 270.0 450 11 45FE

50 103.0 380.0 600 11 50FE

63 135.0 480.0 750 12 63FE

71 210.0 600.0 950 17 71FE

80 250.0 900.0 150 0 20 80FE

90 360.0 1300.0 2 10 0 20 90FE

100 470.0 1800.0 2800 23 100FE

90 490.0 300.0 4500 19 90EET

110 600.0 4000.0 6500 27 110EET

140 1050.0 7000.0 12,000 35 140EET

160 1500.0 10,000.0 17,000 39 160EET

100 400.0 1600.0 2400 24 100FEE

120 540.0 1900.0 310 0 32 120FEE

140 850.0 2500.0 3800 36 140FEE

160 1000.0 3700.0 5700 46 160FEE

180 1400.0 5300.0 8400 46 180FEE

200 1900.0 7100.0 11,400 52 200FEE

Clearing at
415 Vac

Clearing at
660 Vac

Watts loss (W)* Catalog no.Pre-arcing

For details on electrical characteristics, contact Application Engineering and ask for data sheets: 5785312 (CT, ET), 5785314 (FE),
5785313 (EET), 5785292 (FEE)

4-18

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

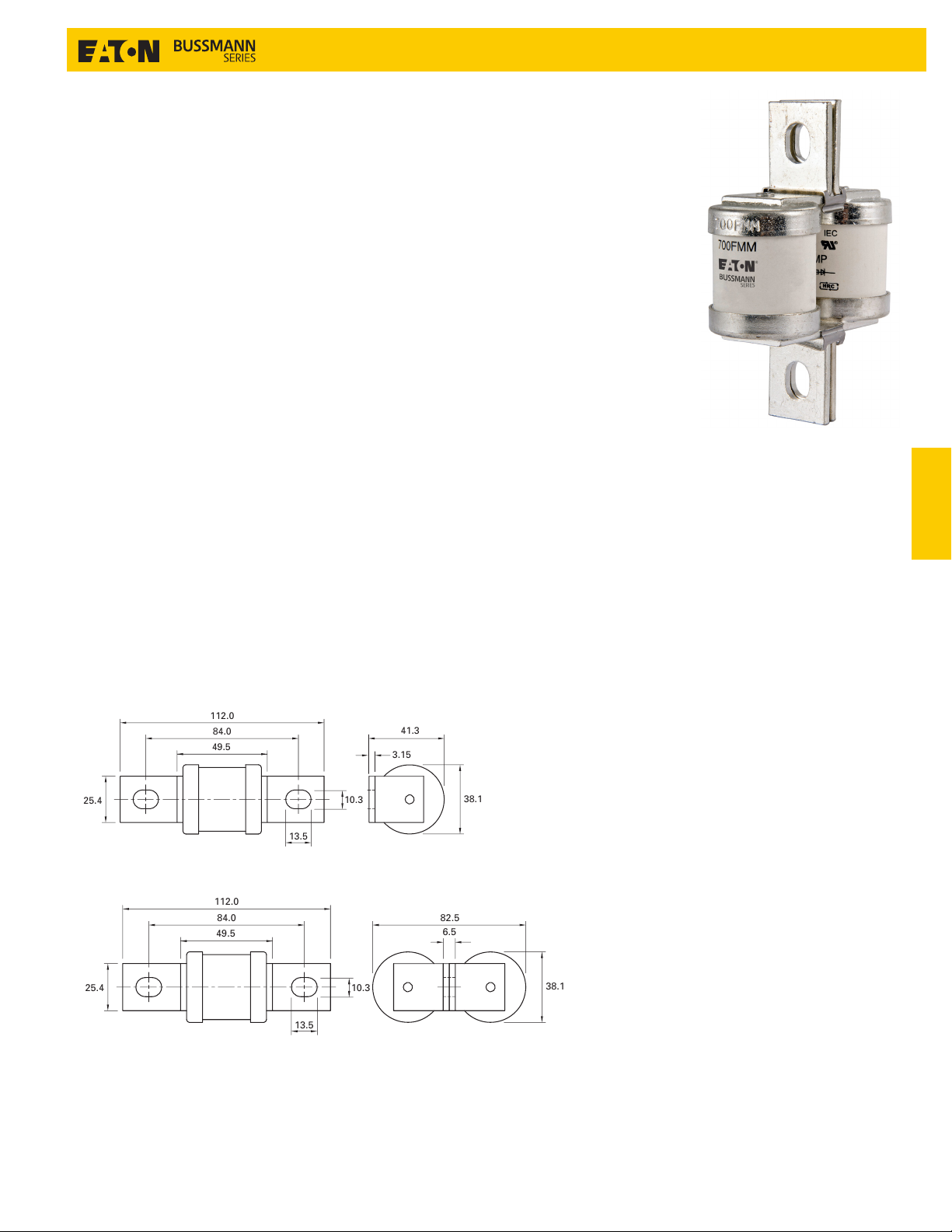

FM, FMM, MT, MMT BS88

25.4

13.5

10.3

38.1

6.5

82.5

49.5

84.0

112.0

25.4

13.5

10.3

38.1

3.15

41.3

49.5

84.0

112.0

690 Vac/350-450 Vdc (IEC),700 Vac/500 Vdc (UL), 160 to 710 A

BS88 style bolted tags high speed fuses for the protection of DC
common bus, DC drives, power converters /rectifiers and reduced
rated voltage starters.

Ratings

•

Volts

• FM: 690 Vac/450 Vdc (IEC); 700 Vac/500 Vdc (UL)

• FMM: 690 Vac/450 Vdc (IEC); 700 Vac (UL)

• MT and MMT: 690 Vac/350 Vdc (IEC); 700 Vac (UL)

•

Amps 160-710 A

•

IR

• FM: 200 kA RMS Sym. (IEC/UL), 40 kA at 450 Vdc (IEC), 50 kA

at 500 Vdc (UL)

• FMM: 200 kA RMS Sym. (IEC/UL), 40 kA at 450 Vdc (IEC).

• MT and MMT: 200 kA RMS Sym. (IEC/UL), 40 kA at 350 Vdc

(IEC).

Operating class aR

High speed fuses — 4

Agency information

•

Designed and tested to BS88 Part 4 and IEC 60269 Part 4

•

UL Recognized MT and MMT 350 Vdc (IEC) rating*

•

CCC for FM and FMM

•

CE

Consult your Bussmann series product representative for UL Recognized status.

Dimensions — mm

FM, MT — indicator optional

High speed fuses

FMM, MMT — indicator optional

For details on electrical characteristics, contact Application Engineering and ask for data sheets: 5785314 (FM), 5785313 (MT),
5785292 (FMM), 5785311 (MMT)

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

4-19

4 — High speed fuses

FM, FMM, MT, MMT BS88

690 Vac/350-450 Vdc (IEC), 700 Vac/500 Vdc (UL), 160 to 710 A

I²t (A²s)

Fuse symbol Rated voltage

FM

FMM

MT

MMT

* Watts loss at rated current.

690 Vac/450 Vdc (IEC)
700 Vac/500 Vdc (UL)

690 Vac/450 Vdc (IEC)
700 Vac (UL)

690 Vac/350 Vdc (IEC)
700 Vac (UL)

690 Vac/350 Vdc (IEC)
700 Vac (UL)

Rated
current
(amps)

180 1400 7500 13,500 40 180FM

200 2600 10,500 18,500 40 200FM

225 3700 14,500 26,500 44 225FM

250 5200 20,500 37,500 48 250FM

280 7000 30,500 55,000 48 280FM

315 10,000 40,000 77,000 55 315FM

350 15,000 60,000 105,000 55 350FM

400 10,000 40,000 72,500 85 400FMM

450 15,000 60,000 105,000 90 450FMM

500 20,000 82,000 150,000 10 0 500FMM

550 30,000 120,000 215,000 100 550FMM

630 45,000 180,000 310,000 100 630FMM

700 60,000 245,000 420,000 120 700FMM

160 2400 15,000 25,000 26 160MT

180 3800 25,000 38,000 26 180MT

200 6000 40,000 58,000 27 200MT

250 11,500 80,000 110,000 32 250MT

280 16,500 100,000 150,000 35 280MT

315 19,000 125,000 180,000 42 315MT

355 22,000 160,000 200,000 51 355MT

180 1650 12,000 18,000 42 180MMT

200 2200 16,000 23,000 42 200MMT

225 3700 26,000 40,000 42 225MMT

280 6600 47,000 70,000 47 280MMT

315 8600 62,000 91,000 51 315MMT

355 13,500 97,000 140,000 54 355MMT

400 21,000 150,000 220,000 60 400MMT

450 30,000 220,000 320,000 57 450MMT

500 42,000 300,000 450,000 64 500MMT

560 60,000 430,000 640,000 64 560MMT

630 68,500 500,000 720,000 86 630MMT

710 78,000 600,000 850,000 105 710MMT

Clearing at 660

Vac

Watts loss (W)* Catalog no.Pre-arcing Clearing at 415 Vac

For details on electrical characteristics, contact Application Engineering and ask for data sheets: 5785314 (FM), 5785313 (MT),
5785292 (FMM), 5785311 (MMT)

4-20

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

2.8 2.4

3.6

5.2

5.2

21

36

44

3.6

21

36

44

9.5
NC NC

NONO

MAI or MBI

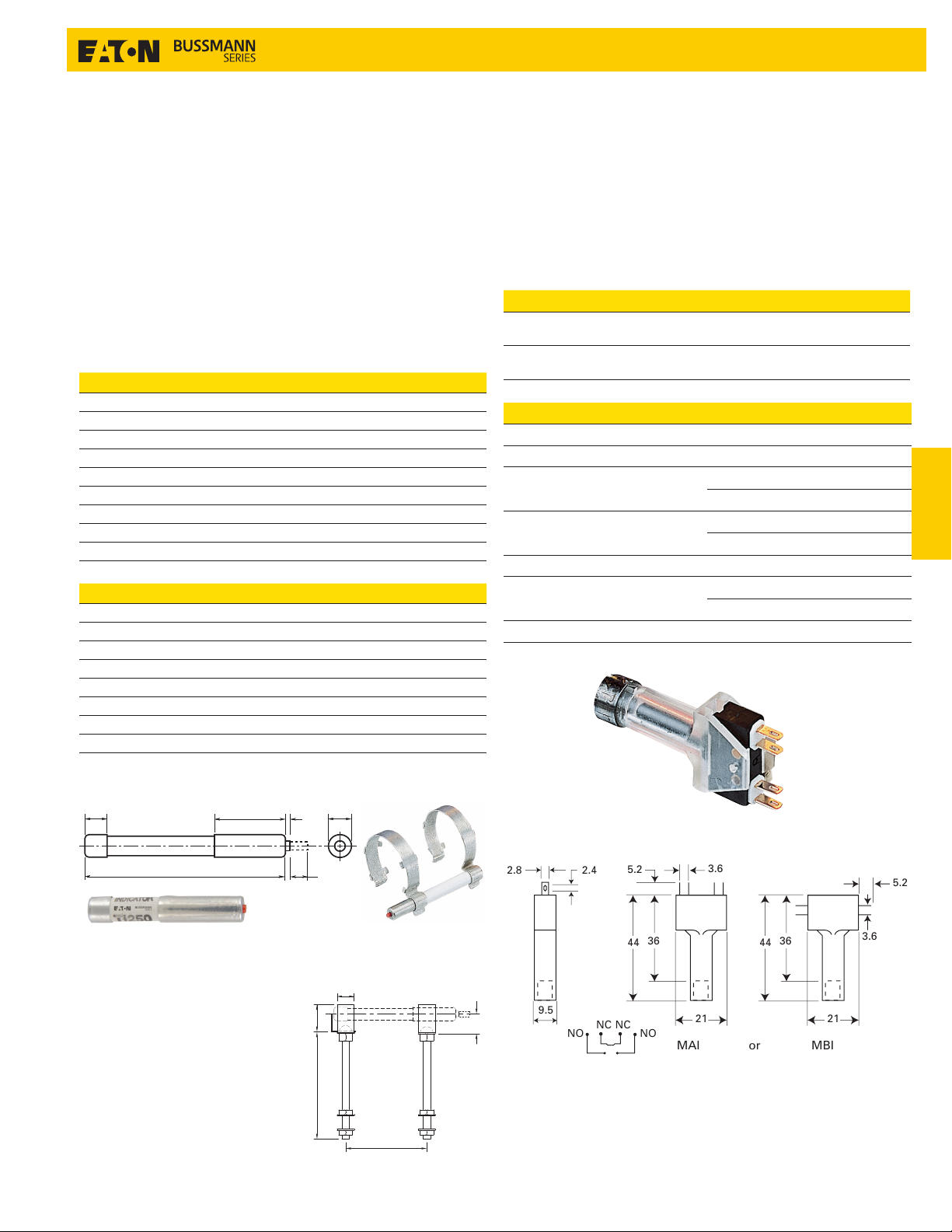

BS 88 Accessories

6.0

High speed fuses — 4

Trip indicator

Trip-indicator fuses are available for use in parallel with the main
BS88-4 fuses. They can either be attached to the associated fuse or
mounted separately in panel mounted fuse clips. Push-on adapters
with microswitch (catalog numbers MAI and MBI) are available for
use with the trip indicator to provide a means for remote indication.

Fuse ratings of 20 A and below cannot usually accommodate a trip
fuse in parallel.

When a trip-indicator is to be attached to the main fuse, an
accessory pack comprising a pair of mounting clips and an
appropriate trip indicator is required. The clips are snapped onto the
fuse and the indicator is pressed into clips as shown below.

Trip indicator kit catalog numbers (indicator + clips)

For fuse symbol Catalog no.

ET EC-600

EET EC-600

FE EC-600

FEE EC-600

LET EC-250

FM MC-600

FMM MC-600

LMT MC-250

LMMT MC-250

Indicator only

Catalog no. Rated current Dim. ‘A’ (mm)

TI250 250 37.6

TI500 500 47.5

TI600 600 55.7

TI700 700 61.8

TI1100 110 0 98.4

TI1500 1500 120.8

TI2000 2000 147.5

TI2500 2500 198.3

Microswitches

Microswitch/adapter: MAI and MBI

To provide a means of remote indication with the trip indicators, we
offer two microswitch/adapters. The microswitches are provided with
double pole, single throw contacts, having both a normally open
(NO) and a normally closed (NC) position. A special material is used
in the construction of the adapter to provide reliable operation in the
temperatures ranges associated with standard operating conditions
and during fuse operation.

Catalog no. Description Terminal orientation

MAI

MBI

Trip indicator adapter and
microswitch

Trip indicator adapter and
microswitch

Back

Side

Microswitch ratings (MAI and MBI)

Terminals Quick connect

Current rating

AC 50/60 Hz resistive load

DC, resistive load

4 A @ 250 V RMS

6 A @ 127 V RMS

0.7 A @ 110 Vdc

2 A @ 30 Vdc

Maximum working voltage

Contact-to-contact (RMS)

1000 V

1500 V

Maximum DC volts 110 Vdc

High speed fuses

CL1 panel mount clips

Indicator dimensions — mm

6

A

21

CL1 panel mount fuse clips are
available for mounting a trip­indicator when mounting directly
on the fuse is impractical. Order
catalog number CL1.

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

6.35

0.8

6.0

CL1 clips dimensions — mm

14

50.8

B

Microswitch/adapter dimensions — mm

8.7

Eaton.com/bussmannseries

4-21

4 — High speed fuses

C

B

A

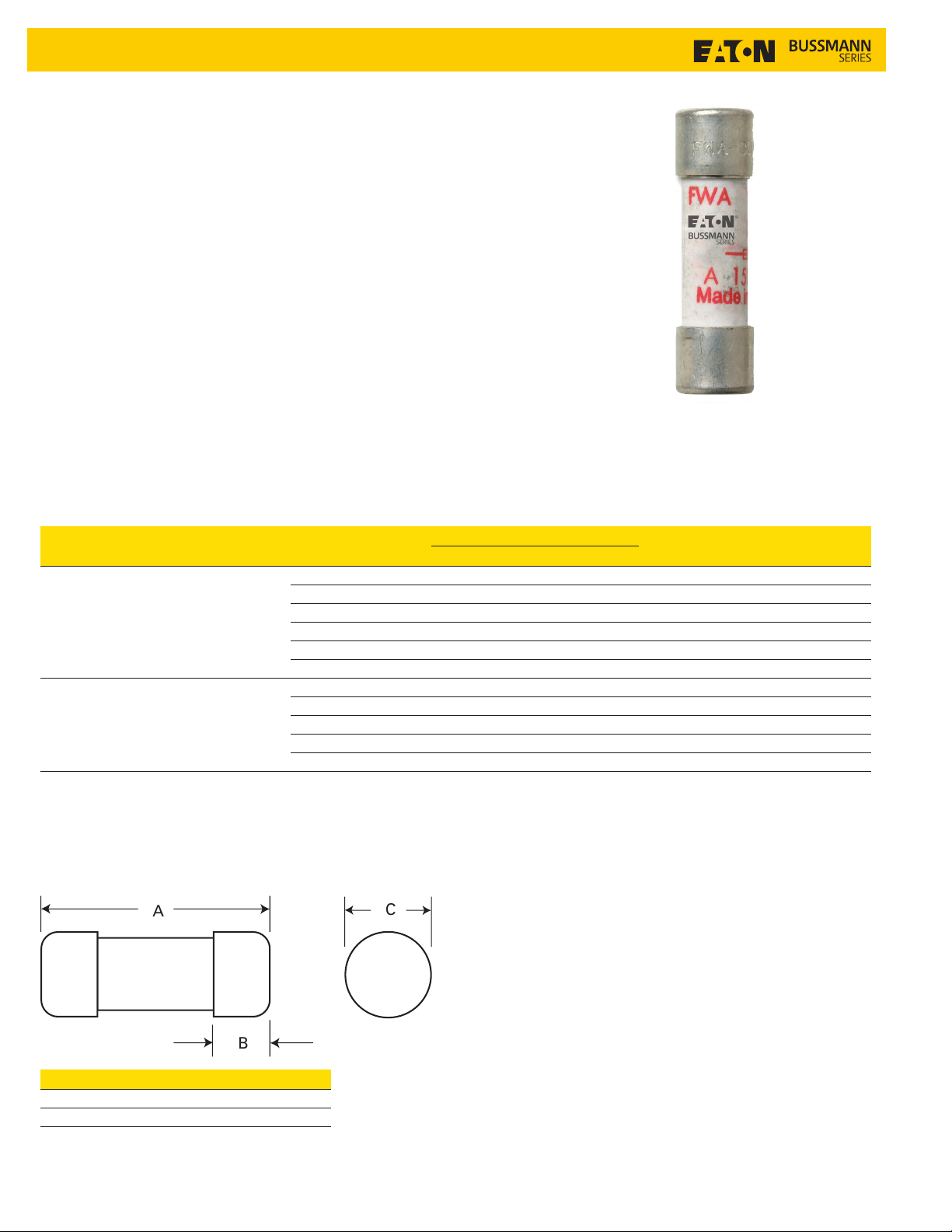

FWA Ferrule

150 Vac/dc (UL), 10x38mm and 21x51mm, 5 to 60 A

Ferrule style high speed fuses for the protection of DC common bus,
DC drives, power converters /rectifiers and reduced rated voltage
starters.

Ratings

•

Volts 150 Vac/dc (UL)

•

Amps 5-60 A

•

IR

• 200 kA RMS Sym.

• 50 kA DC at 150 Vdc

Operating class aR

Agency information

•

UL Recognized, JFHR2, E91958

•

CE

Fuse size Rated voltage Rated current (amps)

10x38mm
(13/32”x1-1/2”)

21x51mm
(13/16”x2”)

* Watts loss at rated current.

150 Vac/dc (UL)

150 Vac/dc (UL)

Dimensions — in (mm)

I²t (A²s)

Watts loss (W)* Catalog no.Pre-arcing Clearing at 150 Vac

5 1. 6 8 2 FWA-5A10F

10 3.6 16 2.7 FWA-10A10F

15 14.0 50 3.3 FWA-15A10F

20 33.0 130 3.8 FWA-20A10F

25 58.0 220 4.9 FWA-25A10F

30 100.0 400 4.9 FWA-30A10F

35 75.0 800 4.5 FWA-35A21F

40 100.0 1000 5.1 FWA-40A21F

45 130.0 1300 6 FWA-45A21F

50 170.0 1600 7. 3 FWA-50A21F

60 250.0 2400 8 FWA-60A21F

Amp range A B C

5-30 1.5 (38.1) 0.38 (9.5) 0.41 (10.3)

35-60 2.0 (50.8) 0.63 (15.9) 0.81 (20.6)

For details on electrical characteristics, contact Application Engineering and ask for data sheets: 720003,5785317 (5-30 A), 5785305 (35-60 A)

4-22

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

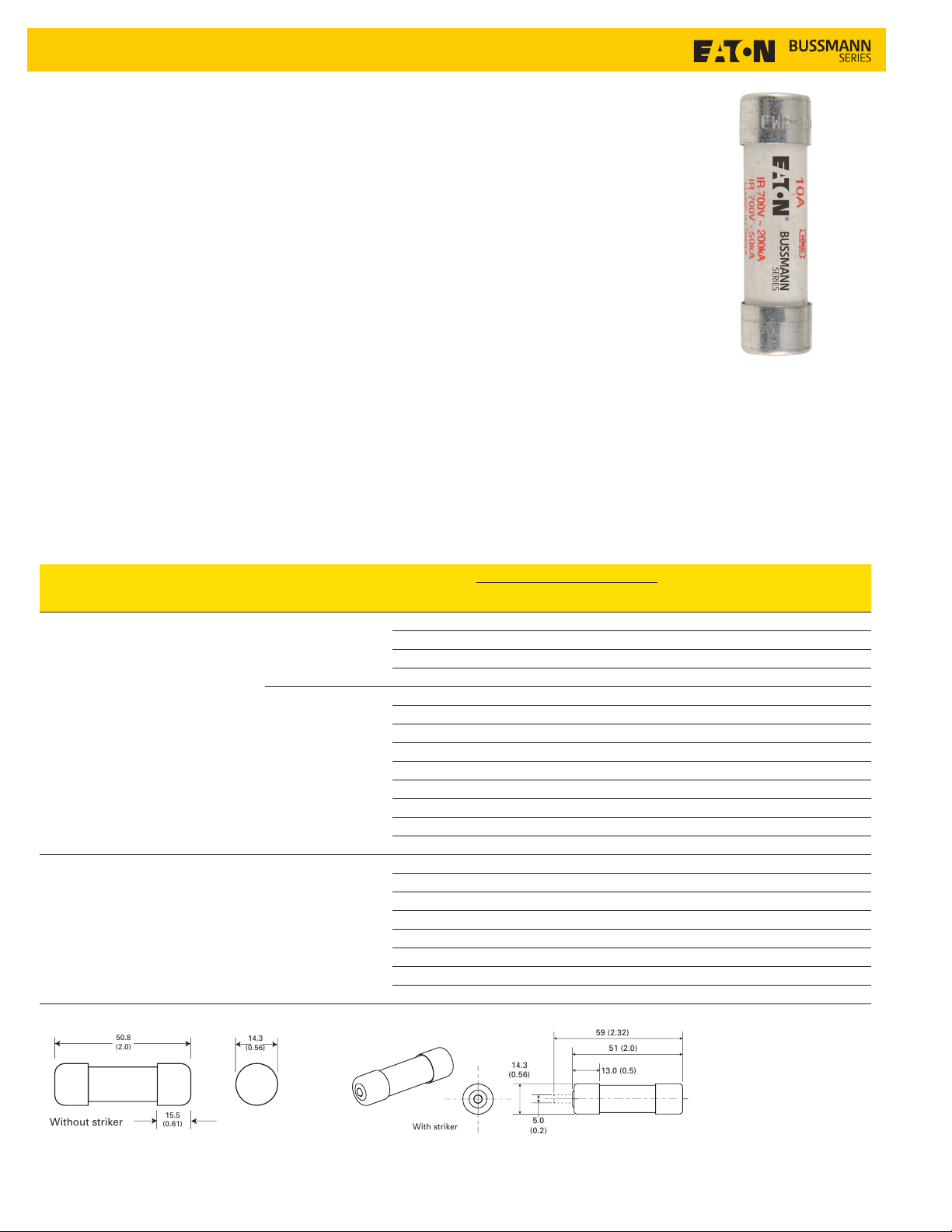

FWX Ferrule

50.8

(2.0)

15.5

(0.61)

14.3

(0.56)

250 Vac/dc (UL), 14x51mm, 1 to 50 A

Ferrule style high speed fuses for the protection of DC common bus,
DC drives, power converters/rectifiers rated voltage starters.

Ratings

•

Volts

• 250 Vac (UL, all ratings)

• 250 Vdc (UL, 5-50 A only)

•

Amps 1-50 A

•

IR

• 200 kA RMS Sym. (UL, all ratings)

• 50 kA at 250 Vdc (UL, 5-30 A only)

Operating class aR

Agency information

•

UL Recognized, JFHR2, E91958 1-50 A

•

CSA Class 1422-30, 1422-90 (53787) 5-30 A

•

CE

High speed fuses — 4

Fuse size Rated voltage Rated current(amps)

250 Vac (UL)

14x51mm
(9/16”x2”)

250 Vac/dc (UL)

* Watts loss at rated current.

Dimensions — mm (in)

High speed fuses

I²t (A²s)

Watts loss(W)* Catalog no.Pre-arcing Clearing at 250 Vac

1 0.03 0.40 5.7 FWX-1A14F

2 0.08 0.10 8.6 FWX-2A14F

3 0.11 0.26 2.8 FWX-3A14F

4 0.1 0.23 3.0 FWX-4A14F

5 1. 6 13.00 1.3 FWX-5A14F

10 3.6 24.00 3.4 FWX-10A14F

15 14.0 83.00 3.8 FWX-15A14F

20 33.0 200.00 4.6 FWX-20A14F

25 58.0 300.00 5.3 FWX-25A14F

30 100.0 500.00 5.9 FWX-30A14F

50 200.0 1800.00 5.7 FWX-50A14F

For details on electrical characteristics, contact Application Engineering and ask for data sheets: 720006, 5785302

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

4-23

4 — High speed fuses

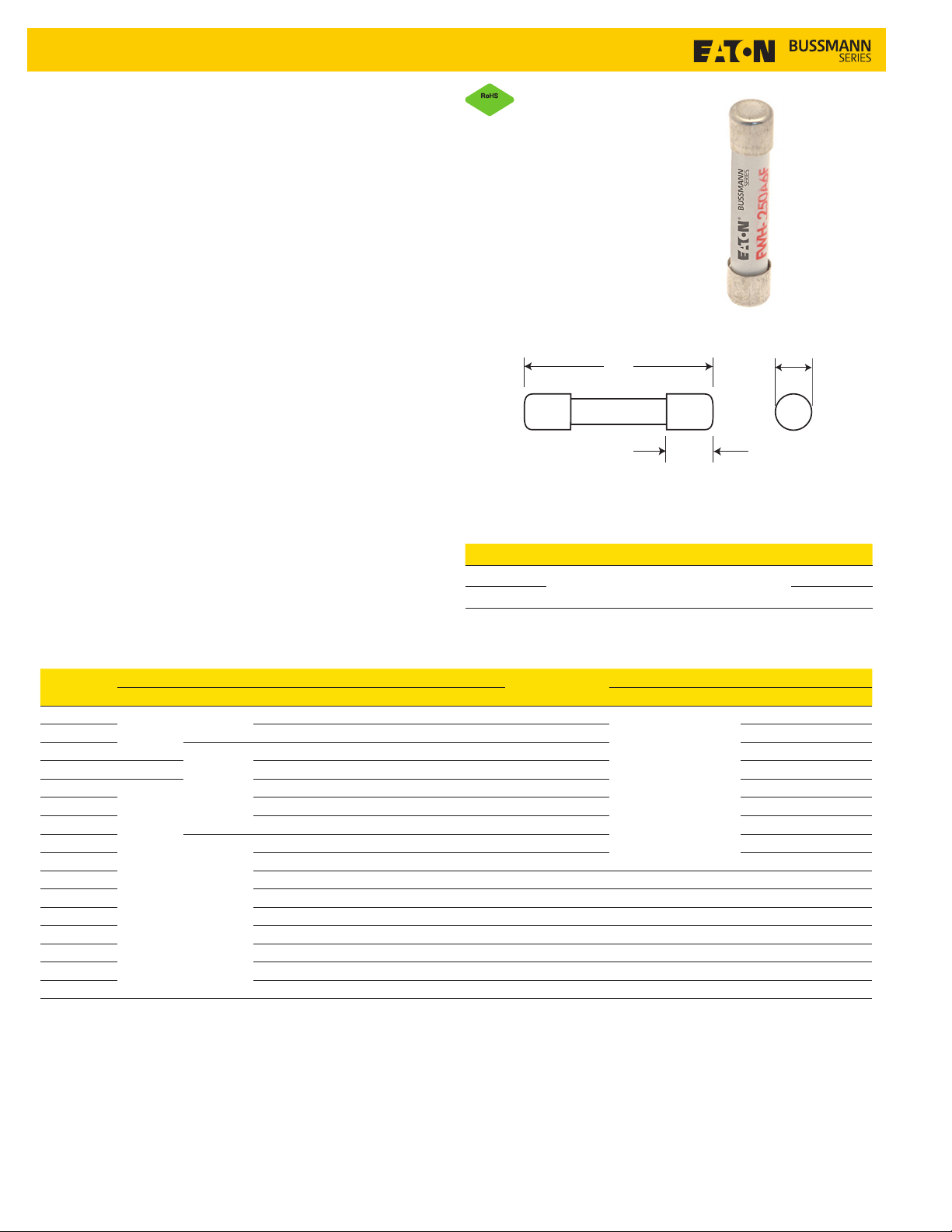

FWH Ferrule

2011/65/EU

500 Vac (UL), 6x32mm, 0.25 to 30 A

Ferrule style high speed fuses for the protection of DC common bus,
DC drives, power converters/rectifiers and reduced rated voltage
starters.

Ratings

•

Volts

• 500 Vac (UL — 0.25-1 A and 3.15-30 A)

• 1000 Vac (UL — 2 A)

• 600 Vdc (UL — 1-5 A)

•

Amps 0.25-30 A

•

IR

• 50 kA AC (0.25-1 A and 3.15-20 A)

• 30 kA AC (2 A)

• 20 kA AC (25-30 A)

• 50 kA DC (1-5 A))

1

Tested at PF = 76%.

1

Dimensions — mm (in)

31.8

(1.25)

6.4

(0.25)

3.2

(0.125)

Operating class aR

Agency information

•

UL Recognized, JFHR2, E91958 (0.25-7 A) and JDYX2, E19180
(10-30 A)

•

CSA Component Acceptance Class 1422-30, 1422-90 (53787)

Opening times

Amp range 150% 200% 300% Min IR

0.25-7

10-30 200 %

>30 min >30 min ≤ 10 sec

300 %

0.25-7 A

•

RoHS compliant

•

CE

Rated voltage I2t (A2s)

Amps

0.25

0.5 0.05 0.25 1. 2 FWH-.500A6F
1

Vac Vdc Pre-arcing Clearing @ 500Vac Standard RoHS compliant

0.01 0.05 2.7

500

—

0.4 2 1. 7 FWH-001A6F

Watts loss (W)*

Catalog no.

FWH-.250A6F

2 1000 1. 3 3.5 3.2 FWH-002A6F

3.15

600

3.1 7. 7 2.9 FWH-3.15A6F

—
4 — — — FWH-004A6F
5 15 40 2.1 FWH-005A6F

6.3

36 90 2.3 FWH-6.30A6F
7 50 125 2.5 FWH-007A6F
10 9.9 139 2.86 FWH5-010A6F FWH5-010A6FR

12.5 20 60 3.53 FWH5-12-5A6F FWH5-12-5A6FR
15 44 146 3.08 FWH5-015A6F FWH5-015A6FR

500

—
16 48 177 4.48 FWH5-016A6F FWH5-016A6FR
20 75 259 4.26 FWH5-020A6F FWH5-020A6FR
25 126 345 — FWH-025A6F FWH-025A6FR
30 145 430 — FWH-030A6F FWH-030A6FR

* Watts loss at rated current.

Data sheet no.720038

4-24

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

FWH Ferrule

500 Vac/ Vdc (UL), 14x51mm, 1 to 30 A

Ferrule style high speed fuses for the protection of DC common
bus, DC drives, power converters/rectifiers and reduced rated
voltage starters.

Ratings

•

Volts

• 500 Vac (UL, all ratings)

• 500 Vdc (UL, 5-30 A only)

•

Amps 1-30 A

•

IR

• 200 kA RMS Sym. all ratings

• 50 kA at 500 Vdc 5-30 A only

Operating class aR

Agency information

•

UL Recognized 1-30 A

•

CSA Class 1422-30, (53787) 5-30 A

•

CE

High speed fuses — 4

Fuse size Rated voltage Rated current (amps)

500 Vac (UL)

14x51mm (9/16"x2")

500 Vac/dc (UL)

* Watts loss at rated current.

Dimensions — mm (in)

50.8
(2.0)

14.3

(0.56)

High speed fuses

I²t (A²s)

Watts loss (W)* Catalog no.Pre-arcing Clearing at 500 Vac

1 0.04 0.2 5.7 FWH-1A14F

2 0.08 0.1 8.7 FWH-2A14F

3 0.11 0.2 2.8 FWH-3A14F

4 0.10 0.2 3.0 FWH-4A14F

5 2.00 7. 0 1. 5 FWH-5A14F

6 2.00 7. 0 1. 5 FWH-6A14F

10 4.00 15.0 4.0 FWH-10A14F

12 7. 0 0 25.0 4.3 FWH-12A14F

15 10.00 40.0 5.5 FWH-15A14F

20 26.00 100.0 6.5 FWH-20A14F

25 49.00 200.0 7. 0 FWH-25A14F

30 58.00 240.0 9.0 FWH-30A14F

15.5

(0.61)

For details on electrical characteristics, contact Application Engineering and ask for data sheets:720008, 5785298

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

4-25

4 — High speed fuses

FWC Ferrule

600-700 Vac/700 Vdc (UL), 10x38mm, 1 to 32 A

Ferrule style high speed fuses for the protection of DC common bus,
DC drives, power converters/rectifiers and reduced rated voltage
starters.

Ratings

•

Volts

• 700 Vac/dc (UL, 1-4 A)

• 600 Vac (UL, 6-32 A), 700 Vdc (UL, 6-25 A)

•

Amps 1-32 A

•

IR

• 200 kA RMS Sym. at 600 Vac (6-32 A)

• 200 kA RMS Sym. at 700 Vac (1-4 A)

• 10 kA DC at 700 Vdc (1-25 A)

Operating class aR

Agency information

•

UL Recognized, JFHR8, E91958 6-32 A

•

CSA Class 1422-30, (53787) 6-32 A

•

CE

Fuse size Rated voltage

700 Vac/dc (UL)

10x38mm (13/32"x1-1/2")

600 Vac/700 Vdc (UL)

600 Vac (UL)

* Watts loss at rated current.

Dimensions — mm

38

Rated current

(amps)

10 9.0 70.0 2.5 FWC-10A10F

12 15.0 120.0 3.0 FWC-12A10F

16 25.0 150.0 3.5 FWC-16A10F

20 34.0 260.0 4.8 FWC-20A10F

25 60.0 390.0 6.0 FWC-25A10F

32 95.0 600.0 7. 5 FWC-32A10F

10

I²t (A²s)

Watts loss (W)* Catalog no.Pre-arcing Clearing at 600 Vac

1 0.2 1. 2 0.5 FWC-1A10F

2 0.5 3.0 1. 2 FWC-2A10F

3 1. 6 11. 0 1.5 FWC-3A10F

4 5.2 32.0 1. 5 FWC-4A10F

6 4.0 30.0 1. 5 FWC-6A10F

8 6.0 50.0 2.0 FWC-8A10F

9.5

For details on electrical characteristics, contact Application Engineering and ask for data sheets:720011, 5785306

4-26

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

FWP Ferrule

690 Vac (IEC) 10x38mm, 4 to 32 A

Ferrule style Class gR high speed fuses for the protection of AC/DC
drives and semiconductors.

Ratings

•

Volts 690 Vac

•

Amps 4-32 A

•

IR

• 200 kA RMS Sym.

Operating class gR

Agency information

•

UL 248-13

•

Designed and tested to IEC 60269, Part 4

•

CE

High speed fuses — 4

Fuse type Fuse size Rated voltage

Rated current

Without striker 10x38mm 690 Vac (IEC)

* Watts loss at rated current.
** 32 A rated current with 25mm2 conductors, derate to 27 A with 6mm2 conductors.

I²t (A²s) Watts loss (W)*

(amps)

4 5.6 17 1. 13 2.05 FWP-4G10F

6 16 48 1.56 3.0 FWP-6G10F

8 4.3 38 0.97 1.68 FWP-8G10F

10 6.6 59 1.20 2.09 FWP-10G10F

12 9.6 84 1.69 2.99 FWP-12G10F

16 17 150 2.31 4.27 FWP-16G10F

20 23.5 200 2.86 5.35 FWP-20G10F

25 60.2 512 2.94 5.52 FWP-25G10F

32** 94 800 3.82 7.43 FWP-32G10F

Clearing at 690

Vac 0.8I

High speed fuses

n

I

n

Catalog no.Pre-arcing

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Data sheet no. 10467

Eaton.com/bussmannseries

4-27

4 — High speed fuses

59 (2.32)

14.3

(0.56)

5.0

(0.2)

13.0 (0.5)

51 (2.0)

With striker

50.8
(2.0)

15.5

(0.61)

14.3

(0.56)

Without striker

FWP Ferrule

690 Vac (IEC), 700 Vac (UL), 600 - 700 Vdc (UL), 14x51mm,
1 to 50 A

Ferrule style Class aR high speed fuses for the protection of DC
common bus, DC drives, power converters/rectifiers and reduced
rated voltage starters. Available with or without striker.

Ratings

•

Volts 690 Vac (IEC),

700 Vac/600 Vdc (UL) with striker (see table for

striker version)

•

Amps 1-50 A

•

IR

• 200 kA RMS Sym.

• 50 kA at 800 Vdc (5-50 A non striker version)

• 600 Vdc for striker version

Operating class aR

Agency information

•

UL Recognized, (without striker only) JFHR2, E91958

•

CSA (without striker only) Class 1422-30, 1422-90 (53787)

•

Designed and tested to IEC 60269, Part 4

•

CE

Fuse type Fuse size Rated voltage

700 Vac (UL)

Without striker 14x51mm (9/16”x2”)

690 Vac (IEC)
700 Vac/dc (UL)

With striker 14x51mm (9/16”x2”) 700 Vac/600 Vdc (UL)

* Watts loss at rated current.

Dimensions — mm (in)

Rated current

(amps)

10 4.00 22.00 4.0 FWP-10A14F

15 10.00 70.00 5.5 FWP-15A14F

20 26.00 180.00 6.5 FWP-20A14F

25 49.00 320.00 7. 0 FWP-25A14F

30 58.00 400.00 9.0 FWP-30A14F

32 68.00 600.00 8.0 FWP-32A14F

40 84.00 750.00 8.0 FWP-40A14F

50 200.00 1800.00 9.0 FWP-50A14F

10 4.00 32.00 2.0 FWP-10A14FI

15 7. 0 0 63.00 4.0 FWP-15A14FI

20 26.00 234.00 4.0 FWP-20A14FI

25 42.00 378.00 4.0 FWP-25A14FI

30 52.00 468.00 6.0 FWP-30A14FI

32 68.00 600.00 8.0 FWP-32A14FI

40 84.00 750.00 8.0 FWP-40A14FI

50 200.00 1800.00 9.0 FWP-50A14FI

I²t (A²s)

Clearing at 700

Watts loss (W)* Catalog no.Pre-arcing

Vac

1 0.04 0.41 5.7 FWP-1A14F

2 0.08 0.11 8.7 FWP-2A14F

3 0.11 0.26 2.8 FWP-3A14F

4 0.10 0.23 3.0 FWP-4A14F

5 2.00 11. 0 0 1. 5 FWP-5A14F

For details on electrical characteristics, contact Application Engineering and ask for data sheets: 720025, 5781724 fuses without striker;
5785566 fuses with striker

4-28

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

FWP Ferrule

59 (2.32)

14.3

(0.56)

5.0

(0.2)

13.0 (0.5)

51 (2.0)

With striker

50.8
(2.0)

15.5

(0.61)

14.3

(0.56)

Without striker

690 Vac 14x51mm, 1 to 50 A

Ferrule style Class gR high speed fuses for the protection of AC/DC
drives and semiconductors. Available with or without striker.

Ratings

•

Volts 690 Vac

•

Amps 4-50 A

•

200 kA RMS Sym.

IR

Operating class gR

Agency information

•

UL 248-13

•

Designed and tested to IEC 60269, Part 4

•

CE

High speed fuses — 4

Fuse type Fuse size Rated voltage

Without striker 14x51mm (9/16”x2”) 690 Vac (IEC)

With striker 14x51mm (9/16”x2”) 690 Vac (IEC)

* Watts loss at rated current.

current

(amps)

Clearing at

690 Vac 0.8In in

I²t (A²s) Watts loss (W)*

Rated

4 5.6 17 1.56 2.94 FWP-4G14F

6 16 48 2.25 4.2 FWP-6G14F

8 3.8 30 1. 1 8 2.0 FWP-8G14F

10 5.9 47 1.41 2.52 FWP-10G14F

12 8.4 68 1.95 3.54 FWP-12G14F

16 15 120 5.67 4.83 FWP-16G14F

20 27 170 2.91 5.4 FWP-20G14F

25 53 333 3.38 6.0 FWP-25G14F

32 10 8 679 3.72 6.93 FWP-32G14F

40 2 11 1331 4.13 7.52 FWP-40G14F

50 350 2200 5.36 9.8 FWP-50G14F

8 3.8 30 1. 1 8 2.0 FWP-8G14FI

10 5.9 47 1.41 2.52 FWP-10G14FI

12 8.4 68 1.95 3.54 FWP-12G14FI

16 15 120 5.67 4.83 FWP-16G14FI

20 27 170 2.91 5.4 FWP-20G14FI

25 53 333 3.38 6.0 FWP-25G14FI

32 10 8 679 3.72 6.93 FWP-32G14FI

40 2 11 1331 4.13 7.52 FWP-40G14FI

50 350 2200 5.36 9.8 FWP-50G14FI

High speed fuses

Catalog no.Pre-arcing

Dimensions — mm (in)

Data sheet no. 10468

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

4-29

4 — High speed fuses

58.0

(2.28)

15.0
(0.6)

22.2

(0.87)

Without striker

FWP Ferrule

700 Vac/dc (UL), 22x58mm, 20 to 100 A

Ferrule style high speed fuses for the protection of DC common bus,
DC drives, power converters/rectifiers and reduced rated voltage
starters. Available with or without striker.

Ratings

•

Volts 700 Vac/dc (UL)

•

Amps 20-100 A

•

IR

• 200 kA RMS Sym.

• 50 kA at 700 Vdc, L/R 5 ms

Operating class aR

Agency information

•

UL Recognized, (without striker only) JFHR2, E91958

•

CSA (without striker only) Class 1422-30, 1422-90 (53787)

•

CE

Fuse type Fuse size Rated voltage

Without striker 22x58mm (7/8"x2-9/32") 700 Vac/dc (UL)

With striker 22x58mm (7/8"x2-9/32") 700 Vac/dc (UL)

* Watts loss at rated current.

Dimensions — mm (in)

Rated current

(amps)

20 23.0 330 5.0 FWP-20A22F

25 37.0 530 6.0 FWP-25A22F

32 55.0 780 8.0 FWP-32A22F

40 68.0 960 12.0 FWP-40A22F

50 155.0 2200 12.5 FWP-50A22F

63 280.0 4000 15.0 FWP-63A22F

80 550.0 7800 15.0 FWP-80A22F

100 1100.0 15,600 16.5 FWP-100A22F

20 19.0 260 5.0 FWP-20A22FI

25 34.0 410 6.0 FWP-25A22FI

32 53.5 605 8.0 FWP-32A22FI

40 68.0 750 9.0 FWP-40A22FI

50 135.0 1600 9.5 FWP-50A22FI

63 280.0 3080 11. 0 FWP-63A22FI

80 600.0 6600 13.5 FWP-80A22FI

100 1100.0 12,500 16.0 FWP-100A22FI

I²t (A²s)

Watts loss (W)* Catalog no.Pre-arcing Clearing at 700 Vac

For details on electrical characteristics, contact Application Engineering and ask for data sheets:720026, 5781723

4-30

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

FWP Ferrule

58.0

(2.28)

15.0
(0.6)

22.2

(0.87)

Without striker

690 Vac, 500 Vdc 22x58mm, 20 to 100 A

Ferrule style Class gR high speed fuses for the protection of AC/DC
drives and semiconductors. Available with or without striker.

Ratings

•

Volts

• 690 Vac

• 500 Vdc

•

Amps 20-100 A

•

IR

• 200 kA RMS Sym.

• 50 kA DC

Operating class gR

Agency information

•

UL 248-13

•

Designed and tested to IEC 60269, Part 4

•

CE

High speed fuses — 4

Fuse type Fuse size Rated voltage

Without striker

With striker

* Watts loss at rated current.

22x58mm
(7/8"x2-9/32")

22x58mm
(7/8"x2-9/32")

690 Vac, 500Vdc

690 Vac, 500Vdc

Dimensions — mm (in)

Rated current

(amps)

20 24 154 3.23 6.00 FWP-20G22F

25 43 274 3.66 6.65 FWP-25G22F

32 97 616 4.86 9.21 FWP-32G22F

40 180 899 4.50 8.24 FWP-40G22F

50 273 1362 6.26 11.85 FWP-50G22F

63 516 2575 7.35 13.80 FWP-63G22F

80 1092 5448 8.40 1400 FWP-80G22F

100 2065 10,300 9.40 17.70 FWP-100G22F

20 24 154 3.23 6.00 FWP-20G22FI

25 43 274 3.66 6.65 FWP-25G22FI

32 97 616 4.86 9.21 FWP-32G22FI

40 180 899 4.50 8.24 FWP-40G22FI

50 273 1362 6.26 11.85 FWP-50G22FI

63 516 2575 7.35 13.80 FWP-63G22FI

80 1092 5448 8.40 1400 FWP-80G22FI

100 2065 10,300 9.40 17.70 FWP-100G22FI

I²t (A²s) Watts loss (W)*

Clearing at 690

Vac 0.8In In

High speed fuses

Catalog no.Pre-arcing

Data sheet no. 10469

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries

4-31

4 — High speed fuses

127.0
(5.0)

16.0

(0.63)

20.5

(0.81)

5-30 A — 20x127mm

35-60 A — 25x146mm

146.0
(5.75)

20.64
(0.8)

24.5
(1.0)

FWK Ferrule

750 Vdc (IEC), 20x127mm and 25x146mm, 5 to 60 A

Ferrule style high speed fuses for the protection of DC common bus,
DC drives, power converters/rectifiers and reduced rated voltage
starters.

Ratings

•

Volts 750 Vdc (IEC)

•

Amps

• 5-30 A (20x127mm)

• 35-60 A (25x146mm)

•

IR 50 kA at 750 Vdc, L/R 10-15 ms

Operating class gG

Agency information

•

CE

Fuse size Rated voltage

20x127mm (13/32"x5") 750 Vdc (IEC)

25x146mm (1”x5-3/4") 750 Vdc (IEC)

* Watts loss at rated current.

Dimensions — mm (in)

Rated current

(amps)

10 95 200 8.5 FWK-10A20F

15 100 240 5.0 FWK-15A20F

20 125 3 15 7. 8 FWK-20A20F

25 400 110 0 6.5 FWK-25A20F

30 800 2600 6.5 FWK-30A20F

35 130 0 4600 6.0 FWK-35A25F

40 160 0 5300 6.8 FWK-40A25F

50 3 10 0 12,000 7. 3 FWK-50A25F

60 5900 24,000 7. 7 FWK-60A25F

I²t (A²s)

Watts loss (W)* Catalog no.Pre-arcing Clearing at 750 Vac

5 8.5 16 6.7 FWK-5A20F

8 50 10 0 8.8 FWK-8A20F

For details on electrical characteristics, contact Application Engineering and ask for data sheets:720039, 5785031

4-32

BUSSMANN SERIES FULL LINE CATALOG 1007 — JUNE 2017

Eaton.com/bussmannseries
