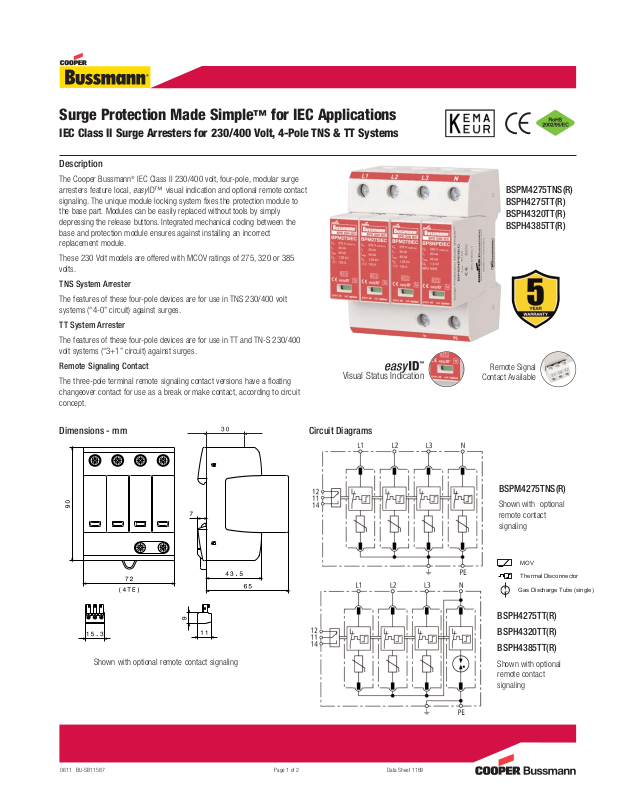

Bussmann BSPM4275TNS, BSPH4275TT, BSPH4320TT, BSPH4385TT Data Sheet
0611 BU-SB11587 Page 1 of 2 Data Sheet 1169
Surge Protection Made Simple™for IEC Applications
IEC Class II Surge Arresters for 230/400 Volt, 4-Pole TNS & TT Systems
BSPM4275TNS(R)
Shown with optional
remote contact
signaling
BSPH4275TT(R)
BSPH4320TT(R)
BSPH4385TT(R)
Shown with optional
remote contact
signaling
Shown with optional remote contact signaling
Circuit DiagramsDimensions - mm
Remote Signal
Contact Available
Visual Status Indication
BSPM4275TNS(R)
BSPH4275TT(R)
BSPH4320TT(R)
BSPH4385TT(R)
Description
The Cooper Bussmann®IEC Class II 230/400 volt, four-pole, modular surge
arresters feature local,
easy
ID™ visual indication and optional remote contact
signaling. The unique module locking system fixes the protection module to
the base part. Modules can be easily replaced without tools by simply
depressing the release buttons. Integrated mechanical coding between the
base and protection module ensures against installing an incorrect
replacement module.
These 230 Volt models are offered with MCOV ratings of 275, 320 or 385
volts.
TNS System Arrester
The features of these four-pole devices are for use in TNS 230/400 volt
systems (“4-0” circuit) against surges.
TT System Arrester
The features of these four-pole devices are for use in TT and TN-S 230/400
volt systems (“3+1” circuit) against surges.
Remote Signaling Contact
The three-pole terminal remote signaling contact versions have a floating
changeover contact for use as a break or make contact, according to circuit
concept.
MOV
Thermal Disconnector
Gas Discharge Tube (single)
0611 BU-SB11587 Page 2 of 2 Data Sheet 1169
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
O
RDERINGINFORMATION
System Voltage/Poles 230V/4 230V/4 230V/4 230V/4
Max. continuous operating AC voltage (MCOV) [UC] 275V- -- -- Max. continuous operating AC voltage (MCOV) [L-N] [UC] - - 275V 320V 385V
Max. continuous operating AC voltage [N-PE] [UC] - - 255V 255V 255V
Catalog Numbers: Without Remote Signaling BSPM4275TNS BSPH4275TT BSPH4320TT BSPH4385TT
With Remote Signaling BSPM4275TNSR BSPH4275TTR BSPH4320TTR BSPH4385TTR
Replacement Modules: MOV technology BPM275IEC BPM275IEC BPM320IEC BPM385IEC
Spark Gap technology - - BPSNPEIEC* BPSNPEIEC* BPSNPEIEC*
S
PECIFICATIONS
Lightning impulse current (10/350 µs) [N-PE] [I
imp
] - - 12kA 12kA 12kA
Voltage protection level [UP]<_ 1.25kV - - - - - Voltage protection level at 5kA [UP]<_ 1kV - - - - - Voltage protection level [L-N] [UP]- -<_ 1.25kV <_ 1.5kV <_ 1.75kV
Voltage protection level [L-N] at 5kA [UP]- -<_ 1kV <_ 1.2kV <_ 1.35kV
Voltage protection level [N-PE] [UP]- -<_ 1.5kV <_ 1.5kV <_ 1.5kV
Follow current extinguishing capability [N-PE] [Ifi] - - 100A
rms
100A
rms
100A
rms
Response time [tA]<_ 25 ns - - - - - Response time [L-N] [tA]- -<_ 25 ns <_ 25 ns <_ 25 ns
Response time [N-PE] [tA]- -<_ 100 ns <_ 100 ns <_ 100 ns
Temporary overvoltage (TOV) [UT] 335V/5 sec. - - - - - Temporary overvoltage (TOV) [L-N] [UT] - - 335V/5 sec. 335V/5 sec. 385V/5 sec.
Temporary overvoltage (TOV) [N-PE] [UT] - - 1200V/200 ms 1200V/200 ms 1200V/200 ms
Short-circuit withstand capability for max.
50kA
rms
50kA
rms
25kA
rms
25kA
rms
mains-side overcurrent protection
SPD according to EN 61643-11 Type 2
SPD according to IEC 61643-1 Class II
Nominal AC voltage [UN] 230/400V
Nominal discharge current (8/20 µs) [In] 20kA
Max. discharge current (8/20 µs) [I
max
] 40kA
Max. mains-side overcurrent protection 125A gL/gG
TOV characteristics withstand
Operating temperature range [TU] -40°C to +80°C
Operating state/fault indication green (good)/red (replace)
Number of ports 1
Cross-sectional area (min.) 1.5mm2/14AWG solid/flexible
Cross-sectional area (max.) 35mm2/2AWG stranded-25mm2/4AWG flexible
Mounting 35mm DIN rail per EN 60715
Enclosure material Thermoplastic, UL 94V0
Location category Indoor
Degree of protection IP20
Capacity 4 mods., DIN 43880
Standards Information KEMA
Product Warranty Five Years**
R
EMOTECONTACTSIGNALING
Remote Contact Signaling Type Changeover Contact
AC Switching Capacity (Volts/Amps) 250V/0.1A
DC Switching Capacity (Volts/Amps) 250V/0.1A; 125V/0.2A; 75V/0.5A
Conductor Ratings and Cross-Sectional Area for Remote Contact Signal Terminals 60/75°C Max. 1.5mm2/14AWG Solid/Flexible
Ordering Information Order from Catalog Numbers Above
* N-PE Surge arrester module for location between neutral conductor and protective conductor in TT systems.
** See Cooper Bussmann SPD Limited Warranty Statement (3A1502) for details at www.cooperbussmann.com/surge.
Recommended Cooper Bussmann Back Up Fuses
DIN Fuse Size NH Fuse Part Number
00 125NHG00B
0 125NHG0B
01 125NHG01B
02 125NHG02B
