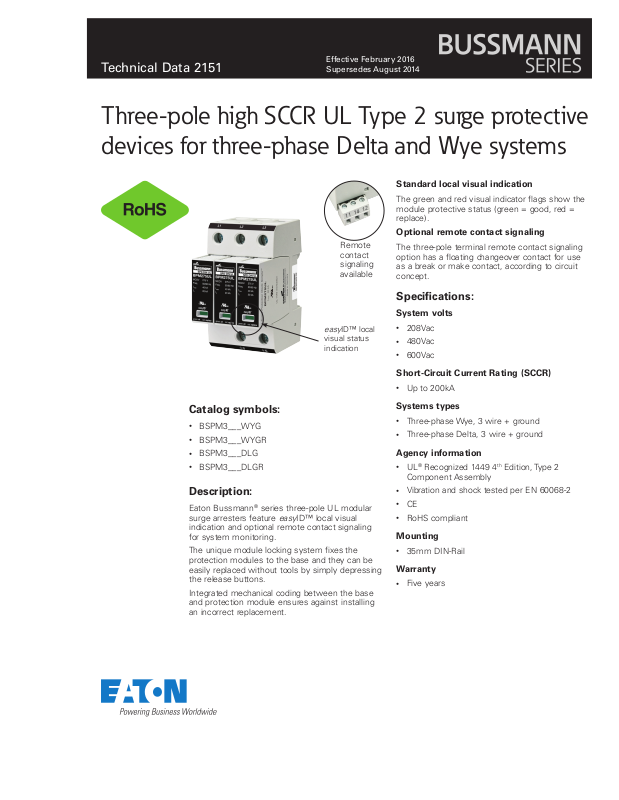

Technical Data 2151
Effective February 2016
Supersedes August 2014
Three-pole high SCCR UL Type 2 surge protective
devices for three-phase Delta and Wye systems
Standard local visual indication
The green and red visual indicator flags show the
module protective status (green = good, red =
replace).
Optional remote contact signaling
Remote
contact
signaling
available
easy
ID™ local
visual status
indication
The three-pole terminal remote contact signaling
option has a floating changeover contact for use
as a break or make contact, according to circuit
concept.
Specifications:
System volts
•
208Vac
•
480Vac
•
600Vac
Catalog symbols:
•
BSPM3___WYG
•
BSPM3___WYGR
•
BSPM3___DLG
•
BSPM3___DLGR
Description:
Eaton Bussmann® series three-pole UL modular
surge arresters feature easyID™ local visual
indication and optional remote contact signaling
for system monitoring.
The unique module locking system fixes the
protection modules to the base and they can be
easily replaced without tools by simply depressing
the release buttons.
Integrated mechanical coding between the base
and protection module ensures against installing
an incorrect replacement.
Short-Circuit Current Rating (SCCR)
•
Up to 200kA
Systems types
•
Three-phase Wye, 3 wire + ground
•
Three-phase Delta, 3 wire + ground
Agency information
•
UL® Recognized 1449 4th Edition, Type 2
Component Assembly
•
Vibration and shock tested per EN 60068-2
•
CE
•
RoHS compliant
Mounting
•
35mm DIN-Rail
Warranty
•
Five years
Technical Data 2151
L1
L1
L1
Effective February 2016
Three-pole high SCCR UL Type 2 surge protective devices
for three-phase Delta and Wye systems
Dimensions - mm:
Shown with optional remote contact signaling.
Module circuit diagrams:
Shown with optional remote contact signaling
L1 L2 L3
12
11
14
Gnd
BSPM3208WYG
BSPM3480WYG
BSPM3600WYG
BSPM3240DLG
BSPM3480DLG
Gnd
MOV
12
11
14
Optional remote
contact signal
Thermal
disconnector
Typical installation/system application:
L2
L3
208, 480, 600Vac
Wye 3-phase, 3 wire + ground
BSPM3208WYG, BSPM3480WYG,
BSPM3600WYG
2
Eaton.com/bussmannseries
L2
L3
208V, 480V, 600Vac
Wye 3-phase, 3 wire + ground
BSPM3208WYG, BSPM3480WYG,
BSPM3600WYG
L2
L3
240, 480Vac
Delta 3-phase, 3 wire + ground
BSPM3240DLG, BSPM3480DLG
Three-pole high SCCR UL Type 2 surge protective devices
for three-phase Delta and Wye systems
Technical Data 2151
Effective February 2016
Ordering information:
Nominal system voltage 120/208Vac 240Vac 277/480Vac 480Vac 347/600Vac
Max. Continuous Operating AC Voltage MCOV
(VC) [L-G/L-L]
Catalog numbers
(base + modules)
W/O remote signaling BSPM3208WYG BSPM3240DLG BSPM3480WYG BSPM3480DLG BSPM3600WYG
W/ remote signaling BSPM3208WYGR BSPM3240DLGR BSPM3480WYGR BSPM3480DLGR BSPM3600WYGR
Replacement module MOV technology BPM275UL BPM275UL BPM385UL BPM600UL BPM600UL
Specifications
Rated voltage
Voltage Protection Rating VPR [L-G/L-L] 1kV/1.8kV 1kV/1.8kV 1.5kV/2.5kV 2kV/4kV 2kV/4kV
SCCR 200kA 200kA 200kA 125kA 125kA
Nom. I
Discharge current
Response time t
A
Max. I
n
max
Frequency 50/60Hz
Number of poles 3
Number of wires/connection points 3 wires / 4 connection points
Operating state/fault indication Green (good) / Red (replace)
Cross-sectional area
Min.. 14AWG - Cu stranded, solid or fine
Max.. 2AWG - Cu solid or stranded, 4AWG - Cu fine
Terminal torque 45 lb-in (5.1N•m)
Mounting 35mm DIN-rail per EN 60715
Enclosure material Thermoplastic, UL 94V0
Protection IP20 (finger-safe)
Location Indoor
Capacity 3 Mods, DIN 43880
Application, standard UL Type 2 Component Assembly, UL 1449, 4
Agency information cURus, RoHS Compliant
Warranty Five years*
Remote contact signaling
Signaling type Changeover contact
Switching capacity
(volts/amps)
AC 250V/0.5A
DC 250V/0.1A; 125V/0.2A; 75V/0.5A
Conductor and cross-sectional area 60/75°C Max. 1.5mm
Ordering information Order from catalog numbers above
* See Eaton Bussmann SPD Limited Warranty Statement (3A1502) for details at www.cooperbussmann.com/surge.
275/550Vac 275/550Vac 385/770Vac 600/1200Vac 600/1200Vac
120-127Vac,
208-220Vac
240Vac 277/480Vac 480Vac 347/600Vac
20kA
40kA
≤25 ns
th
Edition
2
/14AWG solid/flexible
Eaton.com/bussmannseries
3
