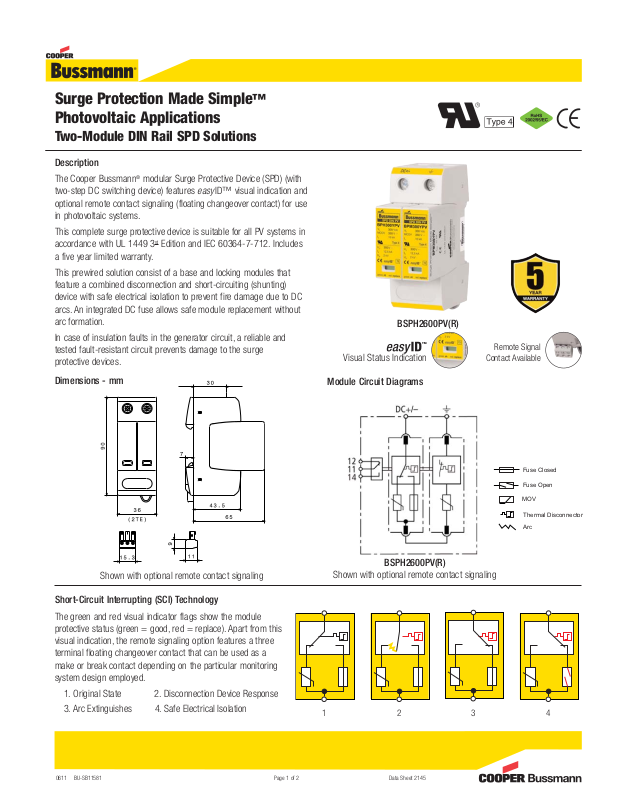

Bussmann BSPH2600PV Data Sheet

Surge Protection Made Simple

™

Photovoltaic Applications

Two-Module DIN Rail SPD Solutions

0611 BU-SB11581 Page 1 of 2 Data Sheet 2145

Description

The Cooper Bussmann®modular Surge Protective Device (SPD) (with
two-step DC switching device) features

easy

ID™ visual indication and
optional remote contact signaling (floating changeover contact) for use
in photovoltaic systems.

This complete surge protective device is suitable for all PV systems in
accordance with UL 1449 3rdEdition and IEC 60364-7-712. Includes
a five year limited warranty.

This prewired solution consist of a base and locking modules that
feature a combined disconnection and short-circuiting (shunting)
device with safe electrical isolation to prevent fire damage due to DC
arcs. An integrated DC fuse allows safe module replacement without
arc formation.

In case of insulation faults in the generator circuit, a reliable and
tested fault-resistant circuit prevents damage to the surge
protective devices.

Module Circuit Diagrams

Dimensions - mm

BSPH2600PV(R)

Shown with optional remote contact signaling

BSPH2600PV(R)

Shown with optional remote contact signaling

Remote Signal

Contact Available

Visual Status Indication

Short-Circuit Interrupting (SCI) Technology

The green and red visual indicator flags show the module
protective status (green = good, red = replace). Apart from this
visual indication, the remote signaling option features a three
terminal floating changeover contact that can be used as a
make or break contact depending on the particular monitoring
system design employed.

1. Original State 2. Disconnection Device Response

3. Arc Extinguishes 4. Safe Electrical Isolation

1234

Fuse Closed

Fuse Open

MOV

Thermal Disconnector

Arc

0611 BU-SB11581 Page 2 of 2 Data Sheet 2145

The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled.This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information
contained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.

Ordering Information

Nominal PV System Voltage 600Vdc
Catalog Numbers: Without Remote Signaling BSPH2600PV
(Base + Modules) With Remote Signaling BSPH2600PVR
Replacement Modules: Left BPH300YPV

Right BPM300YPV

Specifications

Conformity with prEN 50539-11 Yes
SPD Classification per EN 61643-11 Type 2
SPD Classification per IEC 61643-1 Class II
Max. PV voltage [U

CPV

] _< 600V

Short-circuit withstand capacity [I

SCWPV

] 1000A

MCOV [U

CPV

] 700Vdc
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] [In] 12.5kA
Max. Discharge current (8/20 µs) [(DC+/DC-) --> PE] [I

max

] 25kA
Voltage protection level [UP]_< 2.5kV
Voltage protection level at 5kA [UP]_< 2kV
Response time [tA] _< 25 ns
Operating temperature range [TU] -40°C to +80°C
Operating state/fault indication Green (good) / Red (replace)
Number of ports 1
Cross-sectional area (min.) 60/75°C 1.5mm2/14AWG Solid/Flexible
Cross-sectional area (max.) 60/75°C 35mm2/2AWG Stranded/25mm2/4AWG Flexible
For mounting on 35 mm DIN rail per EN 60715
Enclosure material Thermoplastic, UL 94V0
Place of installation Indoor
Degree of protection IP20
Capacity 2 Modules, DIN 43880
Standards Information UL
Product Warranty Five Years*

Remote Contact Signaling

Remote Contact Signaling Type Changeover Contact
AC Switching Capacity (Volts/Amps) 250V/0.1A
DC Switching Capacity (Volts/Amps) 250V/0.1A; 125V/0.2A; 75V/0.5A
Conductor Ratings and Cross-Sectional Area for Remote Contact Signal Terminals 60/75°C Max. 1.5mm2/14AWG Solid/Flexible
Ordering Information Order from Catalog Numbers Above

Typical Application Schematics

* See Cooper Bussmann SPD Limited Warranty Statement (3A1502) for details at www.cooperbussmann.com/surge.

positive pole (+) earthed

L+

PV-module

generator

L-

negative pole (-) earthed

L+

PV-module

generator

L-

BSPH2600PV(R)

BSPH2600PV(R)

DC-switch

DC-switch inverter

BSPH2600PV(R)

BSPH2600PV(R)

inverter

DC

DC

AC

AC
