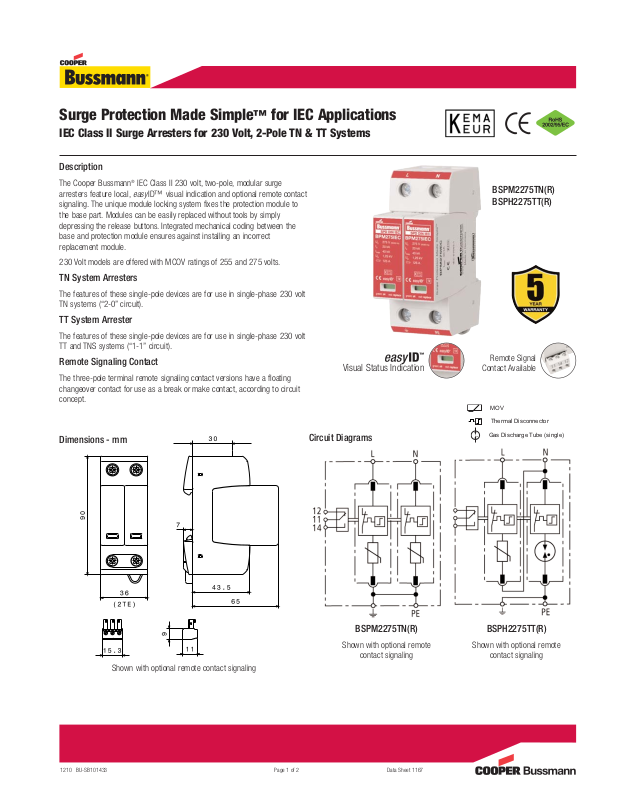

Bussmann BSPH2275TT, BSPM2275TN Data Sheet
1210 BU-SB101433 Page 1 of 2 Data Sheet 1167
Description
The Cooper Bussmann®IEC Class II 230 volt, two-pole, modular surge
arresters feature local,
easy
ID™ visual indication and optional remote contact
signaling. The unique module locking system fixes the protection module to
the base part. Modules can be easily replaced without tools by simply
depressing the release buttons. Integrated mechanical coding between the
base and protection module ensures against installing an incorrect
replacement module.
230 Volt models are offered with MCOV ratings of 255 and 275 volts.
TN System Arresters
The features of these single-pole devices are for use in single-phase 230 volt
TN systems (“2-0” circuit).
TT System Arrester
The features of these single-pole devices are for use in single-phase 230 volt
TT and TNS systems (“1-1” circuit).
Remote Signaling Contact
The three-pole terminal remote signaling contact versions have a floating
changeover contact for use as a break or make contact, according to circuit
concept.
Surge Protection Made Simple™for IEC Applications
IEC Class II Surge Arresters for 230 Volt, 2-Pole TN & TT Systems
Shown with optional remote contact signaling
Circuit Diagrams
Dimensions - mm
BSPM2275TN(R)
Shown with optional remote
contact signaling
BSPH2275TT(R)
Shown with optional remote
contact signaling
Remote Signal
Contact Available
Visual Status Indication
BSPM2275TN(R)
BSPH2275TT(R)
MOV
Thermal Disconnector
Gas Discharge Tube (single)
1210 BU-SB101433 Page 2 of 2 Data Sheet 1167
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Ordering Information
System Voltage/Poles 230V/2 230V/2
Max. continuous operating AC voltage (MCOV) [UC]275V- Max. Continuous operating AC voltage (MCOV) [L-N] [UC]- -275V
Max. Continuous operating AC voltage (MCOV) [N-PE] [UC]- -255V
Catalog Numbers: Without Remote Signaling BSPM2275TN BSPH2275TT
With Remote Signaling BSPM2275TNR BSPH2275TTR
Replacement Modules: MOV Technology BPM275IEC BPM275IEC
Spark Gap technology - - BPSNPEIEC*
Specifications
Lightning impulse current (10/350 µs) [N-PE] [I
imp
] - - 12kA
Voltage protection level [UP]<_ 1.25kV - Voltage protection level at 5kA [UP]<_ 1kV - Voltage protection level [L-N] [UP]- -<_ 1.25kV
Voltage protection level [L-N] at 5kA [UP]- -<_ 1kV
Voltage protection level [N-PE] [UP]- -<_ 1.5kV
Follow current extinguishing capability [N-PE] [Ifi] - - 100A rms
Response time [tA]<_ 25 ns - Response time [L-N] [tA]- -<_ 25 ns
Response time [N-PE] [tA]- -<_ 100 ns
Temporary overvoltage (TOV) [UT] 335V/5 sec. - Temporary overvoltage (TOV) [L-N] [UT] - - 335V/5 sec.
Temporary overvoltage (TOV) [N-PE] [UT] - - 1200V/200 ms
SPD according to EN 61643-11 Type 2
SPD according to IEC 61643-1 Class II
Nominal discharge current (8/20 µs) [In] 20kA
Max. discharge current (8/20 µs) [I
max
] 40kA
Max. mains-side overcurrent protection 125A gL/gG
Short-circuit withstand capability for max. mains-side overcurrent protection 50kA rms
Nominal AC voltage [UN] 230V
TOV characteristics withstand
Operating temperature range [TU] -40°C to +80°C
Operating state/fault indication green (good)/red (replace)
Number of ports 1
Cross-sectional area (min.) 1.5mm2/14AWG solid/flexible
Cross-sectional area (max.) 35mm2/2AWG stranded-25mm2/4AWG flexible
Mounting 35mm DIN rail per EN 60715
Enclosure material Thermoplastic, UL 94V0
Location category Indoor
Degree of protection IP20
Capacity 2 mods., DIN 43880
Standards Information KEMA
Product Warranty Five Years**
Remote Contact Signaling
Remote Contact Signaling Type Changeover Contact
AC Switching Capacity (Volts/Amps) 250V/0.1A
DC Switching Capacity (Volts/Amps) 250V/0.1A; 125V/0.2A; 75V/0.5A
Conductor Ratings and Cross-Sectional Area for Remote Contact Signal Terminals 60/75°C Max. 1.5mm2/14AWG Solid/Flexible
Ordering Information Order from Catalog Numbers Above
* N-PE Surge arrester for location between neutral conductor and protective conductor in TT systems.
** See Cooper Bussmann SPD Limited Warranty Statement (3A1502) for details at www.cooperbussmann.com/surge.
Recommended Cooper Bussmann Back Up Fuses
DIN Fuse Size NH Fuse Part Number
00 125NHG00B
0 125NHG0B
01 125NHG01B
02 125NHG02B
