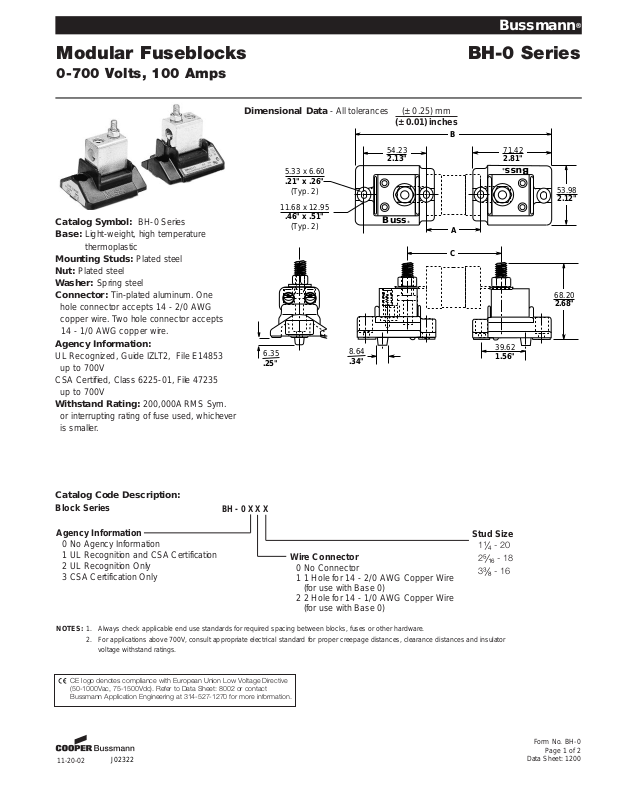

Bussmann BH-0 Series Data Sheet
Block Series
Modular Fuseblocks BH-0 Series
0-700 Volts, 100 Amps
Form No. BH-0
Page 1 of 2
Data Sheet: 1200
Bussmann
®
11-20-02
J02322
Dimensional Data - All tolerances (± 0.25) mm
(± 0.01) inches
5.33 x 6.60
.21" x .26"
(Typ. 2)
11.68 x 12.95
.46" x .51"
(Typ. 2)
6.35
.25"
8.64
.34"
39.62
1.56"
Catalog Symbol: BH-0 Series
Base: Light-weight, high temperature
thermoplastic
Mounting Studs: Plated steel
Nut: Plated steel
Washer: Spring steel
Connector: Tin-plated aluminum. One
hole connector accepts 14 - 2/0 AWG
copper wire. Two hole connector accepts
14 - 1/0 AWG copper wire.
Agency Information:
UL Recognized, Guide IZLT2, File E14853
up to 700V
CSA Certified, Class 6225-01, File 47235
up to 700V
Withstand Rating: 200,000A RMS Sym.
or interrupting rating of fuse used, whichever
is smaller.
BH - 0 X X X
NOTES: 1. Always check applicable end use standards for required spacing between blocks, fuses or other hardware.
2. For applications above 700V, consult appropriate electrical standard for proper creepage distances, clearance distances and insulator
voltage withstand ratings.
Agency Information
0 No Agency Information
1 UL Recognition and CSA Certification
2 UL Recognition Only
3 CSA Certification Only
Wire Connector
0 No Connector
1 1 Hole for 14 - 2/0 AWG Copper Wire
(for use with Base 0)
2 2 Hole for 14 - 1/0 AWG Copper Wire
(for use with Base 0)
Stud Size
1⁄Ω¢ - 20
2fiΩ¡§ - 18
3‹Ω• - 16
Catalog Code Description:
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 314-527-1270 for more information.
B
54.23
2.13"
71.42
2.81"
Buss®
53.98
2.12"
Buss®
A
C
68.20
2.68"
Form No. BH-0
Page 2 of 2
Data Sheet: 1200
Bussmann
®
Modular Fuseblocks BH-0 Series
0-700 Volts, 100 Amps
The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Electrical Characteristics
Fuseblock Stud Fuse Volt Dimensions mm / Inches
Buss Cat. No. Part No. Ref. Rating "A" "B" "C"
FBP 35-60 BH-0111 ⁄Ω¢ 700V 25.41 / 1.482 162.87 / 6.412 71.42 / 2.812
FBP 70-100 BH-0121 ⁄Ω¢ 700V 38.46 / 1.514 163.68 / 6.444 72.24 / 2.844
FWA 70-100 BH-0111 ⁄Ω¢ 150V 18.21 / 0.717 143.43 / 5.647 52.00 / 2.047
FWH 35A-60A BH-0112 fiΩ¡§ 500V 27.74 / 1.092 152.96 / 6.022 61.52 / 2.422
FWH 70A-100A BH-0122 fiΩ¡§ 500V 38.86 / 1.530 164.08 / 6.460 72.64 / 2.860
FWP 35A-60A BH-0112 fiΩ¡§ 700V 57.91 / 2.280 183.13 / 7.210 91.69 / 3.610
FWP 70A-100A BH-0122 fiΩ¡§ 700V 56.72 / 2.233 105.74 / 7.163 90.50 / 3.563
FWX 35A-60A BH-0112 fiΩ¡§ 250V 27.74 / 1.092 152.96 / 6.022 61.52 / 2.422
FWX 70A-100A BH-0112 fiΩ¡§ 250V 24.97 / 0.983 15.19 / 5.913 58.75 / 2.313
JJS 70-100 BH-0111 ⁄Ω¢ 600V 25.96 / 1.022 151.18 / 5.952 59.74 / 2.352
JKS 65-100 BH-0111 ⁄Ω¢ 600V 53.17 / 2.290 183.39 / 7.220 91.95 / 3.620
KAB 35-60 BH-0112 fiΩ¡§ 250V 28.12 / 1.107 153.34 / 6.037 61.90 / 2.437
KAB 70-100 BH-0112 fiΩ¡§ 250V 26.54 / 1.045 151.77 / 5.975 60.33 / 2.375
KAC 35-60 BH-0112 fiΩ¡§ 600V 58.29 / 2.295 183.52 / 7.225 92.08 / 3.625
KAC 70-100 BH-0113 ‹Ω• 600V 64.34 / 2.530 189.48 / 7.460 98.04 / 3.860
KAX 35-60 BH-0112 fiΩ¡§ 250V 28.12 / 1.107 153.34 / 6.037 61.90 / 2.437
KAX 70-100 BH-0112 fiΩ¡§ 250V 26.54 / 1.045 151.77 / 5.975 60.33 / 2.375
KBC 35-60 BH-0112 fiΩ¡§ 600V 58.29 / 2.295 183.52 / 7.225 92.08 / 3.625
KBC 70-100 BH-0121 ⁄Ω¢ 600V 59.08 / 2.326 184.30 / 7.256 92.86 / 3.656
KBH 35-60 BH-0112 fiΩ¡§ 500V 28.12 / 1.107 153.34 / 6.037 61.90 / 2.437
KBH 65-100 BH-0121 ⁄Ω¢ 500V 39.24 / 1.545 164.47 / 6.475 73.03 / 2.875
KBP 35-100 BH-0111 ⁄Ω¢ 700V 58.29 / 2.295 183.52 / 7.225 92.08 / 3.625
LPJ 65-100 BH-0111 ⁄Ω¢ 600V 58.17 / 2.290 183.39 / 7.220 91.95 / 3.620
170M0108 thru 170M0167 BH-0112 ⁄Ω¢ 660V 44.20 / 1.74 169.42 / 6.67 77.98 / 3.070
170M0208 thru 170M0267 BH-0111 ⁄Ω¢ 660V 31.24 / 1.23 156.46 / 6.16 65.02 / 2.560
