Data Federator Installation Guide
Data Federator Installation Guide
Contents
Installing Data Federator 7Chapter 1
Overview................................................................................................8
Installation requirements........................................................................9
Hardware Requirements...................................................................9
Software Requirements....................................................................9
Before You Install Data Federator...................................................10
No spaces in paths on AIX or Solaris........................................10
Administrator rights....................................................................10
Starting the installer in graphical mode................................................10
Starting the installer in console mode..................................................11
What happens during installation.........................................................12
Description of install sets......................................................................15
Running the installer in silent mode.....................................................18
Creating a configuration file for silent mode installation.......................20
Uninstalling Data Federator..................................................................20
Accessing data sources through JDBC................................................22
Installing drivers for JDBC connections..........................................22
List of drivers for JDBC connections...............................................23
Pointing a resource to an existing JDBC driver..............................24
Accessing Progress data sources........................................................25
Installing middleware for Progress connections.............................25
Installing OEM SequeLink Server for Progress connections..........27
Installing Connection Dispatcher..........................................................27
Installing Connection Dispatcher on Windows as a service...........28
Starting Data Federator 29Chapter 2
Starting Data Federator servers on Windows......................................30
Data Federator Installation Guide 3
Contents
Starting servers when Data Federator Windows Services are
installed...........................................................................................30
Starting servers when Data Federator Windows Services are not
installed...........................................................................................31
Starting Data Federator servers on AIX or Solaris...............................31
Starting servers manually...............................................................32
Shutting down Data Federator servers on Windows............................32
Shutting down servers when Data Federator Windows Services are
installed...........................................................................................32
Shutting down servers when Data Federator Windows Services are
not installed.....................................................................................33
Shutting down Data Federator servers on AIX or Solaris....................34
Shutting down servers manually.....................................................34
Login and passwords...........................................................................35
Ports used by Data Federator..............................................................35
Using Connection Dispatcher...............................................................36
Starting Connection Dispatcher when Data Federator Windows
Services are installed......................................................................36
Starting Connection Dispatcher when Data Federator Windows
Services are not installed................................................................37
Starting Connection Dispatcher on AIX or Solaris..........................37
Shutting down Connection Dispatcher when Data Federator Windows
Services are installed......................................................................37
Shutting down Connection Dispatcher when Data Federator Windows
Services are not installed................................................................38
Shutting down Connection Dispatcher on AIX or Solaris................39
Backing up and restoring data 41Chapter 3
Starting the Data Federator Backup and Restore tool.........................42
Starting the Backup and Restore tool.............................................42
Backing up your Data Federator data..................................................44
Restoring your Data Federator data.....................................................45
Updating licenses 47Chapter 4
4 Data Federator Installation Guide
Contents
Updating your license...........................................................................48
Data Federator Installation Guide 5
Contents
6 Data Federator Installation Guide
Installing Data Federator
1
Installing Data Federator
1
Overview
Installing Data Federator
The Data Federator installer is accessible from the web page on the Data
Federator CD. You can run the Data Federator installer in either graphical
mode or console mode.
Use the console mode if your AIX or Solaris environment lacks the graphic
libraries to launch the installer in graphical mode. Console mode follows the
same steps as graphical mode.
Overview
This document presents the hardware and software requirements, and
installation instructions for BusinessObjects Data Federator.
You should consult this document and the release notes
xir2_acc_df_releasenotes_en.pdf file on the installation CD before you install
Data Federator.
Once you have installed and started Data Federator, you can find the Data
Federator User Guide PDF as follows.
• On Windows, click Start ➤ Programs ➤ BusinessObjects Data
Federator XI Release 2 ➤ Data Federator Documentation
Or:
Look in the directory data-federator-install-dir\doc.
• On AIX or Solaris, look in the directory data-federator-links-
dir/Data_Federator_Documentation, where data-federator-links-dir is
the links folder that you chose for Data Federator.
Or:
Look in the directory data-federator-install-dir/doc.
8 Data Federator Installation Guide
Installation requirements
Hardware Requirements
To use Data Federator, you need:
• any IBM®-compatible machine with a Pentium III 500 MHZ processor or
higher
• at least 512 MB of RAM for the client
• at least 2 GB of RAM for the server
• a hard disk
• a CD-ROM drive
Software Requirements
The following software is required on your system:
Installing Data Federator
Installation requirements
1
• One of the following operating systems:
• Microsoft®Windows®:
• Microsoft Windows XP Service Pack 2
• Windows 2003 Server
• Windows 2000 Server
• IBM AIX
• Sun®Solaris
• For Data Federator Designer:
• Microsoft IE6 or IE7 browser
®
®
Data Federator Installation Guide 9
Installing Data Federator
1
Starting the installer in graphical mode
Note:
Data Federator Designer is not supported on IE plugins that are running
in other applications.
For Data Federator Administrator:
• Microsoft IE6 or IE7 browser or Mozilla®Firefox
Before You Install Data Federator
Read the following issues before you install Data Federator.
No spaces in paths on AIX or Solaris
On AIX and Solaris, your Data Federator installation and Data Federator
links paths must not contain any spaces. If you change the default installation
path or default links path on AIX or Solaris, make sure that you do not use
any spaces.
Administrator rights
On Windows, you must be defined as Administrator to install the Data
Federator servers as Windows services.
Starting the installer in graphical mode
1. Insert the install CD into the drive.
2. Browse to the CD root and double click the file Install.htm.
®
The install start page appears.
3. Click the View link beside your listed OS to read important installation
information before you install.
10 Data Federator Installation Guide
Installing Data Federator
Starting the installer in console mode
4. Once you have read the installation information, click the Download link
for your OS to start the Data Federator installation wizard.
A File Download box appears.
5. Click Open.

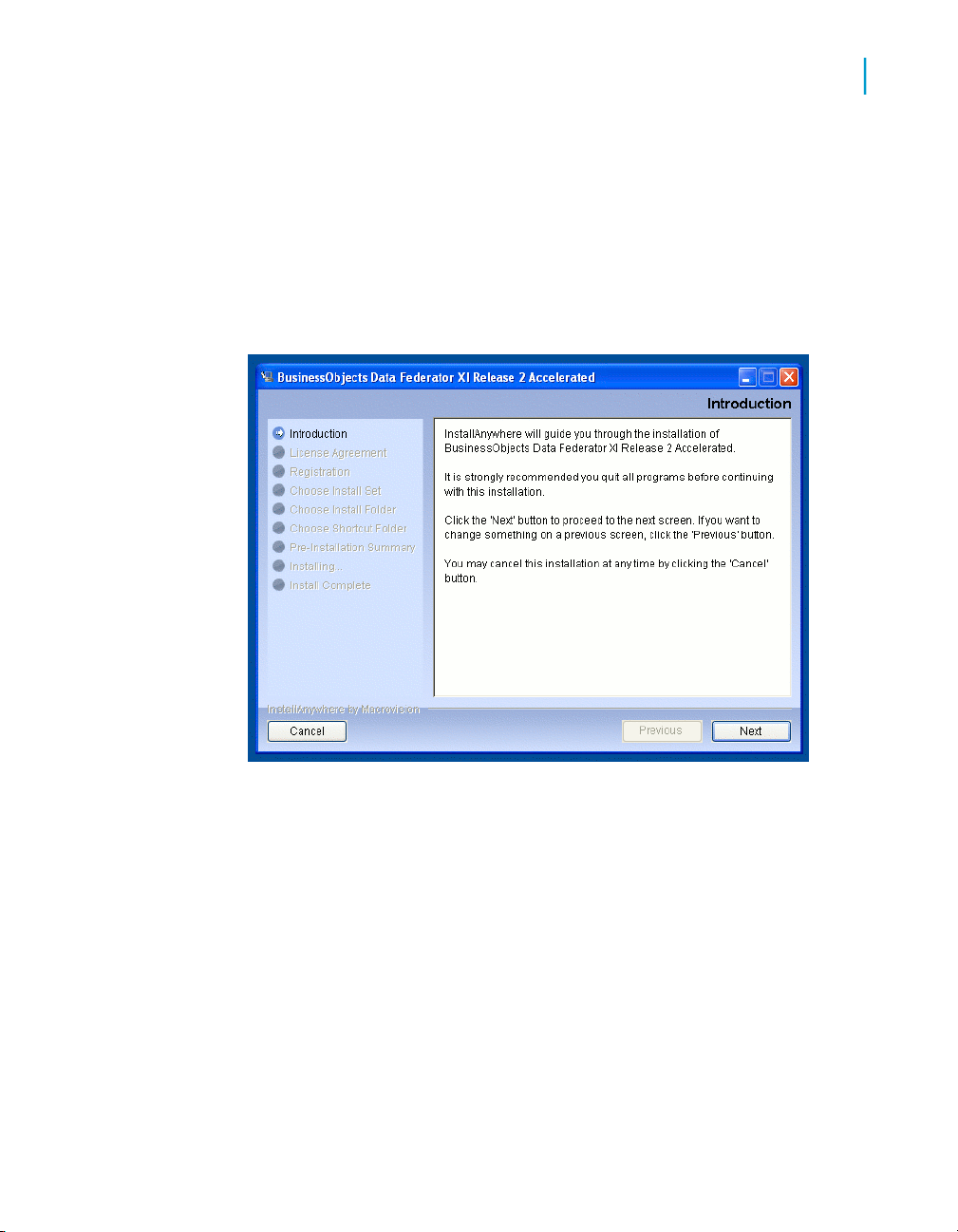

The install wizard Introduction window appears.
1
Follow the instructions on-screen to complete the installation. For details,
see What happens during installation on page 12.
Starting the installer in console mode
You can use the Data Federator installer in console mode if your AIX or
Solaris environment lacks the graphic libraries to launch the installer in
graphical mode.
Data Federator Installation Guide 11
Installing Data Federator
1
What happens during installation
1. You can launch the installer in console mode with one of the following
commands, from the root directory of the installation CD.
Table 1-1: Starting the Data Federator installer in console mode
on Solarison AIX
sh InstData/AIX/VM/in
stall.bin -i console
The install wizard Introduction message appears in a console.
Follow the instructions on-screen to complete the installation. For details,
see What happens during installation on page 12.
sh InstData/Solaris/VM/in
stall.bin -i console
What happens during installation
This section lists the windows and choices that appear when you use the
Data Federator installer.
The installation procedure is the same on Windows, AIX and Solaris.
For details on starting the installer, see Starting the installer in graphical
mode on page 10 or Starting the installer in console mode on page 11.
1. The Data Federator installer starts with the Introduction window.
2. The License Agreement window displays the license text and asks you
to confirm the terms of the License Agreement if you want to continue
the installation.
3. The Registration window lets you enter your license key.

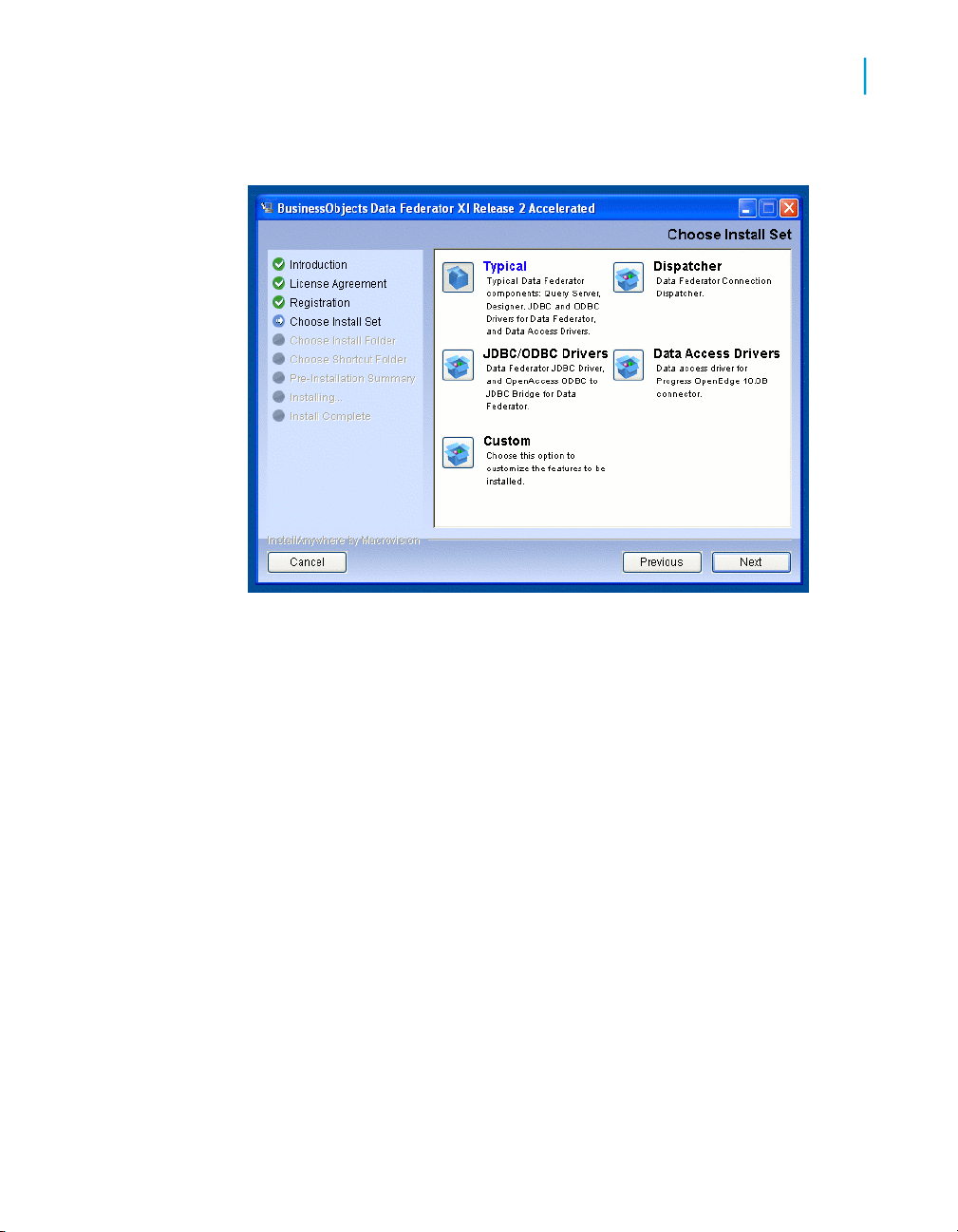

4. The Choose Install Set window lets you choose the set of components
that you want to install.
12 Data Federator Installation Guide
Installing Data Federator
What happens during installation
1
You can choose to install Data Federator as a Typical or Custom
installation, or you can install only the Connection Dispatcher, only the
Data Federator JDBC and ODBC drivers or only the data access driver
for Progress OpenEdge 10.0B.
For details, see Description of install sets on page 15
5.
If you chose the Custom install set, the Choose Install Set window lets
you select the components that you want to install.
Select check boxes for components that you want to install. Clear check
boxes for components that you do not want to install.
6. The Choose Install Folder window lets you choose an installation
directory.
Type in a file path, or click Choose to browse to the installation directory.
Data Federator Installation Guide 13
Installing Data Federator
1
What happens during installation
On AIX and Solaris, your Data Federator installation path must not contain
any spaces. If you change the default installation path on AIX or Solaris,
make sure that you do not use any spaces.
7. The Choose Shortcut Folder window lists options for the placement of
icons and shortcuts.
Choose a location for shortcuts. If required, type or browse to a directory
to put the shortcut icons.
On AIX and Solaris, the path to your Data Federator shortcuts must not
contain any spaces. The shortcuts are stores in the links directory. If
you change the default links path on AIX or Solaris, make sure that you
do not use any spaces.
8. The Pre-Installation Summary window lets you review your install options
and launch the installation.
9. The Installing BusinessObjects Data Federator XI Release 2
Accelerated window displays the installation progress.
10. The Install Complete window indicates the installation status.
11. Click Done.
The installation creates an install log at data-federator-install-
dir/install.log
The installer creates a silent mode installation response file, which you
can use to re-run the same installation in silent mode. This file is located
at data-federator-install-dir/install/silent/in
stall.silent.properties. For details on silent mode, see Running the
installer in silent mode on page 18.
14 Data Federator Installation Guide
Description of install sets
Typical
Installing Data Federator
Description of install sets
DescriptionInstall type
The following Data Federator
components are installed:
•
Data Federator Query Server
•
Data Federator Designer
•
Data Federator Windows Services
On Windows, Data Federator
Query Server and Data Federator
Designer are installed as
Windows services.
•
Data Federator JDBC and ODBC
Drivers
1
• Data Access Drivers
Note:
You must be logged in with an
administrator account to install
Windows services.
Data Federator Installation Guide 15
Installing Data Federator
1
Description of install sets
Dispatcher
JDBC/ODBC Drivers
DescriptionInstall type
Data Federator Connection Dispatcher
is installed.
On Windows, this component is
installed as a Windows service.
Use this option if you already have
multiple installations of Query Server
on different machines and you want to
install Connection Dispatcher to
dispatch connections between them.
For details, see the User Guide.
Note:
You must be logged in with an
administrator account to install
Windows services.
Only the Data Federator JDBC and
ODBC drivers are installed.
Select this option if you already have
Data Federator Query Server on a
different machine and you want to
access it from a client machine through
JDBC or ODBC drivers.
Install the Data Federator JDBC and
ODBC drivers on the client machine.
Data Access Drivers
16 Data Federator Installation Guide
Note: Data Federator Query Server
can also be accessed remotely using
the web interface (Data Federator
Administrator) without requiring any
client installation.
Only the data access driver for
Progress OpenEdge 10.0B is installed.
Custom
Installing Data Federator
Description of install sets
DescriptionInstall type
You can choose which Data Federator
components are installed. You can
install the following components:
•
Data Federator Query Server
•
Data Federator Designer
•
Data Federator Connection
Dispatcher
•
Data Federator Windows Services
On Windows, you can choose to
install Data Federator Query
Server, Data Federator Designer
or Data Federator Connection
Dispatcher as Windows services
by selecting the Data Federator
Windows Services component.
1
•
Data Federator JDBC and ODBC
Drivers
•
Data Access Drivers
When you click on each component's
option, a description appears in the
Description box.
Note:
You must be logged in with an
administrator account to install
Windows services.
Data Federator Installation Guide 17
Installing Data Federator
1
Running the installer in silent mode
Running the installer in silent mode
You can run the Data Federator installer in silent mode if you want to repeat
a previous installation with the same configuration.
You can create a configuration file for silent mode installation by using the
provided template file, or by simply running a graphical or console installation
first. The graphical and console installations automatically create a
configuration file that lets you repeat the same installation on another
machine.
1. Insert the install CD into the drive.
2. Create a configuration file for the silent mode installation.
• If you have not previously completed an installation, create a new
configuration file for the silent mode installation.
For details, see Creating a configuration file for silent mode installation
on page 20.
• If you have previously completed an installation using graphical mode
or console mode, copy the configuration file that the installer created.
This file contains the settings that you chose during the previous
installation. You can use this file to re-run the same installation on a
different machine.
This file is located at data-federator-install-dir/in
stall/silent/install.silent.properties.
Copy this file to a new location, your-silent-mode-installation-
configuration-file
3. Run the silent mode installation from a command line, using the -f option
to point to your configuration file.
18 Data Federator Installation Guide
Installing Data Federator
Running the installer in silent mode
If you are installing on Windows, type the following in a command line.
•
CD-drive-letter:\InstData\Windows\VM\install.exe -f "yoursilent-mode-installation-configuration-file"
For example:
D:\InstData\Windows\VM\install.exe -f "C:\My Documents\Pre
vious Installations\Data Federator\install.silent.proper
ties"
• If you are installing on AIX, type the following in a command line.
sh CD-drive-mount/InstData/AIX/VM/install.bin -f "yoursilent-mode-installation-configuration-file"
For example:
sh /mnt/cd/InstData/AIX/VM/install.bin -f
"/home/jill/previous_installations/data_federator/in
stall.silent.properties"
• If you are installing on Solaris, type the following in a command line.
1
sh CD-drive-mount/InstData/Solaris/VM/install.bin -f
"your-silent-mode-installation-configuration-file"
For example:
sh /mnt/cd/InstData/Solaris/VM/install.bin -f
"/home/anil/previous_installations/data_federator/in
stall.silent.properties"
The silent mode installation installs Data Federator according to the properties
you set in the configuration file.
Attention:
Note the following items when you install in silent mode.
• After you install Data Federator in silent mode, you should check if you
need to restart your machine. Open the file data-federator-install-
dir/install/install.properties; if the property RESTART_NEED
ED=yes, then you should reboot.
Data Federator Installation Guide 19
Installing Data Federator
1
Creating a configuration file for silent mode installation
• If you install Data Federator in silent mode, the uninstaller also runs in
silent mode.
• On Windows, if you install in silent mode, and then uninstall, you should
reboot the machine after uninstallation.
• If you try to run the silent mode installation when there is an existing
installation on your system, the silent mode installation will abort. You will
know that the installation aborted if the install.log file appears on your
Desktop on Windows, or in your home directory on AIX or Solaris.
Creating a configuration file for silent mode
installation
Create a configuration file for the installer by copying and editing the template
file.
1. Copy the file data-federator-cd-dir/InstData/silent_install/in
stall.silent.template.properties to a new location, your-silent-
mode-installation-configuration-file
2. Edit your-silent-mode-installation-configuration-file and
complete the missing properties, as documented inside the file.
Uninstalling Data Federator
1. Start the Data Federator uninstallation.
• On Windows, click Start ➤ BusinessObjects Data Federator XI
Release 2 ➤ Uninstall.
•
On AIX, run Uninstall_Data_Federator from the links directory that
you chose for Data Federator.
Or, if you did not create a links directory, run the following command.
sh data-federator-install-dir/Uninstall_Data_Federa
tor/Uninstall
20 Data Federator Installation Guide
Installing Data Federator
Uninstalling Data Federator
•
On Solaris, run Uninstall_Data_Federator from the links directory that
you chose for Data Federator.
Or, if you did not create a links directory, run the following command.
sh data-federator-install-dir/Uninstall_Data_Federa
tor/Uninstall
The Uninstall BusinessObjects Data Federator XI Release 2 window
appears.
1
Click Complete Uninstall to uninstall all components.
Or
Click Uninstall Specific Features to choose which installed components
you want to remove.
2. Choose an uninstall type and click Next.
Data Federator Installation Guide 21
Installing Data Federator
1
Accessing data sources through JDBC
3. Click Uninstall.
The uninstall process removes the Data Federator components from your
machine.
4. Click Done at the end of the uninstallation.
The uninstallation removes Data Federator components from your system.
Attention:
If you are asked to reboot after uninstalling, you should reboot before
reinstalling a new version.
On Windows, if you ran the installation in silent mode, then you should always
reboot after uninstalling. The silent mode uninstallation does not warn you
if you need to reboot.
Accessing data sources through JDBC
This section describes how to configure Data Federator so that you can
access JDBC data sources.
Installing drivers for JDBC connections
In order to connect to data-access applications through JDBC, you must
install JDBC drivers for that application. These drivers are usually available
from their vendors' websites.
1. Download the JDBC driver for your data-access application.
For details on where to download drivers for common DBMSs, see List
of drivers for JDBC connections on page 23.
You get a driver in the form of a .jar file or several .jar files.
2. Copy the driver .jar files to data-federator-install-dir/LeSe
lect/drivers
22 Data Federator Installation Guide
This directory is the default directory where Data Federator looks for
JDBC drivers. If you want to put the drivers in a different directory, you
must enter this directory name in the corresponding resource. For details,
see Pointing a resource to an existing JDBC driver on page 24.
When Data Federator starts, it loads your JDBC drivers, and it can access
the corresponding JDBC data source.
List of drivers for JDBC connections
Installing Data Federator
Accessing data sources through JDBC
Where to get itDriver
1
SQL Server 2000
SQL Server 2005
Oracle
MySQL
http://www.microsoft.com/downloads/de
tails.aspx?familyid=07287b11-0502461a-b138-2aa54bfdc03a&display
lang=en
Note:
The recommended driver for SQL Server
2000 is SQL Server JDBC driver SP3 (the
version is 2.2.0040)
http://www.microsoft.com/downloads/de
tails.aspx?familyid=E22BC83B-32FF4474-A44A-22B6AE2C4E17&display
lang=en
http://www.oracle.com/technology/soft
ware/tech/java/sqlj_jdbc/index.html
http://dev.mysql.com/downloads/connec
tor/j/3.1.html
Data Federator Installation Guide 23
Installing Data Federator
1
Accessing data sources through JDBC
Where to get itDriver
DB2
Use the following link to download the
IBM DB2 JDBC Universal Driver. The
product is called IBM Cloudscape.
To complete this download, you must
register on the IBM website. Registration
is free.
http://www14.software.ibm.com/we
bapp/download/
After you install IBM Cloudscape, you can
find the driver file in ibm-cloudscape-
install-directo
ry/lib/db2jcc.jar. The file
db2jcc.jar is the driver you can use
for DB2.
Pointing a resource to an existing JDBC driver
By default, Data Federator looks for JDBC drivers in the directory data-
federator-install-dir/LeSelect/drivers. You can keep the drivers in
a different directory by changing the path in the resource.
1. In Data Federator Administrator, use the Connector Resources tab to
set the driverLocation property to the name of the directory where you
keep your drivers.
You can also use the ALTER RESOURCE statement to set the driverLocation
property.
For example, to set the directory for the oracle9 resource, use the following
statement.
ALTER RESOURCE "jdbc.oracle.oracle9" SET driverLocation
'C:\drivers\ojdbc14.jar'
24 Data Federator Installation Guide
Accessing Progress data sources
This section describes how to configure Data Federator so that you can
access Progress data sources.
Installing middleware for Progress connections
In order to connect to Progress databases, you must install the following:
• Progress OpenEdge 10.OB client
• OEM ODBC driver (Data Federator DataDirect Progress OpenEdge)
• OEM SequeLink Server for ODBC Socket 5.5
You must also configure DSN entries to point to your Progress databases.
1. Install a Progress OpenEdge 10.0B client. See the Progress
documentation for details.
2. Set your environment variables to point to the Progress OpenEdge
installation as follows.
DLC=C:\Progress\OpenEdge
PATH=%PATH%;%DLC%\bin
Installing Data Federator
Accessing Progress data sources
1
3. Run the Data Federator installer and choose an install set that contains
the data access driver for Progress OpenEdge 10.0B.
4. Open your operating system's ODBC Data Source Administrator.
On Windows, you configure DSN entries in the ODBC Data Source
Administrator.
To open the ODBC Data Source Administrator on a standard installation
of Windows, click Start ➤ Programs ➤ Administrative Tools ➤ Data
Sources (ODBC).
5.
Add a DSN entry of the type Data Federator DataDirect Progress
OpenEdge, and configure it as follows.
Data Federator Installation Guide 25
Installing Data Federator
1
Accessing Progress data sources
Data source name
Enter...For the parameter...
a name of your choice: yourprogress-data-source-name
for example,
accounts-progress-data-source
Description
Host
Database name
User
a description of your choice, to
describe this Progress data source
the name of the machine where your
Progress database is installed
the port of the Progress databasePort
the name of the Progress database
to which you want to connect
a username that has at least read
privileges on the Progress database
to which you want to connect
for example, progress-username
6. Use the Data Federator CD and install the SequeLink Server OEM version.
The SequeLink Server is a bridge between the JDBC driver for Progress
and the Data Federator DataDirect OpenEdge driver.
For details on installing the SequeLink Server, see Installing OEM
SequeLink Server for Progress connections on page 27.
7. Open the administration interface of the SequeLink Server.
8. Add a data source, and configure it as follows.
data source name (in tree list)
26 Data Federator Installation Guide
Enter...For the parameter...
a name of your choice: your-se
quelink-data-source-name
Installing Connection Dispatcher
Enter...For the parameter...
the name that you chose in the DSN
entry for your ODBC driver, your-
the attribute DataSourceSOCODBC
ConnStr, in the term DSN
When you complete the above steps, any connections that users create of
type jdbc.progress.openedge will connect to Progress through the SequeLink
Server. Use your-sequelink-data-source-name as your datasource name in
the resource.
progress-data-source-name
For example, for the attribute Data
SourceSOCODBCConnStr, enter
DSN=accounts-progress-data-source
Installing OEM SequeLink Server for Progress connections
In order to bridge the Progress JDBC driver to the Data Federator DataDirect
Progress OpenEdge driver, you must install the SequeLink Server for ODBC
Socket 5.5 OEM version. The SequeLink Server installation is provided on
the Data Federator CD.
Installing Data Federator
1
1. Run the following script from the Data Federator CD.
sl550socket\oemsetup.bat
You can find documentation on the SequeLink Server in the directory
sl550socket\doc on the Data Federator CD.
Installing Connection Dispatcher
You can install Connection Dispatcher using the Data Federator installer.
Data Federator Installation Guide 27
Installing Data Federator
1
Installing Connection Dispatcher
Installing Connection Dispatcher on Windows as a service
1. Launch the Data Federator installer.
For details on launching the Data Federator installer, see What happens
during installation on page 12.
2. Choose an install set that contains the Connection Dispatcher.
For details on the install sets, see What happens during installation on
page 12.
Connection Dispatcher installs on the machine where you ran the installer.
28 Data Federator Installation Guide
Starting Data Federator
2
Starting Data Federator
2
Starting Data Federator servers on Windows
Starting Data Federator
Starting Data Federator servers on Windows
Data Federator runs servers for Data Federator Designer, Data Federator
Query Server and Data Federator Repository. On Windows, you can start
Data Federator servers using Windows services or using scripts.
Starting servers when Data Federator Windows Services are installed
If you installed the Data Federator Windows Services component in the Data
Federator installer, Data Federator servers start automatically. Specifically,
the Data Federator Windows Services start the Data Federator servers.
The following table lists the names of the Data Federator Windows Services
that run the Data Federator servers.
Table 2-1: List of Windows services
Run the service in this
order...
1
2
30 Data Federator Installation Guide
DataFederator.Reposito
ry
DataFederator.Query
Server
the service runs...name of service is...
Data Federator
Repository
Data Federator Query
Server
Data Federator DesignerDataFederator.Designer3
Starting Data Federator
Starting Data Federator servers on AIX or Solaris
Starting servers when Data Federator Windows Services are not installed
If you did not install the Data Federator Windows Services component in the
Data Federator installer, you can use the startup scripts to start Data
Federator servers.
The following table lists the names of the scripts that run Data Federator
servers.
Table 2-2: List of scripts that run Data Federator servers on Windows
2
Run the script in this
order...
1
2
3
data-federator-in
stalldir\hsqldb\bin\start
up.bat
data-federator-in
stall-dir\LeSe
lect\bin\startup.bat
data-federator-in
stall-dir\tom
cat\bin\startup.bat
the script runs...name of script is...
Data Federator
Repository
Data Federator Query
Server
Data Federator Designer
Starting Data Federator servers on AIX or Solaris
Data Federator runs servers for Data Federator Designer, Data Federator
Query Server and Data Federator Repository. On AIX or Solaris, you can
start Data Federator servers using scripts.
Data Federator Installation Guide 31
Starting Data Federator
2
Shutting down Data Federator servers on Windows
Starting servers manually
There are two methods of starting the Data Federator servers manually:
• If you installed Data Federator shortcuts, you can click the
Data_Federator_Servers_Startup icon in the Data_Federator_Links_Dir
directory (the links directory you selected when you installed Data
Federator shortcuts).
Note:
See What happens during installation on page 12 for details of installing
Data Federator shortcuts.
• If you did not install Data Federator shortcuts, you can run the following
script:
data-federator-install-dir/bin/startup.sh
Shutting down Data Federator servers on Windows
Data Federator runs servers for Data Federator Designer, Data Federator
Query Server and the Data Federator repository. On Windows, you can shut
down Data Federator servers using Windows services or using scripts.
Shutting down servers when Data Federator Windows Services are installed
You can stop the following Data Federator Windows Services in order to
shut down the Data Federator servers.
Table 2-3: List of Windows services
stop the service in this
order...
32 Data Federator Installation Guide
the service controls...name of service is...
Data Federator DesignerDataFederator.Designer1
Starting Data Federator
Shutting down Data Federator servers on Windows
2
stop the service in this
order...
2
3
DataFederator.Query
Server
DataFederator.Reposito
ry
the service controls...name of service is...
Data Federator Query
Server
Data Federator
Repository
Shutting down servers when Data Federator Windows Services are not installed
If you did not install the Data Federator Windows Services component in the
Data Federator installer, you can use the shutdown scripts to shut down Data
Federator servers.
The following table lists the names of the scripts that shut down Data
Federator servers.
Table 2-4: List of scripts that stop Data Federator servers on Windows
Run the script in this
order...
the script shuts down...name of script is...
data-federator-in
1
2
stall-dir\tom
cat\bin\shutdown.bat
data-federator-in
stall-dir\LeSe
lect\bin\shut
down.bat
Data Federator Installation Guide 33
Data Federator Designer
Data Federator Query
Server
Starting Data Federator
2
Shutting down Data Federator servers on AIX or Solaris
Run the script in this
order...
3
data-federator-in
stalldir\hsqldb\bin\shut
down.bat
the script shuts down...name of script is...
Data Federator
Repository
Shutting down Data Federator servers on AIX or
Solaris
Data Federator runs servers for Data Federator Designer, Data Federator
Query Server and the Data Federator repository. On AIX and Solaris, you
can shut down Data Federator servers using scripts.
Shutting down servers manually
There are two methods of shutting down the Data Federator servers manually:
• If you installed Data Federator shortcuts, you can click the
Data_Federator_Servers_Shutdown icon in the
Data_Federator_Links_Dir directory (the links directory you selected when
you installed Data Federator shortcuts).
Note:
See What happens during installation on page 12 for details of installing
Data Federator shortcuts.
• If you did not install Data Federator shortcuts, you can run the following
script:
data-federator-install-dir/bin/shutdown.sh
34 Data Federator Installation Guide
Login and passwords
The default user name is sysadmin.
The default password is sysadmin.
You should use Data Federator Administrator to change the login parameters
after installation. Starting Data Federator Administrator is described in the
Data Federator User Guide.
Ports used by Data Federator
The following list shows the ports that are used by default when you install
Data Federator.
• Data Federator Designer:
• 3081 (HTTP)
Starting Data Federator
Login and passwords
2
• 3005 (shutdown server)
• Data Federator Query Server:
• 3080 (HTTP, needed for Data Federator Administrator)
• 5512 (Corba, needed for jdbc driver communication)
• 5612 (Corba secured SSL)
• 3055 (proprietary protocol, needed for jdbc driver communication)
• 3334 (proprietary protocol, accessible from local machine only, used
for internal management)
• Data Federator Repository: 9009 (hsqldb proprietary protocol, needed
only for local access, can be firewalled to enhance security)
• Data Federator Connection Dispatcher
Data Federator Installation Guide 35
Starting Data Federator
2
Using Connection Dispatcher
• 3555 (proprietary protocol)
• 3344 (proprietary protocol, accessible from local machine only, used
for internal management)
Using Connection Dispatcher
If you install the Connection Dispatcher with the Windows Services
component, you can use Windows services to start Connection Dispatcher.
Once Connection Dispatcher is started, you can connect to it by opening a
telnet session to localhost. You can enter commands to Connection
Dispatcher directly in its telnet console.
Starting Connection Dispatcher when Data Federator Windows Services are installed
If you installed the Data Federator Windows Services component in the Data
Federator installer, the Connection Dispatcher server starts automatically.
Specifically, the Data Federator Windows Services start the Connection
Dispatcher server.
The table below shows the Windows service that runs the Connection
Dispatcher server.
Table 2-5: List of Windows services
36 Data Federator Installation Guide
the service runs...name of service is...
Data Federator Connection DispatcherDataFederator.ConnectionDispatcher
Starting Data Federator
Using Connection Dispatcher
Starting Connection Dispatcher when Data Federator Windows Services are not installed
If you did not install the Data Federator Windows Services component in the
Data Federator installer, you can use the startup scripts to start Connection
Dispatcher.
The following table shows the script that runs Connection Dispatcher.
Table 2-6: List of scripts that run Connection Dispatcher on Windows
the script runs...name of script is...
2
data-federator-installdir\dispatcher\bin\startup.bat
Data Federator Connection Dispatcher
Starting Connection Dispatcher on AIX or Solaris
The following table lists the names of the script that runs Connection
Dispatcher.
Table 2-7: List of scripts that run Connection Dispatcher on AIX or Solaris
the script runs...name of script is...
data-federator-installdir/dispatcher/bin/startup.sh
Data Federator Connection Dispatcher
Shutting down Connection Dispatcher when Data Federator Windows Services are installed
Stop the following Data Federator Windows Service in order to shut down
Data Federator Connection Dispatcher.
Data Federator Installation Guide 37
Starting Data Federator
2
Using Connection Dispatcher
Table 2-8: List of Windows services
the service controls...name of service is...
Data Federator Connection DispatcherDataFederator.ConnectionDispatcher
Note:
When you shut down Connection Dispatcher, any new connections requests
of any clients that are pointing to Connection Dispatcher will fail. Make sure
to either restart Connection Dispatcher or point the clients to a different
server.
All connections that were already acquired may still be used.
The shutdown operation and startus are noted in the configured log.
Shutting down Connection Dispatcher when Data Federator Windows Services are not installed
If you did not install the Data Federator Windows Services component in the
Data Federator installer, you can use the shutdown scripts to shut down
Connection Dispatcher.
The following table shows the name of the script that shuts down Connection
Dispatcher:
Table 2-9: List of scripts that stop Connection Dispatcher on Windows
data-federator-installdir\dispatcher\bin\shut
down.bat
38 Data Federator Installation Guide
the script shuts down...name of script is...
Data Federator Connection Dispatcher
Note:
When you shut down Connection Dispatcher, any new connections requests
of any clients that are pointing to Connection Dispatcher will fail. Make sure
to either restart Connection Dispatcher or point the clients to a different
server.
All connections that were already acquired may still be used.
The shutdown operation and startus are noted in the configured log.
Shutting down Connection Dispatcher on AIX or Solaris
The following table lists the name of the script that shuts down Connection
Dispatcher.
Table 2-10: List of scripts that shut down Connection Dispatcher on AIX or Solaris
the script shuts down...name of script is...
Starting Data Federator
Using Connection Dispatcher
2
data-federator-installdir/dispatcher/bin/shutdown.sh
Note:
When you shut down Connection Dispatcher, any new connections requests
of any clients that are pointing to Connection Dispatcher will fail. Make sure
to either restart Connection Dispatcher or point the clients to a different
server.
All connections that were already acquired may still be used.
The shutdown operation and startus are noted in the configured log.
Data Federator Connection Dispatcher
Data Federator Installation Guide 39
Starting Data Federator
Using Connection Dispatcher
2
40 Data Federator Installation Guide
Backing up and restoring data
3
Backing up and restoring data
3
Starting the Data Federator Backup and Restore tool
Backing up and restoring data
Data Federator provides a tool to back up and restore all of your Data
Federator data at once. This is useful for example when moving to a new
server.
The Data Federator Backup and Restore tool backs up and restores the
following data:
• projects, including datasource definitions, targets, mappings, lookup tables
and domain tables
• connector resources
• usernames and authorizations
Starting the Data Federator Backup and Restore tool
You can start the Data Federator Backup and Restore Tool in two modes:
graphical or console. Both modes offer the same functionality.
Starting the Backup and Restore tool
You can start the Data Federator Backup and Restore Tool as follows.
1. Make sure you are logged out of your Data Federator applications.
2. Use one of the following methods to start the Backup and Restore Tool.
42 Data Federator Installation Guide
On this platform, to
start the Backup and
Restore Tool in...
on Windows
Backing up and restoring data
Starting the Data Federator Backup and Restore tool
console modeGUI mode
In the Start menu, click
Programs ➤
BusinessObjects Data
Federator XI Release
2 ➤ Data Federator
Backup and Restore
Tool.
You can also run the
Backup and Restore
Tool with the following
batch script.
data-federator-in
stall-dir\bin\back
uptoolgui.bat
Run the following batch
script.
data-federator-in
stall-dir\bin\back
uptoolcon.bat
3
on AIX
Run Data_Federa
tor_Backup_and_Re
store_Tool_GUI from
the links directory that
you chose for Data
Federator.
You can also run the
Backup and Restore
Tool with the following
shell script.
data-federator-in
stall-dir/bin/back
uptoolgui.sh
Data Federator Installation Guide 43
Run Data_Federa
tor_Backup_and_Re
store_Tool_Console
from the links directory
that you chose for Data
Federator.
You can also run the
Backup and Restore
Tool with the following
shell script.
data-federator-in
stall-dir/bin/back
uptoolcon.sh
Backing up and restoring data
3
Backing up your Data Federator data
On this platform, to
start the Backup and
Restore Tool in...
console modeGUI mode
Run Data_Federa
tor_Backup_and_Re
store_Tool_GUI from
the links directory that
you chose for Data
Federator.
on Solaris
You can also run the
Backup and Restore
Tool with the following
shell script.
data-federator-in
stall-dir/bin/back
uptoolgui.sh
.
The Data Federator Backup and Restore Tool stops the Data Federator
services and prepares to backup or restore your data.
Backing up your Data Federator data
You can backup your data using the Data Federator Backup and Restore
Tool.
Run Data_Federa
tor_Backup_and_Re
store_Tool_Console
from the links directory
that you chose for Data
Federator.
You can also run the
Backup and Restore
Tool with the following
shell script.
data-federator-in
stall-dir/bin/back
uptoolcon.sh
1.
Start the Data Federator Backup and Restore Tool (see Starting the Data
Federator Backup and Restore tool on page 42).
2. Click Backup. (In console mode, type 0 and press enter).
3. Choose a directory where you want to store your data.
You can type the name of a new directory, and the Backup and Restore
Tool will create it.
44 Data Federator Installation Guide
The Backup and Restore Tool backs up your data
If you are using Windows, and the Data Federator Windows services are
installed, the Backup and Restore Tool restarts the Data Federator
services automatically. Otherwise, use the shutdown and startup scripts.
4. If you are using AIX or Solaris, restart the Data Federator servers by using
the command: [data-federator-install-dir]/bin/startup.sh
Restoring your Data Federator data
You must have previously backed up your data using the Backup and Restore
Tool.
You can restore your data using the Data Federator Backup and Restore
Tool.
1.
Start the Data Federator Backup and Restore Tool (see Starting the Data
Federator Backup and Restore tool on page 42).
2. Click Restore. (In console mode, type 1 and press enter).
3. Choose the directory where you backed up the data that you want to
restore.
Backing up and restoring data
Restoring your Data Federator data
3
The Backup and Restore Tool restores your data.
If you are using Windows, and the Data Federator Windows services are
installed, the Backup and Restore Tool restarts the Data Federator
services automatically. Otherwise, use the shutdown and startup scripts.
4. If you are using AIX or Solaris, restart the Data Federator servers by using
the command: data-federator-install-dir/bin/startup.sh
Data Federator Installation Guide 45
Backing up and restoring data
Restoring your Data Federator data
3
46 Data Federator Installation Guide
Updating licenses
4
Updating licenses
4
Updating your license
Updating licenses
If you have a new keycode, you can update your license by using the Data
Federator License Management Tool.
You can get a new keycode from your Business Objects representative.
The Data Federator License Management Tool is available in an interactive
GUI version and an interactive console version.
Updating your license
1. Start the Data Federator License Management Tool, as follows.
On this platform, to
start the License
Management Tool in...
console modeGUI mode
on Windows
48 Data Federator Installation Guide
Click Start ➤Programs
➤ BusinessObjects
Data Federator XI
Release 2 ➤ Data
Federator License
Management Tool
You can also run the
License Management
Tool with the following
batch script.
data-federator-in
stall-dir\bin\li
censetoolgui.bat
Run the following batch
script.
data-federator-in
stall-dir\bin\li
censetoolcon.bat
On this platform, to
start the License
Management Tool in...
Updating licenses
Updating your license
console modeGUI mode
4
on AIX
on Solaris
Run Data_Federator_Li
cense_Manage
ment_Tool_GUI from
the links directory that
you chose for Data
Federator.
You can also run the
License Management
Tool with the following
shell script.
data-federator-in
stall-dir/bin/li
censetoolgui.sh
Run Data_Federator_Li
cense_Manage
ment_Tool_GUI from
the links directory that
you chose for Data
Federator.
You can also run the
License Management
Tool with the following
shell script.
data-federator-in
stall-dir/bin/li
censetoolgui.sh
Run Data_Federator_Li
cense_Manage
ment_Tool_Console
from the links directory
that you chose for Data
Federator.
You can also run the
License Management
Tool with the following
shell script.
data-federator-in
stall-dir/bin/li
censetoolcon.sh
Run Data_Federator_Li
cense_Manage
ment_Tool_Console
from the links directory
that you chose for Data
Federator.
You can also run the
License Management
Tool with the following
shell script.
data-federator-in
stall-dir/bin/li
censetoolcon.sh
2. Follow the instructions that appear on the screen.
When asked, enter your new keycode.
The License Management Tool updates your license.
Data Federator Installation Guide 49
Updating licenses
Updating your license
4
50 Data Federator Installation Guide
Index
A
administrator
rights to install services 10
B
backing up
data
Backup and Restore Tool 42
Data Federator data 44
Backup and Restore Tool
starting 42
backups 44
C
configuration file
silent mode installation 20
Connection Dispatcher
installing 27, 28
shutting down 37, 38, 39
starting
AIX 37
Solaris 37
Windows 36
stopping 37, 38, 39
using 36
D
data
backing up
Backup and Restore Tool 42
data (continued)
restoring
Backup and Restore Tool 42
Data Federator installer
starting 10, 11
datasources
installing drivers 22, 23, 24, 25
installing middleware 27
I
install sets
description 15
installation
hardware requirements 9
prerequisites 10
requirements 9
software requirements 9
steps 12
installation path 10
installing
Connection Dispatcher 27, 28
Data Federator 12
silent mode 18, 20
installing drivers
datasources 22, 23, 24, 25
JDBC 22, 23, 24
Progress 25
resources 22, 23, 24, 25
installing middleware
datasources 27
Progress 27
resources 27
Data Federator Installation Guide 51
Index
J
JDBC
installing drivers 22, 23, 24
JDBC data sources 22
L
licence
updating 48
licenses
updating 48
login and password
default 35
P
ports
used by servers 35
Progress 25
installing drivers 25
installing middleware 27
R
resources
installing drivers 22, 23, 24, 25
installing middleware 27
restoring
backups 45
data
Backup and Restore Tool 42
Data Federator data 45
S
servers
shutting down 32, 33, 34
starting 30, 31, 32
stopping 32, 33, 34
shutting down
Connection Dispatcher 37, 38, 39
servers 32, 33, 34
silent mode
installing 18, 20
silent mode installation
configuration file 20
starting
Connection Dispatcher 37
Data Federator installer 10, 11
servers 30, 31, 32
stopping
Connection Dispatcher 37, 38, 39
servers 32, 33, 34
U
uninstall
procedure 20
uninstalling
Data Federator 20
updating
licence 48
licenses 48
W
Windows services 30, 32, 37
not installed 31, 33, 37, 38
52 Data Federator Installation Guide
Loading...
