THE BUSH PALACE EAGLE

SETUP GUIDE

February 2017

Page 2

&'()*+,-(&*'.

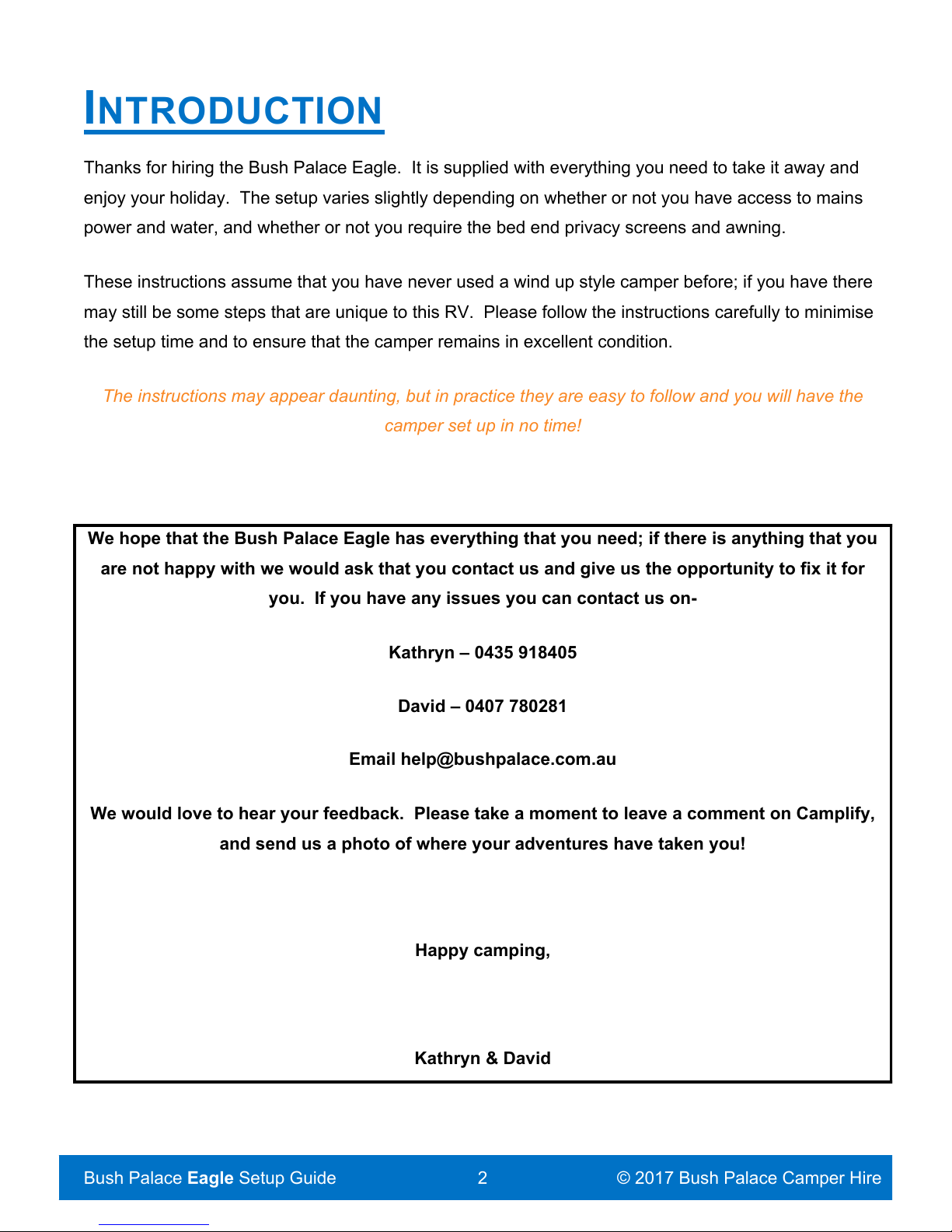

Thanks for hiring the Bush Palace Eagle. It is supplied with everything you need to take it away and

enjoy your holiday. The setup varies slightly depending on whether or not you have access to mains

power and water, and whether or not you require the bed end privacy screens and awning.

These instructions assume that you have never used a wind up style camper before; if you have there

may still be some steps that are unique to this RV. Please follow the instructions carefully to minimise

the setup time and to ensure that the camper remains in excellent condition.

The instructions may appear daunting, but in practice they are easy to follow and you will have the

camper set up in no time!

/%.012%.30"3.30%.4560.7"$"8%.!"#$%.0"6.%9%:;30<=#.30"3.;15.=%%>?.<@.30%:%.<6."=;30<=#.30"3.;15.

":%.=13.0"22;.A<30.A%.A15$>."6B.30"3.;15.81=3"83.56."=>.#<9%.56.30%.1221:35=<3;.31.@<C.<3.@1:.

;15D..&@.;15.0"9%."=;.<665%6.;15.8"=.81=3"83.56.1=E.

F"30:;=.G.HIJK.LMNIHK.

+"9<>.G.HIHO.ONHPNM.

!Q"<$.0%$2RS5602"$"8%D81QD"5.

/%.A15$>.$19%.31.0%":.;15:.@%%>S"8BD..7$%"6%.3"B%.".Q1Q%=3.31.$%"9%.".81QQ%=3.1=.-"Q2$<@;T.

"=>.6%=>.56.".20131.1@.A0%:%.;15:.">9%=35:%6.0"9%.3"B%=.;15U.

V"22;.8"Q2<=#T.

F"30:;=.W.+"9<>.

Page 3

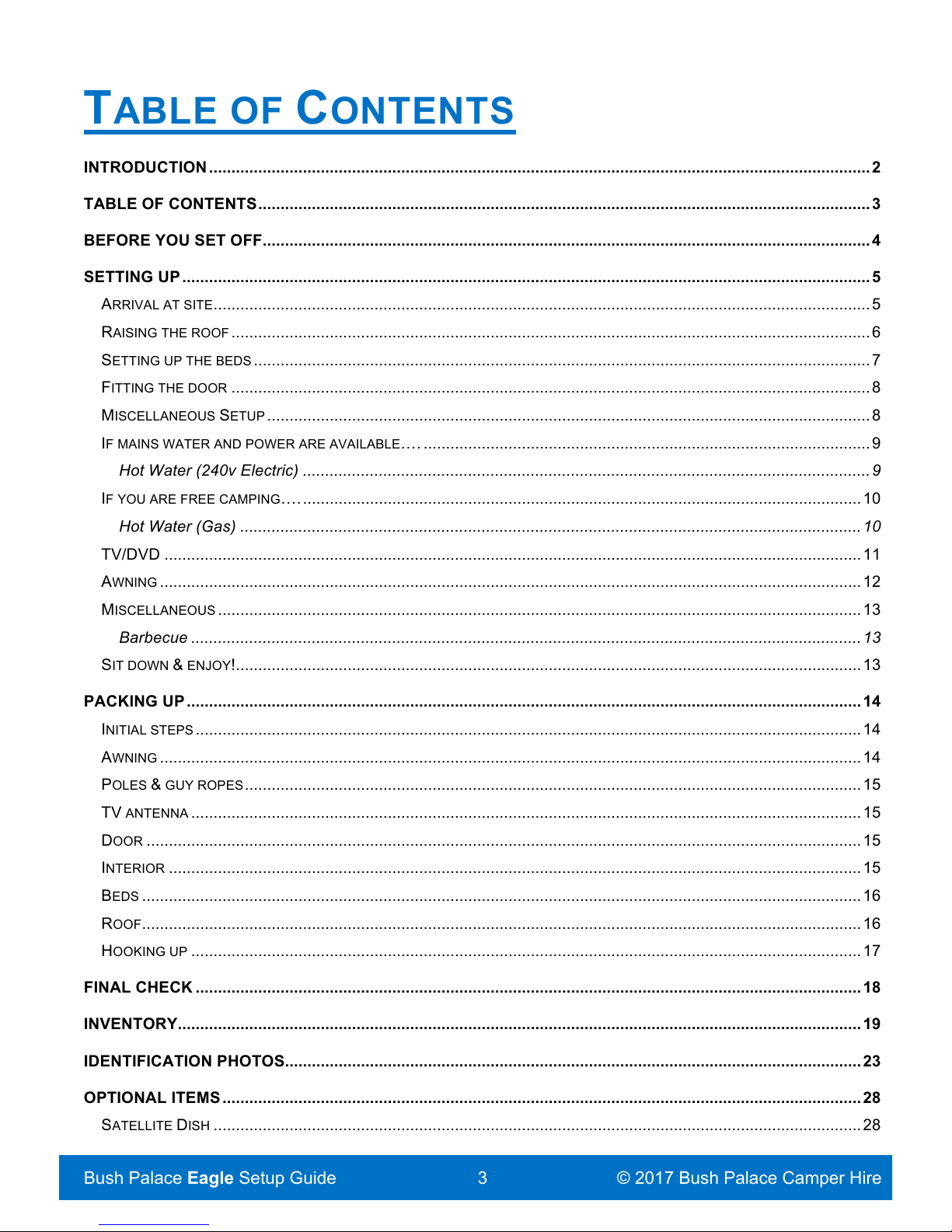

(X4Y!.*Z.-*'(!'([.

&'()*+,-(&*'.DDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDD.P

(X4Y!.*Z.-*'(!'([.DDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDD.J

4!Z*)!.\*,.[!(.*ZZ.DDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDD.I

[!((&'].,7.DDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDD.K

ARRIVAL AT SITE ................................................................................................................................................... 5

RAISING THE ROOF ............................................................................................................................................... 6

SETTING UP THE BEDS .......................................................................................................................................... 7

FITTING THE DOOR ............................................................................................................................................... 8

MISCELLANEOUS SETUP ....................................................................................................................................... 8

IF MAINS WATER AND POWER ARE AVAILABLE…. .................................................................................................... 9

Hot Water (240v Electric) ............................................................................................................................... 9

IF YOU ARE FREE CAMPING…. ............................................................................................................................. 10

Hot Water (Gas) ........................................................................................................................................... 10

TV/DVD ............................................................................................................................................................ 11

AWNING ............................................................................................................................................................. 12

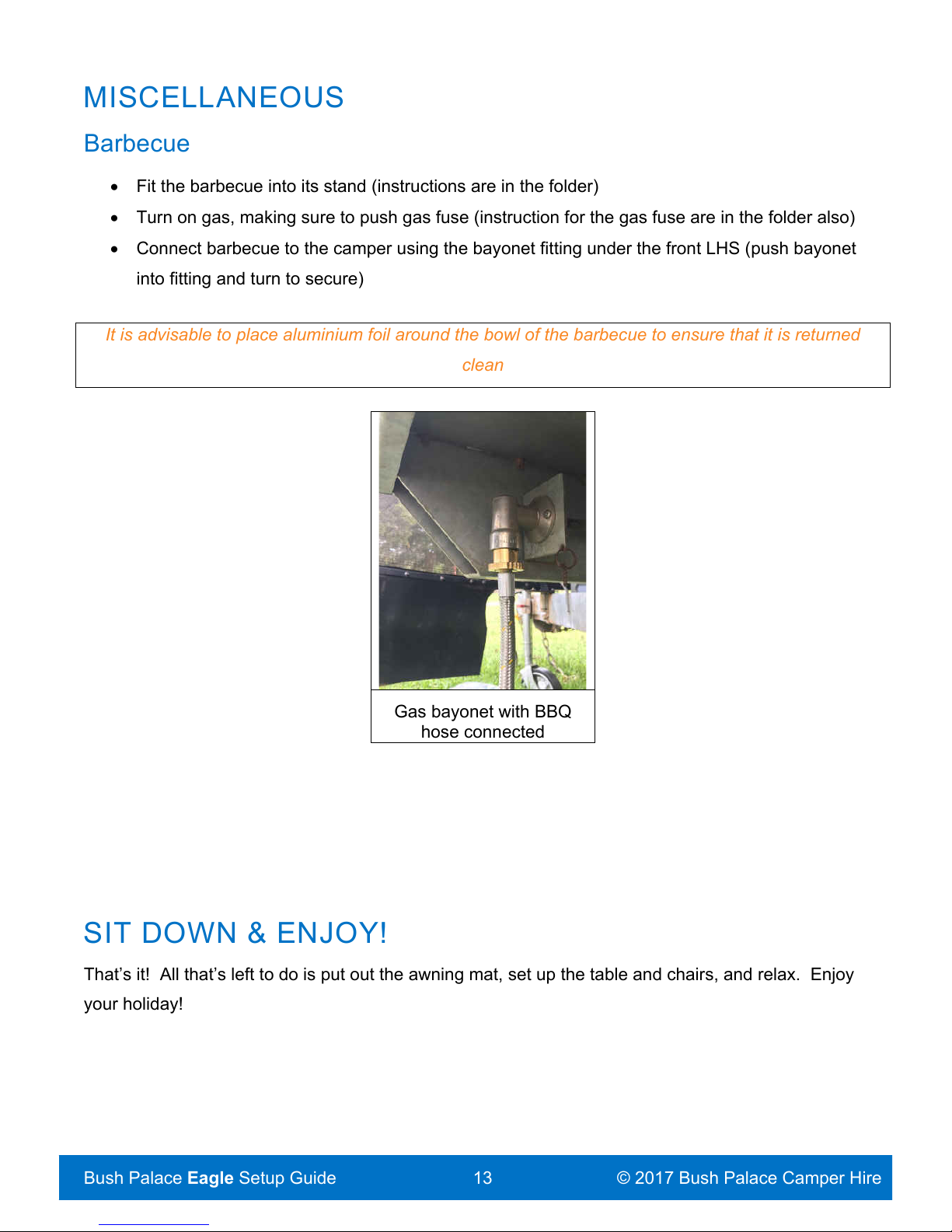

MISCELLANEOUS ................................................................................................................................................ 13

Barbecue ...................................................................................................................................................... 13

SIT DOWN & ENJOY! ............................................................................................................................................ 13

7X-F&'].,7.DDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDD.MI

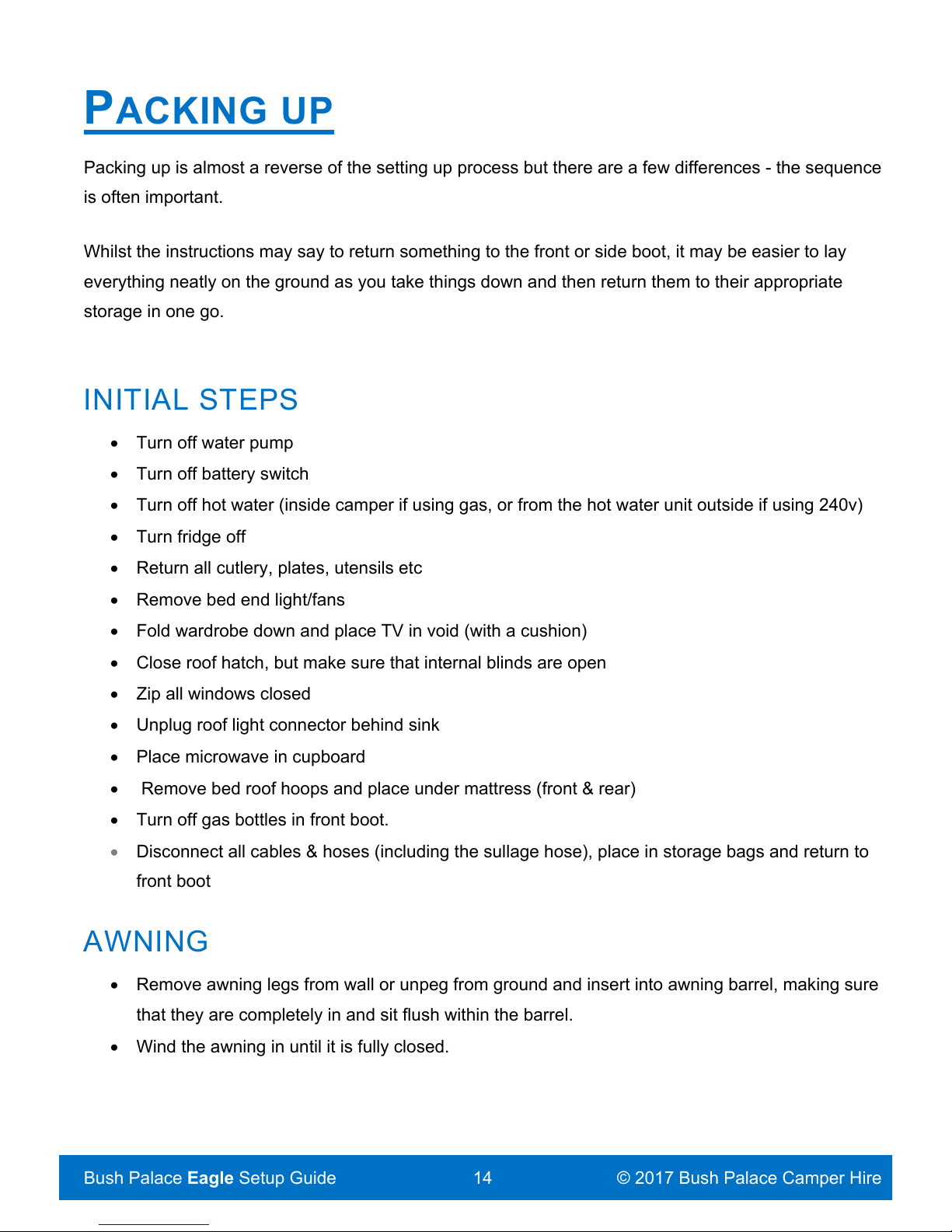

INITIAL STEPS ..................................................................................................................................................... 14

AWNING ............................................................................................................................................................. 14

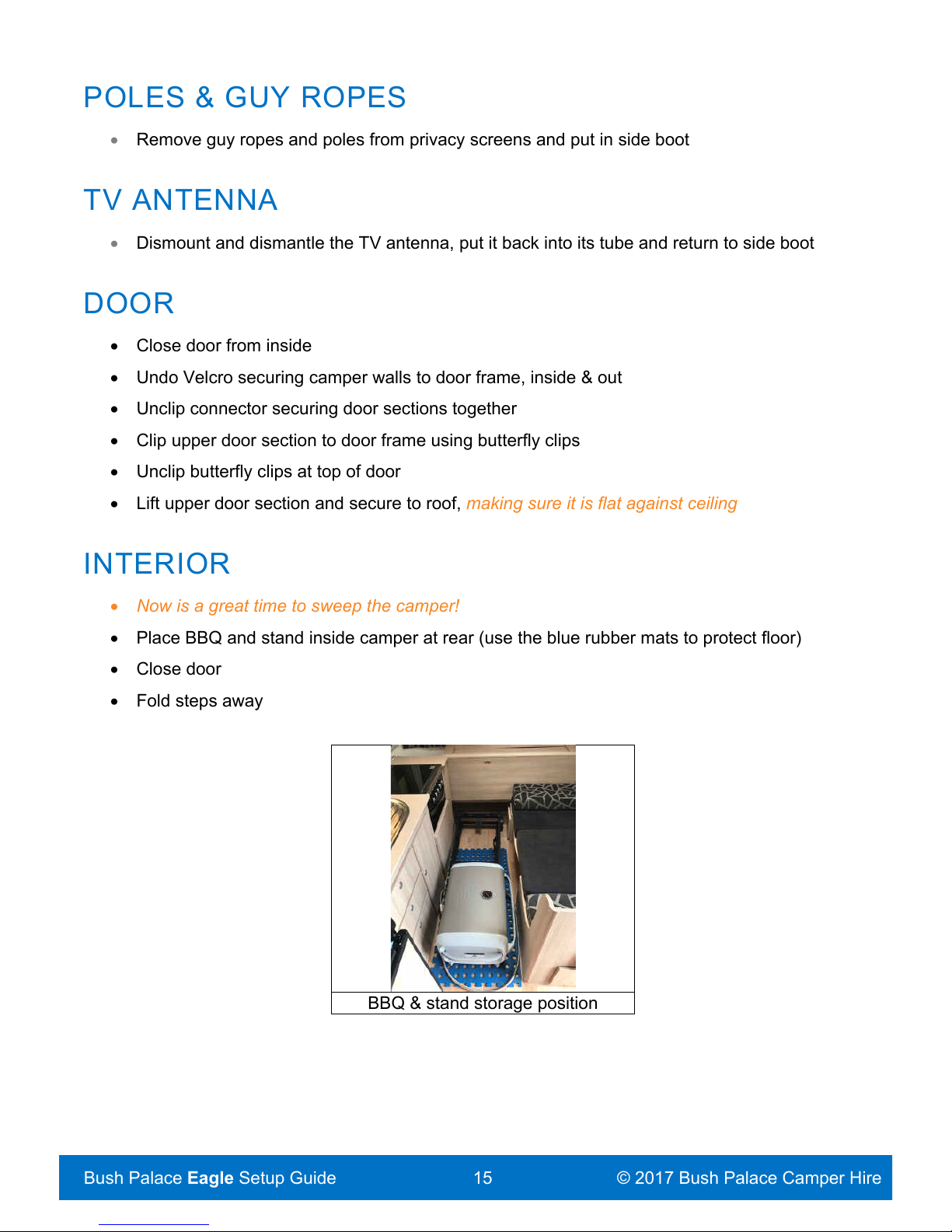

POLES & GUY ROPES .......................................................................................................................................... 15

TV ANTENNA ...................................................................................................................................................... 15

DOOR ................................................................................................................................................................ 15

INTERIOR ........................................................................................................................................................... 15

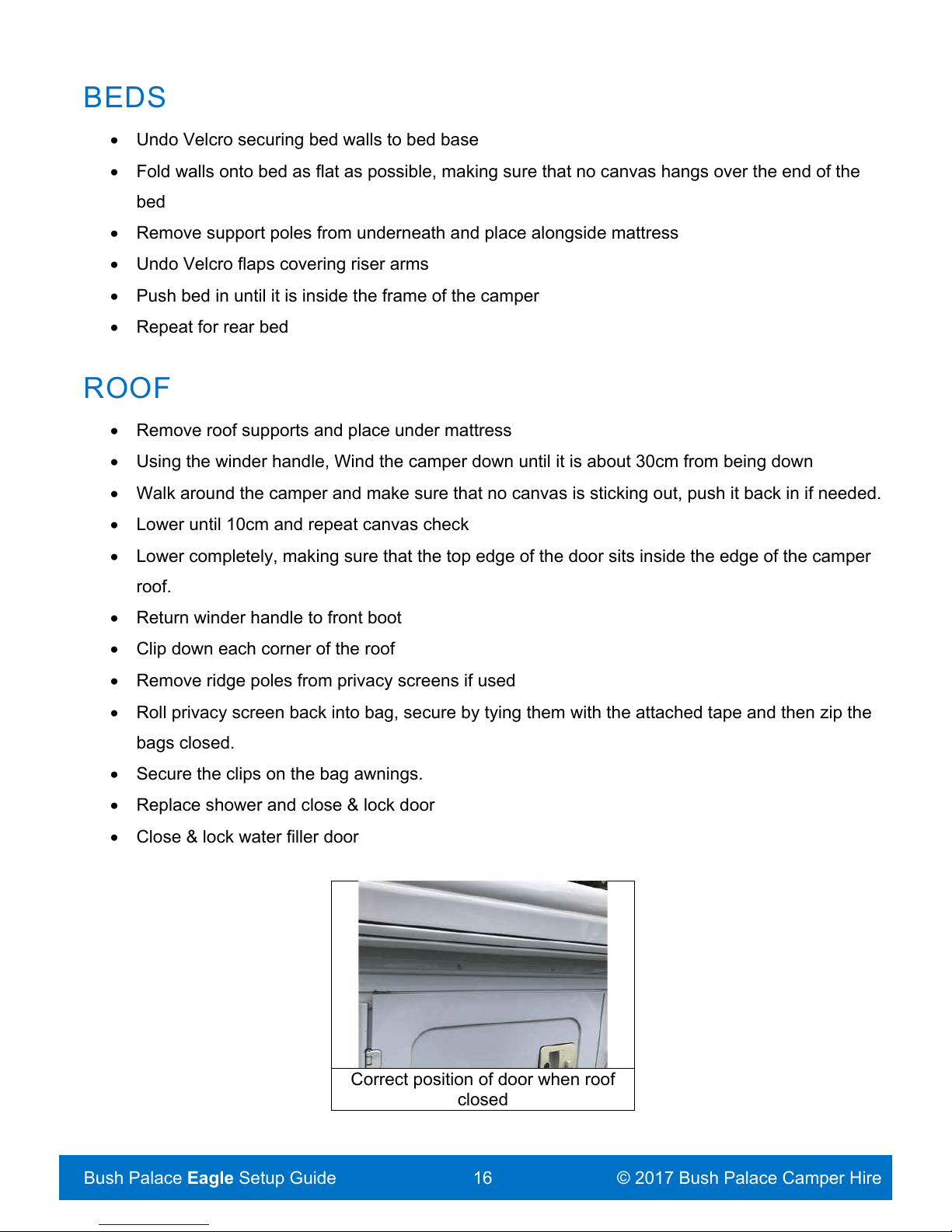

BEDS ................................................................................................................................................................. 16

ROOF ................................................................................................................................................................. 16

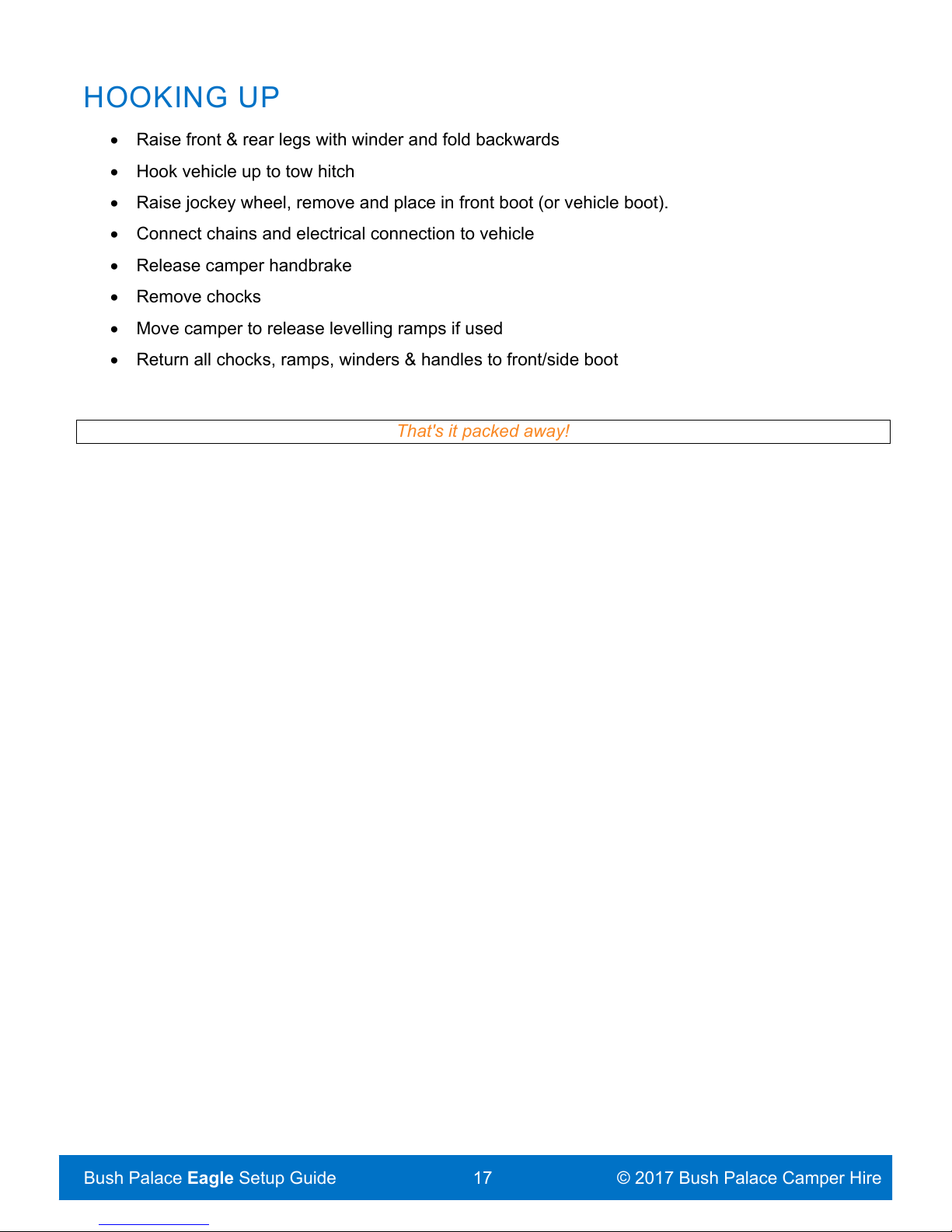

HOOKING UP ...................................................................................................................................................... 17

Z&'XY.-V!-F.DDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDD.MN

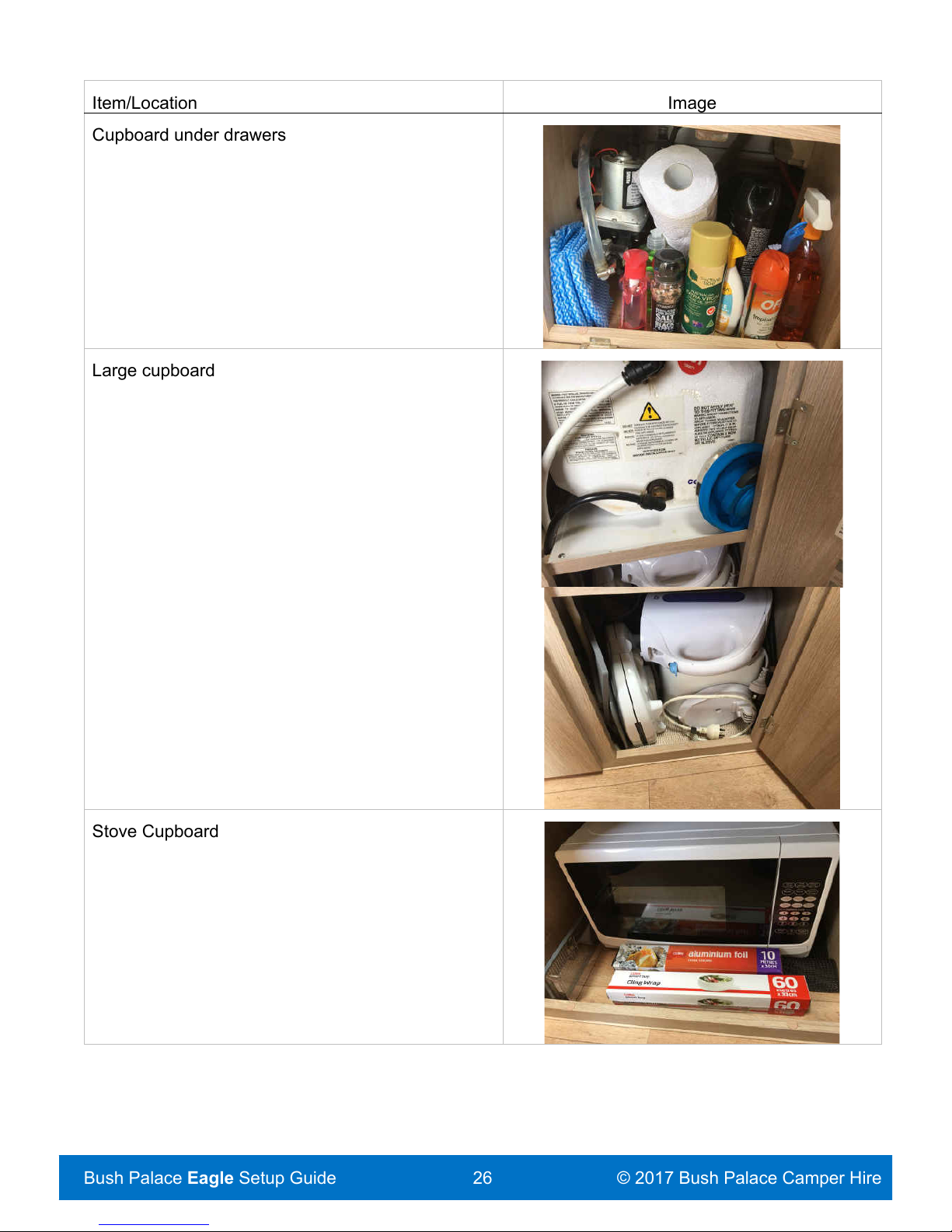

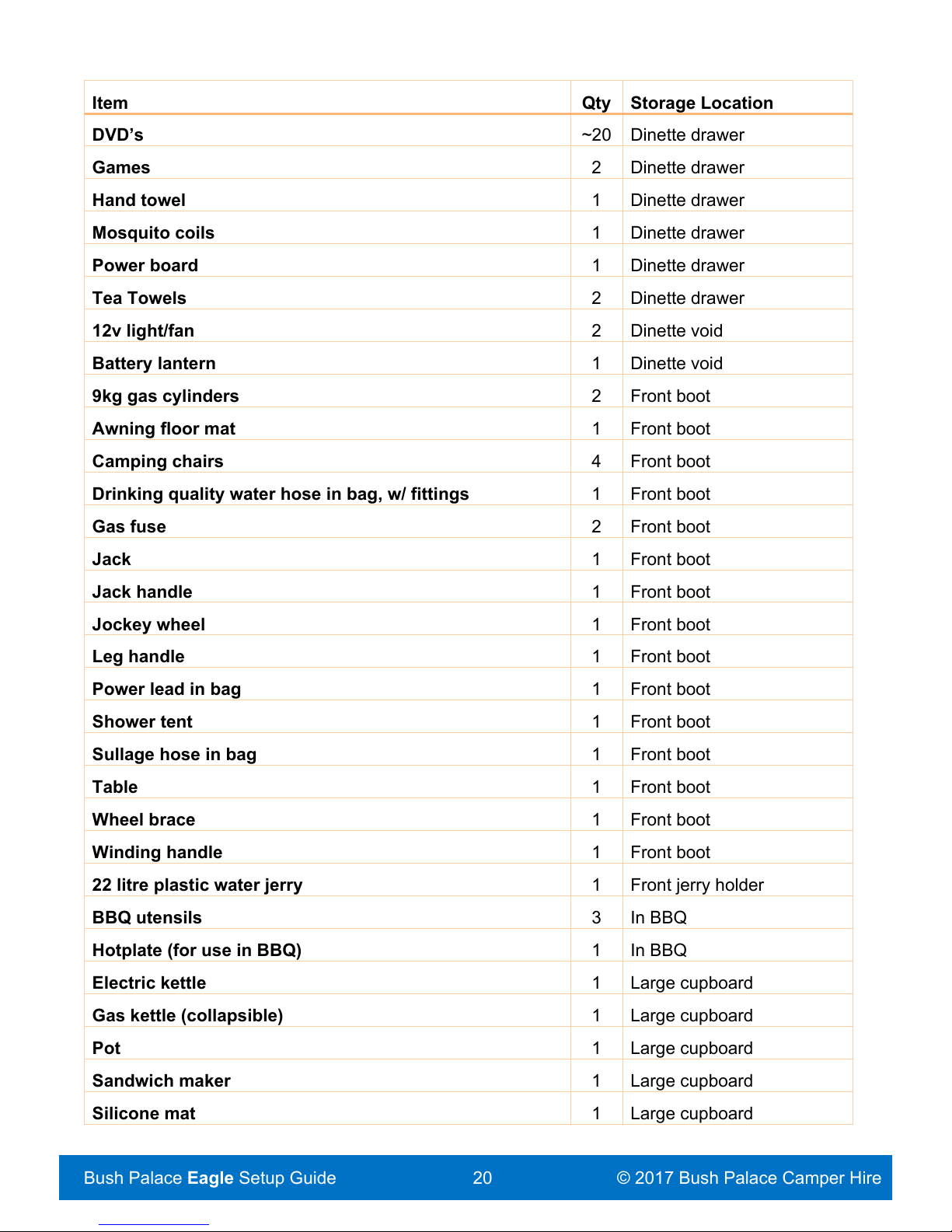

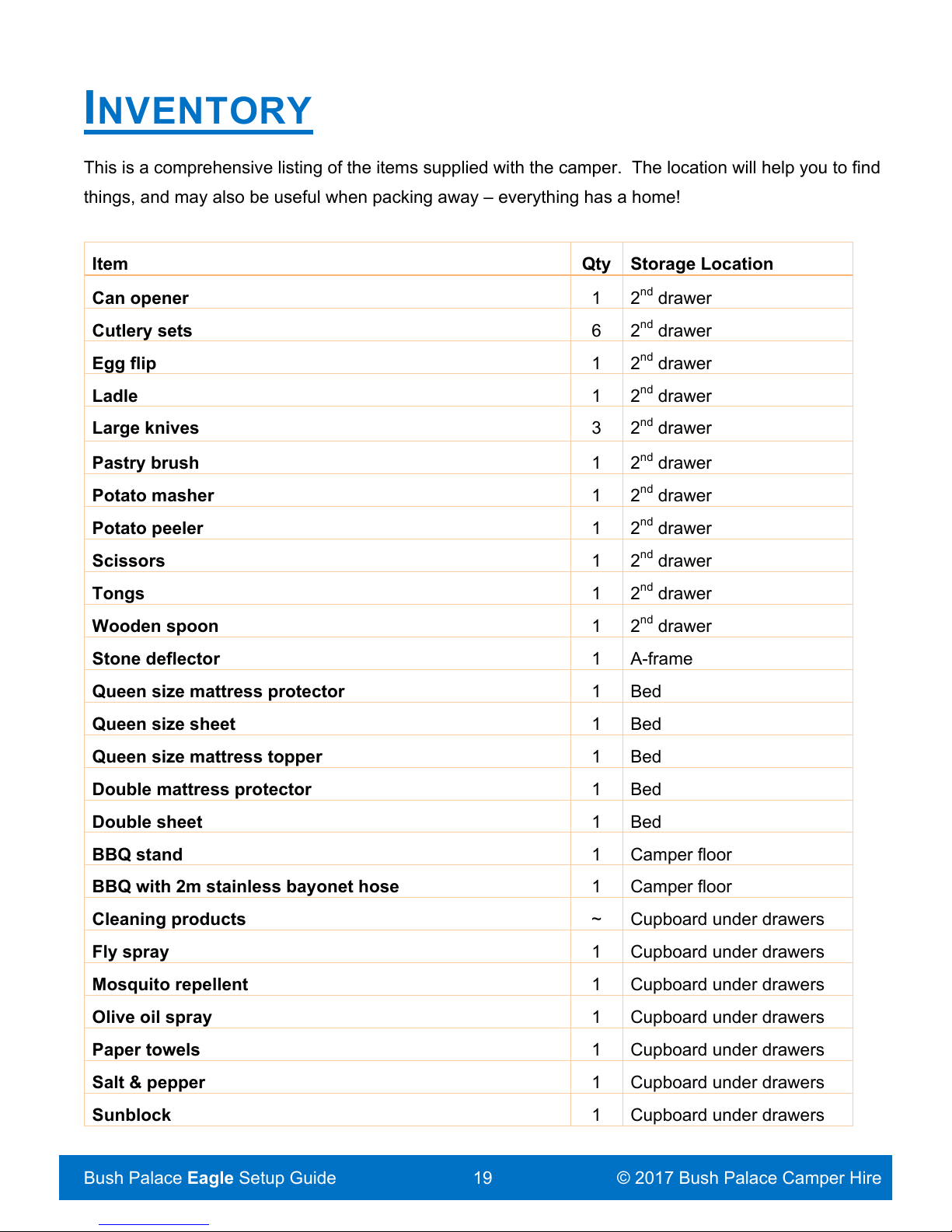

&'^!'(*)\.DDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDD.ML

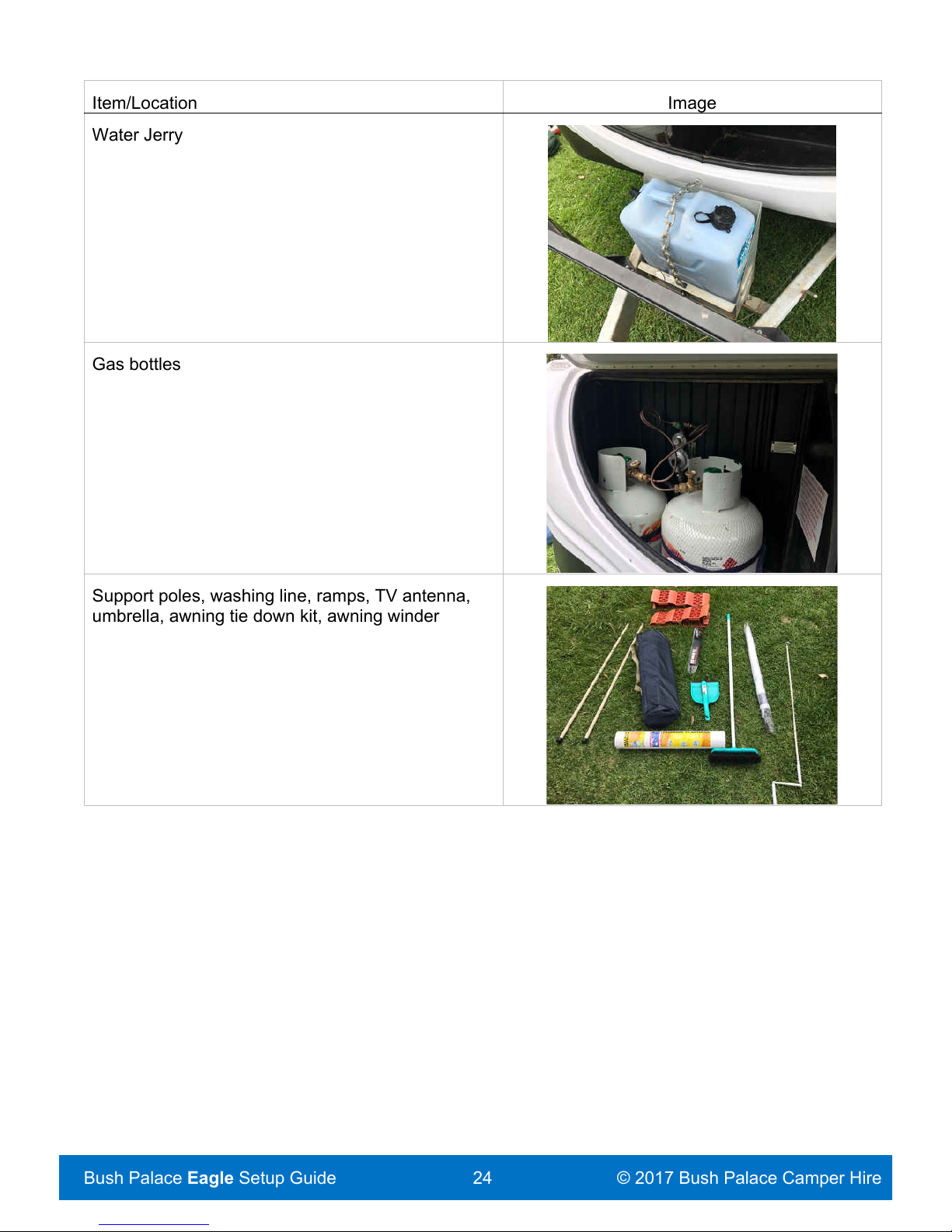

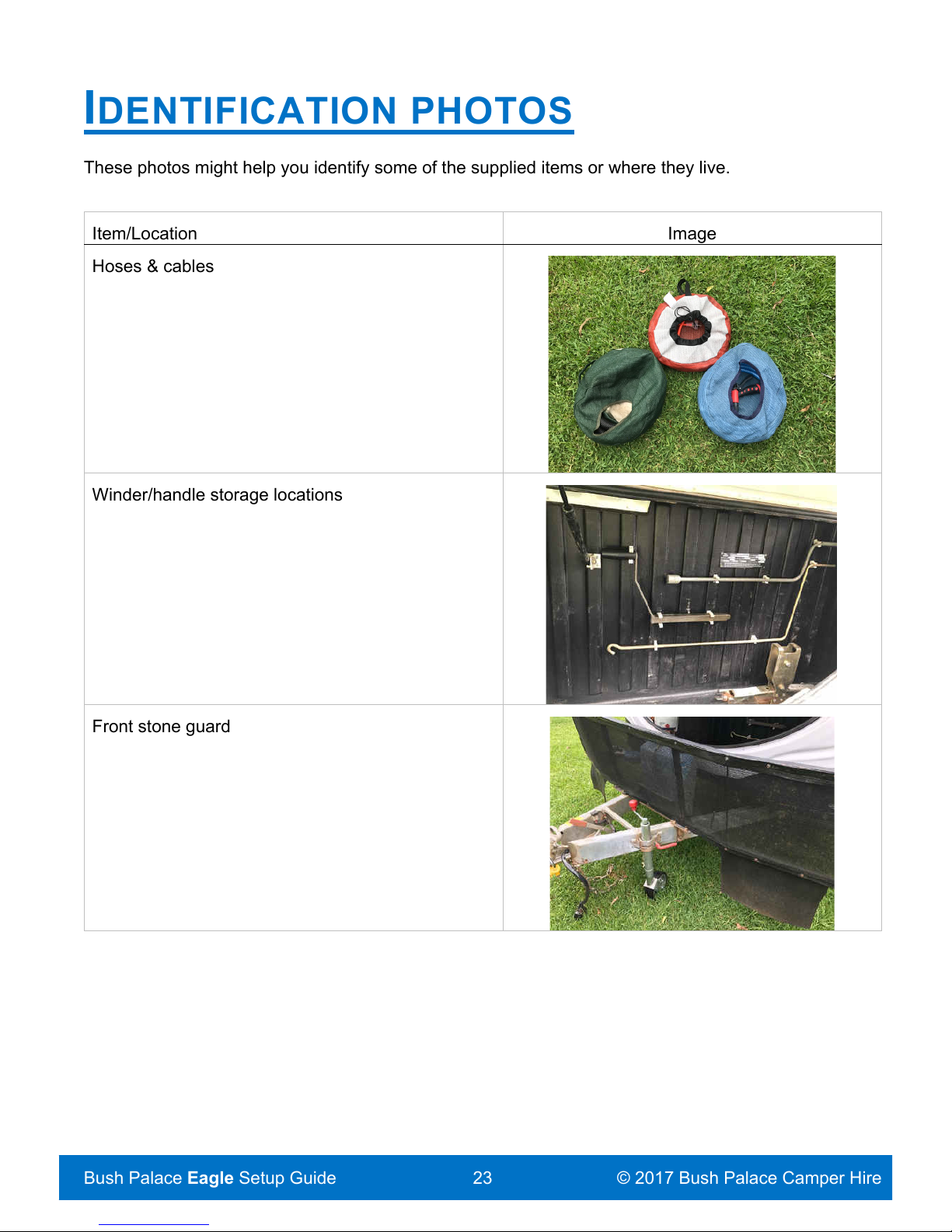

&+!'(&Z&-X(&*'.7V*(*[.DDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDD.PJ

*7(&*'XY.&(!_[.DDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDD.PN

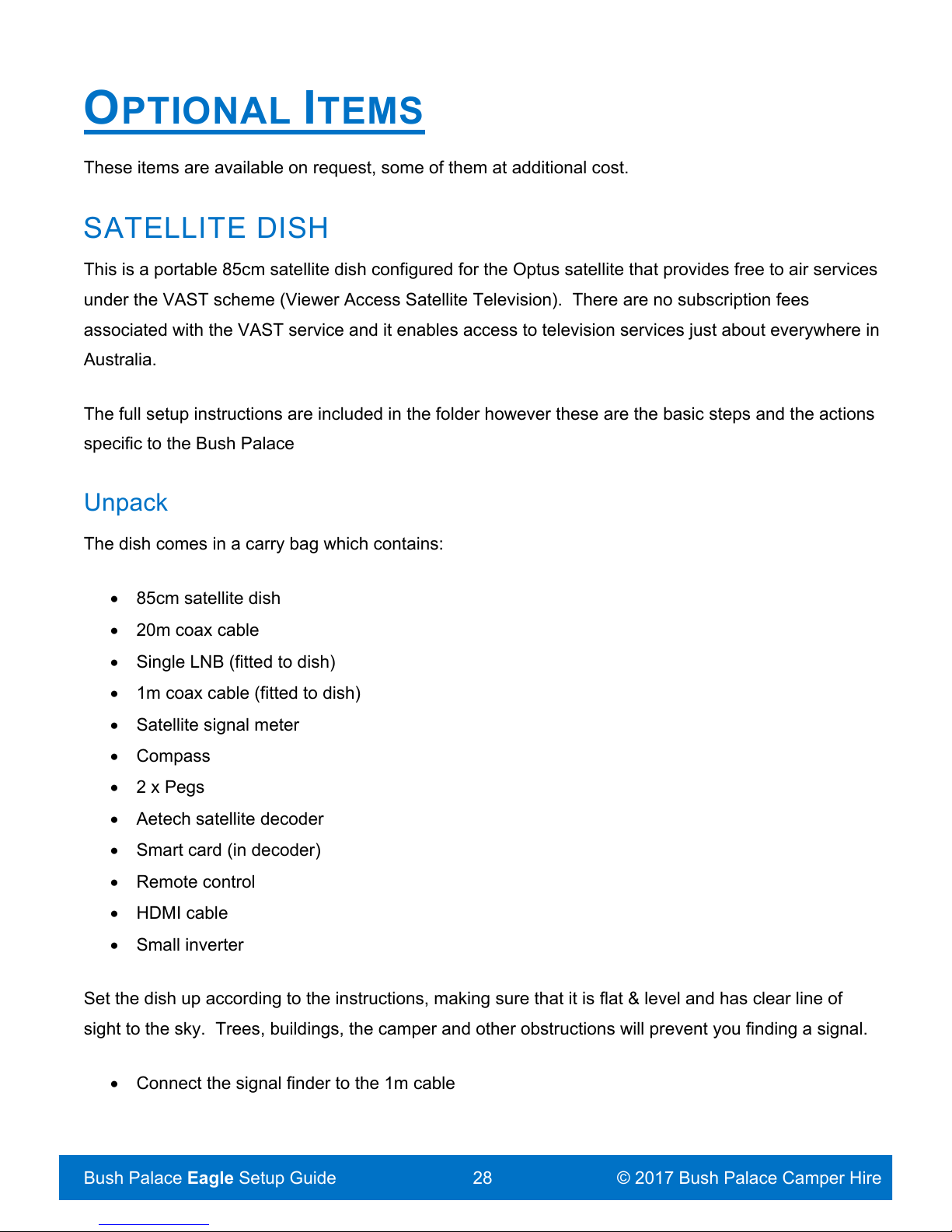

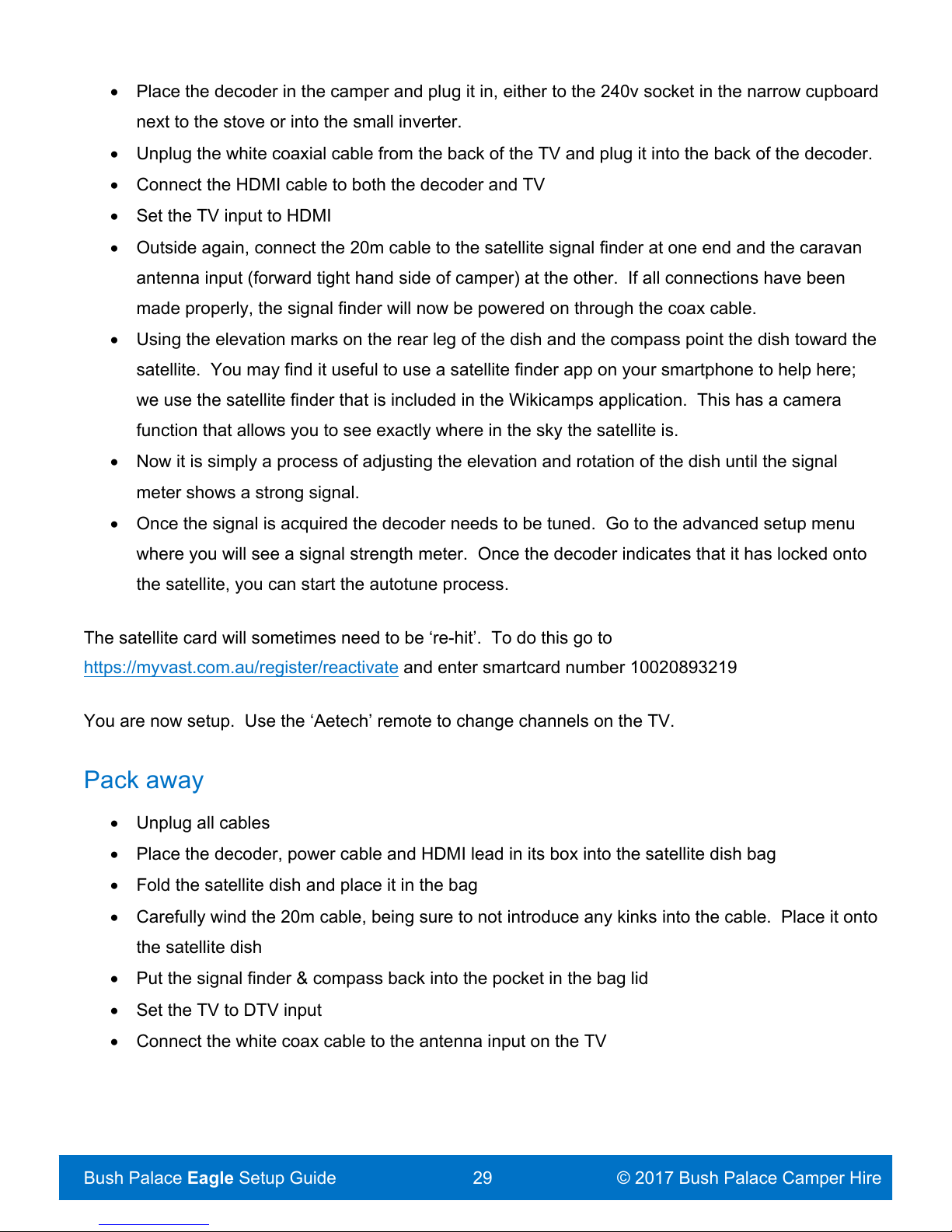

SATELLITE DISH ................................................................................................................................................. 28

Page 4

Unpack ......................................................................................................................................................... 28

Pack away .................................................................................................................................................... 29

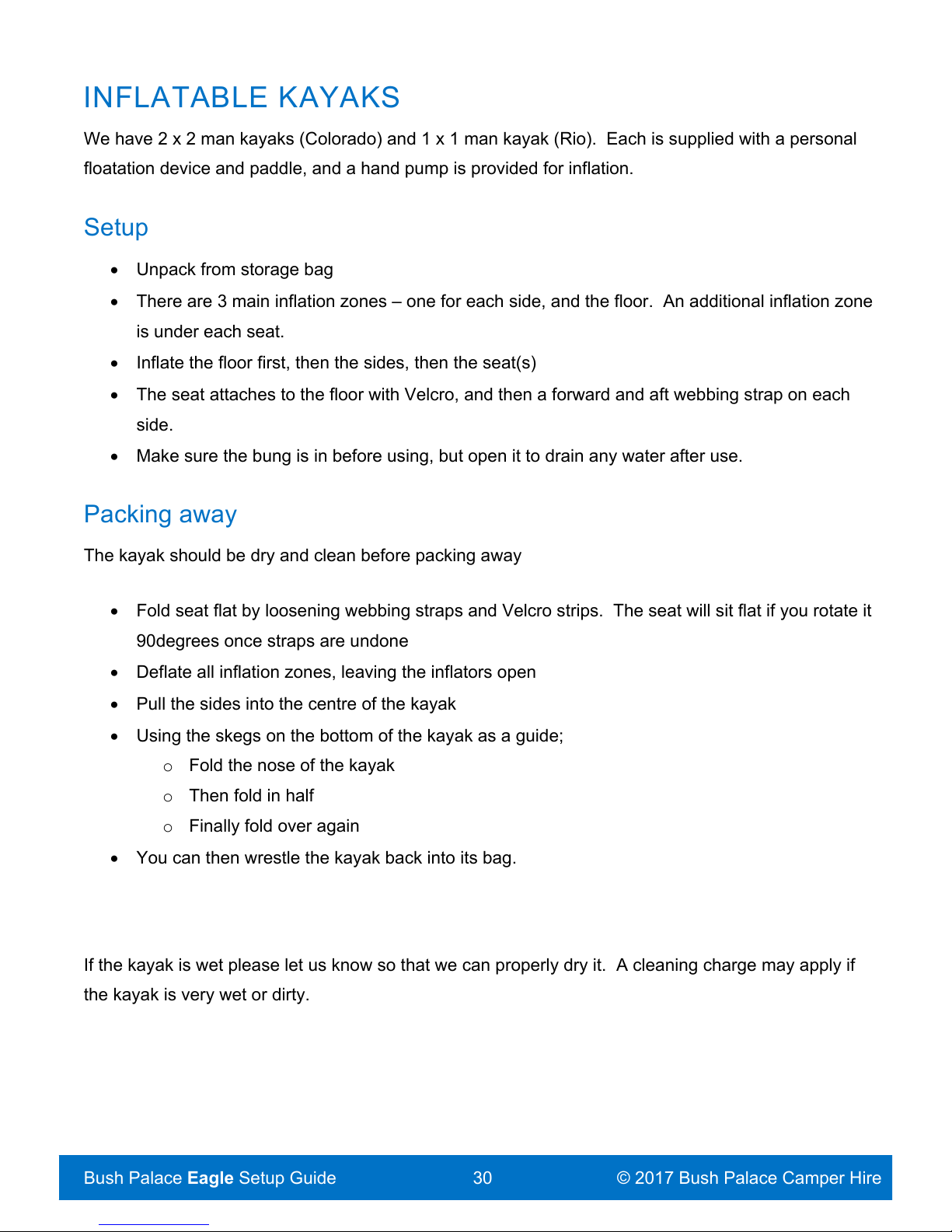

INFLATABLE KAYAKS ........................................................................................................................................... 30

Setup ............................................................................................................................................................ 30

Packing away ............................................................................................................................................... 30

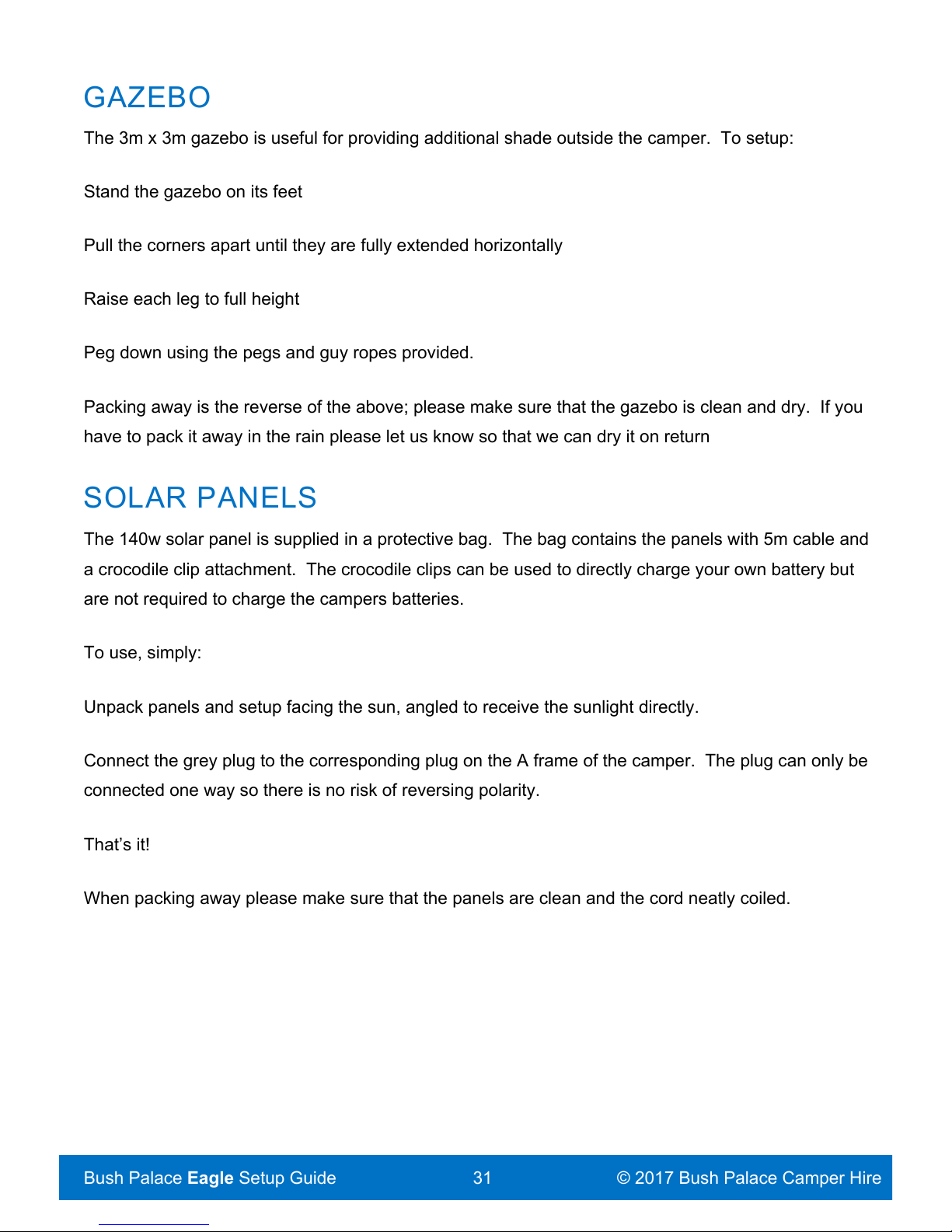

GAZEBO ............................................................................................................................................................. 31

TOILET .............................................................................................................. !))*)U.4**F_X)F.'*(.+!Z&'!+D

SOLAR PANELS ................................................................................................................................................... 31

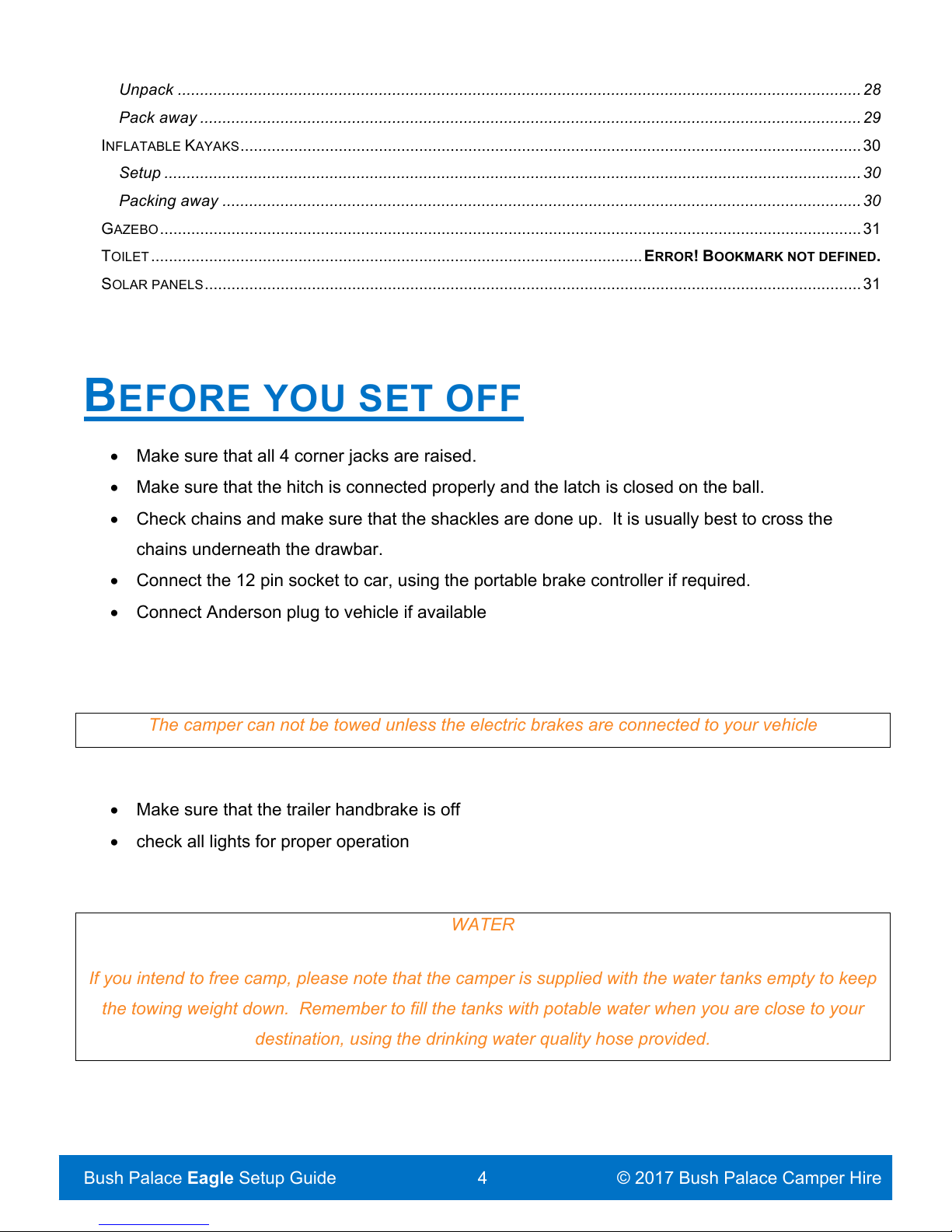

4!Z*)!.\*,.[!(.*ZZ.

• Make sure that all 4 corner jacks are raised.

• Make sure that the hitch is connected properly and the latch is closed on the ball.

• Check chains and make sure that the shackles are done up. It is usually best to cross the

chains underneath the drawbar.

• Connect the 12 pin socket to car, using the portable brake controller if required.

• Connect Anderson plug to vehicle if available

The camper can not be towed unless the electric brakes are connected to your vehicle

• Make sure that the trailer handbrake is off

• check all lights for proper operation

WATER

If you intend to free camp, please note that the camper is supplied with the water tanks empty to keep

the towing weight down. Remember to fill the tanks with potable water when you are close to your

destination, using the drinking water quality hose provided.

Page 5

[!((&'].,7.

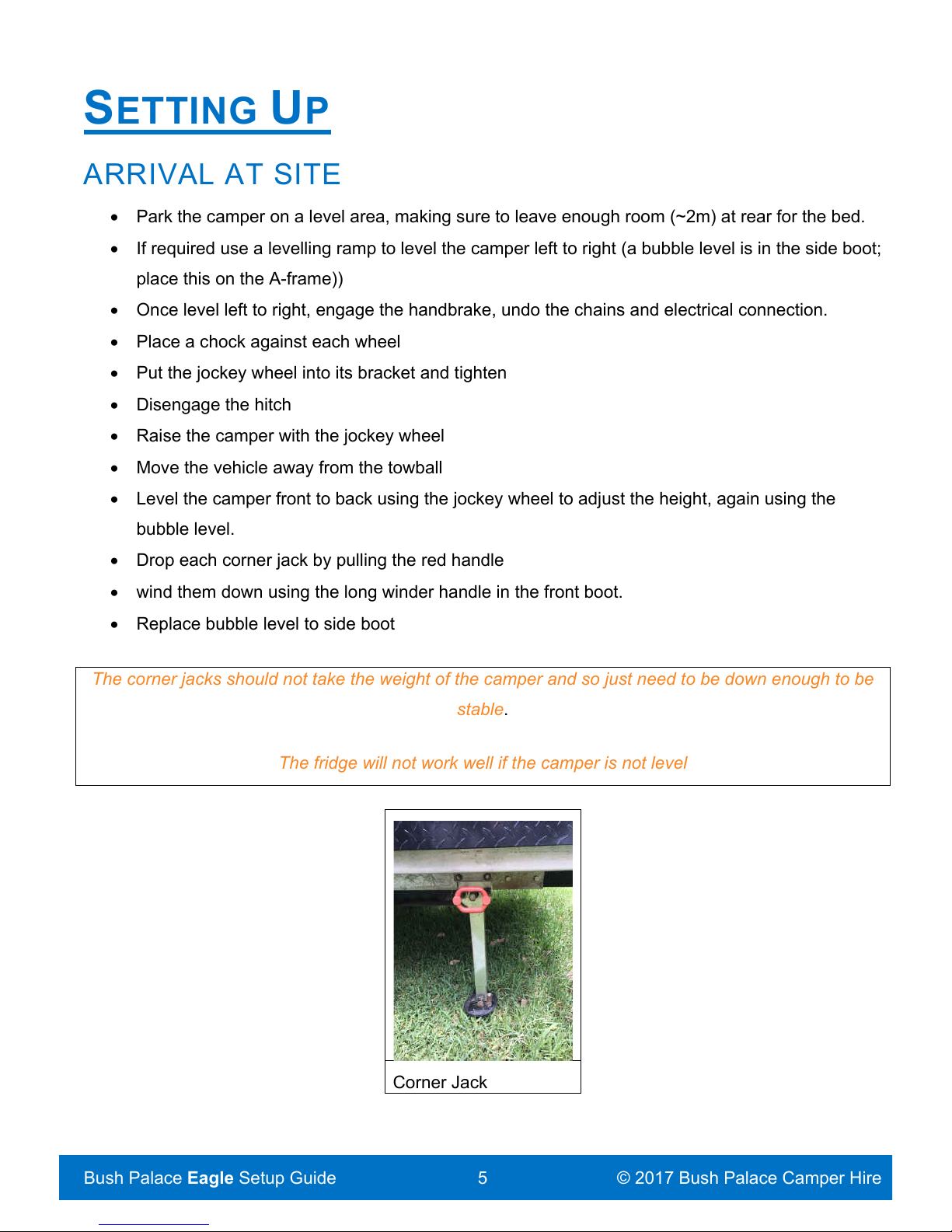

ARRIVAL AT SITE

• Park the camper on a level area, making sure to leave enough room (~2m) at rear for the bed.

• If required use a levelling ramp to level the camper left to right (a bubble level is in the side boot;

place this on the A-frame))

• Once level left to right, engage the handbrake, undo the chains and electrical connection.

• Place a chock against each wheel

• Put the jockey wheel into its bracket and tighten

• Disengage the hitch

• Raise the camper with the jockey wheel

• Move the vehicle away from the towball

• Level the camper front to back using the jockey wheel to adjust the height, again using the

bubble level.

• Drop each corner jack by pulling the red handle

• wind them down using the long winder handle in the front boot.

• Replace bubble level to side boot

The corner jacks should not take the weight of the camper and so just need to be down enough to be

stable.

The fridge will not work well if the camper is not level

Corner Jack

Page 6

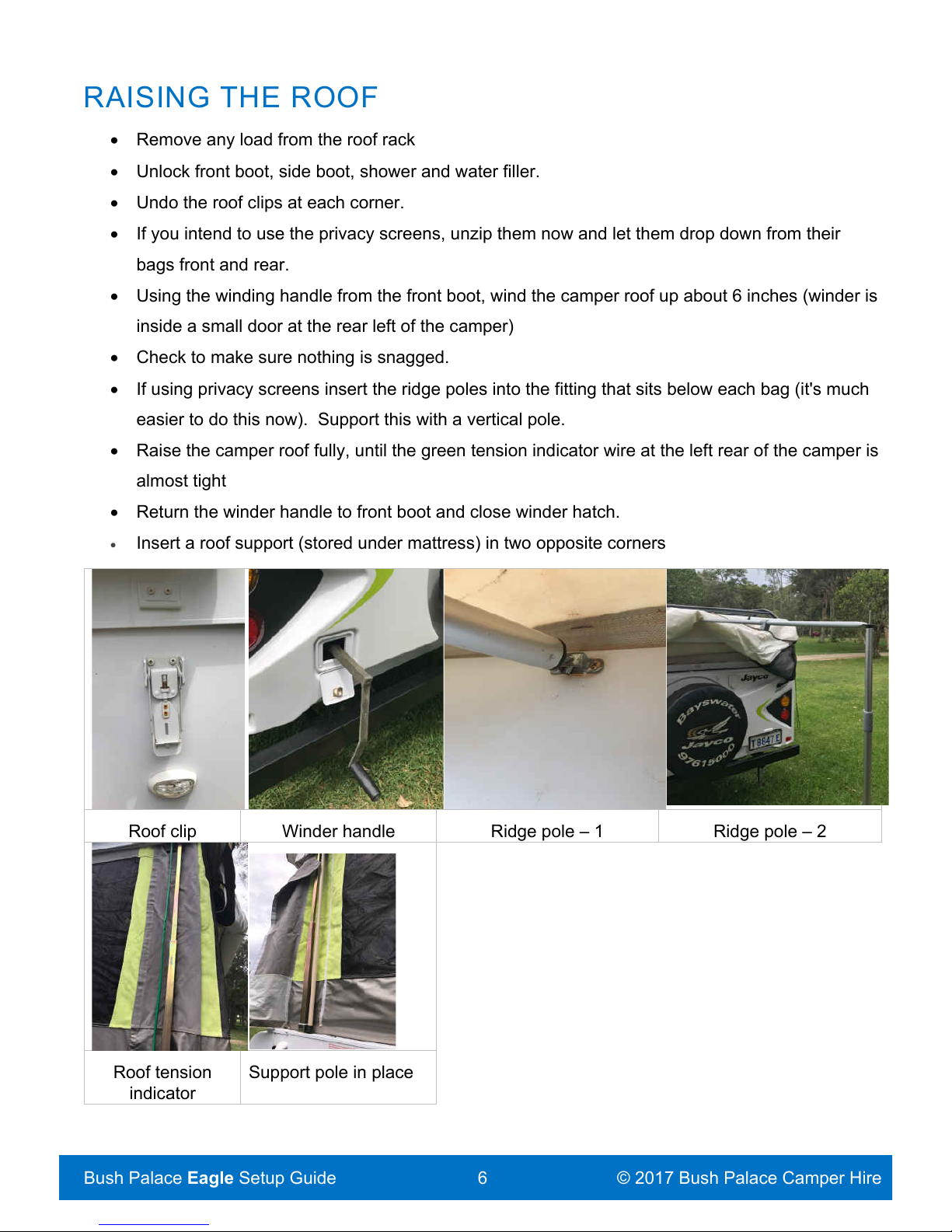

RAISING THE ROOF

• Remove any load from the roof rack

• Unlock front boot, side boot, shower and water filler.

• Undo the roof clips at each corner.

• If you intend to use the privacy screens, unzip them now and let them drop down from their

bags front and rear.

• Using the winding handle from the front boot, wind the camper roof up about 6 inches (winder is

inside a small door at the rear left of the camper)

• Check to make sure nothing is snagged.

• If using privacy screens insert the ridge poles into the fitting that sits below each bag (it's much

easier to do this now). Support this with a vertical pole.

• Raise the camper roof fully, until the green tension indicator wire at the left rear of the camper is

almost tight

• Return the winder handle to front boot and close winder hatch.

• Insert a roof support (stored under mattress) in two opposite corners

Roof clip

Winder handle

Ridge pole – 1

Ridge pole – 2

Roof tension

indicator

Support pole in place

Page 7

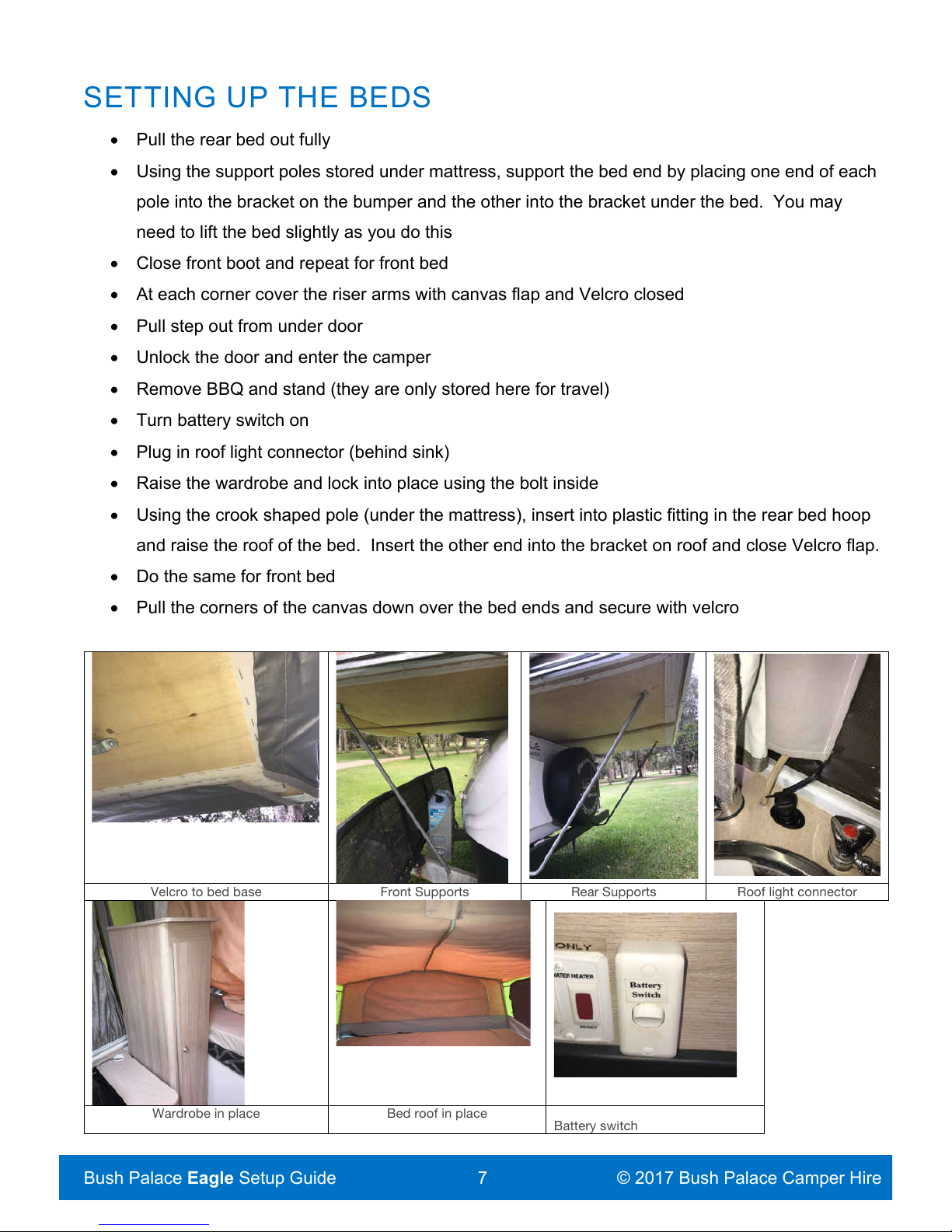

SETTING UP THE BEDS

• Pull the rear bed out fully

• Using the support poles stored under mattress, support the bed end by placing one end of each

pole into the bracket on the bumper and the other into the bracket under the bed. You may

need to lift the bed slightly as you do this

• Close front boot and repeat for front bed

• At each corner cover the riser arms with canvas flap and Velcro closed

• Pull step out from under door

• Unlock the door and enter the camper

• Remove BBQ and stand (they are only stored here for travel)

• Turn battery switch on

• Plug in roof light connector (behind sink)

• Raise the wardrobe and lock into place using the bolt inside

• Using the crook shaped pole (under the mattress), insert into plastic fitting in the rear bed hoop

and raise the roof of the bed. Insert the other end into the bracket on roof and close Velcro flap.

• Do the same for front bed

• Pull the corners of the canvas down over the bed ends and secure with velcro

Velcro to bed base

Front Supports

Rear Supports

Roof light connector

Wardrobe in place

Bed roof in place

Battery switch

Page 8

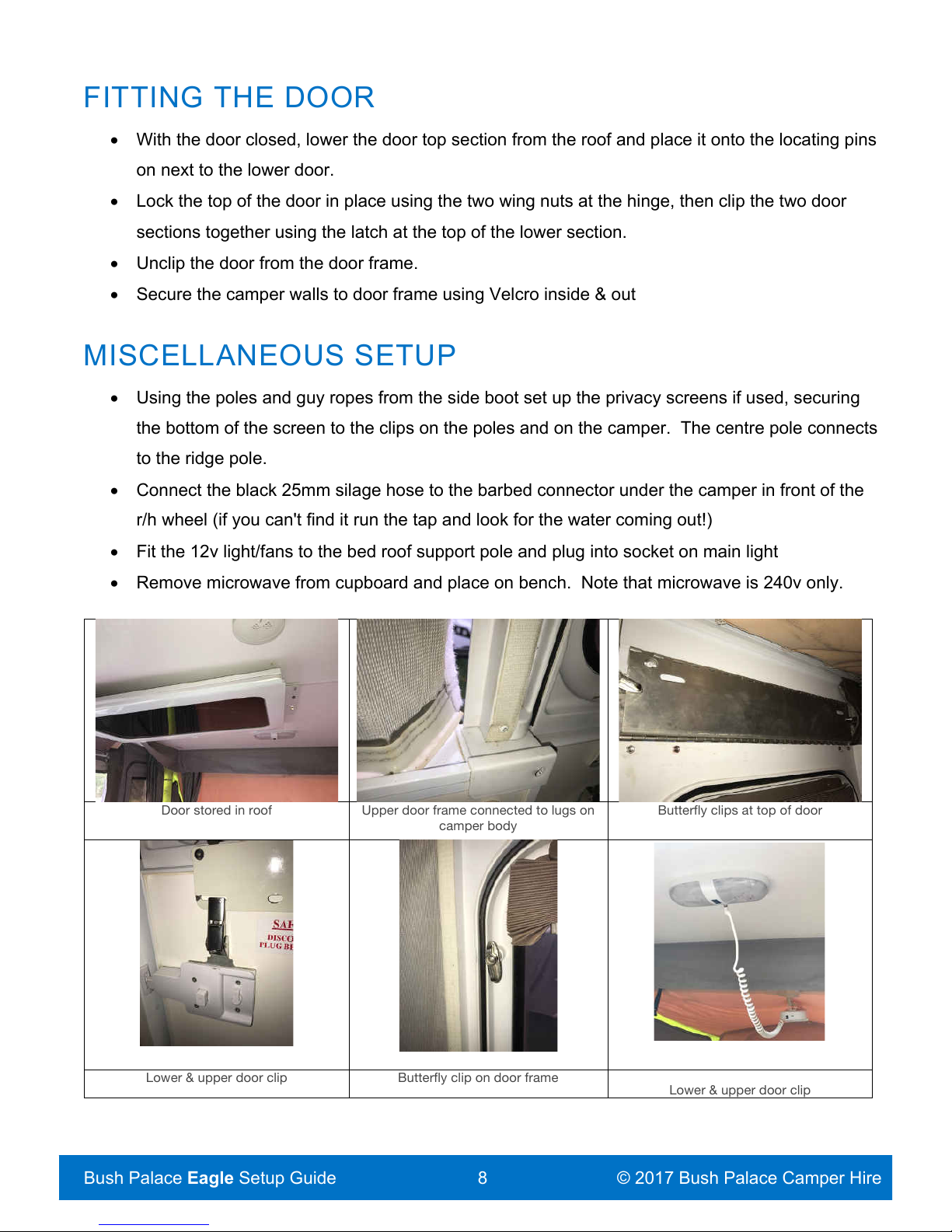

FITTING THE DOOR

• With the door closed, lower the door top section from the roof and place it onto the locating pins

on next to the lower door.

• Lock the top of the door in place using the two wing nuts at the hinge, then clip the two door

sections together using the latch at the top of the lower section.

• Unclip the door from the door frame.

• Secure the camper walls to door frame using Velcro inside & out

MISCELLANEOUS SETUP

• Using the poles and guy ropes from the side boot set up the privacy screens if used, securing

the bottom of the screen to the clips on the poles and on the camper. The centre pole connects

to the ridge pole.

• Connect the black 25mm silage hose to the barbed connector under the camper in front of the

r/h wheel (if you can't find it run the tap and look for the water coming out!)

• Fit the 12v light/fans to the bed roof support pole and plug into socket on main light

• Remove microwave from cupboard and place on bench. Note that microwave is 240v only.

Door stored in roof

Upper door frame connected to lugs on

camper body

Butterfly clips at top of door

Lower & upper door clip

Butterfly clip on door frame

Lower & upper door clip

Page 9

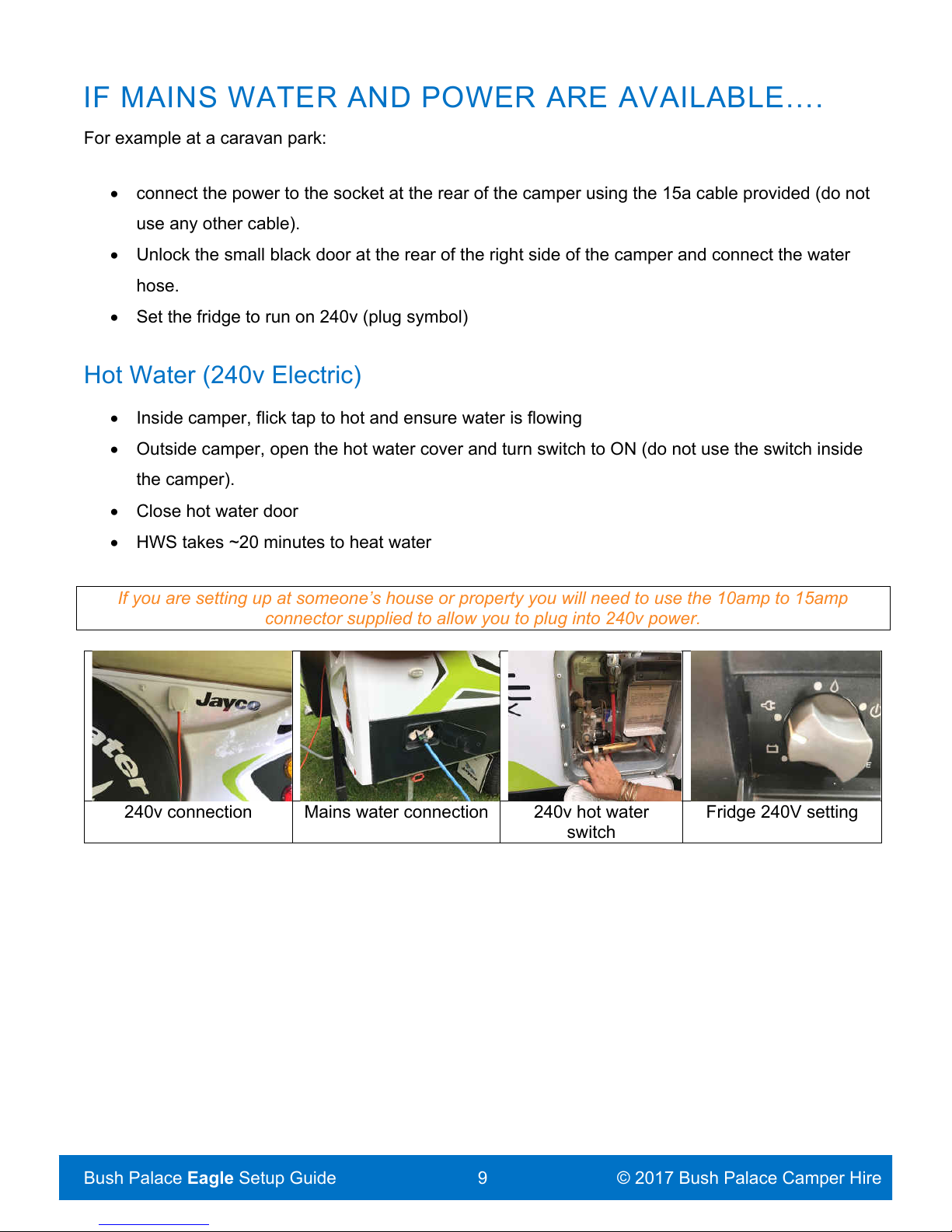

IF MAINS WATER AND POWER ARE AVAILABLE….

For example at a caravan park:

• connect the power to the socket at the rear of the camper using the 15a cable provided (do not

use any other cable).

• Unlock the small black door at the rear of the right side of the camper and connect the water

hose.

• Set the fridge to run on 240v (plug symbol)

Hot Water (240v Electric)

• Inside camper, flick tap to hot and ensure water is flowing

• Outside camper, open the hot water cover and turn switch to ON (do not use the switch inside

the camper).

• Close hot water door

• HWS takes ~20 minutes to heat water

If you are setting up at someone’s house or property you will need to use the 10amp to 15amp

connector supplied to allow you to plug into 240v power.

240v connection

Mains water connection

240v hot water

switch

Fridge 240V setting

Page 10

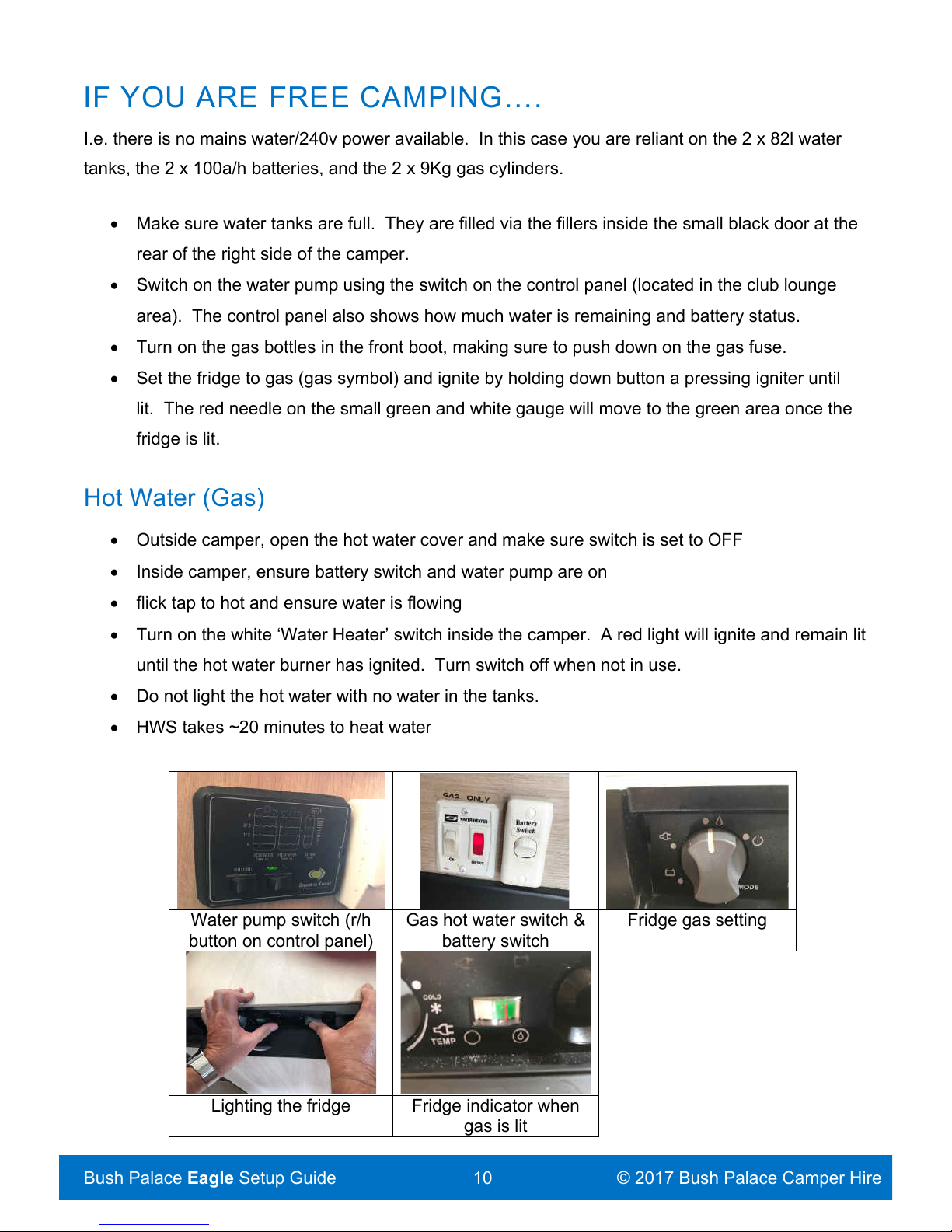

IF YOU ARE FREE CAMPING….

I.e. there is no mains water/240v power available. In this case you are reliant on the 2 x 82l water

tanks, the 2 x 100a/h batteries, and the 2 x 9Kg gas cylinders.

• Make sure water tanks are full. They are filled via the fillers inside the small black door at the

rear of the right side of the camper.

• Switch on the water pump using the switch on the control panel (located in the club lounge

area). The control panel also shows how much water is remaining and battery status.

• Turn on the gas bottles in the front boot, making sure to push down on the gas fuse.

• Set the fridge to gas (gas symbol) and ignite by holding down button a pressing igniter until

lit. The red needle on the small green and white gauge will move to the green area once the

fridge is lit.

Hot Water (Gas)

• Outside camper, open the hot water cover and make sure switch is set to OFF

• Inside camper, ensure battery switch and water pump are on

• flick tap to hot and ensure water is flowing

• Turn on the white ‘Water Heater’ switch inside the camper. A red light will ignite and remain lit

until the hot water burner has ignited. Turn switch off when not in use.

• Do not light the hot water with no water in the tanks.

• HWS takes ~20 minutes to heat water

Water pump switch (r/h

button on control panel)

Gas hot water switch &

battery switch

Fridge gas setting

Lighting the fridge

Fridge indicator when

gas is lit

Page 11

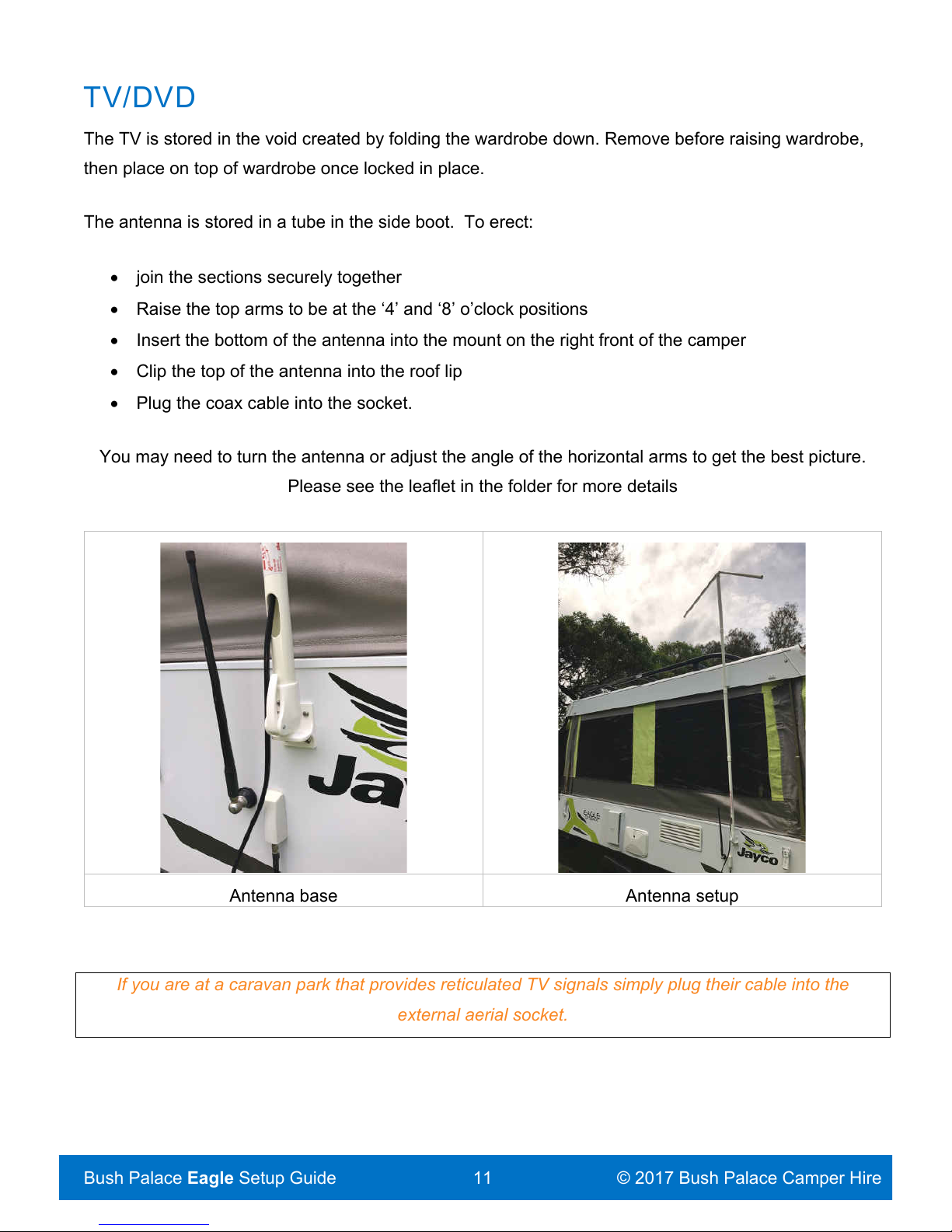

TV/DVD

The TV is stored in the void created by folding the wardrobe down. Remove before raising wardrobe,

then place on top of wardrobe once locked in place.

The antenna is stored in a tube in the side boot. To erect:

• join the sections securely together

• Raise the top arms to be at the ‘4’ and ‘8’ o’clock positions

• Insert the bottom of the antenna into the mount on the right front of the camper

• Clip the top of the antenna into the roof lip

• Plug the coax cable into the socket.

You may need to turn the antenna or adjust the angle of the horizontal arms to get the best picture.

Please see the leaflet in the folder for more details

Antenna base

Antenna setup

If you are at a caravan park that provides reticulated TV signals simply plug their cable into the

external aerial socket.

Page 12

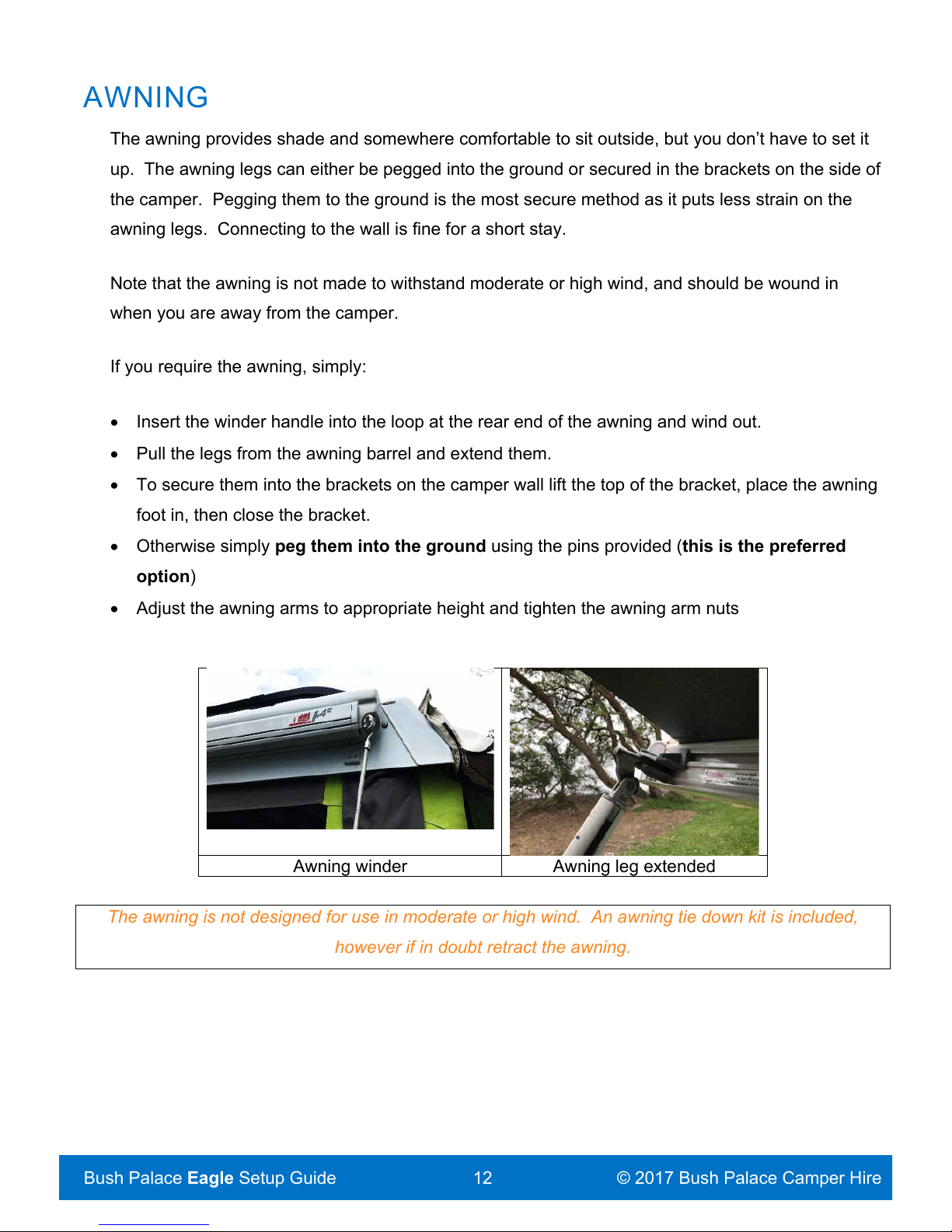

AWNING

The awning provides shade and somewhere comfortable to sit outside, but you don’t have to set it

up. The awning legs can either be pegged into the ground or secured in the brackets on the side of

the camper. Pegging them to the ground is the most secure method as it puts less strain on the

awning legs. Connecting to the wall is fine for a short stay.

Note that the awning is not made to withstand moderate or high wind, and should be wound in

when you are away from the camper.

If you require the awning, simply:

• Insert the winder handle into the loop at the rear end of the awning and wind out.

• Pull the legs from the awning barrel and extend them.

• To secure them into the brackets on the camper wall lift the top of the bracket, place the awning

foot in, then close the bracket.

• Otherwise simply 2%#.30%Q.<=31.30%.#:15=> using the pins provided (30<6.<6.30%.2:%@%::%>.

123<1=)

• Adjust the awning arms to appropriate height and tighten the awning arm nuts

Awning winder

Awning leg extended

The awning is not designed for use in moderate or high wind. An awning tie down kit is included,

however if in doubt retract the awning.

Page 13

MISCELLANEOUS

Barbecue

• Fit the barbecue into its stand (instructions are in the folder)

• Turn on gas, making sure to push gas fuse (instruction for the gas fuse are in the folder also)

• Connect barbecue to the camper using the bayonet fitting under the front LHS (push bayonet

into fitting and turn to secure)

It is advisable to place aluminium foil around the bowl of the barbecue to ensure that it is returned

clean

Gas bayonet with BBQ

hose connected

SIT DOWN & ENJOY!

That’s it! All that’s left to do is put out the awning mat, set up the table and chairs, and relax. Enjoy

your holiday!

Page 14

7X-F&'].,7.

Packing up is almost a reverse of the setting up process but there are a few differences - the sequence

is often important.

Whilst the instructions may say to return something to the front or side boot, it may be easier to lay

everything neatly on the ground as you take things down and then return them to their appropriate

storage in one go.

INITIAL STEPS

• Turn off water pump

• Turn off battery switch

• Turn off hot water (inside camper if using gas, or from the hot water unit outside if using 240v)

• Turn fridge off

• Return all cutlery, plates, utensils etc

• Remove bed end light/fans

• Fold wardrobe down and place TV in void (with a cushion)

• Close roof hatch, but make sure that internal blinds are open

• Zip all windows closed

• Unplug roof light connector behind sink

• Place microwave in cupboard

• Remove bed roof hoops and place under mattress (front & rear)

• Turn off gas bottles in front boot.

• Disconnect all cables & hoses (including the sullage hose), place in storage bags and return to

front boot

AWNING

• Remove awning legs from wall or unpeg from ground and insert into awning barrel, making sure

that they are completely in and sit flush within the barrel.

• Wind the awning in until it is fully closed.

Page 15

POLES & GUY ROPES

• Remove guy ropes and poles from privacy screens and put in side boot

TV ANTENNA

• Dismount and dismantle the TV antenna, put it back into its tube and return to side boot

DOOR

• Close door from inside

• Undo Velcro securing camper walls to door frame, inside & out

• Unclip connector securing door sections together

• Clip upper door section to door frame using butterfly clips

• Unclip butterfly clips at top of door

• Lift upper door section and secure to roof, making sure it is flat against ceiling

INTERIOR

• Now is a great time to sweep the camper!

• Place BBQ and stand inside camper at rear (use the blue rubber mats to protect floor)

• Close door

• Fold steps away

BBQ & stand storage position

Page 16

BEDS

• Undo Velcro securing bed walls to bed base

• Fold walls onto bed as flat as possible, making sure that no canvas hangs over the end of the

bed

• Remove support poles from underneath and place alongside mattress

• Undo Velcro flaps covering riser arms

• Push bed in until it is inside the frame of the camper

• Repeat for rear bed

ROOF

• Remove roof supports and place under mattress

• Using the winder handle, Wind the camper down until it is about 30cm from being down

• Walk around the camper and make sure that no canvas is sticking out, push it back in if needed.

• Lower until 10cm and repeat canvas check

• Lower completely, making sure that the top edge of the door sits inside the edge of the camper

roof.

• Return winder handle to front boot

• Clip down each corner of the roof

• Remove ridge poles from privacy screens if used

• Roll privacy screen back into bag, secure by tying them with the attached tape and then zip the

bags closed.

• Secure the clips on the bag awnings.

• Replace shower and close & lock door

• Close & lock water filler door

Correct position of door when roof

closed

Page 17

HOOKING UP

• Raise front & rear legs with winder and fold backwards

• Hook vehicle up to tow hitch

• Raise jockey wheel, remove and place in front boot (or vehicle boot).

• Connect chains and electrical connection to vehicle

• Release camper handbrake

• Remove chocks

• Move camper to release levelling ramps if used

• Return all chocks, ramps, winders & handles to front/side boot

That's it packed away!

Page 18

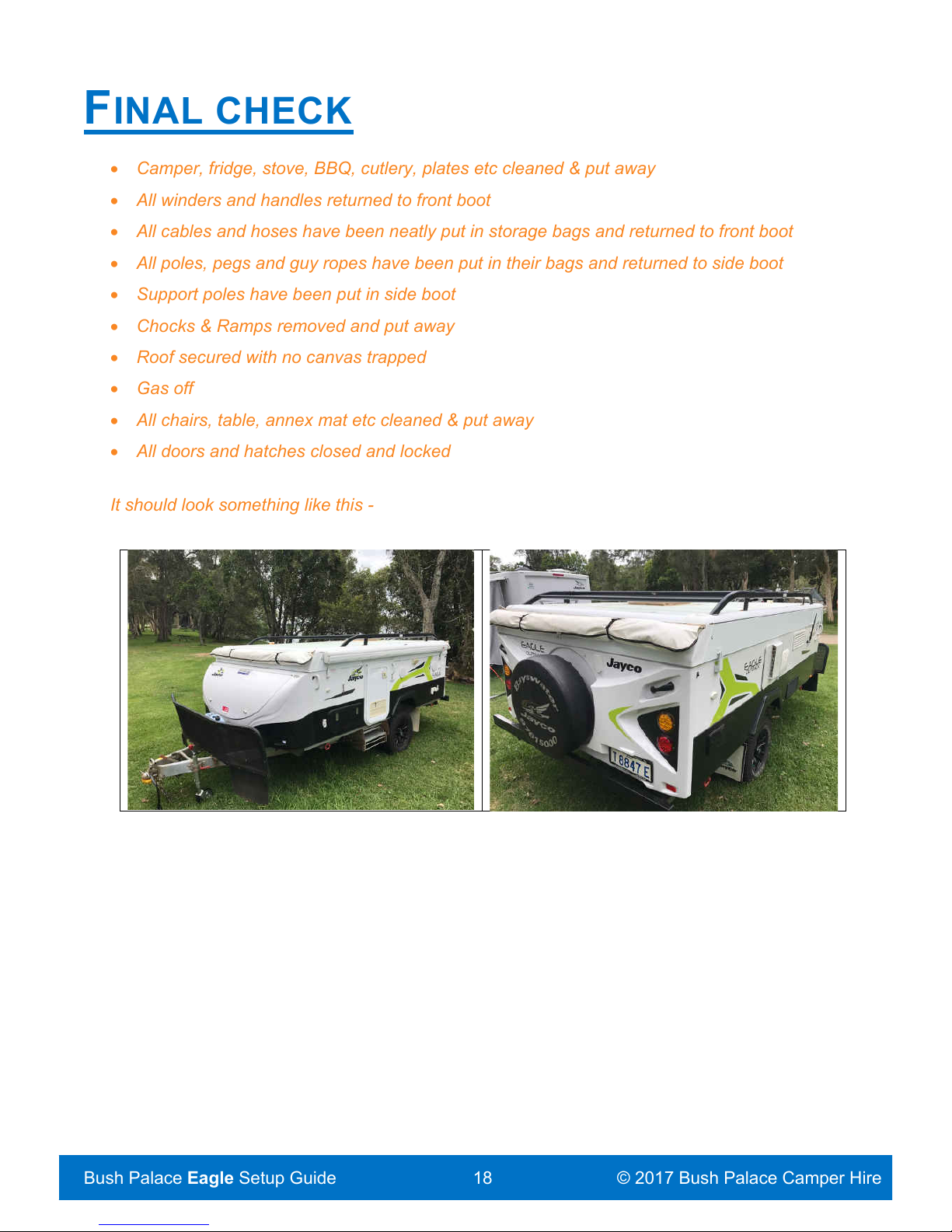

Z&'XY.-V!-F.

• Camper, fridge, stove, BBQ, cutlery, plates etc cleaned & put away

• All winders and handles returned to front boot

• All cables and hoses have been neatly put in storage bags and returned to front boot

• All poles, pegs and guy ropes have been put in their bags and returned to side boot

• Support poles have been put in side boot

• Chocks & Ramps removed and put away

• Roof secured with no canvas trapped

• Gas off

• All chairs, table, annex mat etc cleaned & put away

• All doors and hatches closed and locked

It should look something like this -

Page 19

&'^!'(*)\.

This is a comprehensive listing of the items supplied with the camper. The location will help you to find

things, and may also be useful when packing away – everything has a home!

&3%Q.

`3;.

[31:"#%.Y18"3<1=.

-"=.12%=%:.

2nd drawer

-53$%:;.6%36.

2nd drawer

!##.@$<2.

2nd drawer

Y">$%.

2nd drawer

Y":#%.B=<9%6.

2nd drawer

7"63:;.S:560.

2nd drawer

713"31.Q"60%:.

2nd drawer

713"31.2%%$%:.

2nd drawer

[8<661:6.

2nd drawer

(1=#6.

2nd drawer

/11>%=.6211=.

2nd drawer

[31=%.>%@$%831:.

A-frame

`5%%=.6<a%.Q"33:%66.2:13%831:.

Bed

`5%%=.6<a%.60%%3.

Bed

`5%%=.6<a%.Q"33:%66.3122%:.

Bed

+15S$%.Q"33:%66.2:13%831:.

Bed

+15S$%.60%%3.

Bed

44`.63"=>.

Camper floor

44`.A<30.PQ.63"<=$%66.S";1=%3.016%.

Camper floor

-$%"=<=#.2:1>5836.

Cupboard under drawers

Z$;.62:";.

Cupboard under drawers

_16b5<31.:%2%$$%=3.

Cupboard under drawers

*$<9%.1<$.62:";.

Cupboard under drawers

7"2%:.31A%$6.

Cupboard under drawers

["$3.W.2%22%:.

Cupboard under drawers

[5=S$18B.

Cupboard under drawers

Page 20

&3%Q.

`3;.

[31:"#%.Y18"3<1=.

+^+c6.

~20

Dinette drawer

]"Q%6.

Dinette drawer

V"=>.31A%$.

Dinette drawer

_16b5<31.81<$6.

Dinette drawer

71A%:.S1":>.

Dinette drawer

(%".(1A%$6.

Dinette drawer

MP9.$<#03d@"=.

Dinette void

4"33%:;.$"=3%:=.

Dinette void

LB#.#"6.8;$<=>%:6.

Front boot

XA=<=#.@$11:.Q"3.

Front boot

-"Q2<=#.80"<:6.

Front boot

+:<=B<=#.b5"$<3;.A"3%:.016%.<=.S"#T.Ad.@<33<=#6.

Front boot

]"6.@56%.

Front boot

e"8B.

Front boot

e"8B.0"=>$%.

Front boot

e18B%;.A0%%$.

Front boot

Y%#.0"=>$%.

Front boot

71A%:.$%">.<=.S"#.

Front boot

[01A%:.3%=3.

Front boot

[5$$"#%.016%.<=.S"#.

Front boot

("S$%.

Front boot

/0%%$.S:"8%.

Front boot

/<=><=#.0"=>$%.

Front boot

PP.$<3:%.2$"63<8.A"3%:.f%::;.

Front jerry holder

44`.53%=6<$6.

In BBQ

V132$"3%.g@1:.56%.<=.44`h.

In BBQ

!$%83:<8.B%33$%.

Large cupboard

]"6.B%33$%.g81$$"26<S$%h.

Large cupboard

713.

Large cupboard

["=>A<80.Q"B%:.

Large cupboard

[<$<81=%.Q"3.

Large cupboard

Page 21

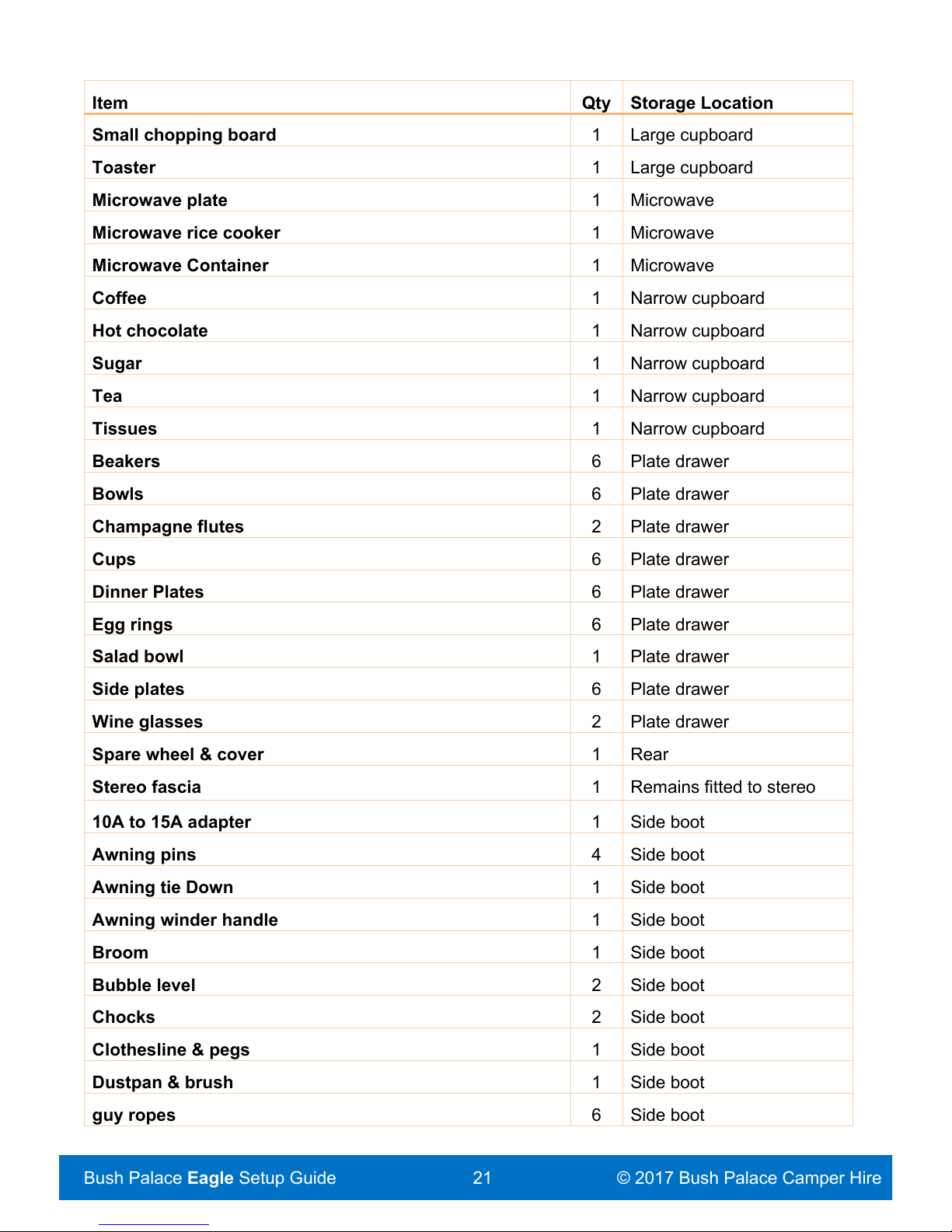

&3%Q.

`3;.

[31:"#%.Y18"3<1=.

[Q"$$.80122<=#.S1":>.

Large cupboard

(1"63%:.

Large cupboard

_<8:1A"9%.2$"3%.

Microwave

_<8:1A"9%.:<8%.811B%:.

Microwave

_<8:1A"9%.-1=3"<=%:.

Microwave

-1@@%%.

Narrow cupboard

V13.80181$"3%.

Narrow cupboard

[5#":.

Narrow cupboard

(%".

Narrow cupboard

(<665%6.

Narrow cupboard

4%"B%:6.

Plate drawer

41A$6.

Plate drawer

-0"Q2"#=%.@$53%6.

Plate drawer

-526.

Plate drawer

+<==%:.7$"3%6.

Plate drawer

!##.:<=#6.

Plate drawer

["$">.S1A$.

Plate drawer

[<>%.2$"3%6.

Plate drawer

/<=%.#$"66%6.

Plate drawer

[2":%.A0%%$.W.819%:.

Rear

[3%:%1.@"68<".

Remains fitted to stereo

MHX.31.MKX.">"23%:.

Side boot

XA=<=#.2<=6.

Side boot

XA=<=#.3<%.+1A=.

Side boot

XA=<=#.A<=>%:.0"=>$%.

Side boot

4:11Q.

Side boot

45SS$%.$%9%$.

Side boot

-018B6..

Side boot

-$130%6$<=%.W.2%#6.

Side boot

+5632"=.W.S:560.

Side boot

#5;.:12%6.

Side boot

Page 22

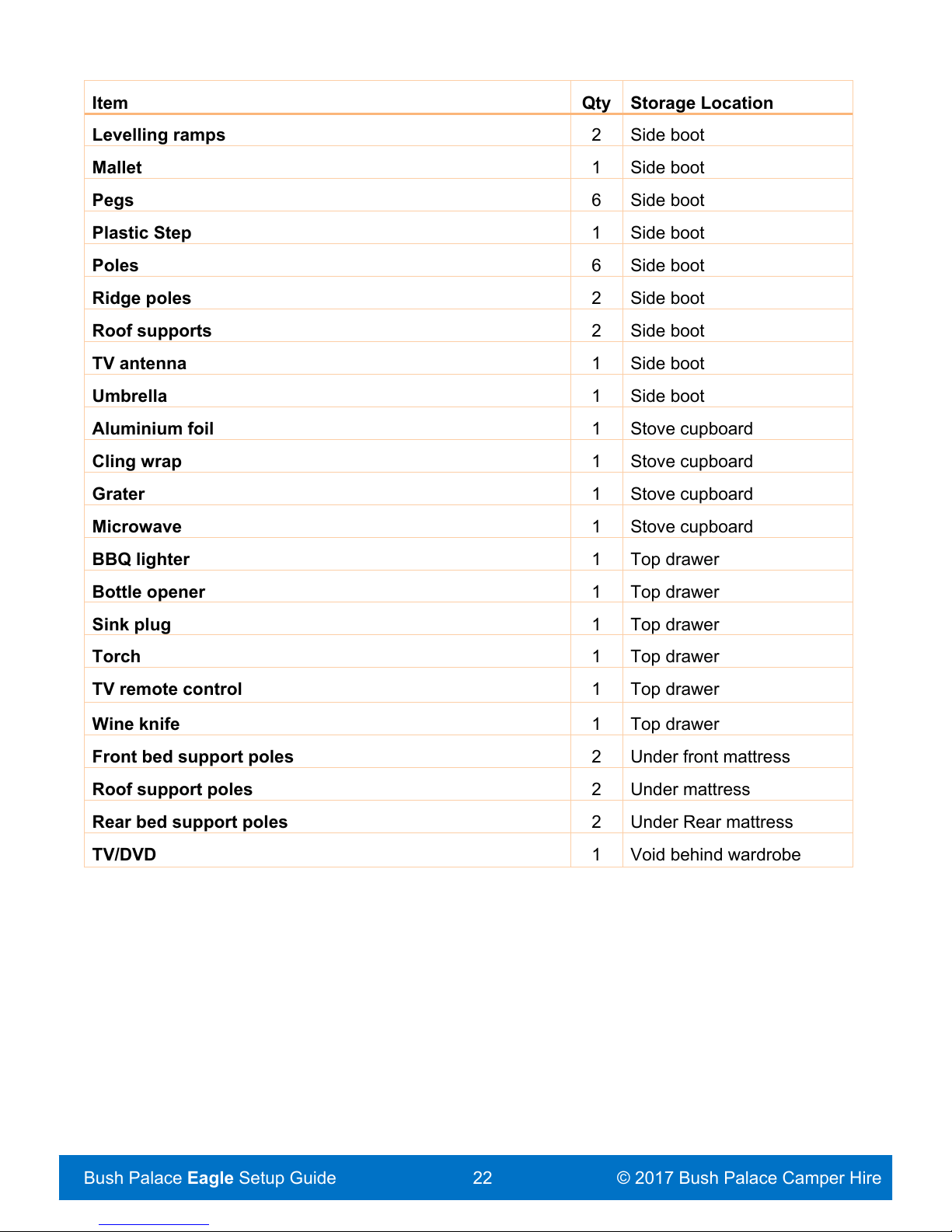

&3%Q.

`3;.

[31:"#%.Y18"3<1=.

Y%9%$$<=#.:"Q26..

Side boot

_"$$%3.

Side boot

7%#6.

Side boot

7$"63<8.[3%2.

Side boot

71$%6.

Side boot

)<>#%.21$%6.

Side boot

)11@.65221:36.

Side boot

(^."=3%==".

Side boot

,QS:%$$".

Side boot

X$5Q<=<5Q.@1<$.

Stove cupboard

-$<=#.A:"2.

Stove cupboard

]:"3%:.

Stove cupboard

_<8:1A"9%.

Stove cupboard

44`.$<#03%:.

Top drawer

4133$%.12%=%:.

Top drawer

[<=B.2$5#.

Top drawer

(1:80.

Top drawer

(^.:%Q13%.81=3:1$.

Top drawer

/<=%.B=<@%.

Top drawer

Z:1=3.S%>.65221:3.21$%6.

Under front mattress

)11@.65221:3.21$%6.

Under mattress

)%":.S%>.65221:3.21$%6.

Under Rear mattress

(^d+^+.

Void behind wardrobe

Page 23

&+!'(&Z&-X(&*'.7V*(*[.

These photos might help you identify some of the supplied items or where they live.

Item/Location


Hoses & cables

Winder/handle storage locations

Front stone guard

Page 24

Item/Location


Water Jerry

Gas bottles

Support poles, washing line, ramps, TV antenna, umbrella, awning tie down kit, awning winder

Page 25

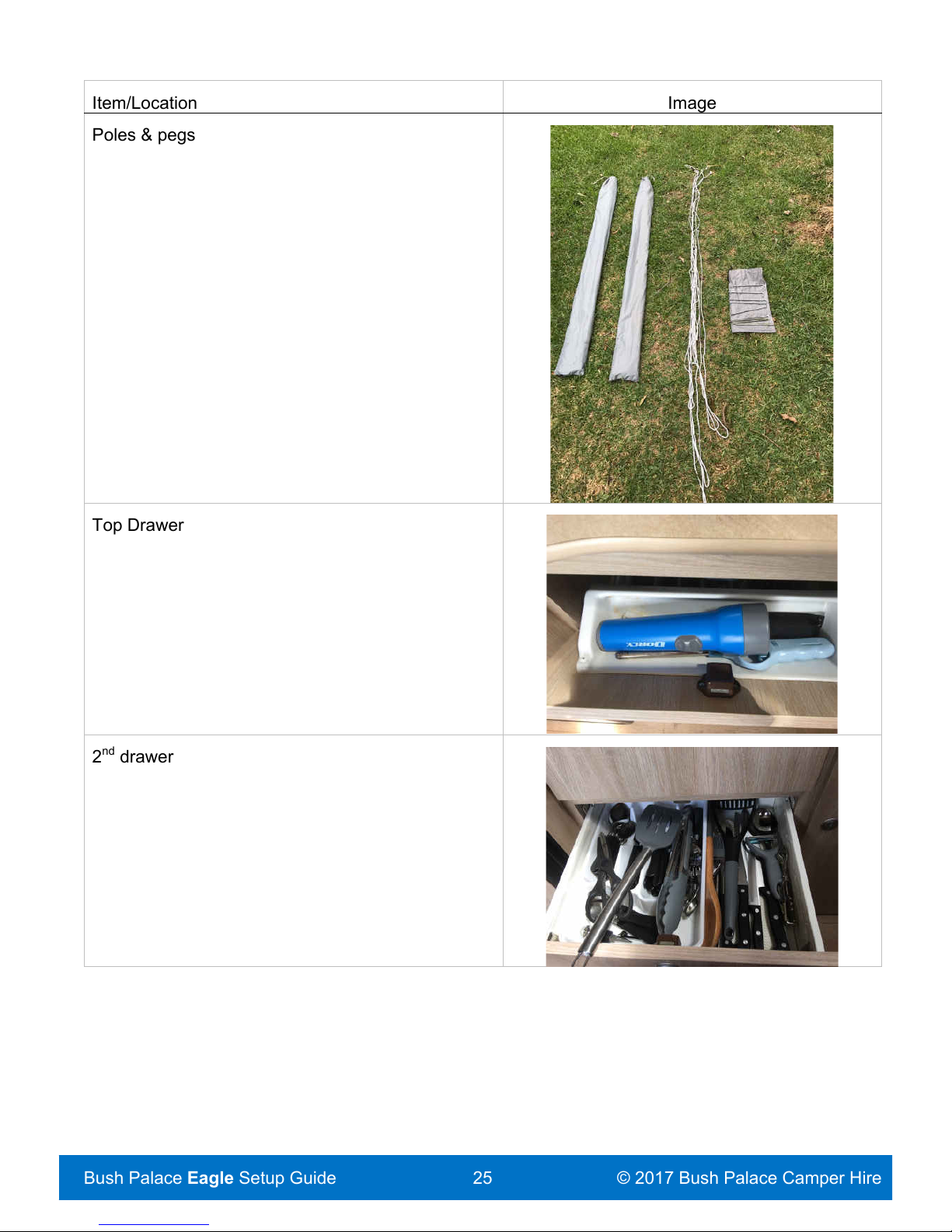

Item/Location


Poles & pegs

Top Drawer

2nd drawer

Page 26

Item/Location


Cupboard under drawers

Large cupboard

Stove Cupboard

Page 27

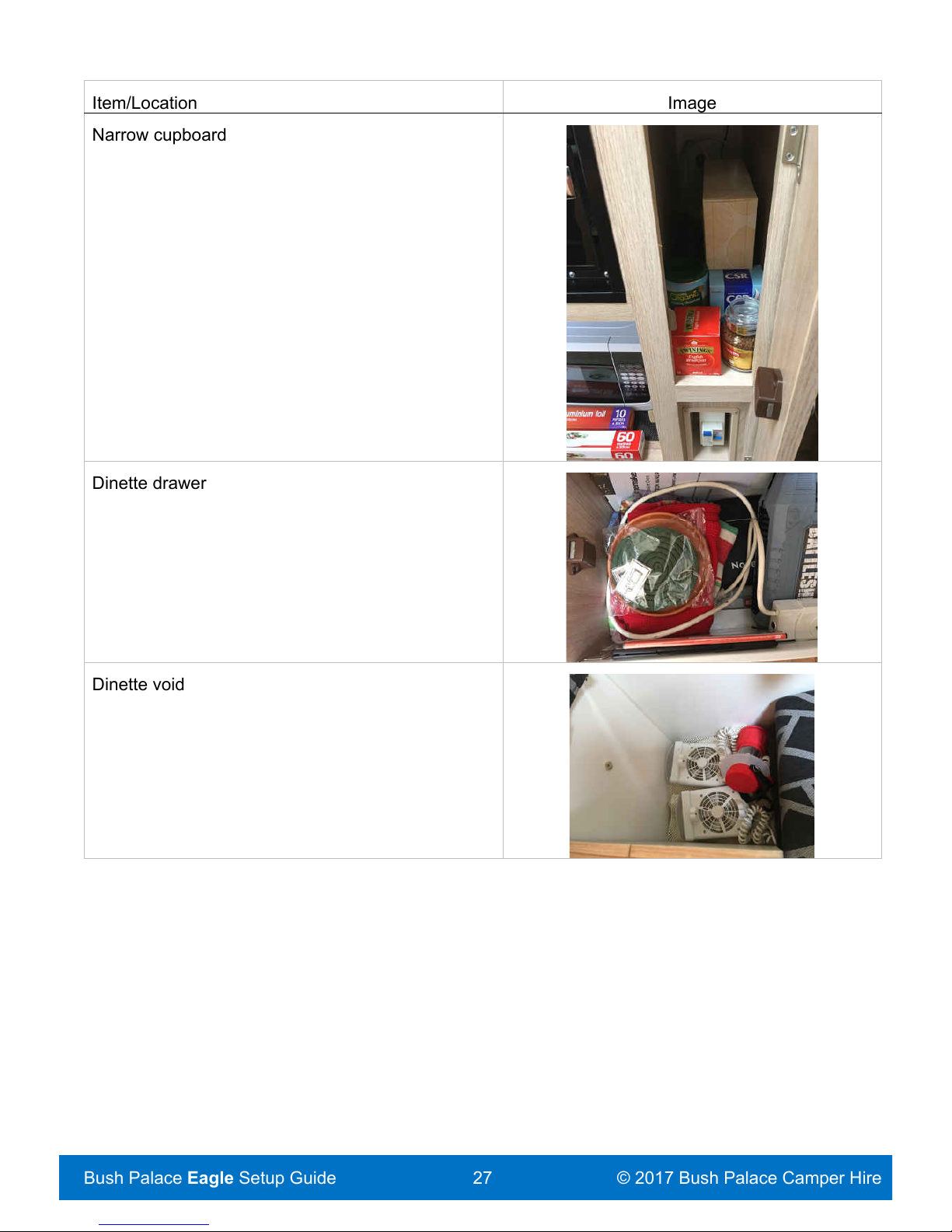

Item/Location


Narrow cupboard

Dinette drawer

Dinette void

Page 28

*7(&*'XY.&(!_[.

These items are available on request, some of them at additional cost.

SATELLITE DISH

This is a portable 85cm satellite dish configured for the Optus satellite that provides free to air services

under the VAST scheme (Viewer Access Satellite Television). There are no subscription fees

associated with the VAST service and it enables access to television services just about everywhere in

Australia.

The full setup instructions are included in the folder however these are the basic steps and the actions

specific to the Bush Palace

Unpack

The dish comes in a carry bag which contains:

• 85cm satellite dish

• 20m coax cable

• Single LNB (fitted to dish)

• 1m coax cable (fitted to dish)

• Satellite signal meter

• Compass

• 2 x Pegs

• Aetech satellite decoder

• Smart card (in decoder)

• Remote control

• HDMI cable

• Small inverter

Set the dish up according to the instructions, making sure that it is flat & level and has clear line of

sight to the sky. Trees, buildings, the camper and other obstructions will prevent you finding a signal.

• Connect the signal finder to the 1m cable

Page 29

• Place the decoder in the camper and plug it in, either to the 240v socket in the narrow cupboard

next to the stove or into the small inverter.

• Unplug the white coaxial cable from the back of the TV and plug it into the back of the decoder.

• Connect the HDMI cable to both the decoder and TV

• Set the TV input to HDMI

• Outside again, connect the 20m cable to the satellite signal finder at one end and the caravan

antenna input (forward tight hand side of camper) at the other. If all connections have been

made properly, the signal finder will now be powered on through the coax cable.

• Using the elevation marks on the rear leg of the dish and the compass point the dish toward the

satellite. You may find it useful to use a satellite finder app on your smartphone to help here;

we use the satellite finder that is included in the Wikicamps application. This has a camera

function that allows you to see exactly where in the sky the satellite is.

• Now it is simply a process of adjusting the elevation and rotation of the dish until the signal

meter shows a strong signal.

• Once the signal is acquired the decoder needs to be tuned. Go to the advanced setup menu

where you will see a signal strength meter. Once the decoder indicates that it has locked onto

the satellite, you can start the autotune process.

The satellite card will sometimes need to be ‘re-hit’. To do this go to

https://myvast.com.au/register/reactivate and enter smartcard number 10020893219

You are now setup. Use the ‘Aetech’ remote to change channels on the TV.

Pack away

• Unplug all cables

• Place the decoder, power cable and HDMI lead in its box into the satellite dish bag

• Fold the satellite dish and place it in the bag

• Carefully wind the 20m cable, being sure to not introduce any kinks into the cable. Place it onto

the satellite dish

• Put the signal finder & compass back into the pocket in the bag lid

• Set the TV to DTV input

• Connect the white coax cable to the antenna input on the TV

Page 30

INFLATABLE KAYAKS

We have 2 x 2 man kayaks (Colorado) and 1 x 1 man kayak (Rio). Each is supplied with a personal

floatation device and paddle, and a hand pump is provided for inflation.

Setup

• Unpack from storage bag

• There are 3 main inflation zones – one for each side, and the floor. An additional inflation zone

is under each seat.

• Inflate the floor first, then the sides, then the seat(s)

• The seat attaches to the floor with Velcro, and then a forward and aft webbing strap on each

side.

• Make sure the bung is in before using, but open it to drain any water after use.

Packing away

The kayak should be dry and clean before packing away

• Fold seat flat by loosening webbing straps and Velcro strips. The seat will sit flat if you rotate it

90degrees once straps are undone

• Deflate all inflation zones, leaving the inflators open

• Pull the sides into the centre of the kayak

• Using the skegs on the bottom of the kayak as a guide;

o Fold the nose of the kayak

o Then fold in half

o Finally fold over again

• You can then wrestle the kayak back into its bag.

If the kayak is wet please let us know so that we can properly dry it. A cleaning charge may apply if

the kayak is very wet or dirty.

Page 31

GAZEBO

The 3m x 3m gazebo is useful for providing additional shade outside the camper. To setup:

Stand the gazebo on its feet

Pull the corners apart until they are fully extended horizontally

Raise each leg to full height

Peg down using the pegs and guy ropes provided.

Packing away is the reverse of the above; please make sure that the gazebo is clean and dry. If you

have to pack it away in the rain please let us know so that we can dry it on return

SOLAR PANELS

The 140w solar panel is supplied in a protective bag. The bag contains the panels with 5m cable and

a crocodile clip attachment. The crocodile clips can be used to directly charge your own battery but

are not required to charge the campers batteries.

To use, simply:

Unpack panels and setup facing the sun, angled to receive the sunlight directly.

Connect the grey plug to the corresponding plug on the A frame of the camper. The plug can only be

connected one way so there is no risk of reversing polarity.

That’s it!

When packing away please make sure that the panels are clean and the cord neatly coiled.
