Spotting ScopeS

INSTRUCTION MANUAL

LIT. #: 982307/1010

Have a look at your boot soles...

If they’re worn thin by miles of trail, the Trophy
XLT® series is your spotting scope. It’s built to
withstand the punishment of the harshest terrain.
Compact and rubber-armored, the 100% waterproof
design is available in two zoom ranges up to 60x
magnification. Porro prisms and premium, fully
multi-coated optics ensure a bright, clear picture.
To aid stable viewing, they come with a compact
tripod. Finally, to protect your investment, we’ve
included sturdy hard-side and compact soft-side
carrying cases.

15-45x50mm

Rugged, compact and
100% waterproof for
high-country hunting,
backpacking and
adventure travel.

20-60x65mm

Extra power for extra
range, this is the
ultimate portable, all­weather spotting scope
for trophy hunting and
birding.

Thank you for purchasing your new Bushnell Trophy XLT™ Spotting Scope.
This manual will help you optimize your viewing experience by explaining how to utilize the
scope’s controls and features, and how to care for it. Read the instructions carefully before using
your scope.

TRIPOD MOUNTING

After setting up your tripod on a stable, level surface, fasten the scope’s
mounting base to the screw on the tripod’s platform, so that the scope is
held securely in place. See “Using the Mini Tripod” if using the included tripod.

USING the ZOOM EYEPIECE and FOCUSING

Rotate the zoom ring on the eyepiece to change magnifying power from
low to high. Lower power settings will provide a brighter image with a
wider eld of view; higher powers allow observing smaller details on more
distant subjects. To reduce the need to readjust focus when zooming, set
the zoom to its highest power and focus on your subject. When you zoom
back down to lower powers, it will stay in focus. Note: the zoom eyepiece is

not interchangeable. Do not attempt to remove it from the scope.

Eyecup Extended

USING the TWIST-UP EYECUP and SLIDING SUN SHADE

If you are not wearing glasses, twist the rubber eyecup counter-clockwise to
extend it. If you experience glare or lens are due to the angle and direction
of the sun relative to the front lens, pull the sun shade out to extend it.

Sun Shade Extended

WATERPROOF / FOGPROOF

Your Bushnell Trophy XLT spotting scope has been designed and built utilizing the latest waterproof
and fogproof technology. The scope is O-ring sealed for complete moisture protection. Fogproof
protection is achieved from dry nitrogen purging that removes all internal air which can retain
moisture.

Twist-up

Eyecup

Zoom

Ring

Focus

Knob

Sliding Sun Shade

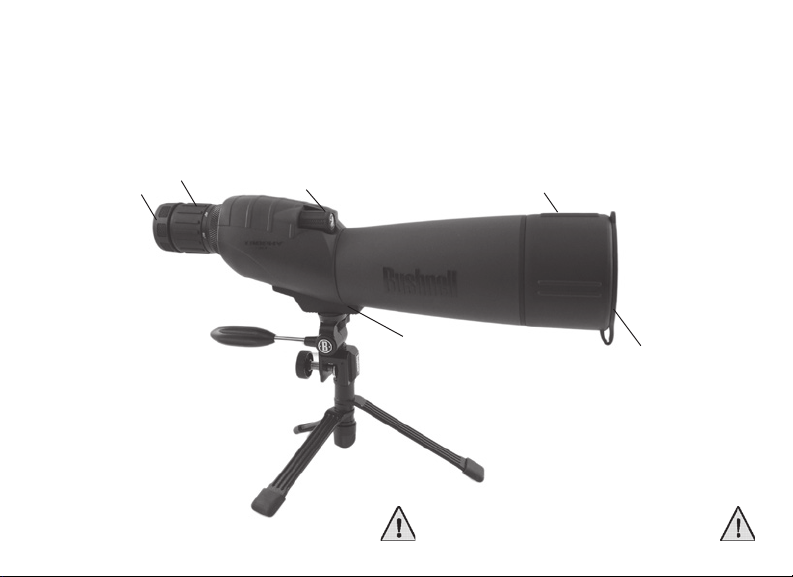

PARTS GUIDE

20-60x65mm model shown for reference

Tripod
Mounting Base

NEVER LOOK DIRECTLY AT THE SUN WITH YOUR SCOPE

AS IT MAY CAUSE SERIOUS DAMAGE TO YOUR EYES

Lens Cap
(tethered)

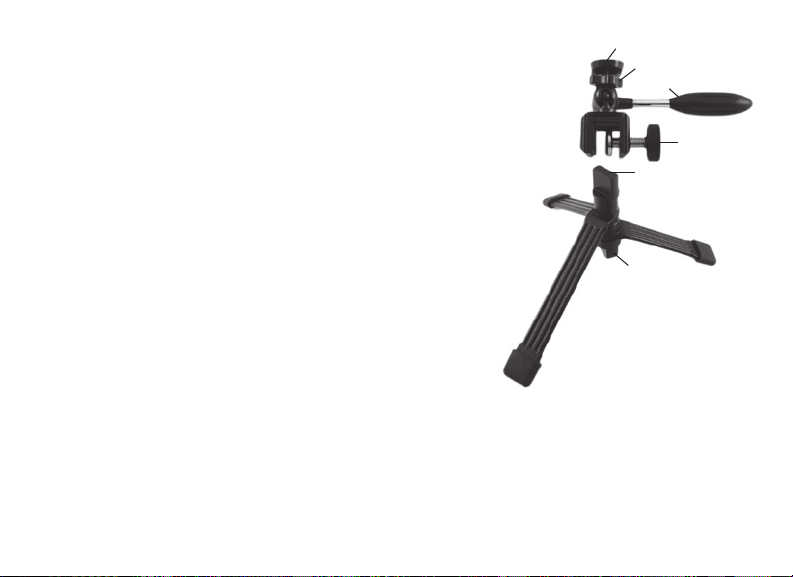

USING the MINI TRIPOD

• Loosen the knob (A) at the base of the collapsible
tripod legs. Unfold the legs fully and set the tripod on a

E

D

F

stable, level surface such as a table or the ground.

• Make sure the upper section of the tripod is level and
securely attached to the top plate (B) of the lower
section, by tightening the C-clamp bolt (C).

C

B

• Turn the mounting screw knob (D) to attach the scope’s
mounting base securely to the tripod platform (E) (do
not overtighten).

• Twist the pan/tilt handle (F) counter-clockwise to

A

loosen it, tilt the tripod head until the mounting
platform is level with the ground, then twist the handle
clockwise to tighten it.

• To tilt the scope vertically, twist the pan/tilt handle
counter-clockwise to loosen it rst, then tilt the tripod

Note: appearance and
features of tripod are
subject to change.

head up or down. To pan the scope left or right, loosen
the pan lock knob rst, then use the pan/tilt handle to rotate the tripod platform.

• The top section of the mini tripod may also be used as a car window mount. Loosen the
C-clamp bolt (C), and remove the top section. Roll down your window partially, leaving
enough of it up to place the C-clamp on, with the bolt knob facing you. Tighten the knob to
secure the mount in place, being careful not to cause damage to the window (avoid using the
mount on windows with signicant curvature).

• After installing the mount on the window, attach the scope to the tripod platform with the
mounting screw (D). Loosen and adjust the pan/tilt handle to point the scope as needed,
then tighten it.

NOTE: use of the top section as a window mount is not recommended with the 20-60x65mm Trophy XLT scope due to its greater size and
weight, to avoid potential damage to your window and/or the scope.

CLEANING

The lenses of your Trophy XLT spotting scope are multi-coated for highest light transmission. As
with any multi-coated optics, special care must be taken in cleaning the lenses. Follow these steps
for proper lens cleaning:

• Blow away any dust or debris on the lens (or use a soft lens brush).

• To remove dirt or nger prints, clean with the supplied micro-ber cloth rubbing in a circular

motion. Use of a coarse cloth or unnecessary rubbing may scratch the lens surface and
eventually cause permanent damage. The included washable microber cleaning cloth is
ideal for the routine cleaning of your optics. Simply breathe lightly on the lens to provide a
slight amount of moisture, then gently rub the lens with the microber cloth.

• For a more thorough cleaning, photographic lens tissue and photographic-type lens cleaning
uid or isopropyl alcohol may be used. Always apply the uid to the cleaning cloth – never
directly on the lens.

GENERAL CARE and CAUTIONS

Never disassemble your spotting scope. Irreparable damage can result from unauthorized
service attempts, which also void the warranty.

WARRANTY/REPAIR

We are so proud of our Bushnell® Trophy XLT™ Spotting Scopes that their materials and workmanship are warranted to be free of defects for the life
of the product. The warranty is available to any owner of a Trophy XLT spotting scope. No receipt or warranty card is required. This warranty does
not cover damages caused by misuse or improper handling, installation or maintenance of the binoculars.
At our option, we will repair or replace any defective Trophy XLT spotting scope, which shall be your sole remedy under this warranty. In no event
shall we be liable for transportation costs to us, costs of removal or reinstallation of the scope, or incidental or consequential damages. Some states
do not allow the exclusion of limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Any return in the U.S. or Canada made under this warranty must be accompanied by the items listed below:

1) A check/money order in the amount of $10.00 to cover the cost of postage and handling

2) Name and address for product return

3) An explanation of the defect

4) Proof of Purchase

5) Product should be well packed in a sturdy outside shipping carton, to prevent damage in transit, with return postage prepaid to the
address listed below:
IN U.S.A. Send To: IN CANADA Send To:
Bushnell Outdoor Products Bushnell Outdoor Products
Attn.: Repairs Attn.: Repairs
9200 Cody 25A East Pearce Street, Unit 1
Overland Park, Kansas 66214 Richmond Hill, Ontario L4B 2M9

For products purchased outside the United States or Canada please contact your local dealer for applicable warranty information. In Europe you
may also contact Bushnell at: Bushnell Germany GmbH
European Service Centre
Mathias-Brüggen-Str. 80
D-50827 Köln
GERMANY
Tel: [phone]
Fax: [phone]

This warranty gives you specic legal rights. You may have other rights which vary from country to country.

LIFETIME LIMITED WARRANTY
