Bushnell 53-0021 User Manual 2

Model: 53-0021
Lit. #: 98-0579/04-05

Instruction Manual

INTRODUCTION
The Bushnell® Holosight® XLP is based on advanced holographic technology. The Bushnell®
Holosight® XLP enhances target acquisition, improves accuracy, and provides a high level of control
within the shooting environment. This user manual describes the features of the Bushnell® Holosight®
XLP and provides information on its use and maintenance. Please read the instructions carefully before
mounting and using the sight and always practice proper firearm safety.

Included:

• Assembled Holographic Diffraction Sight including mounting hardware

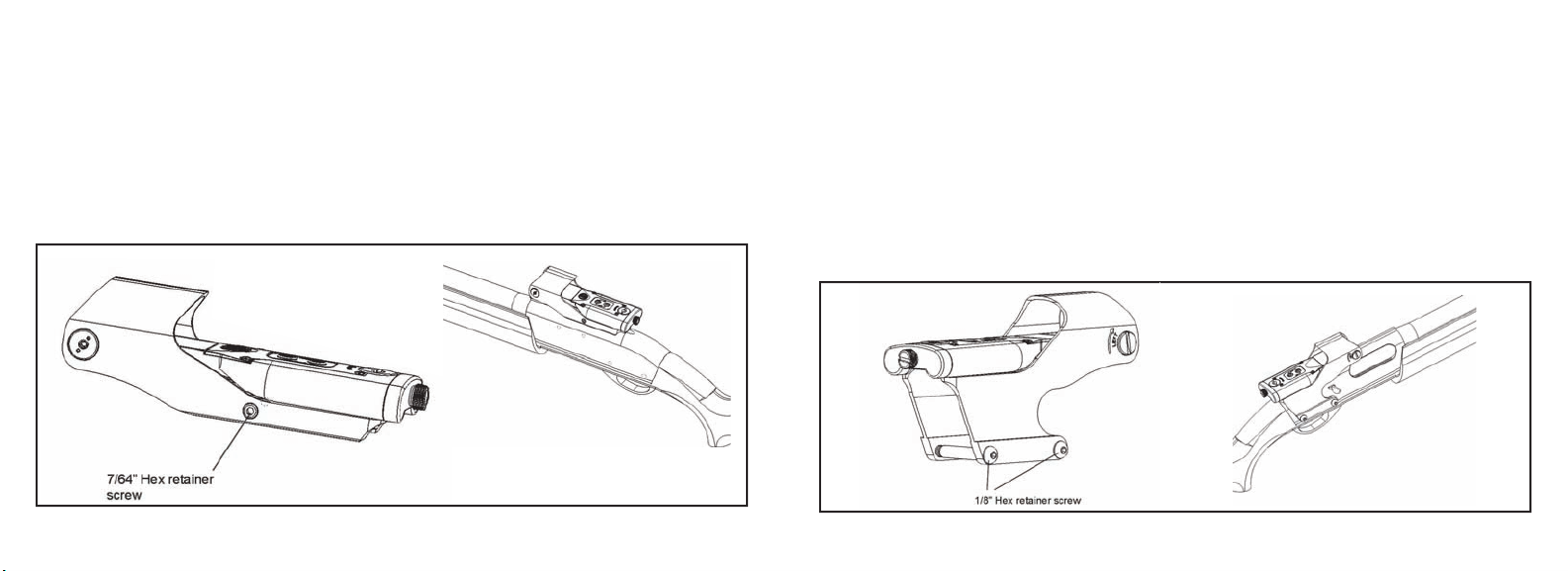

• 7/64” hex wrench (Weaver Base mount)

• 1/8” hex wrench (12 gauge model 1100, 870 or 1187 Remington® or similar)

BASIC OPERATION
The

Bushnell® Holosight® XLP uses a laser to create an illuminated hologram in the display window
which appears as a virtual image of a reticle pattern. The reticle pattern appears to the user as a bright
red image which is projected onto the target plane. No laser light is projected onto the target. Note that
the Bushnell® Holosight® XLP has no magnification properties. Refer to Figure 1 for the user control
or adjustment features locations. Refer to the MOUNTING section for installation instructions and
correct placement on the gun.

1

FIGURE 1

2

BATTERIES

Two (2) Type AAA alkaline 1.5 V batteries are required to operate the Bushnell® Holosight® XLP. The
Bushnell® Holosight® XLP is designed to maintain constant brightness at a particular setting even as the
batteries drain through normal use. The reticle brightness will not fade gradually as the batteries drain,
but will shut down abruptly. The fi rst indication of the batteries draining is the reticle image blinking
when the unit is turned on (see Electronic Features Section). Another indication of low batteries is the
reticle image blinking off and on during recoil. With high recoil guns, this can occur before the battery
check indicates low battery condition. If the reticle image blinks during recoil or turns off suddenly,
replace the batteries. Read and follow the battery replacement and battery check procedures described
in this Manual. Alkaline batteries are constructed differently by manufacturers. Tests show some brands
are more susceptible to degradation by the shock of recoil. The use of Eveready Energizer® batteries with
the Bushnell® Holosight® XLP is recommended.

INSTALLING OR REPLACING BATTERIES
T

o remove the battery compartment
cover, rotate the battery cover knurled
screw counterclockwise and carefully
pull the cover away from the sight
housing (Figure 2). After the battery
cover is removed, slide the batteries out
and replace them with a fresh set. The
plus and minus signs next to the battery
insertion area indicates the correct

FIGURE 2
