Bushnell 514 User Manual
DEEP SPACE SERIES
m
13. Diagonal Mirror
14. Eyepiece
15. Finderscope Mount
16. Finderscope Focus Adjustment
17. Finderscope
18. Finderscope Adjustment Screws
19. Altitude Lock Knob
20. Telescope Main Tube
1820
15
525 x 60 Refractor Telescope
Model 514
1
1719
2
3
4
5
7 8
16
14
13
12
11
10
9
6

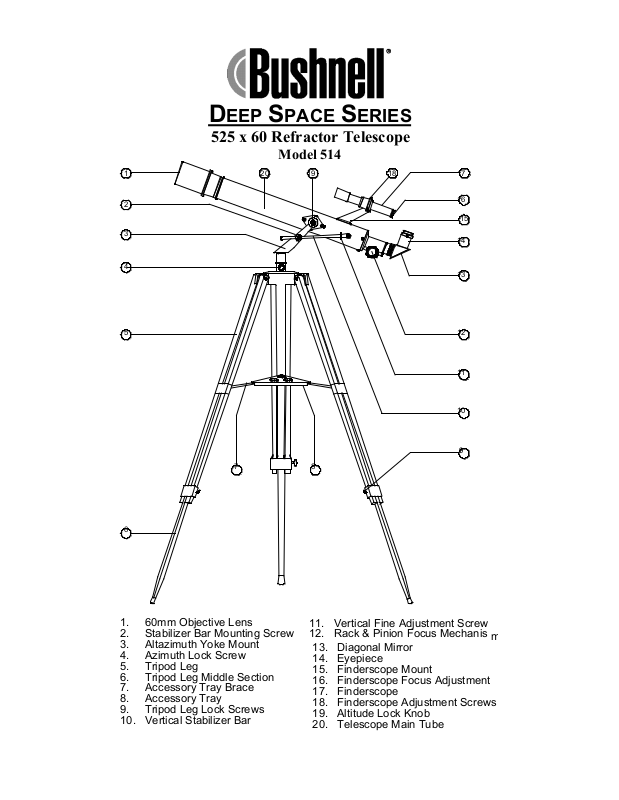

1. 60mm Objective Lens
2. Stabilizer Bar Mounting Screw
3. Altazimuth Yoke Mount
4. Azimuth Lock Screw
5. Tripod Leg
6. Tripod Leg Middle Section
7. Accessory Tray Brace
8. Accessory Tray
9. Tripod Leg Lock Screws
10. Vertical Stabilizer Bar
11. Vertical Fine Adjustment Screw
12. Rack & Pinion Focus Mechanis
STANDARD EQUIPMENT
• Complete Main Telescope Assembly
• Altazimuth Yoke Mount
• Variable Height-Hardwood Tripod
• 4mm, 12mm, 20mm focal length - Eyepieces.
• 5 x 24mm Finderscope w/ focus adjustment
• Vertical Stabilizer Bar
• Accessory Tray
• Diagonal Mirror
• 3x Barlow, Erecting Lens
• Hardware Pack
Tripod leg: 3-2_”bolts, 6Accessory tray: 3-_” bolts, 6-_” washers and 3-wingnuts
Tripod Leg Lock Screws: 3 pc.
Stabilizer Bar: 1 Mounting Screw
11
/16 washers and 3-wingnuts
TELESCOPE ASSEMBLY
1. Remove all components from the carton and identify all components. READ THROUGH ASSEMBLY
INSTRUCTION BEFORE YOU ASSEMBLE YOUR TELESCOPE
2. Set-Up Tripod, Mount and Accessory Tray
• Select one Tripod Leg (5) and extend the Tripod Leg Middle Section (6). Using Tripod Leg Lock Screws (9)
included in the hardware pack, insert the Tripod Leg Lock Screw into
the lower brackets on the Tripod Leg. Tighten the Tripod Leg Lock
Screws so that the middle section is securely in place. Repeat on
remaining two legs.
• Locate the Altazimuth Yoke Mount (3). Note: Before assembling tripod
legs to Altazimuth Yoke Mount, make sure the Accessory Tray Braces(7)
face inward. Locate the long bolts and washers from the hardware
pack (3-2_”bolts, 6-
Tripod Leg (5) as shown (fig. 1). and align the holes in the Tripod Leg
11
/16 washers and 3-wingnuts). Position the mount over the
with the holes in the mount. Insert the bolts through the holes at the
top of a Tripod Leg. A washer should be positioned on both outer
sides of the Tripod Leg. Attach a wing nut to the bolt but do not
tighten it all the way. Repeat on the remaining two Tripod Legs. Once
you have attached all Tripod Legs to the mount, securely tighten all
wing nuts.
• Locate the Accessory Tray (8). Using the accessory tray bolts, wingnuts and washers ( 3-_” bolts, 6-_
washers and 3 - wingnuts) connect the Accessory Tray to the Accessory Tray Braces (7). Start with one Tripod
Leg and attach wingnut. Wingnuts should be positioned beneath the Accessory Tray. Do not tighten
wingnuts until all Accessory Tray Braces are attached as some adjustments may be required.
3. Attach Telescope and Finderscope
• Locate Telescope Main Tube (20). Now, locate the Vertical Stabilizer Bar (10) and insert the Vertical
Stabilizer Bar into the slot at the base of the Altazimuth Yoke Mount (3). Then, secure telescope to
Altazimuth Yoke Mount by removing Altitude Lock Knobs (19). from telescope and positioning the
telescope between yoke. Carefully replace the Altitude Lock Knobs and remove lens cover from 60mm
Objective Lens (1). Locate the Stabilizer Bar Mounting Screw (2) in the hardware pack. Insert the
Stabilizer Bar Mounting Screw into the slot to secure the Vertical Stabilizer Bar in place.
• Locate the Finderscope (17) with pre-assembled Finderscope Mount (15). Remove the two nuts located
near the back of the Telescope Main Tube (20) and place the Finderscope and Mount assembly over the
exposed screws. Replace the nuts, and securely tighten the Finderscope Mount in place.
