Bush Hog 2047 User Manual

2047

FRONT END

LOADER

Published 05/11 MATERIAL HANDLING PARTS MANUAL

PARTS MANUAL

SECTION 1-30

©2009 Alamo Group Inc.

PARTS ORDERING GUIDE

The following instructions are offered to help eliminate needless delay and error in pro­cessing purchase orders for the equipment in this section.

1. The Parts Section is prepared in logical sequence and grouping of parts that belong
to the basic machine featured in this manual. Part Numbers and Descriptions are given
to help locate the parts and quantities required.

2. The Purchase Order must include the name and address of the person or organiza­tion ordering the parts, who should be charged, and if possible, the serial number of the
machine for which the parts are ordered.

3. The Purchase Order must clearly list the quantity of each part, the complete and correct
part number (be sure to include all periods), and the basic name of the part.

4. The Manufacturer reserves the right to substitute parts where applicable.

5. Some parts are unlisted items which are special production items not normally stocked
and are subject to special handling. Request a quotation for such parts before sending
a Purchase Order.

6. The Manufacturer reserves the right to change prices without prior notice.

For maximum safety and to guarantee optimum product reliability, always
use genuine BUSH HOG Parts. The use of inferior replacement parts may
causepremature or catastrophic failure which could result in serious injury
or death.Direct any questions regarding parts to:

BUSH HOG

2501 Griffin Ave.
Selma, AL 36703
www.bushhog.com
Contact Us
800-304-2836

LIMITED WARRANTY

Bush Hog warrants to the original purchaser of any new Bush Hog equipment, purchased from an authorized Bush
Hog dealer, that the equipment be free from defects in material and workmanship for a period of one (1) year for
non-commercial, state and municipalities’ use and ninety (90) days for commercial use from date of retail sale. The
obligation of Bush Hog to the purchaser under this warranty is limited to the repair or replacement of defective
parts.

Replacement or repair parts installed in the equipment covered by this limited warranty are warranted for ninety
(90) days from the date of purchase of such part or to the expiration of the applicable new equipment warranty
period, whichever occurs later. Warranted parts shall be provided at no cost to the user at an authorized Bush Hog
dealer during regular working hours. Bush Hog reserves the right to inspect any equipment or parts which are
claimed to have been defective in material or workmanship.

DISCLAIMER OF IMPLIED WARRANTIES & CONSEQUENTIAL DAMAGES

Bush Hog’s obligation under this limited warranty, to the extent allowed by law, is in lieu of all warranties, implied or
expressed, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE and any liability for incidental and consequential damages with respect to the sale or use of the items
warranted. Such incidental and consequential damages shall include but not be limited to: transportation charges
other than normal freight charges; cost of installation other than cost approved by Bush Hog; duty; taxes; charges
for normal service or adjustment; loss of crops or any other loss of income; rental of substitute equipment,
expenses due to loss, damage, detention or delay in the delivery of equipment or parts resulting from acts beyond
the control of Bush Hog.

THIS LIMITED WARRANTY SHALL NOT APPLY:

1. To vendor items which carry their own warranties, such as engines, tires, and tubes.

2. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident.

3. If parts not made or supplied by Bush Hog have been used in connection with the unit, if, in the sole judgement
of Bush Hog such use affects its performance, stability or reliability.

4. If the unit has been altered or repaired outside of an authorized Bush Hog dealership in a manner which, in the
sole judgement of Bush Hog, affects its performance, stability or reliability.

5. To normal maintenance service and normal replacement items such as gearbox lubricant, hydraulic fluid, worn
blades, or to normal deterioration of such things as belts and exterior finish due to use or exposure.

6. To expendable or wear items such as teeth, chains, sprockets, belts, springs and any other items that in the
company’s sole judgement is a wear item.

NO EMPLOYEE OR REPRESENTATIVE OF BUSH HOG IS AUTHORIZED TO CHANGE THIS LIMITED
WARRANTY IN ANY WAY OR GRANT ANY OTHER WARRANTY UNLESS SUCH CHANGE IS MADE IN
WRITING AND SIGNED BY BUSH HOG’S SERVICE MANAGER, 2501 GRIFFIN AVE., SELMA, ALABAMA

36703.

Record the model number, serial number and date

purchased. This information will be helpful to your

dealer if parts or service are required.

MAKE CERTAIN THE WARRANTY

HAS BEEN FILED WITH BUSH HOG

SELMA, ALABAMA

MODEL NUMBER ________________________________

SERIAL NUMBER ________________________________

DATE OF RETAIL SALE ___________________________

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

TABLE OF CONTENT

2047 FRONT END LOADER

ITEM PAGE

FRAMES

Mainframe and Subframe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-30A -1

MOUNTING KITS

Kit 2-5974 Cub Aadet 7009, 7200, 7250HST, 7192,7194, 7195 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-30B-1

Kit 2-7404 New Holland TC 18FWA (SNUD3366and Up), TC21D (SN UF33357 and Up), TC21DA, TC23DA,

TC24D, TC24DA , TC26DAFWA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-30B-2

Kit 2-7200 Cub Cadet 7252, 7254, 7264 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-30B-3

Kit 2-5581 Deutz Allis 5215 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-30B-4

Kit 2-5550 John Deere 655, 755, 855 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-30B-5

Kit 2-5560 John Deere 750 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-30B-6

Kit 2-5573 John Deere 650 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-30B-7

Kit 2-6440 John Deere 670, 770, 790 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-30B-8

Kit 2-5694 John Deere LB1714, LB1914 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-30B-9

ATTACHMENTS

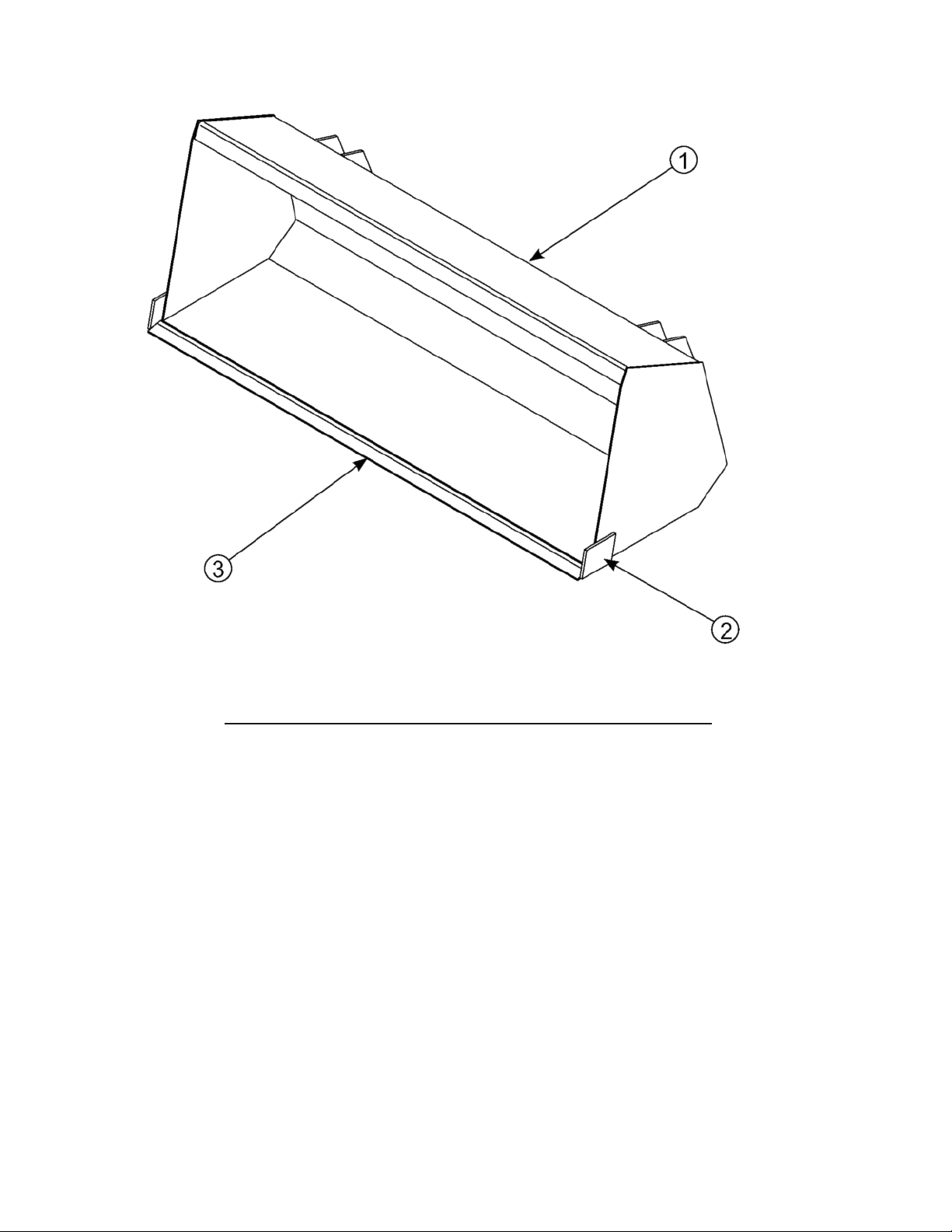

Bucket..........................................................................................................................................................................................1-30C-1

HYDRAULICS

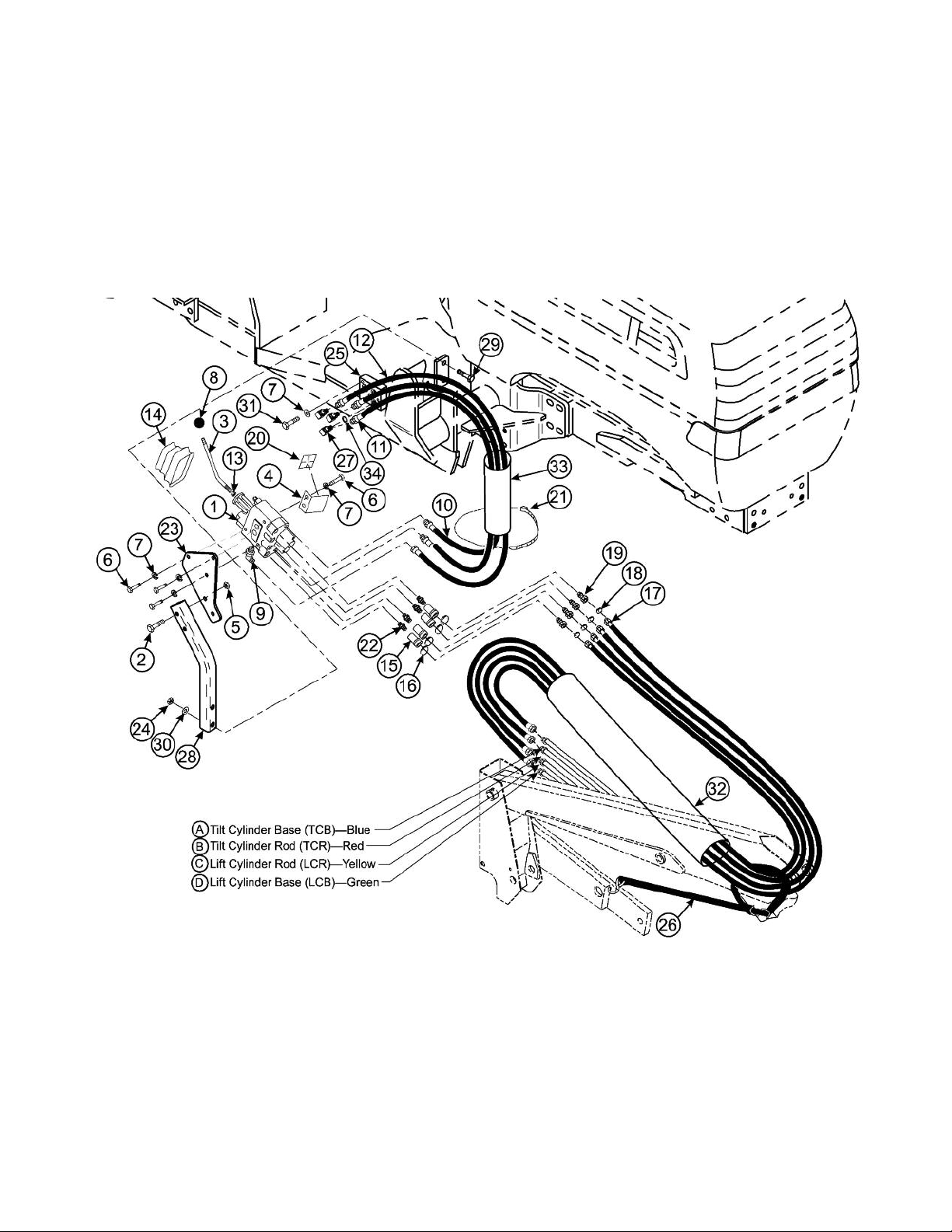

Hydraulic System (2407 Plumbing on RH Side) ..........................................................................................................................1-30D-1

Hydraulic System (2407 Plumbing on LH Side)John Deere 655, 755, 855, 670, 770, 790 with SCV Valve ...............................1-30D-2

Hydraulic Valve (Dukes) ..............................................................................................................................................................1-30D-3

Hydraulic Valve (Prince LVR Parallel) .........................................................................................................................................1-30D-4

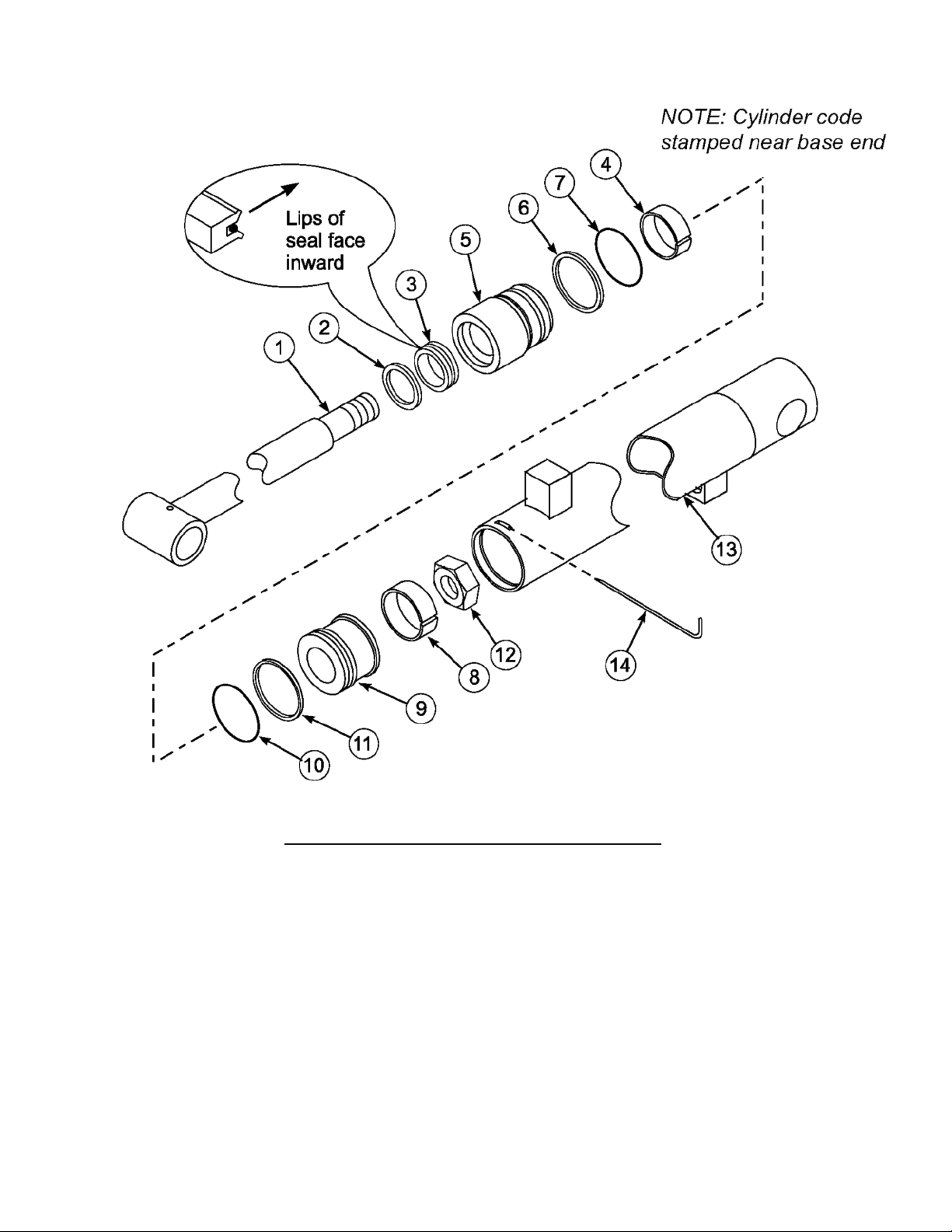

Hydraulic Cylinder (Lift)................................................................................................................................................................1-30D-6

Hydraulic Cylinder (Bucket) .........................................................................................................................................................1-30D-7

Hose Kit, New Holland TC18, TC21D, TC21DA, TC23DA, TC24DA, TC26DA,

Case IHDX21, DX23, DX24, DX26 ..............................................................................................................................1-30E-1

Hose Kit, John Deere 790 (SN 790000AND UP) .........................................................................................................................1-30E-2

Hose Kit John Deere 655, 670, 755, 770, 790, 855 .....................................................................................................................1-30E-4

Hose Kit John Deere 655, 670, 755, 770, 790, 855 (LH Plumbing) .............................................................................................1-30E-5

Hose Kit Deutz Allis 5215 SYNCRO ...........................................................................................................................................1-30E-6

Hose Kit Deutz Allis 5215HST .....................................................................................................................................................1-30E-7

Hose Kit Deutz Allis 5215 HST and SYNCRO Shift.....................................................................................................................1-30E-8

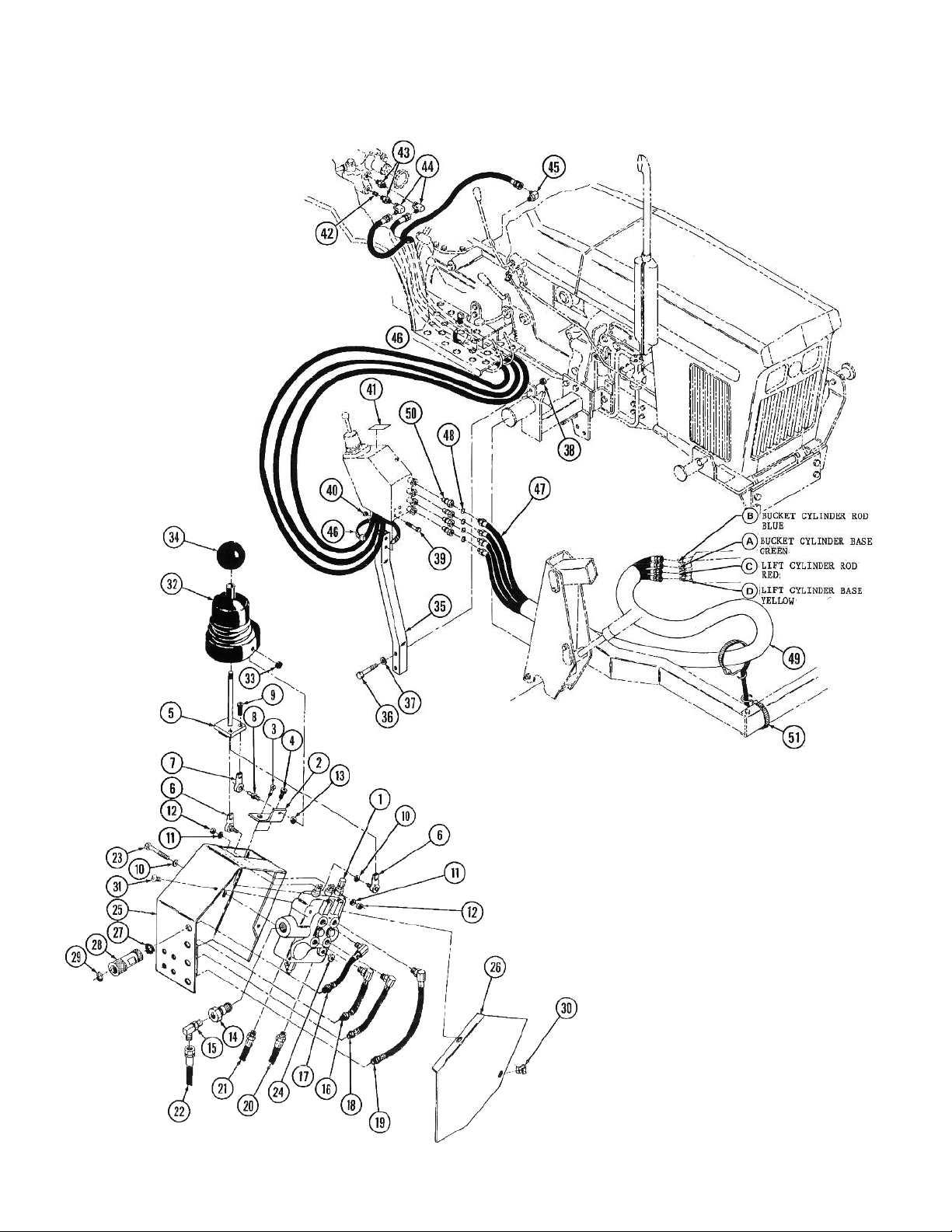

Control Valve and Plumbing Kit 27136 Case IH DX21, DX23, DX24, DX26................................................................................1-30F-1

Control Valve and Plumbing Kit 2-5976 Case IH 1120, Cub Cadet 7000, 7200, 7250HST, 7192, 7194, 7195 ...........................1-30F-2

Control Valve and Plumbing Kit 2-7204 Cub Cadet 7252, 7254, 7264 ........................................................................................1-30F-4

Control Valve and Plumbing Kit 2-5650 John Deere 750.............................................................................................................1-30F-6

Control Valve and Plumbing Kit 2-6411 John Deere 650.............................................................................................................1-30F-9

Control Valve and Plumbing Kit 2-5879 John Deere 670, 770, 790...........................................................................................1-30F-10

Control Valve and Plumbing Kit 2-6396 Kioti LB1914 ................................................................................................................1-30F-12

Control Valve and Plumbing Kit 2-7136 New Holland TC18, TC21D, TC23DA, TC24D, TC26DA............................................1-30F-14

GRILL GUARD

Grill Guard Kit ..............................................................................................................................................................................1-30G-1

DECALS

Decal Location .............................................................................................................................................................................1-30H-1

Decal Pictorials ............................................................................................................................................................................1-30H-2

MAY, 2011

NOTES:

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

2047 MAINFRAME AND SUBFRAME

MAY, 2011

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

1 49517 Boom Assembly 1
2 ------- Lock Nut, 5/16 4
3 ------- Capscrew, 5/16 X 1-3/4 4
4 ------- Fitting, Grease, 1/4 - 28, Straight 10
5 48965 Cylinder, Bucket 2
6 31332-5 Pin Assembly 8
7 41840-3 Lock Nut, 3/8 12
8 41838-23 Capscrew, 1/2 X 1-3/4 4

9 47046 Bolt, Shoulder, 3/8 X 1 8
10 48960 Cylinder, Boom 2
11 35957-2 Pin 4
12 6075-3 Fitting, Grease, 1/4 - 28, 45 2
13 50010+ Frame, Side, Left 1
14 50011+ Frame, Side, Right 1
15 49506 Channel Assembly 1
16 49503 Rod, Indicator 1
17 49504 U-Bolt 1
18 49505 Bracket 1
19 ------- Nut, 5/16 - 18 2
20 ------- Lockwasher, 5/16 2

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

21 ------- Flatwasher, 5/16 2
22 ------- Pin, Cotter, 1/8 - 1 2
23 49764 Hinge Assembly 2
24 00776481 Decal, Operator's Manual 1
25 00776964 Seal, Canister 1
26 ------- Screw, Self Tapping, .25 X .75 2
27 00776031 Canister With Cap, Includes Item 25 1
28 ------- Bolt, Carriage, 5/8 X 4- 1/2 2
29 ------- Nut, 5/8-11 2
30 ------- Bolt, Carriage, 5/8 X 4 2
31 ------- Flatwasher, 5/8 2
32 ------- Lock Nut, 5/8-11 2

1-30A-1

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

MOUNTING KIT 2-5974

Case IH 1120 Hydro

Cub Cadet 7000, 7200, 7250HST, 7192, 7194, 7195

MAY, 2011

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

1 41041 Fron t Mount Bracket 1
2 ------- Ca[pscrew 11/2”-13 x 1-1/4 4
3 ------- Locknut, 1/2”-13 4
4 ------- Flatwasher1/2” 4
5 41047 Bracket, Mid Mount RH 1
6 41048 Bracket Mid Mount LH 1
7 ------- Capscrew M14-2 x 40 8
8 ------- Lockwasher 9/16” 8
9 ------- Capscrew 5/8-11 x 1-3/4 2

10 ------- Locknut 5/8-11 2

1-30B-1

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

MAY, 2011

MOUNTING KIT 2-7404

Case IH DX21, DX23, DX24, and DX26FWA

New Holland TC18FWA (S/N UD3366and Higher), TC21D(S/N UF33357 and Higher), TD21DA,

TC23DA, TC24D, TC24DA and TC26DAFWA

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

1 50250 Mid Mount Bracket LH 1
2 50251 Mid Mount Bracket RH 1
3 52147 Mount Bracket, Front 1
4 50255 Bracket, Valve Mount 1
5 50249 Plate Spacer 2
6 ------- Capscrew M16-2 x 50 Gr.8.8 8
7 ------- Capscrew 5/8-11 x 1-1/4 2
8 ------- Capscrew 1/2-13 x 1-1/4 4

9 ------- Capscrew 1/2-13 x 1 2
10 ------- Lockwasher 5/8” 8
11 ------- Locknut 5/8-11 2
12 ------- Locknut 1/2-13 6

1-30B-2

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

MOUNTING KIT 2-7200

Cub Cadet 7252, 7254, 7264

MAY, 2011

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

1 50811 Mounting Bracket, Mid, Left 1
2 50810 Mounting Bracket, Mid, Right 1
3 50806 Mounting Bracket, Front 1
4 50808 Plate, Spacer 2
5 ------- Capscrew, 1/2-13 X 2.00" 8
6 ------- Capscrew, 1/2-13 X 1.50" 4
7 ------- Lockwasher, 1/2" 8
8 ------- Lock Nut, 1/2-13 4

1-30B-3

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

MOUNTING KIT 2-5581

Deutz-Allis 5215

MAY, 2011

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

1 37130 Bracket, Front Mounting 1
2 37979 Plate, Frame Reinforcement, Left 1
3 38722 Plate, Frame Reinforcement, Right 1
4 37132-1 Bracket, Mid Mounting, Left 1
5 37132-2 Bracket, Mid Mounting, Right 1
6 37118-1 Bracket, Rear Mounting, Left 1
7 37118-2 Bracket, Rear Mounting, Right 1
8 37982 Bracket, Mid Crosstie 1

9 37974 Bracket, Mid Support, RH 1
10 38723 Bracket, Coolant Valve Relocation 1
11 37976 Spacer, 5/16 1
12 ------- Bolt, Carriage, 1/2-13 X 1-3/4 10

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

13 ------- Bolt, Carraige, 1/2-13 X 1-1/4 2
14 ------- Capscrew, 1/2-13 X 6, Grade 8 8
15 ------- Screw, Metric Cap, M12-1.50 X 45 4
16 ------- Screw, Metric Cap, M12-1.50 X 35 23
17 ------- Screw, Metric Cap, M8-1.25 X 20 1
18 ------- Flatwasher, 1/2 2
19 ------- Lockwasher, 1/2 35
20 ------- Lockwasher, 3/8 1
21 ------- Lock Nut, 1/2-13 12
22 ------- Hex Nut, 1/2 13 8
23 ------- Nut, Metric, M12-1.50 10

1-30B-4

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

MOUNTING KIT 2-5550

JOHN DEERE 655, 755, 855

MAY, 2011

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

1 38274-1 Bracket, Front Mounting, Left 1
2 38274-2 Bracket, Front Mounting, Right 1
3 38277-1 Bracket, Mid Mounting, Left 1
4 38277-2 Bracket, Mid Mounting, Right 1
5 38276 Tube, Mid Cross Tie 1
6 ------- Capscrew, 1/2-13 X 3-1/2 4
7 ------- Capscrew, 1/2 X 4-1/2 2
8 ------- Capscrew, 1/2 X 1-1/2 6
9 ------- Lock Nut, 1/2-13 12

1-30B-5

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

MOUNTING KIT 2-5560

JOHN DEERE 7050

MAY, 2011

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

1 38333-1 Front Mounting Assembly, L 1
2 38333-2 Front Mounting Assembly, R 1
3 38332 Plate 1
4 38334-1 Mid Mounting Assembly, L 1
5 38334-2 Mid Mounting Assembly, R 1
6 38326 Spacer 2
7 38327 Spacer 2
8 ------- Capscrew 1/2-13x2 G5 Zc 6

9 ------- Capscrew 1/2-13x1 3/4 G5 Zc 4
10 ------- Capscrew M12-1.75mmx45mm Cl8.8 Pl 4
11 ------- Capscrew M12-1.75mmx40mm Cl8.8 Pl 4
12 ------- Capscrew M12-1.75mmx35mm Cl8.8 Pl 2
13 ------- Flatwasher 5/8 Sae Zc 1
14 ------- Flatwasher 1/2 Sae Zc 12
15 ------- Lockwasher 1/2 14
16 ------- Nut Hex Lock Type N 1/2-13 6
17 6021-38 Clevis Pin 5/8x2.50 (Zp) 2
18 6003-3+ Pin Cotter Hair .148 X 2.6 2

1-30B-6

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

MOUNTING KIT 2-5573

JOHN DEERE 650

MAY, 2011

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

1 38333-1 Bracket, Front Left 1
2 38333-2 Bracket, Front Right 1
3 38332 Angle, Front Cross Tie 1
4 38424-1 Bracket, Mid Left 1
6 38424-2 Bracket, Mid Right 1
7 ------- Capscrew 1/2-13 X 2 6
8 ------- Capscrew 1/2-13 x 1-3/4 4

9 ------- Capscrew M12-1.75 x 45 4
10 ------- Capscrew M12-1.75 x 35 4
11 ------- Flatwasher 5/8 1
12 ------- Flatwasher 1/2 12
13 ------- Lockwasher 1/2 12
14 ------- Locknut 1/2-13 6
15 6021-38 Clevis Pin 2
16 6003-3 Pin, Cotter 2

1-30B-7

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

MOUNTING KIT 2-6440

JOHN DEERE 670, 770,790

MAY, 2011

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

1 39926-1 Bracket, Mounting, Front, Left 1
2 39926-2 Bracket, Mounting, Front, Right 1
3 44990-1 Bracket, Mounting, Mid, Left 1
4 44990-2 Bracket, Mounting, Mid, Right 1
5 39932 Spacer, Plate, Triangular, Mid (Not Required On Tractor With Mower) 2
6 ------- Capscrew, 16mm-2.00 X 55mm, Grade 8.8 6
7 ------- Capscrew, 16mm-2.00 X 35mm, Grade 8.8 4
8 ------- Capscrew, 12mm-1.75 X 45mm, Grade 8.8 8

9 ------- Flatwasher, 5/8" 4
10 ------- Lockwasher, 5/8" 10
11 ------- Lockwasher, 1/2" 8
12 52768 Spacer, Plate, Rectangular, Front (Used For Model 790 Tractor Only) 2

1-30B-8

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

MOUNTING KIT 2-5694

JOHN DEERE LB1714 AND LB1914

MAY, 2011

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

1 41041 Bracket, Front 1
2 ------- Capscrew 1/2-13 x 1-1/4 4
3 ------- Locknut 1/2-13 4
4 ------- Flatwasher 1/2 SAE 4
5 41047 Bracket Mid Right 1
6 41048 Bracket Mid Left 1
7 ------- Capscrew M 14-2 x 40 8
8 ------- Lockwasher 9/16 8
9 ------- Capscrew 5/8-11 x 1-3/4 2

10 ------- Locknut 5/8-11 2

1-30B-9

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

BUCKET ASSEMBLY

MAY, 2011

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

1 ------- Bucket Assembly 48” (Order from Wholegoods) 1

------- Bucket Assembly 54” (Order from Wholegoods) 1
2 22541-9 Side Cutting Edge 2
3 22541-2 Bottom Cutting Edge 48” 1

22541-8 Bottom Cutting Edge 54” 1

1-30C-1

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

HYDRAULIC SYSTEM

Basic 2047 Models (Plumbing on RH Side)

MAY, 2011

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

1 36358 Clamp, Oil Line 2
2 36354-1 Screw, Self-Drilling, 1/4-14 X 1-1/2 2
3 38290-9 Hose, .250 X 24.00 2
4 38290-8 Hose, .250 X 16.00 2
5 38290-6 Hose, .250 X 42.00 4
6 6076-6 Clamp, Hose 2
7 36362 Tube, Oil Line 2
8 15470 Clamp, Oil Line 2
9 50150 Tube, Oil Line 2

10 ------- Screw, Self-Drilling, 1/4-14 X 1-1/4 2

1-30D-1

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

HYDRAULIC SYSTEM

2047 Models (Plumbing on LH Side)

JOHN DEERE 655, 755, 855, 670, 770, 790 WITH SCV VALVE

MAY, 2011

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

1 36358 Clamp, Oil Line 2
2 36354-1 Screw, Self-Drilling, 1/4-14 X 1-1/2 2
3 38290-9 Hose, .250 X 24.00 2
4 38290-8 Hose, .250 X 16.00 2
5 38290-6 Hose, .250 X 42.00 4
6 6076-6 Clamp, Hose 2
7 46622 Tube, Oil Line 2
8 15470 Clamp, Oil Line 2
9 50149 Tube, Oil Line 2

10 ------- Screw, Self-Drilling, 1/4-14 X 1-1/4 2

1-30-2

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

HYDRAULIC VALVE

MAY, 2011

DUKES

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

------- Control Valve Assy. (Dukes) 1
1 41270+ Repair Kit, Seal - Pilot Operated Relief 1
2 36583 Repair Kit, Pilot Operated Relief 1
3 33101+ Repair Kit, Load Check 2
4 41269+ Repair Kit, Spring Centering 1
5 33103+ Repair Kit, Detent Spring Centering 1
6 25944+ Plate, 1-Way Restrictor W/.109 Hole 1
7 36584 Power Beyond Kit 1

1-30D-3

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

HYDRAULIC VALVE

PRINCE (LVR Parallel Valve)

MAY, 2011

38

1-30D-4

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

HYDRAULIC VALVE

PRINCE (LVR Parallel Valve)

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

1 43633 Seal Kit 1
2 43636 Power Beyond Sleeve 1
3 43637-3 Relief Cartridge (2000 PSI) 1

43637-6 Relief Cartridge (1600 PSI) 1
4 43638 Float Kit, (Includes 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, And 26) 1
5 43639 Regen Kit, (Includes Items 12, 13, 14, 15, 16, 17, 19, 20, 21, 24, And 26) 1
6 43635 Boot, Rubber, Valve Handle 1
7 51076 Stud, Spool 1
8 51078 Adapter Plate 1
9 38900-4 Rod End 1

10 51075 Rod End, Assembly 2
11 51079 Clevis 1
14 44476-2 End Cap (Manufacturer’s Part Number (Hc-V-Aa26)

Stamped On End Cap Identifies Valve And Relief Setting) 2

25 44743-5 Capscrew,Socket Head, 1/4-20 X 1/2” 2
26 44460 Plug, Load Check 2
28 41836-2 Hex Nut, 5/16” 3

29 44743-3 Capscrew, Socket Head, 1/4-20 X 7/8” 2
30 51080 Plate 1
31 51081 Washer, Shim, 5/16” 1 32 G271506 Hex Nut, 7/16-20 1
33 51077 End, Spool 2
34 43517 Handle, Valve, Standard 1
35 38902 Ball, Handle 1
36 44743-4 Capscrew, Socket Head, 5/16-24 X 3/4” 3
37 G120383 Lockwasher, 7/16” 1
38 53461 Valve Assembly (1600 PSI Relief) 1

53463 Valve Assembly (2000 PSI Relief) 1

MAY, 2011

1-30D-5

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

HYDRAULIC CYLINDER - LIFT

MAY, 2011

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

48960 Cylinder Assy. (Lift) 1
1 48962 Shaft, Cylinder 1
2 * Seal, Wiper 1
3 * Seal, U-Cup 1
4 * Wear Ring 1
5 48964 Head, Cylinder 1
6 * Washer, Backup 1
7 * O-Ring 1
8 * Wear Ring 1
9 45311 Piston 1

10 * O-Ring 1
11 * Seal, Piston 1
12 32908c Lock Nut, 3/4-10 1
13 48958 Tube, Cylinder 1
14 * Wire, Retaining 1
15 45318 Repair Kit, (* Parts In Kit) 1

1-30D-6

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

HYDRAULIC CYLINDER - BUCKET

MAY, 2011

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

45303 Bucket Cylinder Assembly 1
1 48966 Shaft, Cylinder 1
2 * Seal, Wiper 1
3 * Seal, U-Cup 1
4 * Wear Ring 1
5 48964 Head, Cylinder 1
6 * Washer, Backup 1
7 * O-Ring 1
8 * Wear Ring 1
9 45311 Piston 1

10 * O-Ring 1
11 * Seal, Piston 1
12 32908c Lock Nut, 3/4-10 1
13 48969 Tube, Cylinder 1
14 * Wire, Retaining 1
15 45318 Repair Kit, (* Parts In Kit) 1

1-30D-7

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

HOSE KIT 2-7437

NEW HOLLAND TC18, TC21D,TC21DA, TC 23DA, TC24DA, TC26DA

CASE IH DX21, DX23, DX24,DX26

MAY, 2011

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

1 32837-10 Hose, 1/4 X 54”, 9/16-18 JIC Female Swivel X 9/16-18 JIC Female Swivel 4
2 34853-76 Sleeve, Hose, Nylon, 1-1/4 X 2” X 54” 2
3 32845-1 Fitting, Elbow, 90°, 9/16-18 JIC Male X 9/16-18 O-Ring Male 2
4 42959-3 Fitting, Elbow, 90°, Long, 9/16-18 JIC Male X 9/16-18 O-Ring Male 2
5 36240-5 Spiral Band, Blue 5/8” 2

36240-6 Spiral Band, Red, 5/8” 2
36240-7 Spiral Band, Yellow, 5/8” 2

36240-8 Spiral Band, Green, 5/8” 2
6 6137-11 Coupler, Quick, Male 4
7 7438-1 Tarp Strap 1

1-30E-1

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

HOSE KIT 2-6893

JOHN DEERE Model 790 sn 790000 and higher

MAY, 2011

1-30E-2

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

HOSE KIT 2-6893

JOHN DEERE Model 790 sn 790000 and higher

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

1 38290-11 Hose, 1/4 X 60" 4
2 34853-39 Sleeve, Nylon, 1.59 X 47.0" 1
3 7438-1 Tarp Strap 1
4 36240-6 Spiral Band, 5/8, (Red) 1
5 36240-7 Spiral Band, 5/8, (Yellow) 1
6 36240-8 Spiral Band, 5/8, (Green) 1
7 36240-14 Spiral Band, 5/8, (Black) 1
8 6137-9 Quick Coupler, Male 4

MAY, 2011

1-30E-3

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

HOSE KIT 2-5551

JOHN DEERE Model 655, 670, 755, 770, 790, 855

MAY, 2011

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

1 38290-1 Hose, 1/4 X 120" 4
2 8137-3 Tie Strap 4
3 37599-1 Band, Silver 1
4 37599-2 Band, Yellow 1
5 37599-3 Band, Black 1
6 37599-4 Band, Green 1

1-30E-4

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

HOSE KIT 2-6601

JOHN DEERE Model 655, 670, 755, 770, 790 (Prior to S/N 790,000), 855

MAY, 2011

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

1 38290-7 Hose 1/4 x 36 4
2 8137-3 Tie Strap 4
3 37599-1 Band, Silver 1
4 37599-2 Band, Yellow 1
5 37599-3 Band, Black 1
6 37599-4 Band, Green 1
7 34853-9 Sleeve, Nylon 1.59 x 30 1

1-30E-5

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

HOSE KIT 2-5584

DEUTZ-ALLIS 5215 SYNCRO SHIFT

MAY, 2011

REF. PART DESCRIPTION QTY.
NO. NO. REQ’D.

1 37394 Plate, Lever Mount 1
2 37388 Lever Assembly, Dual 1
3 37397 Linkage, Valve Spool 2
4 6021-32 Pin, Clevis 3/16 x 7/8 6
5 G119117 Pin, Cotter 3/32 x 1/2 6
6 36250 Tip, Rubber 2
7 36856 Decal, Remote 1
8 36857 Decal, Remote w/ Float 1

9 6090-75 Capscrew M10-1.25 x 35 1
10 6090-33 Capscrew M10-1.25 x 25 2
11 G120383 Lockwasher 7/16 3
12 G180034 Capscrew 1/4-20 x 1-1/2 4
13 G120380 Lockwasher 1/4 4

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

14 G120392 Flatwasher 1/4 4
15 G120375 Hex Nut 1/4-20 4
16 36249-1 Fitting Straight 9/16 JIC x 3/8 BSPP 2
17 36248-1 Fitting Elbow 9/16 JIC x 3/8 BSPP 2
18 34128-3 Fitting Elbow 9/16 JIC x 9/16 JIC 2
19 36251-1 Hose 1/4 x 18 4
20 6147-1 Coupler, Female Quick 4
21 36240-5 Band, Spiral Blue 2

36240-6 Band, Spiral Red 2
36240-7 Band, Spiral Yellow 2
36240-8 Band, Spirol Green 2

22 4836-6 Plug, Dust 4

1-30E-6

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

HOSE KIT 2-5585

DEUTZ-ALLIS 5215 HST

MAY, 2011

REF. PART DESCRIPTION QTY.
NO. NO. REQ’D.

1 38302 Lever Assy. 1
2 6090-30 Capscrew M8-1.25 x 20 4
3 G120214 Lockwasher 5/16 4
4 G120393 Flatwasher 5/16 4
5 36250 Tip, Rubber 2
6 36247 Linkage, Rod 1
7 36245 Linkage, Rod 1
8 6021-32 Pin, Clevis 3/16 x 7/8 4

9 G119117 Pin, Cotter 3/32 x 1 4
10 36856 Decal, Remote 1
11 36857 Decal, Remote w/ Float Position 1
12 36248-1 Fitting, Elbow 3/8 BSPP x 9/16 JIC 2
13 36249-1 Fitting, Straight 3/8 BSPP x 9/16 JIC 2
14 34128-3 Fitting, Elbow 9/16 JIC x 9/16 JIC 2
15 36251 Hose 1/4 x 18 4
16 6147-4 Coupler, Female 4
17 4838-6 Plug, Dust 4
18 36240-5 Band, Spiral Blue 2

36240-6 Band, Spiral Red 2
36240-7 Band, Spiral Yellow 2
36240-8 Band, Spiral Green 2

1-30E-7

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

HOSE KIT 2-5583

DEUTZ-ALLIS 5215 HST and Synchro Shift

MAY, 2011

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

1 36251-2 Hose, 1/4 X 102" 4
2 6137-4 Coupler, Male 4
3 36240-5 Band, Blue 1

36240-6 Band, Red 1
36240-7 Band, Yellow 1

36240-8 Band, Green 1
4 8137-1 Strap, Adjustable 3
5 7438-1 Strap, Rubber 1

1-30E-8

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

CONTROL VALVE AND PLUMBING KIT 2-7136

CASE IH DX21, DX23, DX24, DX26

MAY, 2011

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

1 53463 Valve, Prince LVR (2000 Psi) 1
2 ------- Capscrew, 3/8-16 X 2-1/4” 2
3 43517 Handle, Valve, Standard 1
4 43451 Angle, Decal Mounting 1
5 ------- Lock Nut, 3/8-16 2
6 ------- Capscrew, 5/16-18 X 3/4” 3
7 ------- Lockwasher, 5/16 3
8 38902 Ball, Valve Handle 1

9 32845-7 Elbow, 3/4-16 JIC X 3/4-16 O-Ring, 90° 1
10 44269-7 Hose, 3/8 X 36” (Pressure & Tank) 2
11 ------- Flatwasher, 1/2” 2
12 36844-12 Hose, 3/8 X 38” (Power Beyond) 1
13 ------- Hex Nut, 7/16-20 1
14 43635 Boot 1
15 6147-4 Coupler, Female 4
16 36240-9 Spiral Band, Plastic, Blue, 1” 1

36240-10 Spiral Band, Plastic, Red, 1” 1
36240-11 Spiral Band, Plastic, Yellow, 1” 1
36240-12 Spiral Band, Plastic, Green, 1” 1

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

17 36251-3 Hose, 1/4 X 60” 4
18 36240-5 Spiral Band, Plastic, Blue, 5/8” 1

36240-6 Spiral Band, Plastic, Red, 5/8” 1
36240-7 Spiral Band, Plastic, Yellow, 5/8” 1

36240-8 Spiral Band, Plastic, Green, 5/8” 1
19 6137-4 Coupler, Male 4
20 43453 Decal, Single Handle Control 1
21 8137-3 Strap, Adjustable 3
22 39280-7 Fitting, Adapter, 3/4-16 O-Ring X 3/8 Npt 4
23 43450 Plate, Valve Mounting 1
24 50206 Tube, Valve Mounting 1
25 34853-11 Sleeve, Nylon, 66” 1
26 40252-2 Elbow, 3/8 NPT M X 3/4-16 Jic M, 45° 3
27 38226-2 Elbow, 3/4-16 JIC F S X 3/4-16 JIC M, 45° 3
28 ------- Capscrew, 1/2-13 X 2-1/2” 2
29 ------- Lock Nut, 1/2-13 2

1-30F-1

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

CONTROL VALVE AND PLUMBING KIT 2-5976

CASE IH 1120 and Cub Cadet 7000, 7200, 7205 HST, 7192, 7194 & 7195

MAY, 2011

1-30F-2

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

CONTROL VALVE AND PLUMBING KIT 2-5976

CASE IH 1120 and Cub Cadet 7000, 7200, 7205 HST, 7192, 7194 & 7195

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

1 38411 Valve, Dukes P/N 1627-Ft 1
2 38903 Linkage-Bracket 1
3 38911-1 Flt Soc. Scrw 5/16-24 X 3/4 1
4 38910-2 Socket Hd Capscrew 5/16-24 X 0.75 1
5 38908 Handle Assy Zp 1
6 26009-3 Rod End 1/4-28 Ydp 2
7 38900-5 Rod End,Ball Joint 1/4-28 Ydp 1
8 38904-1 Stud (Rod End) Ydp 1

9 38910-1 Soc Hd Capscrew 1/4-28 X 0.75 3
10 ------- Flatwasher 1/4 Sae 3
11 ------- Lockwasher 1/4 2
12 ------- Nut Hex 1/4-28 Zc 2
13 ------- Lock Nut 1/4-28 1
14 36584 Fitting, Power Beyound 1
15 32845-1 Adp Hyd Elbow 6mj - 6mb90 Ydp 1
16 38928-1 Hose 3/8 X 6.88 Lg 1
17 38928-2 Hose 3/8 X 7.88 Lg 1
18 38928-3 Hose 3/8 X 8.50 Lg 1
19 38928-4 Hose 3/8 X 13.00 Lg 1
20 36387-5+ Hose 3/8 X 44" (Sae100r1) 2
21 38163-2 Hose 3/8 X 44" (Sae100r1) 1
22 38912 Spacer, Black 4
23 38926 Valve Box Assembly 1
24 38927 Cover 1
25 ------- Capscrew, 1/4-20x2 G5 Zc 2
26 ------- Nut Hex Lock Type N 1/4-20 2
27 38440-1 J" Clip 2
28 ------- Screw #10-16 X 1/2 Typ Ab,Pan Hd 2
29 6147-4 Coupler Body-Female 4
30 36240-10 Spiral Band,Plastic-Red- 1" Id 1

36240-11 Spiral Band,Plastic-Yel-1" Id 1
36240-12 Spiral Band,Plastic-Green-1"Id 1

36240-9 Spiral Band,Plastic-Blue-1" Id 1
31 38653 Boot-Black (Dukes#1680-125) 1
32 38930-1 Cap Nut (Arden#C60002-218) 1
33 38902 Ball-Handle (Davies #35k) 1
34 38981 Tube, Valve Mount 1
35 ------- Capscrew, 1/2-13 X 2-1/2 2
36 ------- Flatwasher, 1/2 2
37 ------- Locknut 1/2-13 5
38 ------- Capscrew 3/8-16 X 2-1/4 2
39 ------- Locknut 3/8-16 2
40 38929 Decal, Single Handle Control 1
41 25945-1 Fitting 3/8-19t Iso To 3/8-18 3
42 6006-6 Adaptor, Elbow, 3/8x3/8 3
43 8137-1 Strap-Adjust .19 X 11.00 B 4
44 7438-1 Tarp Strap 22" Reach 1
45 34853-11 Nylon Sleeve (1.59 Id X 66") 1
46 6137-4 Coupling Body-Male Ydp 4
47 36240-5 Spiral Band,Plastic-Blue .62id 1

36240-6 Spiral Band-Plast-Red-.62 I.D. 1

36240-7 Spiral Band-Plast-Yel-.62 .I.D 1

36240-8 Spiral Band-Plast-Grn-.62 .I.. 1
48 36251-3 Hose, 1/4 X 60 Long 4

MAY, 2011

1-30F-3

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

CONTROL VALVE AND PLUMBING KIT 2-7204

CUB CADET 7252, 7254,7264

MAY, 2011

1-30F-4

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

CONTROL VALVE AND PLUMBING KIT 2-7204

CUB CADET 7252, 7254,7264

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

1 53461 Valve, Prince Lvr (1600 Psi) 1
2 ------- Capscrew, 3/8-16 X 2-1/4 2
3 43517 Handle, Valve, Standard 1
4 43451 Angle, Decal Mounting 1
5 ------- Lock Nut, 3/8-16 2
6 41838-26 Capscrew, 5/16-18 X 3/4 4
7 ------- Lockwasher, 5/16 8
8 38902 Ball, Valve Handle 1

9 32845-7 Fitting, Elbow, 9/16-18 Jic X 3/4-16 O-Ring, 90° 1
10 43454-8 Hose, 3/8 X 70, 3/4-16 O-Ring X 9/16-18 Jic Swivel (Pressure & Tank) 1
11 ------- Screw, 3/8-16 X 2-1/2 1
12 36386-23 Hose, 3/8 X 62, 9/16 Jic Swivel X 9/16 Jic Swivel (Power Beyond) 1
13 ------- Hex Nut, 7/16-20 1
14 43635 Boot, Valve Handle 1
15 6147-4 Coupler, Female 4
16 36240-9 Spiral Band, Plastic, Blue, 1” 1

36240-10 Spiral Band, Plastic, Red, 1” 1
36240-11 Spiral Band, Plastic, Yellow, 1” 1

36240-12 Spiral Band, Plastic, Green, 1” 1
17 36251-3 Hose, 1/4 X 60, 3/8 N.P.T.F. X 9/16-18 Jic Swivel 4
18 36240-5 Spiral Band, Plastic, Blue, 5/8 1

36240-6 Spiral Band, Plastic, Red, 5/8 1
36240-7 Spiral Band, Plastic, Yellow, 5/8 1

36240-8 Spiral Band, Plastic, Green, 5/8 1
19 6137-4 Coupler, Male 4
20 43453 Decal, Single Handle Control 1
21 8137-1 Strap, Adjustable 1
22 39280-7 Fitting, Adapter, 3/4-16 O-Ring X 3/8 Npt 4
23 43450 Plate, Valve Mounting 1
24 41840-5 Lock Nut, 1/2-13 2
25 32844-5 Fitting, Adapter, 9/16-18 Jic X 3/4-16 Sae O-Ring 1
26 7438-1 Tarp Strap 1
27 32844-8 Fitting, Adapter, 9/16-18 Jic X 7/8-14 Sae O-Ring 1
28 48802 Tube, Valve Mount 1
29 34128-3 Fitting, Elbow, 9/16-18 Jic X 9/16-18 Jic, 90° 1
30 34853-32 Sleeve, Hose, 1.59 Id X 52” 1
28 34853-9 Sleeve, Hose, 1.59 Id X 30” 1
29 34853-21 Sleeve, Hose, 1” Id X 33” 1

MAY, 2011

1-30F5

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

CONTROL VALVE AND PLUMBING KIT 2-5650

JOHN DEERE 750

MAY, 2011

1-30F-6

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

CONTROL VALVE AND PLUMBING KIT 2-5650

JOHN DEERE 750

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

1 38411 Valve, Dukes 1
2 38903 Linkage-Bracket 1
3 38911-1 Flat Soc. Scrw 5/16-24x.75 1
4 38910-2 Socket Hd Screw 5/16-24 X 0.75 1
5 38908 Handle Assy 1
6 26009-3 Rod End,Ball Joint 1/4-28 1
7 38900-5 Rod End 1/4-28 Female 2
8 38904-1 Stud (Rod End) 1

9 38910-1 Socket Hd Screw 1/4-28 X 0.75 3
10 ------- Flatwashert 1/4 Sae 3
11 ------- Lockwasher 1/4 2
12 ------- Nut Hex 1/4-28 Zc 2
13 ------- Locknut Type N1/4-28cd(Fs 1
14 36584 Fitting, Power Beyond Sleeve 1
15 32845-1 Adp Hyd Elbow 6mj - 6mb90 Ydp 1
16 38928-1 Hose 3/8 x6.88 Lg 1
17 38928-2 Hose 3/8 x7.88 Lg 1
18 38928-3 Hose 3/8 x8.50 Lg 1
19 38928-4 Hose 3/8 x13.00 Lg 1
20 36388-3 Hose .375 x 72" Long SAE 1
21 36388-7 Hose,3/8 x78 (Sae100r1) 1
22 36386-4 Hose .375 Id x 60.00 SAE 1
23 ------- Capscrew, 1/4-20 x 2 G5 2
24 ------- Locknut Type N 1/4-20 2
25 38926 Valve Box Assembly 1
26 38927 Cover 1
27 38440-1 J" Clip 2
28 G9426105 Scrw#10-16 x1/2 Pan Hd 2
29 38912 Spacer,(Rodon #Hw-1)Black 4
30 6147-4 Coupler Body-Female 4
31 36240-9 Spiral Band,Plastic-Blue-1" Id 1

36240-10 Spiral Band,Plastic-Red- 1" Id 1
36240-11 Spiral Band,Plastic-Yel-1" Id 1

36240-12 Spiral Band,Plastic-Green-1"Id 1
32 38653 Boot-Black (Dukes#1680-125) 1
33 38930-1 Cap Nut(Arden#C60002-218) 1
34 38902 Ball-Handle (Davies #35k) 1
35 39116 Tube, Valve Mount 1
36 ------- Capscrew, 1/2-13x2 1/2 G5 Zc 2
37 ------- Flatwasher 1/2 Sae Zc 2
38 ------- Locknut Type N 1/2-13 2
39 ------- Capscrew, 3/8-16x2 1/4 G5 Zc 2
40 ------- LccknutT Type N 3/8-16 2
41 38929 Decal, Single Handle Control 1
42 G444691 Ftg Plug H Soc 1/4-18 1
43 32844-5 Adaptor, 9/16-18x3/4-16 Ydp 2
44 34128-3 Adp Hyd Elbow 6mj-6fjx -90 2
45 32845-7 Adp Hyd Elbow 6mj - 8mb90 1
46 8137-1 Strap-Adjust .19 X 11.00 B 2
47 36251-3 Hose .25 X 60 Sae 100r1 4
48 36240-5 Spiral Band,Plastic-Blue .62id 1

36240-6 Spiral Band-Plast-Red-.62 I.D. 1
36240-7 Spiral Band-Plast-Yel-.62 .I.D 1

36240-8 Spiral Band-Plast-Grn-.62 .I.. 1
49 34853-11 Nylon Sleeve(1.59 Id X 66") 1
50 6137-4 Coupler, Male Quick 4
51 7438-1 Tarp Strap 22" Reach 1

MAY, 2011

1-30F-7

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

CONTROL VALVE AND PLUMBING KIT 2-6411

JOHN DEERE 650

MAY, 2011

1-30F-8

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

CONTROL VALVE AND PLUMBING KIT 2-6411

JOHN DEERE 650

Ref. Part Description Qty.

No. No. Req’d.

1 53463 Valve, Prince LVR (2000 Psi) 1
2 ------- Capscrew, 3/8-16 X 2-1/4 2
3 43517 Handle, Standard 1
4 43451 Angle, Decal Mounting 1
5 ------- Locknut, 3/8-16 2
6 ------- Capscrew, 5/16-18 X 3/4 4
7 ------- Lockwasher, 5/16 4
8 38902 Ball, Handle 1

9 32845-7 Fitting, Elbow, 9/16-18 Jic X 3/4-16 O-Ring, 90° 4
10 36386-5 Hose, 3/8 X 78 (Tank) 1
11 43454-4 Hose, 3/8 X 76 (Pressure & Power Beyond) 2
12 G444691 Plug, 1/4-18 1
13 ------- Hex Nut, 7/16-20 1
14 43635 Boot 1
15 6147-4 Coupler, Female 4
16 36240-9 Spiral Band, Plastic, Blue, 1” 1

36240-10 Spiral Band, Plastic, Red, 1” 1
36240-11 Spiral Band, Plastic, Yellow, 1” 1

36240-12 Spiral Band, Plastic, Green, 1” 1
17 36251-3 Hose, 1/4 X 60 4
18 36240-5 Spiral Band, Plastic, Blue, 5/8 1

36240-6 Spiral Band, Plastic, Red, 5/8 1
36240-7 Spiral Band, Plastic, Yellow, 5/8 1

36240-8 Spiral Band, Plastic, Green, 5/8 1
19 6137-4 Coupler, Male 4
20 43453 Decal, Single Handle Control 1
21 8137-1 Strap, Adjustable 2
22 39280-7 Fitting, Adapter, 3/4-16 O-Ring X 3/8 Npt 4
23 44168 Plate, Valve Mounting 1
24 44717 Bracket, Valve Mounting 1
25 34853-11 Sleeve, Nylon 66” 1
26 7438-1 Tarp Strap 1
27 ------- Locknut, ½ 2
28 ------- Flatwasher, 1/2 2
29 ------- Capscrew, 1/2-13 X 2-1/2 2
30 38226-1 Fitting, Elbow, 9/16 Jic X 9/16 Jic Swivel, 45° 1

MAY, 2011

1-30F-9

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

CONTROL VALVE AND PLUMBING KIT 2-5879

JOHN DEERE 670,770, 790

MAY, 2011

1-30F-10

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

CONTROL VALVE AND PLUMBING KIT 2-5879

JOHN DEERE 670,770, 790

Ref. Part Description Qty.

No. No. Req’d.

1 38410 Valve, Dukes P/N 1627-Fs 1
2 38903 Linkage-Bracket(Zp) 1
3 38911-1 Flat Socket Hd Capscrew 5/16-24x.75 (Fs) 1
4 38910-2 Socket Hd Capscrew 5/16-24 X 0.75 (Fs) 1
5 38908 Handle Assy Zp 1
6 26009-3 Rod End 1/4-28 Ydp 2
7 38900-5 Rod End,Ball Joint 1/4-28 Ydp 1
8 38904-1 Stud (Rod End) Ydp 1

9 ------- Socket Hd Capscrew 1/4-28 X 0.75 3
10 ------- Flatwasher 1/4 Sae Zc 3
11 ------- Lockwasher 1/4 Zc 2
12 ------- Nut Hex 1/4-28 Zc 2
13 ------- Nut Hex Lock Type N1/4-28cd(Fs 1
14 36584 Fitting, Power Beyond Sleeve 1
15 32845-1 Adp Hyd Elbow 6mj - 6mb90 Ydp 1
16 38928-1 Hose 3/8x6.88 Lg 1
17 38928-2 Hose 3/8x7.88 Lg 1
18 38928-3 Hose 3/8x8.50 Lg 1
19 38928-4 Hose 3/8x13.00 Lg 1
20 36388-3 Hose .375 X 72" Long Sae100r1 1
21 36388-5 Hose, 3/8 X 60 (Sae 100r1) 1
22 36386-6 Hose .375 Id X 72.00 Sae100r1 1
23 ------- Capscrew, 1/4-20x2 G5 Zc 2
24 ------- Nut Hex Lock Type N 1/4-20 2
25 38926 Valve Box Assembly 1
26 38927 Cover 1
27 38440-1 J" Clip 2
28 ------- Scrw#10-16x1/2typ Ab,Pan Hd(Fs 2
29 38912 Spacer,(Rodon #Hw-1)Black 4
30 6147-4 Coupler Body-Female Ydp 4

36240-10 Spiral Band,Plastic-Red- 1" Id 1
36240-11 Spiral Band,Plastic-Yel-1" Id 1
36240-12 Spiral Band,Plastic-Green-1"Id 1

36240-9 Spiral Band,Plastic-Blue-1" Id 1
32 38653 Boot-Black (Dukes#1680-125) 1
33 38930-1 Cap Nut(Arden#C60002-218) 1
34 38902 Ball-Handle (Davies #35k) 1
35 39278 Tube, Valve Mount 1
36 ------- Capscrew, 1/2-13x2 1/2 G5 Zc 2
37 ------- Flatwasher 1/2 Sae Zc 2
38 ------- Nut Hex Lock Type N 1/2-13 2
39 ------- Capscrew, 3/8-16x2 1/4 G5 Zc 2
40 ------- Nut Hex Lock Type N 3/8-16 2
41 38929 Decal,Single Handle Control 1
42 G444691 Ftg Plug H Soc 1/4-18 S 1
43 32845-7 Adp Hyd Elbow 6mj - 8mb90 Ydp 1
44 32844-5 Adaptor, 9/16-18x3/4-16 Ydp 2
45 38226-1 Elbow 6mj - 6fjx45 Ydp 2
46 34128-3 Adp Hyd Elbow 6mj-6fjx -90dg 1
47 8137-1 Strap-Adjust .19 X 11.00 B 2
48 36251-4 Hose .25 X 66 Sae 100r1 4
49 36240-5 Spiral Band,Plastic-Blue .62id 1

36240-6 Spiral Band-Plast-Red-.62 I.D. 1

36240-7 Spiral Band-Plast-Yel-.62 .I.D 1

36240-8 Spiral Band-Plast-Grn-.62 .I.. 1
50 34853-11 Nylon Sleeve(1.59 Id X 66") 1
51 6137-4 Coupling Body-Male Ydp 4
52 7438-1 Tarp Strap 22" Reach 1

MAY, 2011

1-30F-11

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

CONTROL VALVE AND PLUMBING KIT 2-6396

Kioti LB1714, LB1914

MAY, 2011

1-30F-12

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

CONTROL VALVE AND PLUMBING KIT 2-6396

Kioti LB1714, LB1914

Ref. Part Description Qty.

No. No. Req’d.

1 53463 Valve, Prince LVR (2000 PSI) 1
2 ------- Capscrew, 3/8-16 X 2-1/4 2
3 43517 Handle, Standard 1
4 43451 Angle, Decal Mounting 1
5 ------- Locknut, 3/8-16 2
6 ------- Capscrew, 5/16-18 X 3/4 5
7 ------- Lockwasher, 5/16 5
8 38902 Ball, Handle 1

9 32845-7 Fitting, Elbow, 9/16-18 Jic X 3/4-16 O-Ring, 90° 1
10 36386-6 Hose, 3/8 X 72 3
11 ------- Locknut, 1/2-13 2
12 32844-1 Fitting, Adapter, 9/16-18 2
13 ------- Hex Nut, 7/16-20 1
14 43635 Boot 1
15 6147-4 Coupler, Female 4
16 36240-9 Spiral Band, Plastic, Blue, 1” 1

36240-10 Spiral Band, Plastic, Red, 1” 1
36240-11 Spiral Band, Plastic, Yellow, 1” 1
36240-12 Spiral Band, Plastic, Green, 1” 1

17 36251-6 Hose, 1/4 X 72 4

1 8 36240-5 Spiral Band, Plastic, Blue, 5/8 1

36240-6 Spiral Band, Plastic, Red, 5/8 1
36240-7 Spiral Band, Plastic, Yellow, 5/8 1

36240-8 Spiral Band, Plastic, Green, 5/8 1
19 6137-4 Coupler, Male 4
20 43453 Decal, Single Handle Control 1
21 8137-1 Strap, Adjustable 3
22 39280-7 Fitting, Adapter, 3/4-16 O-Ring X 3/8 Npt 4
23 44168 Plate, Valve Mounting 1
24 44661 Bracket, Valve Mounting 1
25 34853-11 Sleeve, Nylon 66” 1
26 7438-1 Tarp Strap 1
27 32844-5 Fitting, 9/16-18 X 3/4-16 2
28 32845-1 Fitting, Elbow, 9/16-18 X 9/16-18, 90° 1
29 43763 Flow Bolt 3
30 36766 Flow Bolt 3
31 ** Copper Seal 3
32 ** O-Ring 3
33 G120396 Flatwasher, 1/2 2
34 ------- Capscrew, 1/2-13 X 2-3/4 2
35 43764 Seal Kit, Flow Bolt (Contains Replacement Copper Rings And O-Rings) 3
36 46533 Orifice Restrictor Kit (.094 Dia.) 1

MAY, 2011

1-30F-13

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

CONTROL VALVE AND PLUMBING KIT 2-7136

New Holland TC18D (S/N UD33666 and UP), TC21D and TC24D (S/N UF33557 and Up),

TC23DA and TC26DA

MAY, 2011

1-30F-14

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

CONTROL VALVE AND PLUMBING KIT 2-7136

New Holland TC18D (S/N UD33666 and UP), TC21D and TC24D (S/N UF33557 and Up),

TC23DA and TC26DA

Ref. Part Description Qty.

No. No. Req’d.

1 53463 Valve, Prince Lvr (2000 Psi) 1
2 ------- Capscrew, 3/8-16 X 2-1/4” 2
3 43517 Handle, Valve, Standard 1
4 43451 Angle, Decal Mounting 1
5 ------- Locknut, 3/8-16 2
6 ------- Capscrew, 5/16-18 X 3/4” 3
7 ------- Lockwasher, 5/16 3
8 38902 Ball, Valve Handle 1

9 32845-7 Fitting, Elbow, 3/4-16 Jic X 3/4-16 O-Ring, 90° 1
10 44269-7 Hose, 3/8 X 36” (Pressure & Tank) 2
11 ------- Flatwasher, 1/2” 2
12 36844-12 Hose, 3/8 X 38” (Power Beyond) 1
13 ------- Hexnut, 7/16-20 1
14 43635 Boot 1
15 6147-4 Coupler, Female 4
16 36240-9 Spiral Band, Plastic, Blue, 1” 1

36240-10 Spiral Band, Plastic, Red, 1” 1
36240-11 Spiral Band, Plastic, Yellow, 1” 1

36240-12 Spiral Band, Plastic, Green, 1” 1
17 36251-3 Hose, 1/4 X 60” 4
18 36240-5 Spiral Band, Plastic, Blue, 5/8” 1

36240-6 Spiral Band, Plastic, Red, 5/8” 1
36240-7 Spiral Band, Plastic, Yellow, 5/8” 1

36240-8 Spiral Band, Plastic, Green, 5/8” 1
19 6137-4 Coupler, Male 4
20 43453 Decal, Single Handle Control 1
21 8137-3 Strap, Adjustable 3
22 39280-7 Fitting, Adapter, 3/4-16 O-Ring X 3/8 Npt 4
23 43450 Plate, Valve Mounting 1
24 50206 Tube, Valve Mounting 1
25 34853-11 Sleeve, Nylon, 66” 1
26 40252-2 Fitting, Elbow, 3/8 Npt Male X 3/4-16 Jic Male, 45° 3
27 38226-2 Fitting, Elbow, 3/4-16 Jic Female Swivel X 3/4-16 Jic Male, 45° 3
28 ------- Capscrew, 1/2-13 X 2-1/2” 2
29 ------- Locknut, 1/2-13 2

MAY, 2011

1-30F-15

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

GRILL GUARD KIT

MAY, 2011

Ref. Part Description Qty.

No. No. Req’d.

1 52648 Grille Guard, 2406 & 2406s, Loader Bumper Style 1
2 ------- Screw, Cap, 3/8-16 X 1-1/2", Grade 5 4
3 ------- Nut, Lock, 3/8-16, Type N 4

1-30G-1

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

MAY, 2011

DECALS

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

1 50057411 Logo Decal Bush Hog 3
2 50069068 Model 2047 2
3 52740 Warning Oil Leaks 2
4 52203 Warning Lock Valve In Transport 1
5 52204 Instruction Loader Positions 1
6 D469 Warning Loader Safety 1
7 D468 Danger Crushing, Electrocution, Falling Hazard 2
8 D471 Warning Handling Bales 1

9 D470 Danger Use Rops, Seatbelt, Rear Ballast 1
10 03200347 Reflector SMV Sign 1
11 00776031 Canister, Operator’s Manual 1
12 50069199 Operators Manual (2047 Loader) 1

1-30H-1

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

MAY, 2011

DECALS

1

2

4

3

5

6

7

REF. PART DESCRIPTION QTY.

NO. NO. REQ’D.

8

9

1 50057411 Logo Decal Bush Hog 3
2 50069068 Model 2047 2
3 52740 Warning Oil Leaks 2
4 52203 Warning Lock Valve In Transport 1
5 52204 Instruction Loader Positions 1
6 D469 Warning Loader Safety 1
7 D468 Danger Crushing, Electrocution, Falling Hazard 2
8 D471 Warning Handling Bales 1
9 D470 Danger Use Rops, Seatbelt, Rear Ballast 1

1-30H-2

2501 Griffin Ave.• Selma, AL 36703

[phone] • [phone]

Parts Ordering 1-800-304-2836

Fax [phone]

www.bushhog.com
