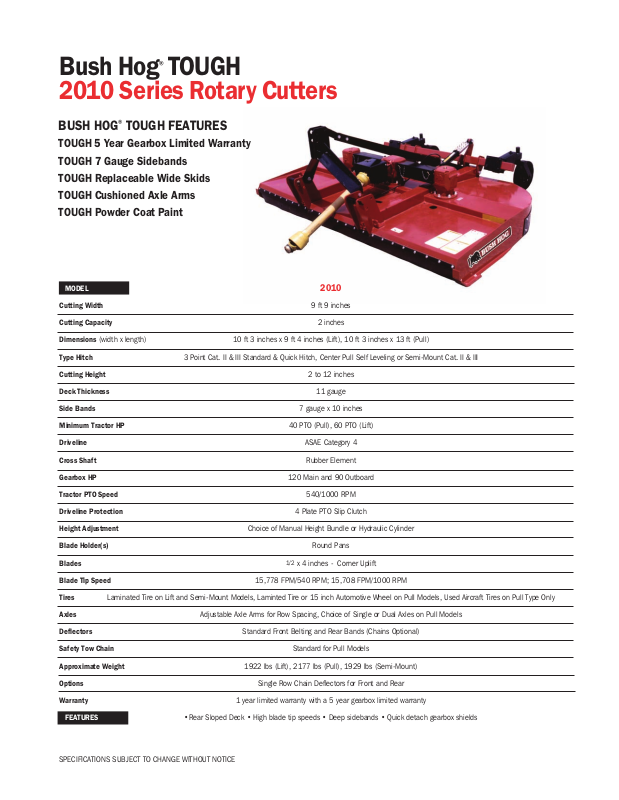

Bush Hog® TOUGH
2010 Series Rotary Cutters
Bush Hog® TOUGH Features
TOUGH 5 Year Gearbox Limited Warranty
TOUGH 7 Gauge Sidebands
TOUGH Replaceable Wide Skids
TOUGH Cushioned Axle Arms
TOUGH Powder Coat Paint
|
Model |
|
|
2010 |
|
Cutting Width |
|
|
9 ft 9 inches |
|
|
|
||
|
Cutting Capacity |
2 inches |
||
|
|
|
||
|
Dimensions (width x length) |
10 ft 3 inches x 9 ft 4 inches (Lift), 10 ft 3 inches x 13 ft (Pull) |
||
|
|
|
|
|
|
Type Hitch |
|
|
3 Point Cat. II & III Standard & Quick Hitch, Center Pull Self Leveling or Semi-Mount Cat. II & III |
|
|
|
|
|
|
Cutting Height |
|
|
2 to 12 inches |
|
|
|
||
|
Deck Thickness |
11 gauge |
||
|
|
|
|
|
|
Side Bands |
|
|
7 gauge x 10 inches |
|
|
|
||
|
Minimum Tractor HP |
40 PTO (Pull), 60 PTO (Lift) |
||
|
|
|
|
|
|
Driveline |
|
|
ASAE Category 4 |
|
|
|
|
|
|
Cross Shaft |
|
|
Rubber Element |
|
|
|
|
|
|
Gearbox HP |
|
|
120 Main and 90 Outboard |
|
|
|
||
|
Tractor PTO Speed |
540/1000 RPM |
||
|
|
|
||
|
Driveline Protection |
4 Plate PTO Slip Clutch |
||
|
|
|
||
|
Height Adjustment |
Choice of Manual Height Bundle or Hydraulic Cylinder |
||
|
|
|
||
|
Blade Holder(s) |
Round Pans |
||
|
|
|
|
|
|
Blades |
|
|
1/2 x 4 inches - Corner Uplift |
|
|
|
||
|
Blade Tip Speed |
15,778 FPM/540 RPM; 15,708 FPM/1000 RPM |
||
|
|
|
||
|
Tires |
Laminated Tire on Lift and Semi-Mount Models, Laminted Tire or 15 inch Automotive Wheel on Pull Models, Used Aircraft Tires on Pull Type Only |
||
|
|
|
|
|
|
Axles |
|
|
Adjustable Axle Arms for Row Spacing, Choice of Single or Dual Axles on Pull Models |
|
|
|
|
|
|
Deflectors |
|
|
Standard Front Belting and Rear Bands (Chains Optional) |
|
|
|
||
|
Safety Tow Chain |
Standard for Pull Models |
||
|
|
|
||
|
Approximate Weight |
1922 lbs (Lift), 2177 lbs (Pull), 1929 lbs (Semi-Mount) |
||
|
|
|
|
|
|
Options |
|
|
Single Row Chain Deflectors for Front and Rear |
|
|
|
|
|
|
Warranty |
|
|
1 year limited warranty with a 5 year gearbox limited warranty |
|
|
|
|
•Rear Sloped Deck • High blade tip speeds • Deep sidebands • Quick detach gearbox shields |
|
FEATURES |
|
|
|
|
|
|
|
|
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE |
