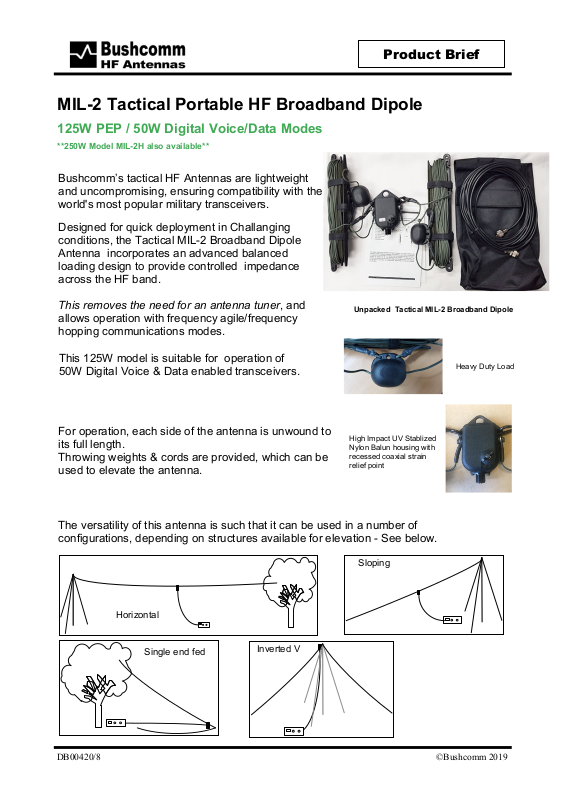

Product Brief
MIL-2 Tactical Portable HF Broadband Dipole
125W PEP / 50W Digital Voice/Data Modes
**250W Model MIL-2H also available**
Bushcomm’s tactical HF Antennas are lightweight
and uncompromising, ensuring compatibility with the
world's most popular military transceivers.
Designed for quick deployment in Challanging
conditions, the Tactical MIL-2 Broadband Dipole
Antenna incorporates an advanced balanced
loading design to provide controlled impedance
across the HF band.
This removes the need for an antenna tuner, and
Unpacked Tactical MIL-2 Broadband Dipole
allows operation with frequency agile/frequency
hopping communications modes.
This 125W model is suitable for operation of
50W Digital Voice & Data enabled transceivers.
For operation, each side of the antenna is unwound to
its full length.
Throwing weights & cords are provided, which can be
used to elevate the antenna.
High Impact UV Stablized
Nylon Balun housing with
recessed coaxial strain
relief point
The versatility of this antenna is such that it can be used in a number of
configurations, depending on structures available for elevation - See below.
Sloping
Heavy Duty Load
Horizontal
Single end fed
DB00420/8 ©Bushcomm 2019
Inverted V
SPECIFICATION
1.0
2.0
3.0
1 5
9
13 17 21 25 29
Frequency
VSWR
ELECTRICAL
Frequency Range 2.0 - 30 MHz (Usable VSWR)
Maximum power rating
Impedance 50 ohm
MECHANICAL
Material
Length 48m
Weight 1.2kg
Packed size 37cm x 18cm x 5cm
Connector SO239 - Other RF terminations available
MIL-2 (BU01066) - 125w PEP / 50W Digital voice & data modes
Kevlar core, copper braid, pvc sheath, UV Stablized Re-inforced Nylon housings
Product Brief
SPECIAL FEATURES
2.0 - 30 MHz frequency range
True Broadband Design - No tuner required
Light weight and packs away for easy transport
Tough, durable, perfect for outdoor environments
Flexible arrangements for deployment depending on environment
Perfect for frequency agile transmitters
DB00420/8 ©Bushcomm 2019
