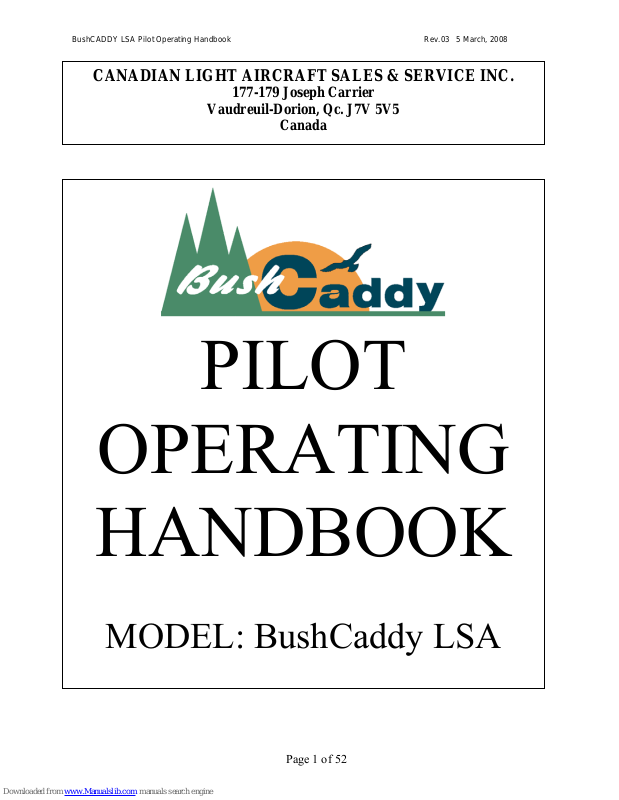

BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
CANADIAN LIGHT AIRCRAFT SALES & SERVICE INC.
177-179 Joseph Carrier
Vaudreuil-Dorion, Qc. J7V 5V5
Canada
PILOT
OPERATING
HANDBOOK
MODEL: BushCaddy LSA
Page 1 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
CAUTION
THIS AIRCRAFT WAS
MANUFACTURED IN
ACCORDANCE WITH LIGHT
SPORT AIRCRAFT
AIRWORTHINESS STANDARDS
AND DOES NOT CONFORM TO
STANDARD CATEGORY
AIRWORTHINESS
REQUIREMENTS.
NO AEROBATIC MANOEUVRES
ARE ALLOWED.
This manual is integral and part of the airplane documents. To ensure a safe flight,
read carefully, follow instructions and pay particular attention to aircraft limitations.
It is strictly prohibited to alter this manual in any way.
Page 2 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
Contents
CAUTION ........................................................................................................................... 2
OWNER IDENTIFICATION ............................................................................................................. 6
MANUFACTURER ............................................................................................................................. 6
OPTIONS: ........................................................................................................................................... 6
DESCRIPTION OF THE AIRCRAFT AND SYSTEMS. .......................................................... 8
1.1 Aircraft ............................................................................................................................. 8
1.2 Landing Gear .................................................................................................................... 8
1.3 Flaps ................................................................................................................................. 8
1.4 Floats ................................................................................................................................ 8
1.5 Dimensions ....................................................................................................................... 8
1.6 Airframe ........................................................................................................................... 8
1.7 Engine ............................................................................................................................. 10
1.8 Propeller ......................................................................................................................... 10
1.9 Fuel and Fuel Capacity ................................................................................................... 10
1.10 Oil and Lubrication ........................................................................................................ 11
1.11 Electrical System ............................................................................................................ 11
ELECTRICAL SCHEMATIC .................................................................................................... 11
1.12 Specifications ................................................................................................................. 12
WING ......................................................................................................................................... 12
CONTROL SURFACES ............................................................................................................ 12
SECTION 2 ........................................................................................................................................ 13
WEIGHT AND BALANCE. ........................................................................................................ 13
2.1 General ........................................................................................................................... 13
2.2 Airplane weighing procedure ......................................................................................... 13
WHEELS .................................................................................................................................... 15
FLOATS ..................................................................................................................................... 16
SKIS ........................................................................................................................................... 17
Weight and Balance Examples ................................................................................................... 18
GRAPH ......................................................................................................................................... 22
INSTALLED EQUIPMENT LIST ............................................................................................. 23
MODIFICATION EQUIPMENT LIST ..................................................................................... 24
SECTION 3 ........................................................................................................................................ 25
OPERATING LIMITATIONS ................................................................................................... 25
3.1. General ........................................................................................................................... 25
3.2 Airspeed Limitations ...................................................................................................... 25
3.3 Crosswind Limitations ................................................................................................... 25
3.4 Service Ceiling ............................................................................................................... 25
3.5 Loading ........................................................................................................................... 25
Page 3 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
3.6 Prohibited Manoeuvres .................................................................................................. 25
3.7 Airspeed Indicator Markings .......................................................................................... 25
3.8 Oil Pressure Markings - Rotax 912 UL ......................................................................... 26
3.9 Oil Temperature Makings - Rotax 912UL .................................................................... 26
3.10 RPM – Rotax 912UL ...................................................................................................... 26
3.11 Cylinder Head Temperature Markings – Rotax 912UL ................................................. 26
SECTION 4 ........................................................................................................................................ 27
PERFORMANCE (Standard Air Conditions) 80 hp Engine ................................................... 27
NOTE: These performance figures are specific to the Rotax 80 hp Engine, and may vary
according to equipment installed, loading and engine installation. Please refer to the Appendix
for alternative performance data specific to the optional engine installation of your model. .... 27
SECTION 5 FLIGHT TRAINING ................................................................................................... 28
NORMAL PROCEDURES ......................................................................................................... 28
5.1 Pre-flight ......................................................................................................................... 28
5.2 Pre-Start .......................................................................................................................... 30
5.3 Start ................................................................................................................................ 30
5.4 Before Take-off .............................................................................................................. 30
5.5 Taxiing ........................................................................................................................... 31
5.6 Take-off .......................................................................................................................... 31
5.6.1 Normal ........................................................................................................................... 31
5.6.2 Short Field, Obstacle Clearance .................................................................................... 31
5.6.3 Short Field, No Obstacle Clearance .............................................................................. 31
5.6.4 Soft Field, Obstacle Clearance ...................................................................................... 31
5.6.5 Soft Field, No Obstacle Clearance ................................................................................ 31
5.7 Cruise ............................................................................................................................. 32
5.8 Pre-Landing .................................................................................................................... 32
5.9 Landing ........................................................................................................................... 32
5.9.1 Normal ........................................................................................................................... 32
5.9.2 Over an Obstacle ........................................................................................................... 32
5.9.3 Short Field over an Obstacle ......................................................................................... 32
5.9.4 Balked Landing ............................................................................................................. 32
5.10 Shutting down ................................................................................................................ 32
5.11 Turbulent Air Operations ............................................................................................... 33
SECTION 6 ........................................................................................................................................ 34
EMERGENCY PROCEDURES ................................................................................................. 34
6.1 General ........................................................................................................................... 34
6.2 Engine Fire During Start ................................................................................................ 34
6.3 Engine Fire in Flight ...................................................................................................... 34
6.4 Electrical Fire in Flight .................................................................................................. 35
6.5 Loss of Oil Pressure ....................................................................................................... 35
6.6 High Oil Temperature .................................................................................................... 35
6.7 Engine Failure on Take-off ............................................................................................ 36
6.8 Engine failure in Flight .................................................................................................. 36
6.9 Power off Landing .......................................................................................................... 36
SECTION 7 ........................................................................................................................................ 37
Page 4 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
GROUND HANDLING AND SERVICING .............................................................................. 37
7.1 Towing and Repositioning ............................................................................................. 37
7.2 Parking ........................................................................................................................... 37
7.2 Landing Gear .................................................................................................................. 37
7.3 Propeller ......................................................................................................................... 38
7.4 Oil ................................................................................................................................... 38
7.5 Fuel ................................................................................................................................. 38
7.5.1. Fuel grades ............................................................................................................. 38
7.5.2. Filling Fuel Tanks .................................................................................................. 38
7.5.3. Draining Fuel Strainer, sumps and lines ................................................................ 38
7.5.4. Draining fuel system .............................................................................................. 38
CAUTION! ............................................................................................................................. 38
When draining any amount of fuel care should be taken to ensure that no fire hazard exists
before starting the engine. Each quick drain should be checked after closing to make sure that it
has closed completely and is not leaking. .................................................................................... 38
7.6 Tire Inflation .................................................................................................................. 39
7.7 Battery Service ............................................................................................................... 39
7.8 Brakes ............................................................................................................................. 39
7.9 Shock Cords ................................................................................................................... 39
7.10 Cleaning ......................................................................................................................... 39
7.10.1 Exterior Surfaces .................................................................................................... 39
7.10.2 Windshield and Windows ...................................................................................... 39
7.10.3 Interior .................................................................................................................... 4 0
7.11 Lubrication ..................................................................................................................... 41
SECTION 8 ........................................................................................................................................ 42
SUPPLEMENTARY INFORMATION ..................................................................................... 42
8.1 Familiarization Flight Procedures: ................................................................................. 42
SECTION 9 ........................................................................................................................................ 43
SAFETY TIPS .............................................................................................................................. 43
APPENDIX A .................................................................................................................................... 45
JABIRU ENGINE. ....................................................................................................................... 45
JABIRU ENGINE INSTALLED PERFORMANCE (Standard Air Conditions) ................. 51
References:
BushCaddy LSA Maintenance Manual.
Rotax Operators Manual for Rotax Engine Type 912 Series
Jabiru Operators Manual for Jabiru Engines.
Page 5 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
AIRCRAFT IDENTIFICATION
MODEL BushCaddy LSA
SERIAL NUMBER
REGISTRATION
DATE OF PURCHASE
OWNER IDENTIFICATION
NAME
ADDRESS
TELEPHONE
MANUFACTURER
NAME Canadian Light Aircraft Sales & Service (CLASS) Inc.
ADDRESS 177-179 Joseph Carrier
Vaudreuil, Dorion, Qc.
J7V 5V5, Canada
TEL: 450 455-2773 1-888-977-1447
OPTIONS:
The BUSHCADDY LSA is offered in several configurations as described below. Refer to the
Aircraft Serial Number and Appendix to determine the configuration of your particular aircraft.
BCLSA (A) Rotax Engine Model 912 – 80 hp
BCLSA (B) Rotax Engine Model 912S – 100 hp
BCLSA (C) Rotax Engine Model 914 – 115 hp
BCLSA (D) Jabiru 3300 Engine
BCLSA (T) Nosewheel Landing Gear.
BCLSA (F) Floats
Typical Serial Number : BCLSA-001(B)(T) means a BushCaddy BUSHCADDY LSA aircraft
equipped with Rotax Engine Model 912S – 100 hp engine, Nosewheel Landing Gear.
Page 6 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
BushCaddy LSA Taildragger Version
BushCaddy Tricycle Gear Option
Page 7 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
SECTION 1
DESCRIPTION OF THE AIRCRAFT AND SYSTEMS.
1.1 Aircraft
The BushCaddy LSA is a single-engine, high wing, monoplane of all metal construction. It has a
two place side-by-side configuration.
1.2 Landing Gear
The aircraft landing gear is conventional configuration with an optional tricycle configuration. The
Landing gear is constructed from 4130-chromoly steel. Shock absorption is by means of 2 # 1380
shock chords.
1.3 Flaps
TheBushCaddy LSA model may be equipped with flaps. (Optional)
1.4 Floats
The following size floats are approved for installation on the BushCaddy LSA
Full Lotus 1400 and 1650
Straight Metal Floats 1400 and 1500
Amphibs 1400 and 1500
1.5 Dimensions
The following diagrams give the general dimensions of the aircraft.
65 in
1.6 Airframe
The airframe is constructed of 6061 T6 aluminium alloy. Hard points are 2024 T-3 aluminium
allow and of 4130 chromoly steel. The nose bowl and trim are of fibreglass.
The fuselage is a monocoque structure. Access to the cabin is through two upward opening doors.
22ft. 1in.
Fig. 1 Dimensions of BushCaddy LSA
Page 8 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
h
BushCaddy Model BUSHCADDY LSA
100 inches
35 in.
Cabin width at elbows
44 inches
40 in
32ft.
52 in.
72 in.
63
90 inc
Fig. 2 Dimensions of BUSHCADDY LSA
Page 9 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
1.7 Engine
The following engines are approved for installation in the BUSHCADDY-LSA
i) Rotax 912 UL – 80 hp
ii) Rotax 912 ULS – 100 hp
iii) Rotax 914 – 115 hp
iv) Jabiru 3300 - 120 hp
Standard engine for the BUSHCADDY-S-LSA.is the ROTAX-BOMBARDIER 912 ULS 4 stroke, 4
cylinder engine - liquid/air cooled.
1.8 Propeller
The BUSHCADDY LSA is fitted with a ground adjustable propeller. The hub is of aircraft grade
aluminium alloy.
1.9 Fuel and Fuel Capacity
Fuel is stored in two 10-IMPERIAL (12 US) gallon tanks installed in the wings, gravity fed to the
engine, which is equipped with a mechanical pump.
Fig. 3 Fuel Lines
An electric standby fuel pump may be installed.
Page 10 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
The fuel selector control is located on cross frame immediately below and in front of pilot. Optional
position is on the centre of instrument panel.
Note: For firewall forward schematic, see engine operator’s manual.
1.10 Oil and Lubrication
Please refer to engine operator’s manual for more details.
Rotax engines are dry sump engines. Oil is drawn from the firewall mounted tank through an oil
cooler by engine mounted oil pump, through the engine lubricating points and returns to oil tank via
hose mounted on the base of the engine.
Jabiru engines are wet sump internal oil pump and external oil cooler.
1.11 Electrical System
A 12-volt battery to the master, from the master to firewall mounted relay, supplies power and then
to a fuse equipped buss bar for distribution to gauges, instruments radios etc.
For ignition system, see engine operator’s manual.
ELECTRICAL SCHEMATIC
Page 11 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
1.12 Specifications
(May vary depending on optional configurations and equipment installed) Refer to Form WB-1
specific to this model and configuration. Jabiru Engine performances may vary from those shown
below.
ENGINE ROTAX 912 – 80 h.p. ROTAX 914 –115 h.p. FLOATS
LENGTH
HEIGHT
AILERON
AILERON
AILERON
AILERON
ELEVATOR
ELEVATOR
RUDDER
RUDDER
WING SPAN 32 feet 32 feet 32 feet
WING AREA 168 sq. ft. 168. Sq. ft 168. Sq. ft.
CEILING 10,000 ft. 12,,000 ft. 10,000 ft.
MAX WEIGHT 1320 lbs. 1320 lbs` 1430 lbs
EMPTY WEIGHT 751. 751 lbs. 835
USEFUL LOAD 569. 569 lbs. 595
CRUISE 75% 95 MPH 105 MPH 84 – 96 MPH
VNE 130 MPH 130 MPH` 130 MPH
VA 58 MPH 58 MPH 58 MPH
STALL power off 34 MPH 34 MPH 34 MPH
Power/weight ratio 15 lb/BHP 10.43 lb/BHP 14.8 lb/BHP
WING LOADING 7.3 lb per sq. ft. 7.3 lb. Per. Sq. ft. 7.3 lb. Per sq. ft.
TAKE OFF 1332 lb. 266 ft. concrete
RATE OF CLIMB 850 f.p.m. 1000 f.m.p. 600 f.p.m.
22 ft. 1in. 22ft.1in. 22 ft. 1in.
6 ft 6 ft 6 ft
Left wing travel up 22 Left wing travel up 22 Left wing travel up 22
Left wing travel down 21
Right wing travel up 25 Right wing travel up 25 Right wing travel up 25
Right wing travel down 19 Right wing travel down 19 Right wing travel down 19
Travel down 31.5
Travel up 22 Travel up 22 Travel up 22
Right 15.25”
Left 18” Left 18” Left 18”
282 ft. short grass
300 ft. tall grass
305 ft. soft ground
Left wing travel down 21
Travel down 31.5 Travel down 31.5
Right 15.25” Right 15.25”
266 ft. concrete
270 short grass
300 tall grass
300 soft ground
Left wing travel down 21
15-30 seconds at gross
WING
A) Average Aerodynamic Line 63.5”
B) Line of Incidence 0.05
C) Dihedral 1.125” at the tip of the wing
CONTROL SURFACES
A) Wings and Ailerons 168 sq.ft.
B) Ailerons 17.94 sq.ft.
C) Horizontal Stabilizer 15.68 sq.ft.
D) Elevator 11.0 sq.ft.
E) Vertical Stabilizer 8.3 sq. ft.
F) Rudder 4.5 sq.ft.
Page 12 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
SECTION 2
WEIGHT AND BALANCE.
Misloading carries serious safety consequences for any aircraft. If the C.G. is too far forward, it
may be difficult to rotate for takeoff or landing. If the C.G. is too far aft, the aircraft may rotate
prematurely on takeoff or tend to pitch up during climb. Longitudinal stability will be reduced.
This can lead to inadvertent stalls and even spins; and spin recovery becomes more difficult as
the center of gravity moves aft of the approved limit.
WARNING!
2.1 General
In order to achieve the performance, safety and optimal flying characteristics, which are designed,
into the aircraft, it must be flown with the weight and centre of gravity (C.G.) position within the
approved operating range (envelope). The pilot must ensure that the aircraft is loaded within the
loading envelope before takeoff. A weight and balance calculation can be helpful in determining
how much fuel or baggage can be boarded so as to keep within the allowable limits. Check
calculations prior to adding fuel to ensure against over loading.
2.2 Airplane weighing procedure
At the time of delivery, CLASS Inc. provides each airplane with the basic empty weight and centre
of gravity location. This data is supplied on Form WB-1
Page 13 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
CENTER OF GRAVITY
Example
WARNING! Chock Main wheels to prevent aircraft movement during weighing
procedure.
Datum line (leading edge of wing)
C of G
To be calculated
Sup p o rt 2 7 lb s.
(Tare)
Weighing point m ain whe e ls
Weight 280 lbs (left and right) Rear scale 67 lb
D mea sured
L m e a su re d
Weighing p oint
tail wheel
Calculation of Center of Gravity
The datum line is situated at the leading edge of the wing
Horizontal distance “D” between the main wheel balance point and the datum line------6.5in.
Horizontal distance “L” between the main wheel balance point and the tail wheel balance point ----174 INS.
EMPTY WEIGHT
Scale weight Lbs. Tare weight Net weight
Right
280 0 280
Left 280 0 280
Tail 67 27 40
TOTAL WEIGHT 600
RECORD THE WEIGHT ON EACH WHEEL, DEDUCT THE TARE FROM EACH
READING.
FORMULA FOR CALCULATING THE CENTER OF GRAVITY POINT
C.G = D+ Rx L = 6in. + 40 x 174 = 11.6 IN + 6.5 IN. = 18.1 in.
W 600
Page 14 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
WEIGHT AND BALANCE Form WB-1
WARNING! Chock main wheels to prevent aircraft movement during weighing
procedure. Raise tail carefully, the higher the tail is lifted, the lighter it becomes. Aircraft
can nose over.
WHEELS
DATE: MODEL:
SERIAL NO: DATUM: Leading edge of wing
REGISTRATION: USEFUL LOAD
LANDING GEAR CONFIGURATION: Wheels
Aircraft must be placed level on scales, hangar doors closed, fuel tanks drained and engine oil included.
The limits of the centre of gravity must be within 15 – 22 inches.
NOTE
Center of Gravit y
Datum
Sc a le Sc a le
WEIGHT (LBS)
Right wheel
Left wheel
Tail wheel
TOTAL WEIGHT
Net empty weight
Centre of Gravity
Max. Gross 1320 lbs
Weight Total empty
weight
Aircraft
Passenger
Fuel
Luggage
TOTAL
Arm Moment
C.G. =
Useful load
NOTE: RECORD THE WEIGHT ON EACH WHEEL; DEDUCT THE TARE FROM EACH
READING
Page 15 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
WEIGHT AND BALANCE
FLOATS
DATE: SERIAL NO:
SERIAL NO: DATUM: Leading edge of wing
REGISTRATION: MAX GROSS: 1430 lbs.
LANDING GEAR CONFIGURATION: Floats USEFUL LOAD
Aircraft must be placed level on scales, hangar doors closed, fuel tanks drained and engine oil included
WEIGHT (LBS)
Right float
Left float
Tail
TOTAL WEIGHT
The limits of the center of gravity must be within 15 – 22 inches.
Net empty weight
Centre of Gravity
Max. Gross 1430 lbs
Useful load
NOTE: RECORD THE WEIGHT ON EACH FLOAT; DEDUCT THE TARE FROM EACH
READING
NOTE
Weight Total empty
weight
Aircraft
Passenger
Fuel
Luggage
TOTAL
C.G. =
Arm Moment
Page 16 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
WEIGHT AND BALANCE
WARNING! Prevent aircraft movement during weighing procedure. Raise tail carefully, the
higher the tail is lifted, the lighter it becomes. Aircraft can nose over
SKIS
DATE: SERIAL NO:
SERIAL NO: DATUM: Leading edge of wing
REGISTRATION: MAX GROSS: 1320 lbs.
LANDING GEAR CONFIGURATION: Floats USEFUL LOAD
Aircraft must be placed level on scales, hangar doors closed, fuel tanks drained and engine oil included
NOTE
The limits of the center of gravity must be within 15 – 22 inches.
WEIGHT (LBS)
Right ski
Left ski
Tail ski
TOTAL WEIGHT
Net empty weight
Centre of Gravity
Max. Gross 1320 lbs.
Useful load
NOTE: RECORD THE WEIGHT ON EACH SKI; DEDUCT THE TARE FROM EACH
READING
Weight Total empty
weight
Aircraft
Passenger
Fuel
Luggage
TOTAL
Arm Moment
C.G. =
Page 17 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
Weight and Balance Examples
Maximum Gross Weight - Example
(Lbs) (Inches) (in/lbs)
Empty (684.0 lbs) 684.0 16.0 10944.0
Pilot (190 lbs) 190.0 26.0 4940.0
Pax (190 lbs) 190.0 26.0 4940.0
Luggage 50.0 45.0 2250.0
Fuel (max 20 US gal) (gals) 134.0 24.0 3216.0 20
Total 1248.0 Lbs
Maximum Allowable Gross 1320.0Lbs
Margin 72.0Lbs
Calculated CG Position 21.07Inches
Max Allowable CG = 22"
Min Allowable CG = 15"
Weight Arm Moment
US Gal
Maximum Gross Weight - 1/2 hour fuel remaining -
Example
US
(Lbs) (Inches) (in/lbs)
Empty (751 lbs) 751 16 12016
Pilot (190 lbs) 190 26 4940
Pax (190 lbs) 190 26 4940
Luggage 50 45 2250
Fuel (max 20 US gal) (gals) 10.1 24 241.2 1.5
24387.2
Total 1191.1 Lbs
Maximum Allowable Gross 1320 Lbs
Margin 128.9 Lbs
Calculated CG Position 20.47 Inches
Max Allowable CG = 22"
Min Allowable CG = 15"
Weight Arm Moment
Gal
Page 18 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
Pilot and Passenger - Example
(Us
(Lbs) (Inches) (in/lbs)
Empty (751 lbs) 751 16 12016
Pilot (190 lbs) 190 26 4940
Pax (190 lbs) 190 26 4940
Luggage 0 45 0
Fuel (max 20 US gal) (gals) 134 24 3216 20
25112
Total 1265 Lbs
Maximum Allowable Gross 1320 Lbs
Margin 55 Lbs
Calculated CG Position 19.85 Inches
Max Allowable CG = 22"
Min Allowable CG = 15"
Weight Arm Moment
gals)
Pilot and Passenger - 1/2 hour fuel remaining
- Example
Weight Arm Moment
(Lbs) (Inches) (in/lbs)
Empty (751 lbs) 751 16 12016
Pilot (190 lbs) 190 26 4940
Pax (190 lbs) 190 26 4940
(Us
Luggage 0 45 0
Fuel (max 20 US gal) (gals) 10.1 24 241.2 1.5
22137.2
Total 1141.1 Lbs
Maximum Allowable Gross 1320 Lbs
Margin 178.9 Lbs
Calculated CG Position 19.40 Inches
Max Allowable CG = 22"
Min Allowable CG = 15"
gals)
Page 19 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
Pilot with Baggage - Example
(Lbs) (Inches) (in/lbs)
Empty (751 lbs) 751 16 12016
Pilot (190 lbs) 190 26 4940
Pax (190 lbs) 0 26 0
Luggage 50 45 2250
Fuel (max 20 US gal) (gals) 134 24 3216 20
22422
Total 1125 Lbs
Maximum Allowable Gross 1320 Lbs
Margin 195 Lbs
Calculated CG Position 19.93 Inches
Max Allowable CG = 22"
Min Allowable CG = 15"
Weight Arm Moment
(Us
gals)
Pilot with Baggage - 1/2 hour fuel remaining -
Example
(Lbs) (Inches) (in/lbs)
Empty (751lbs) 751 16 12016
Pilot (190 lbs) 190 26 4940
Pax (190 lbs) 0 26 0
Luggage 50 45 2250
Fuel (max 20 US gal) (gals) 10.1 24 241.2 1.5
19447.2
Total 1001.1 Lbs
Maximum Allowable Gross 1320 Lbs
Margin 318.9 Lbs
Calculated CG Position 19.43 Inches
Max Allowable CG = 22"
Min Allowable CG = 15"
Weight Arm Moment
(Us
gals)
Page 20 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
Pilot Only - Example
(Us
(Lbs) (Inches) (in/lbs)
Empty (751 lbs) 751 16 12016
Pilot (190 lbs) 190 26 4940
Pax (190 lbs) 0 26 0
Luggage 0 45 0
Fuel (max 20 US gal) (gals) 134 24 3216 20
20172
Total 1075 Lbs
Maximum Allowable Gross 1320 Lbs
Margin 245 Lbs
Calculated CG Position 18.76 Inches
Max Allowable CG = 22"
Min Allowable CG = 15"
Weight Arm Moment
gals)
Pilot Only - 1/2 hour fuel remaining -
Example
(Lbs) (Inches) (in/lbs)
Empty (751lbs) 751 16 12016
Pilot (190 lbs) 190 26 4940
Pax (190 lbs) 0 26 0
Luggage 0 45 0
Fuel (max 20 US gal) (gals) 10.1 24 241.2 1.5
17197.2
Total 951.1 Lbs
Maximum Allowable Gross 1320 Lbs
Margin 368.9 Lbs
Calculated CG Position 18.08 Inches
Max Allowable CG = 22"
Min Allowable CG = 15"
(Us
Weight Arm Moment
gals)
Page 21 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
GRAPH
1400.0
1300.0
1200.0
Weight (lbs)
1100.0
1000.0
900.0
14.00 15.00 16.00 17.00 18.00 19.00 20.00 21.00 22.00 23.00
Fig. 4 Loading Graph
Pilot
Pilot+Pax
Pilot+Luggag
Pilot+Pax+Lu
Gross
Empty
Min CG
Max CG
CG Location (in)
Page 22 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
T
Item
Number
1
2
3a
3c
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
INSTALLED EQUIPMENT LIS
DESCRIPTION
Motor _______________S/N
Propeller ___________________ S/N
WHEEL Landing Gear Configuration
FLOAT Landing Gear Configuration
Compass
Airspeed Indicator
Altimeter
Vertical Speed Indicator
Turn and Bank Indicator
Tachometer
Oil Pressure Gauge
Voltmeter
Liquid Coolant Temperature Gauge
Radio 1
Radio 2
GPS
Intercom
Transponder
ELT Emergency Locator Transmitter
Extinguisher
Ammeter
Efis
BRS
Wheel Pants
Landing Light
Wing Tip Strobes
WEIGHT
(Lbs)
ARM
(Ins.)
Main Wheels
Tail wheel
Page 23 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
MODIFICATION EQUIPMENT
LIST
Registration:
Serial No
.
Serial No:
Date.
Date Item No.
In Out Wt.
Description of Article or Modification
As Delivered
Added (+)
Arm
(In)
Moment
/100
(Lb)
Removed (-)
Wt
Arm
(Lb)
(In)
Moment
/100
Running Basic
Weight
Wt
(Lb)
Moment
/100
Page 24 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
SECTION 3
OPERATING LIMITATIONS
3.1. General
This section provides the approved operating limitations, instrument markings, color-coding and
basic placards necessary for the safe operation of the airplane and its systems
3.2 Airspeed Limitations
Speed IAS
Never Exceed Speed (VNE)
(Do not exceed this speed in any operation)
Maximum Structural Cruising Speed (VNO)
(Do not exceed this speed except in smooth air and then only with caution
Maximum manoeuvring speed (VA)
(Do not make full or abrupt control movements above this speed)
Maximum Flaps Extended Speed (VFE)
(Do not exceed this speed with the flaps extended)
Maximum Dive Speed (Vd)
Stall Speed
With flaps
Without flaps
130mph
115 mph
85 mph
80 mph
120 mph
28 mph
34 mph
3.3 Crosswind Limitations
Wind Direction and Speed 90◦ 15 mph
3.4 Service Ceiling
10,000 ft. AGL
Positive + 4.4 g; Negative –1.76g Limit
3.5 Loading
Positive +6.6 g, Negative –2.64 g Ultimate
3.6 Prohibited Manoeuvres
Intentional spins, loops and rolls or any other aerobatic manoeuvres are prohibited. Lazy eight and
chandelles may be performed provided a 60-degree angle of bank and/or a 30-degree angle of pitch
is not exceeded.
3.7 Airspeed Indicator Markings
Red Radial Line (Never Exceed) 130 mph
Yellow Arc (Caution Range, Smooth Air Only) 110 – 130 mph
Green Arc (Normal Operating Range) 32 – 110 mph
Page 25 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
White Arc (Flaps Extended) 0 – 80 mph
3.8 Oil Pressure Markings - Rotax 912 UL
Yellow Arc (Caution Range) 73 – 102 psi
Green Arc (Normal Operating Range) 12 – 73 psi
Red Line Minimum 0 – 12 psi
Red Line Maximum 102 + psi
3.9 Oil Temperature Makings - Rotax 912UL
Yellow Arc (Caution Range) 120 – 195 ° F/ 230 - 265° F
Green Arc (Normal Operating Range) 195 – 230 ° F
Red Line Minimum 0 - 120° F
Red Line Maximum 285° F - 300° F
3.10 RPM – Rotax 912UL
Yellow Minimum (Caution Range) 220 – 1400 rpm
Green (Normal Operating Range) 1400-5500 rpm
Yellow Maximum (Caution Range) 5500 – 5800 rpm
Red Maximum (Do not exceed) 5800 – 6200 rpm
3.11 Cylinder Head Temperature Markings – Rotax 912UL
Yellow Arc (Caution Range – start up & warm up) 0 - 170° F
Yellow Arc (Caution Range – operating) 230 - 250° F
Green Arc (Normal Operating Range) 170 - 230° F
Red Arc (Do not exceed) 250° F +
Page 26 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
SECTION 4
PERFORMANCE (Standard Air Conditions) 80 hp Engine
Take off Roll at gross paved runway 266 ft
Take off Roll at gross Short Grass runway 282 ft
Take off Roll at gross Tall Grass field 300 ft
Take off Roll at gross Soft field 305 ft
Take off Roll – 50 ft. obstacle 300 ft
Landing Roll 400 ft
Landing Roll – 50 ft obstacle 520 ft
Best Rate of Climb
60 mph
Best Angle of Climb
55 mph
Cruise 75% power 85 mph
Gliding Ratio – 60 mph. 12: 1
Take off RPM
5800 RPM
Fuel Consumption 4 gal US/hr
Range (450 statute miles) 5.3 hours
NOTE: These performance figures are specific to the Rotax 80 hp Engine, and may vary
according to equipment installed, loading and engine installation. Please refer to the
Appendix for alternative performance data specific to the optional engine installation of
your model.
Page 27 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
SECTION 5 FLIGHT TRAINING
NORMAL PROCEDURES
5.1 Pre-flight
6
7
8
1. Cabin
a) Ignition “OFF”
b) Turn fuel selector to “LEFT” or “RIGHT”
c) Check fuel level in gauges above windows.
2. Engine Compartment
a) Check oil level
b) Check for oil leaks
c) Check coolant levels
d) Check for coolant leaks
e) Check for fuel leaks
f) Check for loose or frayed wires
g) Check exhaust system for leaks, cracks
h) Check for fretting on engine mount
i) Take fuel sample from gascolator (drain for 4 seconds minimum) to clear system of dirt
and water. Continue to take additional samples until no contamination remains in fuel.
5
1
2
4
9
3
Page 28 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
f
3. Control Surface Locks, Pitot cover and Tie Down ropes
Remove and store safely.
4. Wing (left)
a) Inspect Pitot tube for blockage. Never blow to clear.
b) Inspect condition of struts
c) Before first flight of the day, take fuel sample from fuel drain and check for water.
Repeat until no water remains. Verify that fuel type is correct (premium auto gas) Check
that drain is not leaking.
d) Check fuel level by removing fuel cap from top of wing.
VERY IMPORTANT: Replace fuel cap but do not over tighten. Make sure that
the vent openings (2 per cap) in the fuel cap are not blocked. Blocked vents can
cause fuel starvation
WARNING!
5. Trailing edge of wing (right).
a) Verify that the aileron moves smoothly over full range of travel
b) Verify that the aileron hinges, bell crank locknuts are secure.
6. Tail
a) Inspect the tail wheel and tire pressure
b) Verify that the elevators move smoothly over a full range of travel. (Rudder travel
verified from cockpit before takeoff.)
c) Verify that the control surface hinges and locknuts are secure.
7. Wing trailing edge (left)
a) Verify that the aileron moves smoothly over a full range of travel
b) Verify that the aileron hinges, bell crank locknuts are secure
8. Wing (Right)
a) Inspect the condition of the struts
b) Before the first flight of the day, take a fuel sample from the fuel drain and check for
water. Repeat until no water remains. Verify that the fuel type is as per engine
manufacturer’s recommendations.
c) Check the fuel level by removing the fuel cap from top of wing
VERY IMPORTANT: Replace fuel cap but do not over tighten. Make sure
that the vent openings (2 per cap) in the fuel cap are not blocked. Blocked vents
can cause
uel starvation
WARNING!
9. Landing gear and wheels
a) Check shock chords for fraying and wear
b) Check safety cables
c) Check that tires show no excessive wear, and for adequate inflation
Page 29 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
d) Check for brake fuel leakage
e) Check condition of brake pads.
10. Propeller, (As per manufacturer’s recommendations.)
a) Check ground beneath propeller for foreign objects
b) Check for nicks cracks
c) Check spinner
5.2 Pre-Start
1. Perform pre-flight inspection
2. Attach seat belts
3. Fuel Selector “LEFT” or “RIGHT”
4. Check instrument panel:
¾ Altimeter set
¾ Vertical speed indicator – zero
5. Radios Off
6. Doors closed and locked
7. Elevator trim set to neutral
8. Verify controls free and moving
9. Ensure that the area around propeller and aircraft is clear
5.3 Start
1. Choke engine if necessary (as per engine manufacturer’s instructions)
2. Turn Master ON
3. Turn Magneto Switches ON
4. Check gauges to verify they are operating normally
5. Close throttle to START position
6. Start Engine. If unable to start after 10 seconds, wait 2 minutes and retry.
7. OIL PRESSURE MUST RISE WITHIN THE FIRST TEN SECONDS OF START
8. Follow “engine” manufacturer’s ground run and warm up procedures
WARNING!
WINTER OPERATING PROCEDURES MAY BE DIFFERENT. Follow engine
manufacture’s recommendations, if not, engine damage can occur.
5.4 Before Take-off
1. Visually check area around aircraft for obstacles
2. Verify that doors and seat belts are secure and locked
3. Verify that all controls are free and moving
4. Verify instruments and gauges
5. Verify fuel selector
6. Verify CDI units as per manufacturer’s recommendations. (RPM drop check)
7. Verify liquid and oil temperatures as per manufacturer’s instructions
Page 30 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
5.5 Taxiing
1. Check that the propeller back blast and taxi area are clear.
2. Power should be applied slowly to start the taxi roll.
3. Taxi a few feet forward and apply the brakes to determine their effectiveness.
4. While taxiing, make slight turns to ascertain the effectiveness of the steering, and to check
forward visibility.
5. Observe wing clearances when taxiing near buildings or other stationary objects.
6. Avoid holes and ruts when taxiing over uneven ground.
7. Do not operate the engine at high RPM when running up or taxiing over ground containing
loose stones, gravel or any loose material that may cause damage to the propeller blades
5.6 Take-off
5.6.1 Normal
1. Apply power gradually; allow the aircraft to accelerate to 35 mph.
2. Apply small amount of forward pressure on the stick to slightly lift the tail, and wait for
take-off
3. Rotate at 40 – 50 MPH
4. Climb out at 60 MPH
5.6.2 Short Field, Obstacle Clearance
1. On models equipped with flaps, lower flaps to 20 degrees
2. Accelerate to rotation speed After breaking ground effect, accelerate to the best angle of
climb speed (55 mph)
3. If equipped with flaps, slowly retract flaps when the obstacle has been cleared
4. Continue climb out at 60 mph.
5.6.3 Short Field, No Obstacle Clearance
On models equipped with flaps, lower flaps to 20 degrees
Accelerate to rotation speed
Lift off from three point position and accelerate to best angle of climb speed (55 mph)
If equipped with flaps, retract flaps and continue climb out at 60 mph.
5.6.4 Soft Field, Obstacle Clearance
On models equipped with flaps, lower flaps to 20 degrees
Keeping stick back, lift off at lowest possible airspeed
Accelerate in ground effect to best angle climb speed (55 mph)
Once obstacle has been cleared, accelerate to best rate of climb speed (60 mph) and retract
flaps
5.6.5 Soft Field, No Obstacle Clearance
1. On models equipped with flaps, lower flaps to 20 degrees
2. Keeping stick back, lift off at lowest possible airspeed
3. Accelerate to best rate of climb speed (60 mph)
4. If equipped with flaps, retract flaps, and continue climb out at 60 mph.
While manoeuvring on the ground never allow the tail wheel to lift beyond the level
cruising flight attitude.
NOTE
Page 31 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
5.7 Cruise
1. Set cruise RPM as per engine manufacturer’s instructions
2. 80 to 95 MPH
5.8 Pre-Landing
1. Check for traffic, observe circuit altitudes and procedures, make all radio calls
2. Verify that seat belts are secure
3. Verify fuel level and check that fuel tank selector is on BOTH or fullest tank. (In case of
balked landing)
5.9 Landing
5.9.1 Normal
1. Normal approach speed 60 MPH
2. Reduce power, round out and flare
3. Touch down three point or on mains
4. Slowly bleed off speed, and if on mains, allow tail wheel to drop
5. Minimum braking as required
5.9.2 Over an Obstacle
1. If equipped with flaps, lower flaps to 30 degrees
2. Maintain 58 – 60 mph until clear of obstacle
3. If not equipped with flaps, side slip to reduce rate of descent
4. Reduce power, round out and flare
5. Touch down three point or on mains
6. Slowly bleed off speed, and if on mains, allow tail wheel to drop
7. Minimum braking as required
5.9.3 Short Field over an Obstacle
1. If equipped with flaps, lower as desired
2. Maintain speed just above stall
3. Once clear of obstacle, lower nose, reduce speed just above stall
4. Land three point
5. Keeping stick firmly back, brake as necessary
5.9.4 Balked Landing
1. Apply power
2. If equipped with flaps, retract at 58 mph
3. Climb out at 60 mph and rejoin circuit
5.10 Shutting down
1. Turn off radio and intercom
2. Shut down as per engine manufacturer’s recommendations
3. Turn off Master
4. Install chocks
5. Secure the aircraft by main wing struts and tail wheel.
Page 32 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
5.11 Turbulent Air Operations
In keeping with good airmanship practices, it is recommended that when turbulent air is encountered
or expected, the airspeed be reduced to manoeuvring speed to reduce the structural loads caused by
gusts and to allow for inadvertent speed build-ups which may occur as a result of the turbulence.
Page 33 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
SECTION 6
EMERGENCY PROCEDURES
6.1 General
The recommended procedures for coping with various types of emergencies and critical situations
are provided by this section. Emergency procedures and those necessary for the safe operation of
the airplane as determined by the operating and design features of the airplane are presented.
These procedures are suggested as the best course of action for coping with the particular condition
described, but are not a substitute for sound judgement and common sense. Emergencies can occur
unexpectedly and the best corrective action may not always be the most obvious. Pilots should
familiarize themselves with the procedures given in this section, and be prepared to take appropriate
action should an emergency arise.
The procedures presented here are not intended to replace normal pilot training, but are provided as
a source of reference and review.
The presence of fire is noted through smoke, smell and heat in the cabin. It is essential that the
source of the fire be promptly identified through instrument readings, character of the smoke, or
other indications since the action to be taken differs in each case. Check for the source of the fire
first.
6.2 Engine Fire During Start
1. Shut down immediately
2. Shut off fuel
3. Full throttle to burn off fuel in lines to engine
4. Exit aircraft
5. If fire is minor, use fire extinguisher
6.3 Engine Fire in Flight
1. Shut off fuel
2. Throttle to idle
3. If radio communication is not required, turn master switch to OFF
4. If altitude permits, put aircraft into dive
5. Land immediately and exit aircraft
The possibility of an engine fire in flight is extremely remote. The procedure given is general and
pilot judgment should be the determining factor for action in such an emergency.
NOTE
Page 34 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
6.4 Electrical Fire in Flight
1. Turn master switch to OFF
2. Open cabin vents if installed.
3. Look for suitable landing field
4. Land as soon as possible
Loss of oil pressure may be either partial or complete. A partial loss of oil pressure usually indicates a
malfunction in the oil pressure system, and a landing should be make as soon as possible to investigate the
cause and prevent engine damage.
A complete loss of oil pressure indication may signify oil exhaustion, or may be the result of a faulty
gauge. In either case proceed towards the nearest airport, and be prepared for a forced landing. If the
problem is not a pressure gauge malfunction, the engine may stop suddenly. Maintain altitude until such
time as a dead stick landing can be accomplished. Don’t change power settlings unnecessarily as this may
hasten complete power loss.
Depending on the circumstances, it may be advisable to make an off airport landing while power is still
available, particularly if other indications of actual oil pressure loss such as sudden increase in
temperatures or oil smoke, are apparent and an airport is not close.
If engine stoppage occurs, proceed with POWER OFF LANDING.
NOTE
6.5 Loss of Oil Pressure
1. Maintain altitude for as long as possible
2. Don’t change power setting unnecessarily
3. Proceed towards nearest airport
4. If circumstances permit, shut down engine and execute a power off landing
NOTE
An abnormally high oil temperature indication may be caused by a low oil level, an obstruction, a
defective gauge, or other causes. Land as soon as practical and investigate the cause.
A steady, rapid rise in oil temperature is a sign of trouble. Land at the nearest airport and investigate the
problem. Watch the oil pressure gauge for an accompanying loss of pressure.
6.6 High Oil Temperature
1. Maintain altitude for as long as possible
2. Proceed towards nearest airport
3. If circumstances permit, shut down engine and execute a power off landing
Page 35 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
6.7 Engine Failure on Take-off
1. If there is sufficient runway land straight ahead
2. If below 200 ft. AGL pick a landing spot 10 degrees to the right or left of straight ahead. Do
not attempt a 180 degree turn
3. If above 200 ft. AGL, execute a gentle turn and pick the most suitable spot for a power off
landing
4. If enough altitude permits, switch fuel tanks and attempt to restart the engine
6.8 Engine failure in Flight
1. If enough altitude permits, switch fuel tanks and attempt to restart the engine
2. If engine restart fails, make emergency radio calls as required
3. Switch off electrics
4. Turn fuel selector to OFF
5. Pick a suitable landing spot and execute a power off landing
6.9 Power off Landing
1. Trim aircraft for best gliding airspeed (58 mph)
2. Pick a suitable field
3. Make emergency radio calls as required
4. Switch off electrics
5. Turn fuel selector to OFF
6. Land at lowest possible airspeed
Page 36 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
SECTION 7
GROUND HANDLING AND SERVICING
7.1 Towing and Repositioning
The aircraft may be towed by its tail wheel.
To turn aircraft around manually, push gently on rear fuselage and push aircraft around on its tail
wheel.
7.2 Parking
1. Ensure that it is sufficiently protected from adverse weather conditions and that it presents
no danger to other aircraft or buildings.
2. Head into wind if possible.
3. Secure aileron and stabilizer controls with the seat belts or with gust locks. Gust locks are
preferred.
4. Chock the wheels.
5. Secure tie down ropes to the upper wing strut attach points and tail wheel at approximately
45-degree angles with the ground.
6. If using rope of non-synthetic material, leave sufficient slack to avoid damage to the aircraft
should the ropes contract because of moisture.
7. Use bowline knots, square knots or locked slipknots. Do not use plain slipknots.
8. Install pitot head cover.
9. Lock cabin doors when aircraft is left unattended.
7.2 Landing Gear
CAUTION: Low time pilots are advised to obtain conversion training from pilots experienced on
similarly equipped aircraft.
Main Landing Gears are equipped with Matco 6.00 x 6 wheels with 6.00 x 6 four-ply rating tires and
tubes.
Wheels are removed by taking off wheel fairings, hubcap, cotter pin, axle nut, retainer pin and the
two bolts holding the brake segment in place.
Tail wheel gear use MatcoWHLT-8
Remove by holding axle bolt with appropriate Allen key and remove nut. Withdraw the wheel from
axle. Service as per manufacturer’s instructions.
Nose wheel gear
1. Nose gear is not designed for impact of landing. Land on mains and lower the nose gear as
speed decays.
2. Avoid hard braking on soft or rough surfaces, or at forward C of G.
3. Do not attempt to “power out” of deep holes or ruts. Shut down, and manually push or pull
aircraft clear of obstacle.
4. Maintain tire pressure between 25 – 30 psi
5. When equipped with wheel pants, check clearance between tire and wheel pants.
Page 37 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
7.3 Propeller
Before each flight the propeller should be inspected for nicks. If found, they should be repaired as
soon as possible as per manufacturer’s instructions.
7.4 Oil
The oil capacity of the Rotax series of engines is 3 litres.
The recommended oil to be used in the Rotax series of engines is Brand name motorcycle oil with
gear lubrication additive. Use oil with API classification SF or SG. Change oil and oil filter every
25 hrs. as per manufacturer’s instructions.
Refer to Rotax Maintenance Manual included for more detailed information.
7.5 Fuel
7.5.1. Fuel grades
Use unleaded fuel as per Rotax operator’s manual. Avoid if possible use of Avgas 100 LL
7.5.2. Filling Fuel Tanks
Observe all required precautions for handling gasoline. Each fuel tank holds a maximum of 12 US
gallons. Fill the tanks to the bottom of the filler neck to obtain the standard plus reserve quantity.
Fuel should be distributed equally between each side.
7.5.3. Draining Fuel Strainer, sumps and lines
The fuel system sumps and strainer should be drained daily prior to the first flight and after refuelling to avoid the accumulation of contaminants such as water or sediment. Each fuel tank is
equipped with an individual quick drain located at the lower inboard rear corner of the tank. The
fuel strainer (galcolator) is equipped with a quick drain located on the lower front left corner of the
firewall. Each of the fuel tank sumps should be drained first. Then the fuel strainer should be
drained twice, once with the fuel selector valve on each tank. Each time fuel is drained sufficient
fuel should be allowed to flow to ensure removal of contaminants. This fuel should be collected in a
suitable container, examined for contaminants, and discarded.
When draining any amount of fuel care should be taken to ensure that no fire hazard exists
before starting the engine. Each quick drain should be checked after closing to make sure that it
has closed completely and is not leaking.
7.5.4. Draining fuel system
The bulk of the fuel may be drained by opening the individual drain on each tank. The remaining
fuel may be drained through the gascolator. Any individual tank may be drained by closing the
selector valve and then draining the desired tank.
Ensure that no fuel accidentally spills on Lexan windows or windshield. Fuel on Lexan will
cause the Lexan to discolor or crack.
CAUTION!
CAUTION!
Page 38 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
7.6 Tire Inflation
1. For maximum service from the tires, keep them inflated to the proper pressure 24 psi for the
main tires and 45 psi for the tail wheel and 25-30 psi for nose wheel.
2. When checking tire pressure, examine the tires for wear, cuts, bruises and slippage. (Tire
changing position on the rim relative to the tube which is held in place by filler.)
7.7 Battery Service
1. The sealed 12-volt battery is located on mid firewall right side.
2. If the battery is not up to charge, recharge initially at 4 amps, reducing to 2 amps. Fast
charging is not recommended.
3. If charging from an external battery charger, disconnect ground lead from battery.
7.8 Brakes
1. Aircraft is equipped with Hydraulic Disk brakes
2. Brake Fluid, type as per manufacturer’s instructions or MIL-H-5606
3. The brake fluid level may be checked by unscrewing filler cap on master cylinders. Check
for leaks kinked brake lines, uneven wear on pads. Note the M66 brake lining has a visible wear
notch located at the end of the lining that would tell user when the pad is at minimum material
condition.
7.9 Shock Cords
1. Exhaust gases and oil can shorten the life of the shock cords.
2. They can be washed occasionally using mild detergent, rinse thoroughly with clear water.
Do not use solvents of any kind.
4. Foreign objects can damage the outer shell and leave rubber unprotected. If excessive breakage
is noted, change shock cords.
5. If shock cords no longer hold undercarriage tightly against stopper blocks, change.
7.10 Cleaning
7.10.1 Exterior Surfaces
To maintain the performance and durability of your aircraft, it is important to keep the interior and
exterior clean at all times. All traces of oil, gas and dirt should be removed. Accumulations over
time may cause fire and or corrosion. The aircraft should be washed with a mild soap and water.
Harsh abrasives or alkaline soaps or detergents could make scratches on painted or plastic surfaces,
or could cause corrosion of metal. Cover areas where cleaning solution could cause damage. To
wash the airplane, use the following procedure:
1. Flush away loose dirt with water
2. Apply cleaning solution with a soft cloth, a sponge or a soft bristle brush
3. To remove exhaust stains, allow the solution to remain on the surface longer
4. To remove stubborn oil and grease, or any accumulation of carbon wipe the area with a rag
dipped in lead free gasoline.
5. Rinse all surfaces thoroughly
6. Any good automotive wax may be used to preserve painted surfaces. Soft cleaning cloths or
a chamois should be used to prevent scratches when cleaning or polishing. A heavier
coating of wax on the leading surfaces will reduce the abrasion problems in these areas.
7.10.2 Windshield and Windows
1. Remove dirt, mud and other loose particles from exterior surfaces with clean water
Page 39 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
2. Wash with mild soap and warm water or with aircraft plastic cleaner. Use a soft cloth or
sponge in a straight back and forth motion. Do not rub harshly. To clean the Lexan
windows wash the windows with soap and water using a clean soft rag.
3. Once washed, polish the window with a good aircraft plastic cleaner.
Do not use gasoline, alcohol, benzene, carbon tetrachloride, thinner, acetone or window
cleaning sprays unless approved for Lexan.
CAUTION
7.10.3 Interior
Keep the interior of the aircraft clean and vacuum regularly. Never leave any equipment in an
area where it could become lodged and impossible to remove. This can cause an accident by
interfering with the flight controls.
A sunray shield may be placed over the windshield to prevent sunray damage to the interior.
Page 40 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
7.11 Lubrication
Wheel Bearings Aero shell 20 or 22
Landing Gear LPS 2
Hydraulic Brake Fluid Petroleum base oil MIL-H-5606
Hinges, Levers and Controls
Tail Wheel Spindle
Ball Bearings
LPS 2
Aeroshell 20 or 22
Aeroshell 20 or 22
Page 41 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
SECTION 8
SUPPLEMENTARY INFORMATION
8.1 Familiarization Flight Procedures:
Prior to flying solo in the BUSHCADDY LSA, it is strongly recommended that a thorough
familiarization flight be conducted with a pilot who is experienced on the BushCaddy or similar
aircraft. If you have never flown a taildragger, it is recommended that a taildragger endorsement be
acquired prior to flying solo. Particular attention should be paid to taxiing, and landing the aircraft
in cross wind conditions. The following is a suggested training program for familiarization on the
BUSHCADDY LSA.
Pilot Operating Handbook and Aircraft Operational Documents,
Weight and Balance,
Pre-flight inspection
Cockpit Familiarization.
Hours (min)
2..0
Starting the engine
Taxiing
Pre-take-off check
Take-off, circuit departure and climb-out
Straight and level flight
Turns -gentle and medium and steep
Climbs – best rate, best angle
Descents - power on, and power to idle – best glide speed.
Slow flight
Stalls – Power on, power off
Incipient spins recovery (aerobatic manoeuvres not allowed)
Spiral dive recovery (aerobatic manoeuvres not allowed)
Side-slipping (Forward slip, side-slipping while turning, side-slip)
Circuits TOTAL 10
0.25
0.5
0.25
0.5
0.5
0.5
0.5
0.5
0.5
1.0
Emergency only
Emergency only
1.0
1.5
Cross Wind Landing 15 k maximum, recommend 10 landings
Emergency Procedures
Taildragger Endorsement if no prior taildragger experience.
1.0
.5
10 hrs min.
Page 42 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
SECTION 9
SAFETY TIPS
7.11 Learn to trim for take off so that only a very light back pressure on the stick is required
to lift the aircraft off the ground.
7.12 The best speed for take off is about 40 – 50 mph under normal conditions. Trying to
pull the aircraft off the ground at too low airspeed decreases the controllability of the
aircraft in the event of an engine failure.
7.13 Before starting the engine, check that all radio switches, light switches are in the off
position so as not to create an overload situation when the starter is engaged.
7.14 Strobe lights should not be operating when flying through overcast or clouds, since
reflected light can produce special disorientation. Do not operate strobe lights when
taxiing in the vicinity of other aircraft.
7.15 In an effort to avoid accidents pilots should obtain and study safety related information
made available in FAA publications such as Regulations, Advisory Circulars Aviation
News, AIM and safety aids.
7.16 The shape of the wing fuel tanks is such that in certain manoeuvres the fuel may move
away from the tank outlets. If the outlets are uncovered, fuel flow will be interrupted
and temporary loss of power may result. Pilots can prevent inadvertent uncovering of
the outlets by avoiding manoeuvres which could result in uncovering the outlets.
Prolonged slips or skids which result in excess of 2000 ft of altitude loss, or other
radical or extreme manoeuvres which can cause uncovering of the fuel outlets must be
avoided as fuel flow interruption may occur when the tank being used is not full.
7.17 While taxiing aircraft in taildragger configuration, make small “S” turns to aid forward
visibility and avoid danger of collision with other aircraft. Always verify wing
clearance when taxiing on ramp in the vicinity of other aircraft and objects such as
buildings.
7.18 It is imperative that a full pilot proficiency check ride be undertaken with an
experienced pilot prior to flying the BushCaddy for the first time.
7.19 NEVER smoke around the vicinity of aircraft!
7.20 After refuelling stops, always check oil level before take off.
7.21 Thoroughly brief your passengers on emergency procedures, seatbelt operations and
proper door locking and unlocking techniques. Make sure that your passengers are
made aware that they will be flying in a aircraft that has not been certified to
Page 43 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
internationally recognized airworthiness standards, and is flying on a Special
Certificate of Airworthiness authority.
Page 44 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
APPENDIX A
JABIRU ENGINE.
JABIRU 3300 AIRCRAFT ENGINE
1. This information has been taken from the Jabiru Maintenance Manual and is included as a guide
to correctly operate, maintain and service the Jabiru 3300 engine.
Should you have any questions or doubts about the contents of this manual, please contact
Jabiru Aircraft Pty Ltd.
REFER TO JABIRU MANUFACTURER’S MAINTENANCE MANUAL FOR MORE
INFORMATION AND FOLLOW THE INSTRUCTIONS CONTAINED IN THE MANUAL
THAT HAS BEEN INCLUDED WITH YOUR ENGINE.
2.0 TECHNICAL DATA
2.1 Dimensions and Weights
Bore: 97.5 mm
Stroke: 74 mm
Displacement: 3314 cc
Compression Ratio: 7.8:1 s/n 224 on is 8:1
Direction of Rotation on Prop Shaft: Clockwise Pilot's view, tractor applications.
Engine Curb Weight: 81 kg (178 lb) complete with Engine Oil,
Exhaust
and Starter Motor.
2.2 Normal Equipment
Ignition Unit: Jabiru dual ignition - breakerless transistorised. Battery
Independent
Ignition Timing: 25 degrees BTDC
Firing Order: 1 - 4 - 5 - 2 - 3 - 6
Spark Plugs: NGK D9EA
Electrode Gap: 0.55 - 0.6mm (0.022" - 0.024")
Generator: Jabiru, permanently excited three phase or single phase
AC generator with rectifier/regulator
DC Output: 20 amps (continuous)
Carburettor: BING constant depression type 94/40
Air Intake Filter: 1 x folded paper cartridge
Fuel Filtration: 0.1 mm (100 Micron) maximum particle size.
Fuel Pump: Camshaft driven diaphragm type
Starting System: Electric 12 V / 1.5 kW
2.3 Performance Data
Maximum 90 kW (120 hp) @ 3300 RPM ISO STD Conditions
2.4 Fuel Consumption
Fuel Consumption @ Takeoff/Max Continuous Rating 28.5 litres/hr
2.5 Fuel and Lubricant
Page 45 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
Fuel: AVGAS 100 LL & AVGAS 100/130
Page No: 10 Issue No: 2 Date: 031100 Issued By: PJA
Leaded and Unleaded Automotive Gasoline above 95 Octane Ron
Run in Period
Oil 80 100 120
Outside Air Temp -17oC to 25oC 15oC to 35oC Above 35oC
(1o to 77oF) (59o to 95oF) (Above 95oF)
Normal Operations
Oil W80 W100 W120
Outside Air Temp -17oC to 25oC 15oC to 35oC Above 35oC
(1o to 77of) (59o to 95oF) (Above 95oF)
2.6 Cooling System
Free air cooled. Ensure that baffles are correctly fitted & located.
The required pressure drop across the cylinders at 1.3 Vs in take off configuration is 4.3
cm (1.7") water gauge, minimum.
2.7 Operating Speeds and Limits
Maximum continuous speed 2750 RPM
Maximum 3300 RPM ISO STD Conditions
Idle Speed: 700 - 800 RPM (HOT)
Oil Pressure: Normal Operations Min 220 kPa (31 psi)
Max 525 kPa (76 psi)
Idle Min 80 kPa (11 psi)
Starting & Warm up Max 525 kPa (76 psi)
Oil Temperature: Min. 15 oC (59oF)
Max. 118 oC (244of)
Continuous Temperature: 80 - 100 oC (176o - 212oF)
Max. Cylinder Head Temperature: 175 oC (348oF)
(reading on the sensor spot
of the hottest cylinder)
Continuous 150oC (302o F) Max.
3.0 OPERATING INSTRUCTIONS
To ensure that the engine operates reliably, carefully observe all of the operating &
maintenance instructions.
3.1 Pre-Start Checks
Daily Checks (See Paragraph 5.1)
Move throttle position to FULL & check for ease of movement over the entire range.
3.2 Starting Procedure
Fuel Tap OPEN
Choke ON (in cold conditions)
Fuel Pump ON for 10 seconds then off
Throttle CLOSED to Stop
Master ON
Ignition BOTH ON
Starter PRESS
Page 46 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
Attention: Activate Starter for a max. 20 seconds, followed by a cooling period of 1
minute.
When engine runs, adjust throttle to achieve smooth running at approximately 1000 RPM.
Deactivate Choke. Check Oil Pressure has risen within 5 seconds - if not, shut down. It is
strongly advised to close choke while cranking on first attempt. To much choke will
cause over fuelling and loss of start. It is strongly recommended to crank the engine to
obtain oil pressure following an oil change before starting.
3.3 Warming Up Period, Ground Test
Start the warming up period with the engine running at 1000 RPM. Continue at 1400
RPM depending on ambient temperature, until oil temperature reaches 15oC (59oF).
Check the two ignition circuits at 1600 RPM. Note: - RPM with only one ignition should
not drop by more than 100 RPM.
DO NOT apply full power until CHT reaches 100 oC (212oF)
DO NOT allow cylinder heads to rise above 150oC during ground running.
3.4 Take-Off
Climb with the engine at maximum continuous power. Observe Oil & Cylinder Head
Temperatures & Oil Pressure Limits must not be exceeded !
3.5 Engine Stop
In normal conditions, cooling down the engine during descent & taxiing will permit the
engine to be stopped by switching OFF the ignitions.
3.6 Engine Stop and Start During Flight
Reduce power to 1000 RPM to cool engine for 30 seconds, then to idle. Switch ignitions
OFF. Starting procedure is the same as ground starting, without choke for a warm engine
& with choke for a cold engine. Note: Engine cools quickly with propeller stopped in
flight. Choke will therefore normally be needed to restart.
T he fol lowing are tips to ensure a long life.
1. OI L
U se a non-compounded AVIAT ION oi l :-
Aero S hel l 100
Mobi l Red B and
BP Aviation Oi l 100
Use for 20-25 hour s .
Drain and replace wi th a compounded oi l :-
Aero S hel l W100
Aero S hel l 15W50 (for cooler cl imates )
Mobil Aero 100 (S AE 50)
BP Aero Oi l D100/BP Mul tigrade Aero Oi l D S AE 20 W 50
Aero S hel l W 100 Plus
T he normal running oils are detergent and ashless dispersant types . Page No: 14 Issue No: 2 2. Add
3.2 Litres (without oil cooler )
3.4 Litres (with an oil cooler )
Page 47 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
3. Avoid prolonged ground running at elevated RPM. Engine can be over heated, remember air
ducts are designed for in flight cooling. NOT E: remove AL L plastic bungs on engine.
E XHAU ST (4) CAR BY (2) OIL VENT (1) F U EL PUMP (1)
4. DO TAKE OFF AT FULL POWER.
F or the first few take offs climb at a higher airspeed. Reduce power at cross wind leg and shal low
climb (lower nose).
5. VARY your RPM when flying.
6. Avoid high nose altitude continual climbs . The higher the climb out speed the better for engine
cooling. No low s peed high nose altitude climb outs .
7. CI RCU IT WORK is possibly a good sequence for initial run in work . Abbreviate circuits
initially, step climb, climb shallow.
No glide approaches . Gradually reduce power. Avoid sudden heating up and sudden cooling down.
8. R E T ORQUE heads as suggested on warning sheet.
24 ft lb and .010” valve clearance al l done cold. Subsequent torquing of around 22 to 24 seems to
help in settling down head bolts and heads.
9. Don’t BABY YOUR ENGINE but monitor carefully CHT and oil temp initially especially during
the first few hours of operation.
Remember engines need to be flown. T hey are designed for this purpose. Do not use full power
before CHT reaches 100oC.
Ring bed in is accomplished better at 75% power and above. Avoid heat build up. Monitor CHT and
oil temps . Vary R PM. Initial temps will be elevated due to friction of a new engine.
Failure to operate at realisic power settings could be detrimental .
10. Do not use any type of automotive oil. These oils have not been blended for the purpose of air
cooled aero engine operation and will be detrimental to its operation.
11. U se AVGAS 100 LL or the highest Octane Mogas above 95 containing lead. Engines not
shimmed on the cylinder base should only be run on AVGAS .
12. When you change oil from the “run in” type to the “normal” oil at or around 25 hrs replace oil fil
er. You may want to cut the filter open for inspection. It is usual in Jabiru engines to find
a small amount of aluminium but definitely no metal. If bearing metal is present contact the
Jabiru Service Department.
13. With ignition and master OFF and throttle closed turn the prop by hand and observe engine for
odd nois s or heavy movements .
Check for regular compressions, if irregular, firstly check tappet adjustment. Operation with
incorrectly adjusted tappets will result in damage to valves, valve seats , guides and overhead gear .
Page 48 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
TROUBLE SHOOTING
Engine Won't Start
Possible Cause Remedy
1) Ignition OFF Switch ON
2) Spark plug gap too large Adjust gap to 0.6-0.7mm or renew plugs
3) Closed fuel tap or clogged filter Open tap, renew filter, check fuel system for leaks
4) No fuel in tank Refuel
5) Wrongly connected high tension leads Connect as shown on leads
6) Starting Speed too low, faulty or discharged
battery
Recharge or replace battery
7) Coil to Magnet gap too wide Adjust to 0.4mm (0.016")
8) High tension leads loose or damaged Check or renew connections
9) Dampness in distributors Thoroughly dry internally
10) Spark plugs damp due to condensation Thoroughly dry both inside and outside of plugs
11) Plug face wet by fuel due to excessive actuation
of choke or overflow of carb
Dry spark plugs, trace possible faults in fuel system
or over flow of carb.
12) Float valve dirty or jammed Clean or renew float valve
13) Jets in carb. clogged Clean jets
14) Water in carb. Drain & clean carb.,fuel line & filter. Water drain
fuel tank
15) Insufficient compression Trace pressure loss & repair if necessary
16) Engine damage Inspect oil strainer filter & oil filter for metallic
particles. If present, an engine overhaul may be
necessary.
Possible Cause Remedy
1) Choke activated Close choke
2) Float valve dirty, jammed or worn Clean or renew float valve
3) Intake manifold leak Tighten all connections, renew faulty items
10.3 Engine Runs Erratically or Misfires Occasionally
Possible Cause Remedy
1) Spark plug failure Check plugs, clean inside & outside, adjust electrode
gap. If necessary, renew plugs
2) Faulty HT leads Dry damp leads, renew damaged leads
3) Faulty ignition unit Renew ignition unit
4) Clogged fuel filter Renew fuel filter
Page No: 100 Issue No: 2 Date: 031100 Issued By: PJA
10.4 Engine Runs Too Hot - Oil Temperature Above 110oC (230
Possible Cause Remedy
1) Too much oil in crankcase Check oil level & adjust if necessary
2) Low oil level Check oil level & add oil if necessary
3) Poor quality oil Oil change, use specified oil
4) Clogged oil filter Change filter
5) Excessive piston blow by Common reason: worn or sticking piston rings,
complete engine overhaul necessary
6) Faulty bearings If metallic particles are present in oil, complete
engine overhaul necessary
7) Faulty oil temperature gauge Exchange gauge
oF)
10.5 Unsatisfactory Power Output
Possible Cause Remedy
1) Ignition failure Check ignition circuits; check wiring and pick-ups;
replace ignition units.
2) Too much oil in crankcase Check oil level & adjust if necessary
3) Insufficient fuel supply Check fuel supply system
4) Fuel not according to specifications Re-fuel with specified fuel
5) Incorrect throttle adjustment Re-adjust throttle fitting
6) Leak in air intake Check and tighten all connections, check carby
sockets.
Page 49 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
7) Carby diaphragm damage renew diaphragm
Possible Cause Remedy
1) Insufficient oil in sump Check oil level & replenish as necessary
2) High oil temperature Refer to Para. 10.4
3) Faulty pressure gauge, sender or wiring Check gauge, sender & wiring. Renew as necessary.
4) Faulty crankshaft bearings Engine overhaul
5) Relief valve not sealing Inspect, replace back after cleaning
10.7 Engine Keeps Running with Ignition Off
Possible Cause Remedy
1) Idle speed too high Adjust to proper idle speed (900 RPM)
2) Faulty ignition switch Check switch & cables. Repair/replace as necessary
3) Overheated engine Conduct cooling run at 900 RPM
Page No: 101 Issue No: 2 Date: 031100 Issued By: PJA
10.8 Excessive Oil Consumption
Possible Cause Remedy
1) Worn, broken or wrongly fitted piston rings Repair/engine overhaul necessary
2) Poor oil quality Oil change, use specified oil
3) Worn valve guides Repair of cylinder head necessary
4) Oil leaks Seal leaks
10.9 Knocking Under Load
Possible Cause Remedy
1) Octane rating of fuel too low Use fuel with higher octane rating
2) Spark plug fitted without sealing washer Ensure one sealing washer on each plug
3) Heavy carbon deposits Remove cylinder heads & in combustion
chamber remove deposits. Determine oil
consumption.
10.10 Engine Hard to Start at Low Temperature
Possible Cause Remedy
1) Starting speed too low Preheat engine
2) High oil pressure At very low temperatures, a pressure
reading of up to around 500 kpa doesn't
necessarily indicate a malfunction
3) Low battery charge Fit fully charged battery
Note: running this engine on low octane fuel will cause piston damage and in extreme
cases failure of the top ring gland or holed piston due to detonation. Changing the
engine tuning to a leaner air/fuel mix will also cause piston and engine damage.
Page 50 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
JABIRU ENGINE INSTALLED PERFORMANCE (Standard Air Conditions)
FILL IN THE APPROPRIATE PERFORMANCE FIGURES BASED ON FLIGHT TEST
RESULTS.
Take off Roll at gross paved runway
Take off Roll at gross Short Grass runway
Take off Roll at gross Tall Grass field
Take off Roll at gross Soft field
Take off Roll – 50 ft. obstacle
Landing Roll
Landing Roll – 50 ft obstacle
Best Rate of Climb
Best Angle of Climb
Cruise 75% power
Gliding Ratio – 60 mph.
Take off RPM
Fuel Consumption
Range (450 statute miles)
Page 51 of 52
BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
NOTES:
Page 52 of 52
