Bush S642F1, S626, S626D, S632D, S632F Instruction Manual

26 /32 /42 Digital LCD Television
INSTRUCTION MANUAL

Customer helpline:0845 604 0105

Contents

P.25

P. 3 8
P.

4

0

P. 4 4
P. 4 5

P.02
P.03
P.04
P.05

P.06

01 Safety Warnings

02 About your LCD TV

03 Getting Started

04 Using the features

05 Reference Sections

P.08
P.09

P.11

P.12
P.13

P.18

P.16

P.19
P.20

P.21
P.23

P.27

P.29

Welcome
Important information
Safety notice
Electrical connections

Get to know your TV
Get to know your remote control
Connecting your TV
Preparation of your remote control

Setting up

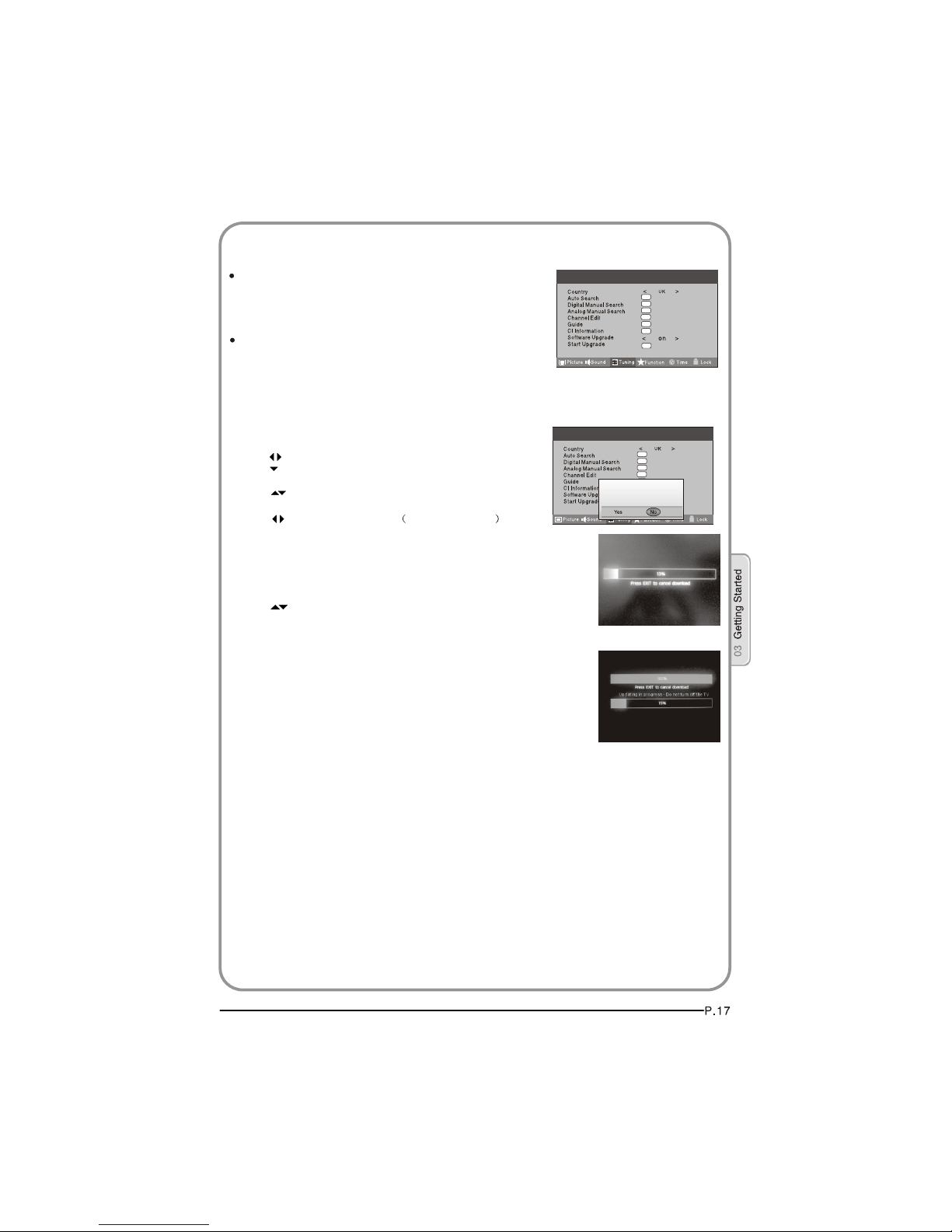

Tuning your TV
Common interface
Using your TV
Adjusting picture settings
Adjusting sound settings
Function settings

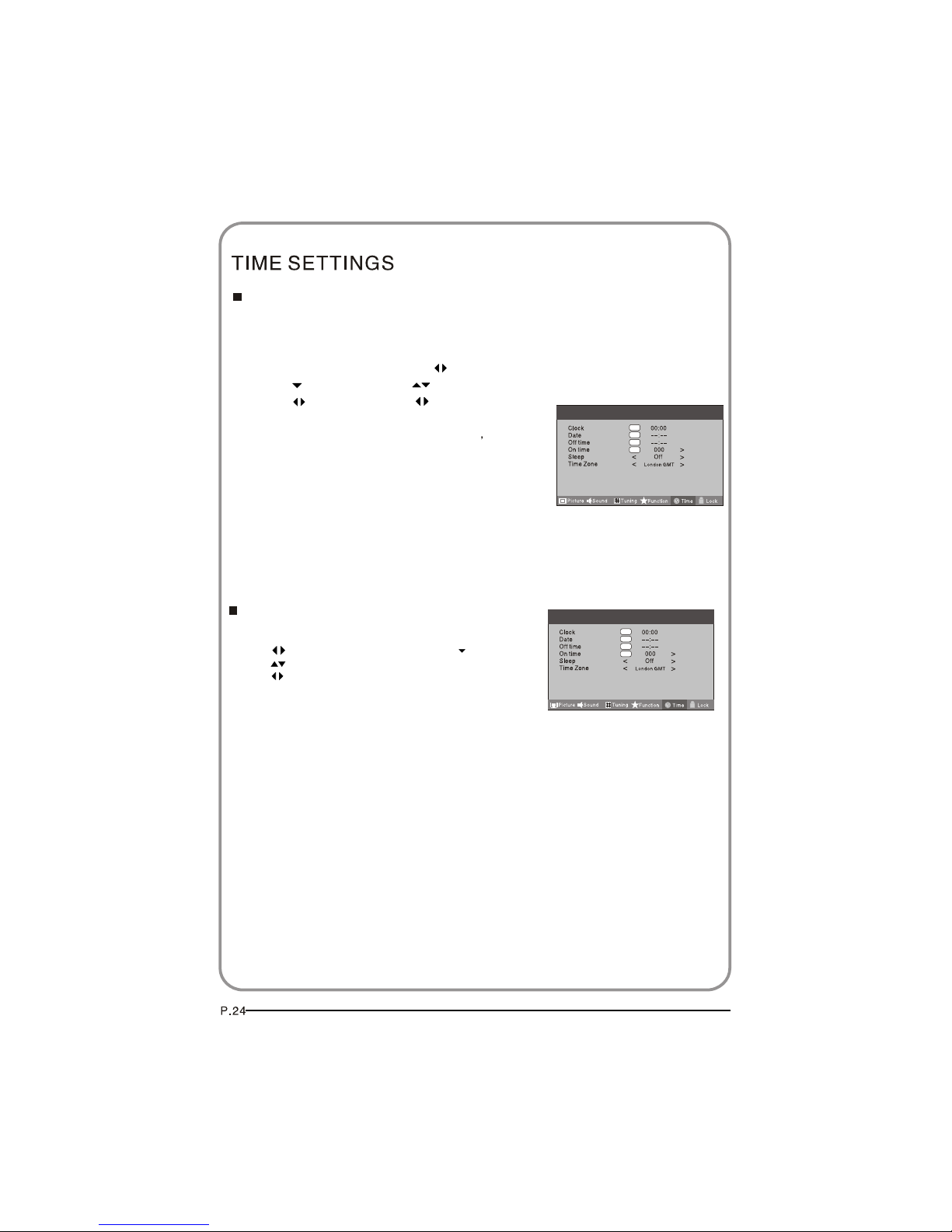

Time settings

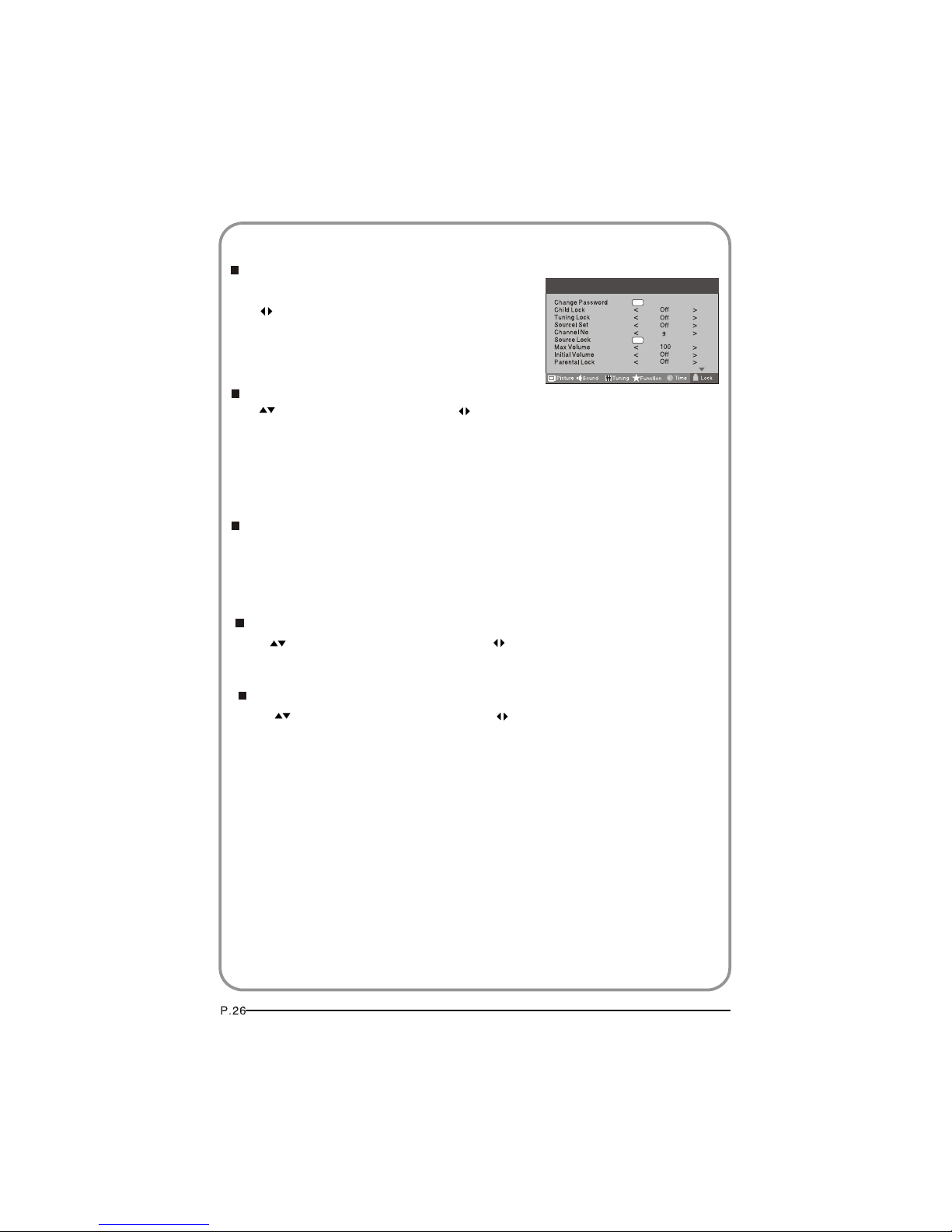

Lock menu settings
Shortcut menu display

Teletext function

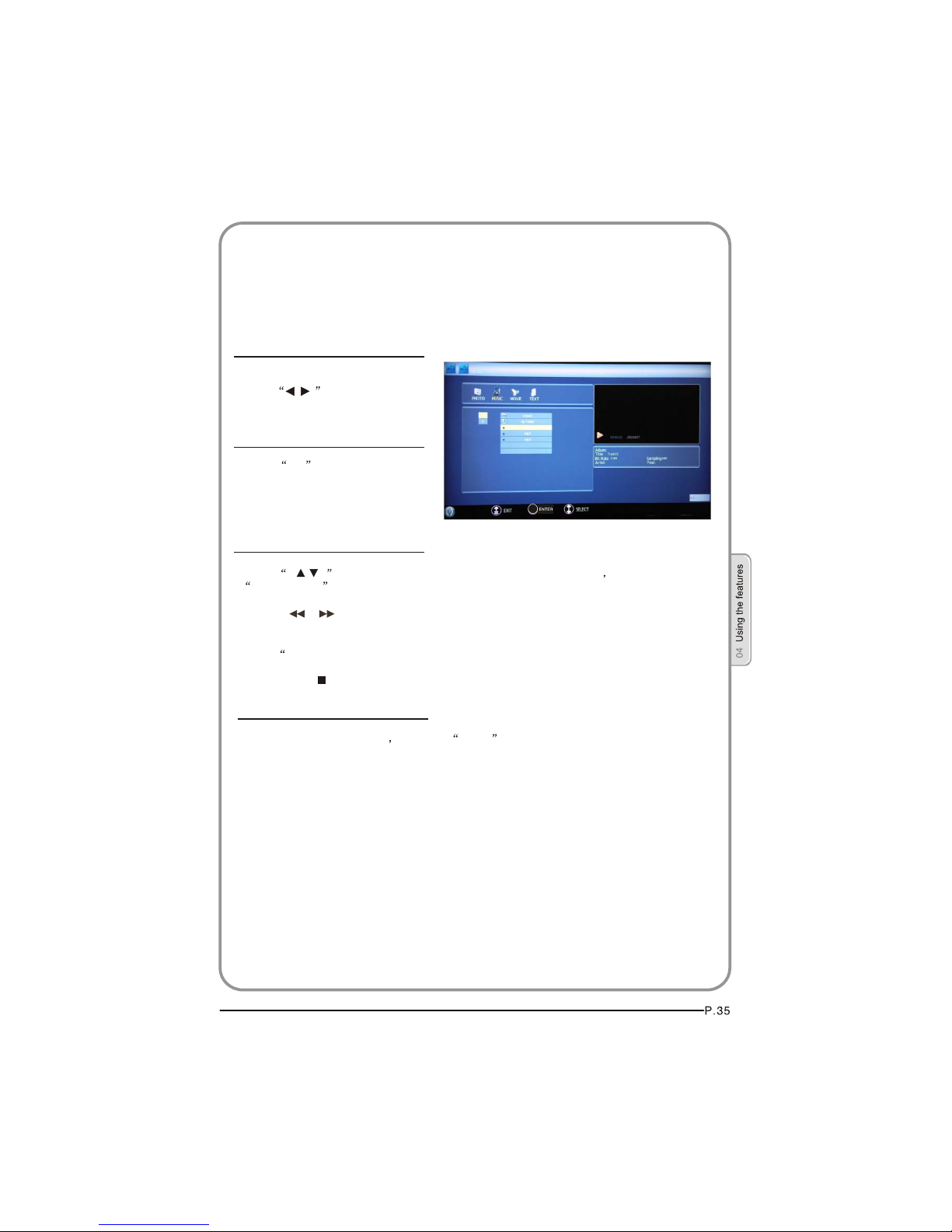

USB mode
Using External USB Disk For Recording
Using your DVD player(certain models only)

Troubleshooting
Specification

P.31

06 Product Guarantee

P.46

Product guarantee

BUSH | HD Ready LCD TV | User Manual | Helpline: 0845 604 0105

WELCOME

01 Safety Warnings

Thanks for buying this 26"/32"/42" HD Ready Digital LCD TV.
This guide will help you set up and begin using your TV.

First, check the contents of your box with the parts checklist below:
26"/32"/42"HD Ready Digital LCD TV
Remote control
AAA battery x2
Instruction Manual
Quick Start Guide

Now you can get started!

BUSH | HD Ready LCD TV | User Manual | Helpline: 0845 604 0105

CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK AND FIRE, DO NOT
PUT THE TV SET NEAR SOURCES OF HUMIDITY.
DO NOT USE ANY ABRASIVE CLEANERS WHICH MAY SCRATCH
OR DAMAGE THE LCD SCREEN. AVOID CONTACT WITH OBJECTS
THAT MAY SCRATCH THE LCD SCREEN.

NOTE: SERVICING THE UNIT YOURSELF IS UNAUTHORISED AND
COULD LEAD TO INJURY OR PRODUCT DAMAGE. REFER ALL
SERVICING TO THE CUSTOMER HELPLINE.

IMPORTANT INFORMATION

READ ALL INSTRUCTIONS BEFORE USE AND KEEP FOR FUTURE REFERENCE.

CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK).NO USER SERVICEABLE
PARTS INSIDE. FOR ANY PROBLEMS, REFER SERVICING
TO THE CUSTOMER HELP LINE. THERE IS A LIGHTNING
ARROW SYMBOL IN THE TRIANGLE: THIS SYMBOL
INDICATES HIGH VOLTAGE IS PRESENT INSIDE. IT IS
DANGEROUS TO MAKE ANY KIND OF CONTACT WITH ANY
INSIDE PART OF THIS PRODUCT.

THERE IS A EXCLAMATION MARK IN THE TRIANGLE:
THIS SYMBOL ALERTS YOU THAT IMPORTANT LITERATURE
CONCERNING OPERATION AND MAINTENANCE HAS
BEEN INCLUDED WITH THIS PRODUCT.

BUSH | HD Ready LCD TV | User Manual | Helpline: 0845 604 0105

For your protection please read these instruction completely and keep this manual
for future reference
Please ensure that the set has adequate ventilation.
Do not place the set near a heat source or in direct sunlight.
Do not put the unit near water or oil as it may cause a fire.
During thunderstorms, unplug both the antenna and power plug to prevent damage.
Do not use a damaged power plug or put the power supply near a heat source as it may
cause electric shock or fire.
To prevent potential fire, do not overload an electrical outlet with too many plugs.
Place the set on a level surface to prevent it from tipping and potential damage.
Do not remove the cover of the set or try to service your TV. This may result in electrical
shock or fire. All service work must be completed by an authorised technician.
If there are any abnormal sounds or smells from the unit, unplug it immediately and
contact an authorised service provider.
To prevent fire, do not use or store any flammable materials near the unit.
To prevent fire, do not place the unit near a damp wall.
To prevent electric shock, ensure that any external antenna connected to the set is clear
of contact with any power lines.
Do not plug/unplug the unit while your hands are wet. This may cause an electric shock.
Please ensure a solid connection with the AC wall socket in order to avoid shock and
potential fire.
To prevent electric shock or fire, please prevent rain from entering the set along the wire
connected to the outside antenna.
When cleaning, please unplug the unit. Use a soft cotton cloth. Do not use any abrasive
cleansers, and prevent water from entering the set.
If any plugs or input wires are dirty, unplug the set and clean them. This will prevent the
risk of electric shock or fire.
If the set is not going to be used for an extended period, unplug the unit from the main
power.
Moderate climates used only.
Replace the battery by the equivalent or same type. In case of explosion don't throw
battery to fire. Dispose the battery according to local regulation.
A warning that excessive sound pressure from earphones can cause hearing-loss.

The apparatus should not be exposed to dripping or splashing and no objects filled with
liquids, such as vases should be placed on the apparatus.

The mains plug is used for disconnecting the device, make it easily accessible.

Do not use any accessories that are not recommended by the manufacture.

SAFETY NOTICE

BUSH | HD Ready LCD TV | User Manual | Helpline: 0845 604 0105

BLUE OR BLACK
NEUTRAL (N)

BROWN OR RED
LIVE (L)

ELECTRICAL CONNECTIONS

The colours of the wires in the mains lead of this apparatus may not correspond with the
coloured markings identifying the terminals in your plug, proceed as follows:

WASTE ELECTRICAL PRODUCTS SHOULD NOT BE
DISPOSED OF WITH HOUSEHOLD WASTE. PLEASE
RECYCLE WHERE FACILITIES EXIST. CHECK WITH
YOUR LOCAL AUTHORITY FOR RECYCLING ADVICE.

Before connecting, check that voltage indicated on the appliance (button of the appliance)
corresponds with the main voltage in your home. If this is not the case, consult your dealer
and do not use.
This appliance may be fitted with a non-rewirable plug. If you need to change the fuse in
a non-rewirable plug, the fuse is lost or damaged, the plug must be used until a
replacement is obtained (available from the appliance manufacturer).
If the plug has to be changed because it is not suitable for your socket, or becomes
damaged, it should be cut off and appropriate plug fitted following the wiring instructions.
The plug removed must be disposed of safety as insertion into a mains socket is likely to
cause an electrical hazard.
This equipment must be disconnected from the mains when not in use. Do not allow
this unit to be exposed to rain or moisture.

For your own safety read the following instructions carefully before attempting
to connect this unit to the mains.

You should only plug the appliance into a 150V-240V AC,50/60HZ supply, Connecting it
to other power sources may damage the appliance.

The wires in this mains lead are coloured in
accordance with the following code:

Blue=Neutral
Brown=Live

IMPORTANT

Caution

To prevent electric shock disconnect from the mains before
removing the cover

The blue wire must be connected to the terminal marked with the letter N or coloured black.
The brown wire must be connected to the terminal marked with the letter L or coloured red.
If a 13 Amp (BS 1363) fused plug is used it must be fitted a 3A fuse conforming to BS 1362
and be ASTA apporved. If in doubt contact a qualified electrician.

BUSH | HD Ready LCD TV | User Manual | Helpline: 0845 604 0105

About your LCD TV

GET TO KNOW YOUR TV

USB

2

1REC

17.OPTICAL

Front control panel

Source button

Menu button

Volume up/down button

Program up/down button

Power button

1. YPbPr input

2. YPbPr AUDIO input

3. DVI AUDIO input

4. ANTENNA input

5. HDMI3 input

6. S-VIDEO input

7. EARPHONE output

8. HDMI1 input

9. HDMI2 input

10. AV-VIDEO input

11. Common Interface

12. SCART1 input

13. VGA AUDIO input

14. SCART2 input

15. VGA input

16. USB

COMPONENT IN

HDMI3

VGA IN

ANT IN

BUSH | HD Ready LCD TV | User Manual | Helpline: 0845 604 0105

GET TO KNOW YOUR TV WITH DVD

17.OPTICAL

Front control panel

1. YPbPr input

2. YPbPr AUDIO input

3. DVI AUDIO input

4. ANTENNA input

5. HDMI3 input

6. S-VIDEO input

7. EARPHONE output

8. HDMI1 input

9. HDMI2 input

10.AV-VIDEO input

11. Common Interface

12.SCART1 input

13.VGA AUDIO input

14.SCART2 input

15.VGA input

16.USB

Source button

Menu button

Volume up/down
button

Program up/down
button

Power button

USB

2

1REC

COMPONENT IN

HDMI3

VGA IN

ANT IN

BUSH | HD Ready LCD TV | User Manual | Helpline: 0845 604 0105

When using the remote control, aim it
towards the remote sensor on the TV

Stand By

DVD Menu / REC

DVD open / close

Picture Mode

Sound Mode

Call Screen Display

Sleep button

DTV Audio / NICAM / DVD Audio

Aspect Ratio Control button

Channel list button

Subtitle button

Program Number Channel selection

Source Exchange

Q.VIEW / Swap Channel

V+/V- : Volume selection

P+/P-: Channel selection

Mute

Menu button

GUIDE button (only for DTV)

Favourite list button

OK button

Cursor Mover button

Back button (only for USB)

Exit Screen Display

REPEAT

(only for DVD , USB , REC & Timeshift) /

CANCEL button

Zoom (only for DVD &USB)/

Teletext index(only for

TV) / REC index

Play / Pause button (only for DVD &USB) / Timeshift

Stop (only for DVD, USB, REC & Timeshift)

Fast Reverse (only for DVD, USB, REC & Timeshift)

Fast Forward (only for DVD, USB, REC & Timeshift)

Previous (only for DVD, USB, REC & Timeshift)

Next (only for DVD, USB, REC & Timeshift)

DVD Set up / Text

DVD Title / Teletext Mix

DVD Search / Teletext Subcode

DVD 10+ / Teletext Hold

DVD Program / Teletext Reveal

DVD A-B Repeat / Teletext Size

DVD Call / Teletext Mode

DVD Angle /Teletext Time

NOTE:RED button ,GREEN button
BLUE button and YELLOW button are fast
text button in analog signal .Function
button in DVBT (just reference the OSD)

SCREEN

SCREEN

STOP

.

GET TO KNOW YOUR REMOTE CONTROL

BUSH | HD Ready LCD TV | User Manual | Helpline: 0845 604 0105

LR YPbPr

DVD

CONNECTING YOUR TV

ANTENNA CONNECTION

Connect your aerial to the side of the TV into the ANTENNA IN socket.

IMPROVE YOUR SIGNAL

To improve picture quality in a poor signal area, use a signal amplifier
(not supplied).

CONNECT YOUR PC TO THE TV

You can use your TV as a monitor for your personal computer by connecting it
with a VGA cable (not supplied).

1.Read your computer user guide and check it has a VGA connector.

2.Turn the power off on your TV and PC.

3.Connect a D type 15-pin VGA interface cable to the VGA video interface
connector on the PC. Connect the other end of the cable to the PC interface
connector on the TV. Tighten the screws on the VGA connectors and connect
the audio cable (not supplied) to the audio input socket on the back of the TV.

4.Turn on the power of the TV firstly and then the PC.

5.Press the button on the TV or TV remote control to set the video input mode
to VGA.

6. Once the image shows, if there is noise present, change the VGA mode to
another resolution, change the refresh rate to another rate or adjust the
brightness and contrast on the menu until the picture is clear.

CONNECT A DVD PLAYER TO YOUR TV

Connect the DVD video outputs (Y, Pb, Pr) to the
COMPONENT (Y, Pb, Pr)
IN socket on your TV.
1 . Turn on the DVD player and insert a DVD.
2 . Press the button to select .
3 . Refer to the DVD player user guide for operating
instructions.

BUSH | HD Ready LCD TV | User Manual | Helpline: 0845 604 0105

BUSH | HD Ready LCD TV | User Manual | Helpline: 0845 604 0105

CONNECT A DVD PLAYER OR VCR TO YOUR TV

There are two ways in which you can connect a DVD player or VCR to your TV.
Make sure that both the TV and DVD player or VCR are switched off before you
connect them.

Connection Option 1

1.Connect the audio and S-VIDEO cables from the VCR output jacks to the TV
input jacks.

2.Insert a video tape into the VCR and press PLAY on the VCR.

3.Turn on the power of the TV first, then the VCR.

4.Press the SOURCE button on the TV to set the video input mode to S-VIDEO.

Connection Option 2

1.Connect the AV DVD/VCR outputs to the AV IN socket on your TV.

2.Press the SOURCE button on the TV to set the video input mode to AV.

SCART INPUT

1.Connect the scart lead from the external device (DVD player, Set-top box
or games console) to the TV scart socket.

2.Press the SOURCE button to select SCART mode.

3.Press the PLAY button on the external device.

HDMI INPUT

1.Connect the cable from the HDMI device to the TV HDMI socket.

2.Press the SOURCE button to select HDMI mode.

3.Refer to the HDMI device user guide for how to operate.

MOUNT YOUR TV ONTO THE WALL

You can mount your TV onto the wall by using a wall bracket (not supplied).
Use M4/M6 machine screws (4 pcs) to screw the TV onto the bracket (not
supplied).

BATTERY INSTALLATION

1.Place the remote control face down, then open
the cover of the battery compartment.

2.Install two AAA batteries. (The + and- symbol
of the battery must match with the marks on the
remote).

3.Close the cover of the battery compartment.

BATTERY CAUTION

Confirm there is no object between the remote
control and the remote sensor of the TV set.

Sunshine or other strong light will interfere with
the signal sent by the remote control. In this
situation turn the TV set to avoid the direct light
source.

Do not put the remote control in direct heat or in
a damp place as you may damage the remote.

Please use two AAA 1.5V batteries. Do not mix
battery types. Install the batteries at the correct
polarities. Do not use rechargeable batteries.
If your TV is to be stored for a period of time,
remove the batteries from the remote control.

PREPARATION OF YOUR REMOTE CONTROL

BUSH | HD Ready LCD TV | User Manual | Helpline: 0845 604 0105

03 Getting Started

BUSH | HD Ready LCD TV | User Manual | Helpline: 0845 604 0105

LOCATION

You will need to place your TV near your plug socket (so the power cable can comfortably
reach) and within reach of your aerial socket or extension lead.

CONNECTION

1. Insert your TV aerial lead into the Antenna input at the side of the TV.

2. Insert the batteries into the remote control. Make sure they are inserted the right
way around, matching the polarity as indicated inside the battery compartment.

SWITCHING YOUR TV ON

1.Press the STANDBY button on the right side of the TV once. A red flashing light will
appear in the corner of the screen.

2.Press STANDBY on the remote control. The TV will turn on and the red light will turn
blue. This may take a few moments.

3.Select your chosen language when prompted from the list that will appear on
screen. Use the button to scroll to the language you want and press to confirm.

Setting up

BUSH | HD Ready LCD TV | User Manual | Helpline: 0845 604 0105

1. Press MENU button.

2. Press button to select Tuning menu, press button to enter.

3. Press button to select Country item.
Press button to select you needed.

4. Press button to select Auto Search item, press OK button to
enter.
Press button to select the OK option, and press OK button
to start searching.
Press the MENU button ,you can choose to skip the TV /DTV
Search or not.

5. Press EXIT button to stop auto search during searching.

Note: It may take a few moments to complete the Auto

Search.

1. Press MENU button.

2. Press button to select Tuning menu, press button to enter.

3. Press button to select Digital Manual Search item,
press button to enter.

4. Press button to select the Channel.
Press OK button to start searching.

5. Once a channel is located, you can press OK button to save it.
Press EXIT button to exit.

DIGITAL MANUAL SEARCH

If you have attached a DVD player or similar external device
to the TV, you will need to tell the TV to display the content
from it. Simply press SOURCE which will bring up the source
menu in the left corner of the screen, Use the and button
to highlight the required source and press OK select.

For details of how to plug in other equipment see GET TO KNOW
YOUR TV on page 6.

AUTO SEARCH

TUNING YOUR TV

SWITCHING TO AN EXTERNAL SOURCE OTHER THAT TV

Input Source

TV

AV
SCART1
SCART2
S-Video

Component1
Component2

PC
HDMI1
HDMI2
HDMI3

USB

TV

AV
SCART1
SCART2
S-Video

Component1
Component2

PC
HDMI1
HDMI2
HDMI3

USB

Input Source

TV

AV
SCART1
SCART2
S-Video

DVD

Component

PC
HDMI1
HDMI2
HDMI3

USB

TV

AV
SCART1
SCART2
S-Video

DVD

Component

PC
HDMI1
HDMI2
HDMI3

USB

OK

OK

OK

OK

OK

OK

Menu

OK

EXIT

OK

MENU

OK

OK

OK

OK

OK

OK

CANCEL

OK

OK

OK

OK

OK

OK

Menu

OK

UHF CH 26

OK

OK

OK

OK

OK

OK

Menu

OK

EXIT

SAVE

Sound System

Current CH

Press button to select the channel number to edit.

Storage To

Press button to select the program number you
want to storage to.

Fine tune

Press button to select "Sound System", then press
button to select the correct sound system.

1 Repeat above steps 1-3, then press button to select
the Fine Tune item.
2 Press button repeatedly to carry out fine tune, till the
best picture and sound are obtained, then loosen the button.

If the picture and/or sound are poor, try using the FINE
TUNE feature. Do not use this feature unless reception
is poor.

Analog Manual Search

Follow the below steps when you need to have a manual search.

1. Press MENU button.

2. Press button to select Tuning menu, press button to enter.

3. Press button to select Analog Manual Search item,
Press button to enter.

4. Press button to select Search item, press button is used
to select the higher frequency channel.
Press button is used to select the lower frequency channel.

5. And then select Storage To, press button to select the position
number you want the channel on. Once a channel is located,
you can press red button to save it. Press EXIT button to exit.

TUNING YOUR TV

BUSH | HD Ready LCD TV | User Manual | Helpline: 0845 604 0105

OK

OK

OK

OK

OK

OK

Menu

OK
