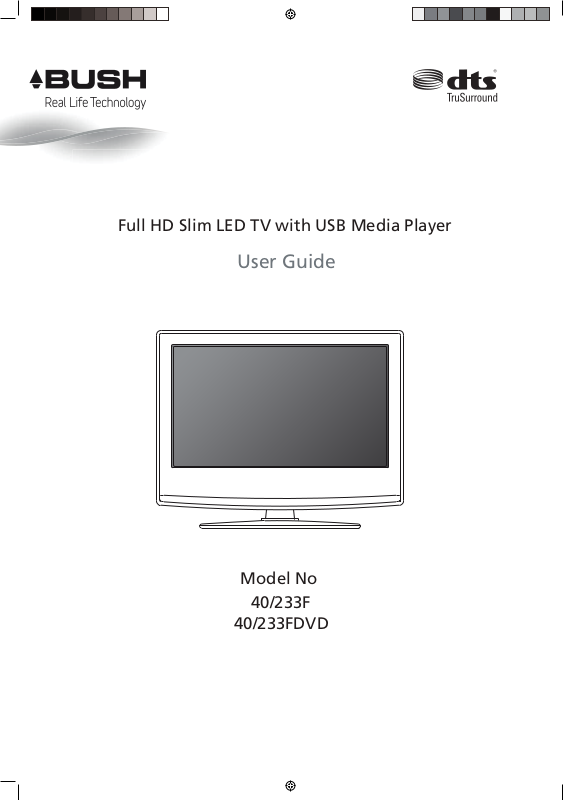

Bush 40-233F Instruction manual

Full HD Slim LED TV with USB Media Player

User Guide

Model No

40/233F

40/233FDVD

Important Safety Instructions

IMPORTANT - Please read these instructions. All the safety and operating instructions
should be read before the appliance is operated.

Warnings

• To reduce the risk of fi re, electric shock or
damage to the television, do not expose it to dust,
rain or moisture, or place any objects fi lled with
liquids on or near the television.

• Do not place the television in a confi ned space.
Ensure that nothing can obstruct the ventilation
openings at the rear of the television.

To prevent the spread of fi re, keep
candles or other open fl ames away
from this product at all times

• Dispose of this television and any components
including batteries in an environmentally friendly
manner. If in doubt, please contact your local
authority for details of recycling.

Safety

• For your safety, this appliance is fi tted with a
fused moulded 3 pin mains plug. Should the
fuse need to be replaced, ensure that any
replacement is of the same amperage and
approved with the BSI mark.

• The television should be connected to a
main socket outlet with a protective earthing
connection.

• Never try and replace the mains plug unless
you have adequate qualifi cations and are
legally authorised to do so. In the event that a
replacement Mains cable is required, contact the
manufacturer for a suitable replacement.

• Never use the television if it is damaged in
any way.

• Always place the television on a fl at level surface
avoiding anywhere which may be subject to
strong vibration.

• Ensure the television is not placed on top of the
power cable as the weight of the television may
damage the cable and cause a safety hazard.

• Never place mobile phones, speakers or any
other device which may cause magnetic or radio
interference with the television. If interference
is apparent, move the device causing the
interference, near the television.

• To disconnect the apparatus from the mains,
please use the mains plug located on the
underside/rear of the TV. The mains plug shall
remain readily operable.

• Batteries (battery pack or batteries installed)
shall not be exposed to excessive heat such as
sunshine, fi re or the like.

• Install the product at least 5cm from the wall for
ventilation.

• Ensure that the power switch on the unit and the
mains plug are always easily accessible.

WARNING: Excessive noise when using earphones
and headphones can cause loss of hearing.

Maintenance

• To clean this unit, wipe with a soft, dry cloth. If
the surfaces are extremely dirty, use a soft cloth
dipped in a soap and water solution or a mild
detergent solution.

• Never use alcohol, paint thinner
or benzene to clean this unit.

• Before using a chemically treated
cloth, read the instructions that
came with the cloth carefully.

CAUTION: If water or other liquid enters the television
through the display panel surface or back cover a
malfunction may occur.

Packaging

• The safest way to transport your item is in
the original box/packaging - please save your
packaging for this.

• You will need original box/packaging in the event
of warranty/service repair or support. We are
unable to carry out warranty/service if you are
unable to package the item correctly.

4

For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

Important Safety Instructions

IMPORTANT - Please read these instructions. All the safety and operating instructions
should be read before the appliance is operated.

Important Information - Regarding Use of
Video Games, Computers, Captions or Other
Fixed Image Displays

The extended use of fi xed image program material
can cause a permanent “shadow image” on the
LCD/LED panel.
This background image is viewable on normal
programs in the form of a stationary fi xed image. This
type of irreversible LCD/LED panel deterioration can
be limited by observing the following steps:

1. Reduce the brightness/contrast setting to a
minimum viewing level.

2. Do not display the fi xed image for extended
periods of time.

3. Turn the power off when not in actual use.

Examples of images that you need to watch out for
are as follows (this is not an exhaustive list):

• TV Channel Logos: e.g. Shopping channel logos
and pricing displays-especially if they are bright
and stationary.

• Moving or low contrast graphics are less likely to
cause ageing of the screen.

• Time Displays

• Teletext: Do not view a stationary page for a long
period of time

• TV/DVD Menus: e.g. Listings of DVD disc content

• Pause Mode: Do not leave the TV in pause mode
for long periods of time, e.g. When watching
DVDs or videos.

How do I dispose of this product?

UK: Waste electrical products should not be disposed
of with household waste. Separate disposal facilities
exist. For your nearest facilities, please see
www.recycle-more.co.uk or in store for details.

ROI: Waste electrical products should not be
disposed of with household waste. Separate disposal
facilities exist. Check with your Local Authority or
retailer for recycling advice.

Batteries

• Do not expose batteries to high
temperatures, excessive heat,
prolonged sunshine or fi re as
this may cause leakage, explosion
or ignition.

• Observe the correct polarity when
inserting batteries.

• Do not use different types of
batteries together or mix old and
new batteries.

• Dispose of batteries in an
environmentally friendly way.

• Certain regions may regulate the
disposal of batteries.

Please consult your local authority.

Cd

Important - Once ‘shadow image/screen burn’
occurs, it will never disappear and is not
repairable under warranty.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the
Symbol, & DTS and the Symbol together are registered trademarks, and DTS TruSurround is a trademark of DTS,
Inc. © DTS, Inc. All Rights Reserved.

For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

5

Contents

Manufacturers Guarantee Information 3

Important Safety Instructions 4-5

What is included in the box 9

Attaching the stand 10

Detaching the stand and securing the TV
to a wall 11

Wall mounting 12

Getting Started - Initial Set Up 13

Remote Control 15

TV Buttons and Input Source Menu 16

Connections 17-19

TV Menu Operation 21-27

Channel Menu 21
Picture Menu 22-23
Sound Menu 24
Time Menu 25
System/Hotel Lock Menu 26
Setup Menu 27

PC Settings 28

DVD Setup 29

7 Day TV Guide 30

USB Record Digital / Freeview 31

USB Mode / Media Player 32

General Information 33-36

Using your TV with a Sky digital set top box 33
Frequently Asked Questions 34-35
Technical Specifi cations 36

For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

7

What Is Included In The Box

Accessories
Included with this TV are the following accessories:

1 x User Guide

User Guide

1 x Quick Start Guide

QSG

1 x TV

1 x Remote Control & 2 x AAA Batteries

1 x Mini-Component cable

1 x SCART to AV cable

1 x Stand Installation Pack

1 x RF Cable

(A) 6 x ST (4x14)

Used for attaching the stand
neck to the TV

Please save your packaging as you will need this in the event of warranty/service repair or support. We are
unable to carry out warranty/service if you are unable to package it correctly. The safest way to package your
item in the event of warranty/service repair is in it’s original box/packaging.

For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

(B) 5 x ST (3.7x18)

Counter Sunk

Used for attaching the stand
base to the stand neck

9

Attaching The Stand

To complete the stand installation you will require a cross head screw driver.

The Stand Installation pack comes with two different
types of screws.

(A) 6 x ST(4x14)

fi g 1) Attach the stand neck to the rear of the TV set.

1

fi g 2) Secure the neck to the TV using the
(A) 6 x ST (4x14) screws provided.

(B) 5 x ST(3.7x18)

Counter Sunk

fi g 3) Peel off the protective plastic cover then attach
the stand base to the stand neck.

fi g 4) Secure the base to the neck using the
(B) 5 x ST (3.7x18) Counter Sunk screws provided.

HELPFUL ADVICE FOR FIRST TIME STAND INSTALLATION

When securing the self-tapping screw/s into the base of the stand (on fi rst installation) the screw/s will be
naturally tight as they create a thread in the plastic of the stand neck in order to support a TV of this size.

a) Ensure the cross head screw driver tip fi ts correctly into the head of the
screw and that it is not too big or small.

b) Screw in all screws individually and partially before tightening all of the
screws fully.

c) If they become very tight try loosening them slightly and then re-tightening them once again as this will
continue the process of creating the thread for the screws.

6 x
ST (4x14)

2

1 1/2

3

5 x ST(3.7x18)

4

10

For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

Detaching The Stand And Securing The TV
To A Wall

Detaching the Stand

To detach the stand please remove the 6 screws
highlighted then remove the stand neck and base
from the rear of the TV set.

6 x
ST (4x14)

Securing the TV to a Wall

For maximum security in the home when using a TV with its stand anti-tip straps should be fi tted. These are
available from supermarket websites and other websites and are an easy, inexpensive and effective way of
ensuring your TV stays safely upright. Straps are designed to be attached to the rear of the TV and then tethered to
the wall of the furniture the TV is stood on.

Note - Please ensure that children do not climb on the
TV set.

A) Using one or both of the top wall-mounting holes
and screws (the screws are already supplied in the
wall mounting holes) fasten one end of the
fastening cord/s to the TV.

The Royal Society for the Prevention of Accidents is urging people to take care with fl at-screen televisions.

B) Secure the other end of the fastening cord/s to
your wall. (you will need screws/fi xings suitable for
your wall type - available separately from most
DIY stores)

RoSPA stated in 2010 that “Toddlers are particularly at risk of pulling fl at-screen televisions on to themselves. They
are unsteady on their feet and are attracted by colourful television images.”

The risk is increased as televisions become lighter.

For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

11

Wall Mounting

IMPORTANT - Before drilling any holes in the wall ensure you are not drilling where there could be any electric wires, water or
gas pipes.

1) Remove the four screws highlighted below.

2) The wall mount can now be easily attached to the mounting holes on the rear of the TV. These holes are
indicated in the picture below.

IMPORTANT – If wall mounting this TV, only use the
screws already provided in the wall mounting holes.
Using other screws which are longer could cause
irreparable damage to internal parts.

For optimum viewing, if wall mounting the TV higher
than eye level, the TV should be tilted downwards so
that the TV’s screen is ‘face on’.
See fi g 1 and 2 below.

fi g 1

INCORRECT

Viewing angle

CORRECT

fi g 2

TV

TV

12

Viewing angle

For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

Getting Started - Intial Set Up

1) Using the RF cable supplied, connect the TV to the
TV Aerial wall socket (Fig A).

Connect the power cable to the Electrical outlet
(Fig B).

2) Switch on the television using the power on/off
switch located on the side/underside of the TV.

3) Insert the batteries supplied into the Remote
control and press the Standby button to power on the
TV.

4) You will now be welcomed with the initial set-up
screen. If it does not appear, on the remote control,
please press [MENU] then 8-8-8-8 and the menu will
appear. Press OK on the remote control and tuning
will start.*

5) After tuning the following screen will appear.*

If you are missing channels, the reason for this is
likely to be signal strength, you should consider
connecting signal booster and re-tuning the TV.

1

Fig B

Fig A

2

Power on/off

3

* Screen shots/images are shown for illustration
purposes only and may change dependent on
model/region.

Important

As part of our ongoing development to reduce power
consumption, we have added an extra function to
this Television called ‘Home Mode’ (you will see
this during the fi rst time installation set up). Power
consumption using the Home Mode function is
approximately 25% lower than some other modes.
The picture brightness is reduced using the Home
Mode function. If this function is not suitable for your
viewing environment, you can select other modes as
necessary. (Please note, ‘Store mode’ is for optimum
default picture settings, however, power consumption
is approximately 25% higher than ‘Home Mode’).

Please refer to the user guide section ‘Picture
settings’ in order to change the mode to one that
maybe more suitable for your environment. There
is also a shortcut button on the remote control
called ‘P-Mode’ should you wish to change to
another mode.

4

5

For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

13

Remote Control

Viewing remote control - TV

1. STANDBY

2. MUTE

3. DTV

4. RADIO

5. DVD

6. USB

7. NUMBER BUTTONS

8. TV GUIDE

9. - To return to the previous channel viewed

10. P.MODE - Scrolls through picture mode options

11. VOL

12. CH

13. S.MODE - Scrolls through sound mode options

14. FAV - To display favourites menu

15. MENU

16. EXIT

17. - Allows you to navigate the
on-screen menus and adjust the system settings
to your preference

18. SOURCE/AV

19. INFO - Press once for now/next channel
information. Press twice for programme
information about current programme

20. ASPECT

21. SLEEP

22. SUBTITLE

23. AUDIO

24. TEXT

25. TEXT HOLD

26. DISPLAY

27. TEXTZOOM/DVD ZOOM

28. DVD Menu/Record

- To restart the current chapter

- To advance forward to the next chapter

- To stop/eject Disc

(hold for 4 seconds to eject disc)

- To play in fast rewind mode

- To play in fast forward mode

- To play/pause

29. REC LIST

30. GOTO

31. A-B

32. REPEAT

33. ANGLE/
3D - Change to 3D mode

1

2

35

4

6

7

8

9

10

11

12

13

14

15

16

17

18

20

21
24
25

19

22
23
26
27

28

29

For Models with Integrated DVD players

For Models with PVR Function

For Models with USB Playback

For Models with 3D Feature

For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

30

31

32

33

15
