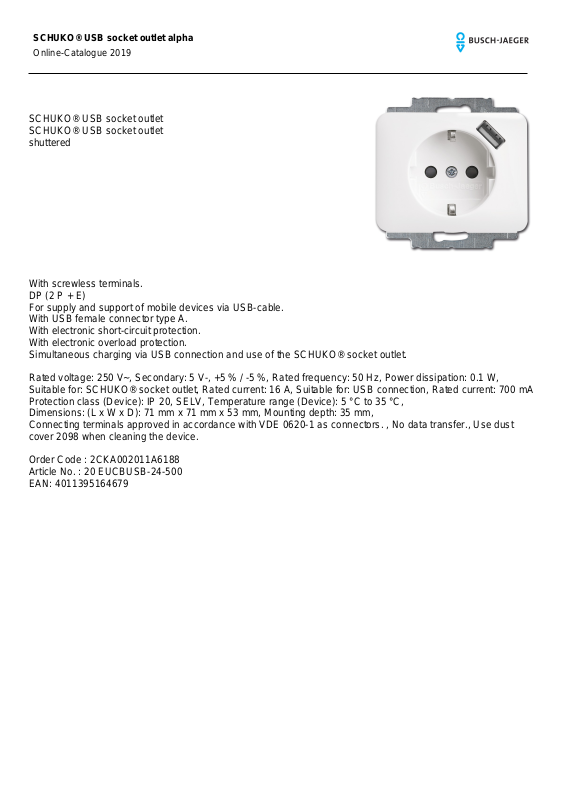

SCHUKO® USB socket outlet alpha
Online-Catalogue 2019
SCHUKO® USB socket outlet
SCHUKO® USB socket outlet
shuttered
With screwless terminals.
DP (2 P + E)
For supply and support of mobile devices via USB-cable.
With USB female connector type A.
With electronic short-circuit protection.
With electronic overload protection.
Simultaneous charging via USB connection and use of the SCHUKO® socket outlet.
Rated voltage: 250 V~, Secondary: 5 V-, +5 % / -5 %, Rated frequency: 50 Hz, Power dissipation: 0.1 W,
Suitable for: SCHUKO® socket outlet, Rated current: 16 A, Suitable for: USB connection, Rated current: 700 mA
Protection class (Device): IP 20, SELV, Temperature range (Device): 5 °C to 35 °C,
Dimensions: (L x W x D): 71 mm x 71 mm x 53 mm, Mounting depth: 35 mm,
Connecting terminals approved in accordance with VDE 0620-1 as connectors. , No data transfer., Use dust
cover 2098 when cleaning the device.
Order Code : 2CKA002011A6188
Article No. : 20 EUCBUSB-24-500
EAN: 4011395164679
