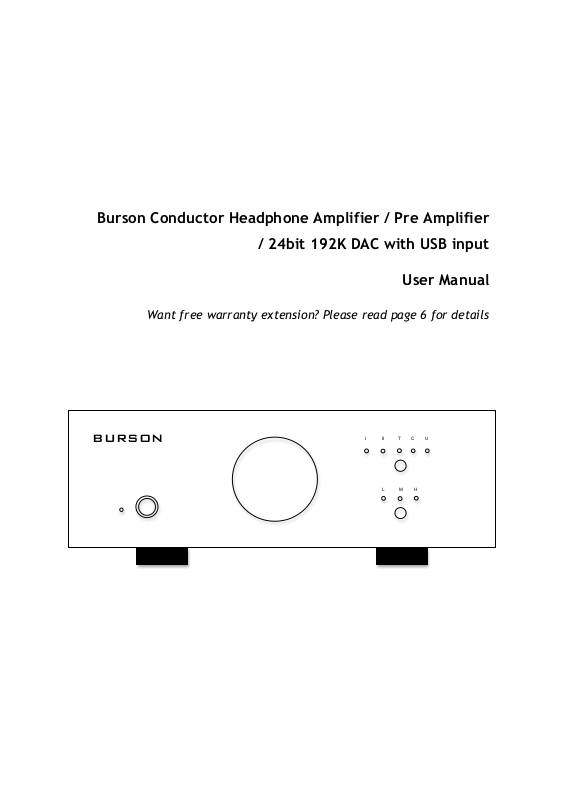

Page 1
!!
Burson Conductor Headphone Amplifier / Pre Amplifier
/ 24bit 192K DAC with USB input
User Manual
Want free warranty extension? Please read page 6 for details
!
BURSON
L M H
I II T C U
Page 2
!
2!
!
Thank You.
All of us at Burson Audio would like to say thank you, and congratulations for purchasing the Burson
Conductor. We sincerely believe that your Burson Conductor is an intelligent investment that will
bring you many years of musical enjoyment and satisfaction.
We understand how eager you are to begin listening and we want you to become familiar with the full
capabilities of the Burson Conductor. However, before powering on the device, we encourage you to
look through the manual.
Team Burson
Our Philosophy
The less the equipment tampers with the music, the greater the music becomes. This has been the
core design philosophy of Burson Audio since 1996. If the equipment is honest and transparent then
the proper ,tempo, dynamics and tone will materialise as a natural expression of the music and it
becomes unnecessary to flavour the original sound. We work towards this ideal through the research
and development of customised solid state circuitries that is precise to our applications. Only then
will each component involved be pushed to their performance peak. And only then will the end result
be consistent with our idealism.
Our Approach
We know that when countless time is spent on a project that we love, the fruit of our labour will not
only sound beautiful but look beautiful too. Only when we don't dare to touch it anymore will it be
introduced to the world as a Burson creation.
Page 3
!
3!
Unpacking
After carefully unpacking your Burson Conductor, inspect for any shipping damage and call your
dealer immediately if any is found. Do not plug your Burson Conductor into any outlet if you find
shipping damage. Please save all packing materials so the unit can be easily and safely shipped if the
need arises.
The Accessories
• AC power cord
• RCA Cables
• USB Data cable
• Conductor Headphone / Pre Amp / DAC
• User manual with warranty registration instruction
Choosing a Location for the Conductor
The sound quality of all high-performance audio components can be degraded by vibration. Try to
avoid stacking other audio component on top of the Conductor and allow minimum of 1cm clearance
around the Conductor for heat regulation. For best performance, place the Burson Conductor on a
solid surface with minimized vibration.
!
Page 4
!
4!
Connections
This section provides instructions to connect the Burson Conductor to the rest of your music system.
Headphone output jack and
power indicator
BURSON
L M H
I II T C U
RCA Input 1 & 2
Toslink Optical digital input
Coaxial digital input and USB digital input
3 levels gain setting for both
Headphone Amp & Pre Amp Mode
Power Switch & Fuse Holder (3A Fast
Blow type)
115V / 230V Main
voltage switch
Pre Amp out
DAC out (line level)
Line level RCA input
Toslink, Optical
digital input
USB Digital input
Page 5
!
5!
Avoid static shocks to the inputs or outputs. Before connecting or removing a cable, touch any
grounded surface, such as the chassis of a component that is plugged into an AC socket. Inputs and
outputs can be safely connected to the Burson Conductor when its AC power is switched off.
Switching between Pre Amp & Headphone Amp
When the front headphone jack is connected, the Conductor will operate in headphone amp mode.
Output signal from the Pre Amp RCA will be switched off. Please disconnect headphone output from
the font panel to switch the Conductor into preamp mode.
Output level switch
The Conductor has three levels of outputs. It allows better matching to different audio systems.
There are no right or wrong settings. Please refer to the table below for different levels of gain.
With 1Khz line level input with 30ohm output impedance
Pre Amp Output
Headphone Amp Output
Low
7.7db
0.18W
Medium
13.7db
0.7W
High
18.2db
4W
!
USB interface setup for Windows XP, Vista, 7 & OSX
For driver download and setup process please refer visit our main website for support:
www.bursonaudio.com
Connecting to AC Power
Check to make sure your Burson Conductor has been manufactured for operation at your AC line
voltage. Attempting to use your Burson Conductor at any voltage other than specified on the rear of
the unit may cause damage that is not covered by Burson’s warranty.
Using AC Line Conditioners
Of the wide range of power line conditioners currently available, some can provide improvement in
sound while others actually degrade sonic performance. Use caution in selecting a power line
conditioner for your system. In particular, avoid using inexpensive “surge protectors”. Although these
can prevent damage from high voltage spikes, they often degrade performance.
Break-in and warm-up
Careful listeners will notice that the sound of the Burson Conductor improves steadily after the unit is
powered-up. A new unit will undergo more dramatic changes when power is applied for the first time.
Depending on the resolution of the system and the attentiveness of the listener, you may find that
the sound continues to improve over the first several weeks of operation. If the power is disconnected
for a period of an hour or more, the unit will undergo similar but less dramatic break-in.
Page 6
!
6!
Powering up
Make sure volume control has been turned to minimal when using your Conductor for the first time.
Always power up your source machine first and your power amp last. When powering down your
system reverse the steps.
Tips
• Connect your Conductor directly to the wall socket with a good quality power cable Instead
of channel thought a power board will yield better result.
• Warm up your Conductor for 30 min is recommenced before each listening section.
• It is recommended to apply contact clearing product such as Deoxit ProGold Contact Cleaner
to all input and output connectors every 6 months.
Free Warranty Extension
All Burson Audio products are covered by 12 months of warranty (See conditions below). You can
extend the warranty to 24 months by sending a photo of your audio system with the inclusion of the
Burson product to [email protected] (it would be much appreciated if you can share your
Burson experience with us) with the date of your purchase and the name of authorized dealer.
Warranty Conditions
Burson Audio warrants that this product shall be free from defects in materials and workmanship for:
1 year for all parts of the product. The warranty period begins at the date of sale and is subject to
the following requirements and understandings:
1. This is a non transferable warranty.
2. The product must not have been modified in any manner whatsoever, or the warranty is
immediately voided.
3. The product must not have been stored in a humid, damp environment; nor subjected to
weather, water, or salt spray.
4. During the warranty period Burson will replace a defective Burson Conductor with a similar
available product, at no cost to the owner for labor, materials, and shipping charges from
Burson.
5. Burson shall not, under any circumstances, be liable for any incidental or consequential
damages arising from the loss of property or other damage or losses due to the failure of a
Burson product. Burson will not pay for loss of use or inconvenience caused by the failure of
a Burson product. Burson will not pay for damage caused to other audio components caused
by the failure of the Burson product within the limits allowed by Australian Law.
6. The customer is responsible for the shipping charges for all repairs, warranty or non-
warranty, shipped to Burson. Burson will pay return shipping to the customer or dealer
(within the Australia) for all warranty replacements. Special shipping methods or services
will not be covered by Burson.
7. This product is only warranted in the country of original sale by Burson.
