Page 1
EF6000 Printer
User’s Manual
June 2010 8218 2668–001
Page 2
NO WARRANTIES OF ANY NATURE ARE EXTENDED BY THIS DOCUMENT. Any product or related information
described herein is only furnished pursuant and subject to the terms and conditions of a duly executed agreement to
purchase or lease equipment or to license software. The only warranties made by Burroughs Payment Systems, Inc.
if any, with respect to the products described in this document are set forth in such agreement. Burroughs Payment
Systems, Inc. cannot accept any financial or other responsibility that may be the result of your use of the information
in this document or software material, including direct, special, or consequential damages.
You should be very careful to ensure that the use of this information and/or software material complies with the
laws, rules, and regulations of the jurisdictions with respect to which it is used.
The information contained herein is subject to change without notice. Revisions may be issued to advise of such
changes and/or additions.
Notice to U.S. Government End Users: This is commercial computer software or hardware documentation developed
at private expense. Use, reproduction, or disclosure by the Government is subject to the terms of Burroughs
Payment Systems, Inc. standard commercial license for the products, and where applicable, the restricted/limited
rights provisions of the contract data rights clauses.
Burroughs is a registered trademark licensed to Burroughs Payment Systems, Inc. in the United States and other countries.
All other brands and products referenced in this document are acknowledged to be the trademarks or registered trademarks of their respective holders.
© 2010 Burroughs Payment Systems, Inc.
Page 3
English
EF6000
User’s Manual. . . . . . . . . . . . . . . . . . . . 1
8218 2668-001
Page 4
English
Labels
DIP Switch Tables
Serial
SW Function ON OFF
1-1 Data receive error Ignored Prints “?”
1-2 Receive buffer
capacity
1-3 Handshaking XON/XOFF DTR/DSR
1-4 Data word length 7 bits 8 bits
1-5 Parity check Enabled Disabled
1-6 Parity selection Even Odd
1-7
Transmission speed (See table below.)
1-8
2-1 Handshaking
(BUSY condition)
2-2 Customer display
connection
2-3
Print density See Table A.
2-4
2-5
Internal use. Fixed to Off.
2-6
2-7 I/F pin 6 reset Enabled Disabled
2-8 I/F pin 25 reset Enabled Disabled
Transmission speed (bps)-bits per second 1-7 1-8
4800 ON ON
9600 OFF ON
19200 ON OFF
38400 OFF OFF
45 bytes 4 KB
Receive
buffer full
Connected Not connected
Offline or Receive
buffer full
Parallel
SW Function ON OFF
1-1 Auto line feed Always
1-2 Receive buffer
capacity
1-3~
Reserved. Fixed to Off.
1-8
2-1 Handshaking
(BUSY condition)
2-2 Internal use. Do not change setting. Fixed to Off.
2-3
Print density See Table A.
2-4
2-5
Internal use. Fixed to Off.
2-6
2-7 Reserved (for serial interface) Fixed to Off.
2-8 I/F pin 31 reset signal. Do not change setting.
Fixed to On.
enabled
45 bytes 4 KB
Receive
buffer full
Always disabled
Offline or Receive
buffer full
Table A
Print density/low power SW 2-3 SW 2-4
1 Print density (Light) ON ON
2OFFOFF
3ONOFF
4 Print density (Dark) OFF ON
ii
Page 5
English
English
EF6000
User’s Manual
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without the prior written permission of Seiko Epson Corporation. No patent liability is assumed with
respect to the use of the information contained herein. While every precaution has been taken in the
preparation of this book, Seiko Epson Corporation assumes no responsibility for errors or omissions.
Neither is any liability assumed for damages resulting from the use of the information contained herein.
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third
parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of:
accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this
product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and
maintenance instructions.
Seiko Epson Corporation shall not be liable against any damages or problems arising from the use of any
options or any consumable products other than those designated as Original Epson Products or Epson
Approved Products by Seiko Epson Corporation.
Epson and ESC/POS are registered trademarks of Seiko Epson Corporation.
NOTICE: The contents of this manual are subject to change without notice.
Copyright © 2005 by Seiko Epson Corporation, Nagano, Japan.
EF6000 User’s Manual 1
Page 6
English
EMC and Safety Standards Applied
Product Name: EF6000
Model Name: M147G
The following standards are applied only to the printers that are so labeled. (EMC is tested using the
Epson power supply.)
Europe: CE marking
Safety: EN 60950
North America: EMI: FCC/ICES-003 Class A
Safety: UL 1950/CSA C22.2 No. 950
Japan: EMI: VCCI Class A
Oceania: EMC: AS/NZS CISPR22 Class B
WARNING
The connection of a non-shielded printer interface cable to this printer will invalidate the EMC standards
of this device.
You are cautioned that changes or modifications not expressly approved by Seiko Epson Corporation
could void your authority to operate the equipment.
CE Marking
The printer conforms to the following Directives and Norms:
Directive 89/336/EEC EN 55022
M147G Class B
EN 55024
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
FCC Compliance Statement For American Users
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which case the
user will be required to correct the interference at his own expense.
For Canadian Users
This Class A digital apparatus complies with Canadian ICES-003.
Safety Precautions
This section presents important information intended to ensure safe and effective
use of this product. Please read this section carefully and store it in an accessible
location.
WARNING:
Shut down your equipment immediately if it produces smoke, a strange odor, or
unusual noise. Continued use may lead to fire. Immediately unplug the
equipment and contact your dealer or a Seiko Epson service center for advice.
Never attempt to repair this product yourself. Improper repair work can be
dangerous.
2 EF6000 User’s Manual
Page 7
English
Never disassemble or modify this product. Tampering with this product may
result in injury or fire.
Be sure to use the specified power source. Connection to an improper power
source may cause fire.
Do not allow foreign matter to fall into the equipment. Penetration by foreign
objects may lead to fire.
If water or other liquid spills into this equipment, unplug the power cord
immediately, and then contact your dealer or a Seiko Epson service center for
advice. Continued usage may lead to fire.
CAUTION:
Do not connect cables in ways other than those mentioned in this manual.
Different connections may cause equipment damage and burning.
Be sure to set this equipment on a firm, stable, horizontal surface. Product may
break or cause injury if it falls.
Do not use in locations subject to high humidity or dust levels. Excessive humidity
and dust may cause equipment damage or fire.
Do not place heavy objects on top of this product. Never stand or lean on this
product. Equipment may fall or collapse, causing breakage and possible injury.
To ensure safety, unplug this product before leaving it unused for an extended
period.
Do not touch the thermal head or paper feed motor. Wait for the head and the
motor to be cool. The head and the motor can be very hot after printing for a
long time. Touching them may cause burns.
Labels
WARNING:
Do not connect a telephone line to the drawer kick-out connector or the
display module connector; otherwise the printer and the telephone line may
be damaged.
CAUTION:
Thermal head and paper feed motor for the thermal section are hot.
CAUTION:
Caution label for autocutter blade.
Unpacking
The following items are included with the standard specification printer. If any
item is damaged, contact your dealer.
❏ Printer
❏ Thermal roll paper
❏ Dedicated ribbon cassette [ERC-32]
❏ Power switch cover
❏ User’s manual (This manual)
EF6000 User’s Manual 3
Page 8
English
Connectors
interface
DM
drawer kick-out
Important Installation Notes
❏ For a serial interface, use a null modem cable.
❏ For a parallel interface, use an IEEE 1284 cable.
❏ For a USB interface, install the driver before connecting the printer.
Downloading Drivers, Utilities, and Manuals
Drivers, utilities, and manuals can be downloaded from the following
URL.
For customers in North America, go to the following web site:
http://www.epsonexpert.com/ and follow the on-screen instructions.
Any items and cleaning supplies for EF6000 printers are available from
power
Burroughs Payment Systems for world-wide delivery.
Product and Services: 800-448-1424
Maintenance and Warranty Services: 800-328-0440 select prompt 2 and then prompt 1
Burroughs Payment Systems Web Store: www.burroughsstore.com
4 EF6000 User’s Manual
Page 9

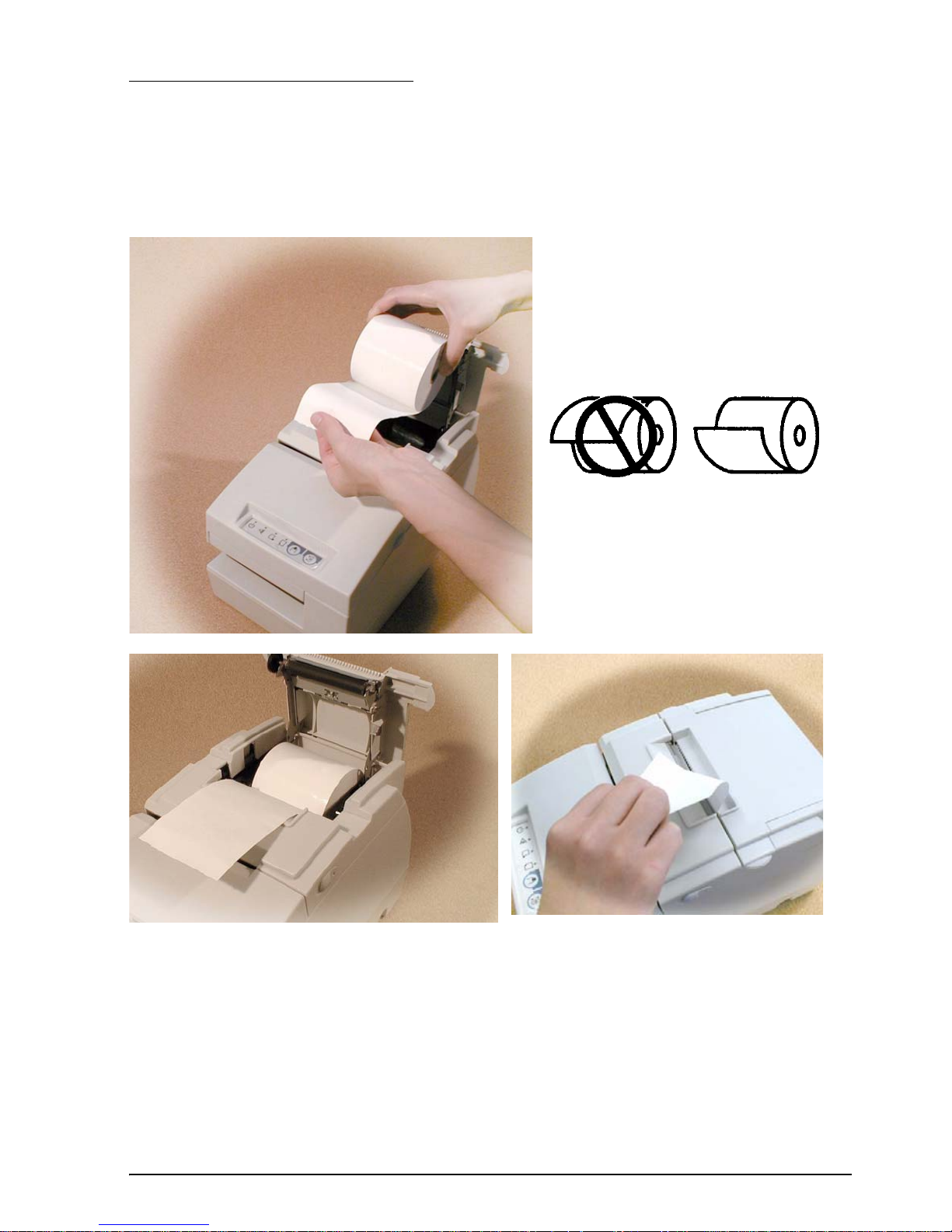

Installing the Paper Roll
Note:
Do not use paper rolls that have the paper glued or taped to the core because they might
cause a paper jam.*
To prevent paper jams, make sure that nothing obstructs paper coming out of the paper
exit, and do not pull the paper out of the printer.
English
*Note: To order paper rolls call 1-800-448-1424
EF6000 User’s Manual 5
Page 10
English

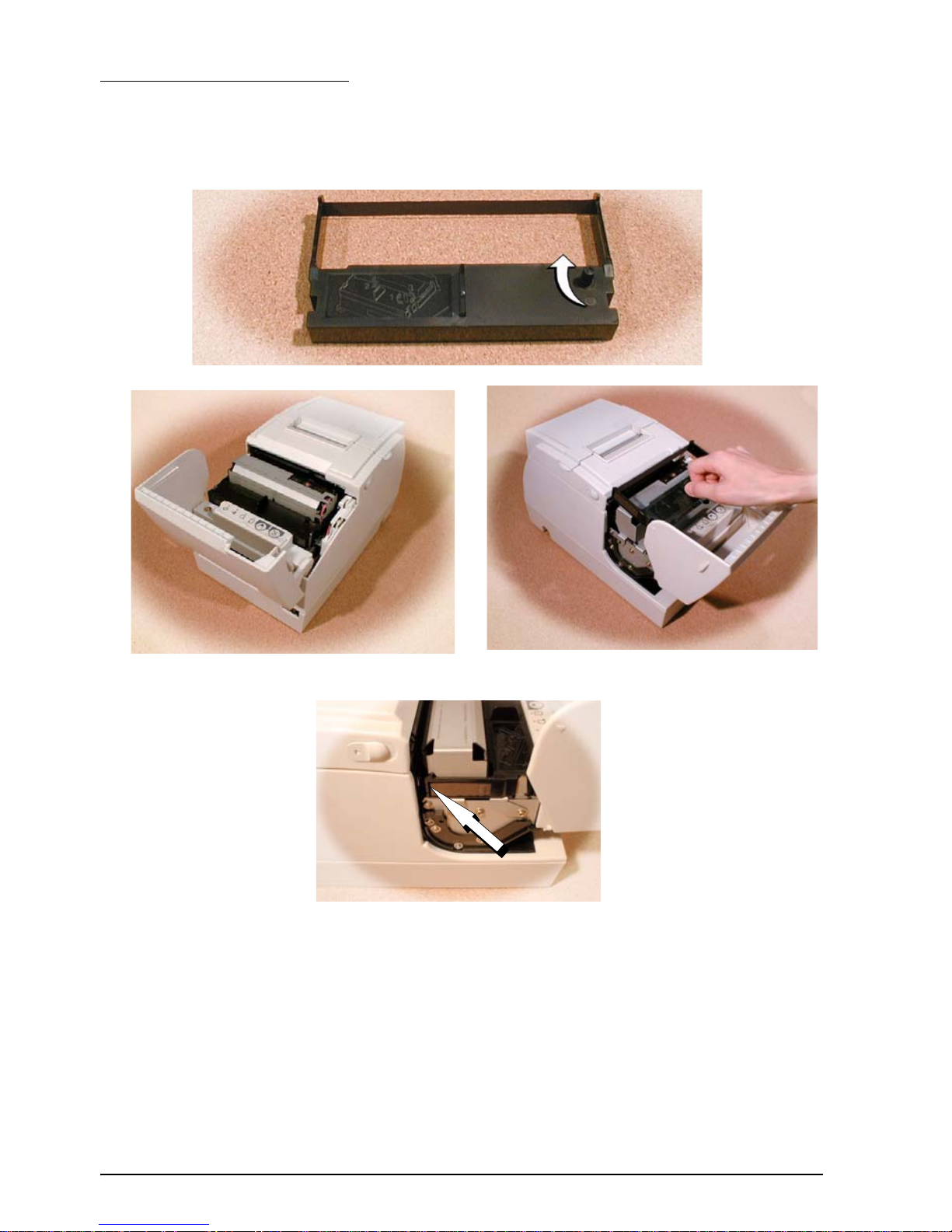

Installing the Ribbon
Burroughs recommends the use of genuine Burroughs ribbon cassettes.*
1. Turn on the printer. Turn the knob on the ribbon cartridge. Open the front
cover of the printer, and insert the new ribbon.
.
2. Turn the knob 2 or 3 times and check the ribbon position.
*Note: To order ribbons call 1-800-448-1424
6 EF6000 User’s Manual
Page 11
Inserting Slip Paper
Troubleshooting
Error light on or blinking.
Make sure that the printer cover is properly closed.
Turn off the printer and check for a paper jam.
English
➀
➁
The autocutter is jammed or the paper roll cover will not open.
1. Turn off the printer and open the unit cover.
2. Then turn the knob until you see a pin in the opening.
pin
knob
EF6000 User’s Manual 7
Page 12
English
Cleaning the Print Head
CAUTION:
After printing, the print head can be very hot. Be careful not to touch it. Also let
it cool before you clean it. Do not damage the print head by touching it with
your fingers or any hard object.
Open the paper roll cover, and clean the thermal element (the green part) of the
print head with a cotton swab moistened with an alcohol solvent (ethanol,
methanol, or IPA).
Clean the thermal head periodically (generally every 3 months) to maintain
receipt print quality.
MICR and Endorsement Printing (Factory installed options)
Reading MICR Characters On Personal Checks
CAUTION:
Do not insert checks with staples in them. This may cause paper jams, MICR
reading errors, and damage to the MICR head.
Be sure the checks are flat, without curls, folds, or wrinkles.
1. Wait until the SLIP light blinks. Then insert the check face up with the right
side of the check against the right side of the paper guide as far as it will go.
Be sure that the MICR characters are on the right.
MICR
characters
on this side
face up
8 EF6000 User’s Manual
Page 13
English
2. The printer will detect the check and start drawing it in. When the printer
starts drawing it in, let go of the check immediately. When the printer ejects
the check and the SLIP light starts blinking again; remove the check by pulling
it straight up; do not pull it at an angle.
Cleaning the MICR Mechanism
Approximately every 12 months clean the MICR head with a moistened cleaning
sheet. Use the following or an equivalent commercially available cleaning sheet:
PRESAT brand (KIC) “CHECK READER CLEANING CARD.”
Note:
Be sure not to use an adhesive cleaning sheet.
Follow the steps below:
1. Load a paper roll in the printer; turn off the power; then open the paper roll
cover and turn the power back on while holding down the RELEASE button.
2. Press the RELEASE button 7 times; then close the paper roll cover. The printer
prints the following message on receipt paper and the SLIP light flashes.
To order call: 1-800-448-1424
3. Insert the cleaning sheet like a standard check.
CAUTION:
Be sure that the sheet is inserted with the correct side up and that it is inserted in
the correct direction.
Use a cleaning sheet only one time; then discard it.
4. When the sheet is ejected, press the RELEASE button, and remove the sheet
from the printer.
Notes on using the MICR reader
Do not install the printer near any magnetic fields. Be especially careful where you
install your display device and be sure to check the recognition rate of the MICR
reader with the display device in place.
Make sure that the printer is not subjected to any impact or vibration when it is
performing a MICR reading.
EF6000 User’s Manual 9
Page 14
English

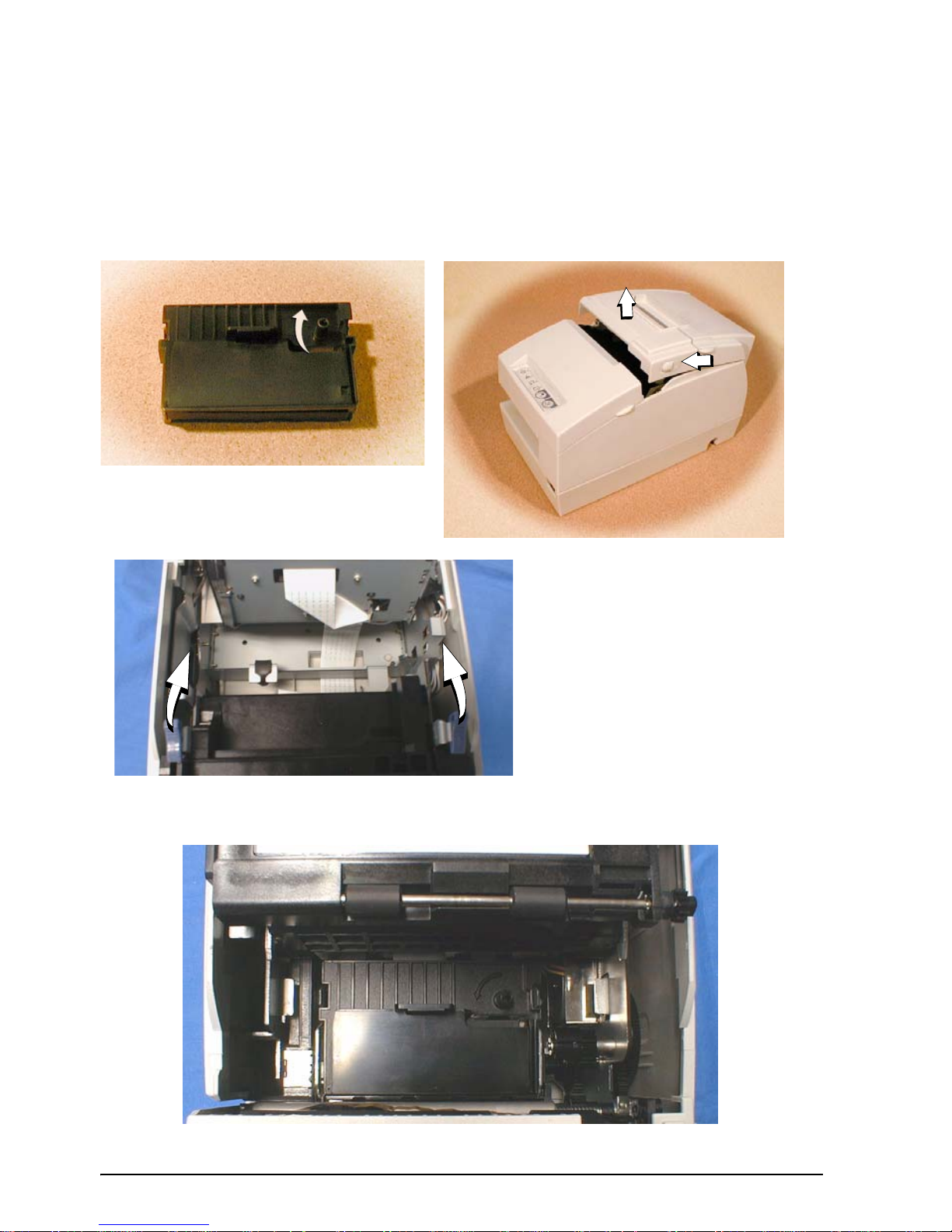

Endorsement Printing
If your printer has the optional endorsement printing mechanism, install the
endorsement ribbon following the steps below:
Note:
Be sure to turn on the power before installing a ribbon cassette.
1. Turn the ribbon cassette knob. Then open the unit cover. Inside the printer,
push the levers backward to open the unit.
Note:
Do not open the unit
during printing.
2. Insert the ribbon into the printer in the position shown and turn the knob
again to seat the ribbon. Then close the printer.
10 EF6000 User’s Manual
Page 15
Epson Ecology Label
This product is in compliance with the Epson ecology label requirements.
English
EF6000 Specifications
.
Print method Receipt: Thermal line
Slip: 9-pin serial impact dot matrix
Endorsement: 8-pin shuttle impact dot matrix
Print font Receipt: 9 × 17 / 12 × 24
Slip: 5 × 9 / 7 × 9
Endorsement: 5 × 7
Columns Receipt: 56/42
Slip: 60/45
Endorsement: 40
Character size
(W × H)
Character sets 95 alphanumeric, 37 international characters
Print speed Receipt: 63, Slip: 5.14, Endorsement: 1.9 (lines per second)
Paper dimensions Receipt: Thermal roll paper 79.5 ± 0.5 × 83 mm {3.1 ± 0.02 × 3.3"}
Paper thickness Slip (single-ply): 0.09 ~ 0.2 mm {0.0035 ~ 0.0079"}
Receipt: 0.99 × 2.40 mm {0.04 × 0.09"}
1.41 × 3.39 mm {0.06 × 0.13"}
Slip: 1.56 × 3.1 mm {0.06 × 0.12"}
1.24 × 3.1 mm {0.05 × 0.12"}
Endorsement: 1.1 × 2.42 mm {0.04 × 0.10"}
128 × 11 (slip: 12) pages extended graphic characters
Slip/endorsement: 70 ~148 × 150 ~ 210 mm {2.8 ~ 5.8 × 5.9 ~ 8.3"} (W × L)
Endorsement: 0.09 ~ 0.2 mm {0.0035 ~ 0.0079"}
Copy capability Receipt/Endorsement: Single-ply
Slip: 1 original + 3 copies
Inked ribbon Slip: ERC-32
Endorsement: ERC-41
Ribbon life Slip: 4 million characters
Endorsement: 8000,000 characters
Interface (compatible) RS-232C/Bi-directional parallel/RS-485 (dealer option)
Data buffer Selectable for 45 bytes or 4 KB using DIP switch
D.K.D. function 2 drives
Power supply +24 VDC ± 10%
EF6000 User’s Manual 11
Page 16
English
Current consumption Slip: Approximately 1.7 A (mean)
Receipt: Approximately 1.8 A (mean)
Temperature Operating: 5 to 45°C {41 to 113°F}
Storage: −10 to 50°C {14 to 122°F}
Humidity 10 to 90% without condensation
Reliability Receipt: MTBF: 360,000 hours, MCBF: 72 million lines
Slip: MTBF: 180,000 hours, MCBF: 18 million lines
Overall dimensions 185 × 186 × 298 mm {7.28 × 7.32 × 11.73"} (H × W × D)
Mass Approximately 5.3 kg {11.7 lb}
12 EF6000 User’s Manual
Page 17
WEEE (Waste Electrical and Electronic Equipment) Directive
This information only applies to customers in the European Union, according to
Directive 2002/96/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL
OF 27 January 2003 on waste electrical and electronic equipment (WEEE) and
legislation transposing and implementing it into the various national legal systems.
For other countries, please contact your local government to investigate the
possibility of recycling your product.
English
The crossed out wheeled bin label that can be found on
your product indicates that this product should not be
disposed of via the normal household waste stream. To
prevent possible harm to the environment or human
health please separate this product from other waste
streams to ensure that it can be recycled in an
environmentally sound manner. For more details on
available collection facilities please contact your local
government office or the retailer where you purchased
this product.
Deutsch
Der Aufkleber mit durchgekreuzter Mülltonne an
diesem Produkt weist darauf hin, dass dieses Produkt
nicht im normalen Hausmüll entsorgt werden darf. Zur
Vermeidung einer möglichen Beeinträchtigung der
Umwelt oder der menschlichen Gesundheit und um zu
gewährleisten, dass es in einer umweltverträglichen
Weise recycelt wird, darf dieses Produkt nicht in den
Hausmüll gegeben werden. Informationen zu
Entsorgungseinrichtungen erhalten Sie bei der
zuständigen Behörde oder dem Geschäft, in dem Sie
dieses Produkt erworben haben.
Français
L'étiquette apposée sur ce produit et représentant une
poubelle barrée indique que le produit ne peut être mis au
rebut avec les déchets domestiques normaux. Afin
d'éviter d'éventuels dommages au niveau de
l'environnement ou sur la santé, veuillez séparer ce
produit des autres déchets de manière à garantir qu'il soit
recyclé de manière sûre au niveau environnemental.
Pour plus de détails sur les sites de collecte existants,
veuillez contacter l'administration locale ou le détaillant
auprès duquel vous avez acheté ce produit.
Português
A etiqueta com o símbolo de um contentor de lixo
traçado com uma cruz que aparece no produto indica
que este produto não deve ser deitado fora juntamente
com o lixo doméstico. Para evitar possíveis danos no
ambiente ou na saúde pública, por favor separe este
produto de outros lixos; desta forma, terá a certeza de
que pode ser reciclado através de métodos não
prejudiciais ao ambiente. Para obter mais informações
sobre os locais de recolha de lixo disponíveis, contacte
a sua junta de freguesia, câmara municipal ou
localonde comprou este produto.
Nederlands
Op uw product is een label van een rolcontainer met
een kruis erdoor aangebracht. Dit label wil zeggen dat
dit product niet bij het normale huishoudelijk afval mag
worden ingezameld. Om eventuele schade aan het
milieu of de gezondheid van de mens te voorkomen
moet dit product gescheiden van al het ander afval
worden ingezameld, zodat het op een verantwoorde
wijze kan worden verwerkt. Voor meer informatie over
uw lokale afvalinzameling wendt u zich tot uw
gemeente of de leverancier bij wie u dit product hebt
gekocht.
Dansk
Etiketten med et kryds over skraldespanden på hjul,
der sidder på produktet, angiver, at dette produkt ikke
må bortskaffes sammen med almindeligt
husholdningsaffald. For at beskytte miljø og helbred
skal dette produkt bortskaffes separat, så det kan
genbruges på en måde, der er god for miljøet. Kontakt
de lokale myndigheder eller den forhandler, hos hvem
du har købt produktet, vedrørende steder, hvor du kan
aflevere produktet.
Italiano
L'etichetta con il contenitore barrato applicata
sull'imballo indica che il prodotto non deve essere
smaltito tramite la procedura normale di smaltimento
dei rifiuti domestici. Per evitare eventuali danni
all'ambiente e alla salute umana, separare questo
prodotto da altri rifiuti domestici in modo che possa
essere riciclato in base alle procedure di rispetto
dell'ambiente. Per maggiori dettagli sulle strutture di
raccolta disponibili, contattare l'ufficio competente del
proprio comune o il rivenditore del prodotto.
Español
La etiqueta de un contenedor tachado que hallará en
su producto indica que este producto no se puede tirar
con la basura doméstica normal. Para impedir posibles
daños medioambientales o para la salud, separe este
producto de otros canales de desecho para garantizar
que se recicle de una forma segura para el medio
ambiente. Para más información sobre las
instalaciones de recolección disponibles, diríjase a las
autoridades locales o al punto de venta donde adquirió
este producto.
Suomi
Laite on merkitty jäteastia-symbolilla, jonka yli on
vedetty rasti. Tämä tarkoittaa, ettei laitetta saa hävittää
normaalin talousjätteen mukana. Älä hävitä laitetta
normaalin jätteen seassa vaan varmista, että laite
kierrätetään ympäristöystävällisellä tavalla, jottei
ympäristölle tai ihmisille aiheudu vahinkoa. Lisätietoja
kierrätyksestä ja keräyspisteistä saa ottamalla yhteyttä
paikallisiin viranomaisiin tai jälleenmyyjään, jolta laite
ostettiin.
Svenska
Symbolen med en överkorsad soptunna innebär att
denna produkt inte får kastas i vanligt hushållsavfall.
För att skydda miljön ska denna produkt inte kastas
tillsammans med vanligt hushållsavfall utan lämnas för
återvinning på tillbörligt sätt. För mer information om
uppsamlingsplatser kontakta din lokala myndighet eller
den återförsäljare där du har köpt produkten.
Page 18
Norsk
Det er krysset over merket av beholderen på hjul som
vises på produktet, som angir at dette produktet ikke
skal kastes sammen med vanlig husholdningsavfall.
Hold dette produktet atskilt fra annet avfall slik at det
kan resirkuleres på en miljømessig forsvarlig måte og
dermed forhindre eventuell skade på miljø eller helse.
Hvis du vil ha mer informasjon om hvor produktet kan
leveres inn, kontakter du kommunale myndigheter eller
forhandleren der du kjøpte dette produktet.
Česky
Štítek s přeškrtnutým odpadkovým košem na
kolečkách, který lze nalézt na výrobku, označuje, že
tento product se nemá likvidovat s běžným domovním
odpadem. V zájmu ochrany životního prostředí a
lidského zdraví zlikvidujte tento výrobek jako tříděný
odpad, který se recykluje způsobem šetrným k
životnímu prostředí. Podrobnější informace o sběrných
dvorech pro tříděný odpad získáte na obecním úřadě
nebo u prodejce, u kterého jste příslušný výrobek
zakoupili.
Magyar
A terméken található, áthúzott szemetest ábrázoló
címke azt jelzi, hogy ezt a terméket nem szabad a
rendes háztartási szeméttel együtt kidobni. Az
esetleges környezeti- vagy egészségkárosodást
megelõzendõ, kérjük, hogy ezt a terméket a többi
szeméttõl elkülönítve helyezze el, és biztosítsa, hogy
azt környezetbarát módon újrahasznosítsák. A
rendelkezésére álló begyûjtõ létesítményekrõl kérjük
tájékozódjon a megfelelõ helyi állami szerveknél vagy
a viszonteladónál, ahol a terméket vásárolta.
Polski
Symbol przekreślonego kosza znajdujący się na
produkcie oznacza, że nie może on być utylizowany
razem z normalnymi odpadami z gospodarstwa
domowego. Aby zapobiec potencjalnemu zagrożeniu
dla środowiska lub zdrowia ludzkiego, produkt ten
należy odseparować od reszty odpadów z
gospodarstwa domowego i utylizować w ekologicznie
właściwy sposób. Szczegółowe informacje na temat
punktów zbiórki odpadów można uzyskać w lokalnych
urzędach lub u sprzedawcy danego produktu.
Slovensky
Štítok s preškrtnutým odpadkovým košom na
kolieskach, ktorý je možné nájst’ na výrobku, označuje,
že tento product sa nemá likvidovat’ s bežným
komunálnym odpadom. V záujme ochrany životného
prostredia a ľudského zdravia zlikvidujte tento výrobok
ako triedený odpad, ktorý sa recykluje spôsobom
šetrným k životnému prostrediu. Podrobnejšie
informácie o zberných dvoroch pre triedený odpad
získate na obecnom úrade alebo u predajcu, u ktorého
ste príslušný výrobok zakúpili.
Slovenski
Prečrtan koš za smeti na etiketi, katero lahko najdete
na vašem izdelku, pomeni, da tega izdelka ne smete
odvreči podobno kot vse ostale smeti. Da bi preprečili
morebitne škodljive vplive na okolje ali zdravje, ločite
izdelek od vseh ostalih in poskrbite, da bo recikliran na
okolju prijazen način. Natančne informacije o tem, kje
se nahajajo primerna odlagališča, pridobite v vašem
krajevnem uradu ali pri prodajalcu.
Eesti
Teie tootele kleebitud tähis, mis kujutab ratastega
prügikonteinerit, millele on rist peale tõmmatud, keelab
toote kõrvaldamise majapidamisjäätmetega sarnasel
viisil. Keskkonnale või inimeste tervisele tekitatava
võimaliku kahju vältimiseks eraldage toode teistest
jäätmetest, et tagada selle korduvkasutamine
keskkonnasäästlikul viisil. Kui soovite saada rohkem
teavet võimalike kogumispunktide kohta, võtke
ühendust kohaliku omavalituse ametnikuga või teile
toote müünud jaemüüjaga.
Lietuviškai
Užbraukta ratuota šiukšliadėžės etiketė, kurią rasite
ant jūsų produkto, reiškia, kad šis produktas neturėtų
būti išmestas kartu su įprastinėmis buitinėmis
šiukšlėmis. Siekiant išvengti galiamos žalos aplinkai
bei žmonių sveikatai, prašome atskirti šį produktą nuo
kitų atliekų, ir įsitikinti, kad jis būtų perdirbtas aplinkai
nepavojingu būdu. Jei reikia išsamesnės informacijos
apie atliekų surinkimo ypatumus, prašome kreiptis į
savo vietos valdžios įstaigas arba į mažmeninį
pardavėją, iš kurio jūs įsigijote šį produktą.
Latviski
Marķējums ar pārsvītrotu atkritumu tvertni uz
ritenīšiem, kas redzams uz izstrādājuma, norāda, ka šo
izstrādājumu nedrīkst likvidēt kopā ar parastajiem
sadzīves atkritumiem. Lai novērstu iespējamo
kaitējumu videi vai cilvēku veselībai, lūdzu, atdaliet šo
izstrādājumu no citiem atkritumiem, tādējādi nodrošinot
tā otrreizējo pārstrādi videi drošā veidā.
Papildinformācijai par pieejamajām atkritumu
savākšanas iespējām, lūdzu, sazinieties ar vietējo
pašvaldību vai mazumtirgotāju, no kura jūs
iegādājāties šo izstrādājumu.
Ελληνικά
Η διαγραµµένη ετικέτα του τροχοφόρου κάδου
απορριµµάτων που θα βρείτε πάνω στο προϊόν σας
υποδεικνύει ότι αυτό το προϊόν δεν πρέπει να
απορρίπτεται µέσω του κανονικού δικτύου αποκοµιδής
οικιακών απορριµµάτων. Για να αποτρέψετε πιθανές
επιπτώσεις στο περιβάλλον ή την ατοµική υγεία,
παρακαλούµε να διαχωρίσετε αυτό το πρ
άλλα δίκτυ
δυνατή η ανακύκλωσή του µε έναν περιβαλλοντικά
θεµιτό τρόπο. Για περισσότερες πληροφορίες σχετικά
µε τις διαθέσιµες δυνατότητες συλλογής
απορριµµάτων, παρακαλούµε να επικοινωνήσετε µε
την τοπική κυβερνητική αρχή ή το κατάστηµα λιανικής
από όπου αγορ
α αποκο
µιδής ώστε να διασφαλίσετε ότι είναι
άσατε αυτό το προϊόν.
οϊόν από
Türkçe
Ürününüzün üzerinde bulunan çarpı işaretli tekerlekli
kutu etiketi, bu ürünün normal ev atık sistemi
vasıtasıyla elden çıkarılmaması gerektiğini gösterir.
Çevreye ve insan sağlığına zarar vermeyi önlemek için,
lütfen bu ürünü çevreye zarar vermeyecek şekilde geri
dönüşüme tabi tutulmak üzere diğer atıklardan ayırın.
Mevcut toplama tesisleri ile ilgili ayrıntılı bilgi edinmek
için, yerel devlet makamlarıyla veya bu ürünü satın
aldığınız satıcıyla irtibata geçin.
Page 19
.
Page 20
© 2010 Burroughs Payment Systems, Inc.
All rights reserved.
8218 2668–000
*82182668-001*
Loading...
