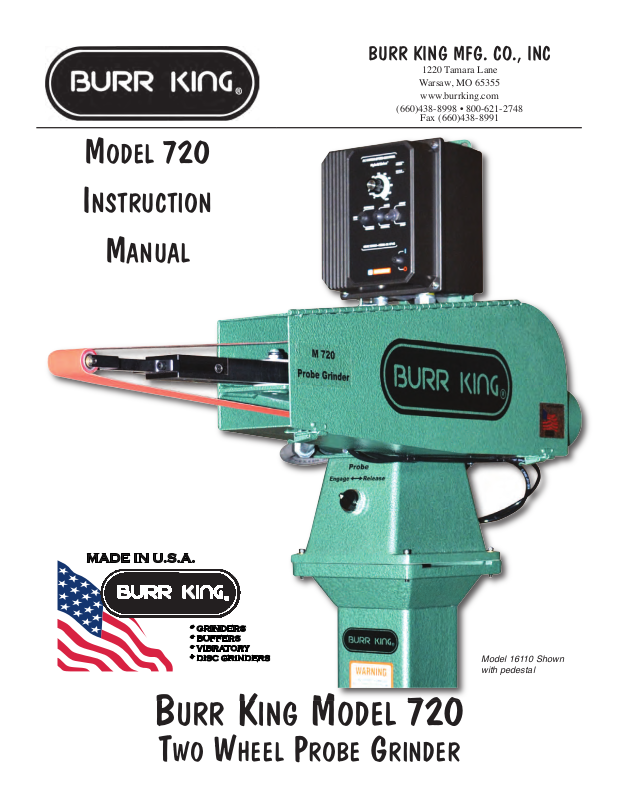

Page 1
MODEL 720
I
NSTRUCTION
MANUAL
BURR KING MFG. CO., INC
1220 Tamara Lane
Warsaw, MO 65355
www.burrking.com
(660)438-8998 • 800-621-2748
Fax (660)438-8991
BURR KING MODEL 720
TWO WHEEL PROBE GRINDER
Model 16110 Shown
with pedestal
Page 2
BURR KING MFG. CO., INC.
1220 TAMARA LANE
WARSAW MO 65355
WWW.BURRKING.COM
(660) 438-8998 (800) 621-2748
FAX (660) 438-8991
June, 2007
Burr King Manufacturing Company. Inc. warrants the below product to be free in material and workmanship. The period of warranty is 1 year
(90 days for vibratory bowls of 20 quart and lesser volume) from the date of purchase. No warranty is provided for products that have been
modified, abused, handled carelessly, where repairs have been made or attempted by others, or for freight damage. No warranty is provided for three
phase electric motors, cont rol lers, etc. when the motors, controllers are not prot ected by magnetic starters that were supplied and installed by Burr
King Manufacturing Company. Inc. No other warranty, written or verbal is authorized by Burr King Manufacturing Company, Inc.
During the warranty period Burr King Manufacturing Company, Inc (or its authorized suppliers or agents) will replace or repair the below
product without charge if the product is found by Burr King Manufacturing Company, Inc. to be defective. To receive warranty services you must
contact Burr King Manufacturing Company, Inc. and receive authorization fir warranty service. Unless otherwise authorized by Burr King
Manufacturing Company, Inc. Products (see * below) must be returned to the factory to receive warranty service.
*Motors, speed controllers, and certain other accessories are warranted by their respective manufactures. To receive warranty service on these
items you must contact a brand label service center that supports the product in need of service. Burr King Manufacturing Company; Inc. will assist
you in locating a service center.
For the first thirty days after purchase, and when Burr King Manufacturing Company, Inc. authorizes warranty service, we will pay normal and
necessary surface freight charges both ways (except for items in *). After thirty days the customer is responsible for all freight charges. Where
possible Burr King Manufacturi ng Company, Inc. may elect to make on site service and/or repairs necessary to return the product to serviceable
condition.
To assure prompt warranty service it is necessary that you complete and return the below warranty information to Burr King Manufacturing
Company, Inc. please FAX or MAIL at your convenience.
Product model: _______________________ Serial number: _______________________
Date Purchased: ______________________ Purchased from: ______________________
Address: ____________________________ City: _______________________State/Prov: _________Postal code________
Your company name: _____________________________________________
Address: _____________________________City: _______________________State/Prov: __________Postal code________
Phone: _______________________________Fax: _______________________Email: _______________________________
Your name: ___________________________Title: _______________________
How did you learn about Burr King products?
Trade show___Web___Industrial Distributor ___Advertisement ___Other __________________________Which one:________________________
What is the intended use of this product? ______________________________________________________________________________________
Please indicate the general work types performed at your compan y, check all that apply
Fabrication___Machining___Casting__Molding___Welding___Finishing___Assembly___Research___Other___
Please indicate the primary product focus of your company; check all that apply,
Aircraft/Missile___Automotive___Contract machine___Contract Fabrication___ Agricultural____Maintenance___ Recreational___
Job shop___Foundry___Construction___Arts___Orthopedic___Dental___Medical___Other_________________________________
Please tell us what we can do to improve our products
________________________________________________________________________________________________________________________
________________________________________________________________________________________________________________________
May we contact you? Yes___No___
Thank you for purchasing Burr King products!
:
:
Register online @
www.burrking.com
Page 3
(
)
(
)
(
)
August 29, 2007
BURR KING MFG. CO., INC.
1220 TAMARA LANE
WARSAW MO 65355
WWW.BURRKING.COM
660
438-8998
FAX
660
LETTER OF AUTHENTICITY
800
621-2748
438-8991
This letter is to certify that all Burr King Belt grinders, Disc
grinders, Polishing machines Vibra King Chambers and Bowls are
manufactured and assembled in the United States of America.
Tariff number 847990 criterion A )
(
Don Mac Carthy
President
See our catalog at www.burrking.com contact us at [email protected]
Page 4
BURR KING MFG. CO., INC.
1220 TAMARA LANE
WARSAW MO 65355
WWW.BURRKING.COM
(660) 438-8998 (800) 621-2748
FAX (660) 438-8991
February 2005
OPERATOR, and OPERATING AREA SAFETY
Subject equipment includes Grinders, buffers, polishers, and other rotating equipment. Serious injury
or death may occur if minimum safety precautions are not understood, and obeyed by operators and
those other persons who may be in the immediate vicinity of the subject equipment. Persons who
operate, or are in the immediate vicinity of the subject equipment must be properly trained in, and
use, minimum safety precautions and procedures for such machinery.
Minimum safety requirements to operate, or work in the immediate vicinity subject equipment:
1. Read and understand all operating instructions, manuals, labels, and other information provided with the
equipment.
2. Install the equipment according to manufacturer’s instructions.
3. Securely bolt the equipment to a rigid, structurally sound mounting surface.
4. Use and wear proper eye and face protection.
5. Use and wear proper protection for the body, hands, fingers, feet, and legs.
6. Review and understand all machine guards, adjustments, and points of exposure to potential injury.
7. Do not remove, tamper with, or otherwise alter, equipment guards, and other safety features.
8. Insure the machine is adjusted, and remains adjusted according to manufacture’s requirements.
9. Maintain the equipment in good operating condition.
10. Have another person who is knowledgeable in proper and safe operation of the subject equipment
demonstrate proper and safe operation to all operators, and to those persons who might be in the immediate
vicinity of the subject equipment.
11. Use work piece holding devices when ever possible that diminish the possibility that persons will come
in contact with moving machine pieces, or spark/debris output from the machine.
12. Use spark and debris arresting apparatus. Such apparatus should be connected to the machine so as to
contain dust and debris that is generated, and to suppress sparks thereby limiting human inhalation risk, and
the risk of fire or explosion.
13. Use appropriate inhalation apparatus to protect person from ingestion and/or inhalation of sparks, debris,
smoke, particulates, etc.
14. Avoid mixing different metals, alloys, and materials. To mix such materials might create a fire or
explosion hazard.
15. Protect persons from work pieces, particulates, etc. that could be forcibly ejected from the machine. For
example, a buffing wheel or grinding belt can “grab” a work piece while the work piece is being buffed,
polished, ground, or otherwise conditioned, resulting in forcible ejection toward the operator or those in the
vicinity of the machine. The use of leather aprons, gloves, and eye shields are examples of protective gear
that may be effective. In general do not grind, buff, or otherwise engage the traveling belt, wheel, or disc
surface with the work piece pointing into the direction from which the belt, wheel, or disc is traveling.
However, if you choose to do so be aware the work piece may lodge in the traveling belt, wheel, or disc and
be forcibly, and dangerously ejected.
16. Do not operate this machine if the gap (nip point) between a moving belt, wheel or disc and the work
support surface exceeds 1/8 inch.
17. Do not operate this machine if the gap between the moving abrasive belt, disc or wheel and the adjacent
face
page 1 continued on next page
Page 5
Continued from page 1
of the work rest (or table) will permit passage of the work piece through the gap (nip point). Note, however,
that certain alloys such as titanium may create conditions where grinding debris can accumulate in a tight gap
creating a potential fire hazard. When in doubt consult with your safety officer. Failure to observe this
warning may result in the work piece or other item being caught in this gap, and/or being forcibly ejected.
Failure to heed this warning may cause serious bodily harm to the operator and/or bystanders. NEVER USE
THIS EQUIPMENT IF YOU ARE NOT PROP ERLY TRAINED IN ITS OPERATI ON and/or SAFE
USE! IF IN DOUBT STOP and ASK FOR GUIDANCE!
18. Never position the work rest table at an acute angle between the top of the work rest table and the moving
belt or wheel. Doing so will create “nip point” that can cause serious injury should an operator body part
become entangled (pulled into) the nip point created by this acute angle.
19. Do not operate the equipment, or allow others to operate the equipment without proper training in these
and other rotating machinery safety requirements.
20. Do not perform maintenance on the equipment unless you are fully qualified to do so, and understand all
necessary safety and operating requirements.
21. Do not leave the machine unattended while it is running.
22. Correct equipment or safety problems immediately. Do not operate the equipment when it requires
maintenance, or correction.
23. Install and use high quality abrasive belts, wheels, discs, media, etc., as appropriate to your machine.
Understand and follow the operating requirements provided by the manufacturer of these materials.
Rotational Speed Warning, Contact Wheels
Scope: Contact wheels manufactured by Burr King Manufacturing Company, Inc., which have rubber or
urethane tires. Examples include but are not limited to stock codes 202, 302, 402, 502,702, 802, 902, 1002,
1202 and variants. Variants have stock codes that begin with the base number; i.e. 802-S-55 is an 802
variant.
Users are warned not to exceed the below listed revolutions per minute (RPM) on the subject wheels. Failure
to heed this warning may lead to tire de-bonding, fragmentation, or other mechanical failure. Such failures
may cause serious personal injury to operators or bystanders, and/or cause property damage. All Burr King
products are warranted for various time periods to be free of material and/or workmanship defects. Burr King
Manufacturing Companies standard warranty policy is summarized as follows for contact wheels. 1 year
from date of purchase if mounted on a Burr King machine purchased on the same date or 90 days if
purchased as a spare or replacement part. Our warranty does not apply to wheels that are mounted on
products not manufactured by Burr King Manufacturing Company, Inc. Users who mount Burr King
manufactured contact wheels on product not manufactured by Burr King Manufacturing Company, Inc. do so
at their own risk and assume all liability for having so mounted the contact wheel(s).
Remember good safety practice demands guarding to protect operators and bystanders from wheel failure
and/or debris. Never use the subject contact wheels without proper guarding that meets commonly accepted
safe practice. See OSHA, U/L, CSA, CE, ISO and other respected
Stock code
Contact Wheel Maximum Safe RPM
202, 302 10000
402, 502, 702 802 4400
902, 1002 2200
1202 1600
Page 2, continued on page 3
safety standards.
Page 6
Continued from page 2
Occupational Noise Exposure
Burr King products produce levels of noise consistent with their intended purposes. The level and spectral
content of noise produced is dependent on the product type, the degree that the product is maintained in
proper operating condition, the abrasive/media and accessories used, the specific application, and the
surrounding environment. Noise levels produced by various Burr King grinders and polishers, as measured at
the Burr King factory, range from 80 to 93 decibels. Product operators and persons in the immediate product
vicinity should be protected from excessive noise does levels as prescribed in OSHA regulation 29, piece
1910.95 titled “Occupational Noise Exposure”.
ROTATING EQUIPMENT CAN BE DANGEROUS TO OPERATORS AND THOSE WHO MAY BE
IN ITS IMMEDIATE OPERATING VICINITY. IT IS THE ABSOLUTE AND DIRECT
RESPONSIBILITY OF PURCHASERS, MANAGERS, AND OPERATORS OF THIS EQUIPMENT
TO UNDERSTAND AND OBEY THE FOREGOING MINIMUM
REQUIREMENTS. IF YOU HAVE QUESTIONS OR SAFETY CONCERNS REGARDING
OPERATING THE SUBJECT EQUIPM ENT PLEASE CALL YOUR AUTHORIZED BURR KING
DISTRIBUTOR, OR BURR KING MANUFACTURING AT 1-800-621-2748. YOUR SAFETY IS
OUR FOREMOST CONCERN!
Burr King Manufacturing disclaims any and all responsibility for injuries, damage, loss of income, or other
adverse consequence as might be incurred by purchasers, managers, and operators of this equipment.
OPERATING SAFETY
Page 3
is last page
Page 7
BURR KING MFG. CO., INC.
1220 TAMARA LANE
WARSAW MO 65355
WWW.BURRKING.COM
(660) 438-8998 (800) 621-2748
FAX (660) 438-8991
Operating instructions for the Model 720 belt grinder February 2007
Picture 1: Shown, a model 720 with optional 4 inch diameter wheel, variable speed, with remote control console. Note guard door is closed
and latched.
The model 720 belt grinder is a two wheel path belt grinder that uses a 2 x 72-inch continuous loop abrasive
belt. For maximum effectiveness, and operator safety use abrasive belts manufactured by well respected
abrasive manufacturers.
* Use abrasive belts that are the proper size and type for your machine.
* Do not use abrasive belts that are old and excessively worn.
• Do not use abrasive belts that use lap splice joints. Thi
s type of belt is prone to separate. It also
may tend to snag your work and create a safety hazard. It may also perform poorly.
The model 720 will accept front wheels (contact wheels) that are from
9/16 inch in diameter to 4 inches in
diameter. The belt width may be ½, 1, or 2 inches. The belt length is always 72 inches and the belt speed is
independent of the contact wheel size. Note that the front wheel attachment is secured to the machine probe
by two ¼-20 Allen cap bolts (picture 2). Loosen and remove these bolts to remove the adapter that secures
the wheel to the extension arm.
Prior to operating the model 720 please take time to do the following:
1. Insure that you have received all of the items that y
ou ordered. Compare the packing slip with your
purchase order, and of course with the physical items received.
2. Verify that there is no obvious shipping damage. If shippin
g damage is discovered notify the freight carrier
of your intention to file a freight damage claim. They will assist you.
3. Verify that the AC power that is identified on the m
achine as received matches the AC power that you
intend to operate the machine with. Do not modify the machines wiring without first contacting your
distributor or Burr King manufacturing.
4. Do not modify or defeat any AC wiring safety feature. In example, do not remove the grounding pin on the
AC plug.
5. Verify that you have received a warra
nty card, parts lists, catalog, and Operator, and Operating Area
Safety Instructions.
6. Complete the warranty card and return it to Burr King Manufacturing.
7. Verify that the belt path guard is in place and that its door and lat
ches are functional (see picture 1). Verify
that the pinch guard is in place and securely fastened by the two screws supplied (see picture 2).
1
Page 8
Picture 2: Note red pinch guard. Note guard door is open, do not operate the machine with the guard door open.
8. Insure that the grinder is located in an area that provides clear access to the machine such that operators
have clear and unobstructed access to the machine. The work place should be free from floor obstructions,
trip points, and other faults that may reduce operator safety.
9. Burr King recommends that all three phase installations include a magnetic starter. Magnetic starters
protect motors from “single phasing”, overheating, etc. thereby reducing the risk of damage to the equipment
and/or fire hazard to your facility.
10. Insure that the model 720 AC power source is properly
sized, and properly fused. You should consult a
competent electrician, or you may call Burr King Manufacturing for guidance.
Functional operating instructions for the model 720 belt grinder
The model 720 was fully tested and verified to comply with requirements prior to shippi
ng from the factory.
You should perform the following steps:
1. Securely
bolt the machine to a table, pedestal, or other \mounting location. The base of the model 720
has 4 mounting holes for this purpose. Use grade 5 or better bolts for mounting the machine. If the
machine is mounted with the motor shaft other than horizontal use 5/16 bolts or larger. otherwise use ¼
inch or larger bolts.
2. If the machine controls and air regulator assembly
is console mounted securely mount the console in a
convenient location where the operator can access the controls WITHOUT REACHING OVER THE
MACHINE. Operating the controls while reaching over the machine may lead to serious bodily
injury.
3. Insure that the regulator asse
4. Connect a clean air pressur
mbly is mounted such that the bowls are vertical.
e source of at least 45 PSI to the air pressure regulator supplied with the
model 720.
5. Note the air controls that ar
e mounted either in the base of the model 720 or in an attached console. The
function of each control is described by control labeling ( see picture 3). With these controls you can
retract the front wheel to remove and install abrasive belts, adjust the speed of probe extension, and
adjust the speed of probe retraction. Ordinarily you will not need to adjust the latter two controls.
CAUTION: The abrasive belt to wheel interface will close quickly so KEEP CLEAR OF THESE
INTEFACES WHEN OPERATING THE AIR CONTROLS. NEVER OPERATE THE AIR
CONTROLS WHILE THE ABRASIVE BELT IS IN MOTION. FAILURE TO FOLLOW THESE
INSTRUCTIONS MAY LEAD TO BODILY INJURY.
2
Page 9
Picture 3: shown is a variable speed controller (optional) and the air/belt controls mounted in a console (optional). Standard configuration
has the controls machine mounted.
6. Using the air pressure regulator control located on the incoming air filter assembly (see picture), adjust
the air pressure for air pressure delivery of from 20 to 50 PSI. The greater the air pressure, the greater the
belt tension.
7. Open the gua
rd door, RELEASE the probe and install the abrasive belt. Center the belt on the wheels.
Keep clear of the belt and wheels and ENGAGE the probe. The probe will move outward and place the
belt under tension.
8. Engage the motor b
y placing the ON/OFF switch to ON. The belt should rotate smoothly
in a CCW
direction about the machine wheel belt path as you face the left side of the machine (guard door). If
either of these conditions are not met turn the machine OFF immediately.
a. If the abrasive belt does not re
main centered on the contact wheel adjust belt tracking by using
the Allen cap screw on the left side of the probe (see picture 4). Adjust this screw either CW or
CCW as required to center the belt on the belt track. Once this control is adjusted it will seldom
require re-adjustment.
Picture 4: Note Allen cap screw. Use this control to adjust the belt tracking.
b. If the machine belt tensions, and tracks properly, but has excessive vibration turn the machine
OFF and call the Burr King factory for assistance.
Important note about small nose wheel diameters VS motor speed
The model 720 is available in fixed and variable belt speed models. The drive wheel of the fixed speed
model turns at 3450 RMP which is a standard electric motor speed. Using nose wheels smaller than 1 ½ in
diameter is not recommended on fixed speed models as the resultant nose wheel rpm may exceed the speed
rating of the nose wheel bearings thus shortening wheel life.
Variable speed motor control allows reduction in drive wheel speed thereby reducing the stress on small
diameter wheels. For longer nose wheel service life use the following relationships:
Nose wheel diameter (inches) Variable speed % of maximum
0.5 or less 25%
0.6 to 1.0 33%
1.1 to 1.5 75%
1.6 and larger 100%
The model 720 will accept nose wheels to 4 inches in diameter.
Maintenance procedures for the model 720
FIRST DISCONNECT THE MACHINE FROM ITS AC POWER SOURCE.
* Routinely vacuum or otherwise remove dust and debris build-up from
track.
* Routinely inspect for loose screws and other hardware. Tighten as required.
* Routinely inspect the air pressure assembly bowls for water/oil build up and
facilities provided.
* There are no other maintenance actions required. All bearings are sealed for life and require no additional
lubrication.
------------------------------------------------------------------------------------------------------------
the machine and the machine belt
drain as required using the
3
Page 10
Remember for operator safety and the continued effectiveness of your m
Do not defeat the safety guards and other safety provisions of the model 720.
Do not operate the model 720 with the safety guard open or the contact wheel guard/platen assembly (or internal
grinding attac
Do not reach inside the safety guards while the machine is running. To do so is hazardous.
Do not use fluids in your grinding pr
To do so may create an electrical safety hazard.
Do not use your model 720 to grind/polish explosive materials such unless it is equipped with explosion proof
electrical de
Do not mix alloys in your grinding. To do so may create an explosion hazard.
Do not use stone or vitreous wheels on the model 720. To do so will create
Do use eye, hand, face, arm, leg, feet
forcibly ejected work pieces, broken abrasive belts, etc.
Do train operators and others in safe operating practices.
Post these or equivalent instructions such the
Burr King Manufacturing can help you with problem solutions, and/or answers to your questions. Please call your Burr
ng distributor first. If you can not reach satisfactory conclusion please call the Burr King factory, telephone 1-660-
Ki
438-8998.
hment) removed.
ocess unless your model 720 is designed for liquid operation (NEMA 4, 4X).
vices and motor.
and body protection that is adequate to protect against flying debris,
y are available for ready operator reference.
odel 720:
an operator safety hazard.
4
Page 11
13
16
3
14
15
12
11
1
2
3
24
25

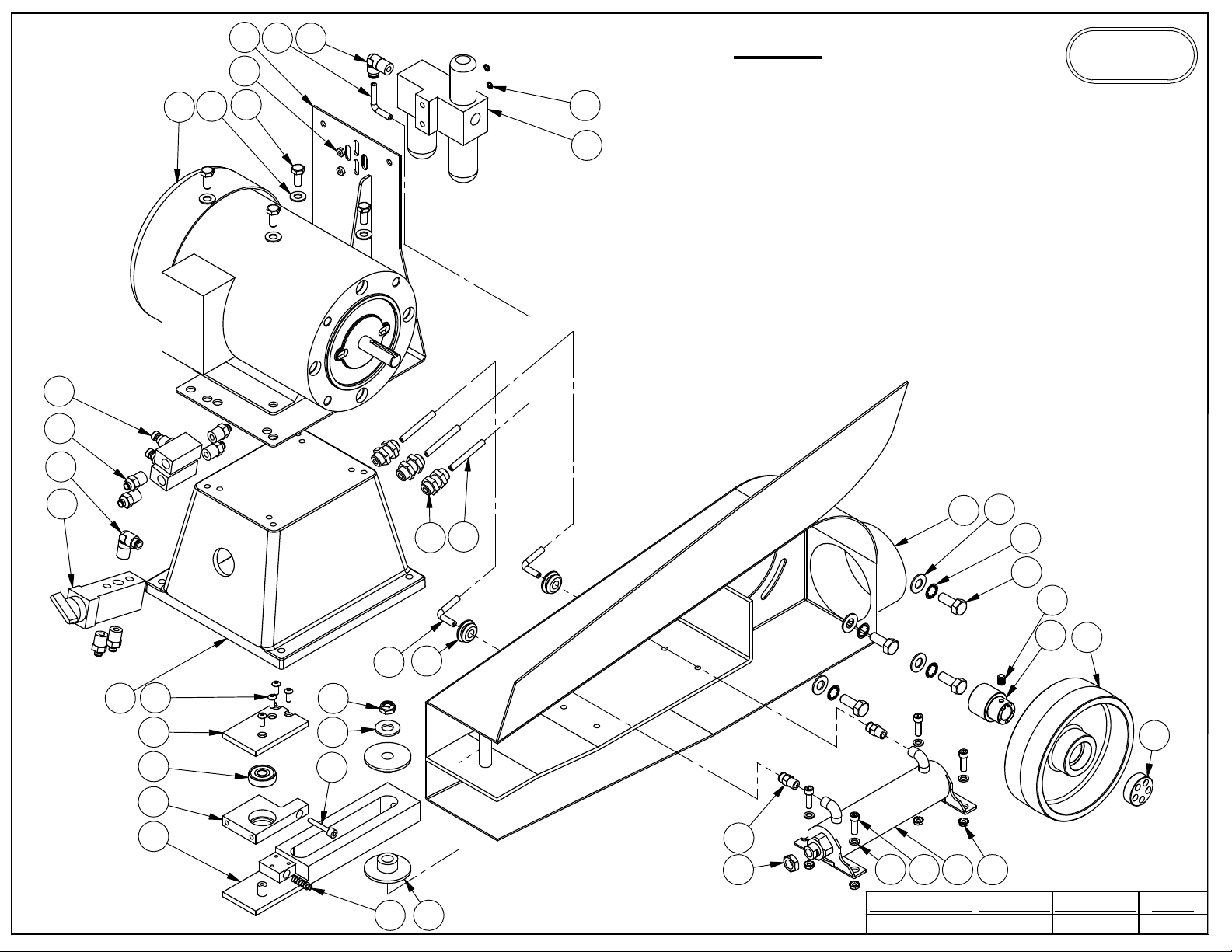

M720
SCHEMATIC
BURR KING
1220 TAMARA LANE
WARSAW, MO. 65355
4
16
23
20
16
6
5
7
8
9
10
17
18
19
21
22
26
27
28
29
DATE DRAWN
10/9/2009 CMW 1
33
32
34
35
36
37
38
30 31
REV DATE DRAWN BY SHEET
39
Page 12
M720
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 7212 VALVE, FLOW CONTROL, AIR 2
2 7217 FITTING, STRAIGHT, 1/4 X 1/4 6
3 7214 FITTING, 90 DEGREE, 1/4X1/4 2
4 7213 VALVE, SELECTOR 1
5 941-1 BASE, CONTROL MOUNT 1
6 9 SCREW, 10-24x1/2 BH, BLK OXIDE 4
7 7201-3 CAP, TRACKING 1
8 202B 6200 SERIES 10MM ID BEARING 1
9 7201-2 PIVOT 1
10 7201-1 ARM, EXTENDER 1
11 MOTOR CALL FACTORY 1
12 4 WASHER, 5/16 SAE 4
13 MB-4C BRACKET, MOUNTING, STARTER 1
14 4-0026 NUT, 8-32, ZINC 2
15 37 BOLT, 5/16-18x3/4 HEX HEAD 4
16 7219 TUBE, AIR, 1/8 ID 3
17 20 NUT, NYLOK JAM, 1/2-20 1
18 21 WASHER, 1/2 ID 1
19 3-0019 SCREW, 10-24x1 1/2 SS 1
20 7205 GROMMET 2
21 7221 SPRING, TRACKING 1
22 7203 GLIDE, DELRIN 2
23 7215 CONNECTOR, AIR, BULKHEAD 3
24 5-0036 WASHER, #8, LOCK, INTERNAL 2
25 7211 REGULATOR, FILTER ASSY 1
26 7216 FITTING, STRAIGHT, 1/8 X 1/4 2
27 4-0030 NUT, 7/16-20, JAM, THIN 1
28 5 WASHER, 1/4 AN 4
29 209 SCREW, 1/4-20 X 3/4 ALLEN HEAD 4
30 7210 CYLINDER, AIR 1
31 4-0013 NUT, KEP, 1/4-20 4
32 7200 FRAME, MAIN 1
33 5-0023 WASHER, 3/8 X 7/8, USS 4
34 5-0014 WASHER, LOCK 3/8, INTERNAL STAR 4
35 1-0001 3/8-16 x 1 HEX HEAD BOLT 4
36 25 SCREW, SET 5/16-18 x 3/8 1
37 7202A ADAPTER, WHL 1
38 707EXM DRIVE WHL 1
39 7202B ADAPTER, DRIVE WHL 1
BURR KING
1220 TAMARA LANE
WARSAW, MO. 65355
DATE DRAWN REV DATE DRAWN BY SHEET
TITLE
M720 10/9/2009 CMW
Loading...
