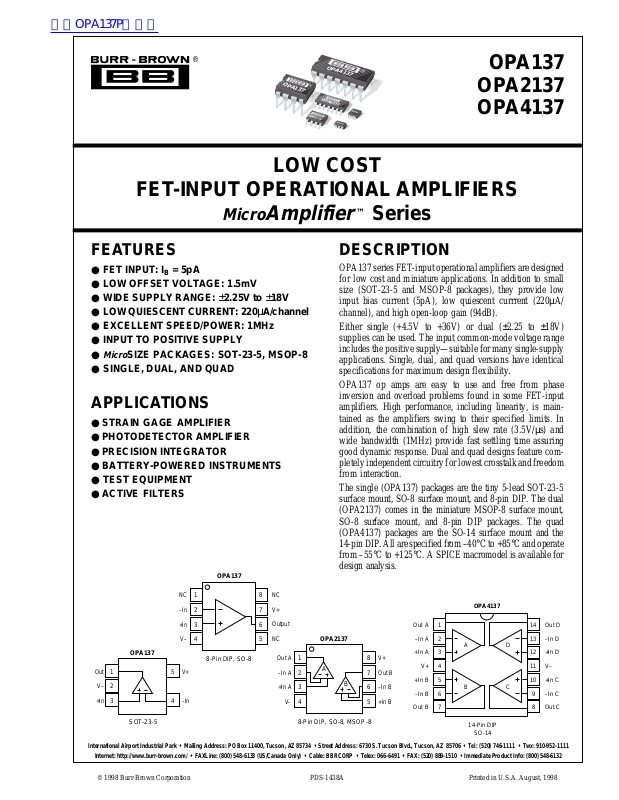

OPA137

LOW COST

FET-INPUT OPERATIONAL AMPLIFIERS

Micro

FEATURES

● FET INPUT: IB = 5pA

● LOW OFFSET VOLTAGE: 1.5mV

● WIDE SUPPLY RANGE: ±2.25V to ±18V

● LOW QUIESCENT CURRENT: 220µA/channel

● EXCELLENT SPEED/POWER: 1MHz

● INPUT TO POSITIVE SUPPLY

●

Micro

SIZE PACKAGES: SOT-23-5, MSOP-8

● SINGLE, DUAL, AND QUAD

APPLICATIONS

● STRAIN GAGE AMPLIFIER

● PHOTODETECTOR AMPLIFIER

● PRECISION INTEGRATOR

● BATTERY-POWERED INSTRUMENTS

● TEST EQUIPMENT

● ACTIVE FILTERS

OPA137

Amplifier

OPA2137

OPA4137

OPA137

OPA2137

OPA4137

OPA4137

™

Series

DESCRIPTION

OPA137 series FET-input operational amplifiers are designed
for low cost and miniature applications. In addition to small
size (SOT-23-5 and MSOP-8 packages), they provide low
input bias current (5pA), low quiescent currrent (220µA/
channel), and high open-loop gain (94dB).

Either single (+4.5V to +36V) or dual (±2.25 to ±18V)
supplies can be used. The input common-mode voltage range
includes the positive supply—suitable for many single-supply
applications. Single, dual, and quad versions have identical
specifications for maximum design flexibility.

OPA137 op amps are easy to use and free from phase
inversion and overload problems found in some FET-input
amplifiers. High performance, including linearity, is main­tained as the amplifiers swing to their specified limits. In
addition, the combination of high slew rate (3.5V/µs) and
wide bandwidth (1MHz) provide fast settling time assuring
good dynamic response. Dual and quad designs feature com­pletely independent circuitry for lowest crosstalk and freedom
from interaction.

The single (OPA137) packages are the tiny 5-lead SOT-23-5
surface mount, SO-8 surface mount, and 8-pin DIP. The dual
(OPA2137) comes in the miniature MSOP-8 surface mount,
SO-8 surface mount, and 8-pin DIP packages. The quad
(OPA4137) packages are the SO-14 surface mount and the
14-pin DIP. All are specified from –40°C to +85°C and operate
from –55°C to +125°C. A SPICE macromodel is available for
design analysis.

NC

1

–In

2

+In

3

V–

4

OPA137

Out

1

V–

2

+In

3

SOT-23-5

International Airport Industrial Park • Mailing Address: PO Box 11400, Tucson, AZ 85734 • Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 • Tel: [phone] • Twx: 910-952-1111

Internet: http://www.burr-brown.com/ • FAXLine: [phone] (US/Canada Only) • Cable: BBRCORP • Telex: 066-6491 • FAX: [phone] • Immediate Product Info: [phone]

© 1998 Burr-Brown Corporation PDS-1438A Printed in U.S.A. August, 1998

5

4

8-Pin DIP, SO-8

V+

–In

NC

8

V+

7

Output

6

NC

5

Out A

–In A
+In A

V–

OPA2137

1

A

2
3
4

8-Pin DIP, SO-8, MSOP-8

B

V+

8

Out B

7

–In B

6

+In B

5

Out A

–In A
+In A

+In B
–In B

Out B

1
2
3

V+

4
5
6
7

OPA4137

14

AD

BC

14-Pin DIP

SO-14

13
12
11
10

9
8

Out D
–In D
+In D
V–
+In C
–In C
Out C

SPECIFICATIONS: VS = ±15V

At TA = +25°C, RL = 10kΩ connected to ground, unless otherwise noted.

Boldface limits apply over the specified temperature range, T

PARAMETER CONDITION MIN TYP MAX MIN TYP MAX UNITS
OFFSET VOLTAGE

Input Offset Voltage V

T

= –40°C to +85°C ±2.5 ±7 ±3.5 ±15 mV

A

vs Temperature dV
vs Power Supply PSRR V

T

= –40°C to +85°C ±250 ✻ µV/V

A

Channel Separation (dual, quad) dc 0.6 ✻ µV/V

OS

/dT TA = –40°C to +85°C ±15 ✻ µV/°C

OS

INPUT BIAS CURRENT V
Input Bias Current I

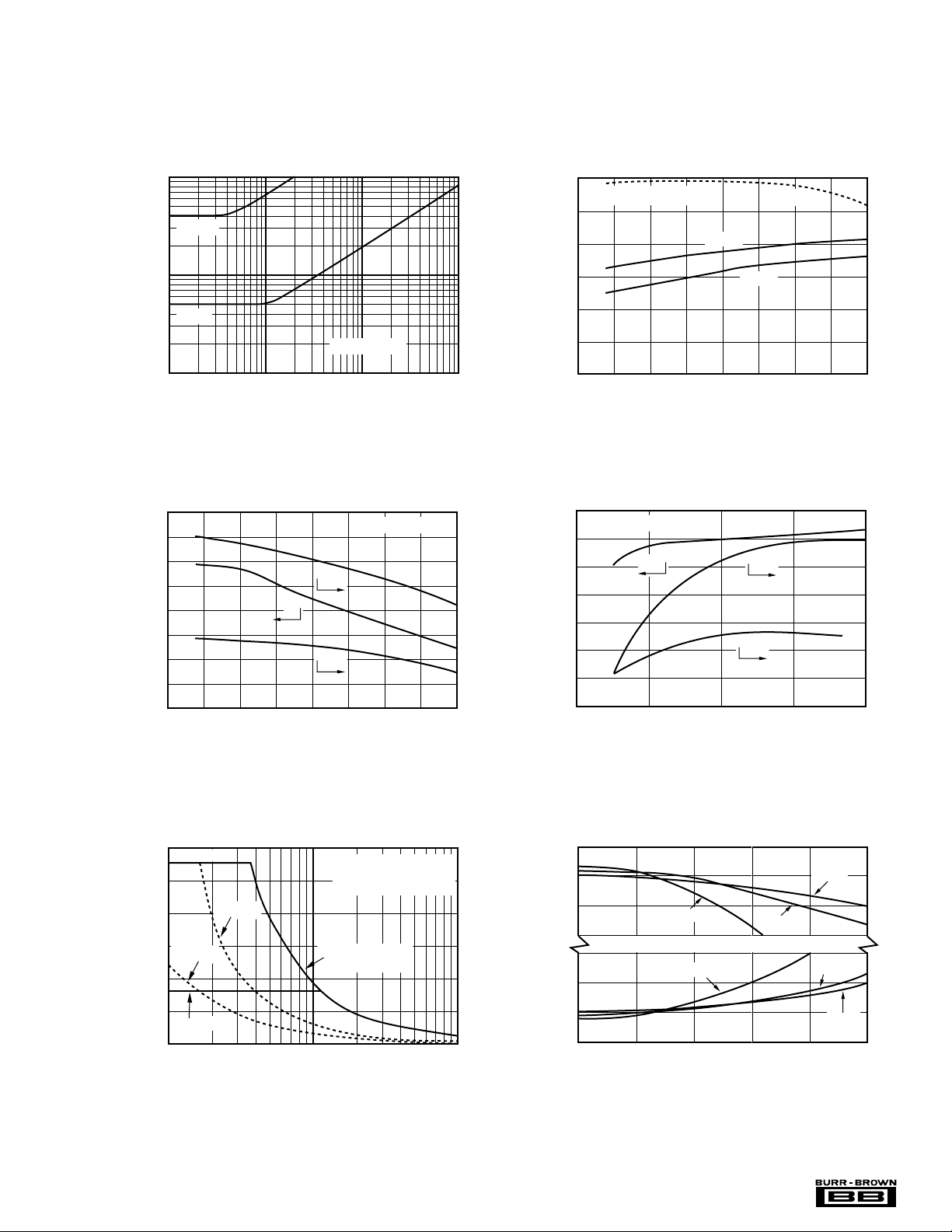

vs Temperature See Typical Curve ✻

Input Offset Current I

B

OS

NOISE

Input Voltage Noise, f = 0.1 to 10Hz 2 ✻ µVp-p
Input Voltage Noise Density, f = 1kHz e
Current Noise Density, f = 1kHz i

n
n

INPUT VOLTAGE RANGE

Common-Mode Voltage Range V
Common-Mode Rejection Ratio CMRR V

CM

OPA137, OPA2137 76 84 70 ✻ dB
OPA4137 74 84 70 ✻ dB

T

= –40°C to +85°C V

A

OPA137, OPA2137 72 70 dB
OPA4137 70 70 dB

INPUT IMPEDANCE

Differential 10
Common-Mode 10

OPEN-LOOP GAIN

Open-Loop Voltage Gain A

T

= –40°C to +85°C VO = –13.8V to 13.9V 86 ✻ dB

A

OL

FREQUENCY RESPONSE

Gain-Bandwidth Product GBW 1 ✻ MHz
Slew Rate SR G = 1 3.5 ✻ V/µs
Settling Time, 0.1% G = 1, 10V Step, C

0.01% G = 1, 10V Step, C
Overload Recovery Time V
Total Harmonic Distortion + Noise THD+N G = 1, f = 1kHz, 3.5Vrms 0.05 ✻ %

OUTPUT

Voltage Output V

T

= –40°C to +85°C

A

Short-Circuit Current I
Capacitive Load Drive C

OUT

SC

LOAD

POWER SUPPLY

Specified Operating Range V
Operating Voltage Range

S

Dual Supplies ±2.25
Single Supply +4.5 +36 ✻✻V

Quiescent Current I

T

= –40°C to +85°C IO = 0 ±375 ✻ µA

A

Q

TEMPERATURE RANGE

Specified Range –40 +85 ✻✻°C
Operating Range –55 +125 ✻✻°C
Storage Range –55 +125 ✻✻°C
Thermal Resistance

SOT-23-5 Surface Mount 200 ✻ °C/W

θ

JA

MSOP-8 Surface Mount 150 ✻ °C/W
SO-8 Surface Mount 150 ✻ °C/W
8-Pin DIP 100 ✻ °C/W
SO-14 Surface Mount 100 ✻ °C/W
14-Pin DIP 80 ✻ °C/W

✻ Specifications the same as OPA137N, U, P.
NOTE: (1) At minimum power supply voltage inputs must be biased above ground in accordance with common-mode voltage range restrictions—see “Operating

Voltage” discussion.

= –40°C to +85°C.

A

OPA137N, U, P OPA137NA, UA, PA

OPA2137E, U, P OPA2137EA, UA, PA

OPA4137U, P OPA4137UA, PA

±1.5 ±3 ±2.5 ±10 mV

= ±3V to ±18V ±90 ±250 ✻✻µV/V

S

= 0V

CM

±5 ±100 ✻✻pA

±2 ±50 ✻✻pA

45 ✻ nV/√Hz

1.2 ✻ fA/√Hz

(V–) + 3 (V+) ✻✻V

= –12V to 15V

CM

= –12V to 15V

CM

10

|| 1 ✻ Ω || pF

12

|| 2 ✻ Ω || pF

VO = –13.8V to 13.9V 86 94 ✻✻ dB

= 100pF 8 ✻ µs

L

= 100pF 10 ✻ µs

L

• G = V

IN

S

(V–) + 1.2

(V–) + 1.2

1 ✻ µs

(V+) – 1.1

(V+) – 1.1

✻✻V
✻✻V

–25/+60 ✻ mA

1000 ✻ pF

±15 ✻ V

(1)

±18 ✻✻V

IO = 0 ±220 ±270 ✻✻µA

®

OPA137, 2137, 4137

2

ABSOLUTE MAXIMUM RATINGS

Supply Voltage, V+ to V– ..................................................................... 36V

Input Voltage....................................................... (V–) –0.7V to (V+) +0.7V

Input Current ....................................................................................... 2mA

Output Short-Circuit

Operating Temperature .................................................. –55°C to +125°C

Storage Temperature...................................................... –55°C to +125°C

Junction Temperature .................................................................... +150°C

Lead Temperature (soldering, 10s) ................................................. 300°C

NOTE: (1) Stresses above these ratings may cause permanent damage.
Exposure to absolute maximum ratings for extended periods may affact device
reliability. (2) Short circuit to ground, one amplifier per package.

(2)

.............................................................. Continuous

(1)

ELECTROSTATIC
DISCHARGE SENSITIVITY

This integrated circuit can be damaged by ESD. Burr-Brown
recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling
and installation procedures can cause damage.

ESD damage can range from subtle performance degrada­tion to complete device failure. Precision integrated circuits
may be more susceptible to damage because very small
parametric changes could cause the device not to meet its
published specifications.

PACKAGE/ORDERING INFORMATION

PACKAGE SPECIFIED
DRAWING TEMPERATURE PACKAGE ORDERING TRANSPORT

PRODUCT PACKAGE NUMBER
Single

OPA137N 5-Lead SOT-23-5 Surface Mount 331 –40°C to +85°C E37

"""""OPA137N/3K Tape and Reel

OPA137NA 5-Lead SOT-23-5 Surface Mount 331 –40°C to +85°C E37

(1)

RANGE MARKING NUMBER

(3)

(3)

OPA137N/250 Tape and Reel

OPA137NA/250 Tape and Reel

"""""OPA137NA/3K Tape and Reel

OPA137U SO-8 Surface Mount 182 –40°C to +85°C OPA137U OPA137U Rails

"""""OPA137U/2K5 Tape and Reel

OPA137UA SO-8 Surface Mount 182 –40°C to +85°C OPA137UA OPA137UA Rails

"""""OPA137UA/2K5 Tape and Reel

OPA137P 8-Pin DIP 006 –40°C to +85°C OPA137P OPA137P Rails
OPA137PA 8-Pin DIP 006 –40°C to +85°C OPA137PA OPA137PA Rails

Dual

OPA2137E MSOP-8 Surface Mount 337 –40°C to +85°C E37

"""""OPA2137E/2K5 Tape and Reel

OPA2137EA MSOP-8 Surface Mount 337 –40°C to +85°C E37

(3)

(3)

OPA2137E/250 Tape and Reel

OPA2137EA/250 Tape and Reel

"""""OPA2137EA/2K5 Tape and Reel

OPA2137U SO-8 Surface Mount 182 –40°C to +85°C OPA2137U OPA2137U Rails

"""""OPA2137U/2K5 Tape and Reel

OPA2137UA SO-8 Surface Mount 182 –40°C to +85°C OPA2137UA OPA2137UA Rails

"""""OPA2137UA/2K5 Tape and Reel

OPA2137P 8-Pin DIP 006 –40°C to +85°C OPA2137P OPA2137P Rails
OPA2137PA 8-Pin DIP 006 –40°C to +85°C OPA2137PA OPA2137PA Rails

Quad

OPA4137U SO-14 Surface Mount 235 –40°C to +85°C OPA4137U OPA4137U Rails

"""""OPA4137U/2K5 Tape and Reel

OPA4137UA SO-14 Surface Mount 235 –40°C to +85°C OPA4137UA OPA4137UA Rails

"""""OPA4137UA/2K5 Tape and Reel

OPA4137P 14-Pin DIP 010 –40°C to +85°C OPA4137P OPA4137P Rails
OPA4137PA 14-Pin DIP 010 –40°C to +85°C OPA4137PA OPA4137PA Rails

NOTES: (1) For detailed drawing and dimension table, please see end of data sheet, or Appendix C of Burr-Brown IC Data Book. (2) Models with a slash (/ ) are
available only in Tape and Reel in the quantities indicated (e.g., /2K5 indicates 2500 devices per reel). Ordering 3000 pieces of “OPA137NA/3K” will get a single
3000-piece Tape and Reel. For detailed Tape and Reel mechanical information, refer to Appendix B of Burr-Brown IC Data Book. (3) Grade information is marked
on the reel.

(2)

MEDIA

The information provided herein is believed to be reliable; however, BURR-BROWN assumes no responsibility for inaccuracies or omissions. BURR-BROWN assumes no
responsibility for the use of this information, and all use of such information shall be entirely at the user’s own risk. Prices and specifications are subject to change without notice.
No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. BURR-BROWN does not authorize or warrant any BURR-BROWN product
for use in life support devices and/or systems.

3

OPA137, 2137, 4137

®
