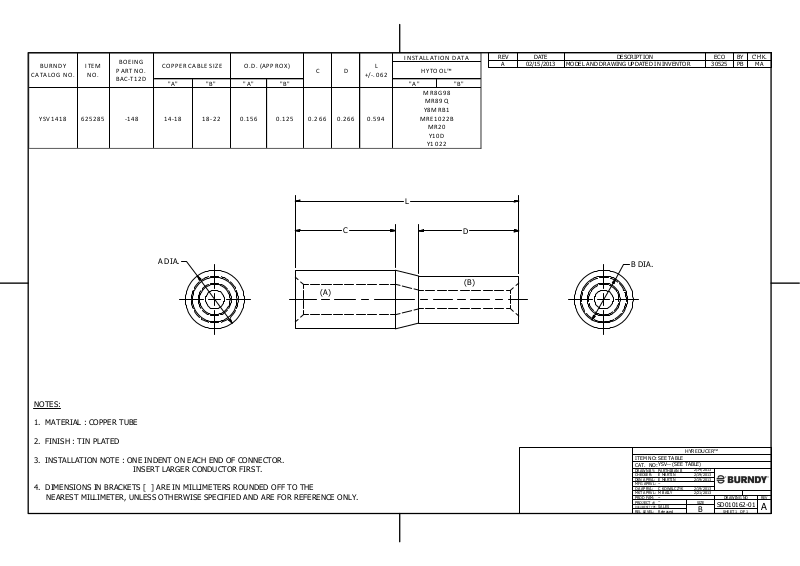

Burndy YSV1418 Data Sheet

CATALOG NO.

ITEM

NO.

BOEING

PART NO.

BAC-T12D

COPPER CABLE SIZEBURND Y

"A" "B" "A" "B" "A" "B"

O.D. (APPROX)

DC

YSV1418 625285 -148 14-18 18-22 0.156 0.125 0.266 0.266 0.594

L

+/-.062

INSTALLATION DATA

HYTOOL™

MR8G98

MR89Q

Y8MRB1

MRE1022B

MR20

Y10D

Y1022

L

REV DATE DESCRIPTION ECO BY C'H'K.

A

02/15/2013

MODEL AND DRAWING UPDATED IN INVENTOR 30525 PB MA

C

A DIA.

(A)

NOTES:

1. MATERIAL : COPPER TUBE

2. FINISH : TIN PLATED

3. INSTALLATION NOTE : ONE INDENT ON EACH END OF CONNECTOR.
INSERT LARGER CONDUCTOR FIRST.

4. DIMENSIONS IN BRACKETS [ ] ARE IN MILLIMETERS ROUNDED OFF TO THE
NEAREST MILLIMETER, UNLESS OTHERWISE SPECIFIED AND ARE FOR REFERENCE ONLY.

D

(B)

B DIA.

ITEM NO:
CAT. NO:

DRAWN BY:
CHECKER :
DSN APRVL:
MFG APRVL:
QA APRVL:
MKT APRVL:
PROD FAM:
PROJECT #:

DOCUMENT TYPE:

REL LEVEL:

HYREDUCER™

SEE TABLE
YSV-- (SEE TABLE)

PARTHIBAN B
E MARTIN
E MARTIN

-­C KOWALCZ YK
M BAILY

--

-­SALES
Released

2/14/2013
2/19/2013
2/19/2013

2/19/2013
2/21/2013

SIZE

B

DRAWING NO

SD010162-01

SHEET 1 OF 1

REV

A
