Burndy YHSA18K6F Data Sheet
CATALOG NO.
BOX 100
CATALOG NO.
BOX 20
STUD
SIZE
YHSA 10K6F YHSA10K6FRK #6
YHSA 10K8F YHSA10K8FRK #8
YHSA 10K14F YHSA 10K14FRK 1/4
YHSA 14K6F YHSA14K6FRK #6
YHSA 14K8F YHSA14K8FRK #8
YHSA 14K14F YHSA 14K14FRK 1/4
YHSA 18K6F YHSA18K6FRK #6
YHSA 18K8F YHSA18K8FRK #8
WIRE RANGE
INSULATION
COLOR
10 AWG - 12 AWG YELLOW
BLUE14 AWG - 16 AWG
18 AWG - 22 AWG RED
L C N
1.17
[30]
1.17
[30]
1.41
[36]
1.17
[30]
1.17
[30]
1.41
[36]
1.17
[30]
1.17
[30]
0.35
[9]
0.35
[9]
0.47
[12]
0.25
[6]
0.34
[9]
0.47
[12]
0.25
[6]
0.31
[8]
0.17
[4]
0.17
[4]
0.17
[4]
0.17
[4]
0.17
[4]
0.17
[4]
0.17
[4]
0.17
[4]
WIRE STRIP
LENGTH
5/16"
REV DATE DESCRIPTION ECO BY C'H'K.
B
09/02/2013
RELEASE SALES DRAWING 32897 RG BD
NOTES:
1. DIMENSIONS IN BRACKETS [ ] ARE IN MILLIMETERS ROUNDED OFF TO THE
NEAREST MILLIMETER, UNLESS OTHERWISE SPECIFIED AND ARE FOR REFERENCE ONLY.
2. MATERIAL: TERMINAL: TIN PLATED COPPER
INSULATION: HEAT SHRINK
3. CRIMP ALL WITH MR22 RATCHETING TOOL.
ITEM NO:
CAT. NO:
DRAWN BY:
CHECKER:
DSN APRVL:
MFG APRVL:
QA APRVL:
MKT APRVL:
PROD FAM:
PROJECT #:
DOCUMENT TYPE:
REL LEVEL:

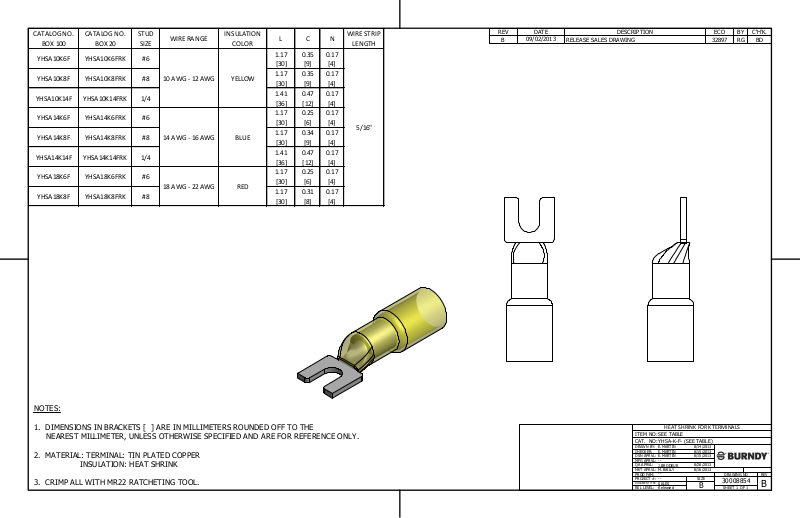

HEAT SHRINK FORK TERMINALS
SEE TABLE
YHSA-K-F- (SEE TABLE)
E.MARTIN
E.MARTIN
E.MARTIN
-J.BRODEUR
M.BAILLY
--
-SALES
Released
8/14/2013
8/15/2013
8/15/2013
8/28/2013
8/16/2013
SIZE
B
30008854
SHEET 1 OF 1
DRAWING NO
REV
B
