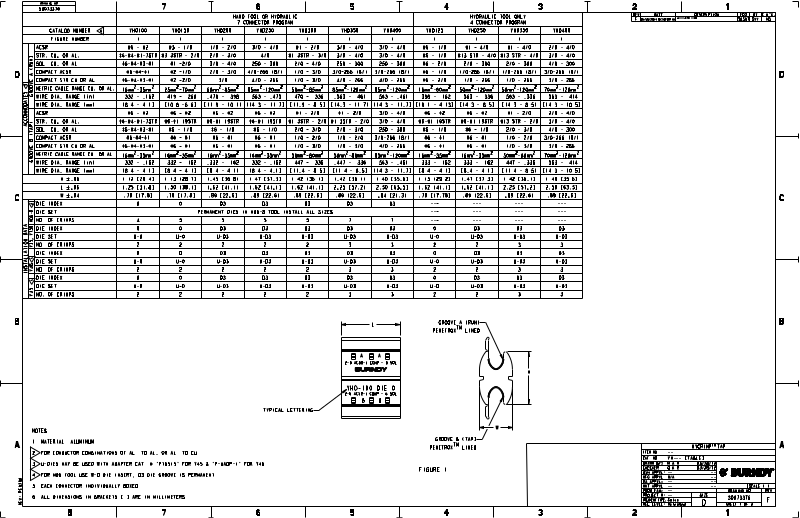

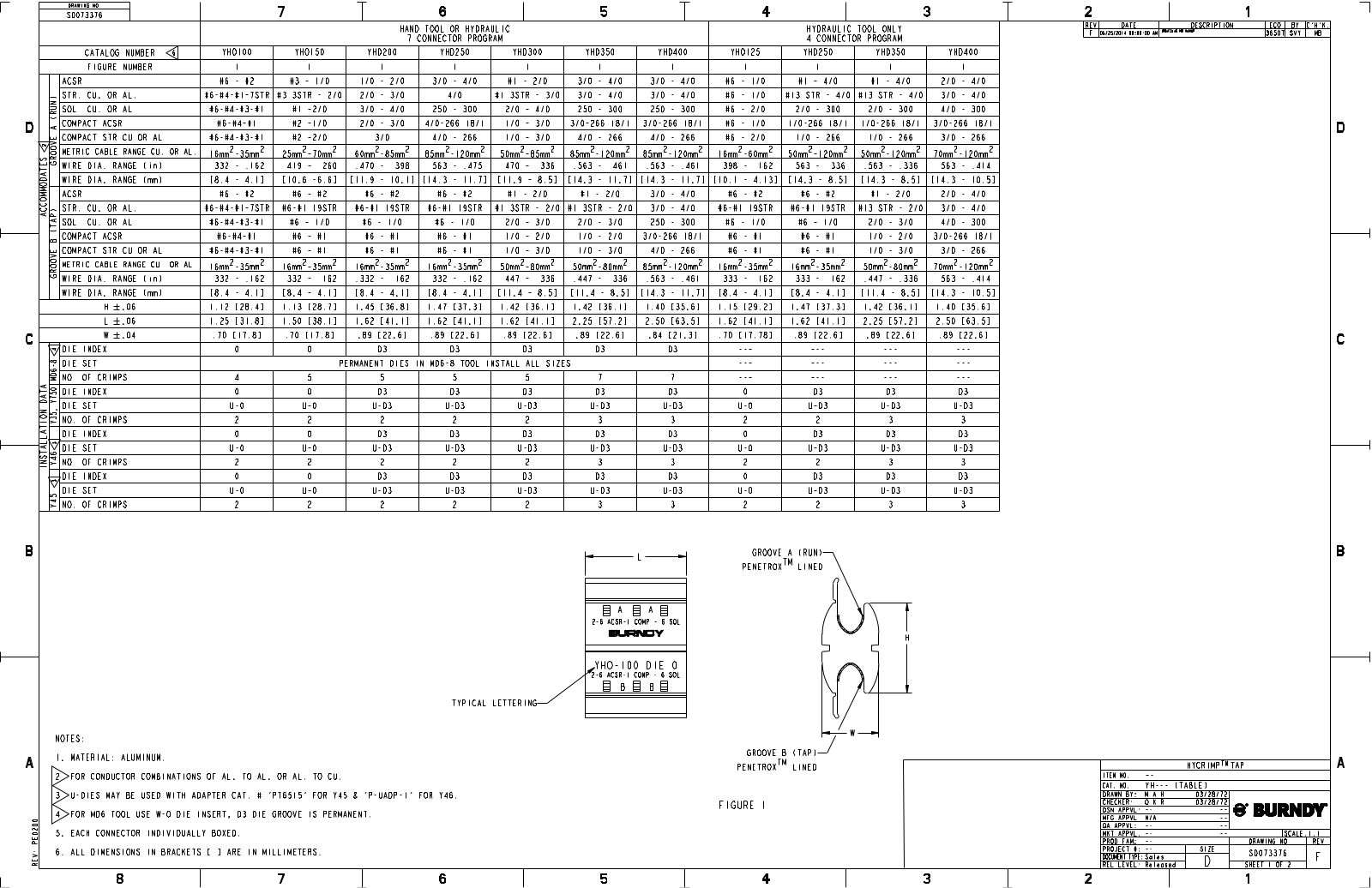

Burndy YHD400 Data Sheet

DRAWING NO.
SD073376
1234567
REV DATE DESCRIPTION ECO BY C'H'K.
06/25/2014 00:00:00 AM
F
UPDATED AS PER MARKUP
--
36507 SVY MB
CATALOG NUMBER
HAND TOOL OR HYDRAULIC
7 CONNECTOR PROGRAM
6
YHO100 YHO150 YHD200 YHD250 YHD300 YHD350 YHD400 YHO125 YHD250 YHD350 YHD400
HYDRAULIC TOOL ONLY 4 CONNECTOR PROGRAM
FIGURE NUMBER 1 1 1 1 1 1 1 1 1 1 1
ACSR #6 - #2 #3 - 1/0 1/0 - 2/0 3/0 - 4/0 #1 - 2/0 3/0 - 4/0 3/0 - 4/0 #6 - 1/0 #1 - 4/0 #1 - 4/0 2/0 - 4/0
STR. CU. OR AL. #6-#4-#1-7STR #3 3STR - 2/0 2/0 - 3/0 4/0 #1 3STR - 3/0 3/0 - 4/0 3/0 - 4/0 #6 - 1/0 #13 STR - 4/0 #13 STR - 4/0 3/0 - 4/0
SOL. CU. OR AL. #6-#4-#3-#1 #1 -2/0 3/0 - 4/0 250 - 300 2/0 - 4/0 250 - 300 250 - 300 #6 - 2/0 2/0 - 300 2/0 - 300 4/0 - 300
COMPACT ACSR #6-#4-#1 #2 -1/0 2/0 - 3/0 4/0-266 18/1 1/0 - 3/0 3/0-266 18/1 3/0-266 18/1 #6 - 1/0 1/0-266 18/1 1/0-266 18/1 3/0-266 18/1
D D
COMPACT STR CU OR AL #6-#4-#3-#1 #2 -2/0 3/0 4/0 - 266 1/0 - 3/0 4/0 - 266 4/0 - 266 #6 - 2/0 1/0 - 266 1/0 - 266 3/0 - 266
2
METRIC CABLE RANGE CU. OR AL.
GROOVE A (RUN)
WIRE DIA. RANGE (in) .332 - .162 .419 - .260 .470 - .398 .563 - .475 .470 - .336 .563 - .461 .563 - .461 .398 - .162 .563 - .336 .563 - .336 .563 - .414
16mm2-35mm
WIRE DIA. RANGE (mm) [8.4 - 4.1] [10.6 -6.6] [11.9 - 10.1] [14.3 - 11.7] [11.9 - 8.5] [14.3 - 11.7] [14.3 - 11.7] [10.1 - 4.13] [14.3 - 8.5] [14.3 - 8.5] [14.3 - 10.5]
2
25mm2-70mm
2
60mm2-85mm
2
85mm2-120mm
2
50mm2-85mm
2
85mm2-120mm
2
85mm2-120mm
2
16mm2-60mm
2
50mm2-120mm
2
50mm2-120mm
2
70mm2-120mm
2
C
ACSR #6 - #2 #6 - #2 #6 - #2 #6 - #2 #1 - 2/0 #1 - 2/0 3/0 - 4/0 #6 - #2 #6 - #2 #1 - 2/0 2/0 - 4/0
STR. CU. OR AL. #6-#4-#1-7STR #6-#1 19STR #6-#1 19STR #6-#1 19STR #1 3STR - 2/0 #1 3STR - 2/0 3/0 - 4/0 #6-#1 19STR #6-#1 19STR #13 STR - 2/0 3/0 - 4/0
ACCOMMODATES
SOL. CU. OR AL. #6-#4-#3-#1 #6 - 1/0 #6 - 1/0 #6 - 1/0 2/0 - 3/0 2/0 - 3/0 250 - 300 #6 - 1/0 #6 - 1/0 2/0 - 3/0 4/0 - 300
COMPACT ACSR #6-#4-#1 #6 - #1 #6 - #1 #6 - #1 1/0 - 2/0 1/0 - 2/0 3/0-266 18/1 #6 - #1 #6 - #1 1/0 - 2/0 3/0-266 18/1
COMPACT STR CU OR AL #6-#4-#3-#1 #6 - #1 #6 - #1 #6 - #1 1/0 - 3/0 1/0 - 3/0 4/0 - 266 #6 - #1 #6 - #1 1/0 - 3/0 3/0 - 266
METRIC CABLE RANGE CU. OR AL.
GROOVE B (TAP)
WIRE DIA. RANGE (in) .332 - .162 .332 - .162 .332 - .162 .332 - .162 .447 - .336 .447 - .336 .563 - .461 .333 - .162 .333 - .162 .447 - .336 .563 - .414
16mm2-35mm
2
16mm2-35mm
2
16mm2-35mm
2
16mm2-35mm
2
50mm2-80mm
2
50mm2-80mm
2
85mm2-120mm
2
16mm2-35mm
2
16mm2-35mm
2
50mm2-80mm
2
70mm2-120mm
WIRE DIA. RANGE (mm) [8.4 - 4.1] [8.4 - 4.1] [8.4 - 4.1] [8.4 - 4.1] [11.4 - 8.5] [11.4 - 8.5] [14.3 - 11.7] [8.4 - 4.1] [8.4 - 4.1] [11.4 - 8.5] [14.3 - 10.5]
H .06 1.12 [28.4] 1.13 [28.7] 1.45 [36.8] 1.47 [37.3] 1.42 [36.1] 1.42 [36.1] 1.40 [35.6] 1.15 [29.2] 1.47 [37.3] 1.42 [36.1] 1.40 [35.6]
L .06 1.25 [31.8] 1.50 [38.1] 1.62 [41.1] 1.62 [41.1] 1.62 [41.1] 2.25 [57.2] 2.50 [63.5] 1.62 [41.1] 1.62 [41.1] 2.25 [57.2] 2.50 [63.5]
W .04 .70 [17.8] .70 [17.8] .89 [22.6] .89 [22.6] .89 [22.6] .89 [22.6] .84 [21.3] .70 [17.78] .89 [22.6] .89 [22.6] .89 [22.6]
4
DIE INDEX 0 0 D3 D3 D3 D3 D3 --- --- --- ---
2
C
DIE SET PERMANENT DIES IN MD6-8 TOOL INSTALL ALL SIZES --- --- --- ---
NO. OF CRIMPS 4 5 5 5 5 7 7 --- --- --- ---
MD6-8
DIE INDEX 0 0 D3 D3 D3 D3 D3 0 D3 D3 D3
DIE SET U-0 U-0 U-D3 U-D3 U-D3 U-D3 U-D3 U-0 U-D3 U-D3 U-D3
NO. OF CRIMPS 2 2 2 2 2 3 3 2 2 3 3
Y35, Y750
DIE INDEX 0 0 D3 D3 D3 D3 D3 0 D3 D3 D3
3
DIE SET U-0 U-0 U-D3 U-D3 U-D3 U-D3 U-D3 U-0 U-D3 U-D3 U-D3
NO. OF CRIMPS 2 2 2 2 2 3 3 2 2 3 3
Y46
INSTALLATION DATA
DIE INDEX 0 0 D3 D3 D3 D3 D3 0 D3 D3 D3
3
DIE SET U-0 U-0 U-D3 U-D3 U-D3 U-D3 U-D3 U-0 U-D3 U-D3 U-D3
NO. OF CRIMPS 2 2 2 2 2 3 3 2 2 3 3
Y45
B
TYPICAL LETTERING
L
A
2-6 ACSR-1 COMP - 6 SOL
A
YHO-100 DIE 0
2-6 ACSR-1 COMP - 6 SOL
B
B
GROOVE A (RUN)
PENETROXTM LINED
B
H
A
REV: PE0200
NOTES:
1. MATERIAL: ALUMINUM.
2 FOR CONDUCTOR COMBINATIONS OF AL. TO AL. OR AL. TO CU.
3 U-DIES MAY BE USED WITH ADAPTER CAT. # 'PT6515' FOR Y45 & 'P-UADP-1' FOR Y46.
4 FOR MD6 TOOL USE W-O DIE INSERT, D3 DIE GROOVE IS PERMANENT.
5. EACH CONNECTOR INDIVIDUALLY BOXED.
6. ALL DIMENSIONS IN BRACKETS [ ] ARE IN MILLIMETERS.
8 7 6 5 4 3 2 1
GROOVE B (TAP)
PENETROXTM LINED
FIGURE 1
W
ITEM NO:
CAT. NO:
DRAWN BY: M.A.H. CHECKER: O.K.R DSN APPVL: -­MFG APPVL: N/A QA APPVL: -­MKT APPVL: -­PROD FAM: -- DRAWING NO REV PROJECT #: -- SIZE DOCUMENT TYPE: REL LEVEL: Released SHEET 1 OF 2
-­YH--- (TABLE)
03/28/72 03/28/72
Sales
D
TM
--
--
--
--
SCALE: 1:1
SD073376
F
A
DRAWING NO.
SD073376
1234567

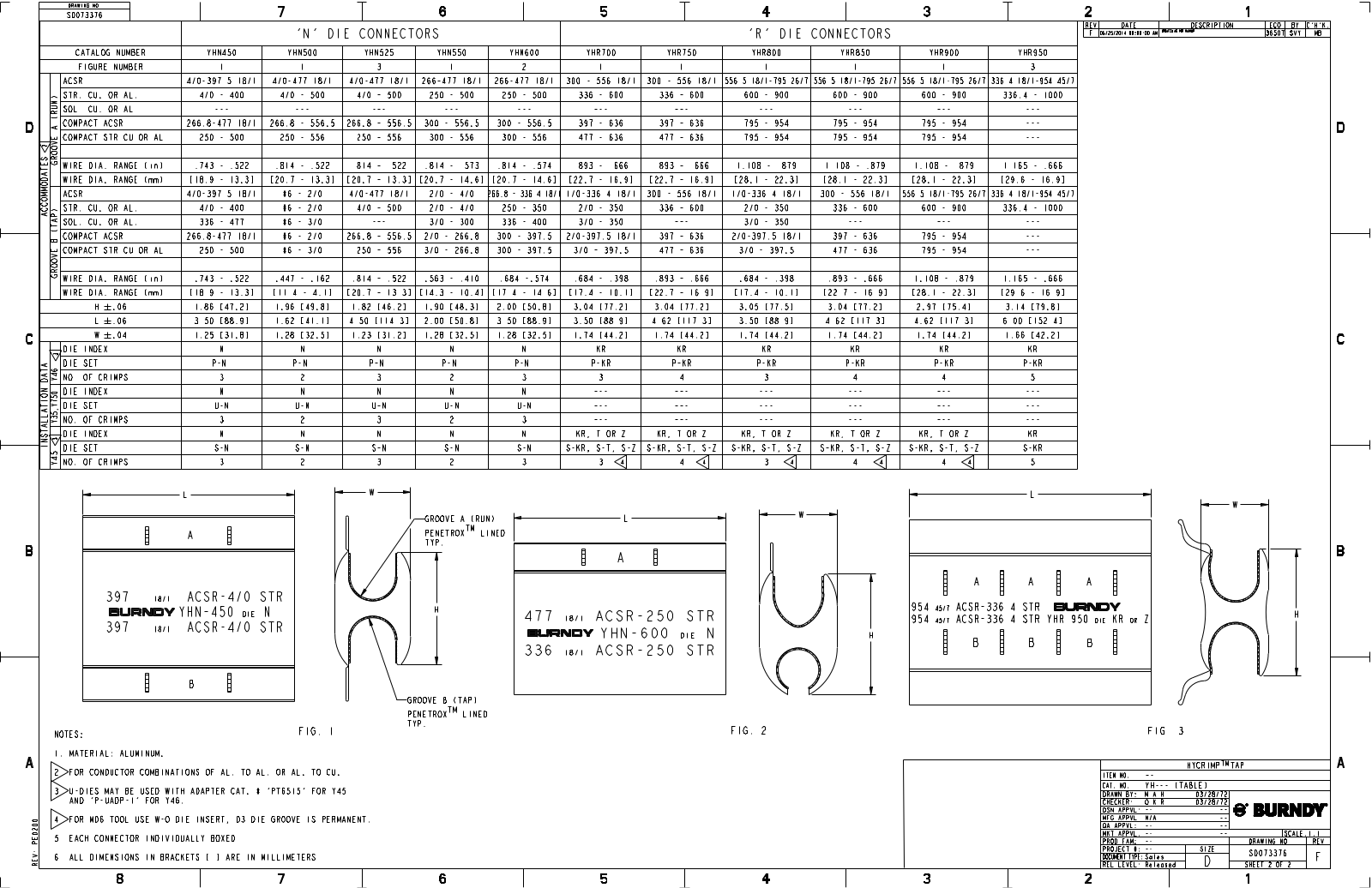

'N' DIE CONNECTORS 'R' DIE CONNECTORS
CATALOG NUMBER YHN450 YHN500 YHN525 YHN550 YHN600 YHR700 YHR750 YHR800 YHR850 YHR900 YHR950
FIGURE NUMBER 1 1 3 1 2 1 1 1 1 1 3
ACSR 4/0-397.5 18/1 4/0-477 18/1 4/0-477 18/1 266-477 18/1 266-477 18/1 300 - 556 18/1 300 - 556 18/1
STR. CU. OR AL. 4/0 - 400 4/0 - 500 4/0 - 500 250 - 500 250 - 500 336 - 600 336 - 600 600 - 900 600 - 900 600 - 900 336.4 - 1000
SOL. CU. OR AL. --- --- --- --- --- --- --- --- --- --- ---
COMPACT ACSR 266.8-477 18/1 266.8 - 556.5 266.8 - 556.5 300 - 556.5 300 - 556.5 397 - 636 397 - 636 795 - 954 795 - 954 795 - 954 ---
556.5 18/1-795 26/7 556.5 18/1-795 26/7 556.5 18/1-795 26/7 336.4 18/1-954 45/7
REV DATE DESCRIPTION ECO BY C'H'K.
06/25/2014 00:00:00 AM
F
UPDATED AS PER MARKUP
--
36507 SVY MB
D D
COMPACT STR CU OR AL 250 - 500 250 - 556 250 - 556 300 - 556 300 - 556 477 - 636 477 - 636 795 - 954 795 - 954 795 - 954 ---
2
GROOVE A (RUN)
WIRE DIA. RANGE (in) .743 - .522 .814 - .522 .814 - .522 .814 - .573 .814 - .574 .893 - .666 .893 - .666 1.108 - .879 1.108 - .879 1.108 - .879 1.165 - .666
WIRE DIA. RANGE (mm) [18.9 - 13.3] [20.7 - 13.3] [20.7 - 13.3] [20.7 - 14.6] [20.7 - 14.6] [22.7 - 16.9] [22.7 - 16.9] [28.1 - 22.3] [28.1 - 22.3] [28.1 - 22.3] [29.6 - 16.9]
C
ACSR 4/0-397.5 18/1 #6 - 2/0 4/0-477 18/1 2/0 - 4/0
STR. CU. OR AL. 4/0 - 400 #6 - 2/0 4/0 - 500 2/0 - 4/0 250 - 350 2/0 - 350 336 - 600 2/0 - 350 336 - 600 600 - 900 336.4 - 1000
ACCOMMODATES
SOL. CU. OR AL. 336 - 477 #6 - 3/0 --- 3/0 - 300 336 - 400 3/0 - 350 --- 3/0 - 350 --- --- ---
COMPACT ACSR 266.8-477 18/1 #6 - 2/0 266.8 - 556.5 2/0 - 266.8 300 - 397.5 2/0-397.5 18/1 397 - 636 2/0-397.5 18/1 397 - 636 795 - 954 ---
COMPACT STR CU OR AL 250 - 500 #6 - 3/0 250 - 556 3/0 - 266.8 300 - 397.5 3/0 - 397.5 477 - 636 3/0 - 397.5 477 - 636 795 - 954 ---
GROOVE B (TAP)
WIRE DIA. RANGE (in) .743 - .522 .447 - .162 .814 - .522 .563 - .410 .684 -.574 .684 - .398 .893 - .666 .684 - .398 .893 - .666 1.108 - .879 1.165 - .666
WIRE DIA. RANGE (mm) [18.9 - 13.3] [11.4 - 4.1] [20.7 - 13.3] [14.3 - 10.4] [17.4 - 14.6] [17.4 - 10.1] [22.7 - 16.9] [17.4 - 10.1] [22.7 - 16.9] [28.1 - 22.3] [29.6 - 16.9]
H .06 1.86 [47.2] 1.96 [49.8] 1.82 [46.2] 1.90 [48.3] 2.00 [50.8] 3.04 [77.2] 3.04 [77.2] 3.05 [77.5] 3.04 [77.2] 2.97 [75.4] 3.14 [79.8]
L .06 3.50 [88.9] 1.62 [41.1] 4.50 [114.3] 2.00 [50.8] 3.50 [88.9] 3.50 [88.9] 4.62 [117.3] 3.50 [88.9] 4.62 [117.3] 4.62 [117.3] 6.00 [152.4]
W .04 1.25 [31.8] 1.28 [32.5] 1.23 [31.2] 1.28 [32.5] 1.28 [32.5] 1.74 [44.2] 1.74 [44.2] 1.74 [44.2] 1.74 [44.2] 1.74 [44.2] 1.66 [42.2]
DIE INDEX N N N N N KR KR KR KR KR KR
3
266.8 - 336.4 18/1
1/0-336.4 18/1 300 - 556 18/1 1/0-336.4 18/1 300 - 556 18/1
556.5 18/1-795 26/7 336.4 18/1-954 45/7
C
DIE SET P-N P-N P-N P-N P-N P-KR P-KR P-KR P-KR P-KR P-KR
NO. OF CRIMPS 3 2 3 2 3 3 4 3 4 4 5
Y46
DIE INDEX N N N N N --- --- --- --- --- ---
DIE SET U-N U-N U-N U-N U-N --- --- --- --- --- ---
NO. OF CRIMPS 3 2 3 2 3 --- --- --- --- --- ---
Y35,Y750
DIE INDEX N N N N N KR, T OR Z KR, T OR Z KR, T OR Z KR, T OR Z KR, T OR Z KR
3
INSTALLATION DATA
DIE SET S-N S-N S-N S-N S-N S-KR, S-T, S-Z S-KR, S-T, S-Z S-KR, S-T, S-Z S-KR, S-T, S-Z S-KR, S-T, S-Z S-KR
NO. OF CRIMPS 3 2 3 2 3 3 4 3 4 4 5
Y45
L
W
GROOVE A (RUN)
4
L
4
4
W
4
4
L
W
B
A
397
ACSR-4/0 STR
18/1
YHN-450 397
ACSR-4/0 STR
18/1
B
DIE
N
PENETROXTM LINED TYP.
H
477
336
18/1
18/1
A
ACSR-250 STR
YHN-600
DIE
ACSR-250 STR
N
H
954 954
A
ACSR-336 4 STR
45/7
45/7
ACSR-336 4 STR YHR 950
B
A
B
A
B
DIE
KR OR Z
B
H
A
REV: PE0200
NOTES:
1. MATERIAL: ALUMINUM.
2 FOR CONDUCTOR COMBINATIONS OF AL. TO AL. OR AL. TO CU.
3 U-DIES MAY BE USED WITH ADAPTER CAT. # 'PT6515' FOR Y45 AND 'P-UADP-1' FOR Y46.
4 FOR MD6 TOOL USE W-O DIE INSERT, D3 DIE GROOVE IS PERMANENT.
5. EACH CONNECTOR INDIVIDUALLY BOXED.
6. ALL DIMENSIONS IN BRACKETS [ ] ARE IN MILLIMETERS.
FIG. 1
GROOVE B (TAP)
PENETROXTM LINED TYP.
FIG. 2
FIG. 3
ITEM NO:
CAT. NO:
DRAWN BY: M.A.H. CHECKER: O.K.R DSN APPVL: -­MFG APPVL: N/A QA APPVL: -­MKT APPVL: -­PROD FAM: -- DRAWING NO REV PROJECT #: -- SIZE DOCUMENT TYPE: REL LEVEL: Released SHEET 2 OF 2
-­YH--- (TABLE)
03/28/72 03/28/72
Sales
D
TM
--
--
--
--
SCALE: 1:1
SD073376
F
A
8 7 6 5 4 3 2 1
