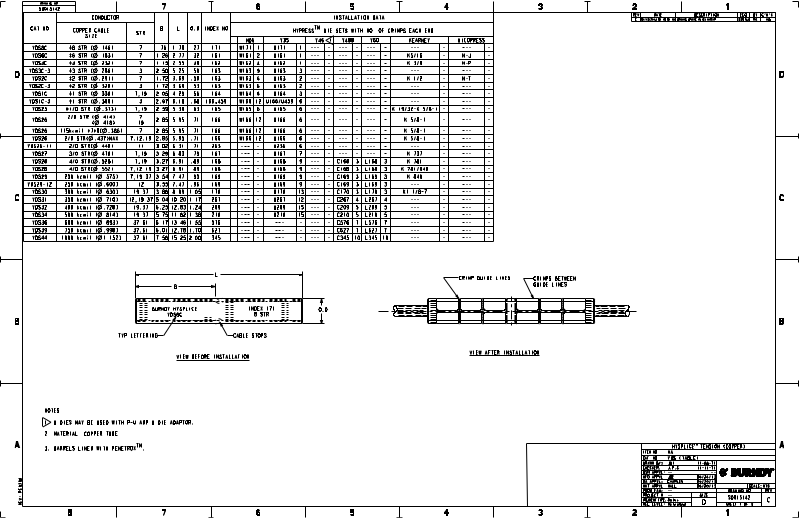

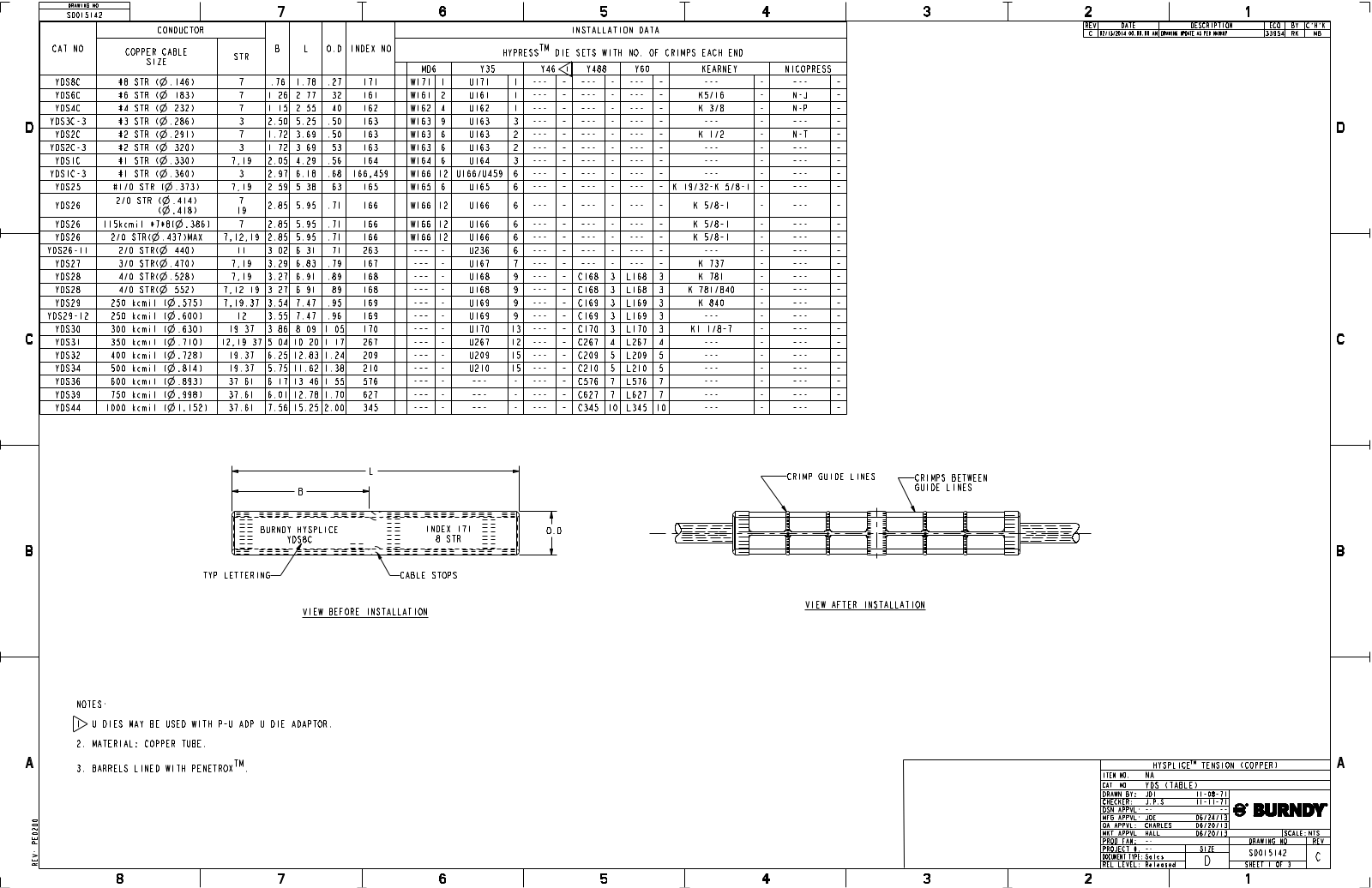

Burndy YDS1C Data Sheet

DRAWING NO.

SD015142

1234567

REV DATE DESCRIPTION ECO BY C'H'K.

02/13/2014 00:00:00 AM

DRAWING UPDATE AS PER MARKUP

33954 RK MB

CAT NO

CONDUCTOR

COPPER CABLE

STR

B L O.D INDEX NO

INSTALLATION DATA

HYPRESS

DIE SETS WITH NO. OF CRIMPS EACH END

SIZE

MD6 Y35 Y46 Y488 Y60 KEARNEY NICOPRESS

YDS8C #8 STR ( .146) 7 .76 1.78 .27 171 W171 1 U171 1 --- - --- - --- - --- - --- -

YDS6C #6 STR ( .183) 7 1.26 2.77 .32 161 W161 2 U161 1 --- - --- - --- - K5/16 - N-J -

YDS4C #4 STR ( .232) 7 1.15 2.55 .40 162 W162 4 U162 1 --- - --- - --- - K 3/8 - N-P -

YDS3C-3 #3 STR ( .286) 3 2.50 5.25 .50 163 W163 9 U163 3 --- - --- - --- - --- - --- -

D D

YDS2C #2 STR ( .291) 7 1.72 3.69 .50 163 W163 6 U163 2 --- - --- - --- - K 1/2 - N-T -

YDS2C-3 #2 STR ( .320) 3 1.72 3.69 .53 163 W163 6 U163 2 --- - --- - --- - --- - --- -

YDS1C #1 STR ( .330) 7,19 2.05 4.29 .56 164 W164 6 U164 3 --- - --- - --- - --- - --- -

YDS1C-3 #1 STR ( .360) 3 2.97 6.18 .68 166,459 W166 12 U166/U459 6 --- - --- - --- - --- - --- -

YDS25 #1/0 STR ( .373) 7,19 2.59 5.38 .63 165 W165 6 U165 6 --- - --- - --- - K 19/32-K 5/8-1 - --- -

YDS26

2/0 STR ( .414) ( .418)

2.85 5.95 .71 166 W166 12 U166 6 --- - --- - --- - K 5/8-1 - --- -

YDS26 115kcmil *7*8( .386) 7 2.85 5.95 .71 166 W166 12 U166 6 --- - --- - --- - K 5/8-1 - --- -

YDS26 2/0 STR( .437)MAX 7,12,19 2.85 5.95 .71 166 W166 12 U166 6 --- - --- - --- - K 5/8-1 - --- -

YDS26-11 2/0 STR( .440) 11 3.02 6.31 .71 263 --- - U236 6 --- - --- - --- - --- - --- -

YDS27 3/0 STR( .470) 7,19 3.29 6.83 .79 167 --- - U167 7 --- - --- - --- - K 737 - --- -

YDS28 4/0 STR( .528) 7,19 3.27 6.91 .89 168 --- - U168 9 --- - C168 3 L168 3 K 781 - --- -

YDS28 4/0 STR( .552) 7,12.19 3.27 6.91 .89 168 --- - U168 9 --- - C168 3 L168 3 K 781/840 - --- -

YDS29 250 kcmil ( .575) 7,19.37 3.54 7.47 .95 169 --- - U169 9 --- - C169 3 L169 3 K 840 - --- -

YDS29-12 250 kcmil ( .600) 12 3.55 7.47 .96 169 --- - U169 9 --- - C169 3 L169 3 --- - --- -

YDS30 300 kcmil ( .630) 19.37 3.86 8.09 1.05 170 --- - U170 13 --- - C170 3 L170 3 K1 1/8-7 - --- -

YDS31 350 kcmil ( .710) 12,19.37 5.04 10.20 1.17 267 --- - U267 12 --- - C267 4 L267 4 --- - --- -

YDS32 400 kcmil ( .728) 19.37 6.25 12.83 1.24 209 --- - U209 15 --- - C209 5 L209 5 --- - --- -

YDS34 500 kcmil ( .814) 19.37 5.75 11.62 1.38 210 --- - U210 15 --- - C210 5 L210 5 --- - --- -

YDS36 600 kcmil ( .893) 37.61 6.17 13.46 1.55 576 --- - --- - --- - C576 7 L576 7 --- - --- -

YDS39 750 kcmil ( .998) 37.61 6.01 12.78 1.70 627 --- - --- - --- - C627 7 L627 7 --- - --- -

YDS44 1000 kcmil ( 1.152) 37.61 7.56 15.25 2.00 345 --- - --- - --- - C345 10 L345 10 --- - --- -

CRIMP GUIDE LINES

BURNDY HYSPLICE

YDS8C

INDEX 171

8 STR

O.D

CRIMPS BETWEEN GUIDE LINES

NOTES:

TYP LETTERING

CABLE STOPS

VIEW AFTER INSTALLATION

VIEW BEFORE INSTALLATION

REV: PE0200

1 U DIES MAY BE USED WITH P-U ADP U DIE ADAPTOR.

2. MATERIAL: COPPER TUBE.

3. BARRELS LINED WITH PENETROX

8 7 6 5 4 3 2 1

HYSPLICE TENSION (COPPER)

ITEM NO:

CAT. NO:

DRAWN BY: JDI CHECKER: J.P.S DSN APPVL: -MFG APPVL: JOE QA APPVL: CHARLES MKT APPVL: HALL PROD FAM: -- DRAWING NO REV PROJECT #: -- SIZE DOCUMENT TYPE: REL LEVEL: Released SHEET 1 OF 3

NA YDS (TABLE)

Sales

11-08-71 11-11-71

06/24/13 06/20/13 06/20/13

SCALE: NTS

SD015142
