Burndy YAES18N2 Data Sheet

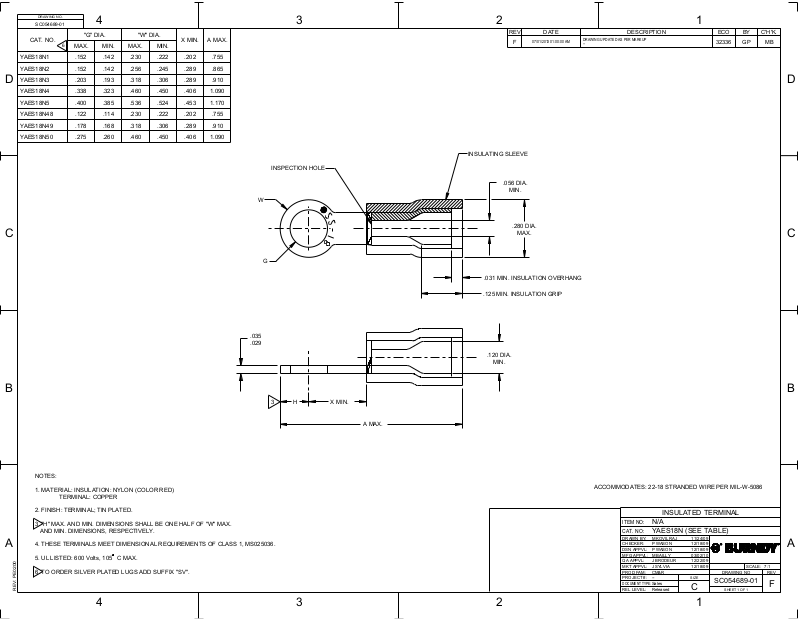

DRAWING NO.

SC054689-01

4 3 2 1

"G" DIA. "W" DIA.

CAT. NO.

MAX. MIN. MAX. MIN.

YAES18N1 .152 .142 .230 .222 .202 .755

YAES18N2 .152 .142 .256 .245 .289 .865

YAES18N3 .203 .193 .318 .306 .289 .910

D D

YAES18N4 .338 .323 .460 .450 .406 1.090

YAES18N5 .400 .385 .536 .524 .453 1.170

YAES18N48 .122 .114 .230 .222 .202 .755

YAES18N49 .178 .168 .318 .306 .289 .910

YAES18N50 .275 .260 .460 .450 .406 1.090

X MIN. A MAX.

INSULATING SLEEVE

INSPECTION HOLE

REV DATE DESCRIPTION ECO BY C'H'K.

07/01/2013 01:00:00 AM

DRAWING UPDATED AS PER MARKUP

32336 GP MB

.056 DIA.

MIN.

.280 DIA.

MAX.

.031 MIN. INSULATION OVERHANG

.125 MIN. INSULATION GRIP

.035 .029

.120 DIA.

MIN.

NOTES:

1. MATERIAL: INSULATION: NYLON (COLOR RED) TERMINAL: COPPER

2. FINISH: TERMINAL; TIN PLATED.

3 "H" MAX. AND MIN. DIMENSIONS SHALL BE ONE HALF OF "W" MAX. AND MIN. DIMENSIONS, RESPECTIVELY.

A A

REV: PE0200

4. THESE TERMINALS MEET DIMENSIONAL REQUIREMENTS OF CLASS 1, MS025036.

5. UL LISTED: 600 Volts, 105 C MAX.

6 TO ORDER SILVER PLATED LUGS ADD SUFFIX "SV".

X MIN.

A MAX.

ACCOMMODATES: 22-18 STRANDED WIRE PER MIL-W-5086

INSULATED TERMINAL

ITEM NO:

CAT. NO:

DRAWN BY: M KOVILRAJ 11/24/09 CHECKER: P WASON 12/18/09 DSN APPVL: P WASON 12/18/09 MFG APPVL: M BAILLY 03/02/10 QA APPVL: J BRODEUR 12/22/09 MKT APPVL: J SYLVIA 12/18/09 SCALE: 7:1 PROD FAM: CM&R DRAWING NO REV PROJECT #: -DOCUMENT TYPE: REL LEVEL: Released

N/A YAES18N (SEE TABLE)

SIZE

Sales

SC054689-01

SHEET 1 OF 1
