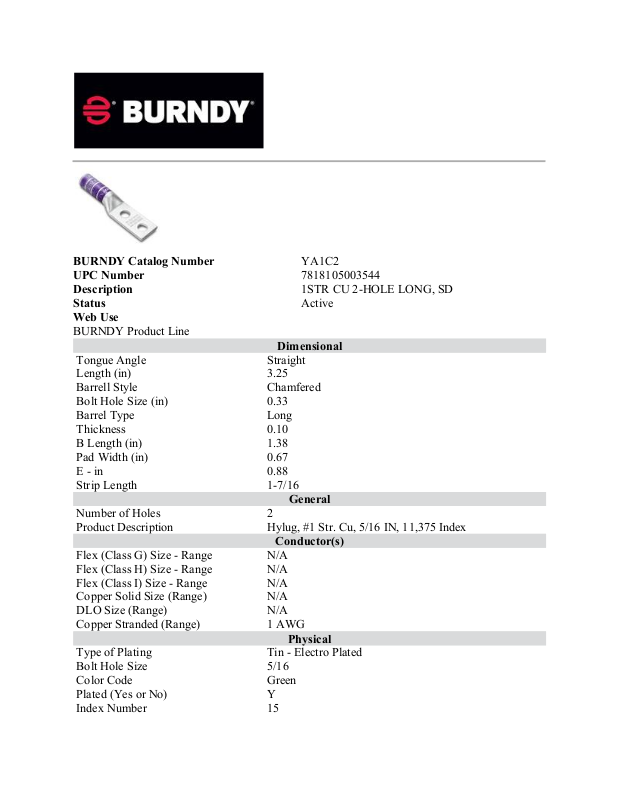

Burndy YA1C2 Data Sheet

N/A

BURNDY Catalog Number UPC Number Description Status Web Use

BURNDY Product Line

Tongue Angle Straight Length (in) 3.25 Barrell Style Chamfered Bolt Hole Size (in) 0.33 Barrel Type Long Thickness 0.10 B Length (in) 1.38 Pad Width (in) 0.67 E - in 0.88 Strip Length 1-7/16

Number of Holes 2 Product Description Hylug, #1 Str. Cu, 5/16 IN, 11,375 Index

Flex (Class G) Size - Range Flex (Class H) Size - Range Flex (Class I) Size - Range Copper Solid Size (Range) DLO Size (Range) Copper Stranded (Range) 1 AWG

Type of Plating Tin - Electro Plated Bolt Hole Size 5/16 Color Code Green Plated (Yes or No) Y Index Number 15

YA1C2 7818105003544 1STR CU 2-HOLE LONG, SD Active

Dimensional

General

Conductor(s)

Physical

Product Material Copper

Approvals / Certifications UL Listed Y CSA Certified Y ROHS Compatible Compliant UL Recognized CULUS
