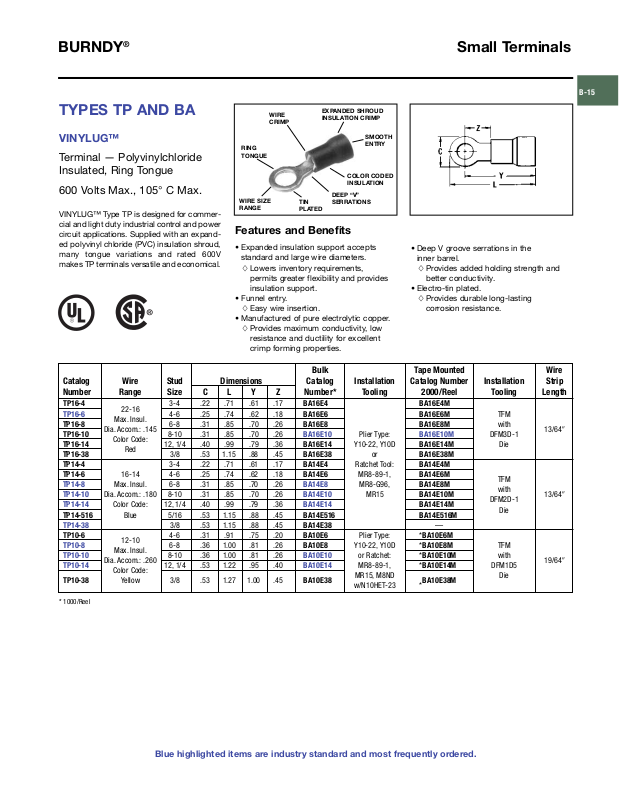

Burndy TP, BA Catalog Page

B-15

BURNDY

®

Small Terminals

Blue highlighted items are industry standard and most frequently ordered.

TYPES TP AND BA

VINYLUG™

Terminal — Polyvinylchloride
Insulated, Ring T

ongue

600 Volts Max., 105° C Max.

VINYLUG™ Type TP is designed for commer­cial and light duty industrial control and power
circuit applications. Supplied with an expand­ed polyvinyl chloride (PVC) insulation shroud,
many tongue variations and rated 600V
makes TP terminals versatile and economical.

RING
TONGUE

WIRE SIZE
RANGE

TIN
PLATED

SMOOTH
ENTRY

EXPANDED SHROUD
INSULATION CRIMP

DEEP “V”
SERRATIONS

COLOR CODED
INSULATION

WIRE
CRIMP

* 1000/Reel

Features and Benefits

• Expanded insulation support accepts
standard and large wire diameters.
〫 Lowers inventory requirements,

permits greater flexibility and provides
insulation support.

• Funnel entry.
〫 Easy wire insertion.

• Manufactured of pure electrolytic copper.
〫 Provides maximum conductivity, low

resistance and ductility for excellent
crimp forming properties.

• Deep V groove serrations in the
inner barrel.
〫 Provides added holding strength and

better conductivity.

• Electro-tin plated.
〫 Provides durable long-lasting

corrosion resistance.

Bulk Tape Mounted Wire
Catalog Wire Stud Dimensions Catalog Installation Catalog Number Installation Strip
Number Range Size C L Y Z Number* Tooling 2000/Reel Tooling Length

TP16-4 3-4 .22 .71 .61 .17 BA16E4 BA16E4M

TP16-6

22-16

4-6 .25 .74 .62 .18 BA16E6 BA16E6M TFM

TP16-8

Max. Insul.

6-8 .31 .85 .70 .26 BA16E8 BA16E8M with

TP16-10

Dia. Accom.: .145

8-10 .31 .85 .70 .26 BA16E10 Plier Type: BA16E10M DFM3D-1

13/64

TP16-14

Color Code:

12, 1/4 .40 .99 .79 .36 BA16E14 Y10-22, Y10D BA16E14M Die

TP16-38

Red

3/8 .53 1.15 .88 .45 BA16E38 or BA16E38M

TP14-4 3-4 .22 .71 .61 .17 BA14E4 Ratchet Tool: BA14E4M
TP14-6 16-14 4-6 .25 .74 .62 .18 BA14E6 MR8-89-1, BA14E6M

TP14-8 Max. Insul. 6-8 .31 .85 .70 .26 BA14E8 MR8-G96, BA14E8M

TFM

TP14-10 Dia. Accom.: .180 8-10 .31 .85 .70 .26 BA14E10 MR15 BA14E10M

with

13/64

TP14-14 Color Code: 12, 1/4 .40 .99 .79 .36 BA14E14 BA14E14M

DFM2D-1

TP14-516 Blue 5/16 .53 1.15 .88 .45 BA14E516 BA14E516M

Die

TP14-38 3/8 .53 1.15 .88 .45 BA14E38 —

TP10-6 4-6 .31 .91 .75 .20 BA10E6 Plier Type: *BA10E6M

TP10-8

12-10

6-8 .36 1.00 .81 .26 BA10E8 Y10-22, Y10D *BA10E8M TFM

TP10-10

Max. Insul.

8-10 .36 1.00 .81 .26 BA10E10 or Ratchet: *BA10E10M with

TP10-14

Dia. Accom.: .260

12,

1/4 .53 1.22 .95 .40 BA10E14 MR8-89-1, *BA10E14M DFM1D5

19/64

Color Code:

MR15,

M8ND Die

TP10-38 Yellow 3/8 .53 1.27 1.00 .45 BA10E38

w/N10HET-23 *

BA10E38M
