BURNDY
®
Tooling
OEM—Pneumatic
65

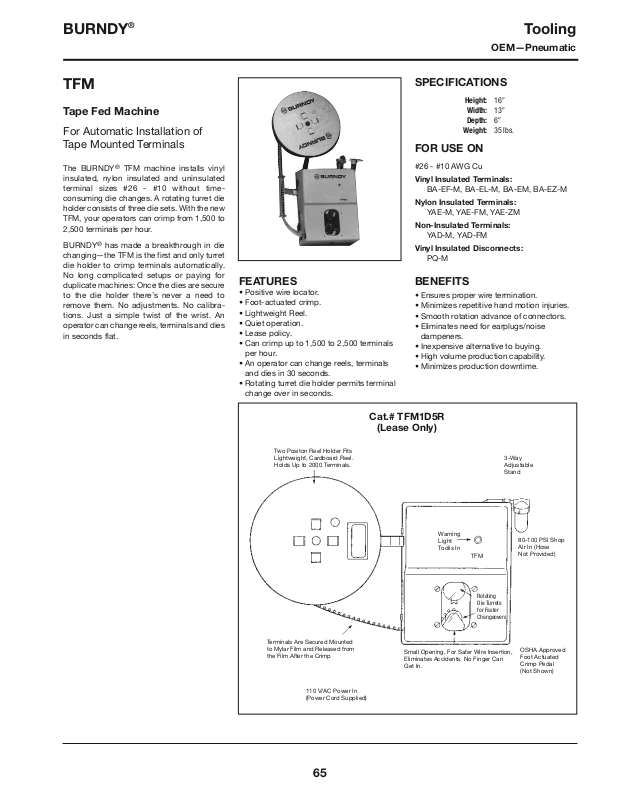

TFM
Tape Fed Machine
For Automatic Installation of
Tape Mounted Terminals
The BURNDY®TFM machine installs vinyl
insulated, nylon insulated and uninsulated
terminal sizes #26 - #10 without time consuming die changes. A rotating turret die
holder consists of three die sets. With the new
TFM, your operators can crimp from 1,500 to
2,500 terminals per hour.
BURNDY®has made a breakthrough in die
changing—the TFM is the first and only turret
die holder to crimp terminals automatically.
No long complicated setups or paying for
duplicate machines: Once the dies are secure
to the die holder there’s never a need to
remove them. No adjustments. No calibrations. Just a simple twist of the wrist. An
operator can change reels, terminals and dies
in seconds flat.
SPECIFICATIONS
Height: 16
Width: 13
Depth: 6
Weight: 35 lbs.
FOR USE ON
#26 - #10 AWG Cu
Vinyl Insulated Terminals:
BA-EF-M, BA-EL-M, BA-EM, BA-EZ-M
Nylon Insulated Terminals:
YAE-M, YAE-FM, YAE-ZM
Non-Insulated Terminals:
YAD-M, YAD-FM
Vinyl Insulated Disconnects:
PQ-M
BENEFITS
• Ensures proper wire termination.
• Minimizes repetitive hand motion injuries.
• Smooth rotation advance of connectors.
• Eliminates need for earplugs/noise
dampeners.
• Inexpensive alternative to buying.
• High volume production capability.
• Minimizes production downtime.
FEATURES
• Positive wire locator.
• Foot-actuated crimp.
• Lightweight Reel.
• Quiet operation.
• Lease policy.
• Can crimp up to 1,500 to 2,500 terminals
per hour.
• An operator can change reels, terminals
and dies in 30 seconds.
• Rotating turret die holder permits terminal
change over in seconds.
Two Positon Reel Holder Fits
Lightweight, Cardboard Reel.
Holds Up to 2000 Terminals.
Cat.# TFM1D5R
(Lease Only)
Terminals Are Secured Mounted
to Mylar Film and Released from
the Film After the Crimp
110 V/AC Power In
(Power Cord Supplied)
Small Opening, For Safer Wire Insertion,
Eliminates Accidents. No Finger Can
Get In.
OSHA Approved
Foot Actuated
Crimp Pedal
(Not Shown)
80-100 PSI Shop
Air In (Hose
Not Provided)
3-Way
Adjustable
Stand
Warning
Light
Toolis In
TFM
Rotating
Die Turrets
for Faster
Changeovers
Tooling BURNDY
®
OEM—Pneumatic
66
TFM INSTALLATION TOOLING CHART
* 1000 per Reel
Tape Mounted
Catalog Number Installation
2000/Reel Tooling
BA16E4M
BA16E6M TFM
BA16E8M with
BA16E10M DFM3-1
BA16E14M Die
BA16E38M
BA14E4M
BA14E6M
BA14E8M
TFM
BA14E10M
with
BA14E14M
DFM2-1
BA14E516M
*BA10E6M
*BA10E8M
TFM
*BA10E10M
with
*BA10E14M
DFM1D5
*BA10E38M
Die
BA16EF2M TFM
BA16EF6M with
BA16EF8M DFM3-1
BA16EF10M Die
TFM
BA14EF8M
with
DFM2-1
BA14EF10M
Die
TFM
*BA10EF6M
with
*BA10EF8M
DFM1D5
*BA10EF10M
Die
TFM with
BA16EL6M
DFM20D1
BA16EL8M (20-22 AWG)
DFM3-1
BA16EL10M
(16-10 AWG)
TFM
BA14EL6M
with
BA14EL8M
DFM2-1
BA14EL10M
DIE
TFM
*BA10EL6M
with
*BA10EL8M
DFM1D5
*BA10EL10M
Die
Tape Mounted
Catalog Number Installation
2000/Reel Tooling
YAD18-4M
YAD18-6M
TFM
YAD18-8M
with
YAD18-10M
DFM6-1
YAD18-14M
Die
YAD14-4M
YAD14-6M TFM
YAD14-8M with
YAD14-10M DFM5D1
YAD14-14M Die
YAD14-38M
*YAD10-8M TFM
*TAD10-14M with
*YAD10-516M DFM4D1
*YAD10-38M Die
TFM
YAE22N65FM
with
DFM11D1
YAE22N66FM
Die
TFM
YAE18G43FM
with
YAE18N56FM DFM10D1
YAE18N57FM Die
TFM
YAE14N76FM
with
YAE14N77FM
DFM9D1
YAE14N78FM
Die
Tape Mounted
Catalog Number Installation
2000/Reel Tooling
YAE22G18M TFM
YAE22G16M with
DFM11D1
YAE22G13M
Die
YAE18N29M
YAE18N27M
YAE18-N7M
YAE18N26M
YAE18N21M TFM
YAE18N25M with
YAE18G43M DFM10D1
YAE-18N24M Die
YAE18N1M
YAE18NM
YAE18N2M
YAE18N3M
YAE14N43M
YAE14N1M TFM
YAE14NM with
YAE14N2M DFM9D1
YAE14N3M Die
YAE14N4M
YAE12N9M
YAE12N1M
YAE12NM
YAE12N2M
YAE12N3M
TFM
*YAE10N5M
with
*YAE10N11M
DFM7D1
*YAE10NM
Die
*YAE10N3M
*YAE10N2M
*YAE10N4M
Tape Mounted
Catalog Number Installation
2000/Reel Tooling
YAE22Z1M TFM
YAE22Z2M with
DFM11D1
YAE22Z3M
Die
YAE18Z1M TFM
with
YAE18Z3M
DFM10D1
YAE18Z4M Die
TFM
YAE14Z3M
with
DFM9D1
YAE14Z4M
Die
TFM
YAE12Z2M
with
DFM7D1
YAE12Z3M
Die
BA16EZ2M TFM
BA16EZ6M with
DFM3-1
BA16EZ10M
Die
TFM
BA14EZ6M
with
BA14EZ8M DFM2-1
BA14EZ10M Die
TFM
with
*BA10EZ8M
DFM1D5
Die
TFM with
PQ18R257M
DFM13D1
PQ18R258M
Die
TFM with
PQ14R257M
DFM12D1
PQ14R258M
Die
TFM with
PQ10R258M
DFM16D1 Die
TFM with
PQ18R256M
DFM15D1 Die
TFM with
PQ14R256M
DFM14D1 Die
TFM with
PQ18R187M
DFM13D1
PQ18R188M
Die
TFM with
PQ14R187M
DFM12D1
PQ14R188M
Die
* 1000 per Reel
* 1000 per Reel
* 1000 per Reel
