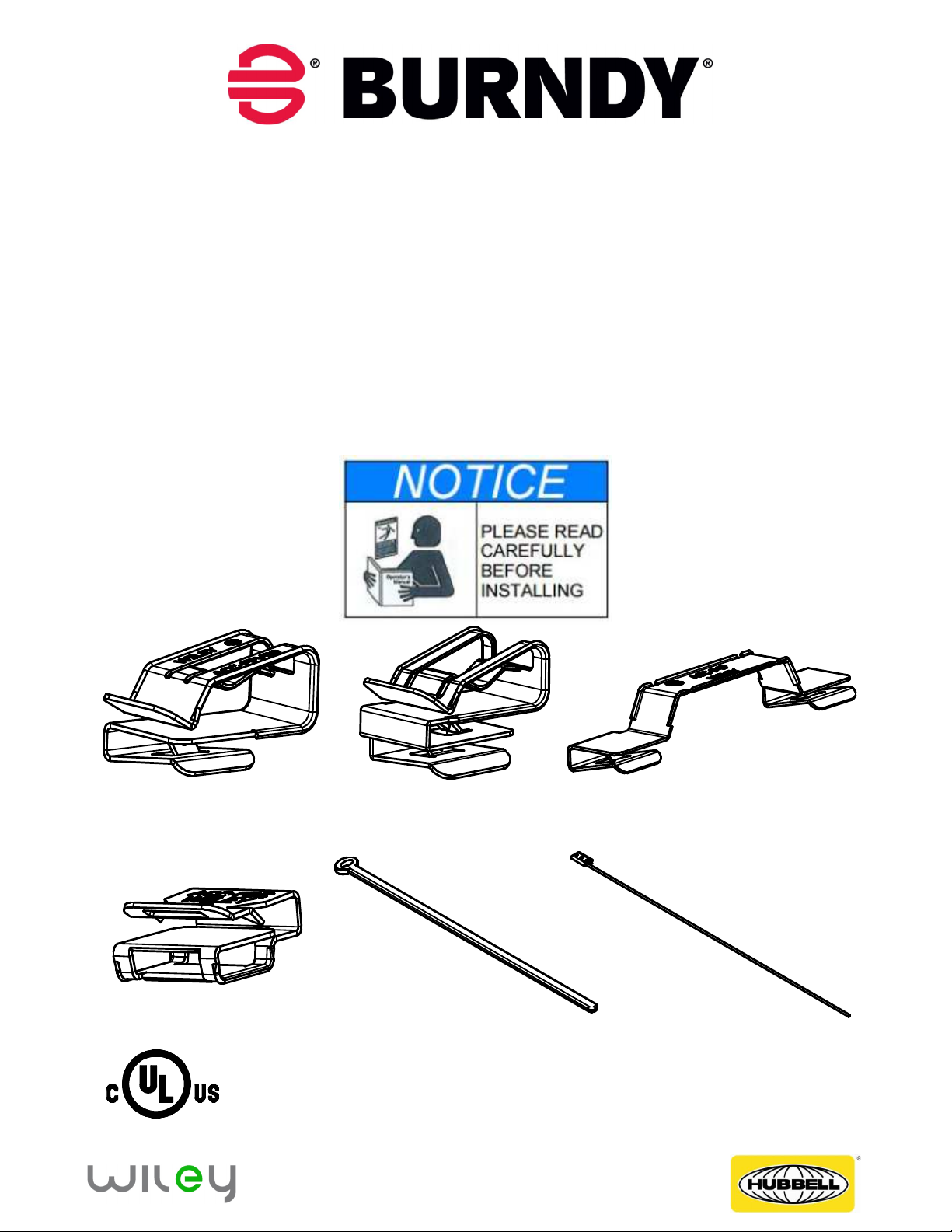

Wire Management Solutions
ACME CABLE CLIPS
CABLE TIES
INSTALLATION INSTRUCTIONS
For Construction Innovations Only
Burndy LLC recommends that the sufficient details of the installation be
submitted to the AHJ for approval before any work is started.
ACC-FPV90
ACC-FBC WILEY BUNDLER STRAP
}
LISTED
ACC-F90-1
WILEY INSULATED STRAP
Products are tested to UL 1565 & CSA C22.2 No. 18.5-13,
US/ Canadian standards for safety Positioning Device.
Document Number 50089799 Rev A
© 2018 BURNDY LLC.
Page 1 of 6
ACC-F4F
Page 2
WIRE MANAGEMENT PRODUCTS-FEATURES
ACME CABLE CLIPS-SOLUTIONS
Engineered for high-quality wire management solutions, Wiley Cable Clips simplify wire management
and leads to safer and more reliable wiring of the solar PV array.
The clips are made of corrosion resistant 304 stainless steel, which makes them a durable,
long lasting and reliable solution for all environments.
The design is easy to install, no tool is required to install and reusable.
Custom designs are available upon request. For more information regarding module compatibility,
please see the technical documents section of our website.
Coined edges to prevent
damage to cable insulation.
2
1
ACC-FPV90
ACC-F4F
4
3
ACC-F90-1
ACC-FBC
*The above mentioned 1,2,3 and 4 are special tabs for easy installation and removal.
ACME CABLE CLIPS-COMPATIBILITY
Solar PV Module
Frame
Compatible on modules
with a flange thickness
range 1.3mm to 2.5mm
Note:
Application: Module frame flange mounting
Document Number 50089799 Rev A
© 2018 BURNDY LLC.
Page 2 of 6
Page 3
OPTION-1
ACC-F4F
2 Cables,
(White)
2 Cables,
(Red)
Document Number 50089799 Rev A
© 2018 BURNDY LLC.
Page 3 of 6
2 Cables,
(Black)
ACC-FPV90
Page 4

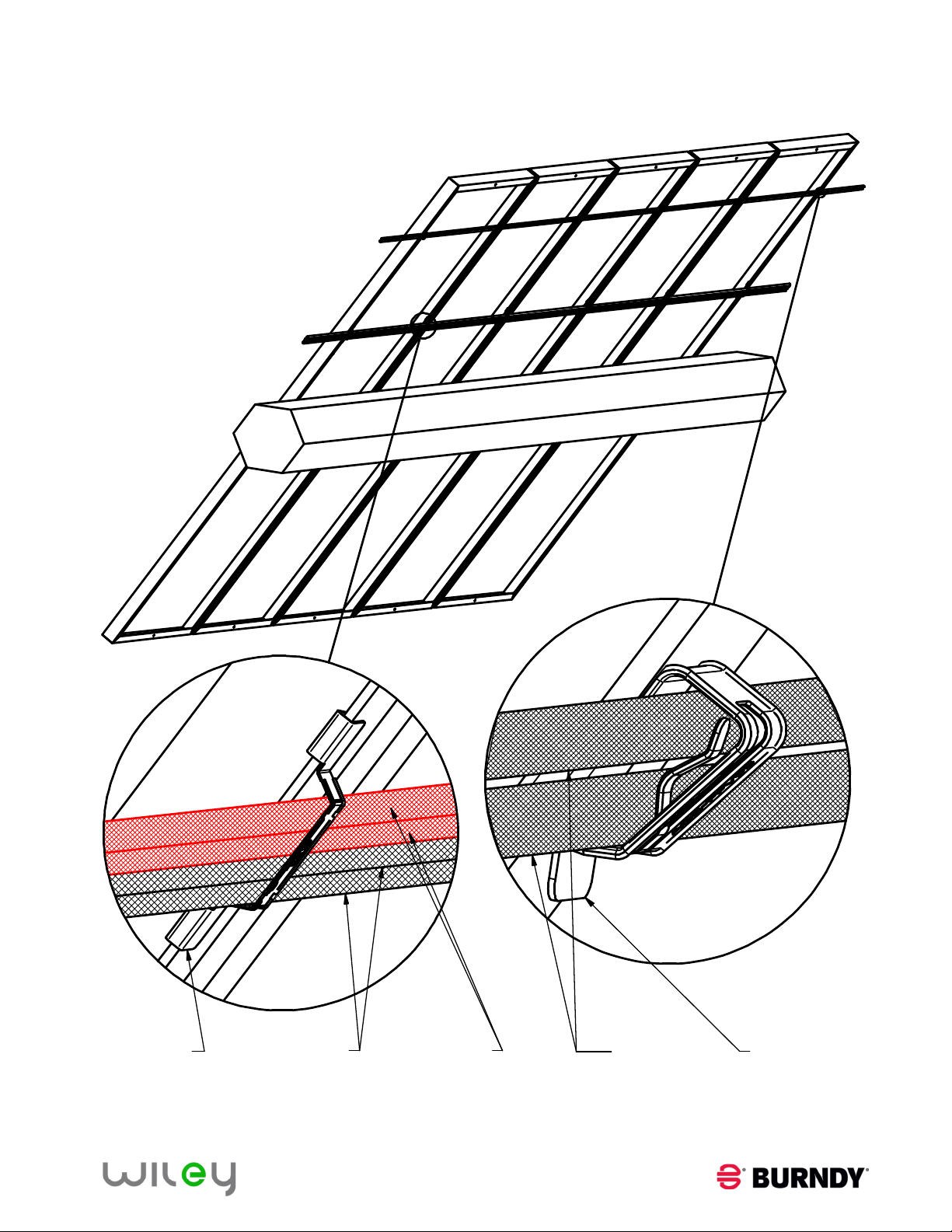

OPTION-2
2 Cables,
(Red)
(Alternate) WBS
WIS
2 Cables,
(Black)
2 Cables,
(White)
Document Number 50089799 Rev A
© 2018 BURNDY LLC.
Page 4 of 6
ACC-F90-1
Page 5

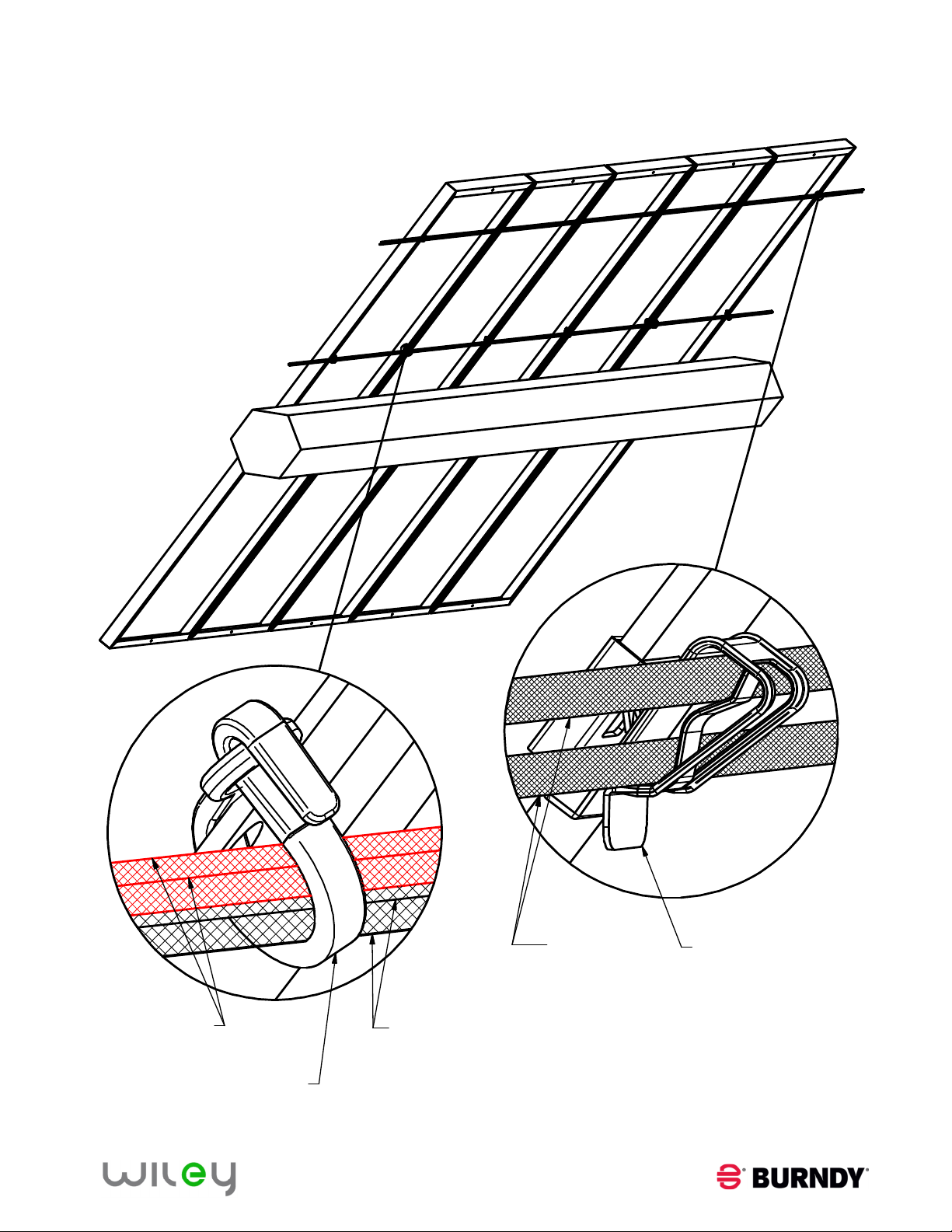

OPTION-3
ACC-FBC
WBS
Nylon Cable Tie (Alternate)
2 Cables,
(Red)
2 Cables,
(White)
Document Number 50089799 Rev A
© 2018 BURNDY LLC.
Page 5 of 6
2 Cables,
(Black)
ACC-F90-1
Page 6

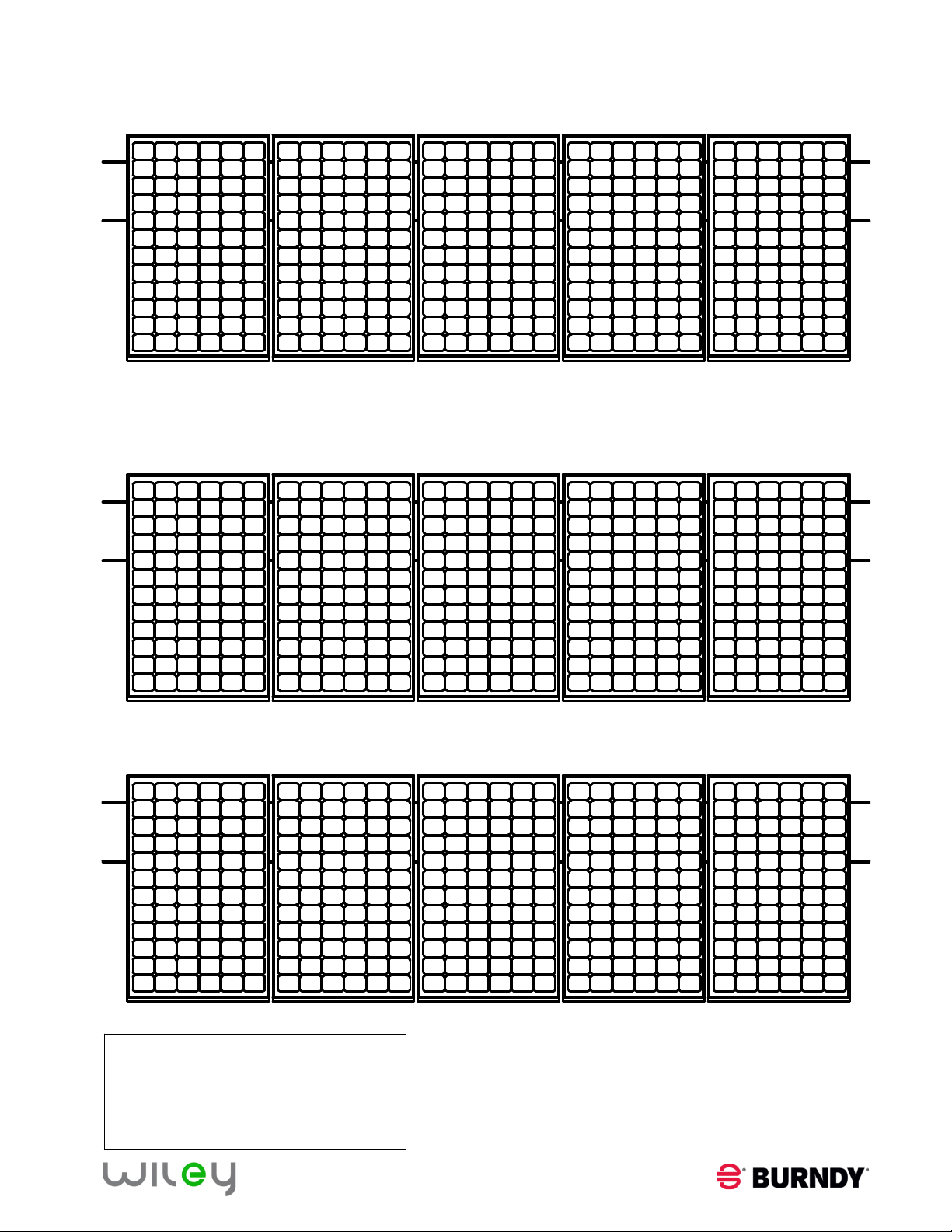

WIRE MANAGEMENT LAYOUTS
OPTION-1
X
Y
OPTION-2
X
Y
X
Y
X DENOTES PLACES TO INSTALL ACC-FPV90
Y DENOTES PLACES TO INSTALL ACC-F4F
Y
Y
X
Y
Y Y
XX X
Y
XX X
Y
X
Y
X
Y
X DENOTES PLACES TO INSTALL ACC-F90-1
Y DENOTES PLACES TO INSTALL WIS OR WBS
OPTION-3
X
Y
Customer Service Department
7 Aviation Park Drive
Londonderry, NH 03053
1-800-346-4175
1-603-647-5299 (International)
Y
Document Number 50089799 Rev A
X
Y
X DENOTES PLACES TO INSTALL ACC-F90-1
Y DENOTES PLACES TO INSTALL
(ACC-FBC WITH NYLON CABLE TIE) OR
(ACC-FBC WITH WBS)
© 2018 BURNDY LLC.
Page 6 of 6
Y
XX X
Y
X
Y
