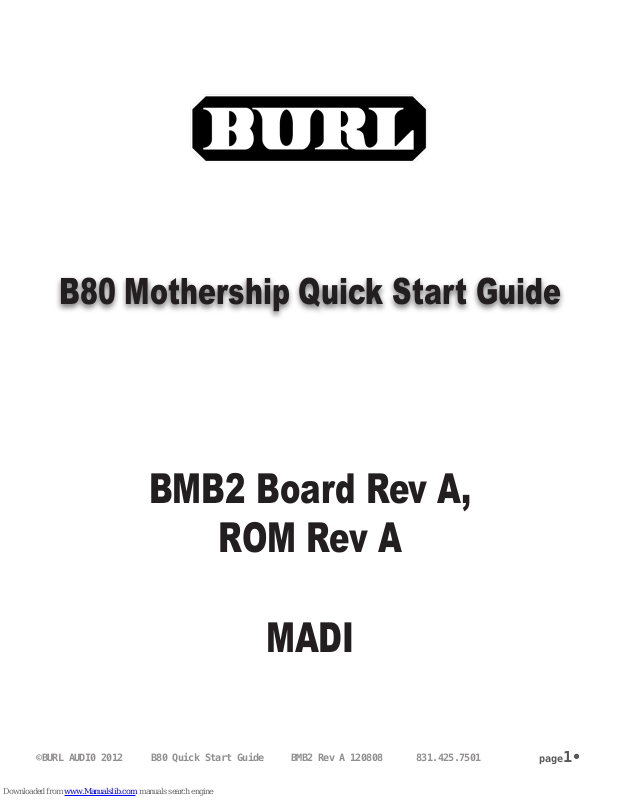

B80 Mothership Quick Start Guide

BMB2 Board Rev A,

ROM Rev A

©BURL AUDI0 2012 B80 Quick Start Guide BMB2 Rev A 120808 831.425.7501

MADI

page1•

Page 2

BMB2 REV A KNOWN ISSUES:

1. Only the optical MADI port is supported at this time, for a maximum of 40 in 64 out at 44.1k 48k, 32 in 32 out at 88.2k 96k, 16 in 16 out at 176.4k 192k

2. Only the RME HDSPe card is supported at this time.

3. It is recommended that the RME HDSPe card be set to “MADI IN” sync reference and the Mothership set to “Int” all of the time, so that no word clock cable is necessary. The Mothership may also be set to “Ext” when syncing to a third clock reference. The Mothership will sync to the HDSPe card, but this is not recommended for optimal performance.

©BURL AUDI0 2012 B80 Quick Start Guide BMB2 Rev A 120808 831.425.7501

page2•

Page 3

Congratulations on your purchase of the B80 Mothership. There are a few simple things you must do before you can ROCK!

*YOU MUST REGISTER YOUR B80 AT BURLAUDIO.COM/SUPPORT FOR YOUR WARRANTY

TO BE VALID. WE NEED TO KEEP YOU UP TO DATE WITH THE LATEST FIRMWARE*

*PLEASE NOTE THAT FACEPLATE COLOR MAY VARY

SLIGHTLY FROM RUN TO RUN*

STEP 1 INSTALL CARDS.

Unless you have more than 24in/32out, card slot 1 is for your rst BAD4 card and slot 7 is for your rst BDA8 card.

*See gures 1-5, and pages 6 and 7 for card placement and channel assignment to congure your system.

Make sure the top and botttom of each card are inserted into the card guides.

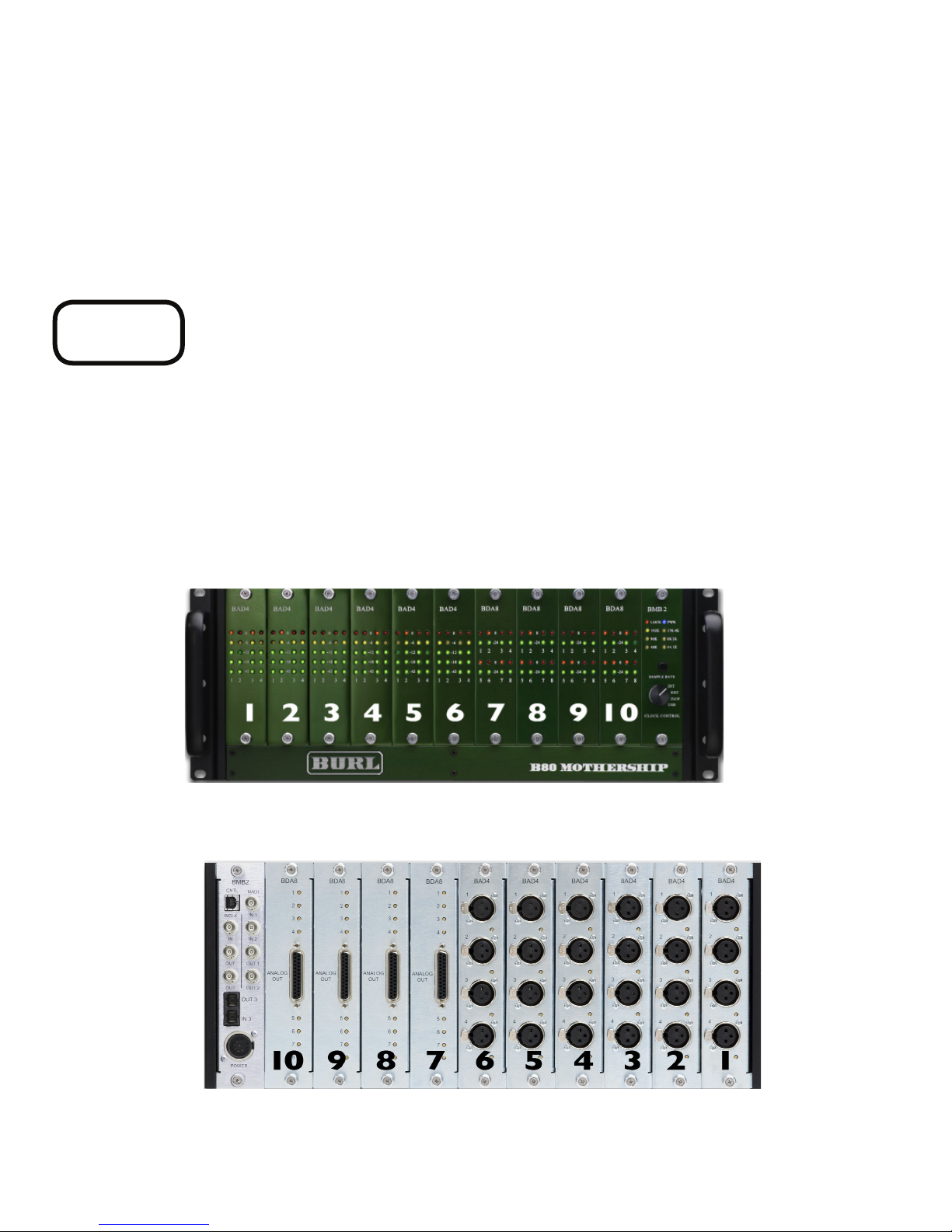

Figure 1 Front View Conguration for 24 in, 32 out.

Figure 2 Rear View Conguration for 24 in, 32 out.

©BURL AUDI0 2012 B80 Quick Start Guide BMB2 Rev A 120808 831.425.7501

page3•

Page 4

Fig. 3 Conguration for 40 in.

Fig. 4 Conguration for 20 in, 40 out.

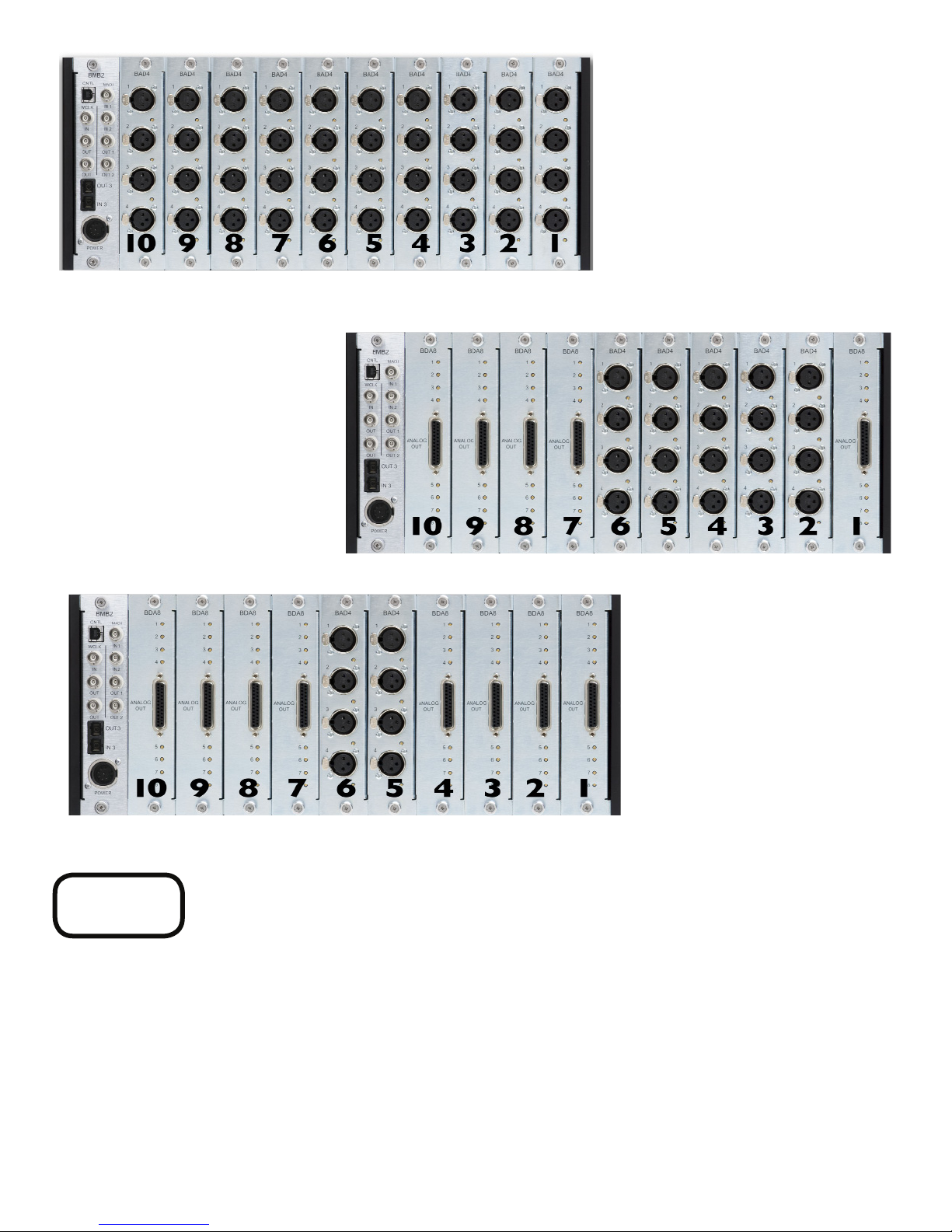

Fig. 5 Conguration for 8 in 64 out.

STEP 2 ATTACH POWER CABLE AND RIBBON CABLE TO FACEPLATE.

-The red wire should be closest to the orange power connector for all faceplates.

-There are two revisions of faceplates. We added a shrouded header to the faceplates and cards to

eliminate confusion. (See gures 4a-4d next page)

-Always make sure the orange 2 pin connector is attached properly. Verify orientation.

©BURL AUDI0 2012 B80 Quick Start Guide BMB2 Rev A 120808 831.425.7501

page4•

Page 5

Your Mothership will ship to you with the wire assemblies already attached to the daughter cards

(see Figure 6)

Please verify orientation.

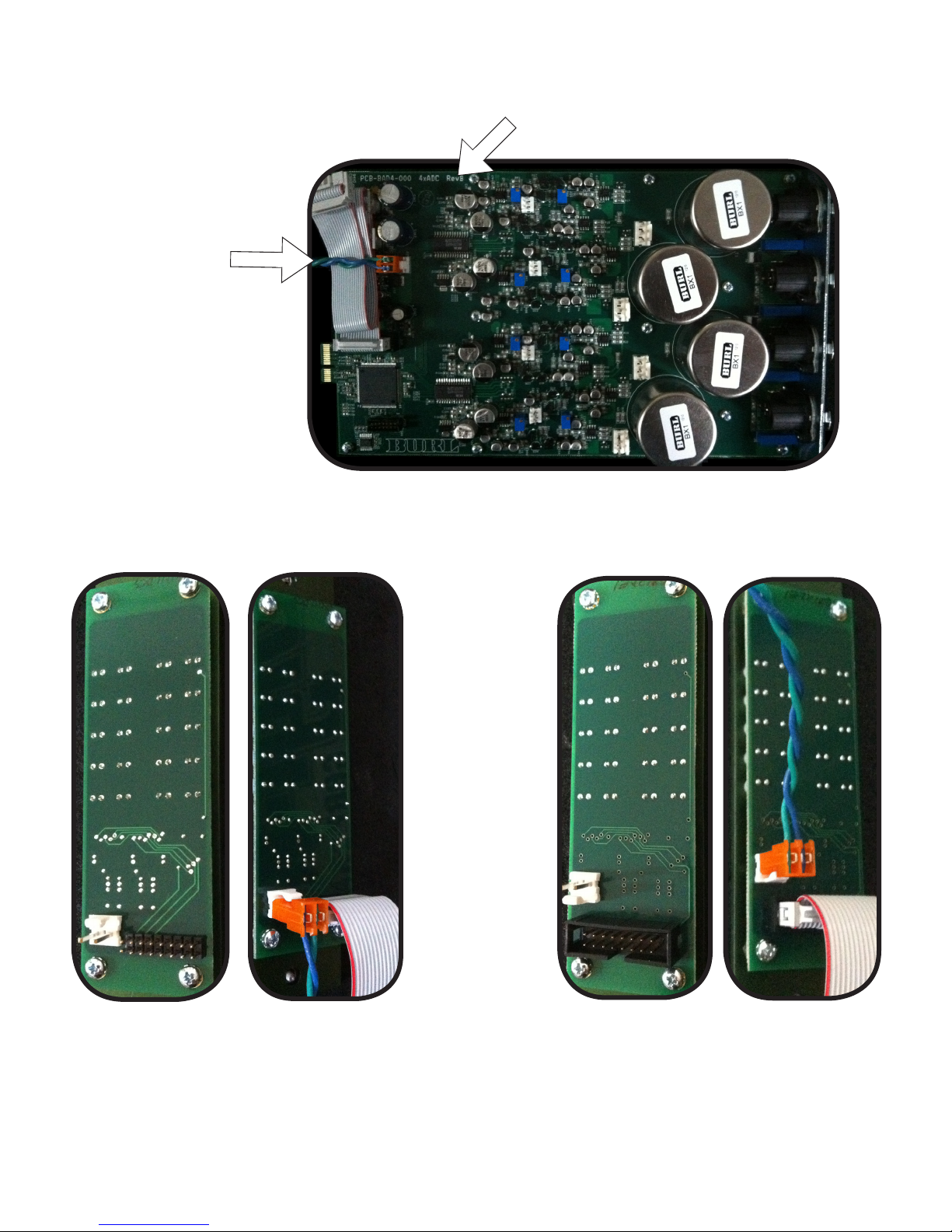

Also note if your card has Rev A/ Rev 1 or Rev B (See Figures 7a-7d below)

Figure 6

Rev A or Rev 1

Rev B

*Rev A faceplate: Make sure ribbon cable is connected to all pins.

©BURL AUDI0 2012 B80 Quick Start Guide BMB2 Rev A 120808 831.425.7501

Figure 7b Figure 7c Figure 7dFigure 7a

*Rev B faceplates have a shrouded header to ensure proper connection.

page5•

Page 6

STEP 3

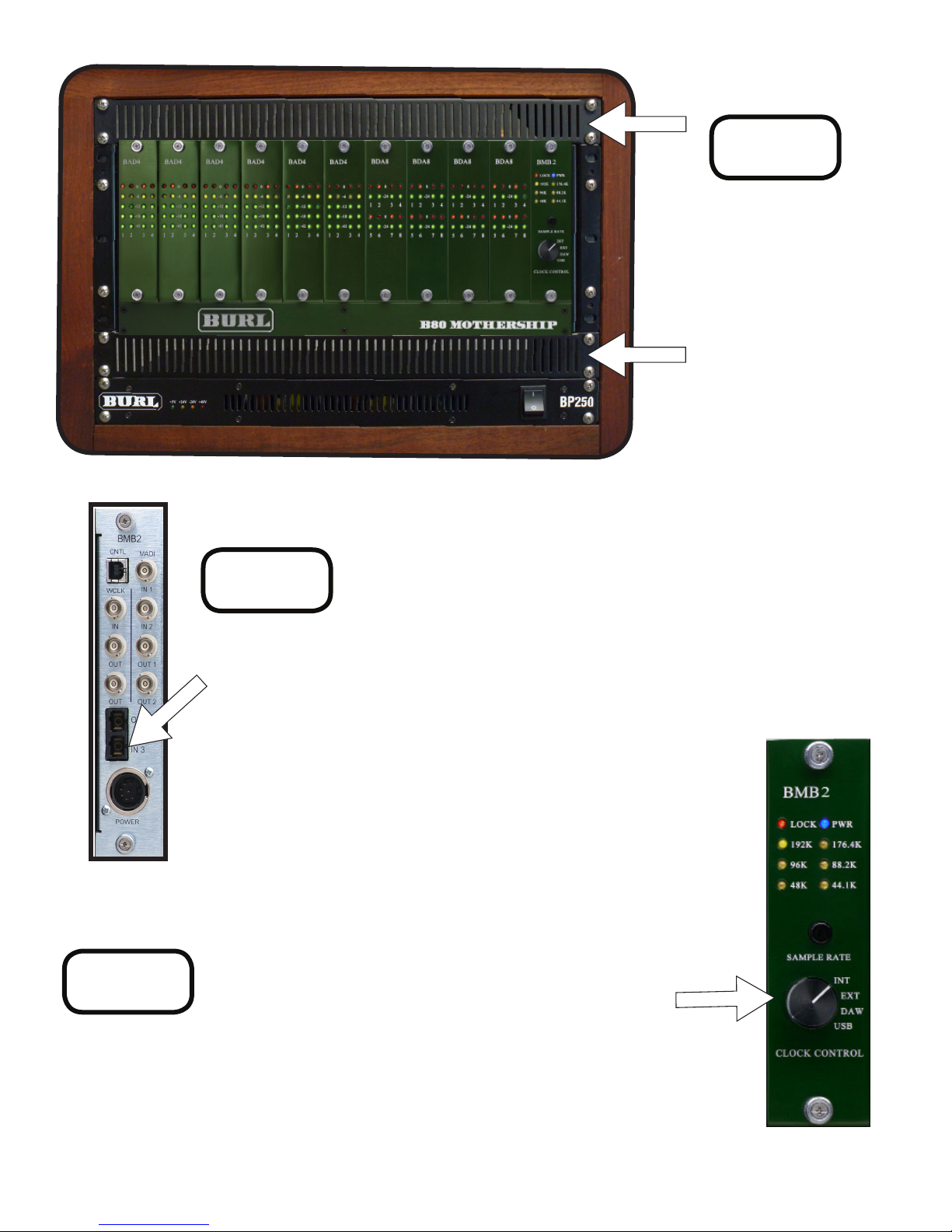

INSTALL 1U VENTS ABOVE AND BELOW MAIN UNIT.

The Mothership MUST run with proper ventilation

Figure 8

STEP 4 CONNECT Optical Port to RME HDSPe MADI Card

Maximum of 40 in 64 out at 44.1k 48k, 32 in 32 out at

88.2k 96k, 16 in 16 out at 176.4k 192k.

Figure 9

STEP 5 Set Motherboard to Internal or External

(WE HIGHLY RECCOMEND INTERNAL CLOCK!)

©BURL AUDI0 2012 B80 Quick Start Guide BMB2 Rev A 120808 831.425.7501

Figure 10

page6•

Page 7

STEP 6:

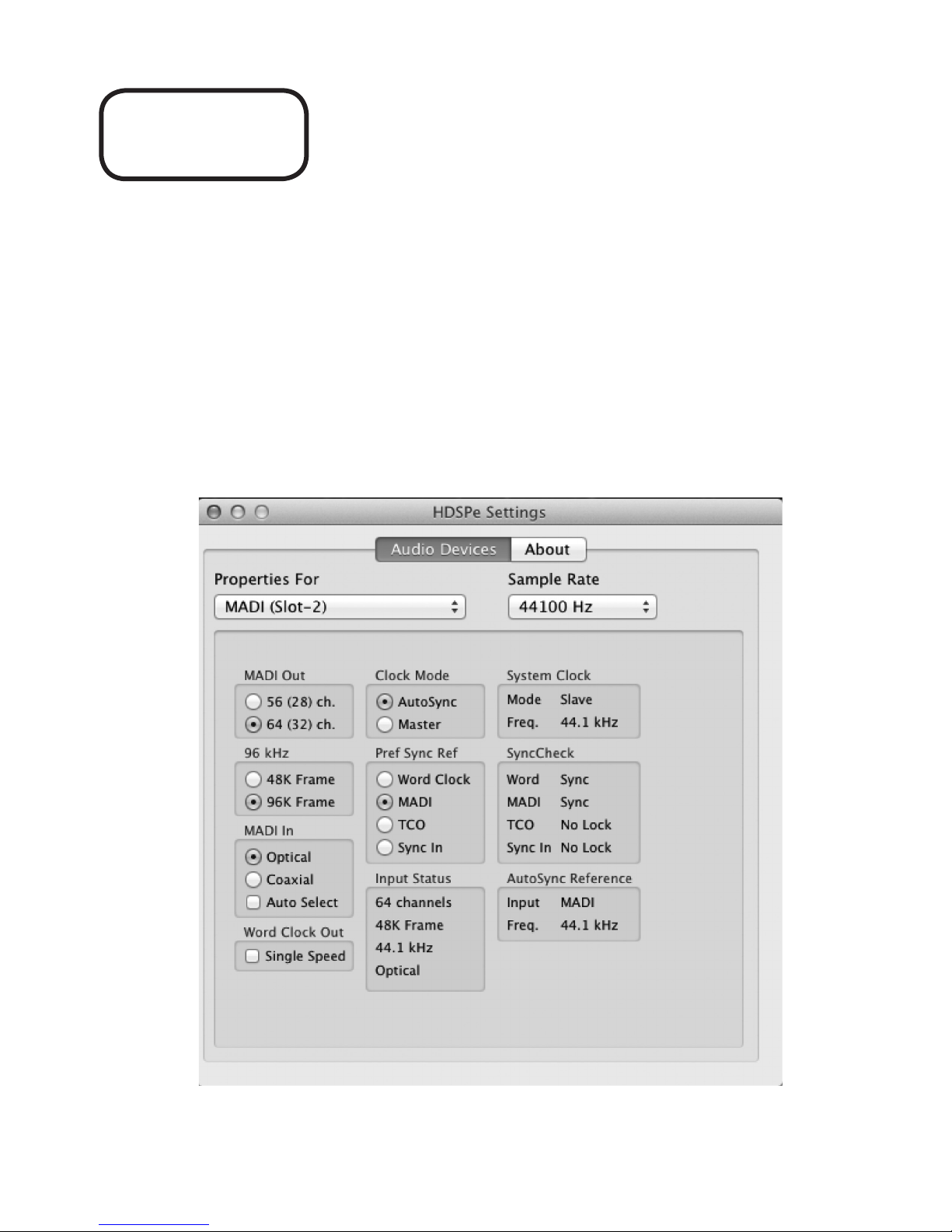

ASIO Driver

Conguration

- Make sure to set correct sample rate for each session.

- Set MADI Out to 64 ch

- For 88.2k and 96k, select 96K Frame

- Set MADI In to Optical

©BURL AUDI0 2012 B80 Quick Start Guide BMB2 Rev A 120808 831.425.7501

page7•

Page 8

STEP 7: INPUT ASSIGNMENT

NOTE: DO NOT ENGAGE MORE I/Os IN YOUR I/O SETUP THAN YOU HAVE HARDWARE FOR!

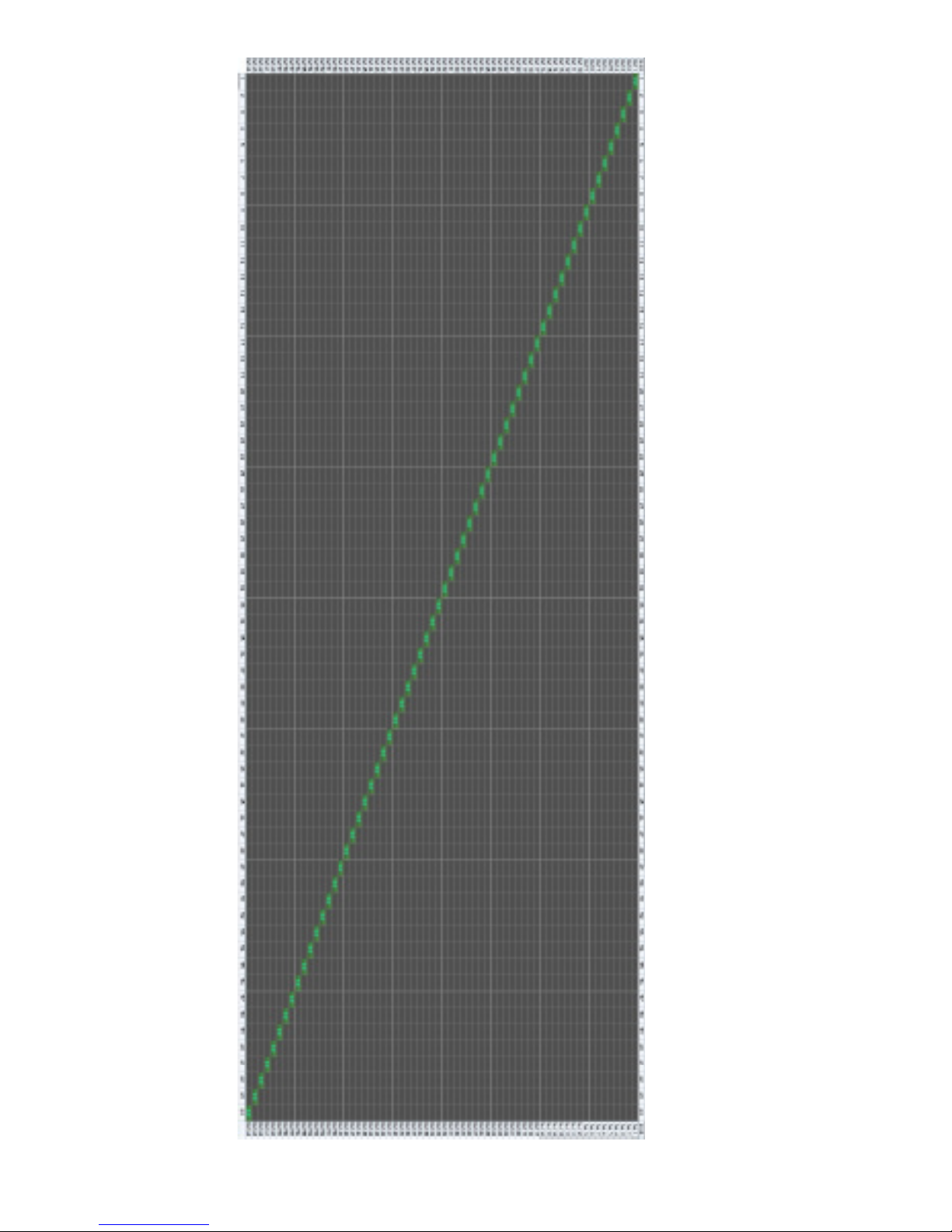

B80 Slot 1 Channel 1 -> MADI In Channel 1 B80 Slot 1 Channel 2 -> MADI In Channel 2 B80 Slot 1 Channel 3 -> MADI In Channel 3 B80 Slot 1 Channel 4 -> MADI In Channel 4 B80 Slot 2 Channel 5 -> MADI In Channel 5 B80 Slot 2 Channel 6 -> MADI In Channel 6 B80 Slot 2 Channel 7 -> MADI In Channel 7 B80 Slot 2 Channel 8 -> MADI In Channel 8 B80 Slot 3 Channel 9 -> MADI In Channel 9 B80 Slot 3 Channel 10 -> MADI In Channel10 B80 Slot 3 Channel 11 -> MADI In Channel 11 B80 Slot 3 Channel 12 -> MADI In Channel 12 B80 Slot 4 Channel 13 -> MADI In Channel 13 B80 Slot 4 Channel 14 -> MADI In Channell 14 B80 Slot 4 Channel 15 -> MADI In Channel 15 B80 Slot 4 Channel 16 -> MADI In Channel 16 B80 Slot 5 Channel 17 -> MADI In Channel 17 B80 Slot 5 Channel 18 -> MADI In Channel 18 B80 Slot 5 Channel 19 -> MADI In Channel 19 B80 Slot 5 Channel 20 -> MADI In Channel 20 B80 Slot 6 Channel 21 -> MADI In Channel 21 B80 Slot 6 Channel 22 -> MADI In Channel 22 B80 Slot 6 Channel 23 -> MADI In Channel 23 B80 Slot 6 Channel 24 -> MADI In Channel 24 B80 Slot 7 Channel 25 -> MADI In Channel 25 B80 Slot 7 Channel 26 -> MADI In Channel 26 B80 Slot 7 Channel 27 -> MADI In Channel 27 B80 Slot 7 Channel 28 -> MADI In Channel 28 B80 Slot 8 Channel 29 -> MADI In Channel 29 B80 Slot 8 Channel 30 -> MADI In Channel 30 B80 Slot 8 Channel 31 -> MADI In Channel 31 B80 Slot 8 Channel 32 -> MADI In Channel 32 B80 Slot 9 Channel 33 -> MADI In Channel 33 B80 Slot 9 Channel 34 -> MADI In Channel 34 B80 Slot 9 Channel 35 -> MADI In Channel 35 B80 Slot 9 Channel 36 -> MADI In Channel 36 B80 Slot 10 Channel 37 -> MADI In Channel 37 B80 Slot 10 Channel 38 -> MADI In Channel 38 B80 Slot 10 Channel 39 -> MADI In Channel 39 B80 Slot 10 Channel 40 -> MADI In Channel 40

©BURL AUDI0 2012 B80 Quick Start Guide BMB2 Rev A 120808 831.425.7501

page8•

Page 9

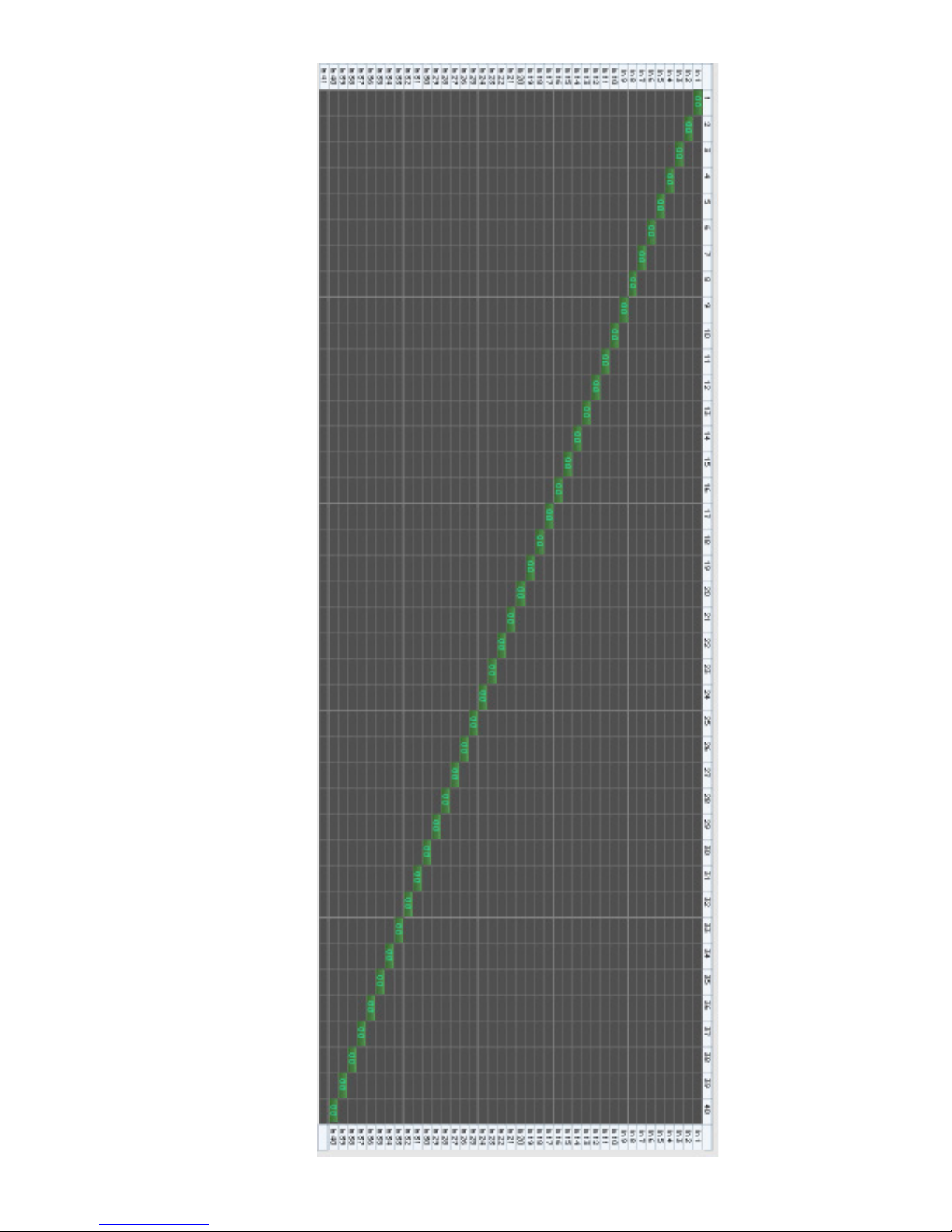

View of 40 ins with 10 BAD4 cards max per chassis.

©BURL AUDI0 2012 B80 Quick Start Guide BMB2 Rev A 120808 831.425.7501

page9•

Page 10

STEP 8: OUTPUT ASSIGNMENT

B80 Slot 7 Channel 1 -> MADI Out Channel 1 B80 Slot 7 Channel 2 -> MADI Out Channel 2 B80 Slot 7 Channel 3 -> MADI Out Channel 3 B80 Slot 7 Channel 4 -> MADI Out Channel 4 B80 Slot 7 Channel 5 -> MADI Out Channel 5 B80 Slot 7 Channel 6 -> MADI Out Channel 6 B80 Slot 7 Channel 7 -> MADI Out Channel 7 B80 Slot 7 Channel 8 -> MADI Out Channel 8 B80 Slot 8 Channel 9 -> MADI Out Channel 9 B80 Slot 8 Channel 10 -> MADI Out Channel 10 B80 Slot 8 Channel 11 -> MADI Out Channel 11 B80 Slot 8 Channel 12 -> MADI Out Channel 12 B80 Slot 8 Channel 13 -> MADI Out Channel 13 B80 Slot 8 Channel 14 -> MADI Out Channel 14 B80 Slot 8 Channel 15 -> MADI Out Channel 15 B80 Slot 8 Channel 16 -> MADI Out Channel 16 B80 Slot 9 Channel 17 -> MADI Out Channel 17 B80 Slot 9 Channel 18 -> MADI Out Channel 18 B80 Slot 9 Channel 19 -> MADI Out Channel 19 B80 Slot 9 Channel 20 -> MADI Out Channel 20 B80 Slot 9 Channel 21 -> MADI Out Channel 21 B80 Slot 9 Channel 22 -> MADI Out Channel 22 B80 Slot 9 Channel 23 -> MADI Out Channel 23 B80 Slot 9 Channel 24 -> MADI Out Channel 24 B80 Slot 10 Channel 25 -> MADI Out Channel 25 B80 Slot 10 Channel 26 -> MADI Out Channel 26 B80 Slot 10 Channel 27 -> MADI Out Channel 27 B80 Slot 10 Channel 28 -> MADI Out Channel 28 B80 Slot 10 Channel 29 -> MADI Out Channel 29 B80 Slot 10 Channel 30 -> MADI Out Channel 30 B80 Slot 10 Channel 31 -> MADI Out Channel 31 B80 Slot 10 Channel 32 -> MADI Out Channel 32

B80 Slot 1 Channel 33 -> MADI Out Channel 33 B80 Slot 1 Channel 34 -> MADI Out Channel 34 B80 Slot 1 Channel 35 -> MADI Out Channel 35 B80 Slot 1 Channel 36 -> MADI Out Channel 36 B80 Slot 1 Channel 37 -> MADI Out Channel 37 B80 Slot 1 Channel 38 -> MADI Out Channel 38 B80 Slot 1 Channel 39 -> MADI Out Channel 39 B80 Slot 1 Channel 40 -> MADI Out Channel 40 B80 Slot 2 Channel 41 -> MADI Out Channel 41 B80 Slot 2 Channel 42-> MADI Out Channel 42 B80 Slot 2 Channel 43 -> MADI Out Channel 43 B80 Slot 2 Channel 44 -> MADI Out Channel 44 B80 Slot 2 Channel 45 -> MADI Out Channel 45 B80 Slot 2 Channel 46 -> MADI Out Channel 46 B80 Slot 2 Channel 47 -> MADI Out Channel 47 B80 Slot 2 Channel 48 -> MADI Out Channel 48 B80 Slot 3 Channel 49 -> MADI Out Channel 49 B80 Slot 3 Channel 50 -> MADI Out Channel 50 B80 Slot 3 Channel 51 -> MADI Out Channel 51 B80 Slot 3 Channel 52 -> MADI Out Channel 52 B80 Slot 3 Channel 53 -> MADI Out Channel 53 B80 Slot 3 Channel 54 -> MADI Out Channel 54 B80 Slot 3 Channel 55 -> MADI Out Channel 55 B80 Slot 3 Channel 56 -> MADI Out Channel 56 B80 Slot 4 Channel 57 -> MADI Out Channel 57 B80 Slot 4 Channel 58 -> MADI Out Channel 58 B80 Slot 4 Channel 59 -> MADI Out Channel 59 B80 Slot 4 Channel 60 -> MADI Out Channel 60 B80 Slot 4 Channel 61 -> MADI Out Channel 61 B80 Slot 4 Channel 62 -> MADI Out Channel 62 B80 Slot 4 Channel 63 -> MADI Out Channel 63 B80 Slot 4 Channel 64 -> MADI Out Channel 64

page10•

Page 11

View of 64 outs, with 8 BDA8 cards max per chassis at 44.1k or 48k sample rates

page11•

Page 12

NOTE:

MADI to Analog Out =10 samples, including DAC chip.

Analog In to MADI= 66 Samples including ADC chip.

Make sure you register your products at

www.burlaudio.com/support

This way we can keep you rocking. If you have support questions, please write an email to

[email protected]

or call

831.425.7501

Rock!

page12•

Page 13

OPTIONAL BP250 FAN CALIBRATION

You may adjust the thermostat for the fans of the BP250 if noise is an issue. To

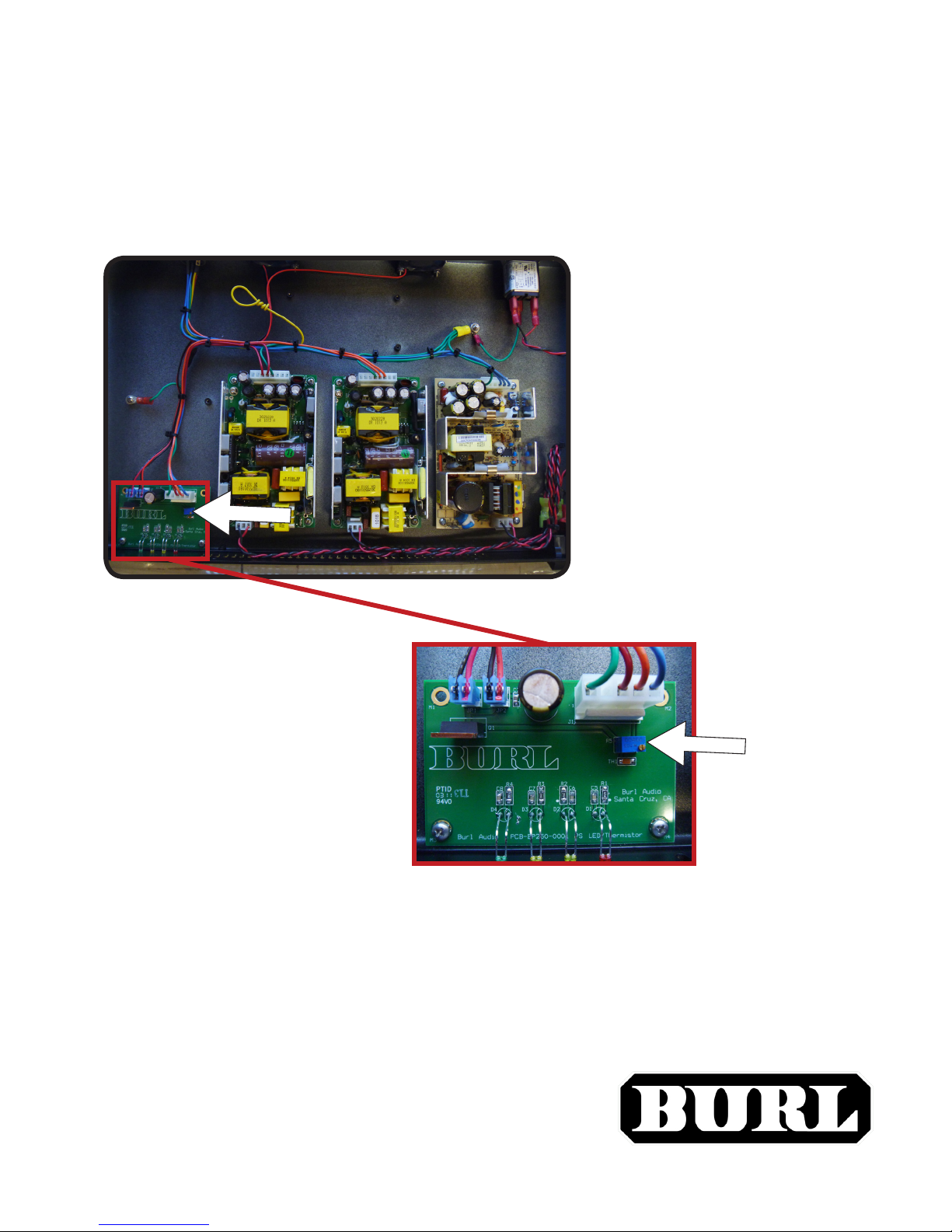

adjust the thermostat, remove BP250 lid. Locate calibration pot and adjust as in Figure 8.b, if desired. The BP250 is factory set to 1.2 VDC @ room temperature

across the black and red fan wires. Higher fan speeds will ensure longer lasting electronics.

Figure 13a

Figure 13b

If you have any questions,

please call Will Kahn:

831-425-7501

or [email protected]

Burl Audio, LLC

Santa Cruz CA

www.burlaudio.com
