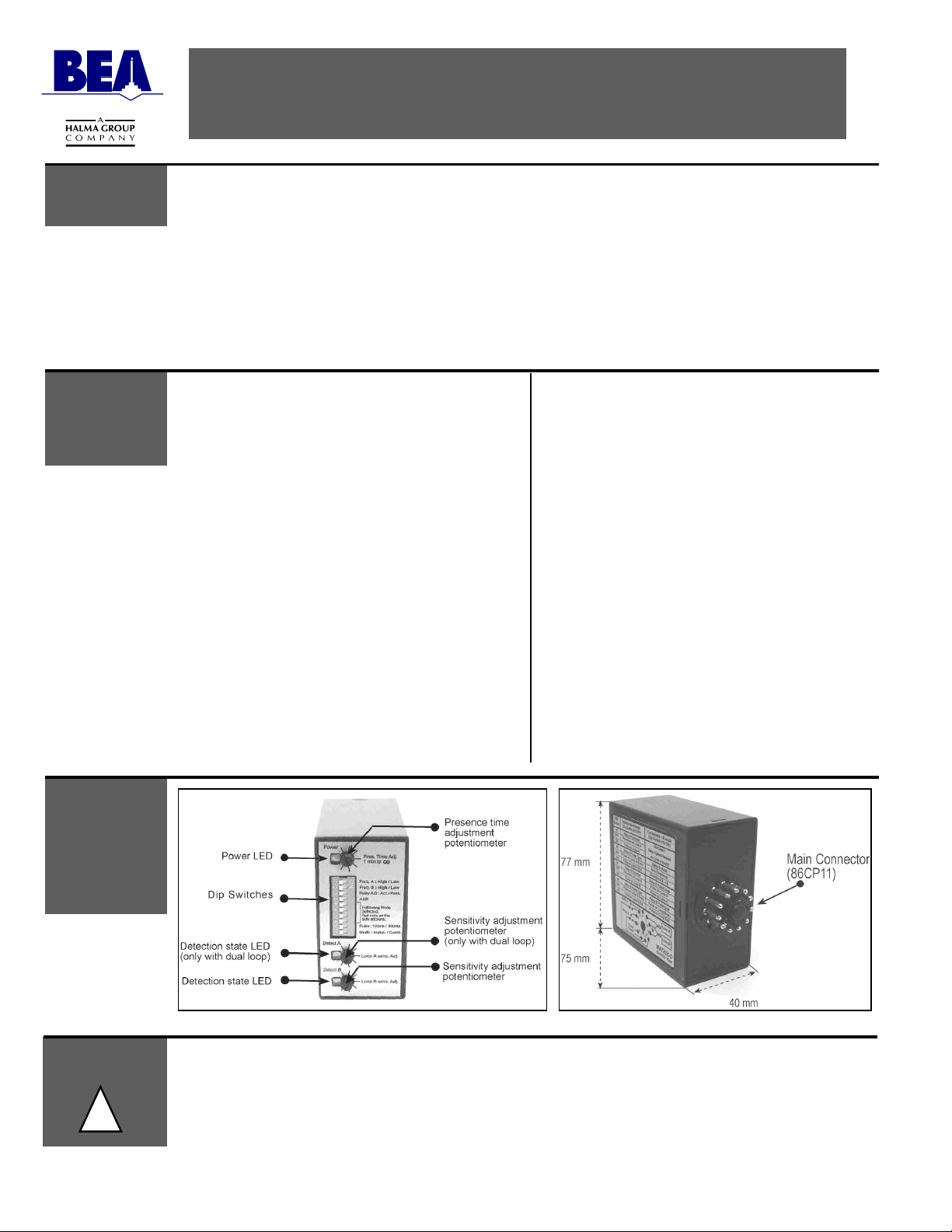

We open up New Horizons
APPLICATIONS
TECHNICAL
SPECIFICATIONS
DESCRIPTION
OF THE
SENSOR
USERS GUIDE
MATRIX
DIGITAL INDUCTIVE LOOP SENSORS
The MATRIX Digital Inductive Loop Detector is the ideal solution for parking barrier control, motorized gates and doors, vehicle
access control and industrial control systems.
The MATRIX is a high performance single or dual-channel vehicle detector packaged in a compact housing. The connection is
made with a standard industrial 11-pin round connector.
The six versions listed below include single or dual-channel, and 3 possible power supplies:
10MATRIXS110 : Single loop detector with 110 to 120 V AC power supply.
10MATRIXS220 : Single loop detector with 220 to 240 V AC power supply.
10MATRIXS1224 : Single loop detector with 12 to 24 V AC/DC power supply.
10MATRIXD110 : Dual loop detector with 110 to 120 V AC power supply.
10MATRIXD220 : Dual loop detector with 220 to 240 V AC power supply.
10MATRIXD1224 : Dual loop detector with 12 to 24 V AC/DC power supply.
Technology : Inductive loop
Tuning : automatic
Detection mode : presence
Presence time : 1 min to infinity (permanent
presence) with 250 steps.
Pulse time output : 100 ms or 500 ms
Inductance range : 20 µH to 1000 µH
Frequency range : 20 kHz to 130 kHz
Frequency steps : 4 for single loop
2 for dual loop (for each loop)
Sensitivity (∆L/L) : 0.005% to 0.5% with 250 steps
Reaction time : 25ms for single loop
50ms for dual loop(each channel)
Setup time at power on : 8 s max by channel
Setup time after configuration : 2s max by channel
Power supply (depending on model) :
• 12-24 AC/DC ± 10%
• 230VAC ± 10 %
• 115VAC ± 10 %
Power Frequency : 48 to 62 Hz
Power Consumption : < 2.5 W
Temperature range : -22°F to 158°F
[-30°C to +70°C]
Degree of protection : IP40
2 Output relays (free potential change-over contact) :
• Max contact voltage : 230 VAC ;
• Max contact current : 5A (resistive).
LED indicators :
• 1 green LED : power ;
• 1 red LED : Loop status 1 ;
• 1 red LED : Loop status 2.
Protections :
• loop insulation transformer ;
• Zener diodes ;
• gas discharge clamping.
Connection :
Standard 11-pin round connector 86CP11
Dimensions : 3 in (H) x 1.5 in (W) x 3 in (D)
[
77mm (H) x 40mm(W) x 75mm(D)]
Weight : 7 ounces [< 200g]
Product compliance :
R&TTE 1999/5/EC
EMC 89/336/EEC
FCC 47CFR15
IC RSS-210 Issue 5
SAFETY
PRECAUTIONS
!
• Shut off all power before attempting any wiring procedures.
• Maintain a clean & safe environment.
• Constantly be aware of traffic around the door or gate area.
• Always suspend traffic through the doorway or gate area when performing testing that may result in unexpected
reactions by the door or gate.
• Always check placement of all wiring and components before powering up to insure that moving parts will not catch
any wires and cause damage to equipment.
75.1046 V3 July 2005 [Rev. 7/21/2005]
Page 1 of 6
1 ¼ - 2” (30
–
50mm)
Ground
level
FCC
COMPLIANCE
LOOP
INSTALLATION
TIPS
10MATRIXS110: Matrix, Single Unit, 110 Volt AC supply
10MATRIXS220: Matrix, Single Unit, 220 Volt AC supply
10MATRIXS1224: Matrix, Single Unit, 12-24 Volt AC/DC supply
10MATRIXD110: Matrix, Double Unit, 110 Volt AC supply
10MATRIXD220: Matrix, Double Unit, 220 Volt AC supply
10MATRIXD1224: Matrix, Double Unit, 12-24 Volt AC/DC supply
The Digital Transmitters and Receivers comply with Part 15 of the FCC rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference and;
2) This device must accept any interference received including interference that may cause undesired operations.
Changes or modifications not expressly approved by B.E.A., Inc. for compliance could void the user’s authority to operate the
equipment.
(FCC ID: G9B-MATRIX)
(IC: 4680A-MATRIX)
A . CABLE SPECIFICATIONS FOR LOOP AND FEEDER
•
16 AWG (1.5mm²) cross section area ;
• Multi-strand cable ;
• Insulation material : PVC or Silicone ;
• For the feeder cable, the wire must be twisted at least 15 times per yard for each cable.
• Feeder for long runs used for foil screened cable is recommended (earth at equipment end only)
• The feeder cable must be firmly fixed to avoid any false detection (max length: 330 feet (100 m)).
• Waterproof cable junction box is required.
B. LOOP GEOMETRY
Ea
Eb
C. DETERMINATION OF THE NUMBER OF LOOP TURNS
• Measure the length (L) and width (Ea) of one loop. Multiply these numbers together to determine the
loop surface area. See above drawing.
• For example, if L=10 ft, Ea= 3 ft, then the area = 30 ft2; 4 loop turns are recommended.
Recommended values for the turns:
<32 ft² <3 m² 4
32 – 54 ft² 3 – 5 m² 3
65 – 108 ft² 6 – 10 m² 2
D. SLOT DEPTH
or if L=2m, Ea=1m, then the area = 2 m2 ; 4 loop turns are recommended.
Area Number of turns
L
• When two adjacent loops are connected to a dual channel
sensor, it is possible for these loops to share a common
slot, if so required. As the channels are multiplexed, no
interference will occur.
• Avoid large loops or long feeder [max 330 feet (100 m)], or
else the sensitivity will be affected.
WARNING:
For conformity reasons, in any installation,
the loop surface multiplied by the number of
turns should not exceed 215 (for square
!
feet); 20 (for square meters)
Loop sealant
75.1046 V3 July 2005 [Rev. 7/21/2005]
depending on the cable
turns number
C l e a n
a n d
d r y
s l o t s
t o
i n s e r t i n g
c a b l e
p r i o r
Page 2 of 6
M i n
M a x
1
m i n 1 0
m i n
1
H
2
H
5
H
2 0
H I n f i n i t y
t i m e
M i n
M a x
0 . 5 % 0 . 4 4 %
0 . 3 4 %
0 . 2 5 %
0 . 1 8 %
0 . 1 %
0 . 0 0 5 %

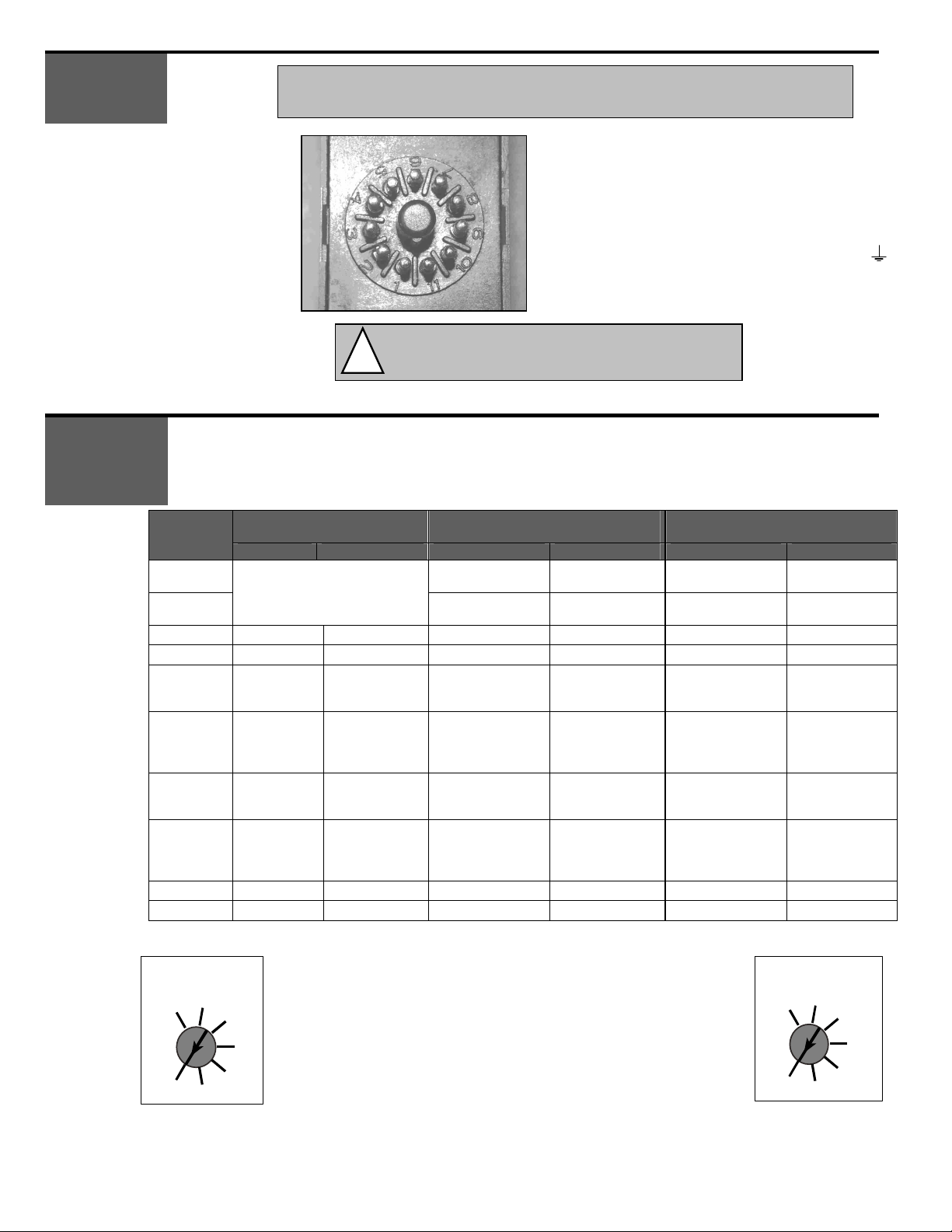

WIRING
PROGRAMMING
WARNING : Do not remove the grease on the connector's pins.
I. THE 3 CONFIGURATIONS
• Configuration A : single loop detector (MATRIX-S) ;
• Configuration B : dual loop detector in independent mode (MATRIX-D with dip switch #10 OFF) ;
• Configuration C : dual loop detector in combined mode (MATRIX-D with dip switch #10 ON).
Dip Switch
DS#1
DS#2
DS#3
DS#4
DS#5
DS#6
DS#7
DS#8
DS#9
DS#10
II. POTENTIOMETERS
P r e s e n c e
FIG. 1
75.1046 V3 July 2005 [Rev. 7/21/2005]
Configuration A
Single loop
OFF ON OFF ON OFF ON
See next table
Active mode Passive mode Active mode Passive mode Active mode Passive mode
ASB OFF ASB ON ASB OFF ASB ON ASB OFF ASB ON
Relay A :
Presence on
loop A
Relay A :
Pulse on loop
A
entry
Relay B :
Presence on
loop A
Relay B :
Pulse on loop
A
entry
100 ms 500 ms 100 ms 500 ms 100 ms 500 ms
Not used Not used Independent Combined mode Independent Combined mode
• A potentiometer for adjustment of the maximum duration of a presence
• A potentiometer for adjustment of the linear sensitivity (∆f) for the loop A :
• A potentiometer for adjustment of the linear sensitivity (∆f) for the loop B :
Pin 1 : Power Supply
Pin 2 : Power Supply
Pin 3 : Relay 2 (NO)
Pin 4 : Relay 2 (COM)
Pin 5 : Relay 1 (NO)
Pin 6 : Relay 1 (COM)
Pin 7 : Loop A
Pin 8 : Loop common and connect to ground
Pin 9 : Loop B
Pin 10 : Relay 1 (NC)
Pin 11 : Relay 2 (NC)
WARNING:
!
Relay A :
Pulse on loop
Relay A :
Pulse on loop A
exit
Relay B :
Pulse on loop A
Relay B :
Pulse on loop A
exit
detection : from 1 min to infinity ; (see Fig. 1)
from 0.005% to 0.5 % ; (see Fig. 2)
from 0.005% to 0.5 %. (see Fig. 2)
Pin #8 must be connected to the loop and to ground
Configuration B
Dual loop in independent mode
High (loop A) Low (loop A)
High (loop B) Low (loop B)
Relay A :
Presence on loop A
Relay A :
Pulse on loop A
entry
Relay B :
Presence on loop B
Relay B :
Pulse on loop B
entry
[High –30%]
[High –30%]
Relay A :
Pulse on loop A
Relay A :
Pulse on loop A
Exit
Relay B :
Pulse on loop B
Relay B :
Pulse on loop B
exit
Configuration C
Dual loop in combined mode
High (loop A) Low (loop A)
[High –30%]
High (loop B) Low (loop B)
[High –30%]
Not used Not used
Relay B :
Non-Directional
mode
Relay B :
Pulse on loop B
Relay B :
Pulse on loop entry
Relay B:
Directional A→B
mode
Relay B :
Pulse on loop A
Relay B :
Pulse on loop exit
S e n s i t i v i t y
FIG. 2
Page 3 of 6
DIPSWITCH
SETTINGS
A 10 position dip switch is located on the front of the Matrix single detector. Dip switch 3, 5, 6, 7, and 8 configure the relay, while
dip switch 9 controls the duration of the pulse when the Matrix is configured for pulse operation, (as opposed to presence).
Configurations are as follows:
Dip Switch 3:
OFF= FAIL-SECURE MODE Relay is NOT energized when power is applied. Relay is energized upon detection only. In this
mode, the N.O. circuit is open, and the N.C. circuit is closed. Thus, if a closed circuit is required upon detection, one must use the
N.O. and COM terminals since they would close upon detection. When the Matrix is NOT powered, it is in the same state as it
would be for non-detection.
ON = FAIL-SAFE MODE Relay is energized as soon as power is applied, and de-energizes upon detection or power loss. In this
mode, upon powering the detector, the N.O. circuit becomes closed, and the N.C. circuit becomes open. Thus, if a closed circuit
is required upon detection, one must use the N.C. and COM terminals, since they would now be OPEN during non-detection, and
would close upon detection. When the Matrix is NOT powered, it is in the same state as it would be for detection.
Detection Status Fail-Secure Mode (Active Mode)
No Detection
Detection
Same
Upon Power Loss
(Relay is not energized upon power-on)
Dipswitch 3 OFF
The COM and N.O. terminals are OPEN.
COM and N.C. terminals are CLOSED.
The relay is de-energized.
The COM and N.O. terminals are CLOSED.
COM and N.C. terminals are OPEN.
The relay is energized.
The COM and N.O. terminals are OPEN.
COM and N.C. terminals are CLOSED
The relay is de-energized.
Fail-Safe Mode (Passive Mode)
(Relay becomes energized upon power-on)
Dipswitch 3 ON
The COM and N.O. terminals are CLOSED.
COM and N.C. terminals are OPEN.
The relay is energized.
The COM and N.O. terminals are OPEN.
COM and N.C. terminals are CLOSED.
The relay is de-energized.
The COM and N.O. terminals are OPEN.
COM and N.C. terminals are CLOSED.
The relay is de-energized.
Same
DIPSWITCH
SETTINGS
III. DIP SWITCHES
After each dip switch change the sensor launches a learning process.
Dip Switch #1
Frequency Adjustments of Loop A (see ADJUSTMENTS on the next page)
Dip Switch #2 Frequency Adjustments of Loop A (with single loop) or Loop B (with dual loops)
Dip Switch #3 Relay configuration : active (fail-secure) or passive (fail-safe_ (see above)
Dip Switch #4
Automatic Sensitivity Boost (ASB option) [recommended for improved truck detection] :
During a detection, the sensitivity increases automatically to 8 times the preset sensitivity
given by the sensitivity potentiometer adjustment. It is limited to the maximum sensitivity
(∆f = 0.005%). It goes back to the preset value after detection stops.
Dip Switch #5 Relay A function : presence or pulse (not used with dual loop in combined mode)
Dip Switch #6 Relay A Pulse type : entry or exit (used only at pulse function)
or Relay B mode (with dual loop in combined mode) (see drawing on next page)

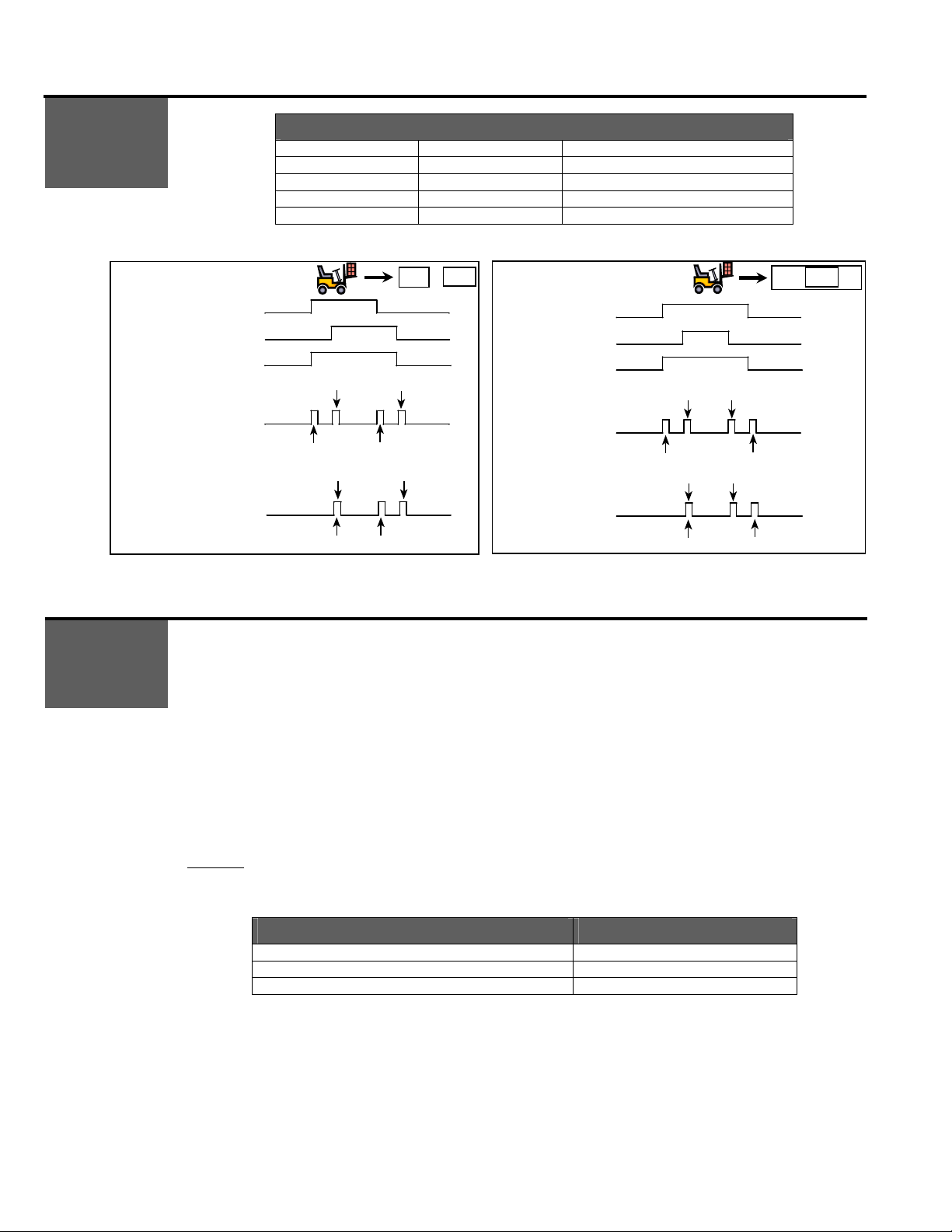

• Non-Directional :
Relay B provides a pulse according to the dip switches #7 and #8 setting.
• Directional A→B :
Relay B provides a pulse only if loop A is detecting before loop B. The logic
detection takes place according to dip switches #7 and #8.
Warning : During the detection, the 2 loops have to detect simultaneously for
a short period to be able to determine the movement direction. During loop
installation make sure the 2 loops are close enough to each other to ensure a
common detection (typical 3 feet).
Dip Switch #7 Relay B function : presence or pulse
Or loop selection for relay B pulse : pulse on Loop B or pulse on Loop A (used with dual
loop in combined mode)
Dip Switch #8 Relay B Pulse type : entry or exit (used only at pulse function)
Dip Switch #9 Pulse duration for both relays (used only at pulse function): 100 ms or 500 ms
Dip Switch #10
Dual loop mode : independent or combined A→B (not used with single loop)
75.1046 V3 July 2005 [Rev. 7/21/2005]
Page 4 of 6
e
n
t
r
y
B
P
u
l
s
e
o
n
e
x
i
t
A
P
u
l
s
e
o
n
e
x
i
t
B
Dual Loop Configuration A
R
e
l
a
y
B
(
D
i
r
e
c
t
i
o
n
a
l
A
-
>
B
m
o
d
e
)
P
u
l
s
e
o
n
e
n
t
r
y
A
P
u
l
s
e
o
n
e
n
t
r
y
R
e
l
a
y
B
(
N
o
n
-
D
i
r
e
c
t
i
o
n
a
l
)
L
o
o
p
A
L
o
o
p
B
R
e
l
a
y
A
P
u
l
s
e
o
n
e
n
t
r
y
A
P
u
l
s
e
o
n
B
P
u
l
s
e
o
n
e
x
i
t
A
P
u
l
s
e
o
n
e
x
i
t
B
L
o
o
p
A
L
o
o
p
B
D
u
a
l
L
o
o
p
C
o
n
f
i
g
u
r
a
t
i
o
n
B
L
o
o
p
A
L
o
o
p
B
R
e
l
a
y
A
P
u
l
s
e
o
n
e
n
t
r
y
B
P
u
l
s
e
o
n
e
x
i
t
B
P
u
l
s
e
o
n
e
n
t
r
y
A
P
u
l
s
e
o
n
e
x
i
t
A
R
e
l
a
y
B
(
N
o
n
-
D
i
r
e
c
t
i
o
n
a
l
)
P
u
l
s
e
o
n
e
n
t
r
y
B
P
u
l
s
e
o
n
e
x
i
t
B
P
u
l
s
e
o
n
e
n
t
r
y
A
P
u
l
s
e
o
n
e
x
i
t
A
R
e
l
a
y
B
(
D
i
r
e
c
t
i
o
n
a
l
A
-
>
B
m
o
d
e
)
L
o
o
p
A
L
o
o
p
B
ADJUSTMENTS
LED SIGNAL
Frequency adjustment for loop A for single loop detector
Dip Switch #1 Dip Switch #2 Loop frequency
OFF OFF High
ON OFF Mid High [High –20%]
OFF ON Mid Low [High – 25%]
Green LED shows when the module is powered;
Red LED gives:
Normally, the red LED stays ON as long as the loop is in a state of detection.
On POWER ON, the sensor measures the oscillation frequency of each loop. The result of this measurement is
displayed using the corresponding red LED. The number of flashes indicates the tens value of the frequency. For
example 4 short flashes correspond to a frequency between 40 kHz and 49 kHz. After this message the LED goes
back to normal display.
If the loop oscillation frequency falls outside the limits (20 kHz to 130 kHz) the red LED displays an error message
and the sensor activates the corresponding relay. The blinking frequency shows the type of error according to the
next table. The sensor will stay in error mode until the error is cleared and the frequency goes to the right range.
Remark : The sensor launches automatically a learning process if the oscillation frequency varies more than 10%
in comparison with the measurement value.
• the corresponding loop detection state in normal situation;
• the value of the oscillation frequency measurement or an error message on power ON.
Oscillation frequency too LOW or loop opened LED blinking at 1Hz
Oscillation frequency too HIGH LED blinking faster at 2 Hz
Loop shorted or no oscillation LED blinking slower at 0.5 Hz
ON ON Low [High – 30%]
Loop frequency error LED display
75.1046 V3 July 2005 [Rev. 7/21/2005]
Page 5 of 6
TROUBLE SHOOTING
COMPANY
CONTACT
SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION
The loop detector will not work.
The green LED is off.
The loop detector will not work.
The red LED is flashing slowly
There is no power supply to the
loop detector.
The corresponding loop is
shorted.
Check power supply.
Check the loop cable.
(0.5 Hz).
The loop detector will not work.
The red LED blinks at either 1Hz
or 2Hz.
The loop LED is detecting properly
but the contact is not made.
Dip switches 5 to 8 are not
responding properly.
The frequency of oscillation falls
outside the allowed range.
Bad connection of the relay
contacts.
Their function varies according to
dip switch #10 setting.
Adjust frequency with dip
switches
or change loop turns.
Check relay connections.
Check the appropriate loop
mode required and adjust
dip switch #10.
If after troubleshooting a problem, a satisfactory solution cannot be achieved, please call B.E.A., Inc.
for further assistance during Eastern Standard Time at 1-800-523-2462 from 8am - 5pm.
For after-hours, call East Coast: 1-866-836-1863 / Mid-West: 1-888-308-8843
West Coast: 1-888-419-2564. DO NOT leave any problem unresolved. If you must wait for the following workday to call
B.E.A., leave the door inoperable until satisfactory repairs can be made.
NEVER sacrifice the safe operation of the automatic door or gate for an incomplete solution.
Web: www.beasensors.com
75.1046 V3 July 2005 [Rev. 7/21/2005]
Page 6 of 6
Loading...
