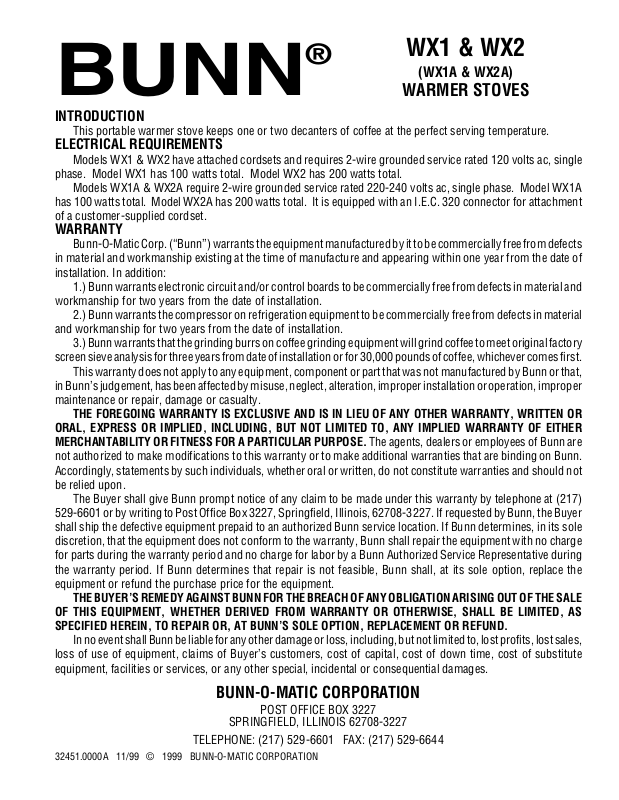

Bunn-O-Matic WX2 Operation Manual

WX1 & WX2

(WX1A & WX2A)

BUNN

INTRODUCTION

This portable warmer stove keeps one or two decanters of coffee at the perfect serving temperature.

ELECTRICAL REQUIREMENTS

Models WX1 & WX2 have attached cordsets and requires 2-wire grounded service rated 120 volts ac, single

phase. Model WX1 has 100 watts total. Model WX2 has 200 watts total.

Models WX1A & WX2A require 2-wire grounded service rated 220-240 volts ac, single phase. Model WX1A has 100 watts total. Model WX2A has 200 watts total. It is equipped with an I.E.C. 320 connector for attachment of a customer-supplied cordset.

WARRANTY

Bunn-O-Matic Corp. (“Bunn”) warrants the equipment manufactured by it to be commercially free from defects in material and workmanship existing at the time of manufacture and appearing within one year from the date of installation. In addition:

1.) Bunn warrants electronic circuit and/or control boards to be commercially free from defects in material and

workmanship for two years from the date of installation.

2.) Bunn warrants the compressor on refrigeration equipment to be commercially free from defects in material

and workmanship for two years from the date of installation.

3.) Bunn warrants that the grinding burrs on coffee grinding equipment will grind coffee to meet original factory

screen sieve analysis for three years from date of installation or for 30,000 pounds of coffee, whichever comes first.

This warranty does not apply to any equipment, component or part that was not manufactured by Bunn or that, in Bunn’s judgement, has been affected by misuse, neglect, alteration, improper installation or operation, improper maintenance or repair, damage or casualty.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of Bunn are

not authorized to make modifications to this warranty or to make additional warranties that are binding on Bunn. Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and should not be relied upon.

The Buyer shall give Bunn prompt notice of any claim to be made under this warranty by telephone at (217) 529-6601 or by writing to Post Office Box 3227, Springfield, Illinois, 62708-3227. If requested by Bunn, the Buyer shall ship the defective equipment prepaid to an authorized Bunn service location. If Bunn determines, in its sole discretion, that the equipment does not conform to the warranty, Bunn shall repair the equipment with no charge for parts during the warranty period and no charge for labor by a Bunn Authorized Service Representative during the warranty period. If Bunn determines that repair is not feasible, Bunn shall, at its sole option, replace the equipment or refund the purchase price for the equipment.

THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AS SPECIFIED HEREIN, TO REPAIR OR, AT BUNN’S SOLE OPTION, REPLACEMENT OR REFUND.

In no event shall Bunn be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.

WARMER STOVES

BUNN-O-MATIC CORPORATION

POST OFFICE BOX 3227

SPRINGFIELD, ILLINOIS 62708-3227

TELEPHONE: (217) 529-6601 FAX: (217) 529-6644

CLEANING

The use of a damp cloth rinsed in any mild, non-abrasive, liquid detergent is recommended for cleaning all

surfaces on Bunn-O-Matic equipment.

REPLACEMENT PARTS

01908.0000 ... Connector, Power Entry (WX1A & WX2A models)

01637.0000 ... Cordset, 5', 16/3, HSJO, NEMA 5-15P (WX1 and WX2 models)

04198.0000 ... Feet (Set of 4) (WX1, WX1A and WX2 models)

24600.0000 ... Feet (Set of 4) (WX2A models)

04226.0002 ... Indicator Lamp, 125V (WX1 and WX2 models) (Use in .687" x .1.22" panel cut-

out)

01089.0000 ... Indicator Lamp, 240V (WX1A & WX2A models prior to July 1997) (Use in .687"

x .1.22" panel cut-out)

27691.0000 ... Indicator Lamp, 250V (WX1A & WX2A models effective July 1997) (Use in .55"

x .1.12" panel cut-out)

04225.0002 ... On/Off Switch (WX1 and WX2 models) (WX1A & WX2A models prior to July

1997) (Use in .687" x .1.22" panel cut-out)

27689.0000 ... On/Off Switch (WX1A & WX2A models effective July 1997) (Use in .55" x .1.12"

panel cut-out)

03656.0000 ... Warmer Dish, Porcelain

01227.0000 ... Warmer Element (WX1 and WX2 models)

01951.0000 ... Warmer Element (WX1A & WX2A models)

05212.0000 ... Warmer Retainer Plate

23325.0000 ... Wiring Kit, Complete (WX1 models)

23326.0000 ... Wiring Kit, Complete (WX2 models)

23327.0000 ... Wiring Kit, Complete (WX1A models)

23328.0000 ... Wiring Kit, Complete (WX2A models)

SCHEMATIC WIRING DIAGRAM WX1

BLK BLK

BLK

100 to 120 VOLTS A C

2 WIRE

SCHEMATIC WIRING DIAGRAM WX2

BLK

100 to 120 VOLTS A C

2 WIRE

GREEN

IND

WARMER

GREEN

IND

WARMER

WHI

BLK BLK

230 VOLTS A C

BLK

230 VOLTS A C

2 WIRE

SCHEMATIC WIRING DIAGRAM WX1A

BLK

IND

WARMER

SCHEMATIC WIRING DIAGRAM WX2A

BLK

IND

WARMER

GREEN/YEL

RED

32451 111599
