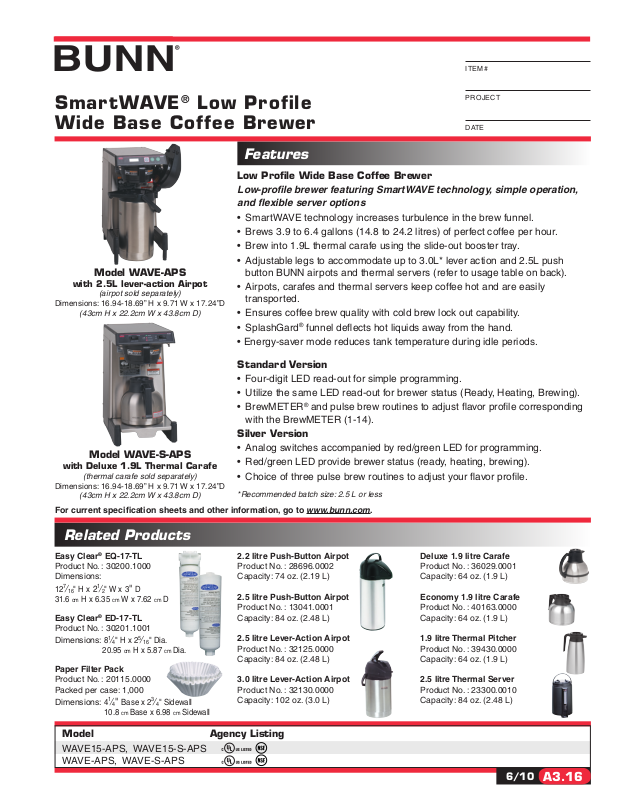

Bunn-O-Matic WAVE-S-APS General Manual
ITE M#
SmartWAVE® Low Profile
Wide Base Coffee Brewer
Features
Low Profile Wide Base Coffee Brewer
Low-profile brewer featuring SmartWAVE technology, simple operation,
and flexible server options
• SmartWAVE technology increases turbulence in the brew funnel.
• Brews 3.9 to 6.4 gallons (14.8 to 24.2 litres) of perfect coffee per hour.
• Brew into 1.9L thermal carafe using the slide-out booster tray.
• Adjustable legs to accommodate up to 3.0L* lever action and 2.5L push
Model WAVE-APS
with 2.5L lever-action Airpot
(airpot sold separately)
Dimensions: 16.94-18.69” H x 9.71 W x 17.24”D
(43cm H x 22.2cm W x 43.8cm D)
Model WAVE-S-APS
with Deluxe 1.9L Thermal Carafe
(thermal carafe sold separately)
Dimensions: 16.94-18.69” H x 9.71 W x 17.24”D
(43cm H x 22.2cm W x 43.8cm D)
For current specification sheets and other information, go to www.bunn.com.
button BUNN airpots and thermal servers (refer to usage table on back).
• Airpots, carafes and thermal servers keep coffee hot and are easily
transported.
• Ensures coffee brew quality with cold brew lock out capability.
• SplashGard
®
funnel deflects hot liquids away from the hand.
• Energy-saver mode reduces tank temperature during idle periods.
Standard Version
• Four-digit LED read-out for simple programming.
• Utilize the same LED read-out for brewer status (Ready, Heating, Brewing).
®
• BrewMETER
and pulse brew routines to adjust flavor profile corresponding
with the BrewMETER (1-14).
Silver Version
• Analog switches accompanied by red/green LED for programming.
• Red/green LED provide brewer status (ready, heating, brewing).
• Choice of three pulse brew routines to adjust your flavor profile.
*Recommended batch size: 2.5 L or less
PROJECT
DATE
Related Products
Easy Clear® EQ-17-TL
Product No. : 30200.1000
Dimensions:
7
12
⁄
31.6
Easy Clear® ED-17-TL
Product No. : 30201.1001
Dimensions:
20.95
Paper Filter Pack
Product No. : 20115.0000
Packed per case: 1,000
Dimensions:
10.8
1
" H x 2
⁄
16
cm H x 6.35 cm W x 7.62 cm D
" W x 3" D
2
1
8
1
4
5
⁄
" H x 2
⁄
4
" Dia.
16
cm H x 5.87 cm Dia.
⁄4" Base x 23⁄
cm Base x 6.98 cm Sidewall
" Sidewall
4
Model Agency Listing
WAVE15-APS, WAVE15-S-APS
WAVE-APS, WAVE-S-APS
2.2 litre Push-Button Airpot
Product No. : 28696.0002
Capacity: 74 oz. (2.19 L)
2.5 litre Push-Button Airpot
Product No. : 13041.0001
Capacity: 84 oz. (2.48 L)
2.5 litre Lever-Action Airpot
Product No. : 32125.0000
Capacity: 84 oz. (2.48 L)
3.0 litre Lever-Action Airpot
Product No. : 32130.0000
Capacity: 102 oz. (3.0 L)
Deluxe 1.9 litre Carafe
Product No. : 36029.0001
Capacity: 64 oz. (1.9 L)
Economy 1.9 litre Carafe
Product No. : 40163.0000
Capacity: 64 oz. (1.9 L)
1.9 litre Thermal Pitcher
Product No. : 39430.0000
Capacity: 64 oz. (1.9 L)
2.5 litre Thermal Server
Product No. : 23300.0010
Capacity: 84 oz. (2.48 L)
6/10
A3.16
Dimensions & Specifications
Model Product # Volts Amps Tank Heater Total Brewing Cu. Shipping Cord
Watts Watts Capacity Ft. Weight Attached
WAVE15-APS 39900.0005 120 11.3 1320 1350 3.9 gal./hr. 2.5 24.2 lbs. Yes
WAVE15-S-APS 39900.0006 120 11.3 1320 1350 3.9 gal./hr. 2.5 24.2 lbs. Yes
WAVE-APS 39900.0008 120/240 9.4 2202 2250 6.4 gal./hr. 2.5 24.2 lbs. No
WAVE-S-APS 39900.0009 120/240 9.4 2202 2250 6.4 gal./hr. 2.5 24.2 lbs. No
Brewing capacity: based upon incoming water temp of 60ºF (140ºF rise) per 1/2 gallon brew time of 4 minutes.
Electrical: 120V, requires 2-wires plus ground service rated 120V, single phase, 60 Hz.
120/240V, requires 3-wires plus ground service rated 120/240V, single phase, 60 Hz.
Plumbing: 20-90 psi (138-621 kPa). Supplied with 1⁄4" male flare fitting. Tank Capacity: 155 oz. (4.58 L)
Airpot/Carafe/Pitcher/Thermal Server Usage Table
Legs extended to
accommodate 2.5L
push-button airpot
Brewer Position BUNN Part # Description
Brewer
Height
Using thermal carafe tray 36029.0001 1.9L deluxe thermal carafe 16.9” N/A
Using thermal carafe tray 40163.0000 1.9L economy thermal carafe 16.9” N/A
LP feature (Lowest) 39430.0000 1.9L thermal pitcher 16.9” N/A
LP feature (Lowest) 32125.0000 2.5L lever-action airpot 16.9” N/A
Extend legs 32130.0000 *3.0L lever-action airpot 17.5” .6”
Extend legs 28696.0002 2.2L push-button airpot 18” 1”
Extend legs 13041.0001 2.5L push-button airpot 18.5” 1.5”
Extend legs 23300.0010 2.5L thermal server 18.5” 1.5”
*Recommended batch size: 2.5 liters or less
Approximate
Adjustment
246.6
442.2
(240V)
222
8.74
225.1
8.86
222.4
8.76
290.6
11.44
335
13.19
44.5
1.75
MAX FOOT
EXTENSION
9.71
437.9
17.24
17.41
(120V & 230V)
430.3
16.94
CONTROL BOARD
ACCESS PANEL
474.7
18.69
240V only
TERMINAL BLOCK
ACCESS PANEL
240V only
POWER CORD
STRAIN RELIEF
240V only
Bunn-O-Matic® Corporation - 1400 Stevenson Drive Springfield, Illinois 62703 • 800-637-8606 • 217-529-6601 • Fax 217-529-6644 • www.bunn.com
BUNN® practices continuous product research and improvement. We reserve the right to change specifications and product design without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
All dimensions shown in inches.
6/10 © Bunn-O-Matic Corporation
