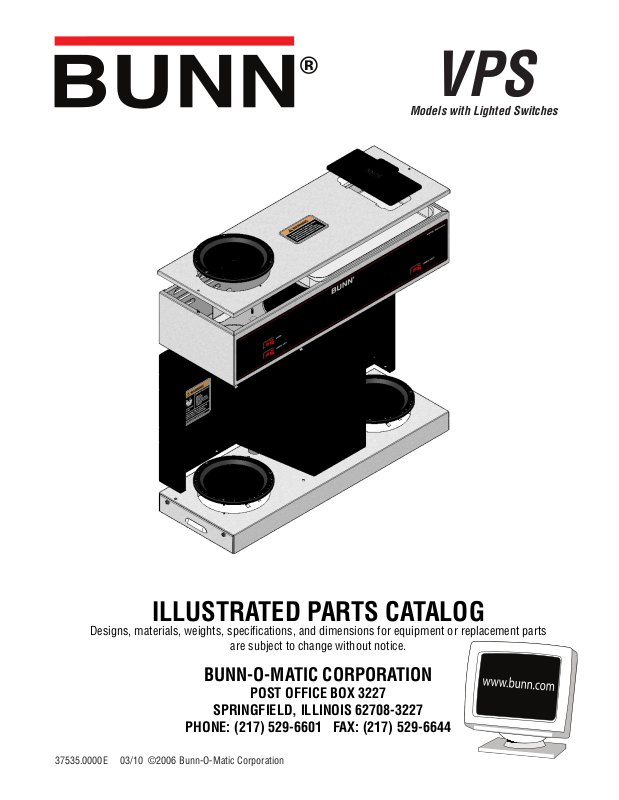

VPS
Models with Lighted Switches
ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
37535.0000E 03/10 ©2006 Bunn-O-Matic Corporation
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY
Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:
1) All equipment other than as specified below: 2 years parts and 1 year labor.
2) Electronic circuit and/or control boards: parts and labor for 3 years.
3) Compressors on refrigeration equipment: 5 years parts and 1 year labor.
4) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis:
parts and labor for 3 years or 30,000 pounds of coffee, whichever comes first.
These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by
it will be commercially free of defects in material and workmanship existing at the time of manufacture and
appearing within the applicable warranty period. This warranty does not apply to any equipment, component or
part that was not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect,
alteration, improper installation or operation, improper maintenance or repair, damage or casualty. This warranty is
conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone
at (217) 529-6601 or by writing to Post Office Box 3227, Springfield, Illinois 62708-3227; 2) if requested by
BUNN, shipping the defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior
authorization from BUNN that the defective equipment is under warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR
ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN
are not authorized to make modifications to this warranty or to make additional warranties that are binding on
BUNN. Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and
should not be relied upon.
If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its
exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts
and/or labor (during the applicable parts and labor warranty periods specified above) to repair the defective
components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace
the equipment or refund the purchase price for the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF
THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S
SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales,
loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute
equipment, facilities or services, or any other special, incidental or consequential damages.
AutoPOD, AXIOM, BrewLOGIC, BrewMETER, Brew Better Not Bitter, BrewWISE, BrewWIZARD, BUNN Espress,
BUNN Family Gourmet, BUNN Gourmet, BUNN Pour-O-Matic, BUNN, BUNN with the stylized red line, BUNNlink,
Bunn-OMatic, Bunn-O-Matic, BUNNserve, BUNNSERVE with the stylized wrench design, Cool Froth, DBC, Dr.
Brew stylized Dr. design, Dual, Easy Pour, EasyClear, EasyGard, FlavorGard, Gourmet Ice, Gourmet Juice, High
Intensity, iMIX, Infusion Series, Intellisteam, My Café, PowerLogic, Quality Beverage Equipment Worldwide,
Safety-Fresh, savemycoffee.com, Scale-Pro, Silver Series, Single, Smart Funnel, Smart Hopper, SmartWAVE,
Soft Heat, SplashGard, The Mark of Quality in Beverage Equipment Worldwide, ThermoFresh, 392, A Partner
You Can Count On, Air Brew, Air Infusion, Beverage Bar Creator, Beverage Profit Calculator, Brew better, not
bitter., BUNNSource, Coffee At Its Best, Cyclonic Heating System, Digital Brewer Control, Nothing Brews Like a
BUNN, Pouring Profits, Respect Earth, Respect Earth with the stylized leaf and coffee cherry design, Signature
Series, Tea At Its Best, Phase Brew, The Horizontal Red Line, Titan, Ultra are either trademarks or registered
trademarks of Bunn-O-Matic Corporation.
2
37535 030110
TABLE OF CONTENTS
Fraction Decimal Fraction Decimal
1/16 0.063 9/16 0.563
1/8 0.125 5/8 0.625
3/16 0.188 11/16 0.688
1/4 0.250 3/4 0.750
5/16 0.313 13/16 0.813
3/8 0.375 7/8 0.875
7/16 0.438 15/16 0.938
1/2 0.500 1 1.000
Trunks and Panels ......................................................................................................................................4
Hood and Top Covers .................................................................................................................................6
Fill Basin ....................................................................................................................................................8
3 Tab Tank And Components ....................................................................................................................10
Tank And Components - Early Models .....................................................................................................12
Electrical and Operating Controls .............................................................................................................14
Funnels, Pitcher and Filter Basket ............................................................................................................16
Galley Kit ..................................................................................................................................................18
Numerical Index .......................................................................................................................................20
3
37535 010407
TRUNKS AND PANELS
VPS
1
2
3
4
5
6
11
7
10
9
8
P3450.60
4
37535 010807
TRUNKS AND PANELS
ITEM PART NO. QTY. DESCRIPTION
1 25154.0001 1 Panel W/Decals, Trunk Rear (Includes items 2 & 3)
01311.0000 5 Screw, Truss Head #8-32 x .25”
00978.0000 5 Fastener, Flat Type #8-32
01511.0000 1 Lockwasher, Ext. Tooth #8
2 00658.0000 1 Decal, Caution - Decanter/Funnel
3 00831.0000 1 Decal, Warning-Electrical
4 01663.0000 1 Bushing, Snap - .875” Dia. (Early Models)
01592.0000 1 Bushing, Snap - 1.0” Dia. (Later Models)
5 01686.0000 1 Bushing, Strain Relief - Nylon
6 04273.1004 1 Housing, Base (Includes item 10) (Requires 1.0” Dia. Bushing Item 4)
7 37454.0000 1 Housing, Trunk Front
01311.0000 6 Screw, Truss Head #8-32 x .25”
00978.0000 6 Fastener, Flat Type #8-32
8 04203.0000 1 Cover, Base
02332.0002 6 Screw, Hex-Crimptite #6-32 x .375”
9 04198.0001 1 Kit, Foot (Includes 4 feet)
10 12364.0000 2 Decal, Caution - warmers are hot
11 00824.0000 1 Decal, Grounding
5
37535 010807
OBSOLETE
2
3
1
HOOD AND TOP COVERS
VPS
11
13
12
4
5
10
9
14
7
8
6
CURRENT STYLE
FOR 3 TAB TANK
EARLY STYLE
P3451.55
6
37535 090808
HOOD AND TOP COVERS
ITEM PART NO. QTY. DESCRIPTION
1 02564.0002 1 Lid Assembly, Pour-In (Includes items 2 & 3)
2 00725.0000 1 Knob, Black
01315.0000 1 Screw, Truss Head #8-32 x .38”
3 01192.0000 1 Cover Plate
4 25155.0000 1 Cover Assembly, Top W/Decals (Includes items 5, 9, 10 & 13)
01303.0000 2 Screw, Pan Head #4-40 x .50”
00916.0000 2 Fastener, J-Type #4-40
5 00833.0000 1 Decal, Pour In Water Only
6 37532.1001 1 Hood Assembly, W/Decals 3-Tab Tank (Includes Items 7 & 8) Current Style
37532.1000 1 Hood Assembly, W/Decals (Includes Items 7 & 8) Early Style
01311.0000 9 Screw, Truss Head #8-32 x .25”
01315.0000 1 Screw, Truss Head #8-32 x .38”
00978.0000 8 Fastener, Flat Type #8-32
00912.0000 2 Fastener, J-Type #8-32
00908.0000 1 Nut, hex #8-32
00970.0000 1 Nut, Keps #8-32
7 10049.0001 1 Decal, Schematic-Electrical (120V)
8 21138.0002 1 Decal, Control Panel
9 12364.0000 1 Decal, Caution - WARMERS ARE HOT
10 37881.0000 1 Decal, No Serviceable Parts
11 34435.0001 1 Lid
12 34436.0001 1 Bowl
13 38497.1000 1 Flip Lid Assy.
14 02542.0000 1 Thermostat (3 Tab Tank Only)
02301.0001 2 Screw, Pnh Phh #6-32 X .312
00720.0000 1 Knob, Thermostat
7
37535 090808
FILL BASIN
1
2
4
3
VPS
P3452
8
37535 011905
FILL BASIN
ITEM PART NO. QTY. DESCRIPTION
1 01212.0001 1 Fitting, Tank Inlet
2 04270.0000 1 Fill Basin
3 01201.0000 1 Gasket, Tank Inlet
4 11424.0000 1 Plate, Splash Guard
9
37535 042009
3 TAB TANK AND COMPONENTS
VPS
2
4
5
1
7 6
3
9
10
8
P3937.80
10
37535 090808

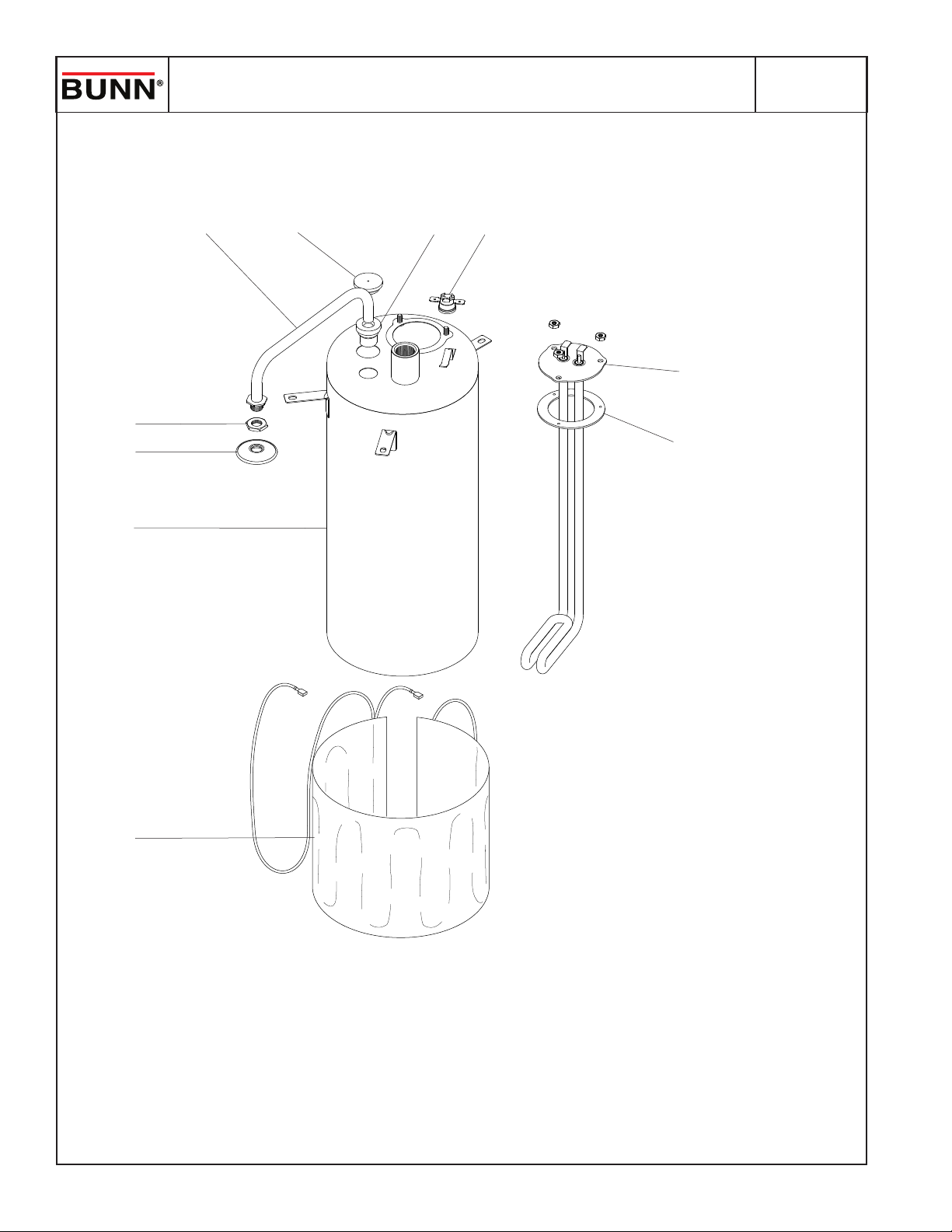

3 TAB TANK AND COMPONENTS
ITEM PART NO. QTY. DESCRIPTION
1 39598.0001 1 Tank
2 05555.0001 1 Kit, Sprayhead Tube (Includes Grommet)
3 37376.0001 1 Grommet, Sprayhead Tube
4 01075.0000 1 Nut, Hex .438”-20
5 01082.0000 1 Sprayhead, 6-Hole
6 29329.1000 1 Thermostat, Limit
7 07073.1000 1 Grommet, Thermostat
8 20264.0000 1 Blanket Warmer, 55W 120V
9 39294.1002 1 Tank Heater Kit 1320W 120V (Includes Gaskets)
00908.0000 3 Nut, Hex 8-32
10 39590.0000 1 Gasket, Tank Heater
11
37535 031110
BUNN
OFF
HI
TANK AND COMPONENTS - EARLY MODELS
14 15
VPS
1
16
17
18
19
10
5
Replacement Part
2
3
4
6
7
12
13
11
12
9
8
P3453.80
37535 010407
TANK AND COMPONENTS - EARLY MODELS
ITEM PART NO. QTY. DESCRIPTION
- 05697.0006 1 Tank Assembly, 1320W 120V (Includes items 1 thru 17 & 20 thru 23)
01315.0000 2 Screw, Truss Head (SST) 8-32 x .38”
1 04309.0000 1 Terminal Block
01390.0000 2 Screw, Round Head (SST) 8-32 x .62”
00970.0000 2 Nut, Keps 8-32
2 04307.0000 1 Bracket Assembly, Thermostat/Terminal Block Mounting
3 28319.0000 1 Thermostat Kit (Includes items 4 & 5)
01311.0000 2 Screw, Truss Head (SST) 8-32 x .25”
20762.0000 2 Screw, Binding Head 8-32 x .25” (Terminal Screws)
4 00720.0000 1 Knob, Thermostat
5 07073.1000 1 Grommet, Thermostat
6 00942.0000 2 Nut, Hex - Brass .50”-20
7 05545.0000 1 Tank Lid Assembly
00908.0000 8 Nut, Hex 8-32
8 04236.1000 1 Tank Heater Kit 1320W 120V (Includes item 9)
9 00943.0000 2 Gasket, Tank Heater
10 29329.1000 1 Thermostat, Limit
11 04119.0001 1 Tank W/Blanket Warmer 120V (Includes items 12 & 13)
12 04118.0000 1 Tank
13 20264.0000 1 Blanket Warmer, 55W 120V
14 04221.0000 1 Gasket, Tank Lid
15 05555.0002 1 Sprayhead Tube Kit (Includes 3 mounting nuts below, items 16 & 17)
00908.0000 3 Nut, Hex 8-32
16 05518.0000 1 Hub, Syphon
17 05515.0000 1 Gasket, Sprayhead Tube
18 01075.0000 1 Nut, Hex .438”-20
19 01082.0000 1 Sprayhead, 6-Hole
01082.0005 1 Sprayhead, 5-Hole (Optional)
01082.0006 1 Sprayhead, 1-Hole (Optional-Pouch Pack)
The following items are not illustated
20 21016.0005 1 Lead, Elec - Wht 12” Terminal Block to Heater
21 21016.0244 1 Lead, Elec - Blk 10” Terminal Block to Control Thermostat
22 21016.0029 1 Lead, Elec - Blu/Blk 23” Control Thermo to Limit Thermostat
23 21016.0008 1 Lead, Elec - Blk 4” Limit Thermo to Tank Heater
13
37535 031110

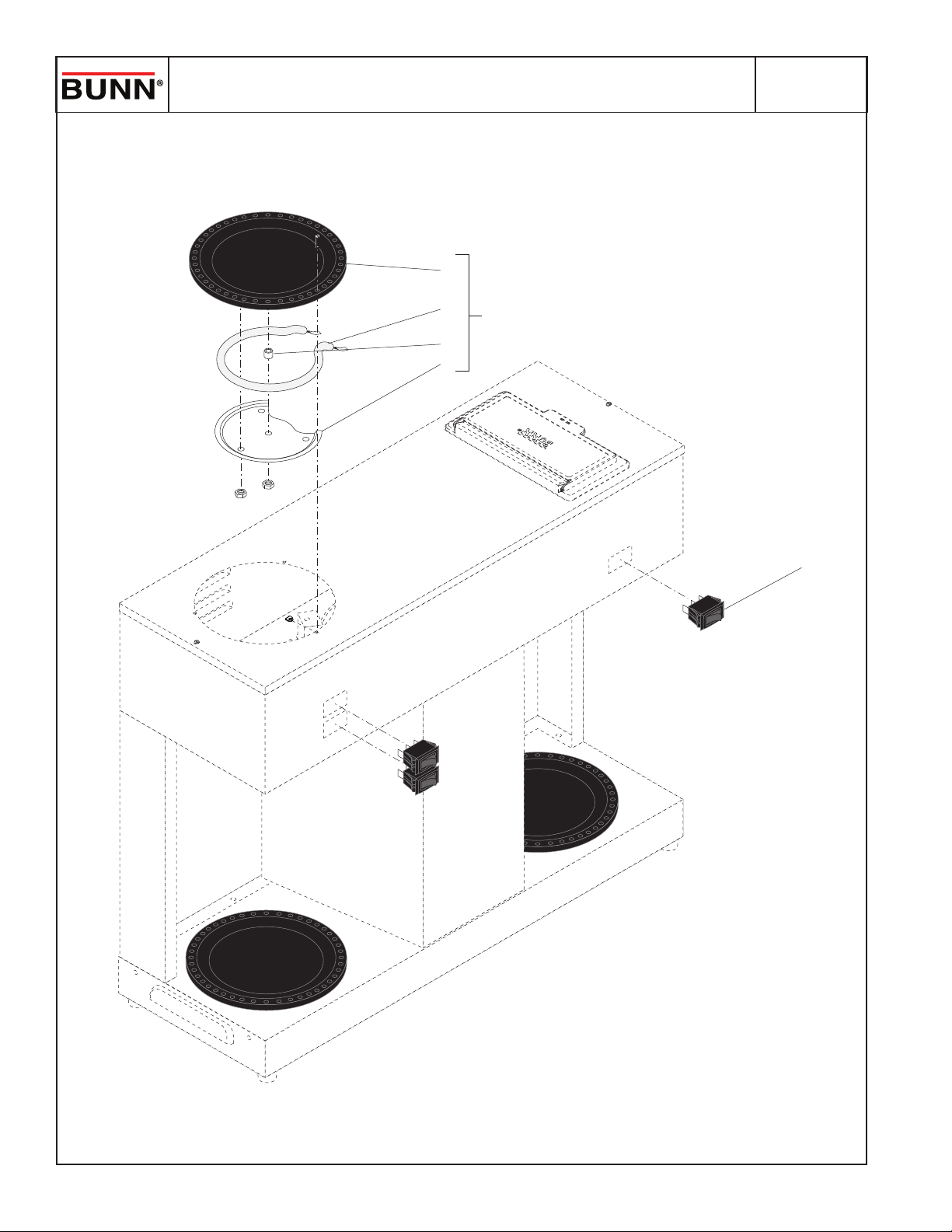

WARMERS AND SWITCHES
2
3
1
4
5
VPS
6
14
P3454.75
37535 010407
WARMERS AND SWITCHES
ITEM PART NO. QTY. DESCRIPTION
1 03652.0000 3 Warmer Assembly, Blk 100W 120V (Includes Items 2 thru 5)
01303.0000 9 Screw, Pan Head #4-40 x .50”
00916.0000 9 Fastener, J-Type
2 03656.0000 1 Warmer Dish, Blk
3 01227.0000 1 Warmer Element, 100W 120V
4 13042.0001 1 Spacer .174” I.D. x .188”
5 05212.0000 1 Plate, Warmer Retainer
00970.0000 2 Nut, Keps #8-32
6 33213.0000 3 Switch, On/Off Toggle
The following items are not illustrated
7 00824.0000 1 Decal, Ground
8 01637.0000 1 Cord Assembly, Power
02337.0001 1 Screw, Zinc Pltd. “AB” #10-32 x .38”
9 01898.0001 1 Wiring Harness, Main 120V
10 06064.0000 1 Label, Cord Warning
15
37535 050806
FUNNELS, PITCHER AND FILTER BASKET
6 8
VPS
3
4
7
5
10
11
1
7
8
9 2
16
P3455
37535 011905
FUNNELS, PITCHER AND FILTER BASKET
ITEM PART NO. QTY. DESCRIPTION
1 20583.0003 1 Funnel W/Decals, Plastic - Blk (Includes items 7, 8 & 11)
20216.0000 1 Funnel, SST W/Black Handle (7.125” Dia.) (Includes Items 3-5, 7 & 8)
20216.0001 1 Funnel, SST W/Orange Handle (7.125” Dia.) (Includes items 3-5, 7 & 8)
2 02774.0010 1 Funnel W/Decals, Pouch Pack - Brn (Small)
02774.0011 1 Funnel W/Decals, Pouch Pack - Blk (Small)
04274.0010 1 Funnel W/Decals, Pouch Pack - Brn (Large)
04274.0012 1 Funnel W/Decals, Pouch Pack - Blk (Large)
3 33088.0000 1 Filter Basket w/Splash Guard
4 28553.0000 1 Funnel, SST (Includes items 7 & 8)
Includes item 9
5 20244.1000 1 Handle, Black
20244.1001 1 Handle, Orange
01331.0002 1 Screw, Round Head 10-32 x 1.50”
6 01031.0000 1 Funnel Tip Kit (Optional)
7 03408.0002 1 Decal, Warning-Remove Funnel
8 03409.0002 1 Decal, Warning-Hot Liquid
9 28694.0000 1 Decal, Warning-Hot Liquid/Remove Funnel
10 04238.0000 1 Pitcher, 64 oz - Plastic
11 32964.0000 1 Splash Guard
Includes Screw
17
37535 011905
POUR IN WATER ONLY
GALLEY KIT
VPS
1
2
3
4
5
6
P3802.70
18
29999 010407
GALLEY KIT
ITEM PART NO. QTY. DESCRIPTION
- 24783.0001 1 Galley Kit (Includes items 1, 2, 3 & 5)
1 24730.0000 3 Galley Rail, SST
01303.0000 3 Screw, Pan Head (SST) 4-40 x .50”
00916.0000 3 Fastener, J-Type (SST) 4-40
2 02776.0000 2 Leg, Extension - 3.50HT
02332.0002 4 Screw, Hex-Crimptite 6-32 x .38”
3 02324.0000 4 Nut, Acorn (SST) 8-32
4 03995.0000 4 Foot, Rubber
5 01390.0000 4 Screw, Round Head - Phillip (SST) 8-32 x .62”
6 03992.0000 4 Plug, Foot
19
29999 010407
NUMERICAL INDEX
PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.
00658.0000......................... 5
00720.0000.................... 7,13
00725.0000......................... 7
00824.0000.................... 5,15
00831.0000......................... 5
00833.0000......................... 7
00908.0000............... 7,11,13
00912.0000......................... 7
00916.0000............... 7,15,19
00942.0000....................... 13
00943.0000....................... 13
00970.0000............... 7,13,15
00978.0000...................... 5,7
01031.0000....................... 17
01075.0000.................. 11,13
01082.0000.................. 11,13
01082.0005....................... 13
01082.0006....................... 13
01192.0000......................... 7
01201.0000......................... 9
01212.0001......................... 9
01227.0000....................... 15
01303.0000............... 7,15,19
01311.0000................. 5,7,13
01315.0000.................... 7,13
01331.0002....................... 17
01390.0000.................. 13,19
01511.0000......................... 5
01592.0000......................... 5
01637.0000....................... 15
01663.0000......................... 5
01686.0000......................... 5
01898.0001....................... 15
02301.0001......................... 7
02324.0000....................... 19
02332.0002.................... 5,19
02337.0001....................... 15
02542.0000......................... 7
02564.0002......................... 7
02774.0010....................... 17
02774.0011....................... 17
02776.0000....................... 19
03408.0002....................... 17
03409.0002....................... 17
03652.0000....................... 15
03656.0000....................... 15
03992.0000....................... 19
03995.0000....................... 19
04118.0000....................... 13
04119.0001....................... 13
04198.0001......................... 5
04203.0000......................... 5
04221.0000....................... 13
04236.1000....................... 13
04238.0000....................... 17
04270.0000......................... 9
04273.1004......................... 5
04274.0010....................... 17
04274.0012....................... 17
04307.0000....................... 13
04309.0000....................... 13
05212.0000....................... 15
05515.0000....................... 13
05518.0000....................... 13
05545.0000....................... 13
05555.0001....................... 11
05555.0002....................... 13
05697.0006....................... 13
06064.0000....................... 15
07073.1000.................. 11,13
10049.0001......................... 7
11424.0000......................... 9
12364.0000...................... 5,7
13042.0001....................... 15
20216.0000....................... 17
20216.0001....................... 17
20244.1000....................... 17
20244.1001....................... 17
20264.0000.................. 11,13
20583.0003....................... 17
20762.0000....................... 13
21016.0005....................... 13
21016.0008....................... 13
21016.0029....................... 13
21016.0244....................... 13
21138.0002......................... 7
24730.0000....................... 19
24783.0001....................... 19
25154.0001......................... 5
25155.0000......................... 7
28319.0000....................... 13
28553.0000....................... 17
28694.0000....................... 17
29329.1000.................. 11,13
32964.0000....................... 17
33088.0000....................... 17
33213.0000....................... 15
34435.0001......................... 7
34436.0001......................... 7
37376.0001....................... 11
37454.0000......................... 5
37532.1000......................... 7
37532.1001......................... 7
37881.0000......................... 7
38497.1000......................... 7
39294.1002....................... 11
39590.0000....................... 11
39598.0001....................... 11
20
37535 031110
Loading...
