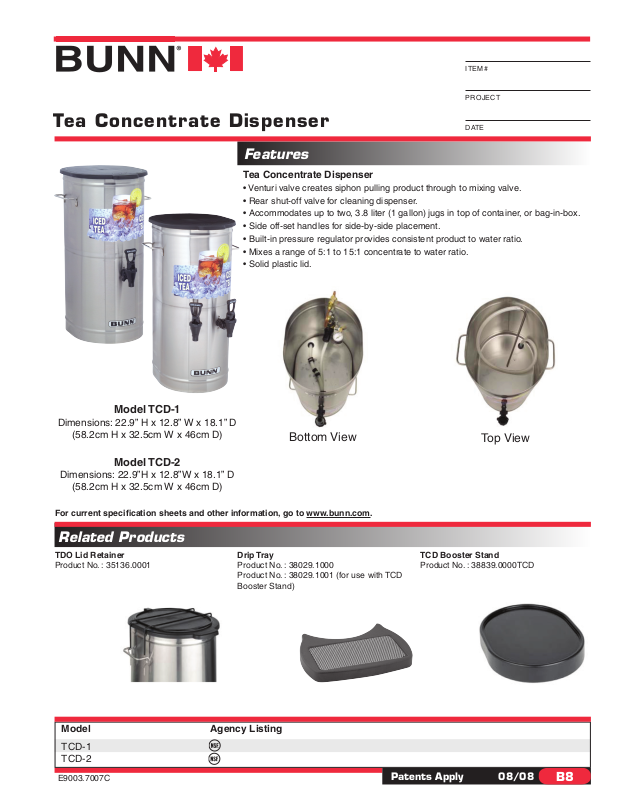

Bunn-O-Matic TCD-2 General Manual

ITEM#

PROJECT

Tea Concentrate Dispenser

Features

Tea Concentrate Dispenser

•฀Venturi฀valve฀creates฀siphon฀pulling฀product฀through฀to฀mixing฀valve.

•฀Rear฀shut-off฀valve฀for฀cleaning฀dispenser.

•฀Accommodates฀up฀to฀two,฀3.8฀liter฀(1฀gallon)฀jugs฀in฀top฀of฀container,฀or฀bag-in-box.

•฀Side฀off-set฀handles฀for฀side-by-side฀placement.

•฀Built-in฀pressure฀regulator฀provides฀consistent฀product฀to฀water฀ratio.

•฀Mixes฀a฀range฀of฀5:1฀to฀15:1฀concentrate฀to฀water฀ratio.

•฀Solid฀plastic฀lid.

Model TCD-1

Dimensions:฀22.9”฀H฀x฀12.8”฀W฀x฀18.1”฀D

(58.2cm฀H฀x฀32.5cm฀W฀x฀46cm฀D)

Bottom฀View

DAT E

Top฀View

Model TCD-2

Dimensions:฀22.9”H฀x฀12.8”W฀x฀18.1”฀D

(58.2cm฀H฀x฀32.5cm฀W฀x฀46cm฀D)

For current specification sheets and other information, go to www.bunn.com.

Related Products

TDO Lid Retainer

Product฀No.฀:฀35136.0001

Model Agency Listing

TCD-1

TCD-2

Drip Tray

Product฀No.฀:฀38029.1000

Product฀No.฀:฀38029.1001฀(for฀use฀with฀TCD

Booster฀Stand)฀

TCD Booster Stand

Product฀No.฀:฀38839.0000TCD

E9003.7007C

Patents Apply

08/08

B8

Dimensions & Specifications

Model Product # Cubic Measure Shipping Weight

TCD-1฀37750.0000฀4.25฀ft

฀฀(.12฀m3)฀(7.76฀kg)

TCD-2฀37750.0002฀4.25฀ft

฀฀(.12฀m3)฀(8.9฀kg)

Electrical:฀No฀electrical

Plumbing:฀20-90฀psi฀(138-621฀kPa).฀Model฀supplied฀with฀a฀1⁄4”฀male฀are฀tting.฀Shut-off฀valve.

3฀

3฀

17.1฀lbs.

19.6฀lbs.

CANADA

TCD-1

TCD-2

Bunn-O-Matic฀Corporation฀of฀Canada฀-฀280฀Industrial฀Pkwy.฀S.฀Aurora,฀Ontario฀฀L4G฀3T9฀•฀905-841-2866฀•฀Fax฀905-841-2775฀•฀www.bunn.com

BUNN®฀practices฀continuous฀product฀research฀and฀improvement.฀We฀reserve฀the฀right฀to฀change฀specications฀and฀product฀design฀without฀notice.฀Such฀

revisions฀do฀not฀entitle฀the฀buyer฀to฀corresponding฀changes,฀improvements,฀additions฀or฀replacements฀for฀previously฀purchased฀equipment.

All฀dimensions฀shown฀in฀inches.฀ Bunn Corporation owns all copyrights relating to materials in this publication. Please contact Bunn Corporation to request permission to reproduce any portion of this publication.
