Bunn-O-Matic TB3, TB3Q, TDO-4 Operation Manual

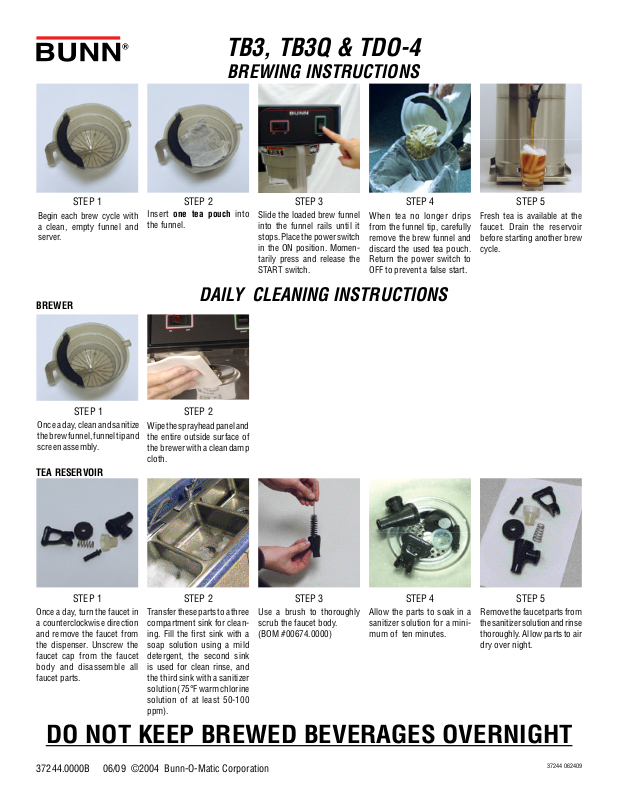

TB3, TB3Q & TDO-4
BREWING INSTRUCTIONS
STEP 1
Begin each brew cycle with a clean, empty funnel and server.
BREWER
STEP 1
Once a day, clean and sanitize the brew funnel, funnel tip and screen assembly.
TEA RESERVOIR
STEP 2 STEP 3 STEP 4
Insert one tea pouch into the funnel.
DAILY CLEANING INSTRUCTIONS
STEP 2
Wipe the sprayhead panel and the entire outside surface of the brewer with a clean damp cloth.
Slide the loaded brew funnel into the funnel rails until it stops. Place the power switch in the ON position. Momen­tarily press and release the START switch.
When tea no longer drips from the funnel tip, carefully remove the brew funnel and discard the used tea pouch. Return the power switch to OFF to prevent a false start.
STEP 5
Fresh tea is available at the faucet. Drain the reservoir before starting another brew cycle.
STEP 1 STEP 2 STEP 3 STEP 4
Once a day, turn the faucet in a counterclockwise direction and remove the faucet from the dispenser. Unscrew the faucet cap from the faucet body and disassemble all faucet parts.
Transfer these parts to a three compartment sink for clean­ing. Fill the first sink with a soap solution using a mild detergent, the second sink is used for clean rinse, and the third sink with a sanitizer solution (75°F warm chlorine solution of at least 50-100 ppm).
Use a brush to thoroughly scrub the faucet body. (BOM #00674.0000)
Allow the parts to soak in a sanitizer solution for a mini­mum of ten minutes.
Remove the faucet parts from the sanitizer solution and rinse thoroughly. Allow parts to air dry over night.
DO NOT KEEP BREWED BEVERAGES OVERNIGHT
37244.0000B 06/09 ©2004 Bunn-O-Matic Corporation
STEP 5
37244 062409
TB3, TB3Q & TDO-4
WEEKLY CLEANING INSTRUCTIONS
BREWER
STEP 1
Once a week, remove and thoroughly rinse the spray­head. The holes must be open and clear of any mineral deposits.
TEA RESERVOIR
TEA RESERVOIR
STEP 2
Insert the deliming spring into the sprayhead tube until about an inch is visible and move it in and out five or six times. Insert the spring into the air vent hole in the sprayhead panel and move it in and out five or six times. Reinstall the sprayhead.
Re-install the sprayhead.
STEP 3
Once a week, fill the dispenser with a chlorine solution (75°F warm chlorine solution of at least 50-100 ppm).
MONTHLY CLEANING INSTRUCTIONS
STEP 1 STEP 2
Draw a small amount (2 oz.) of presoak through the faucet making contact with the faucet components. Allow the dis­penser to soak over night. The next morning, perform the daily cleaning procedures on the faucet and dispenser.
STEP 1
Once a month, replace the faucet s ea t cup (B.O.M. #00600.0000). Discard the old seat cup.
STEP 2
The faucet assembly (B.O.M. #03260.0001) can be ordered for replacement.
DO NOT KEEP BREWED BEVERAGES OVERNIGHT
37244 062409
