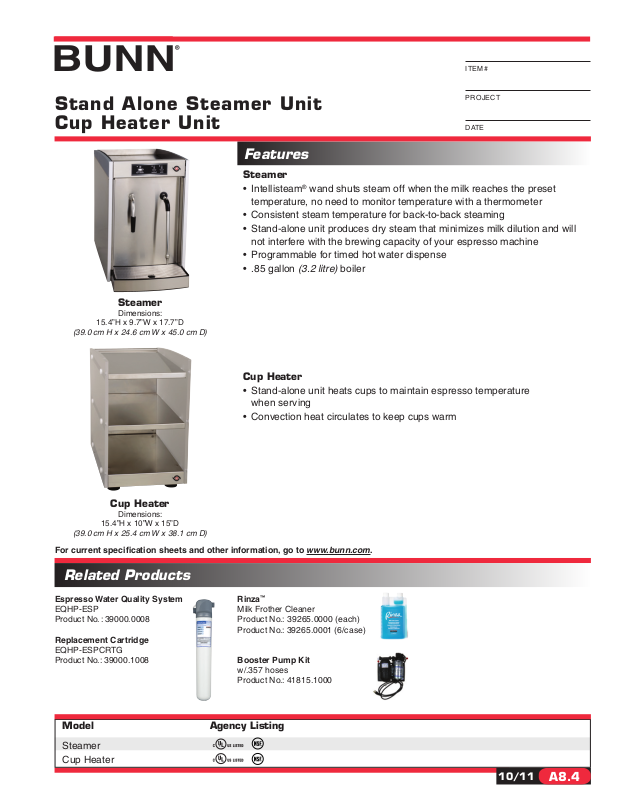

Bunn-O-Matic Steamer General Manual

ITEM#

Stand Alone Steamer Unit
Cup Heater Unit

Features

Steamer

•฀Intellisteam®฀wand฀shuts฀steam฀off฀when฀the฀milk฀reaches฀the฀preset฀

temperature,฀no฀need฀to฀monitor฀temperature฀with฀a฀thermometer

•฀Consistent฀steam฀temperature฀for฀back-to-back฀steaming

•฀Stand-alone฀unit฀produces฀dry฀steam฀that฀minimizes฀milk฀dilution฀and฀will฀

not฀interfere฀with฀the฀brewing฀capacity฀of฀your฀espresso฀machine

•฀Programmable฀for฀timed฀hot฀water฀dispense

•฀.85฀gallon (3.2 litre)฀boiler

Steamer

Dimensions:฀

15.4”H฀x฀9.7”W฀x฀17.7”D

(39.0 cm H x 24.6 cm W x 45.0 cm D)

Cup Heater

•฀Stand-alone฀unit฀heats฀cups฀to฀maintain฀espresso฀temperature฀฀

when฀serving

•฀Convection฀heat฀circulates฀to฀keep฀cups฀warm

PROJECT

DAT E

Cup Heater

Dimensions:฀

15.4”H฀x฀10”W฀x฀15”D

(39.0 cm H x 25.4 cm W x 38.1 cm D)

For current specification sheets and other information, go to www.bunn.com.

Related Products

Espresso Water Quality System

EQHP-ESP฀

Product฀No.฀:฀39000.0008

Replacement Cartridge

EQHP-ESPCRTG

Product฀No.:฀39000.1008

Model Agency Listing

Steamer

Cup฀Heater

™

Rinza

Milk฀Frother฀Cleaner

Product฀No.:฀฀39265.0000฀(each)

Product฀No.:฀39265.0001฀(6/case)

Booster Pump Kit

w/.357฀hoses

Product฀No.:฀41815.1000

10/11

A8.4

Dimensions & Specifications

Total Cubic Shipping Cord
Model Product # Volts Amps Watts Measure Weight Attached

Steamer฀35800.0401฀120฀15.8฀1900฀฀7.6฀ft3฀฀62฀lbs฀Yes/20A฀Plug

3

฀฀฀฀฀(.22฀m

)฀

Cup฀Heater฀35800.0400฀115฀.4฀41฀฀฀22฀lbs฀Yes

(9.8 kg)

Electrical:฀฀฀Models฀require฀2-wire฀grounded฀service฀rated฀120V,฀single฀phase,฀50/60฀Hz.

Plumbing:฀฀30-90฀psi฀(207฀-฀621฀kPa).฀Steamer฀is฀supplied฀with฀฀1/4”฀male฀are฀tting.฀฀

Drain:฀All฀steamers฀are฀supplied฀with฀a฀waste฀water฀hose฀and฀must฀be฀connected฀to฀a฀drain.

9.7

(28 kg)

5.6

15.4

17.7

Steamer

10.0 15.0

15.4

5.7

7.6

1.8

Cup Heater

Bunn-O-Matic®฀Corporation฀-฀1400฀Stevenson฀Drive฀Springeld,฀Illinois฀62703฀•฀800-637-8606฀•฀217-529-6601฀•฀Fax฀217-529-6644฀•฀www.bunn.com

BUNN®฀practices฀continuous฀product฀research฀and฀improvement.฀We฀reserve฀the฀right฀to฀change฀specications฀and฀product฀design฀without฀notice.฀Such฀

revisions฀do฀not฀entitle฀the฀buyer฀to฀corresponding฀changes,฀improvements,฀additions฀or฀replacements฀for฀previously฀purchased฀equipment.

All฀dimensions฀shown฀in฀inches.฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀
