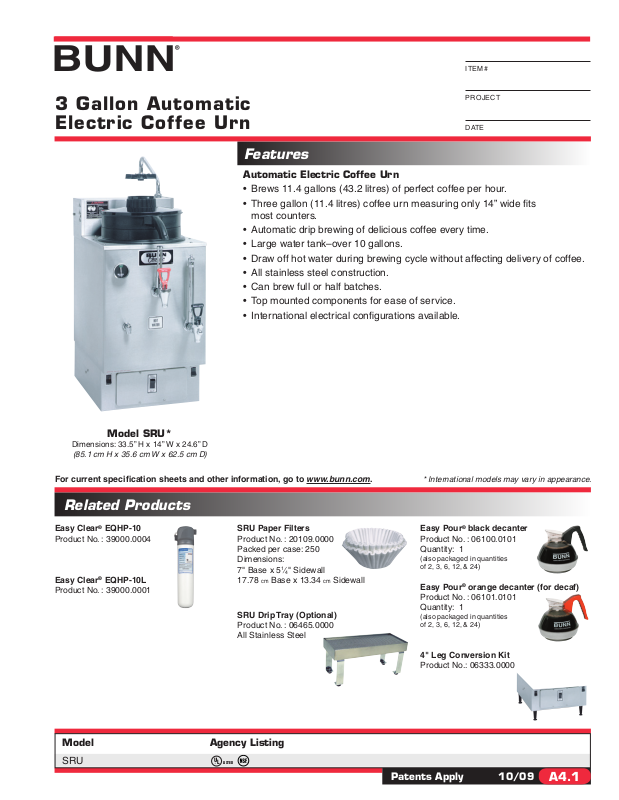

Bunn-O-Matic SRU General Manual
ITE M#
3 Gallon Automatic
Electric Coffee Urn
PROJECT
DATE
Features
Automatic Electric Coffee Urn
• Brews 11.4 gallons (43.2 litres) of perfect coffee per hour.
• Three gallon (11.4 litres) coffee urn measuring only 14” wide fits
most counters.
• Automatic drip brewing of delicious coffee every time.
• Large water tank–over 10 gallons.
• Draw off hot water during brewing cycle without affecting delivery of coffee.
• All stainless steel construction.
• Can brew full or half batches.
• Top mounted components for ease of service.
• International electrical configurations available.
Dimensions: 33.5” H x 14” W x 24.6” D
(85.1 cm H x 35.6 cm W x 62.5 cm D)
For current specification sheets and other information, go to www.bunn.com.
Related Products
Model SRU*
Easy Clear® EQHP-10
Product No. : 39000.0004
®
Easy Clear
Product No. : 39000.0001
EQHP-10L
SRU Paper Filters
Product No. : 20109.0000
Packed per case: 250
Dimensions:
7" Base x 51⁄4" Sidewall
17.78 cm Base x 13.34 cm Sidewall
SRU Drip Tray (Optional)
Product No. : 06465.0000
All Stainless Steel
* International models may vary in appearance.
Easy Pour® black decanter
Product No. : 06100.0101
Quantity: 1
(also packaged in quantities
of 2, 3, 6, 12, & 24)
Easy Pour® orange decanter (for decaf)
Product No. : 06101.0101
Quantity: 1
(also packaged in quantities
of 2, 3, 6, 12, & 24)
4" Leg Conversion Kit
Product No.: 06333.0000
Model Agency Listing
U
L
SRU
LISTED
Patents Apply
10/09
A4.1
Dimensions & Specifications
Model Product # Volts Amps Tank Heater Total Brewing Cu. Shipping Cord
Watts Watts Capacity Ft. Weight Attached
SRU 06325.0001 120/208 19.4 3950 4025 11.4 gal./hr. 3.1 73 lbs. No
SRU 06325.0002 120/240 17.0 3950 4025 11.4 gal./hr. 3.1 75 lbs. No
Brewing capacity: based upon incoming water temp of 60ºF (140ºF rise).
Models listed as 120/208V or 120/240V must be connected to 208V or 240V electrical service respectively. Please refer to the installation manual.
Electrical: Models require 3-wires plus ground service, single phase, 60 Hz.
Plumbing: 20-90 psi (138-621 kPa). Supplied with 3⁄8" OD male flare fitting.
14.4
CLEAN OUT
PORT COFFEE
FAUCET
ONLY
HEX UNION
NUT (SHOWN)
3.6
(STD FAUCET
SHANK)
14.2
19.1
24.6
14.4
1.9
OVERFLOW
FITTING
LIGHTED ON/OFF
SWITCH (STD)
OR
LIGHTED ON/OFF/START
SWITCH W/BREW
TEMPERATURE
LOCKOUT (OPTIONAL)
1.5
1.4
(EXT)
POWER SUPPLY
CONNECTION
4.0
1.4
10.3
11.8
8.0
HALF BATCH
SWITCH (STD)
14.0
10.9
WATER SUPPLY CONNECTION
(.375 OD TUBE 45˚ FLARE)
SWING SPOUT
FOR WATER
BYPASS OPTION
4.0" SIGHT GAUGE
W/SHUT-OFF VALVE
(HOT WATER)
7.0" SIGHT GAUGE
W/SHUT-OFF VALVE
(COFFEE)
3.0 (EXT)
MOMENTARY START
SWITCH (STD)
OR
READY INDICATOR LAMP
W/BREW TEMPERATURE
LOCKOUT (OPTIONAL)
.3
4.1
1.75 ADJ
4.0 ADJ LEG (OPTIONAL)
9.7
33.5
WITH
FEET
(OPTIONAL)
37.3
WITH
LEGS
Bunn-O-Matic® Corporation - 1400 Stevenson Drive Springfield, Illinois 62703 • 800-637-8606 • 217-529-6601 • Fax 217-529-6644 • www.bunn.com
BUNN® practices continuous product research and improvement. We reserve the right to change specifications and product design without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
All dimensions shown in inches.
10/09 © Bunn-O-Matic Corporation
