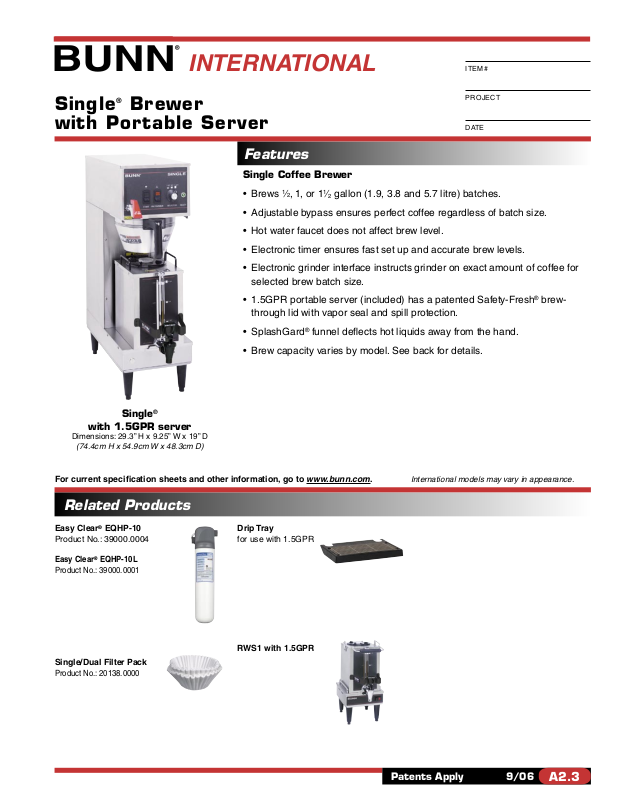

Bunn-O-Matic Single with 1.5GPR General Manual

INTERNATIONAL

ITE M#

Single® Brewer with Portable Server

Features

Single Coffee Brewer

• Brews

• Adjustable bypass ensures perfect coffee regardless of batch size.

• Hot water faucet does not affect brew level.

• Electronic timer ensures fast set up and accurate brew levels.

• Electronic grinder interface instructs grinder on exact amount of coffee for selected brew batch size.

• 1.5GPR portable server (included) has a patented Safety-Fresh® brewthrough lid with vapor seal and spill protection.

• SplashGard

• Brew capacity varies by model. See back for details.

PROJECT

DATE

⁄2, 1, or 11⁄2 gallon (1.9, 3.8 and 5.7 litre) batches.

funnel deﬂects hot liquids away from the hand.

Single

with 1.5GPR server

Dimensions: 29.3” H x 9.25” W x 19” D

(74.4cm H x 54.9cm W x 48.3cm D)

For current speciﬁcation sheets and other information, go to www.bunn.com.

Related Products

Easy Clear® EQHP-10

Product No.: 39000.0004

Easy Clear® EQHP-10L

Product No.: 39000.0001

Single/Dual Filter Pack

Product No.: 20138.0000

Drip Tray

for use with 1.5GPR

RWS1 with 1.5GPR

International models may vary in appearance.

Patents Apply

9/06

A2.3

Dimensions & Speciﬁcations

Model Product # Volts Amps Tank Heater Total Brewing Shipping Cord Agency Watts Watts Capacity Weight Attached

Single 23050.0049 230 13.7 3031 3150 8.7 gal/hr. 58 lbs. No

(32.9 L/hr.) (26.3 kg)

Single 23050.0047 200 19.3 3031 3850 8.7 gal/hr. 65 lbs. No

(32.9 L/hr.) (29.5 kg)

All include Safety-Fresh® server with additional orange faucet handle and decal for decaf service (20950.0004).

Brewing capacity: based upon incoming water temp of 60ºF (15.5ºC) (140ºF (60ºC) rise) per 1/2 gallon (1.89 litre) brew time of 4 minutes.

Electrical: 230 volt model requires 2 wires plus ground service rated 220-240V, single phase, 50/60 Hz. 200 volt model requires 2 wires plus ground service, single phase, 50 Hz.

Plumbing: 20-90 psi (138-621 kPa). Supplied with

⁄4" male ﬂare ﬁttings.

BUNN Corporation - 1400 Stevenson Drive Springﬁeld, Illinois 62703 • USA • +1-217-529-6601 • Fax +1-217-529-2827 • www.bunn.com

BUNN® practices continuous product research and improvement. We reserve the right to change speciﬁcations and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.

All dimensions shown in centimeters. Bunn Corporation owns all copyrights relating to materials in this publication. Please contact Bunn Corporation to request permission to reproduce any portion of this publication.
