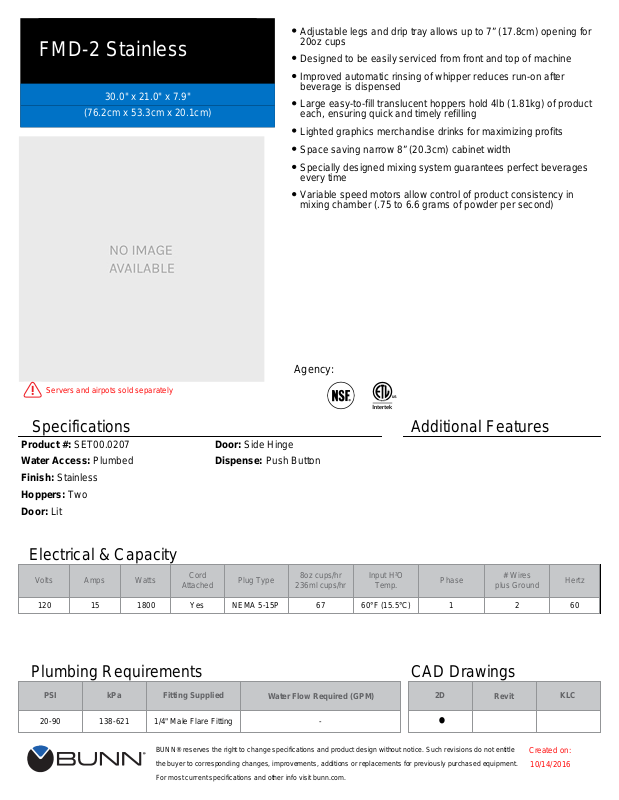

Bunn-O-Matic SET000207 Specifications

FMD-2 Stainless

30.0" x 21.0" x 7.9"

(76.2cm x 53.3cm x 20.1cm)

Adjustable legs and drip tray allows up to 7” (17.8cm) opening for 20oz cups

Designed to be easily serviced from front and top of machine Improved automatic rinsing of whipper reduces run-on after

beverage is dispensed Large easy-to-fill translucent hoppers hold 4lb (1.81kg) of product

each, ensuring quick and timely refilling Lighted graphics merchandise drinks for maximizing profits

Space saving narrow 8” (20.3cm) cabinet width Specially designed mixing system guarantees perfect beverages

every time Variable speed motors allow control of product consistency in

mixing chamber (.75 to 6.6 grams of powder per second)

Agency:

Servers and airpots sold separately

Specifications Additional Features

SET00.0207Product #: Side HingeDoor:

Finish:

PlumbedWater Access: Push Button

Stainless

Dispense:

TwoHoppers:

LitDoor:

Electrical & Capacity

Volts Amps Watts

120 15 1800 Yes NEMA 5-15P 67

Cord

Attached

Plug Type

8oz cups/hr

236ml cups/hr

Input H²O

Temp.

60°F (15.5°C)

Phase

1 2 60

# Wires

plus Ground

Hertz

Plumbing Requirements CAD Drawings

PSI kPa

20-90 138-621

Fitting Supplied

1/4" Male Flare Fitting

BUNN® reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. For most current specifications and other info visit bunn.com.

Water Flow Required (GPM)

Revit

•

KLC

Created on:

10/14/2016

Unit Shipping

Width Height

Depth

Width Height

Depth

Weight

Volume

English 7.9 in. 30.0 in. 21.0 in. - - - 65.420 lbs -

Metric 20.1 cm 76.2 cm 53.3 cm - - - 29.675 kgs -

Created on:

10/14/2016
