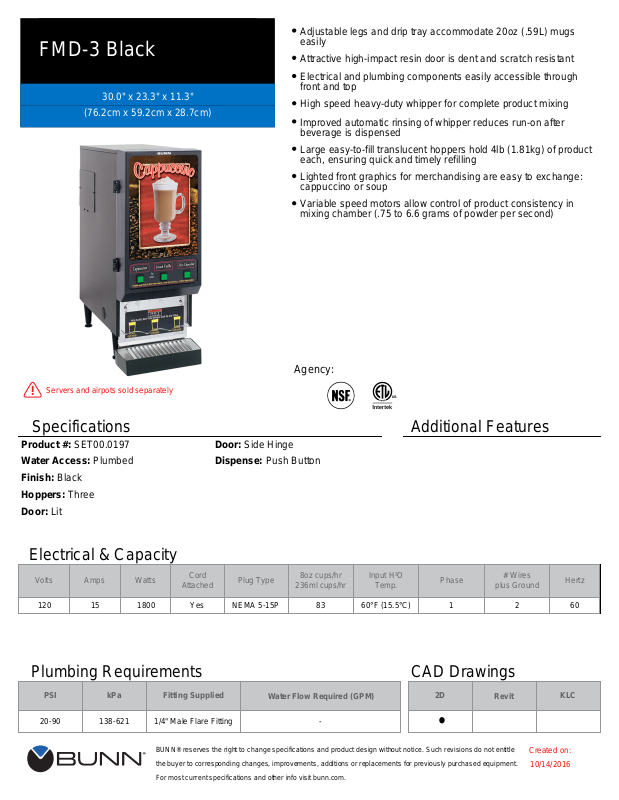

Bunn-O-Matic SET000197 Specifications

FMD-3 Black

30.0" x 23.3" x 11.3"

(76.2cm x 59.2cm x 28.7cm)

Adjustable legs and drip tray accommodate 20oz (.59L) mugs easily

Attractive high-impact resin door is dent and scratch resistant Electrical and plumbing components easily accessible through

front and top High speed heavy-duty whipper for complete product mixing

Improved automatic rinsing of whipper reduces run-on after beverage is dispensed

Large easy-to-fill translucent hoppers hold 4lb (1.81kg) of product each, ensuring quick and timely refilling

Lighted front graphics for merchandising are easy to exchange: cappuccino or soup

Variable speed motors allow control of product consistency in mixing chamber (.75 to 6.6 grams of powder per second)

Agency:

Servers and airpots sold separately

Specifications Additional Features

SET00.0197Product #: Side HingeDoor:

Finish:

PlumbedWater Access: Push Button

Black

Dispense:

ThreeHoppers:

LitDoor:

Electrical & Capacity

Volts Amps Watts

120 15 1800 Yes NEMA 5-15P 83

Cord

Attached

Plug Type

8oz cups/hr

236ml cups/hr

Input H²O

Temp.

60°F (15.5°C)

Phase

1 2 60

# Wires

plus Ground

Hertz

Plumbing Requirements CAD Drawings

PSI kPa

20-90 138-621

Fitting Supplied

1/4" Male Flare Fitting

BUNN® reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. For most current specifications and other info visit bunn.com.

Water Flow Required (GPM)

Revit

•

KLC

Created on:

10/14/2016

Unit Shipping

Width Height

Depth

Width Height

Depth

Weight

Volume

English 11.3 in. 30.0 in. 23.3 in. - - - 84.160 lbs -

Metric 28.7 cm 76.2 cm 59.2 cm - - - 38.175 kgs -

Created on:

10/14/2016
