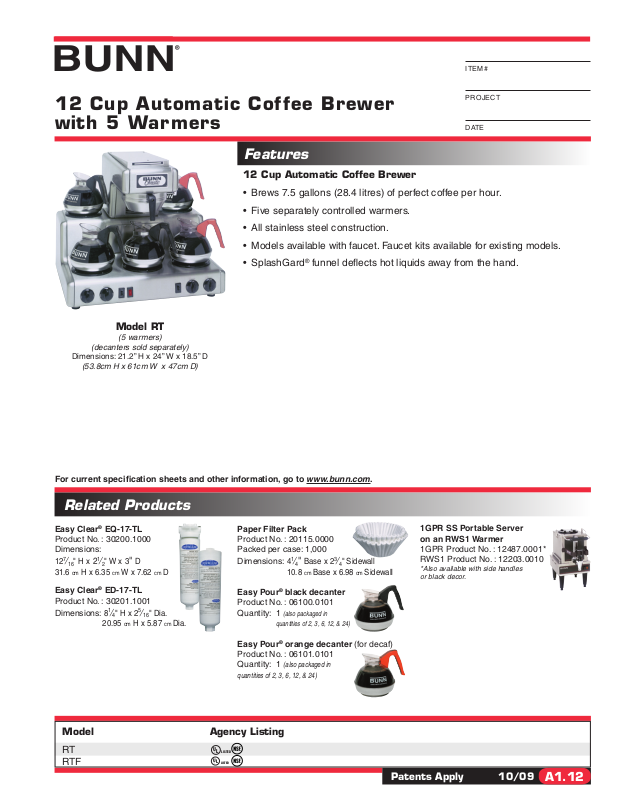

Bunn-O-Matic RT General Manual
ITE M#
12 Cup Automatic Coffee Brewer
with 5 Warmers
Features
12 Cup Automatic Coffee Brewer
• Brews 7.5 gallons (28.4 litres) of perfect coffee per hour.
• Five separately controlled warmers.
• All stainless steel construction.
• Models available with faucet. Faucet kits available for existing models.
• SplashGard
Model RT
(5 warmers)
(decanters sold separately)
Dimensions: 21.2” H x 24” W x 18.5” D
(53.8cm H x 61cm W x 47cm D)
®
funnel deflects hot liquids away from the hand.
PROJECT
DATE
For current specification sheets and other information, go to www.bunn.com.
Related Products
Easy Clear® EQ-17-TL
Product No. : 30200.1000
Dimensions:
12
7
⁄
" H x 2
16
1
⁄
" W x 3" D
2
31.6 cm H x 6.35 cm W x 7.62 cm D
Easy Clear® ED-17-TL
Product No. : 30201.1001
Dimensions:
1
8
⁄
" H x 2
4
5
⁄
16
" Dia.
20.95 cm H x 5.87 cm Dia.
Model Agency Listing
RT
RTF
Paper Filter Pack
Product No. : 20115.0000
Packed per case: 1,000
1
4
Dimensions:
⁄4" Base x 23⁄
10.8 cm Base x 6.98 cm Sidewall
Easy Pour® black decanter
Product No. : 06100.0101
Quantity: 1
quantities of 2, 3, 6, 12, & 24)
(also packaged in
Easy Pour® orange decanter (for decaf)
Product No. : 06101.0101
Quantity: 1
quantities of 2, 3, 6, 12, & 24)
U
L
LISTED
U
L
LISTED
(also packaged in
" Sidewall
4
1GPR SS Portable Server
on an RWS1 Warmer
1GPR Product No. : 12487.0001*
RWS1 Product No. : 12203.0010
*Also available with side handles
or black decor.
Patents Apply
10/09
A1.12
Dimensions & Specifications
1.55
21.2
24.00
20.84
8.0
18.5
14.002.4
5.0
2.03
Ø.875 HOLE
FOR POWER
SUPPLY
CONNECTION
Ø.875 HOLE FOR
POWER SUPPLY
CONNECTION
11.2
1.0
(1.25 MAX
FOR LEVELING
MACHINE)
Model Product # Volts Amps Tank Heater Total Brewing Cu. Shipping Cord
Watts Watts Capacity Ft. Weight Attached
RT 20835.0000 120/240 19.2 3500 4050 7.5 gal./hr. 9.3 42 lbs. No
RTF (w/faucet) 20835.0004 120/240 19.2 3500 4050 7.5 gal./hr. 9.3 46 lbs. No
Brewing capacity: based upon incoming water temp of 60ºF (140ºF rise) per 1/2 gallon brew time of 4 minutes.
Models listed as 120/208V or 120/240V must be connected to 208V or 240V electrical service respectively. Please refer to the installation manual.
Electrical: Model requires 3-wires plus ground service rated 120/240V (115/230, 120/208), single phase, 60 hz.
Plumbing: 20-90 psi (138-621 kPa). Machine supplied with 1⁄4" OD male flare fitting.
Bunn-O-Matic® Corporation - 1400 Stevenson Drive Springfield, Illinois 62703 • 800-637-8606 • 217-529-6601 • Fax 217-529-6644 • www.bunn.com
BUNN® practices continuous product research and improvement. We reserve the right to change specifications and product design without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
All dimensions shown in inches.
10/09 © Bunn-O-Matic Corporation
