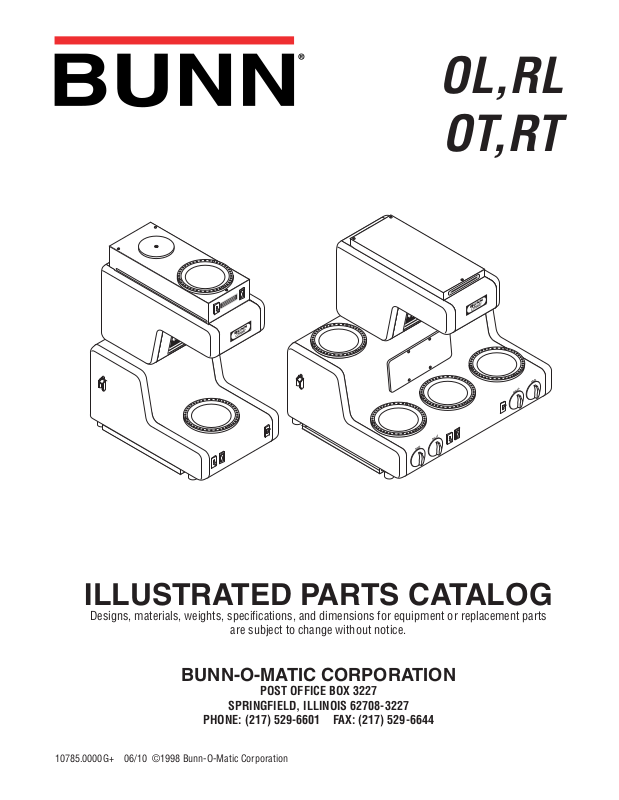

OL,RL
WARNING
!
CAUTION
!
CAUTION
!
OT,RT
ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
10785.0000G+ 06/10 ©1998 Bunn-O-Matic Corporation
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY
Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:
1) All equipment other than as specified below: 2 years parts and 1 year labor.
2) Electronic circuit and/or control boards: parts and labor for 3 years.
3) Compressors on refrigeration equipment: 5 years parts and 1 year labor.
4) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis:
parts and labor for 3 years or 30,000 pounds of coffee, whichever comes first.
These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by
it will be commercially free of defects in material and workmanship existing at the time of manufacture and
appearing within the applicable warranty period. This warranty does not apply to any equipment, component or
part that was not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect,
alteration, improper installation or operation, improper maintenance or repair, damage or casualty. This warranty is
conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone
at (217) 529-6601 or by writing to Post Office Box 3227, Springfield, Illinois 62708-3227; 2) if requested by
BUNN, shipping the defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior
authorization from BUNN that the defective equipment is under warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR
ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN
are not authorized to make modifications to this warranty or to make additional warranties that are binding on
BUNN. Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and
should not be relied upon.
If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its
exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts
and/or labor (during the applicable parts and labor warranty periods specified above) to repair the defective
components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace
the equipment or refund the purchase price for the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF
THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S
SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales,
loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute
equipment, facilities or services, or any other special, incidental or consequential damages.
392, AutoPOD, AXIOM, BrewLOGIC, BrewMETER, Brew Better Not Bitter, BrewWISE, BrewWIZARD, BUNN
Espress, BUNN Family Gourmet, BUNN Gourmet, BUNN Pour-O-Matic, BUNN, BUNN with the stylized red line,
BUNNlink, Bunn-OMatic, Bunn-O-Matic, BUNNserve, BUNNSERVE with the stylized wrench design, Cool Froth,
DBC, Dr. Brew stylized Dr. design, Dual, Easy Pour, EasyClear, EasyGard, FlavorGard, Gourmet Ice, Gourmet
Juice, High Intensity, iMIX, Infusion Series, Intellisteam, My Café, PowerLogic, Quality Beverage Equipment
Worldwide, Respect Earth, Respect Earth with the stylized leaf and coffee cherry design, Safety-Fresh, savemycoffee.com, Scale-Pro, Silver Series, Single, Smart Funnel, Smart Hopper, SmartWAVE, Soft Heat, SplashGard,
The Mark of Quality in Beverage Equipment Worldwide, ThermoFresh, A Partner You Can Count On, Air Brew,
Air Infusion, Beverage Bar Creator, Beverage Profit Calculator, Brew better, not bitter., BUNNSource, Coffee At
Its Best, Cyclonic Heating System, Digital Brewer Control, Nothing Brews Like a BUNN, Pouring Profits, Signature Series, Tea At Its Best, Phase Brew, The Horizontal Red Line, Titan, trifecta, Ultra, Velocity Brew are either
trademarks or registered trademarks of Bunn-O-Matic Corporation.
2
10785 051910
TABLE OF CONTENTS
ELECTRICAL & OPERATING CONTROLS (Model OL) ................................................................................................................ 28
ELECTRICAL & OPERATING CONTROLS (Model RL) ................................................................................................................ 32
ELECTRICAL & OPERATING CONTROLS (Model OT) ................................................................................................................ 36
ELECTRICAL & OPERATING CONTROLS (Model RT) ................................................................................................................ 40
FAUCET & TUBING (Model RTF & Models RT & OT with Faucet Conversion) ............................................................................ 22
FUNNELS & BASKETS ............................................................................................................................................................... 44
HOUSINGS & PANELS (Model OL) .............................................................................................................................................. 4
HOUSINGS & PANELS (Model RL) .............................................................................................................................................. 6
HOUSINGS & PANELS (Model OT) .............................................................................................................................................. 8
HOUSINGS & PANELS (Model RT) ............................................................................................................................................ 10
NUMERICAL INDEX ................................................................................................................................................................... 46
STRAINER (Models OL & RL) .................................................................................................................................................... 18
STRAINER/FLOW CONTROL (Models OT & RT) ........................................................................................................................ 20
TANK & COMPONENTS (Models OL & RL) ................................................................................................................................ 12
TANK & COMPONENTS (Models OT & RT) ................................................................................................................................ 16
WARMER ASSEMBLIES (Models OL & OT) ................................................................................................................................ 24
WARMER ASSEMBLIES (Models RL & RT) ................................................................................................................................ 26
3
10785 070600
BUNN
CAUTION
DISCARD DECANTER
IF:
. CRACKED
. SCRATCHED
. BOILED DRY
. HEATED WHEN EMPTY
. USED ON HIGH FLAME
. OR EXPOSED ELECTRIC
ELEMENTS
FAILURE TO COMPLY RISKS INJURY
PN: 658
1985 BUNN-O-MATIC CORPORATION
FUNNEL CONTENTS
ARE HOT
!
17
20
®
HOUSINGS & PANELS (Model OL)
OL,RL
OT,RT
4
5
6
7
1
2
3
19
18
21
8
5
9
10
11
12
5
13
16
15
14
P1648.45
4
10785 011410
HOUSINGS & PANELS (Model OL)
ITEM PART NO. QTY. DESCRIPTION
1 05103.1000 1 Hood w/Decals (Includes items 2 thru 7)
05103.1001 1 Hood w/Decals (Includes items 2 thru 7) (Model OL25B only)
01331.0000 2 Screw, RND SLTD #10-32 x .50" (Early models)
00971.0000 4 Nut, KEPS #10-32
2 00875.0000 1 Decal, BUNN-O-MATIC
3 00658.0000 1 Decal, WARNING DECANTER/FUNNEL
4 00462.0001 1 Plug
5 00917.0000 6 Fastener, "J" Type #8-32
6 - - - - - - - - 1 Gasket, U-Channel 3.50" (Order item 22)
7 12364.0000 2 Decal, Caution - Warmers are Hot
8 00606.0000 1 Bushing
9 05016.0000 1 Bracket, Right
05017.0000 1 Bracket, Left
02310.0000 2 Screw, Truss Head #10-32 x .50"
00971.0000 2 Nut, KEPS #10-32
01331.0000 2 Screw, RND SLTD #10-32 x .50"
01512.0000 2 Lockwasher, External-tooth #10
10 05105.0000 1 Housing
05105.1002 1 Housing (Models w/ Master ON/OFF Switch)
11 00927.0000 1 Clip, Cable
12 05102.0000* 1 Chassis
01311.0000 6 Screw, Truss Head #8-32 x .25"
00978.0000 6 Fastener, Flat Type #8-32
13 05014.0000 1 Drip Tray
01315.0000 1 Screw, Truss Head #8-32 x .375"
14 00754.0001 4 Foot/Locator
15 00751.0000 4 Spring
16 00752.0000 4 Cover
17 22358.1001 1 Panel w/Decals (Model OL-15)(Includes items 18 thru 21)
22358.1000 1 Panel w/Decals (Models OL-20 & 35)(Includes items 18, 19 & 21)
01320.0000 2 Screw, RND SLTD #8-32 x 1.0"
01516.0000 2 Washer, Nylon Retainer
18 00656.0000 1 Decal, COMPLIANCE TO PLUMBING CODE
19 00831.0000 1 Decal, WARNING ELECTRICAL
20 00715.0000 1 Adapter, Strain Relief (Model OL-15 only)
21 37881.0000 1 Decal, No Serviceable Parts
22 02434.1000 - Gasket, U-Channel 18.0" (Use as required)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
5
10785 011410
BUNN
CAUTION
DISCARD DECANTER
IF:
. CRACKED
. SCRATCHED
. BOILED DRY
. HEATED WHEN EMPTY
. USED ON HIGH FLAME
. OR EXPOSED ELECTRIC
ELEMENTS
FAILURE TO COMPLY RISKS INJURY
PN: 658
1985 BUNN-O-MATIC CORPORATION
FUNNEL CONTENTS
ARE HOT
!
24 21
®
HOUSINGS & PANELS (Model RL)
OL,RL
OT,RT
2
24
1
3
4
5
6
10
11
7
8
9
12
22 23
6
14
15
13
11
11
16
6
17
20
19
18
P1649.40
6
10785 011410
HOUSINGS & PANELS (Model RL)
ITEM PART NO. QTY. DESCRIPTION
1 03811.1000 1 Cover w/Decals (Includes items 2 thru 4 & 24)
01371.0000 3 Screw, RND SLTD #8-32 x 4.0"
01516.0000 3 Washer, Nylon Retaining
2 01189.0000 1 Lid
01377.0000 1 Screw, FLH SLTD #8-32 x .75"
00912.0000 1 Fastener, "J" Type #8-32
3 32424.0000 1 Schematic, Electrical
4 00803.0000 1 Decal, Decorative Stripe
5 00462.0001 1 Plug
6 00917.0000 7 Fastener, "J" Type #8-32
7 05103.1000 1 Hood w/Decals (Includes items 5 thru 11)
01331.0000 2 Screw, RND SLTD #10-32 x .50" (Early models)
00971.0000 4 Nut, KEPS #10-32
8 00875.0000 1 Decal, BUNN-0-MATIC
9 00658.0000 1 Decal, WARNING DECANTER/FUNNEL
10 - - - - - - - - 1 Gasket, U-Channel 3.50" (Order item 25)
11 12364.0000 4 Decal, Caution - Warmers are Hot
12 00606.0000 1 Bushing
13 05092.1000 1 Housing w/Decal (Includes items 6,11,12 and 14)
05092.0000 1 Housing (Models RLA only)
14 00688.0000 1 Decal, HIGH HEAT (Models with High Heat Warmer)
15 05016.0000 1 Bracket, Right
05017.0000 1 Bracket, Left
02310.0000 2 Screw, Truss Head #10-32 x .50"
00971.0000 2 Nut, KEPS #10-32
01331.0000 2 Screw, RND SLTD #10-32 x .50"
01512.0000 2 Lockwasher, External-tooth #10
16 05101.0000 1 Chassis
01311.0000 6 Screw, Truss Head #8-32 x .25"
00978.0000 6 Fastener, Flat Type #8-32
17 05005.0000 1 Drip Tray
01315.0000 2 Screw, Truss Head #8-32 x .375"
18 00754.0001 4 Foot/Locator
19 00751.0000 4 Spring
20 00752.0000 4 Cover
21 22351.1000 1 Panel w/Decals (Includes item 22 - 24)
01320.0000 2 Screw, RND SLTD #8-32 x 1.0"
01516.0000 2 Washer, Nylon Retainer
22 00831.0000 1 Decal, WARNING ELECTRICAL
23 00656.0000 1 Decal, COMPLIANCE TO PLUMBING CODE
24 37881.0000 2 Decal, No Serviceable Parts
25 02434.1000 - Gasket, U-Channel 18.0" (Use as required)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
7
10785 011410
BUNN
CAUTION
DISCARD DECANTER
IF:
. CRACKED
. SCRATCHED
. BOILED DRY
. HEATED WHEN EMPTY
. USED ON HIGH FLAME
. OR EXPOSED ELECTRIC
ELEMENTS
FAILURE TO COMPLY RISKS INJURY
PN: 658
1985 BUNN-O-MATIC CORPORATION
FUNNEL CONTENTS
ARE HOT
!
®
HOUSINGS & PANELS (Model OT)
OL,RL
OT,RT
4
5
6
7
1
20
23
22
21
19
20
2
3
8
5
9
10
11
24
25
12
13
18
17
16
14
5
15
P1650.45
8
10785 011410
HOUSINGS & PANELS (Model OT)
ITEM PART NO. QTY. DESCRIPTION
1 05025.1000 1 Hood w/Decals (Includes items 2 thru 7)
05194.0000 1 Hood (Model OT35 w/Interface only)
01331.0000 2 Screw, RND SLTD #10-32 x .50" (Early models)
00971.0000 4 Nut, KEPS #10-32
2 00875.0000 1 Decal, BUNN-O-MATIC
3 00658.0000 1 Decal, WARNING DECANTER/FUNNEL
4 00406.0001 1 Connector
5 00917.0000 6 Fastener, "J" Type #8-32
6 - - - - - - - - 1 Gasket, U-Channel 3.50" (Order item 26)
7 12364.0000 2 Decal, Caution - Warmers are Hot
8 00606.0000 1 Bushing
9 05016.0000 1 Bracket, Right
05017.0000 1 Bracket, Left
02310.0000 2 Screw, Truss Head #10-32 x .50"
00971.0000 2 Nut, KEPS #10-32
01331.0000 2 Screw, RND SLTD #10-32 x .50"
01512.0000 2 Lockwasher, External-tooth #10
10 05023.1000 1 Housing w/Decal (Includes items 5,7,8 & 10)
05023.0002* 1 Housing (Models w/ Master ON/OFF Switch)
11 00927.0000 1 Clip, Cable
12 22357.1003 1 Cover w/Decal (Includes items 13 & 25)
01318.0000 4 Screw, RND SLTD #8-32 x .50"
01516.0000 4 Washer, Nylon Retaining
13 10278.0000 1 Schematic, Electrical
14 04974.0000 1 Chassis
01311.0000 6 Screw, Truss Head #8-32 x .25"
00978.0000 6 Fastener, Flat Type #8-32
15 05014.0000 1 Drip Tray
01315.0000 1 Screw, Truss Head #8-32 x .375"
16 00754.0001 4 Foot/Locator
17 00751.0000 4 Spring
18 00752.0000 4 Cover
19 00774.0000 1 Decal, CAUTION-THERMOSTAT
20 22358.1002 1 Panel w/Decals (Model OT-15)(Includes items 21 thru 23 & 25)
22358.1000 1 Panel w/Decals (Models OT-20 & 35)(Shown)(Includes items 21 & 22)
01320.0000 2 Screw, RND SLTD #8-32 x 1.0"
01516.0000 2 Washer, Nylon Retainer
21 00656.0000 1 Decal, COMPLIANCE TO PLUMBING CODE
22 00831.0000 1 Decal, WARNING ELECTRICAL
23 00715.0000 1 Adapter, Strain Relief (Model OT-15 only)
24 32540.0000 1 Decal, Timer Setting Instructions (Models with Digital Timer)
25 37881.0000 2 Decal, No Serviceable Parts
26 02434.1000 - Gasket, U-Channel 18.0" (Use as required)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
9
10785 011410
BUNN
CAUTION
DISCARD DECANTER
IF:
. CRACKED
. SCRATCHED
. BOILED DRY
. HEATED WHEN EMPTY
. USED ON HIGH FLAME
. OR EXPOSED ELECTRIC
ELEMENTS
FAILURE TO COMPLY RISKS INJURY
PN: 658
1985 BUNN-O-MATIC CORPORATION
FUNNEL CONTENTS
ARE HOT
!
®
HOUSINGS & PANELS (Model RT)
26
OL,RL
OT,RT
1
2
3
4
8
9
5
22 26 23 24
21
6
7
10
4
12
13
11
26
25
14
15
9
20
19
18
10
16
4
17
P1651.40
10785 011410
HOUSINGS & PANELS (Model RT)
ITEM PART NO. QTY. DESCRIPTION
1 22428.1000 1 Cover w/Decals (Includes items 2 & 26)
01320.0000 2 Screw, RND SLTD #8-32 x 1.0"
01322.0000 1 Screw, RND SLTD #8-32 x 1.5"
01516.0000 3 Washer, Nylon Retaining
2 00822.0000 1 Decal, Decorative Stripe
3 00406.0001 1 Connector
4 00917.0000 7 Fastener, "J" Type #8-32
5 05025.1000 1 Hood w/Decals (Includes items 3 thru 9)
05025.1002 1 Hood w/Decals (Includes items 3 thru 9) (Model RTF or Models RT & OT with
Faucet Conversion)
01331.0000 2 Screw, RND SLTD #10-32 x .50" (Early models)
00971.0000 4 Nut, KEPS #10-32
6 00875.0000 1 Decal, BUNN-O-MATIC
7 00658.0000 1 Decal, WARNING DECANTER/FUNNEL
8 - - - - - - - - 1 Gasket, U-Channel 3.50" (Order item 27)
9 12364.0000 4 Decal, Caution - Warmers are Hot
10 00606.0000 1 Bushing
11 05027.1000 1 Housing w/Decal (Includes items 4,10 and 12)
05027.0002* 1 Housing (Models w/ Master ON/OFF Switch)
12 00688.0000 1 Decal, HIGH HEAT (Models with High Heat Warmer)
13 05016.0000 1 Bracket, Right
05017.0000 1 Bracket, Left
02310.0000 2 Screw, Truss Head #10-32 x .50"
00971.0000 2 Nut, KEPS #10-32
01331.0000 2 Screw, RND SLTD #10-32 x .50"
01512.0000 2 Lockwasher, External-tooth #10
14 22357.1002 1 Cover w/Decal (Includes items 15 & 26)
01318.0000 4 Screw, RND SLTD #8-32 x .50"
01516.0000 4 Washer, Nylon Retaining
15 10277.0000 1 Schematic, Electrical (Models without High Heat Warmer)
32423.0000 1 Schematic, Electrical (Models with High Heat Warmer)
16 04970.0000 1 Chassis
01311.0000 6 Screw, Truss Head #8-32 x .25"
00978.0000 6 Fastener, Flat Type #8-32
17 05005.0000 1 Drip Tray
01315.0000 2 Screw, Truss Head #8-32 x .375"
18 00754.0001 4 Foot/Locator
19 00751.0000 4 Spring
20 00752.0000 4 Cover
21 00774.0000 1 Decal, CAUTION-THERMOSTAT
22 22351.1000 1 Panel w/Decals (Includes item 23, 24 & 26)
01320.0000 2 Screw, RND SLTD #8-32 x 1.0"
01516.0000 2 Washer, Nylon Retainer
23 00831.0000 1 Decal, WARNING ELECTRICAL
24 00656.0000 1 Decal, COMPLIANCE TO PLUMBING CODE
25 32540.0000 1 Decal, Timer Setting Instructions (Models with Digital Timer)
26 37881.0000 2 Decal, No Serviceable Parts
27 02434.1000 - Gasket, U-Channel 18.0" (Use as required)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
11
10785 011410
BUNN
®
TANK & COMPONENTS (Models OL & RL)
OL,RL
OT,RT
2
1
5
6
7
8
34
32
15
16
3
4
10
11
12
9
14
13
17
18
19
31
30
33
35
21
22
23
24
25
27
28
29
20 26
P1652
12
10785 103102
TANK & COMPONENTS (Models OL & RL)
ITEM PART NO. QTY. DESCRIPTION
- 05033.1000 1 Tank Assy (1425W, 120V)(Includes items 1 thru 33)
05032.1000 1 Tank Assy (1800W, 120V)(Includes items 1 thru 33)
05038.0000 1 Tank Assy (3500W, 120/240V)(Includes items 1 thru 33)
- - - - - - - - 1 Tank Assy (3500W, 230V)(Includes items 1 thru 33)
- - - - - - - - 1 Tank Assy (2500W, 100V)(Includes items 1 thru 33)
- - - - - - - - 1 Tank Assy (3500W, 200V)(Includes items 1 thru 33)
1 20768.0000 1 Tube Assy (Includes item 2)
2 03989.0000 1 Grommet
3 00929.0001 1 Fitting, Compression
4 05078.0000 1 Lid, Tank
5 02775.0000 4 Bracket, Hold Down
00908.0000 4 Nut, Hex #8-32
6 02747.0000 1 Gasket, Tank Lid
7 02755.1000 1 Element, Tank Heater (1425W, 120V)(Includes item 8)
02756.1000 1 Element, Tank Heater (1800W, 120V)(Includes item 8)
05037.1000 1 Element, Tank Heater (3500W, 240V)(Includes item 8)
05036.1000 1 Element, Tank Heater (2500W, 100V)(Includes item 8)
20942.1000 1 Element, Tank Heater (3500W, 200V)(Includes item 8)
8 00943.0000 2 Gasket
9 05110.1000 1 Float Switch Assy (Includes items 10 thru 14)
02308.0000 1 Screw, PNH SLTD #8-32 x .375"
10 00946.0000 2 Nut, Hex Brass .125-27
11 05084.0000 1 Bracket
12 05108.0000 1 Spring
13 03807.0000 1 Ring, Retaining
14 01527.0000 3 Washer, Adjusting
15 05106.0000 1 Float Switch (Includes items 13 & 14)
16 05106.0001 1 Float Switch (Includes item 13)
17 05082.0000 1 Overflow Cup
18 02713.0000 1 Syphon
19 02746.0000 1 Gasket
20 02745.0000 1 Nut
21 05039.0000 1 Tank
22 04831.0000 1 Clip
00970.0000 2 Nut, KEPS #8-32
(Continued)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
13
10785 092800
BUNN
®
TANK & COMPONENTS (Models OL & RL)
(Continued)
OL,RL
OT,RT
2
1
5
6
7
8
34
32
15
16
3
4
10
11
12
9
14
13
17
18
19
31
30
33
35
21
22
23
24
25
27
28
29
20 26
P1652
14
10785 103102
TANK & COMPONENTS (Models OL & RL)
ITEM PART NO. QTY. DESCRIPTION
23 05067.0000 1 Terminal Block
24 05070.0000 1 Plate
00970.0000 2 Nut, KEPS #8-32
25 00932.0000 2 Spacer
26 00929.0001 1 Fitting, Compression
27 05031.0000 1 Tube, Sprayhead (Includes item 26)
28 01075.0000 1 Nut, Sprayhead
29 01082.0000 1 Sprayhead
30 00942.0000 2 Nut
31 04626.0000 1 Blanket Heater (120V)
01928.0000 1 Blanket Heater (240V)
32 29329.1000 1 Limit Thermostat
33 00935.0001 1 Cap
24684.0000 1 Gasket, Copper
34 01370.0000 1 Screw, PNH SLTD #8-32 x .75"
01522.0000 1 Washer
00908.0000 1 Nut, Hex #8-32
35 - - - - - - - - 1 Gasket, U-Channel 3.50" (Order item 36)
36 02434.1000 - Gasket, U-Channel 18.0" (Use As Required)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
15
10785 010708
BUNN
3
®
TANK & COMPONENTS (Models OT & RT)
OL,RL
OT,RT
4
5
6
7
18
19
2
1
8
20
21
16
9
11
10
16
12
13
15
14
P1653
10785 121599
TANK & COMPONENTS (Models OT & RT)
ITEM PART NO. QTY. DESCRIPTION
- 05682.1000 1 Tank Assy (1320W, 120V)(Includes items 1 thru 11)
05683.1000 1 Tank Assy (1800W, 120V)(Includes items 1 thru 11)
05684.0000 1 Tank Assy (3500W, 120/240V)(Includes items 1 thru 11)
- - - - - - - - 1 Tank Assy (3500W, 240V)(Includes items 1 thru 11)
- - - - - - - - 1 Tank Assy (Model RTF only)(3500W, 120/240V)(Includes items 1 thru 17)
1 04626.0000 1 Blanket Warmer (120V)
04626.0001 1 Blanket Warmer (120V)(Models w/ Master ON/OFF Switch)
01928.0000 1 Blanket Warmer (240V)
2 04129.0000 1 Tank
3 04221.0000 1 Gasket, Tank Lid
4 05553.0000 1 Tube Kit, Sprayhead (Includes items 5 and 8)
00908.0000 3 Nut
5 05515.0000 1 Gasket
6 29329.1000 1 Limit Thermostat
7 05533.0000 1 Tank Lid
05533.0002 1 Tank Lid (Model RTF or Models RT & OT with Faucet Conversion)
00908.0000 8 Nut
8 05518.0000 1 Hub, Syphon
9 00942.0000 2 Nut
10 04236.1000 1 Element, Tank Heater (1320W, 120V)(Includes item 11)
04636.1000 1 Element, Tank Heater (1800W, 120V)(Includes item 11)
04637.1000 1 Element, Tank Heater (3500W, 120/240V)(Includes item 11)
11 00943.0000 2 Gasket
12 00400.0001 2 Fitting, Elbow (Model RTF or Models RT & OT with Faucet Conversion)
13 12687.0000 2 Nut (Model RTF or Models RT & OT with Faucet Conversion)
14 12689.1000 1 Coil Assy (Includes item 15) (Model RTF or Models RT & OT with Faucet
Conversion)
15 12688.0000 2 Gasket (Model RTF or Models RT & OT with Faucet Conversion)
16 20211.0100 1 Thermal Fuse (Model RTF or Models RT & OT with Faucet Conversion)
17 21016.0122 1 Lead, Black 4.0" (Not Illustrated)(Model RTF or Models RT & OT with Faucet
Conversion)
18 01075.0000 1 Nut, Sprayhead
19 01082.0000 1 Sprayhead
20 00929.0001 1 Fitting, Compression
21 00406.0001 1 Connector
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
17
10785 010708
BUNN
13
12
®
STRAINER (Models OL & RL)
1
5
2
3
4
6
11
OL,RL
OT,RT
9
8
7
10
21
17
15
16
14
20
19
18
18
P1654
10785 121599
STRAINER (Models OL & RL)
ITEM PART NO. QTY. DESCRIPTION
1 05096.0000 1 Tube, Fill Basin
2 00402.0001 1 Connector
3 00458.0001 1 Adapter
4 00432.0001 1 Elbow
5 03820.0000 1 Lead, Solenoid Jumper
6 - - - - - - - - 1 Solenoid, 120V, 1.48" Dia Coil (Not available, order 01085.0002)
01085.0002 1 Solenoid, 120V, 1.00" Dia Coil (Includes items 7 thru 10)
01975.0000 1 Solenoid, 240V (Includes items 7 thru 10)
01138.0000 1 Solenoid, 100V (Includes items 7 thru 10)
21180.0000 1 Solenoid, 200V (Includes items 7 thru 10)
01327.0000 2 Screw, PNH PHH #10-32 x .375"
01502.0000 2 Lockwasher, #10
7 - - - - - - - - 1 Solenoid Valve Base, 1.48" Dia Coil (Not available, order 01085.0002)
28479.0000 1 Solenoid Valve Base Kit, 1.00" Dia Coil (Includes O-ring)
8 01116.0000 1 Guide, 1.48" Dia Coil
28481.0000 1 Guide Kit, 1.0" Dia Coil (Includes Washer and O-ring)
9 01101.0000 1 Solenoid Valve Coil, 120V, 1.48" Dia Coil
28480.0000 1 Solenoid Valve Coil, 120V, 1.00" Dia Coil
21181.0000 1 Solenoid Valve Coil, 200V
01100.0000 1 Solenoid Valve Coil, 240V
01139.0000* 1 Solenoid Valve Coil, 100V
10 01111.0000 1 Solenoid Valve Repair Kit, 1.48" Dia Coil (Includes Plunger, Seal and Spring)
01111.0002 1 Solenoid Valve Repair Kit, 1.00" Dia Coil (Includes Plunger, Spring and O-ring)
11 20201.4300 1 Bracket
02308.0000 1 Screw, PNH SLTD #8-32 x .375"
12 00465.0001 1 Elbow
13 05119.0000 1 Tube
14 00459.0001 1 Fitting, Bulkhead
01532.0000 1 Lockwasher, Internal-tooth .438"
00463.0000 1 Nut, Hex .438-20"
15 01119.0000 1 Tube (Model OL-15 only)
16 01104.0000 1 Tube
17 23820.1000 1 Strainer (Includes items 18 thru 20)
18 - - - - - - - - 1 Body (Order item 17)
19 23721.0000 1 Screen
20 22249.0000 1 Cap, End
21 22293.0000 1 Adapter (Model OL-15 only)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
19
10785 010708
BUNN
®
STRAINER/FLOW CONTROL (Models OT & RT)
13
OL,RL
OT,RT
23
12
11
1
2
3
4
22
19
9
21
20
5
8
7
6
10
14
16
15
18
17
20
P1655
10785 121599
STRAINER/FLOW CONTROL (Models OT & RT)
ITEM PART NO. QTY. DESCRIPTION
1 00305.0000 1 Tube
2 01171.0001 1 Check Valve (Includes item 3)
3 20554.0001* 1 Decal, Check Valve
4 00310.0002 1 Tube
00310.0000 1 Tube (For use with 240V solenoid)
5 20528.1195 1 Flow Control, .195 GPM (Includes items 6 thru 9)
6 - - - - - - - - 1 Body (Order item 5)
7 20526.1195 1 Valve, Flow Control
8 01155.0000 1 Gasket, Flow Control
9 01154.0001 1 Outlet, Flow Control
10 - - - - - - - - 1 Solenoid, 120V, 1.48" Dia Coil (Not available, order 01085.0002)
01085.0002 1 Solenoid, 120V, 1.00" Dia Coil (Includes items 11 thru 14)
01975.0000 1 Solenoid, 240V (Includes items 11 thru 14)
21180.0000 1 Solenoid, 200V (Includes items 11 thru 14)
01326.0000 2 Screw, PNH PHH #10-32 x .25"
01512.0000 2 Lockwasher, External-tooth #10
11 - - - - - - - - 1 Solenoid Valve Base, 1.48" Dia Coil (Not available, order 01085.0002)
28479.0000 1 Solenoid Valve Base Kit, 1.00" Dia Coil (Includes O-ring)
12 01116.0000 1 Guide, 1.48" Dia Coil
28481.0000 1 Guide Kit, 1.0" Dia Coil (Includes Washer and O-ring)
13 01101.0000 1 Solenoid Valve Coil, 120V, 1.48" Dia Coil
28480.0000 1 Solenoid Valve Coil, 120V, 1.00" Dia Coil
21181.0000 1 Solenoid Valve Coil, 200V
01100.0000 1 Solenoid Valve Coil, 240V
14 01111.0000 1 Solenoid Valve Repair Kit, 1.48" Dia Coil (Includes Plunger, Seal and Spring)
01111.0002 1 Solenoid Valve Repair Kit, 1.00" Dia Coil (Includes Plunger, Spring and O-ring)
15 00402.0001 1 Connector
16 00398.0002 1 Tee (Model RTF only)
17 01117.0000 1 Tube (Model OT-15 only)
18 01104.0000 1 Tube
19 23820.1000 1 Strainer (Includes items 20 thru 22)
20 - - - - - - - - 1 Body (Order item 17)
21 23721.0000 1 Screen
22 22249.0000 1 Cap, End
23 22293.0000 1 Adapter (Model OT-15 only)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
21
10785 010708
BUNN
®
FAUCET & TUBING
(Models RTF & RT & OT with Faucet Conversion)
OL,RL
OT,RT
7 6
22 21 20 19 18 17
13
14
15
10 11 24 23 12
8
9
16
4 5 3 2 1
22
P1656.20
10785 121599
FAUCET & TUBING(Models RTF & RT & OT with Faucet Conversion)
ITEM PART NO. QTY. DESCRIPTION
1 - - - - - - - - 1 Tube (See STRAINER/FLOW CONTROL)
2 00398.0002 1 Tee
3 - - - - - - - - 1 Solenoid (See STRAINER/FLOW CONTROL)
4 22456.0000 1 Tube (Includes items 5 & 6)
5 00484.0001 1 Valve, Needle
6 20726.0000* 1 Tube (Order item 4)
7 00402.0001 2 Elbow
8 20747.0000 1 Tube
9 - - - - - - - - 1 Coil Assy (See TANK & COMPONENTS)
10 13059.0000 1 Nut
11 01532.0000 1 Lockwasher, Internal-tooth .438"
12 12915.0000 1 Faucet Assy (Includes items 13 thru 22)
13 - - - - - - - - 1 Body (Order item 12)
14 13057.0000 1 Clip, Safety
15 13058.0000 1 Aerator Kit
16 13061.0000 1 Handle/Stem Assy (Includes items 17 thru 22)
17 13053.0000 1 Handle Kit (Includes item 18)
18 02858.0000 1 Pin, Spring .125" Dia x .50"
19 13060.0000 1 Bonnet Nut
20 13055.0000 1 Spring
21 13054.0000 1 Stem
22 13056.0000 1 Seat Cup
23 00875.0000 1 Decal, BUNN-O-MATIC
24 20201.5600 1 Decal, WARNING HOT WATER
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
23
10785 062310
BUNN
9
20
11
®
WARMER ASSEMBLIES (Models OL & OT)
2
3
1
4
5
6
7
8
OL,RL
OT,RT
10
12
13
17
15
16
17
18
19
14
24
240V LOWER WARMERS
P1657
10785 010708
WARMER ASSEMBLIES (Models OL & OT)
ITEM PART NO. QTY. DESCRIPTION
- 03810.1000 1 Warmer Housing Assy (Model OL)(Includes items 1 thru 13)
- 00225.1001 1 Warmer Housing Assy (Model OT)(Includes items 1 thru8, 10, 12 & 13)
1 03652.0000 1 Warmer Assy, 100W/120V (Includes items 2 thru 6)
02817.0000 1 Warmer Assy, 240V (Includes items 2 thru 6)
11440.0011 1 Warmer Assy, 200V (Includes items 2 thru 6)
01303.0000 3 Screw, PNH PHH #4-40 x .50"
00916.0000 3 Fastener, "J" Type #4-40
2 03656.0000 1 Dish
3 13042.0001 1 Spacer
4 01227.0000 1 Element (100W/120V)
01951.0000 1 Element (100W/240V)
01951.0001 1 Element (100W/200V)
5 05212.0000 1 Plate
6 00970.0000 2 Nut
7 03813.0000* 1 Housing, Top Warmer (Model OL)
05717.0000 1 Housing, Top Warmer (Model OT)
01323.0000 3 Screw, #8-32 x 2.5" (Model OL)
01371.0000 3 Screw, #8-32 x 4.0" (Model OT)
01516.0000 3 Washer, Nylon Retaining
8 00804.0000 1 Decal, Decorative Stripe
9 01189.0000 1 Lid, Pour Over (Model OL only)
01377.0000 1 Screw, FLH SLTD #8-32 x .75"
00912.0000 1 Fastener, "J" Type #8-32
10 01860.0000 1 Harness, Top Warmer (120V)
01860.0001* 1 Harness, Top Warmer (240V)
11 10007.0000* 1 Schematic, Electrical (Model OL only)
12 01088.0000 1 Lamp (120V)
01089.0000 1 Lamp (240V)
13 01186.0000 1 Switch, ON/OFF
14 03697.0000 1 Warmer Assy, 100W/120V (Includes items 15 thru 19)
02817.0000 1 Warmer Assy, 100W/240V (Includes items 15 thru 19)
01303.0000 3 Screw, PNH PHH #4-40 x .50"
00916.0000 3 Fastener, "J" Type #4-40
15 03656.0000 1 Dish
16 13042.0001 1 Spacer (120V only)
17 01143.0000 1 Element (100W/120V)
01951.0000 1 Element (100W/240V)
18 05212.0000 1 Plate
19 00970.0000 2 Nut
20 37881.0000 1 Decal, No Serviceable Parts
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
25
10785 010708
BUNN
®
WARMER ASSEMBLIES (Models RL & RT)
OL,RL
OT,RT
8
9
7
10
11
4
240V LOWER WARMERS
2
3
4
1
5
6
26
P1658
10785 121599
WARMER ASSEMBLIES (Models RL & RT)
ITEM PART NO. QTY. DESCRIPTION
1 03697.0000 5 Warmer Assy, 100W/120V (Includes items 2 thru 6)
02817.0000 5 Warmer Assy, 240V (Includes items 2 thru 6)
01303.0000 16 Screw, PNH PHH #4-40 x .50"
01304.0000 1 Screw, PNH PHH #4-40 x .75"
00916.0000 17 Fastener, "J" Type #4-40
2 03656.0000 1 Dish
3 13042.0001 1 Spacer (120V only)
4 01143.0000 1 Element (100W/120V)
01951.0000 1 Element (100W/240V)
5 05212.0000 1 Plate
6 00970.0000 2 Nut
7 03311.0000 1 Warmer Assy, High Heat 120V (Includes items 8 thru 11)
- - - - - - - - 1 Warmer Assy, High Heat 240V (Includes items 8 thru 11)
01303.0000 3 Screw, PNH PHH #4-40 x .50"
00916.0000 3 Fastener, "J" Type #4-40
8 01161.0000 1 Element, 120V (Includes hardware below)
01907.0000 1 Element, 240V (Includes hardware below)
01503.0000 3 Washer
00910.0000 3 Nut, Hex #10-32
Models with High
Heat Warmers
9 01198.0000 1 Plate, Retainer
01332.0000 1 Screw, PNH SLTD #10 x .50"
10 01197.0000 1 Dish
11 00909.0000 3 Nut, Brass #10-32
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
27
10785 022405
BUNN
®
ELECTRICAL & OPERATING CONTROLS (Model OL)
OL,RL
OT,RT
7
6
4
2
1
3
5
11
12
8
9
20
21
19
18
17
16
15
14
28
9 8 13
10
P1659
10785 010708
ELECTRICAL & OPERATING CONTROLS (Model OL)
ITEM PART NO. QTY. DESCRIPTION
1 04314.0001 1 Thermostat Assy (Includes items 2 thru 4)
02328.0003 1 Screw, PNH SLTD #6-32 x .312"
2 20771.0001 1 Bracket
01315.0000 2 Screw, TRH PHH #8-32 x .375"
3 07073.1000 1 Grommet
4 00720.0000 1 Knob
5 05089.0000 1 Bracket, Component Mounting
01315.0000 1 Screw, TRH PHH #8-32 x .375"
6 05000.0000 1 Plate
02308.0000 2 Screw, PNH SLTD #8-32 x .375"
7 02056.1000 1 Relay (120V)
01977.0000 1 Relay (240V)
02328.0000 1 Screw, PNH SLTD #6-32 x .375"
8 01088.0000 2 Lamp (120V)
01089.0000 2 Lamp (240V)
9 01186.0000 2 Switch, ON/OFF
10 01061.0000 1 Switch, MOMENTARY START
11 12984.0004 1 Lamp Assy, Ready (Model OL35B only)
12 20749.0000 1 Decal, READY (Model OL35B only)
13 00927.0000 1 Clip, Cable
14 01666.0000 1 Bushing, Strain Relief (Model OL15 only)
15 00715.0000 1 Washer, Strain Relief (Model OL15 only)
16 00824.0000 1 Decal, Grounding
17 00985.0000 1 Decal, INDIVIDUAL CIRCUIT INFO (Not Applicable to model OL15)
18 01309.0000 1 Screw, Harness Grounding
19 01106.0001 1 Terminal Block, 2-pole RED/BLK
01106.0000 1 Terminal Block, 2-pole WHT/BLK
07038.0000 1 Terminal Block, 3-pole RED/WHT/BLK
01317.0000 2 Screw, TRH PHH #8-32 x .50"
20 06335.1004 1 Contactor (Model OL25B only)
01331.0000 2 Screw, RND SLTD #10-32 x .50"
21 38894.0001 1 Switch, Master ON/OFF
01308.0002 2 Screw, Truss Head, Locking #6-32 x .25" (Mounting)
01327.0000 4 Screw, Pan Head #10-32 x .38" (Terminals)
01512.0000 4 Lockwasher, Ext.-tooth #10
(Continued)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
29
10785 030410
BUNN
®
ELECTRICAL & OPERATING CONTROLS (Model OL)
OL,RL
OT,RT
(Continued)
7
6
4
2
1
3
5
11
12
8
9
20
21
19
18
17
16
15
14
30
9 8 13
10
P1659
10785 010708
ELECTRICAL & OPERATING CONTROLS (Model OL)
ITEM PART NO. QTY. DESCRIPTION
The following items are not illustrated
22 01860.0000 1 Harness, Top Warmer, 120V
01860.0001 1 Harness, Top Warmer, 240V
23 04513.0000 1 Power Cord (OL15 only)
24 06064.0000 1 Decal, Cord Warning (OL15 only)
25 03820.0000 1 Lead, Solenoid Jumper
26 21016.0028 1 Lead, BLK 27.0"
27 21016.0029 1 Lead, BLU/BLK 23.0"
28 05116.0000 1 Harness, Main (Models OL15 & 20)
05116.0001 1 Harness, Main (Models OL15 & 20)(Models w/ Master ON/OFF Switch)
05112.0000 1 Harness, Main (Model OL35)
05112.0001 1 Harness, Main (Model OL35)(Models w/ Master ON/OFF Switch)
05118.0000 1 Harness, Main (Model OL35A)
22399.0000 1 Harness, Main (Model OL25B)
29 21016.0011 1 Lead, GRN/YEL 15.0" (Model OL35A)
30 21016.0027 1 Lead, GRN/YEL 26.0" (Model OL35A)
31 21016.0007 1 Lead, BLU/BLK 23.0" (Model OL35B)
32 21016.0155 1 Lead, BLK 27.0" (Model OL35B)
33 22362.0000 1 Harness, Ready Light (Model OL35B)
34 04243.0000 2 Terminal Housing (Model OL35B)
35 21012.0062* 1 Lead, BLK 10.0" (Model OL25B)
36 21012.0064* 1 Lead, BLK 10.0" (Model OL25B)
37 21012.0066 1 Lead, WHT 9.0" (Model OL25B)
38 21012.0067 1 Lead, WHT 9.0" (Model OL25B)
39 22356.0000 1 Lamp Assy, Ready (Model OL25B)
40 04243.0000 2 Terminal Housing (Model OL25B)
41 38920.0000 1 Harness, Wiring, Master ON/OFF Switch
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
31
10785 010708
BUNN
1
®
ELECTRICAL & OPERATING CONTROLS (Model RL)
OL,RL
OT,RT
7
6
4
2
3
5
9
8
22
21
23
20
10
11
13
14
19
12 13 15 17 16 12 18 15
32
P1660
10785 010708
ELECTRICAL & OPERATING CONTROLS (Model RL)
ITEM PART NO. QTY. DESCRIPTION
1 04314.0001 1 Thermostat Assy (Includes items 2 thru 4)
02328.0003 1 Screw, PNH SLTD #6-32 x .312"
2 20771.0001 1 Bracket
02308.0000 2 Screw, PHH SLTD w/serr #8-32 x .38"
3 07073.1000 1 Grommet
4 00720.0000 1 Knob
5 05089.0000 1 Bracket, Component Mounting
01315.0000 1 Screw, TRH PHH #8-32 x .375"
6 05000.0000 1 Plate
02308.0000 2 Screw, PHH SLTD w/serr #8-32 x .38"
7 02056.1000 1 Relay (120V)
01977.0000 1 Relay (240V)
02328.0000 1 Screw, PNH SLTD #6-32 x .375"
8 12984.0004 1 Lamp Assy, Ready (Model RL35B only)
9 04243.0000 2 Terminal Housing (Model RL35B only)
10 20749.0000 1 Decal, READY (Model RL35B only)
11 01053.1000 1 Switch, Rotary OFF/LO/MED/HI (Models with High Heat Warmer)
12 01052.0000 5 Switch, Rotary ON/OFF (One less used on models with High Heat Warmer)
13 00990.0000 5 Nut, Hex .375-24"
14 01055.0000 1 Knob, OFF/LO/MED/HI (Models with High Heat Warmer)
15 01054.0000 5 Knob, ON/OFF (One less used on models with High Heat Warmer)
16 01088.0000 1 Lamp (120V)
01089.0000 1 Lamp (240V)
17 01186.0000 1 Switch, ON/OFF
18 01061.0000 1 Switch, MOMENTARY START
19 00824.0000 1 Decal, Grounding
20 00985.0000 1 Decal, INDIVIDUAL CIRCUIT INFO
21 01309.0000 1 Screw, Harness Grounding
22 01106.0001 1 Terminal Block, 2-pole RED/BLK
01106.0000 1 Terminal Block, 2-pole WHT/BLK
07038.0000 1 Terminal Block, 3-pole RED/WHT/BLK
01317.0000 2 Screw, TRH PHH #8-32 x .50"
23 38894.0001 1 Switch, Master ON/OFF
01308.0002 2 Screw, Truss Head, Locking #6-32 x .25" (Mounting)
01327.0000 4 Screw, Pan Head #10-32 x .38" (Terminals)
01512.0000 4 Lockwasher, Ext.-tooth #10
(Continued)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
33
10785 030410
BUNN
®
ELECTRICAL & OPERATING CONTROLS (Model RL)
OL,RL
OT,RT
(Continued)
7
6
4
2
1
3
5
9
8
22
21
23
20
10
11
13
14
19
12 13 15 17 16 12 18 15
34
P1660
10785 010708
ELECTRICAL & OPERATING CONTROLS (Model RL)
ITEM PART NO. QTY. DESCRIPTION
The following items are not illustrated
24 05113.0000 1 Harness, Main (Model RL)(Models w/ High Heat Warmer)
22360.0000 1 Harness, Main (Model RL)(Models w/oHigh Heat Warmer)
22360.0002 1 Harness, Main (Model RL)(Models w/oHigh Heat Warmer)(Models w/ Master
ON/OFF Switch)
05117.0000* 1 Harness, Main (Models RLA & RLB)(Models with High Heat Warmer)
05117.0002 1 Harness, Main (Models RLA & RLB)(Models without High Heat Warmer)
25 21016.0028 1 Lead, BLK 27.0"
26 21016.0029 1 Lead, BLU/BLK 23.0"
27 03820.0000 1 Lead, Solenoid Jumper
28 22354.0000 1 Wire, Ground (Model RLA)
29 22362.0000 1 Harness, Ready Light (Model RL35B)
30 21016.0155 1 Lead, BLK 27.0"
31 21016.0007 1 Lead, BLU/BLK 23.0"
32 38920.0000 1 Harness, Wiring, Master ON/OFF Switch
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
35
10785 010708
BUNN
®
15
16
ELECTRICAL & OPERATING CONTROLS (Model OT)
OL,RL
OT,RT
17 18
23
1
2
13
12
14
19
5
EARLY MODELS
20
4
21
5
22
3
11
10
36
8 7 6 9
P1661
10785 010708
ELECTRICAL & OPERATING CONTROLS (Model OT)
ITEM PART NO. QTY. DESCRIPTION
1 04314.0001 1 Thermostat Assy (Includes items 2 & 3)
02328.0003 1 Screw, PNH SLTD #6-32 x .312"
2 07073.1000 1 Grommet
3 00720.0000 1 Knob
4 04752.0000 1 Bracket, Component Mounting
02308.0000 2 Screw, PHH SLTD w/serr #8-32 x .38"
00970.0000 2 Nut, KEPS #8-32
5 32400.0000 1 Timer, Digital 120V
32400.0001 1 Timer, Digital 240V
01320.0000 2 Screw, RDH SLTD #8-32 x 1.0"
00912.0000 2 Fastener, "J" Type #8-32
6 00927.0000 1 Clip, Cable
7 01088.0000 1 Lamp (120V)
01089.0000 1 Lamp (240V)
8 01186.0000 1 Switch, ON/OFF
9 01061.0000 1 Switch, MOMENTARY START
10 01666.0000 1 Bushing, Strain Relief (Model OT15 only)
11 00715.0000 1 Washer, Strain Relief (Model OT15 only)
12 00985.0000 1 Decal, INDIVIDUAL CIRCUIT INFO (Not Applicable to model OT15)
13 01309.0000 1 Screw, Harness Grounding
14 01106.0000 1 Terminal Block, 2-pole WHT/BLK
07038.0000 1 Terminal Block, 3-pole RED/WHT/BLK
01370.0000 2 Screw, PNH SLTD #8-32 x .75"
00912.0000 2 Fastener, "J" Type #8-32
15 27657.0000 2 Cap, Plastic (OT35 w/Grinder Interface)
16 05187.0000 2 Harness (OT35 w/Grinder Interface)
17 05178.0000 1 Switch, Control Board (OT35 w/Grinder Interface)
00973.0000 2 Nut, KEPS #6-32
18 01533.0002 2 Spacer (OT35 w/Grinder Interface)
19 05177.0000* 1 Decal, Switch (OT35 w/Grinder Interface)
20 00875.0000 1 Decal, BUNN-O-MATIC (OT35 w/Grinder Interface)
21 32530.0001 2 Spacer (Models with Digital Timer)
22 00824.0000 1 Decal, Grounding
23 38894.0001 1 Switch, Master ON/OFF
01308.0002 2 Screw, Truss Head, Locking #6-32 x .25" (Mounting)
01327.0000 4 Screw, Pan Head #10-32 x .38" (Terminals)
01512.0000 4 Lockwasher, Ext.-tooth #10
(Continued)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
37
10785 030410
BUNN
®
ELECTRICAL & OPERATING CONTROLS (Model OT)
OL,RL
OT,RT
15
16
(Continued)
5
17 18
19
20
23
1
2
13
12
22
3
14
EARLY MODELS
4
21
5
11
10
38
8 7 6 9
P1661
10785 010708
ELECTRICAL & OPERATING CONTROLS (Model OT)
ITEM PART NO. QTY. DESCRIPTION
The following items are not illustrated
24 01668.0000* 2 Wire Nut, ORN (OT35 w/Grinder Interface)
25 05186.0000 1 Harness (OT35 w/Grinder Interface)
26 01870.0000 1 Harness, Main (Models OT15 & 20)
34950.0001 1 Harness, Main (Models OT15 & 20)(Models w/ Master ON/OFF Switch)
01869.0000* 1 Harness, Main (Model OT35)
01869.0001 1 Harness, Main (Model OT35)(Models w/ Master ON/OFF Switch)
22476.0000 1 Harness, Main (OT35 w/Grinder Interface)
27 04513.0000 1 Power Cord (OT15 only)
28 06064.0000 1 Decal, Cord Warning (OT15 only)
29 21016.0028 1 Lead, BLK 27.0"
30 21016.0029 1 Lead, BLU/BLK 23.0"
31 38920.0000 1 Wiring Harness, Master ON/OFF Switch
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
39
10785 010708
BUNN
®
ELECTRICAL & OPERATING CONTROLS (Model RT)
OL,RL
OT,RT
5
EARLY MODELS
17
4
18
1
2
19
5
6
8
9
15 16 14 3 7 8 10 12 11 7 13 10
40
P1662
10785 010708
ELECTRICAL & OPERATING CONTROLS (Model RT)
ITEM PART NO. QTY. DESCRIPTION
1 04314.0001 1 Thermostat Assy (Includes items 2 & 3)
02328.0003 1 Screw, PNH SLTD #6-32 x .312"
2 07073.1000 1 Grommet
3 00720.0000 1 Knob
4 04752.0000 1 Bracket, Component Mounting
01315.0000 2 Screw, TRH PNH #8-32 x .375"
01519.0000 2 Lockwasher #8
00970.0000 2 Nut, KEPS #8-32
5 32400.0000 1 Timer, Digital 120V
32400.0001 1 Timer, Digital 240V
01320.0000 2 Screw, RDH SLTD #8-32 x 1.0"
00912.0000 2 Fastener, "J" Type #8-32
6 01053.1000 1 Switch, Rotary OFF/LO/MED/HI (Models with High Heat Warmer)
7 01052.0000 4 Switch, Rotary ON/OFF (One less used on models with High Heat Warmer)
8 00990.0000 4 Nut, Hex .375-24"
9 01055.0000 1 Knob, OFF/LO/MED/HI (Models with High Heat Warmer)
10 01054.0000 4 Knob, ON/OFF (One less used on models with High Heat Warmer)
11 01088.0000 1 Lamp (120V)
01089.0000 1 Lamp (240V)
12 01186.0000 1 Switch, ON/OFF
13 01061.0000 1 Switch, MOMENTARY START
14 00824.0000 1 Decal, Grounding
15 00985.0000 1 Decal, INDIVIDUAL CIRCUIT INFO
16 01309.0000 1 Screw, Harness Grounding
17 01106.0001 1 Terminal Block, 2-pole RED/BLK
01106.0000 1 Terminal Block, 2-pole WHT/BLK
07038.0000 1 Terminal Block, 3-pole RED/WHT/BLK
01370.0000 2 Screw, PNH SLTD #8-32 x .75"
00912.0000 2 Fastener, "J" Type #8-32
18 32530.0001 2 Spacer (Models with Digital Timer)
19 38894.0001 1 Switch, Master ON/OFF
01308.0002 2 Screw, Truss Head, Locking #6-32 x .25" (Mounting)
01327.0000 4 Screw, Pan Head #10-32 x .38" (Terminals)
01512.0000 4 Lockwasher, Ext.-tooth #10
(Continued)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
41
10785 030410
BUNN
®
ELECTRICAL & OPERATING CONTROLS (Model RT)
OL,RL
OT,RT
(Continued)
5
EARLY MODELS
17
4
18
5
1
2
19
6
8
9
15 16 14 3 7 8 10 12 11 7 13 10
42
P1662
10785 010708
ELECTRICAL & OPERATING CONTROLS (Model RT)
ITEM PART NO. QTY. DESCRIPTION
The following items are not illustrated
20 21016.0028 1 Lead, BLK 27.0"
21 21016.0029 1 Lead, BLU/BLK 23.0"
22 01825.0000 1 Harness, Main, 120V (Models RT & RTF)(Models with High Heat Warmer)
01825.0002 1 Harness, Main, 120V (Models RT & RTF)(Models without High Heat Warmer)
34902.0003 1 Harness, Main, 120V (Models RT & RTF)(Models without High Heat Warmer)(Models
w/ Master ON/OFF Switch)
22430.0000 1 Harness, Main, 120V (Model RT Galley)(Models with High Heat Warmer)
22430.0002 1 Harness, Main, 120V (Model RT Galley)(Models without High Heat Warmer)
01826.0000 1 Harness, Main, 240V (Model RTA)(Models with High Heat Warmer)
01826.0002 1 Harness, Main, 240V (Model RTA)(Models without High Heat Warmer)
23 22354.0000 1 Wire, Ground (Model RTA)
24 38920.0000 1 Harness, Wiring, Master ON/OFF Switch
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
43
10785 010708
BUNN
®
FUNNELS & BASKETS
OL,RL
OT,RT
1
2
3
8
9
1
6
6
4
44
7
5 7
P1663
10785 010708
FUNNELS & BASKETS
ITEM PART NO. QTY. DESCRIPTION
1 20217.0000 1 Funnel, SST w/Black Handle (7.625" Dia)(Includes items 2 thru 5)
20217.0001 1 Funnel, SST w/Orange Handle (7.625" Dia)(Includes items 2 thru 5)
20583.0002 1 Funnel, Smoke Plastic (7.25" Dia)(Includes items 6,7 & 9)
29351.0000 1 Funnel, Smoke Plastic (7.625" Dia)(Includes items 6,7 & 9)
2 33090.0000 1 Filter Basket w/Splash Guard
3 28554.0000 1 Funnel w/Decals (Includes items 6 & 7)
4 20244.1000 1 Handle Kit, Black (Includes screw)
20244.1001 1 Handle Kit, Orange (Includes screw)
01331.0002 1 Screw, Round Head #10-32 x 1.50"
5 01031.0000 1 Funnel Tip Kit
6 03408.0002 1 Decal, WARNING-REMOVE FUNNEL
7 03409.0002 1 Decal, WARNING-HOT LIQUID
8 23379.0001 1 Adapter, Funnel (For use with 7.25" Dia Funnel)
9 32964.0000 1 Splash Guard
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
45
10785 010708
NUMERICAL INDEX
PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.
00225.1001........................ 25
00305.0000........................ 21
00310.0000........................ 21
00310.0002........................ 21
00398.0002................... 21,23
00400.0001........................ 17
00402.0001.............. 19,21,23
00406.0001................ 9,11,17
00432.0001........................ 19
00458.0001........................ 19
00459.0001........................ 19
00462.0001....................... 5,7
00463.0000........................ 19
00465.0001........................ 19
00484.0001........................ 23
00606.0000............... 5,7,9,11
00656.0000............... 5,7,9,11
00658.0000............... 5,7,9,11
00688.0000..................... 7,11
00715.0000............. 5,9,29,37
00720.0000......... 29,33,37,41
00751.0000............... 5,7,9,11
00752.0000............... 5,7,9,11
00754.0001............... 5,7,9,11
00774.0000..................... 9,11
00803.0000.......................... 7
00804.0000........................ 25
00822.0000........................ 11
00824.0000......... 29,33,37,41
00831.0000............... 5,7,9,11
00875.0000.................... 5,7,9
00875.0000.............. 11,23,37
00908.0000.............. 13,15,17
00909.0000........................ 27
00910.0000........................ 27
00912.0000........... 7,25,37,41
00916.0000................... 25,27
00917.0000............... 5,7,9,11
00927.0000............. 5,9,29,37
00929.0001.............. 13,15,17
00932.0000........................ 15
00935.0001........................ 15
00942.0000................... 15,17
00943.0000................... 13,17
00946.0000........................ 13
00970.0000.............. 13,15,25
00970.0000.............. 27,37,41
00971.0000............... 5,7,9,11
00973.0000........................ 37
00978.0000............... 5,7,9,11
00985.0000......... 29,33,37,41
00990.0000................... 33,41
01031.0000........................ 45
01052.0000................... 33,41
01053.1000................... 33,41
01054.0000................... 33,41
01055.0000................... 33,41
01061.0000......... 29,33,37,41
01075.0000................... 15,17
01082.0000................... 15,17
01085.0002................... 19,21
01088.0000.... 25,29,33,37,41
01089.0000.... 25,29,33,37,41
01100.0000................... 19,21
01101.0000................... 19,21
01104.0000................... 19,21
01106.0000............. 29,33,37,
01106.0001.............. 29,33,41
01111.0000................... 19,21
01111.0002................... 19,21
01116.0000................... 19,21
01117.0000........................ 21
01119.0000........................ 19
01138.0000........................ 19
01139.0000........................ 19
01143.0000................... 25,27
01154.0001........................ 21
01155.0000........................ 21
01161.0000........................ 27
01171.0001........................ 21
01186.0000.... 25,29,33,37,41
01189.0000..................... 7,25
01197.0000........................ 27
01198.0000........................ 27
01227.0000........................ 25
01303.0000................... 25,27
01304.0000........................ 27
01308.0002......... 29,33,37,41
01309.0000......... 29,33,37,41
01311.0000............... 5,7,9,11
01315.0000............... 5,7,9,11
01315.0000.............. 29,33,41
01317.0000................... 29,33
01318.0000..................... 9,11
01320.0000.................... 5,7,9
01320.0000.............. 11,37,41
01322.0000........................ 11
01323.0000........................ 25
01326.0000........................ 21
01327.0000.... 19,29,33,37,41
01331.0000.......... 5,7,9,11,29
01331.0002........................ 45
01332.0000........................ 27
01370.0000.............. 15,37,41
01371.0000..................... 7,25
01377.0000..................... 7,25
01502.0000........................ 19
01503.0000........................ 27
01512.0000.......... 5,7,9,11,21
01512.0000......... 29,33,37,41
01516.0000.......... 5,7,9,11,25
01519.0000........................ 41
01522.0000........................ 15
01527.0000........................ 13
01532.0000................... 19,23
01533.0002........................ 37
01666.0000................... 29,37
01668.0000........................ 39
01825.0000........................ 43
01825.0002........................ 43
01826.0000........................ 43
01826.0002........................ 43
01860.0000................... 25,31
01860.0001................... 25,31
01869.0000........................ 39
01869.0001........................ 39
01870.0000........................ 39
01907.0000........................ 27
01928.0000................... 15,17
01951.0000................... 25,27
01951.0001........................ 25
01975.0000................... 19,21
01977.0000................... 29,33
02056.1000................... 29,33
02308.0000.... 13,19,29,33,37
02310.0000............... 5,7,9,11
02328.0000................... 29,33
02328.0003......... 29,33,37,41
02434.1000.......... 5,7,9,11,15
02713.0000........................ 13
02745.0000........................ 13
02746.0000........................ 13
02747.0000........................ 13
02755.1000........................ 13
02756.1000........................ 13
02775.0000........................ 13
02817.0000................... 25,27
02858.0000........................ 23
03311.0000........................ 27
03408.0002........................ 45
03409.0002........................ 45
03652.0000........................ 25
03656.0000................... 25,27
03697.0000................... 25,27
03807.0000........................ 13
03810.1000........................ 25
03811.1000.......................... 7
03813.0000........................ 25
03820.0000.............. 19,31,35
03989.0000........................ 13
04129.0000........................ 17
04221.0000........................ 17
04236.1000........................ 17
04243.0000................... 31,33
04314.0001......... 29,33,37,41
04513.0000................... 31,39
04626.0000................... 15,17
04626.0001........................ 17
04636.1000........................ 17
04637.1000........................ 17
04752.0000................... 37,41
04831.0000........................ 13
04970.0000........................ 11
04974.0000.......................... 9
05000.0000................... 29,33
05005.0000..................... 7,11
05014.0000....................... 5,9
05016.0000............... 5,7,9,11
05017.0000............... 5,7,9,11
05023.0002.......................... 9
05023.1000.......................... 9
05025.1000.......................... 9
05025.1000........................ 11
05027.0002........................ 11
05027.1000........................ 11
05031.0000........................ 15
05032.1000........................ 13
05033.1000........................ 13
05036.1000........................ 13
05037.1000........................ 13
05038.0000........................ 13
05039.0000........................ 13
05067.0000........................ 15
05070.0000........................ 15
05078.0000........................ 13
05082.0000........................ 13
05084.0000........................ 13
05089.0000................... 29,33
05092.0000.......................... 7
05092.1000.......................... 7
05096.0000........................ 19
05101.0000.......................... 7
05102.0000.......................... 5
05103.1000....................... 5,7
05103.1001.......................... 5
05105.0000.......................... 5
05105.1002.......................... 5
05106.0000........................ 13
05106.0001........................ 13
05108.0000........................ 13
05110.1000........................ 13
05112.0000........................ 31
05112.0001........................ 31
05113.0000........................ 35
05116.0000........................ 31
05116.0001........................ 31
05117.0000........................ 35
05117.0002........................ 35
05118.0000........................ 31
05119.0000........................ 19
05177.0000........................ 37
05178.0000........................ 37
05186.0000........................ 39
05187.0000........................ 37
46
10785 011410
NUMERICAL INDEX
PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.
05194.0000.......................... 9
05212.0000................... 25,27
05515.0000........................ 17
05518.0000........................ 17
05533.0000........................ 17
05533.0002........................ 17
05553.0000........................ 17
05682.1000........................ 17
05683.1000........................ 17
05684.0000........................ 17
05717.0000........................ 25
06064.0000................... 31,39
06335.1004........................ 29
07038.0000......... 29,33,37,41
07073.1000......... 29,33,37,41
10007.0000........................ 25
10277.0000........................ 11
10278.0000.......................... 9
11440.0011........................ 25
12364.0000............... 5,7,9,11
12687.0000........................ 17
12688.0000........................ 17
12689.1000........................ 17
12915.0000........................ 23
12984.0004................... 29,33
13042.0001................... 25,27
13053.0000........................ 23
13054.0000........................ 23
13055.0000........................ 23
13056.0000........................ 23
13057.0000........................ 23
13058.0000........................ 23
13059.0000........................ 23
13060.0000........................ 23
13061.0000........................ 23
20201.4300........................ 19
20201.5600........................ 23
20211.0100........................ 17
20217.0000........................ 45
20217.0001........................ 45
20244.1000........................ 45
20244.1001........................ 45
20526.1195........................ 21
20528.1195........................ 21
20554.0001........................ 21
20583.0002........................ 45
20726.0000........................ 23
20747.0000........................ 23
20749.0000................... 29,33
20768.0000........................ 13
20771.0001................... 29,33
20942.1000........................ 13
21012.0062........................ 31
21012.0064........................ 31
21012.0066........................ 31
21012.0067........................ 31
21016.0007................... 31,35
21016.0011........................ 31
21016.0027........................ 31
21016.0028......... 31,35,39,43
21016.0029......... 31,35,39,43
21016.0122........................ 17
21016.0155................... 31,35
21180.0000................... 19,21
21181.0000................... 19,21
22249.0000................... 19,21
22293.0000................... 19,21
22351.1000..................... 7,11
22354.0000................... 35,43
22356.0000........................ 31
22357.1002........................ 11
22357.1003.......................... 9
22358.1000....................... 5,9
22358.1001.......................... 5
22358.1002.......................... 9
22360.0000........................ 35
22360.0002........................ 35
22362.0000................... 31,35
22399.0000........................ 31
22428.1000........................ 11
22430.0000........................ 43
22430.0002........................ 43
22456.0000........................ 23
22476.0000........................ 39
23379.0001........................ 45
23721.0000................... 19,21
23820.1000................... 19,21
24684.0000........................ 15
27657.0000........................ 37
28479.0000................... 19,21
28480.0000................... 19,21
28481.0000................... 19,21
28554.0000........................ 45
29329.1000................... 15,17
29351.0000........................ 45
32400.0000................... 37,41
32400.0001................... 37,41
32423.0000........................ 11
32424.0000.......................... 7
32530.0001................... 37,41
32540.0000..................... 9,11
32964.0000........................ 45
33090.0000........................ 45
34902.0003........................ 43
34950.0001........................ 39
37881.0000.......... 5,7,9,11,25
38894.0001......... 29,33,37,41
38920.0000......... 31,35,39,43
47
10785 062310
Loading...
