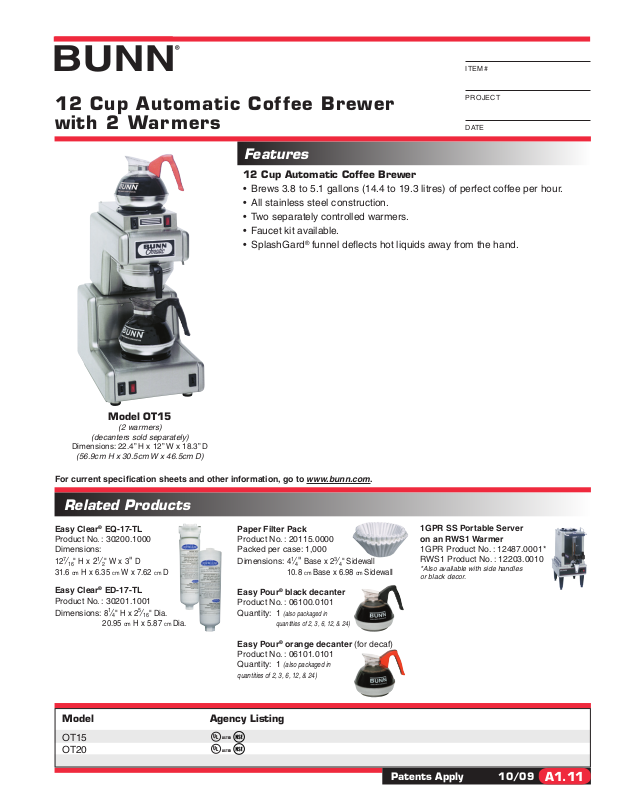

Bunn-O-Matic OT15 General Manual
ITE M#
12 Cup Automatic Coffee Brewer
with 2 Warmers
Features
12 Cup Automatic Coffee Brewer
• Brews 3.8 to 5.1 gallons (14.4 to 19.3 litres) of perfect coffee per hour.
• All stainless steel construction.
• Two separately controlled warmers.
• Faucet kit available.
• SplashGard® funnel deflects hot liquids away from the hand.
PROJECT
DATE
Model OT15
(2 warmers)
(decanters sold separately)
Dimensions: 22.4” H x 12” W x 18.3” D
(56.9cm H x 30.5cm W x 46.5cm D)
For current specification sheets and other information, go to www.bunn.com.
Related Products
Easy Clear® EQ-17-TL
Product No. : 30200.1000
Dimensions:
12
7
⁄
" H x 2
16
1
⁄
" W x 3" D
2
31.6 cm H x 6.35 cm W x 7.62 cm D
Easy Clear® ED-17-TL
Product No. : 30201.1001
Dimensions:
1
8
⁄
" H x 2
4
5
⁄
16
" Dia.
20.95 cm H x 5.87 cm Dia.
Paper Filter Pack
Product No. : 20115.0000
Packed per case: 1,000
Dimensions:
⁄4" Base x 23⁄
" Sidewall
4
1
4
10.8 cm Base x 6.98 cm Sidewall
Easy Pour® black decanter
Product No. : 06100.0101
Quantity: 1
quantities of 2, 3, 6, 12, & 24)
(also packaged in
Easy Pour® orange decanter (for decaf)
Product No. : 06101.0101
Quantity: 1
quantities of 2, 3, 6, 12, & 24)
(also packaged in
1GPR SS Portable Server
on an RWS1 Warmer
1GPR Product No. : 12487.0001*
RWS1 Product No. : 12203.0010
*Also available with side handles
or black decor.
Model Agency Listing
U
L
OT15
OT20
LISTED
U
L
LISTED
Patents Apply
10/09
A1.11
Dimensions & Specifications
1.58
8.84
12.0
22.4
8.0
5.0
2.4
14.00
18.25
WATER SUPPLY
CONNECTION
(.250 OD TUBE
X 45˚ FLARE)
POWER CORD
6.8
2.8
2.1
(1.25 MAX FOR
LEVELING MACHINE)
1.0
Model Product # Volts Amps Tank Heater Total Brewing Cu. Shipping Cord
Watts Watts Capacity Ft. Weight Attached
OT 15 20830.0000 120 13 1320 1570 3.8 gal./hr. 4.9 34 lbs. Yes*
OT 20 20830.0001 120 17 1800 2090 5.1 gal./hr. 4.9 33 lbs. No
Brewing capacity: based upon incoming water temp of 60ºF (140ºF rise) per 1/2 gallon brew time of 4 minutes.
*Power cord (NEMA 5-15P) 15 Amp-120V machine only.
Electrical: OT 15 requires 2-wires plus ground service rated 120V, single phase, 60Hz.
OT 20 requires 2-wires plus ground service rated 120V, single phase, 60Hz.
Plumbing: 20-90 psi (138-621 kPa). Supplied with 1⁄4" OD male flare fitting.
Bunn-O-Matic® Corporation - 1400 Stevenson Drive Springfield, Illinois 62703 • 800-637-8606 • 217-529-6601 • Fax 217-529-6644 • www.bunn.com
BUNN® practices continuous product research and improvement. We reserve the right to change specifications and product design without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
All dimensions shown in inches.
