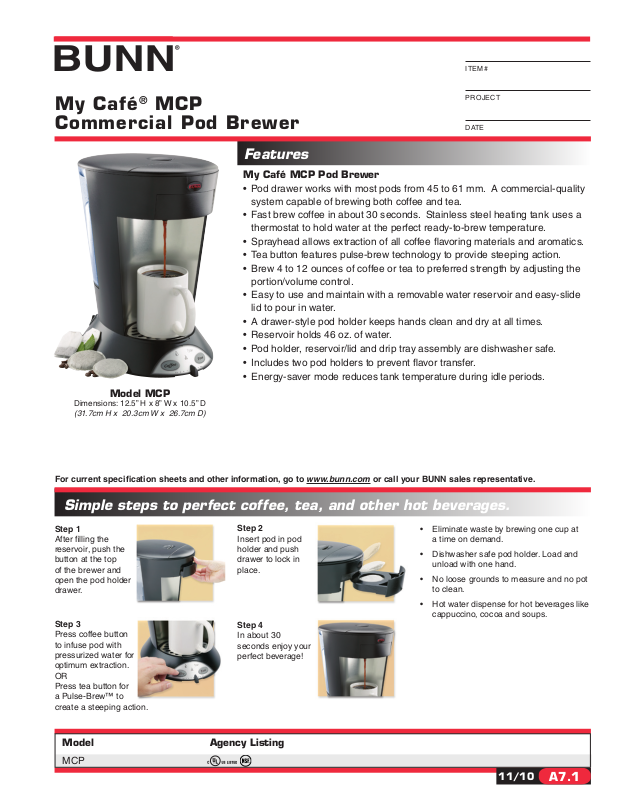

Bunn-O-Matic MCP General Manual

ITE M#

My Café® MCP
Commercial Pod Brewer

Features

My Café MCP Pod Brewer

• Pod drawer works with most pods from 45 to 61 mm. A commercial-quality
system capable of brewing both coffee and tea.

• Fast brew coffee in about 30 seconds. Stainless steel heating tank uses a
thermostat to hold water at the perfect ready-to-brew temperature.

• Sprayhead allows extraction of all coffee flavoring materials and aromatics.

• Tea button features pulse-brew technology to provide steeping action.

• Brew 4 to 12 ounces of coffee or tea to preferred strength by adjusting the
portion/volume control.

• Easy to use and maintain with a removable water reservoir and easy-slide
lid to pour in water.

• A drawer-style pod holder keeps hands clean and dry at all times.

• Reservoir holds 46 oz. of water.

• Pod holder, reservoir/lid and drip tray assembly are dishwasher safe.

• Includes two pod holders to prevent flavor transfer.

• Energy-saver mode reduces tank temperature during idle periods.

Model MCP

Dimensions: 12.5” H x 8” W x 10.5” D

(31.7cm H x 20.3cm W x 26.7cm D)

PROJECT

DATE

For current specification sheets and other information, go to www.bunn.com or call your BUNN sales representative.

Simple steps to perfect coffee, tea, and other hot beverages.

Step 1

After filling the
reservoir, push the
button at the top
of the brewer and
open the pod holder
drawer.

Step 3

Press coffee button
to infuse pod with
pressurized water for
optimum extraction.
OR
Press tea button for
a Pulse-Brew™ to
create a steeping action.

Step 2

Insert pod in pod
holder and push
drawer to lock in
place.

Step 4

In about 30
seconds enjoy your
perfect beverage!

Model Agency Listing

MCP

• Eliminate waste by brewing one cup at
a time on demand.

• Dishwasher safe pod holder. Load and
unload with one hand.

• No loose grounds to measure and no pot
to clean.

• Hot water dispense for hot beverages like
cappuccino, cocoa and soups.

11/10

A7.1

Dimensions & Specifications

Model Product # Volts Amps Tank Heater Total Brewing Cu. Shipping Cord
Watts Watts Capacity Ft. Weight Attached

MCP 35400.0003 120 12 1300-1450 1440 60, 8 oz. cups/hr. 1.36 9.75 lbs. Yes*
MCP† 35400.0004 120 12 1300-1450 1440 60, 8 oz. cups/hr. 1.36 9.75 lbs. Yes*

†

High altitude model (4000 ft and above) *Power cord (NEMA 5-15P) 15 Amp-120V machine only.

Brewing capacity: based upon incoming water temp of 60ºF/15˚C (140ºF/60˚C rise).

Electrical: Model requires 2-wires plus ground service rated 120V, single phase, 60Hz.

Plumbing: No plumbing needed.

7.98

12.47

10.48

7.50

6.80

7.78

Bunn-O-Matic® Corporation - 1400 Stevenson Drive Springfield, Illinois 62703 • 800-637-8606 • 217-529-6601 • Fax [phone] • www.bunn.com

BUNN® practices continuous product research and improvement. We reserve the right to change specifications and product design without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.

All dimensions shown in inches.

10.29

11/10 © Bunn-O-Matic Corporation
