Bunn-O-Matic MCAA General Manual

INTERNATIONAL

ITE M#

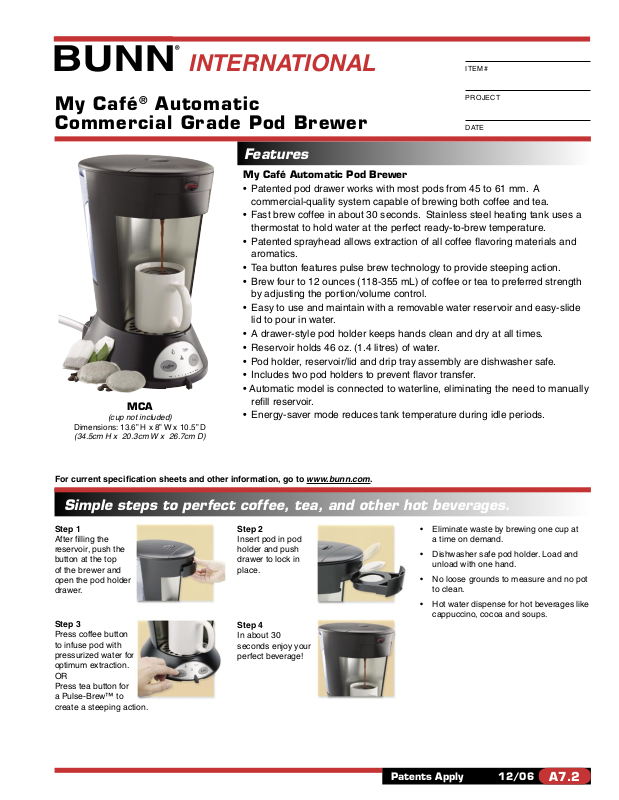

My Café® Automatic
Commercial Grade Pod Brewer

Features

My Café Automatic Pod Brewer

• Patented pod drawer works with most pods from 45 to 61 mm. A
commercial-quality system capable of brewing both coffee and tea.

• Fast brew coffee in about 30 seconds. Stainless steel heating tank uses a
thermostat to hold water at the perfect ready-to-brew temperature.

• Patented sprayhead allows extraction of all coffee flavoring materials and
aromatics.

• Tea button features pulse brew technology to provide steeping action.

• Brew four to 12 ounces (118-355 mL) of coffee or tea to preferred strength
by adjusting the portion/volume control.

• Easy to use and maintain with a removable water reservoir and easy-slide
lid to pour in water.

• A drawer-style pod holder keeps hands clean and dry at all times.

• Reservoir holds 46 oz. (1.4 litres) of water.

• Pod holder, reservoir/lid and drip tray assembly are dishwasher safe.

• Includes two pod holders to prevent flavor transfer.

• Automatic model is connected to waterline, eliminating the need to manually

MCA

(cup not included)

Dimensions: 13.6” H x 8” W x 10.5” D

(34.5cm H x 20.3cm W x 26.7cm D)

refill reservoir.

• Energy-saver mode reduces tank temperature during idle periods.

PROJECT

DATE

For current specification sheets and other information, go to www.bunn.com.

Simple steps to perfect coffee, tea, and other hot beverages.

Step 1
After filling the
reservoir, push the
button at the top
of the brewer and
open the pod holder
drawer.

Step 3
Press coffee button
to infuse pod with
pressurized water for
optimum extraction.
OR
Press tea button for
a Pulse-Brew™ to
create a steeping action.

Step 2
Insert pod in pod
holder and push
drawer to lock in
place.

Step 4

In about 30
seconds enjoy your
perfect beverage!

• Eliminate waste by brewing one cup at
a time on demand.

• Dishwasher safe pod holder. Load and
unload with one hand.

• No loose grounds to measure and no pot
to clean.

• Hot water dispense for hot beverages like
cappuccino, cocoa and soups.

Patents Apply

12/06

A7.2

Dimensions & Specifications

Model Product # Volts Amps Tank Heater Total Brewing Shipping Cord Agency
Watts Watts Capacity Weight Attached

MCAA 35400.0016 230 6 1300 1330 60, 8 oz. cups/hr. 11.35 lbs. Yes
60, 237mL cups/hr. (5.1 kg) UK Plug
MCAA 35400.0017 230 6 1300 1330 60, 8 oz. cups/hr. 11.35 lbs. Yes
60, 237mL cups/hr. (5.1 kg) Europe Plug
MCAA 35400.0019 220-230 6 1300 1330 60, 8 oz. cups/hr. 11.35 lbs. Yes
60, 237mL cups/hr. (5.1 kg) Korea Plug

Brewing capacity: based upon incoming water temp of 60ºF (140ºF rise).

Electrical: 230 volt models require 2-wires plus ground service rated 220-240V, single phase, 50/60Hz.
220 volt model requires 2-wires plus ground service rated 220-240V, single phase, 50/60Hz.

Plumbing: Machine supplied with strainer that has a

1

/4” male flare fitting.

Bunn-O-Matic® Corporation - 1400 Stevenson Drive Springfield, Illinois 62703 • USA • [phone] • Fax [phone] • www.bunn.com

BUNN® practices continuous product research and improvement. We reserve the right to change specifications and product design without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.

All dimensions shown in centimeters. Bunn-O-Matic Corporation owns all copyrights relating to materials in this publication. Please contact BUNN to request permission to reproduce any portion of this publication.
